Article-No.:
71197

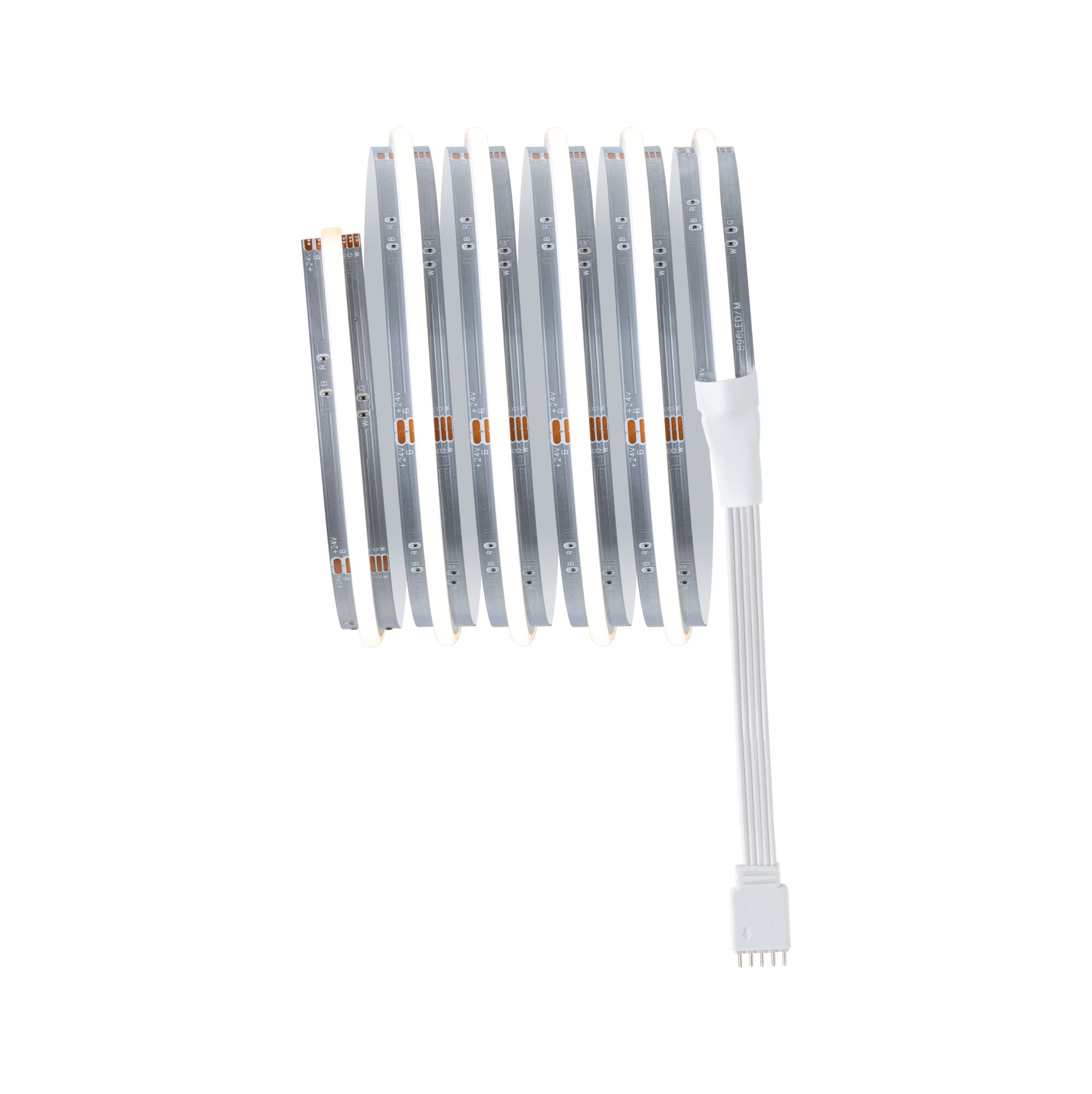

MaxLED 500LED Strip
Basic set 1,5m RGBW
10W 530lm/m RGBW+ 24VA
10W 530lm/m RGBW+ 24VA

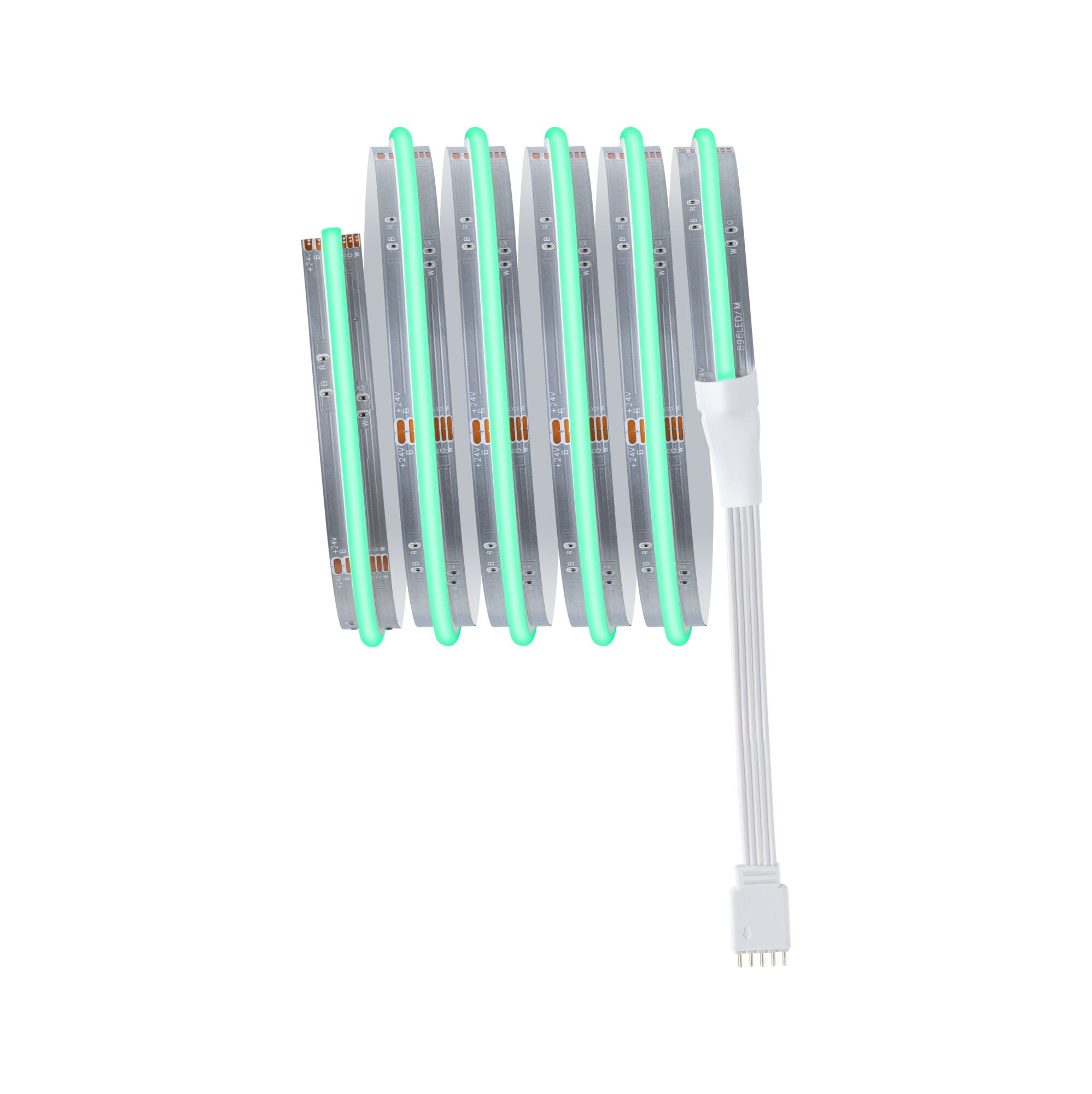

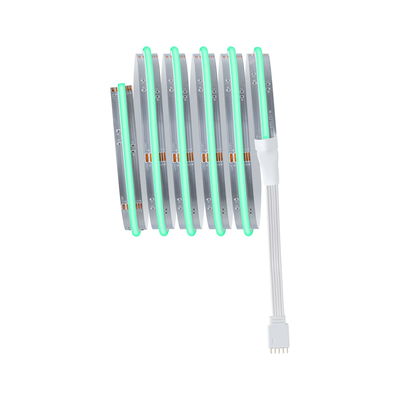

- RGBW offers a fluid colour selection, plus the tunable white function
- Complete set incl. strip and power supply
- Can be shortened as required

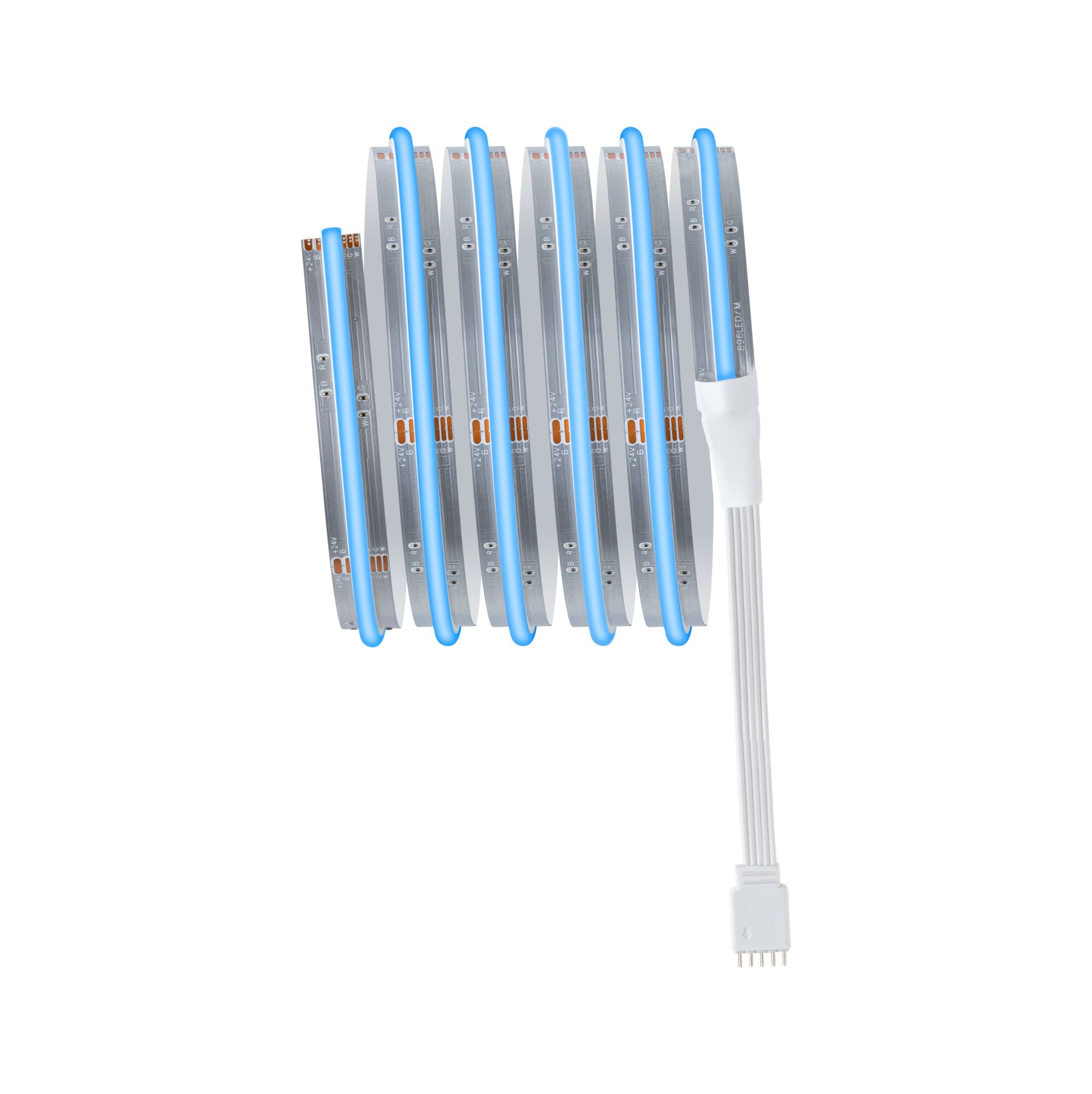

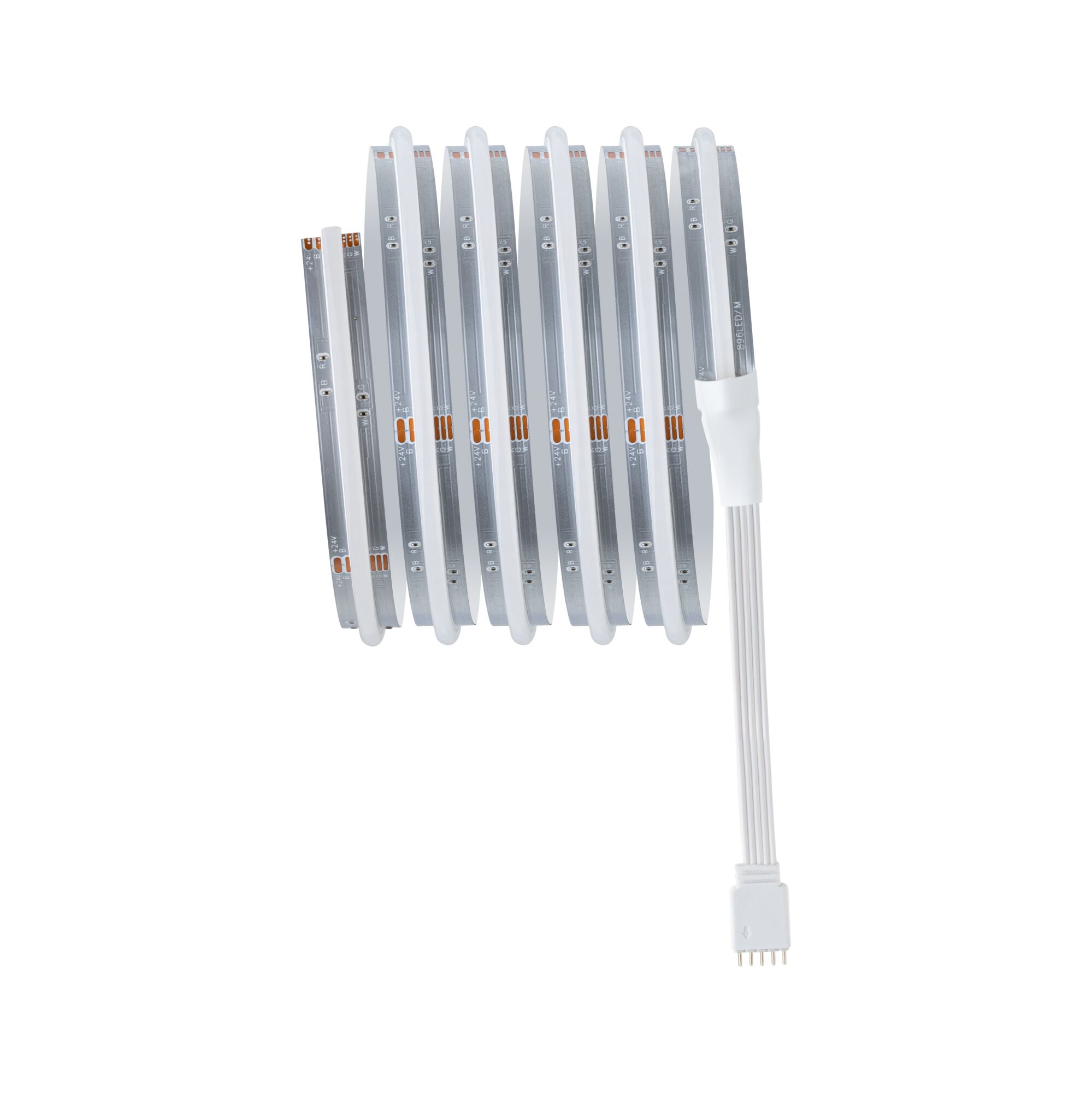

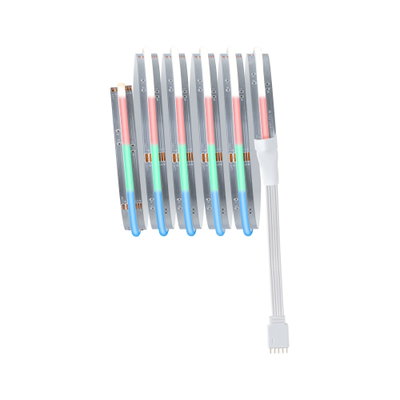

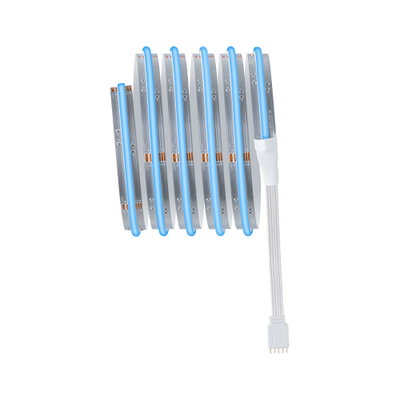

MaxLED 500 LED Strip Basic set COB 1,5m RGBW 10W 530lm/m RGBW+ 24VA

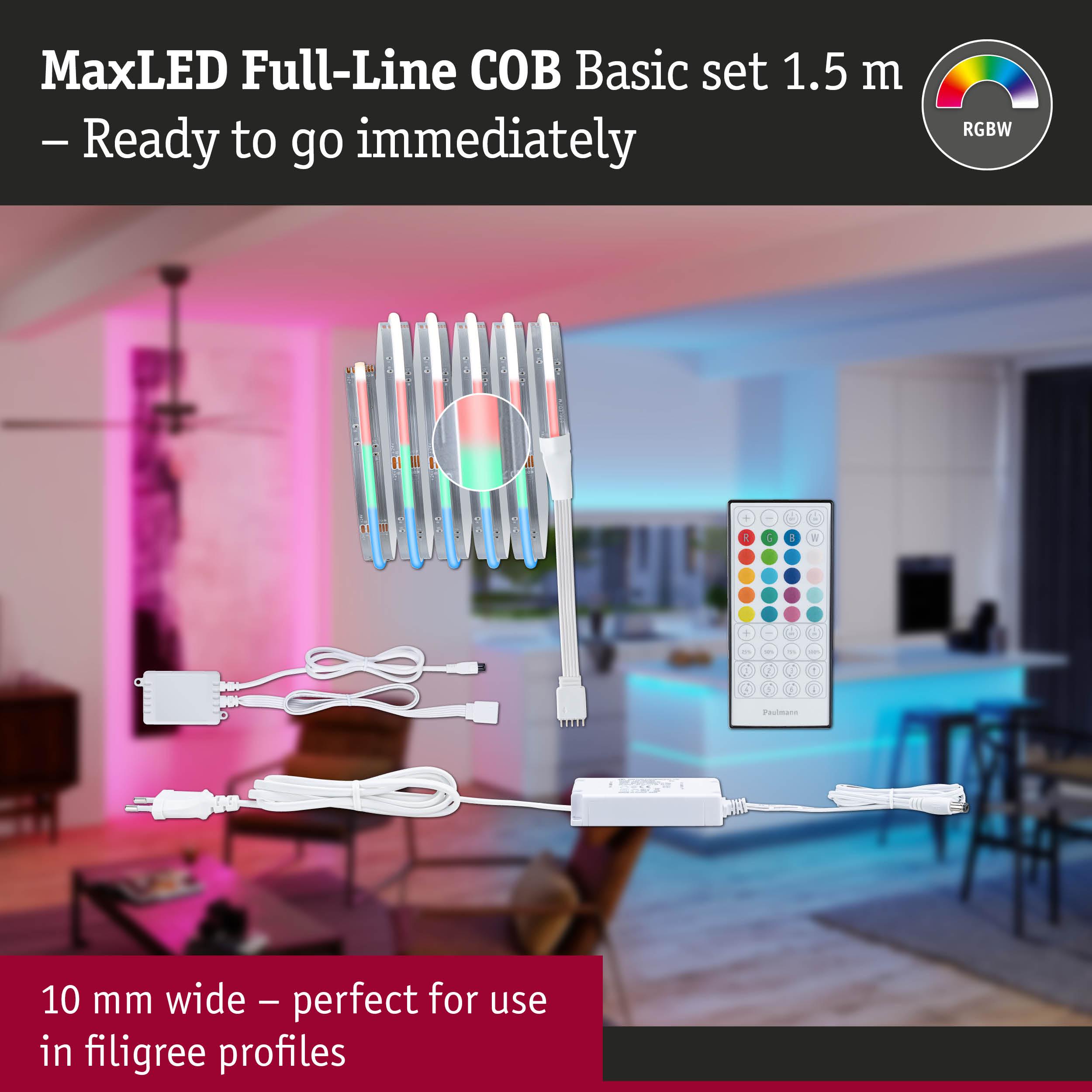

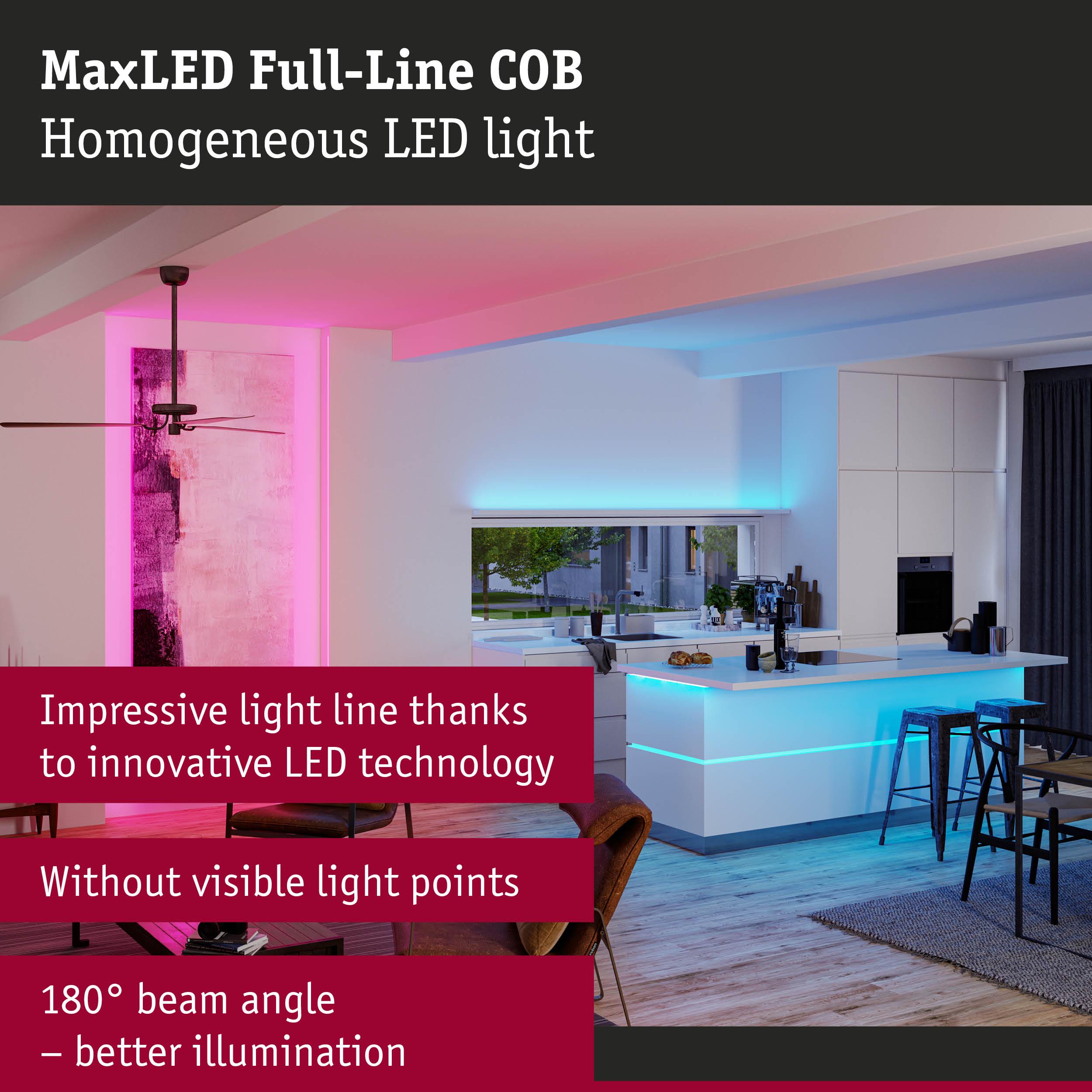

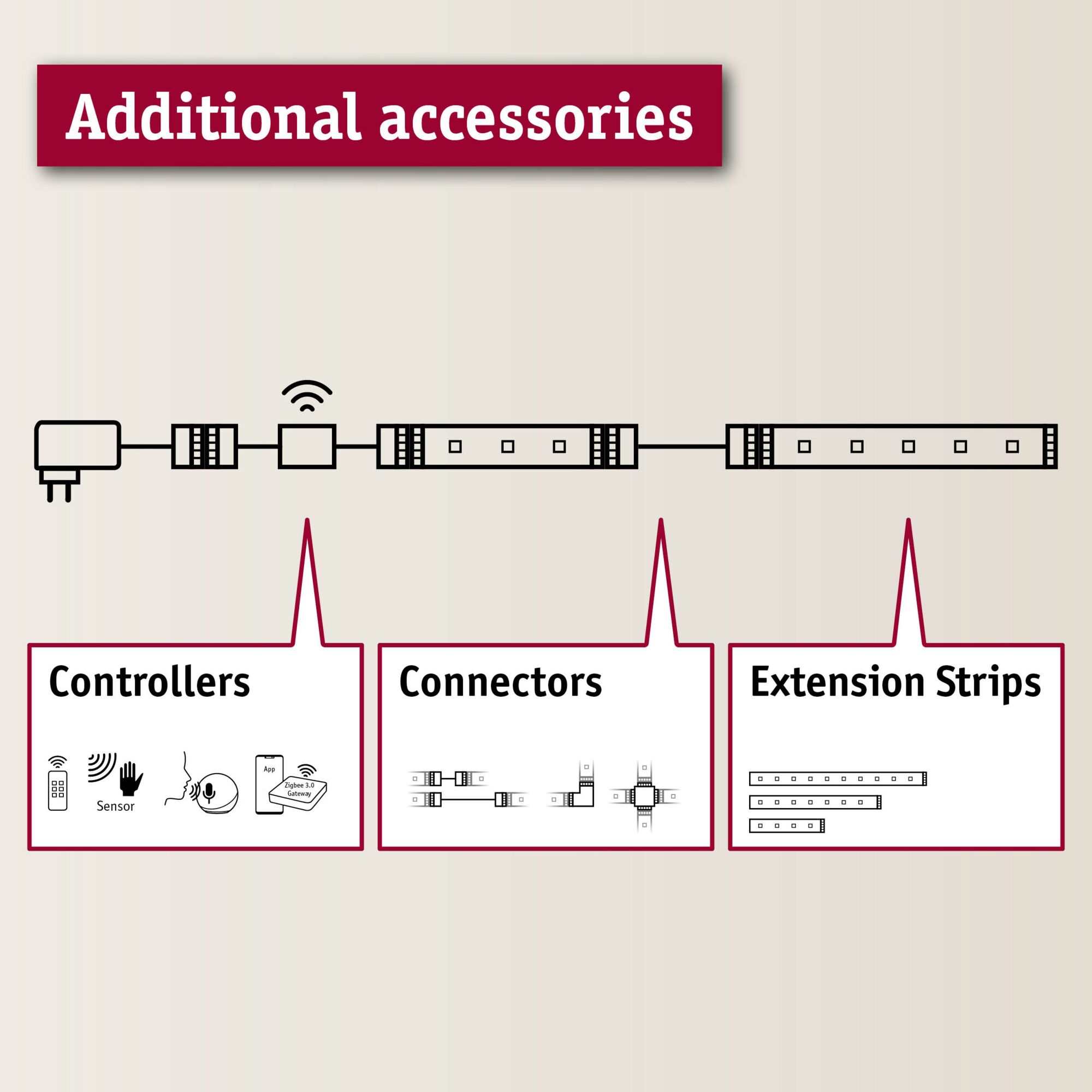

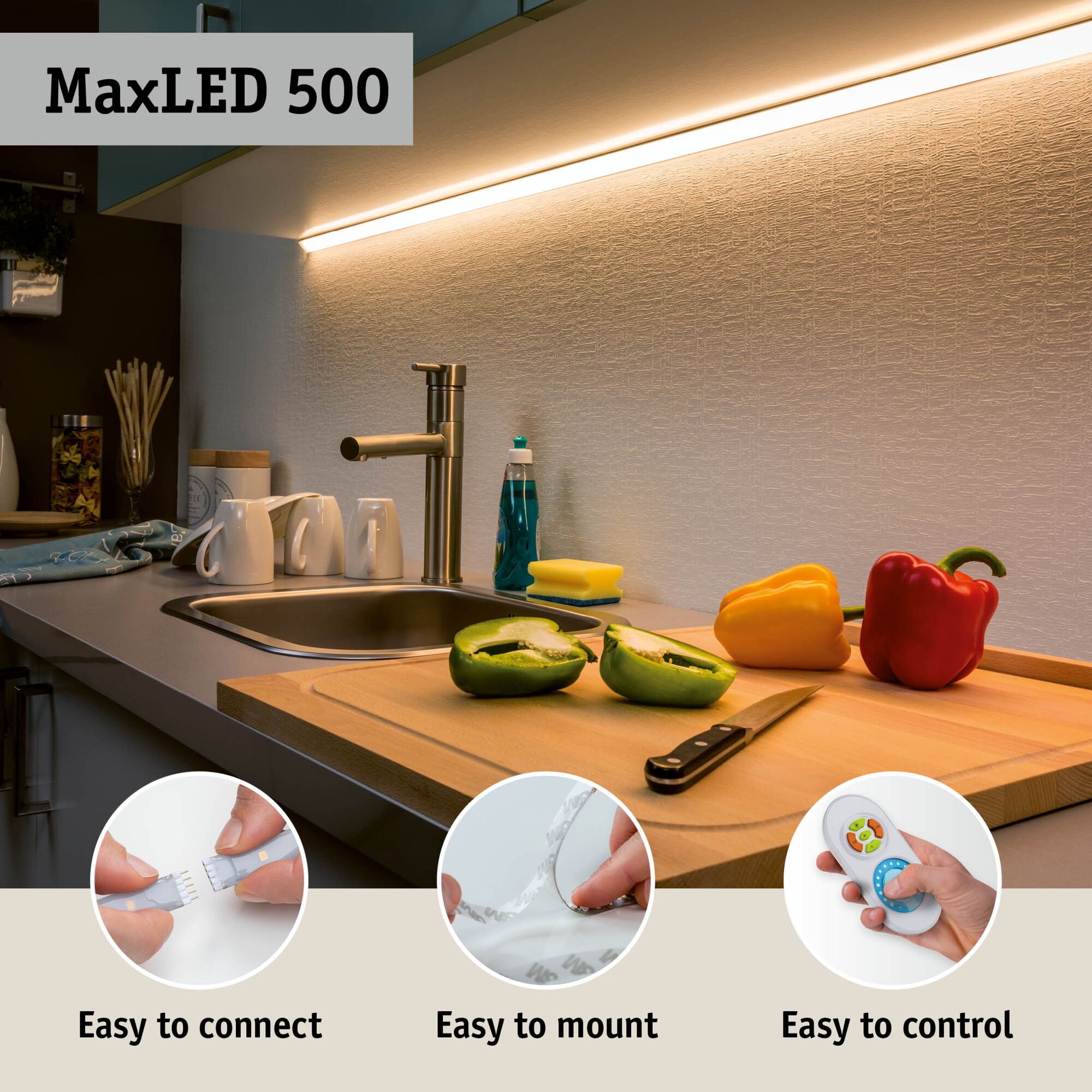

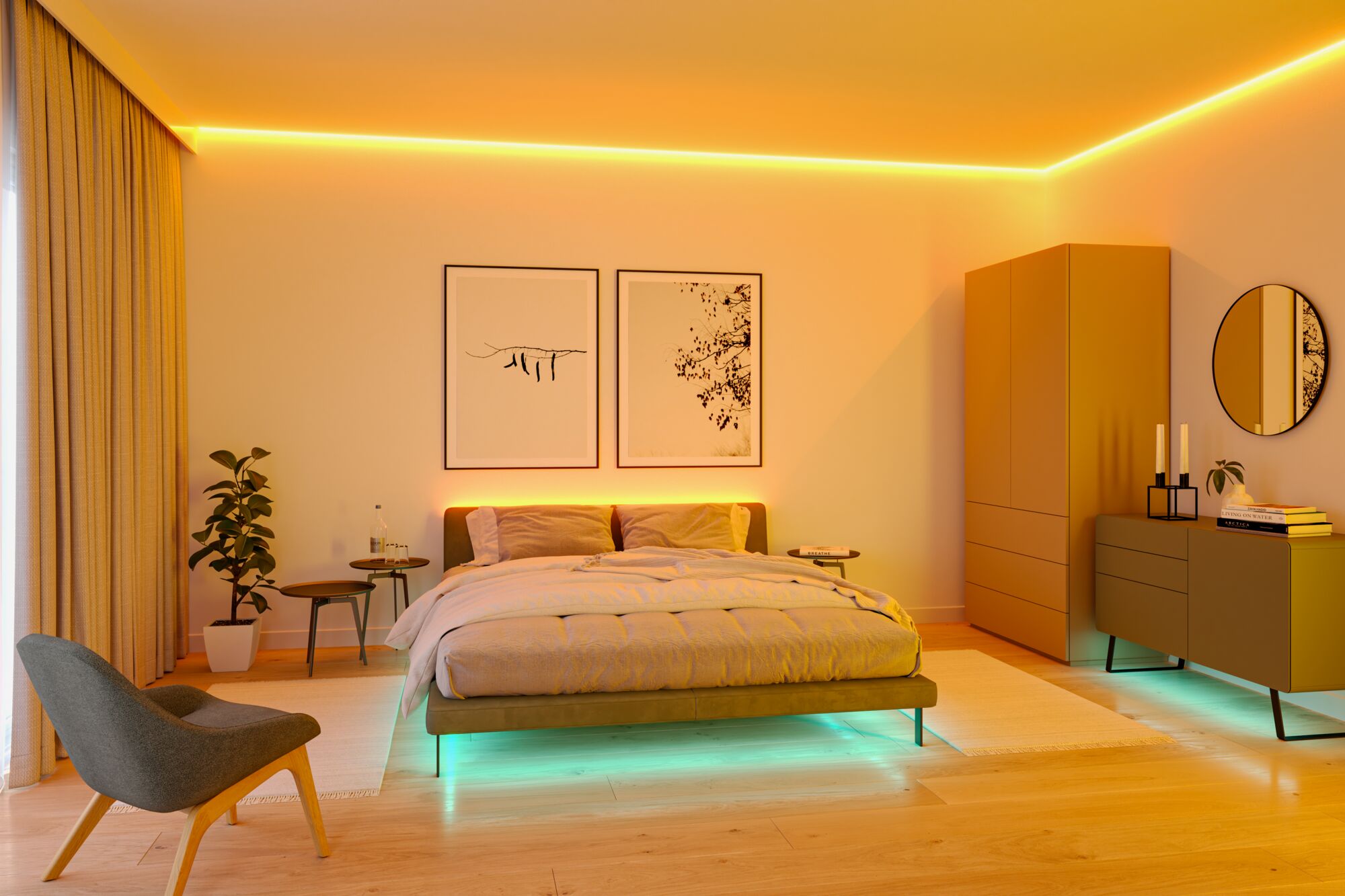

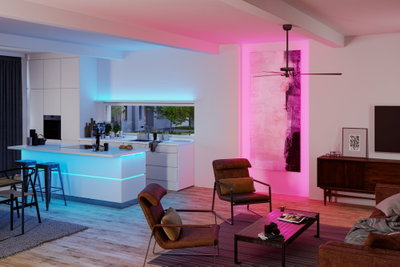

This MaxLED 500 full-line COB basic set offers all the components for impressive lighting. In addition to the strip with a length of 1,5m, it contains a suitable ballast. The basic set can be expanded as required with additional strips, connectors and control units with remote control. When planning, the maximum length given below must not be exceeded. With RGBW technology, you can choose from flowing colour tones and also use the Tunable White function. This creates the right atmosphere, whether it's relaxing warm white or lively and colourful.
- RGBW offers a fluid colour selection, plus the tunable white function

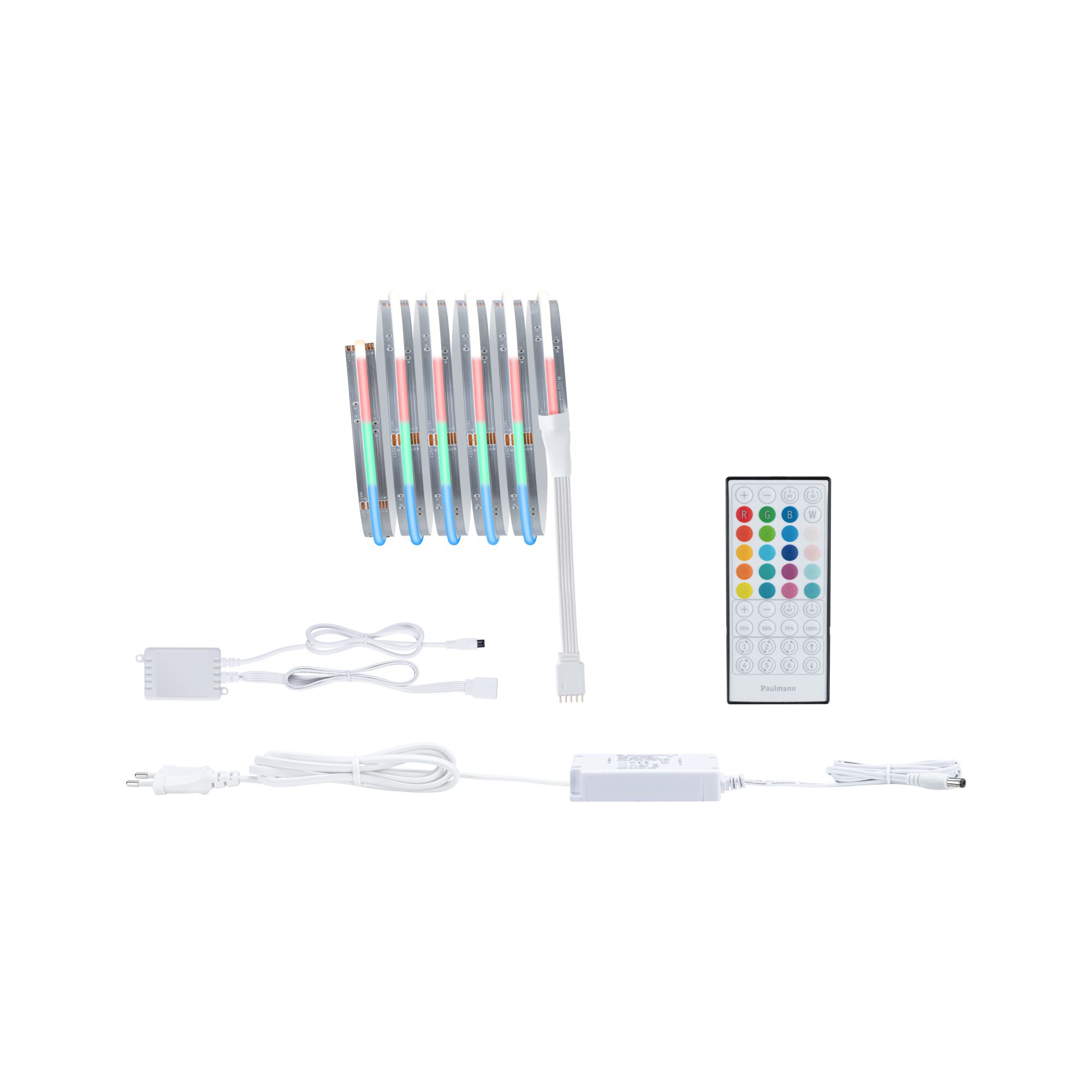

- Complete set incl. strip and power supply

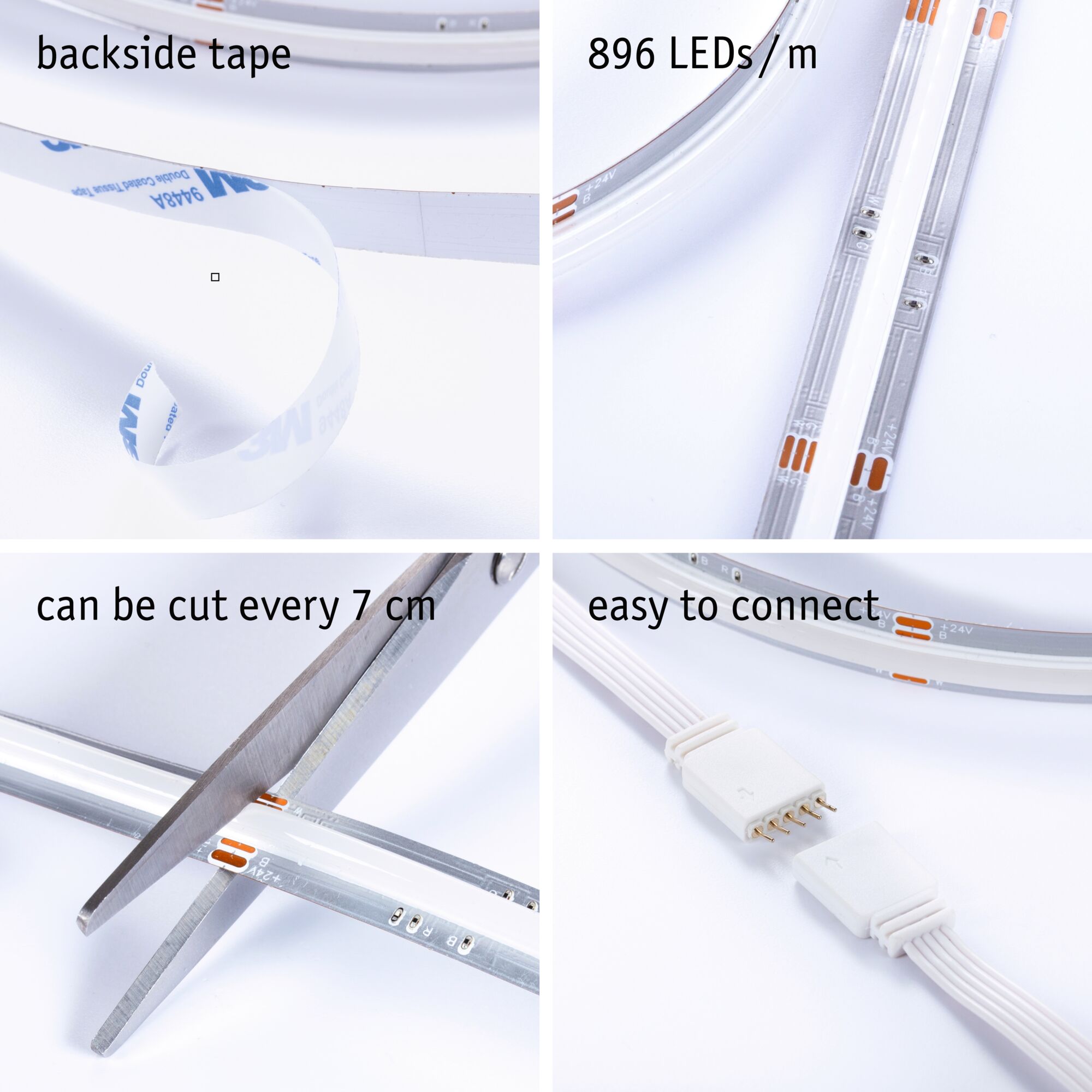

- Can be shortened as required

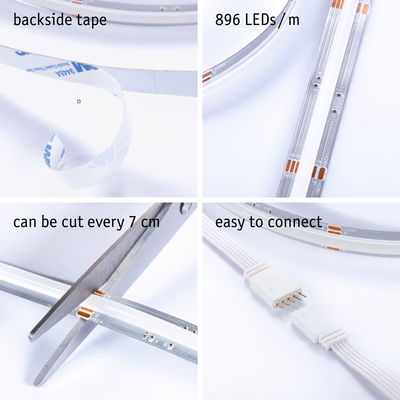

- Rear self-adhesive for simple installation
- Flexible material for installation on flat or arched base surfaces
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 4,5 x B: 12 mm |
| Length | 1,5 m |

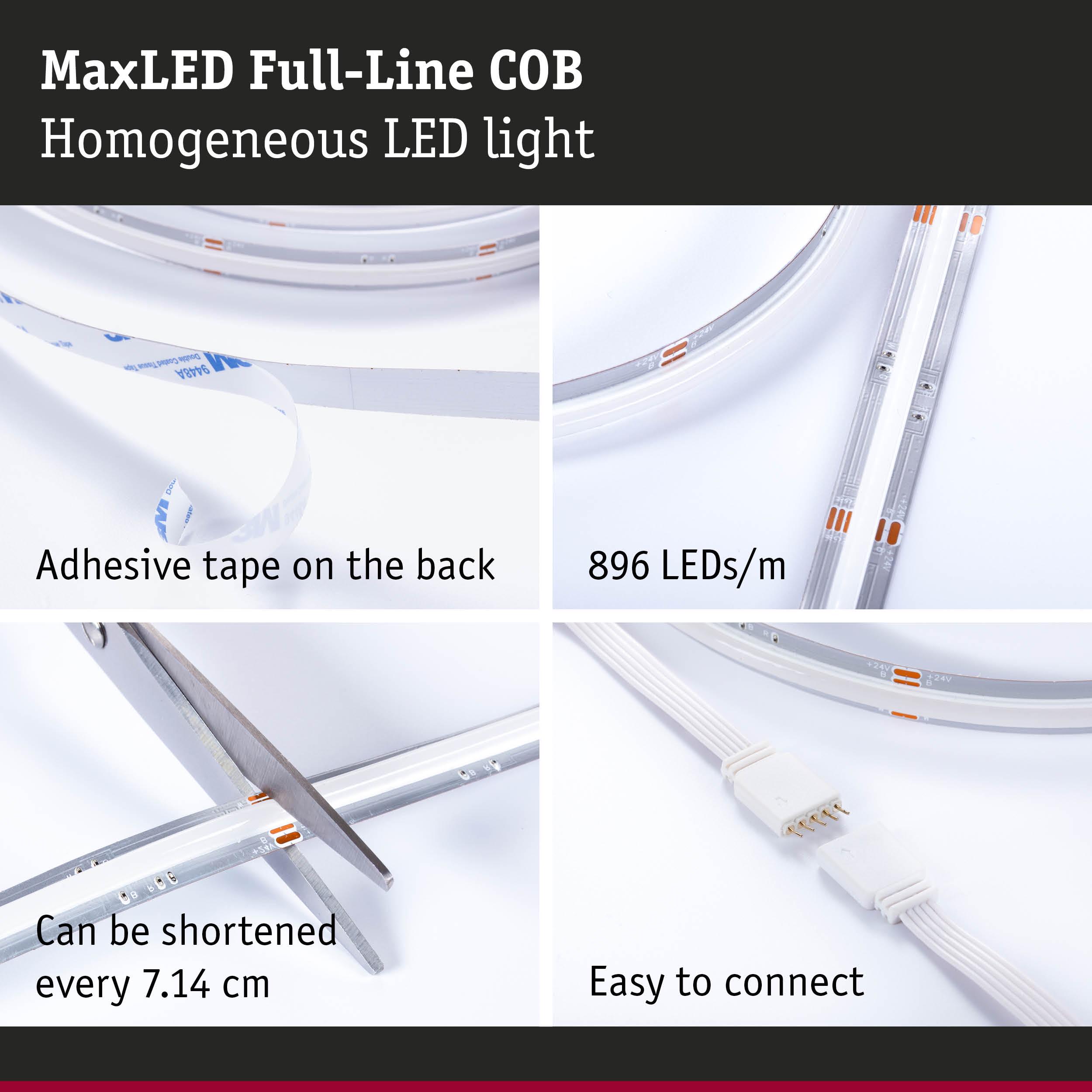

| Shortenability Strips | 71.4 mm |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Metal, Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 20000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 3000 K |
| Nominal luminous flux | 795 lm |
| Luminous flux LED module | 795 lm |
| Color rendering index | > 80 Ra |

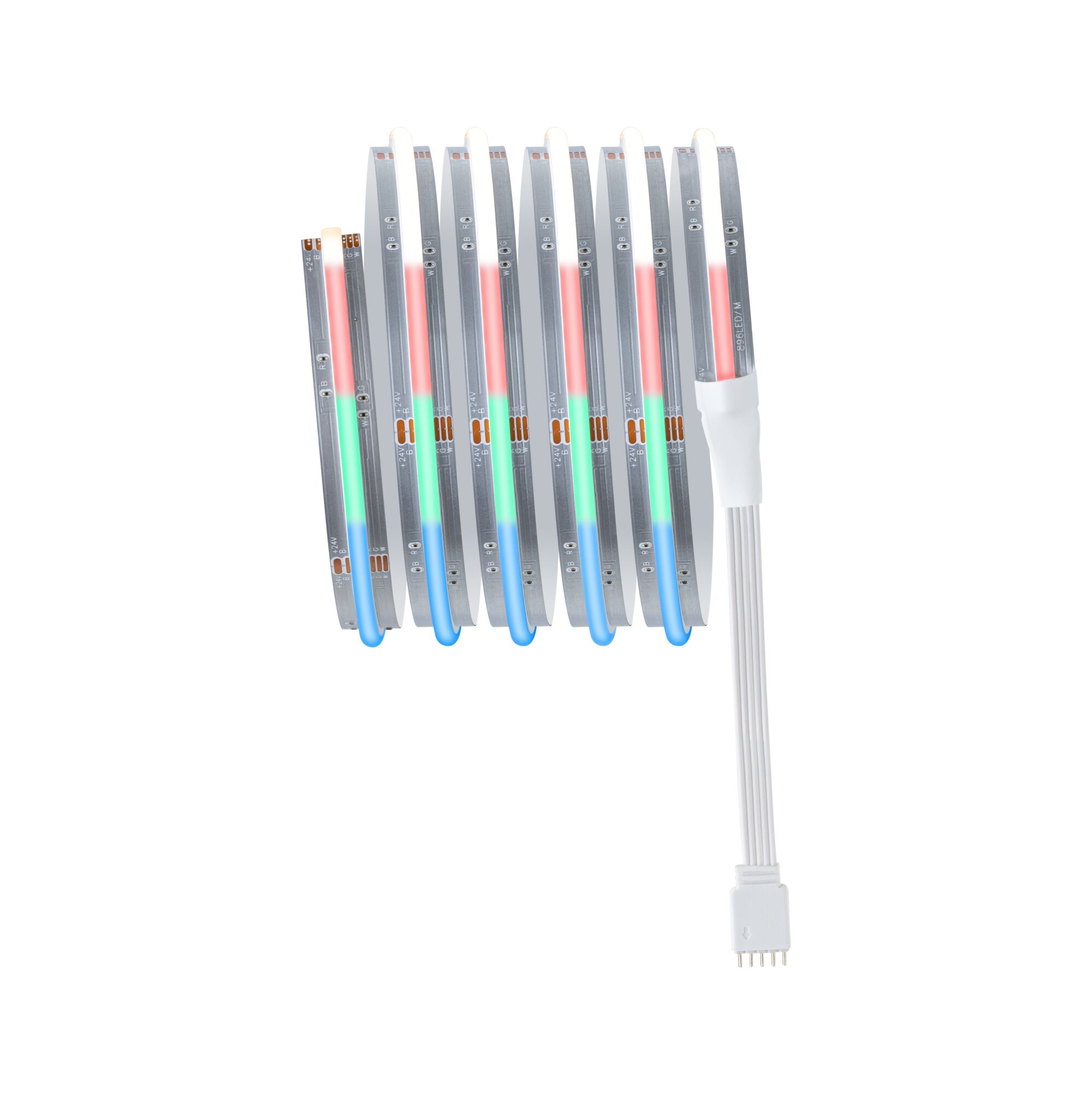

| Colour change | coloured light with Tunable White function (RGBW), Tunable White |
| Lumens per metre | 530 lm/m |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with remote control |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 10 W |
| Number of component parts | 1x |
| Number of LED's per meter | 896 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 12 W |
| Adjustability | fixed |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|

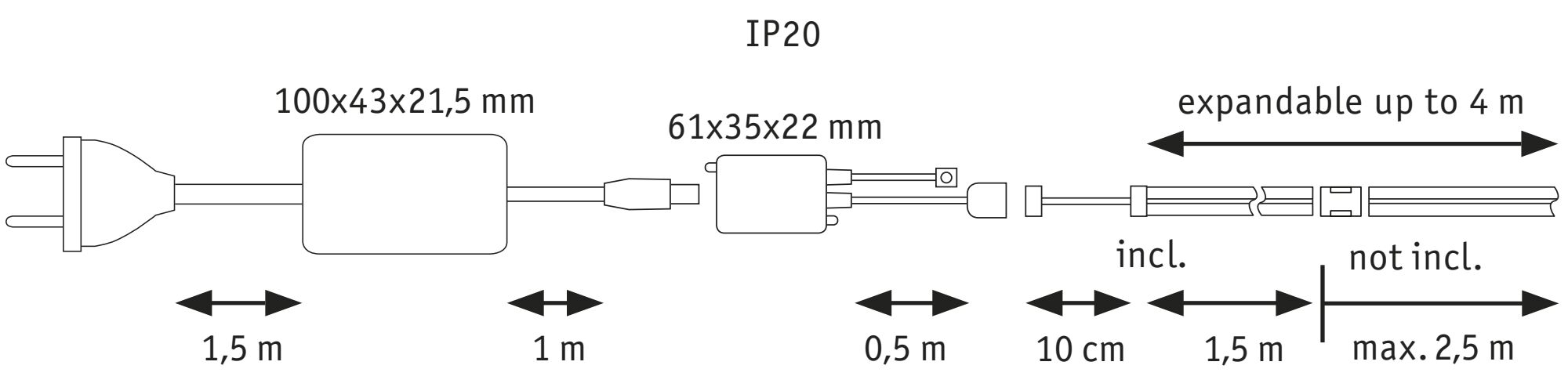

| apparent power | 21 VA |
| Transformer power range | 24 VA |
| Transformer height | 100 mm |
| Transformer width | 43 mm |
| Transformer depth | 21,5 mm |
| Accessories | |
|---|---|
| Radio control included | yes |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
