Article-No.:
71231
MaxLED 500
LED Strip
Basic set 3m warmwhite
11W 550lm/m 2700K 30VA
11W 550lm/m 2700K 30VA
- The high-efficiency LED strip consumes 40% less energy at the same light output
- Colour temperature: 2700K - Warm white

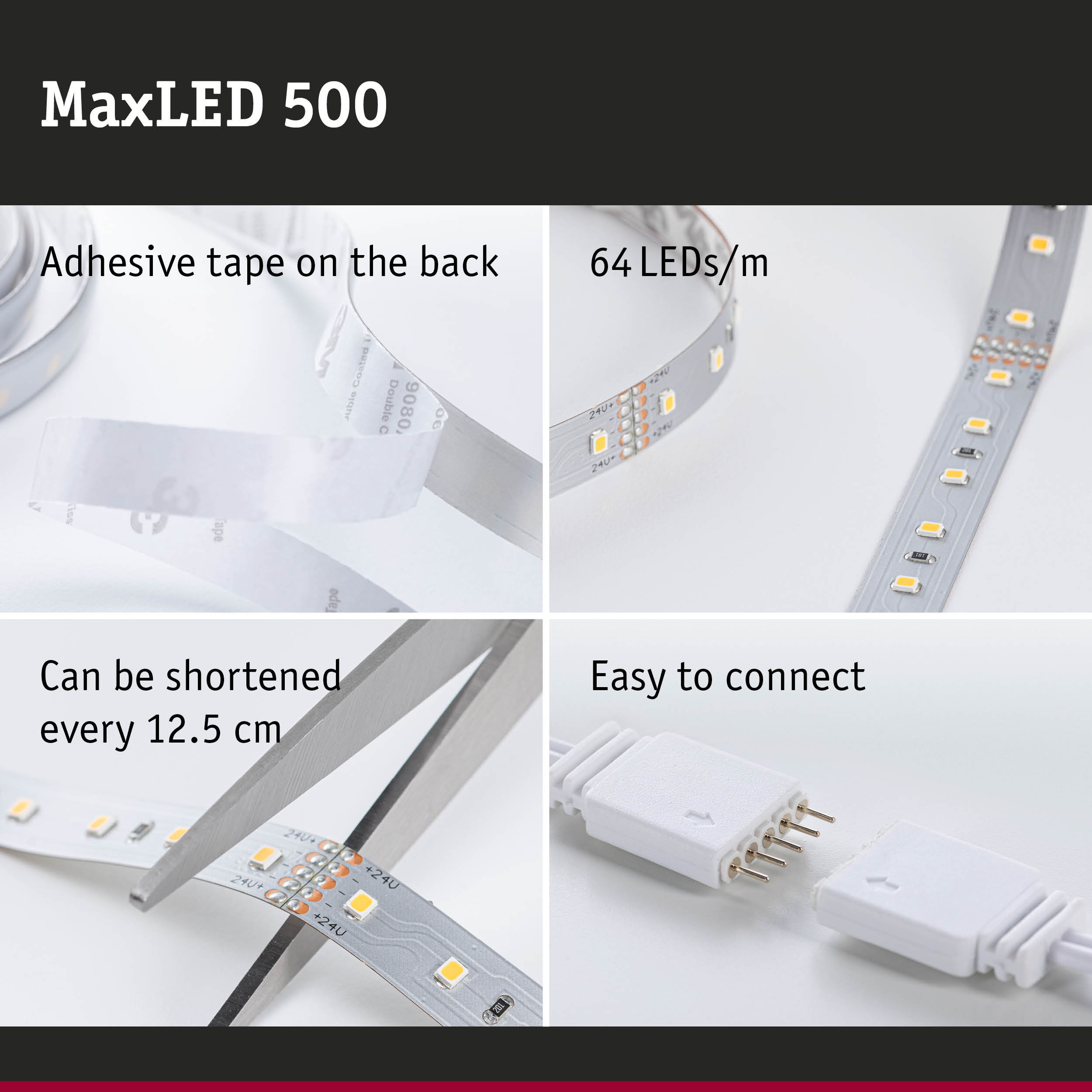

- Can be shortened as required
MaxLED 500 LED Strip Basic set 3m warmwhite 11W 550lm/m 2700K 30VA
The warm white MaxLED 500 starter kit is the ideal choice for a modern and energy-efficient lighting solution. The strip is ideal for use in profiles and, with a colour temperature of 2700K, provides a cozy and glare-free work light. To create the desired lighting atmosphere at any time, the brightness can be flexibly dimmed. The strip can be easily cut to size with scissors, making it simple to adapt to individual room conditions. Since the strip can be easily mounted on furniture, shelves, or walls, it opens up a wide range of design options. In addition to the strip, the starter kit includes a matching ballast. It can be expanded as needed to include a control unit with a remote control.
- The high-efficiency LED strip consumes 40% less energy at the same light output
- Colour temperature: 2700K - Warm white
- Can be shortened as required
- Rear self-adhesive for simple installation
- Dimmable with MaxLED dim/switch controller
- Individual design options
- Simple plug-in system for easy installation

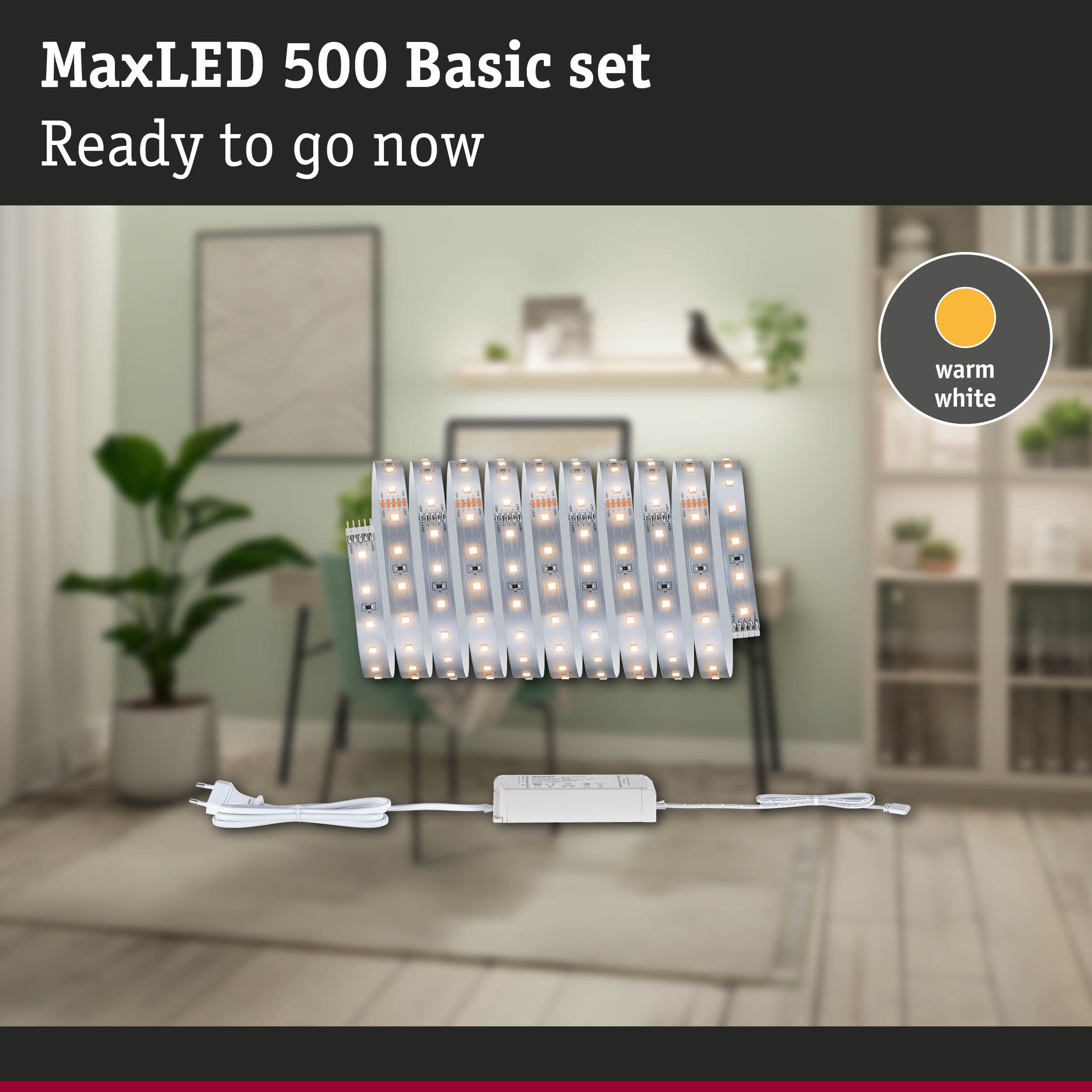

- Complete set incl. strip and power supply
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 1,5 x B: 12,5 mm |
| Length | 3 m |
| Shortenability Strips | 125 mm |
| Net weight | 275 g |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Metal, Plastic |
| Installation | |
|---|---|
| Mounting location | universal |
| Length max. | 8 m |
| Connections | |
|---|---|
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | D |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Dimming Control | with optional system components |
| Inclusive lamp | yes |
| Component parts | 11 W |
| light source property | Light source integrated (non-replacable) |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | Yes |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Number of LED's per meter | 64 |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 13 W |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 30 VA |
| Transformer height | 30 mm |
| Transformer width | 43 mm |
| Transformer depth | 140 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 1650 lm |
| Color rendering index | > 80 Ra |
| Lumens per metre | 550 lm/m |
| Colour temperature | Warm white, 2700 K |
| Luminous flux LED module | 1650 lm |
| Rechargeable battery / battery data | |
|---|---|
| Dimensions (Height x Width x Depth) | 1,5 x 12,5 mm |
