Article-No.:
71229

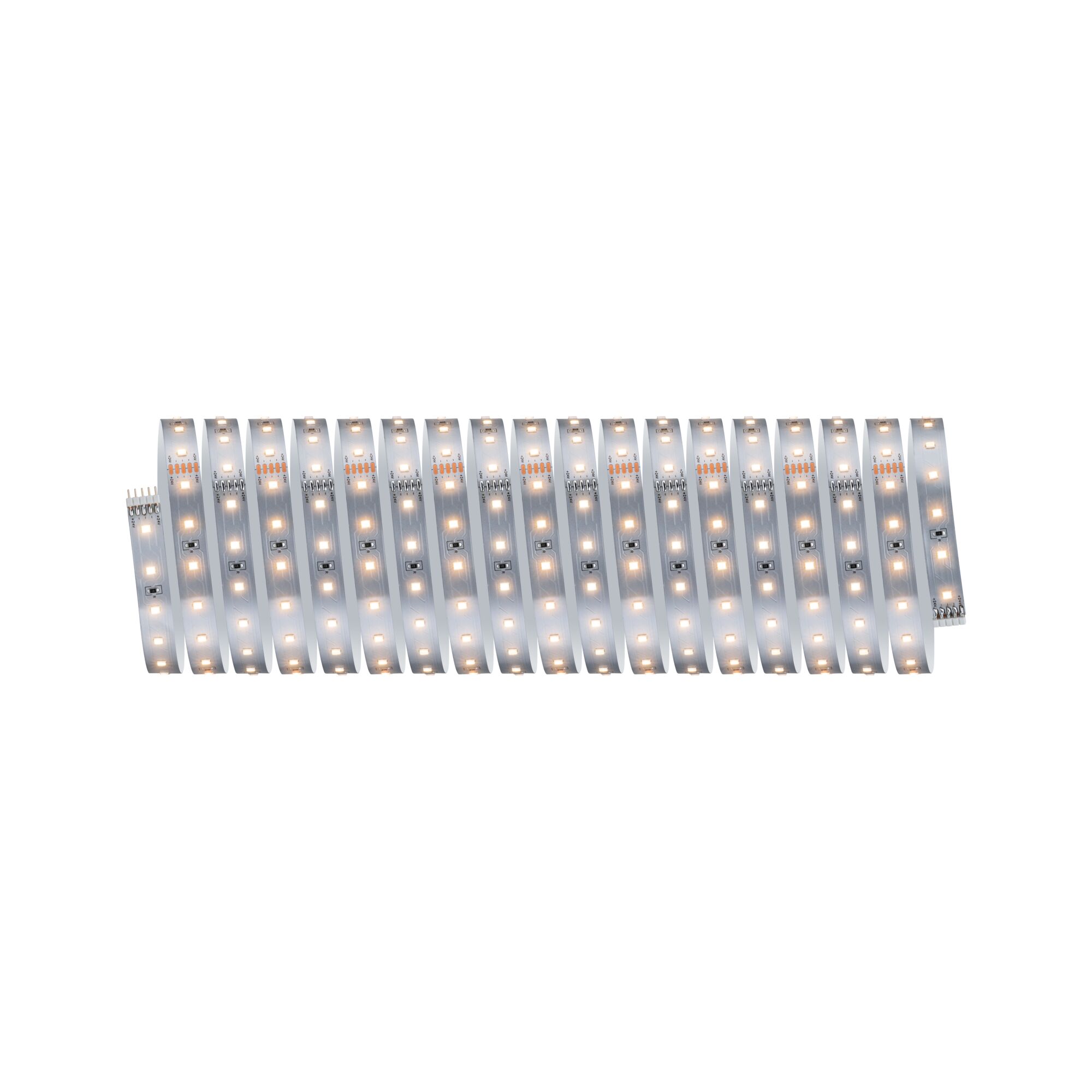

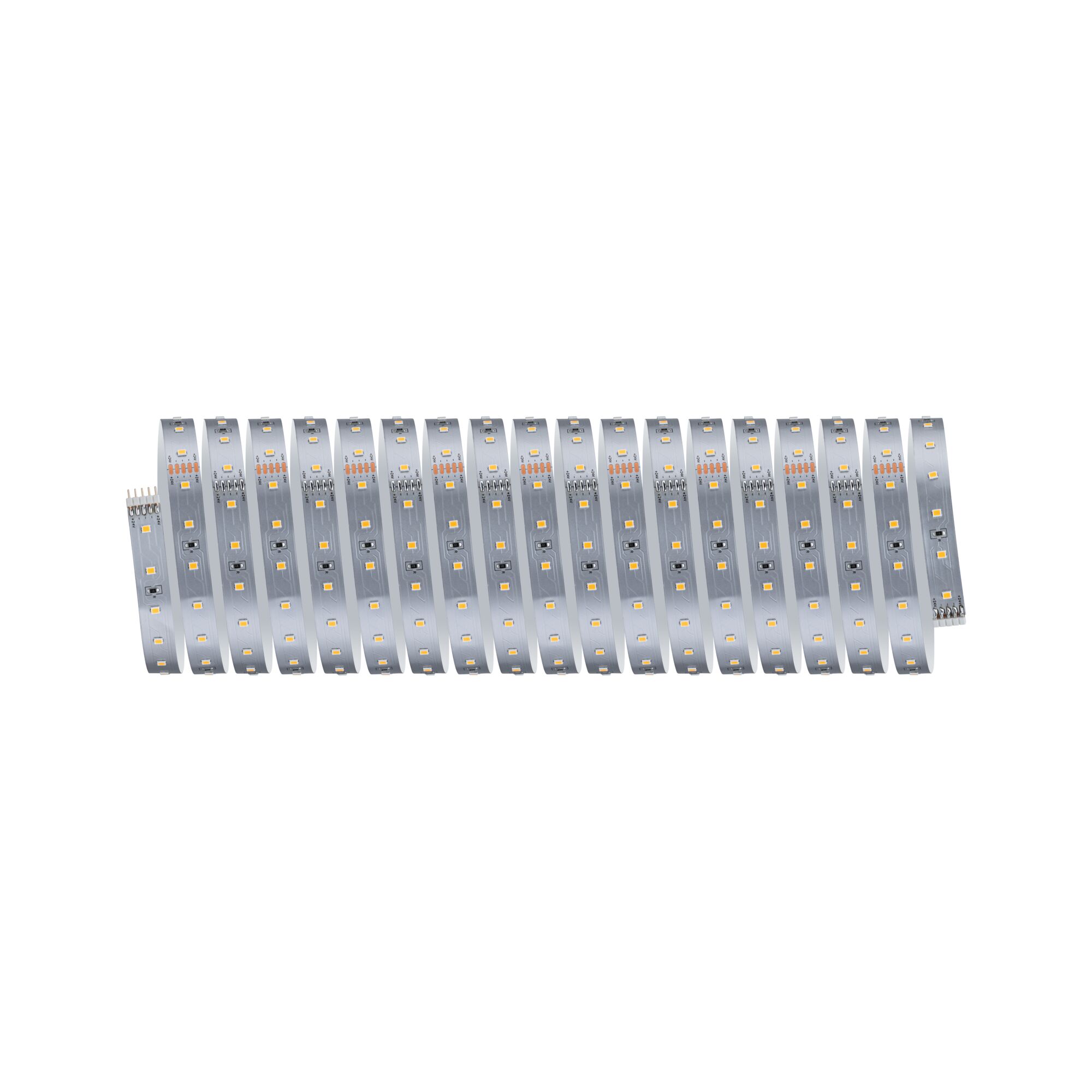

MaxLED 500LED Strip
Basic set 10m warmwhite
28W 550lm/m 2700K 40VA
28W 550lm/m 2700K 40VA

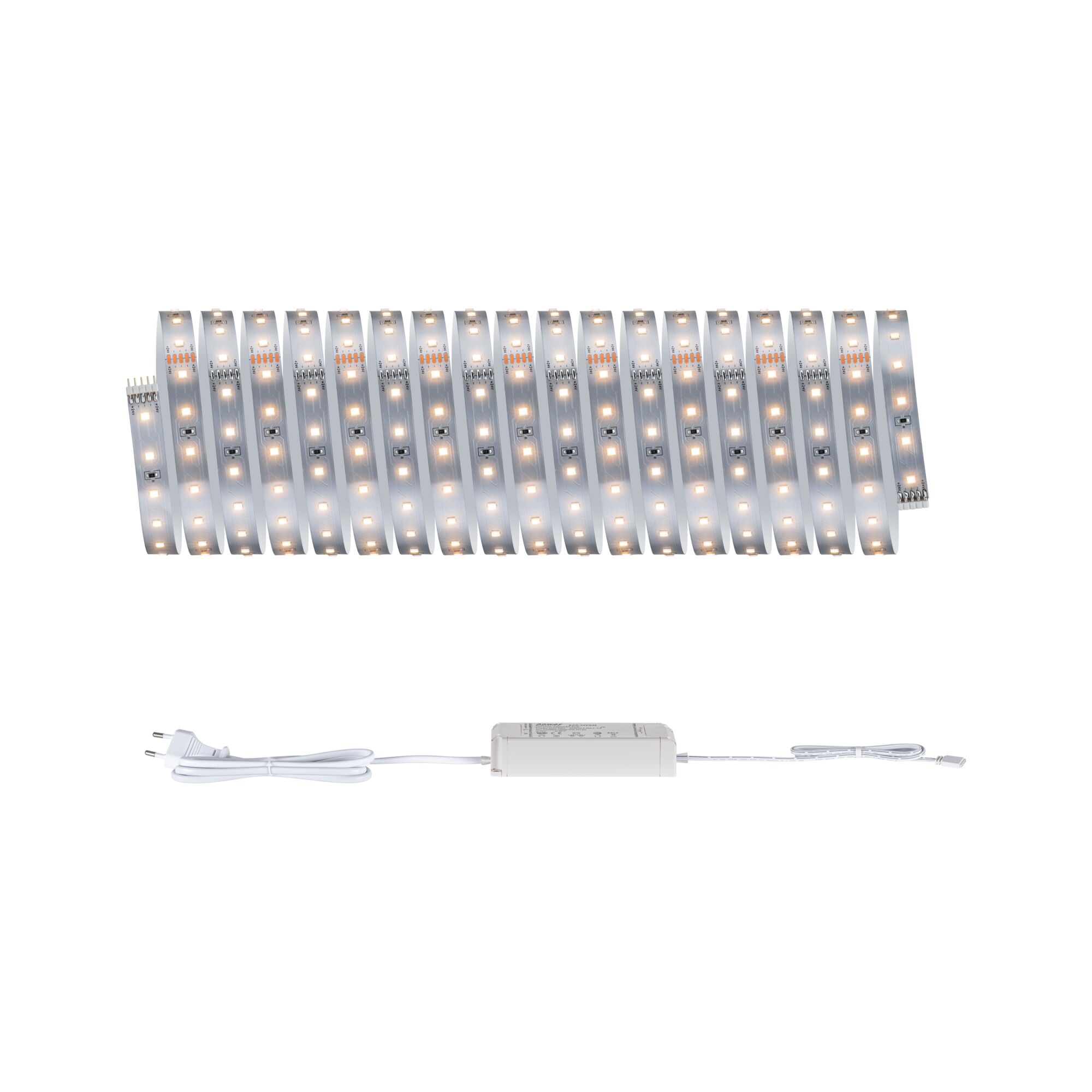

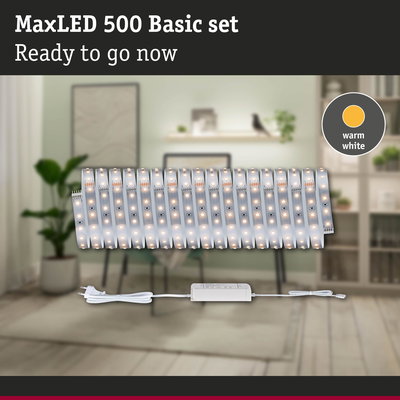

- Complete set incl. strip and power supply
- The high-efficiency LED strip consumes 40% less energy at the same light output
- Colour temperature: 2700K - Warm white

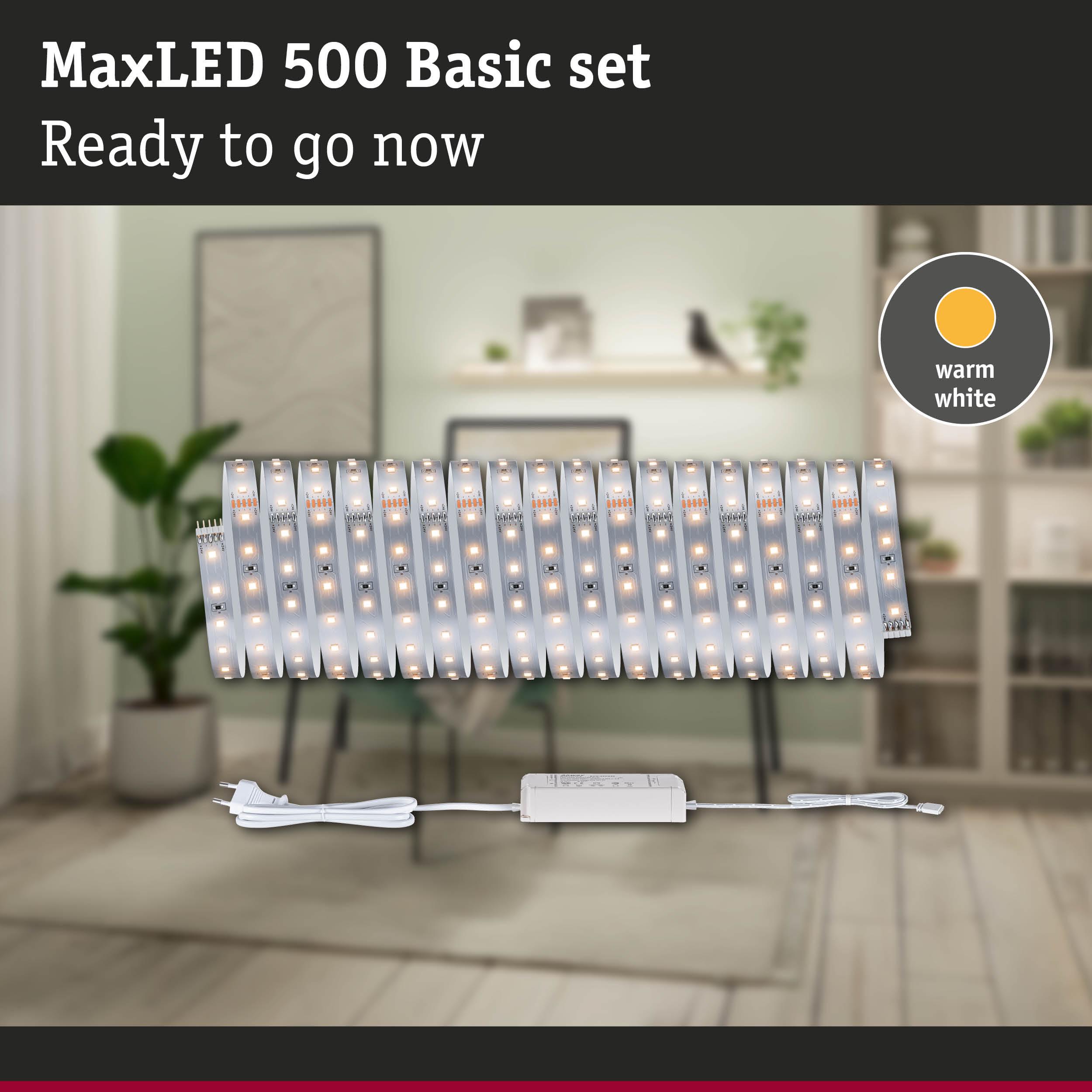

MaxLED 500 LED Strip Basic set 10m warmwhite 28W 550lm/m 2700K 40VA
The warm white MaxLED 500 basic set is the ideal choice for a modern and energy-efficient lighting solution. The Stripe is ideal for use in profiles and provides a cozy and glare-free working light with a color temperature of 2700K. The brightness can be flexibly dimmed to create the desired lighting mood at any time. The strip can be easily shortened with a pair of scissors, making it easier to adapt to individual room conditions. As the strip can be easily attached to furniture, shelves or walls, it opens up a wide range of design options. In addition to the strip, the basic set includes a matching ballast. A control unit with remote control can be added as required.
- Complete set incl. strip and power supply
- The high-efficiency LED strip consumes 40% less energy at the same light output
- Colour temperature: 2700K - Warm white

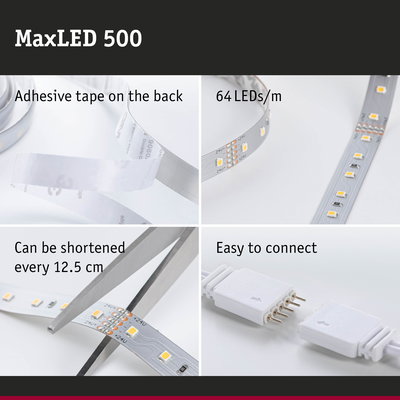

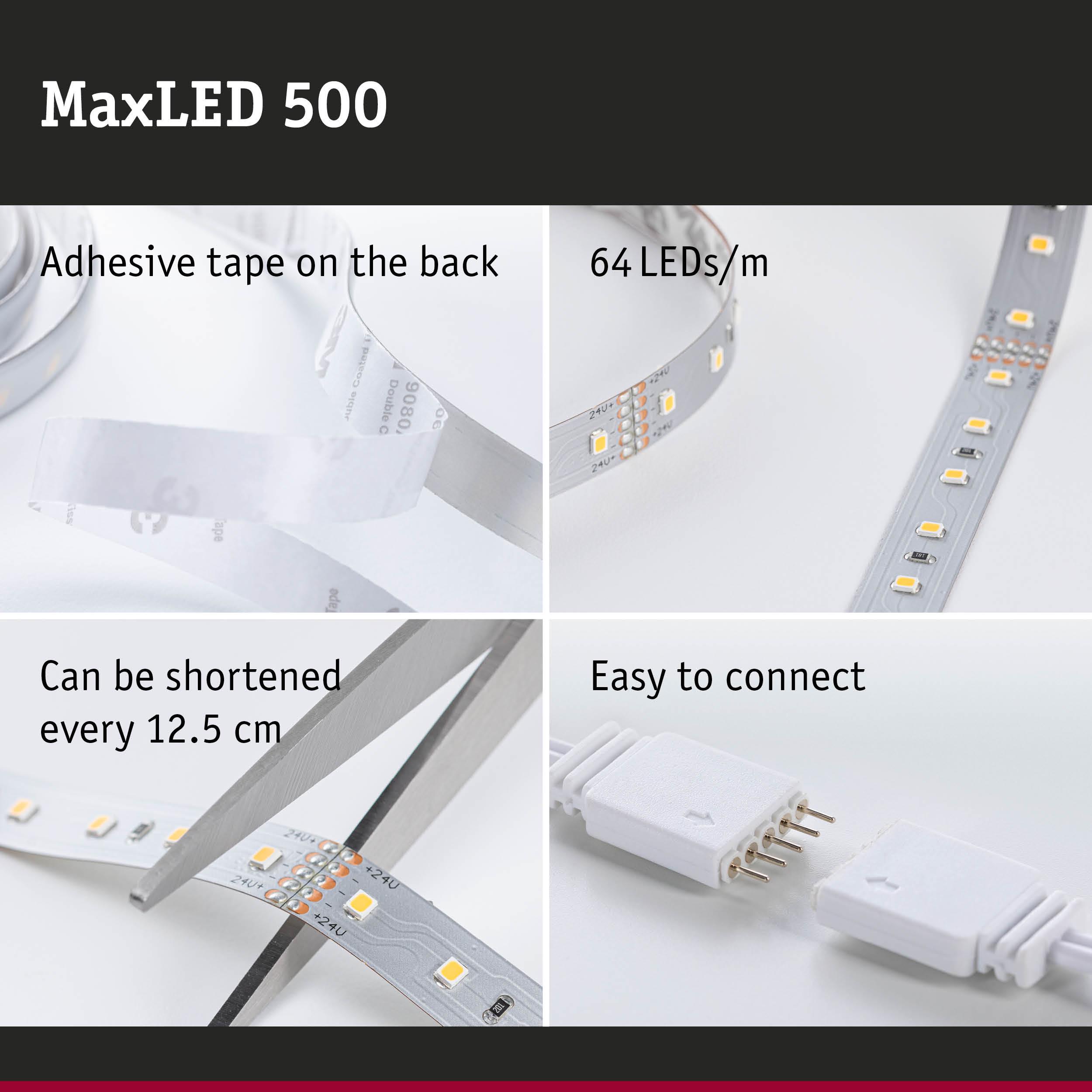

- Can be shortened as required
- Rear self-adhesive for simple installation
- Dimmable with MaxLED dim/switch controller
- Individual design options
- Simple plug-in system for easy installation
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 1,5 x B: 12,5 mm |
| Length | 10 m |
| Shortenability Strips | 125 mm |
| net weight | 528 g |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Metal, Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Length max. | 20 m |
| Connections | |
|---|---|
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | D |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 5500 lm |
| Color rendering index | > 80 Ra |
| Lumens per metre | 550 lm/m |
| Colour temperature | Warm white, 2700 K |
| Luminous flux LED module | 5500 lm |
| Lamp Features | |
|---|---|
| Dimming Control | with optional system components |
| Inclusive lamp | yes |
| Component parts | 28 W |
| light source property | Light source integrated (non-replacable) |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | Yes |
| IP protection | IP20 |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Number of LED's per meter | 64 |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 31,5 W |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 40 VA |
| Transformer height | 30 mm |
| Transformer width | 42 mm |
| Transformer depth | 140 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
