Article-No.:
70830
MaxLED 500LED Strip
Basic set 10m daylight white
50W 550lm/m 6500K 75VA
50W 550lm/m 6500K 75VA

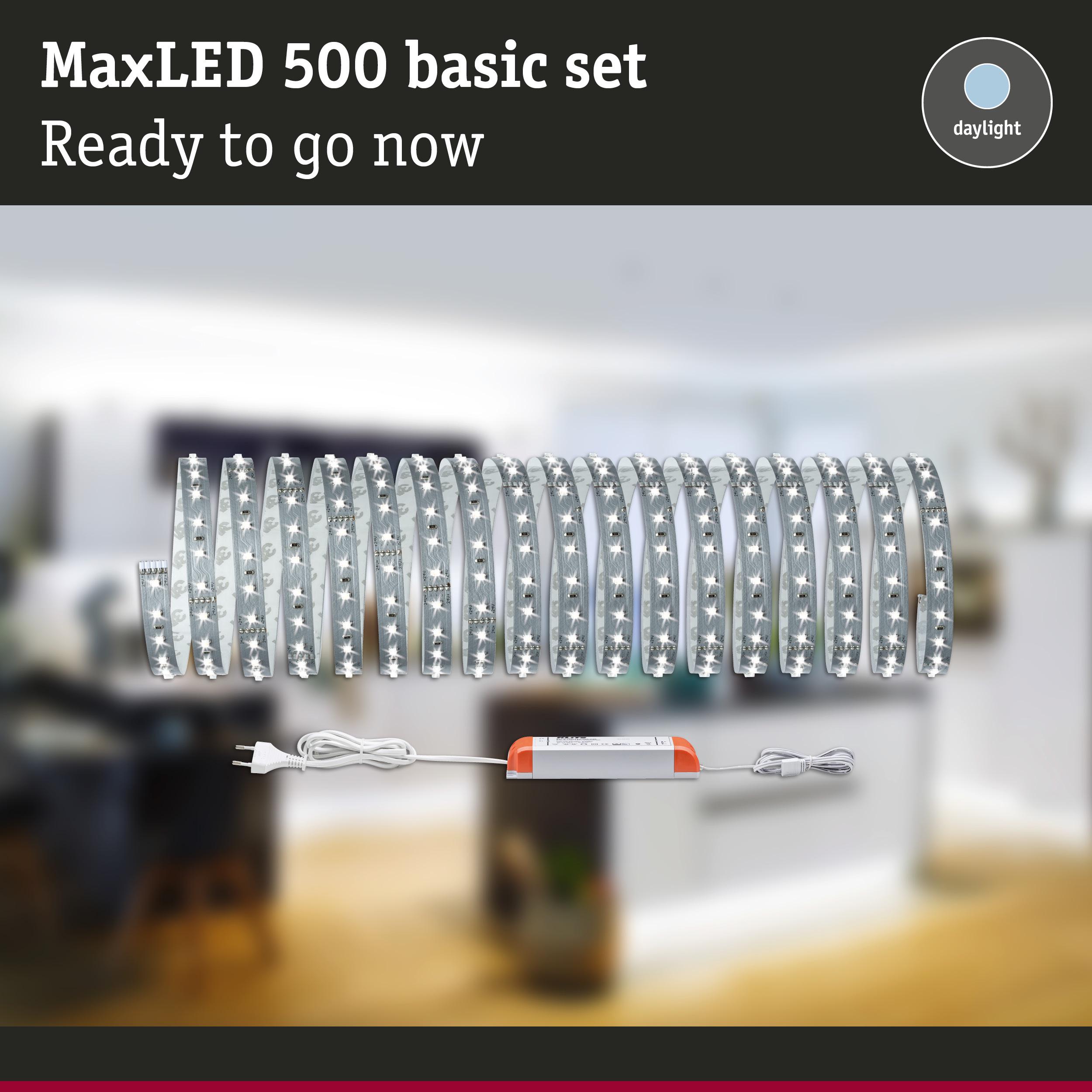

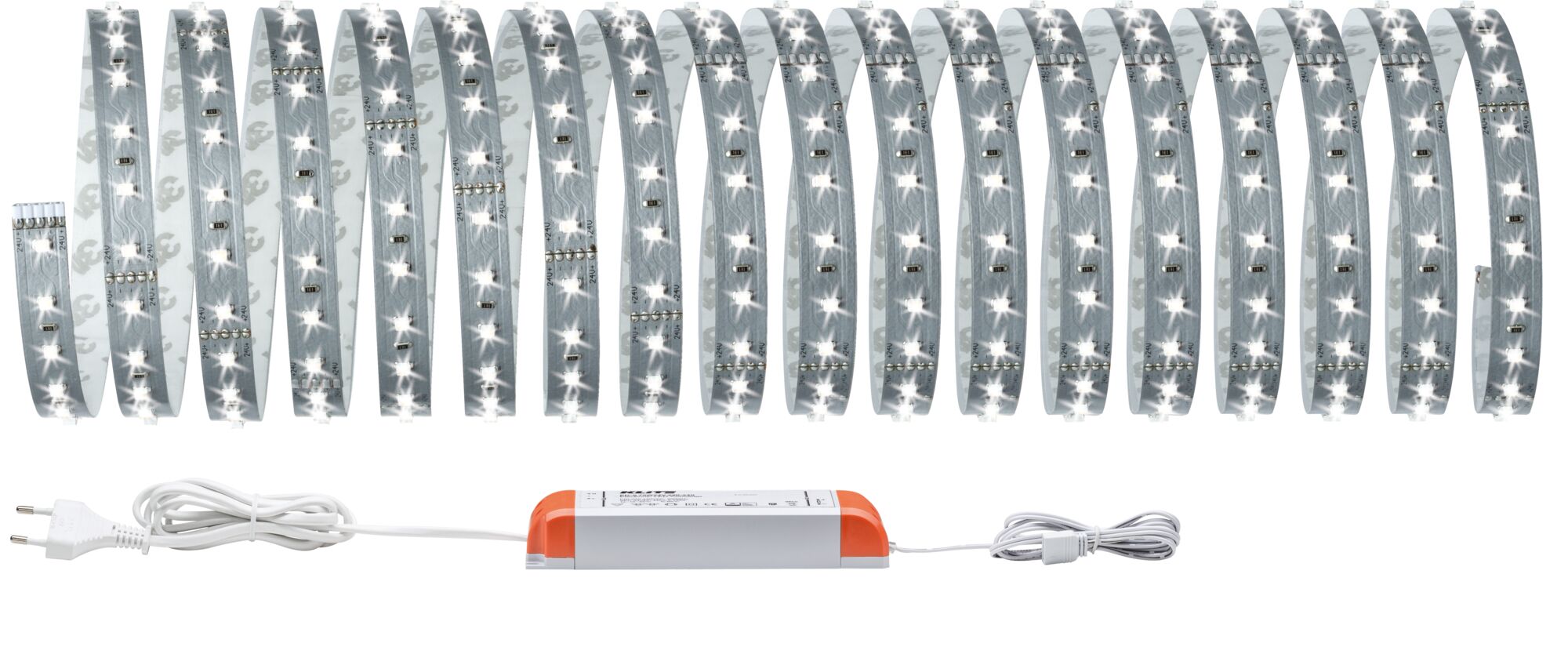

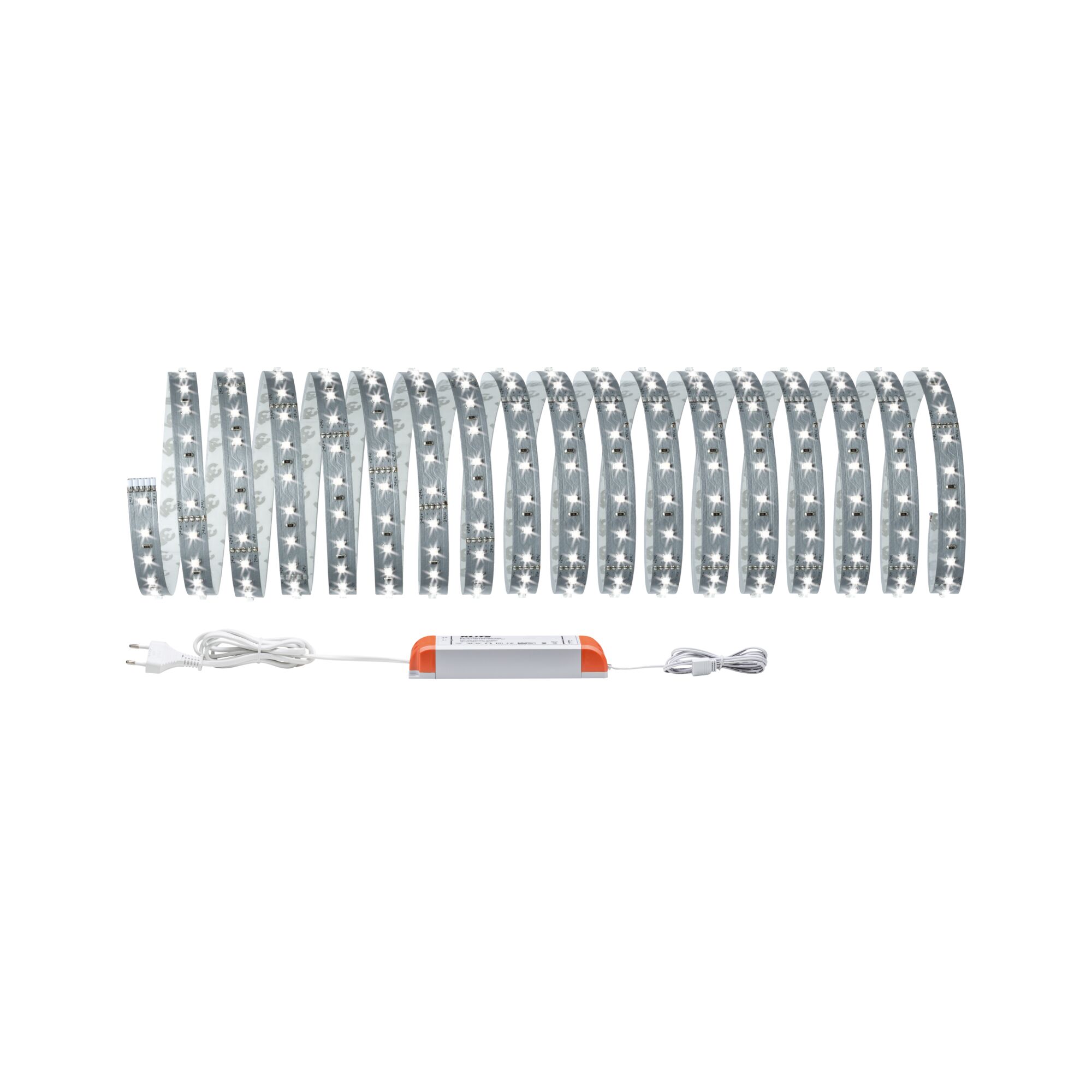

- Complete set incl. strip and power supply
- Can be shortened as required
- Simple plug-in system for easy installation

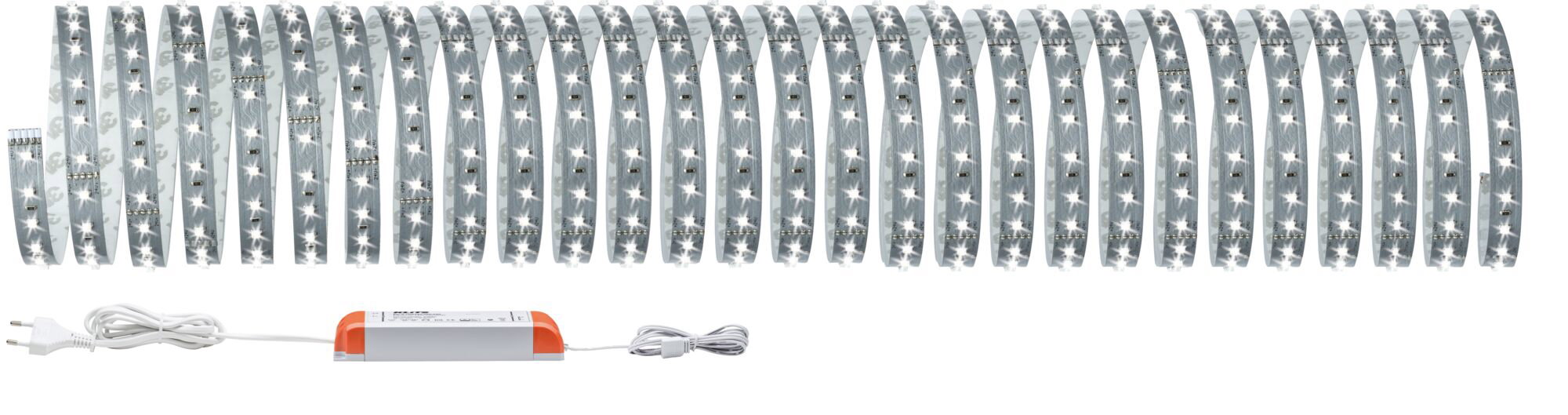

MaxLED 500 LED Strip Basic set 10m daylight white 50W 550lm/m 6500K 75VA

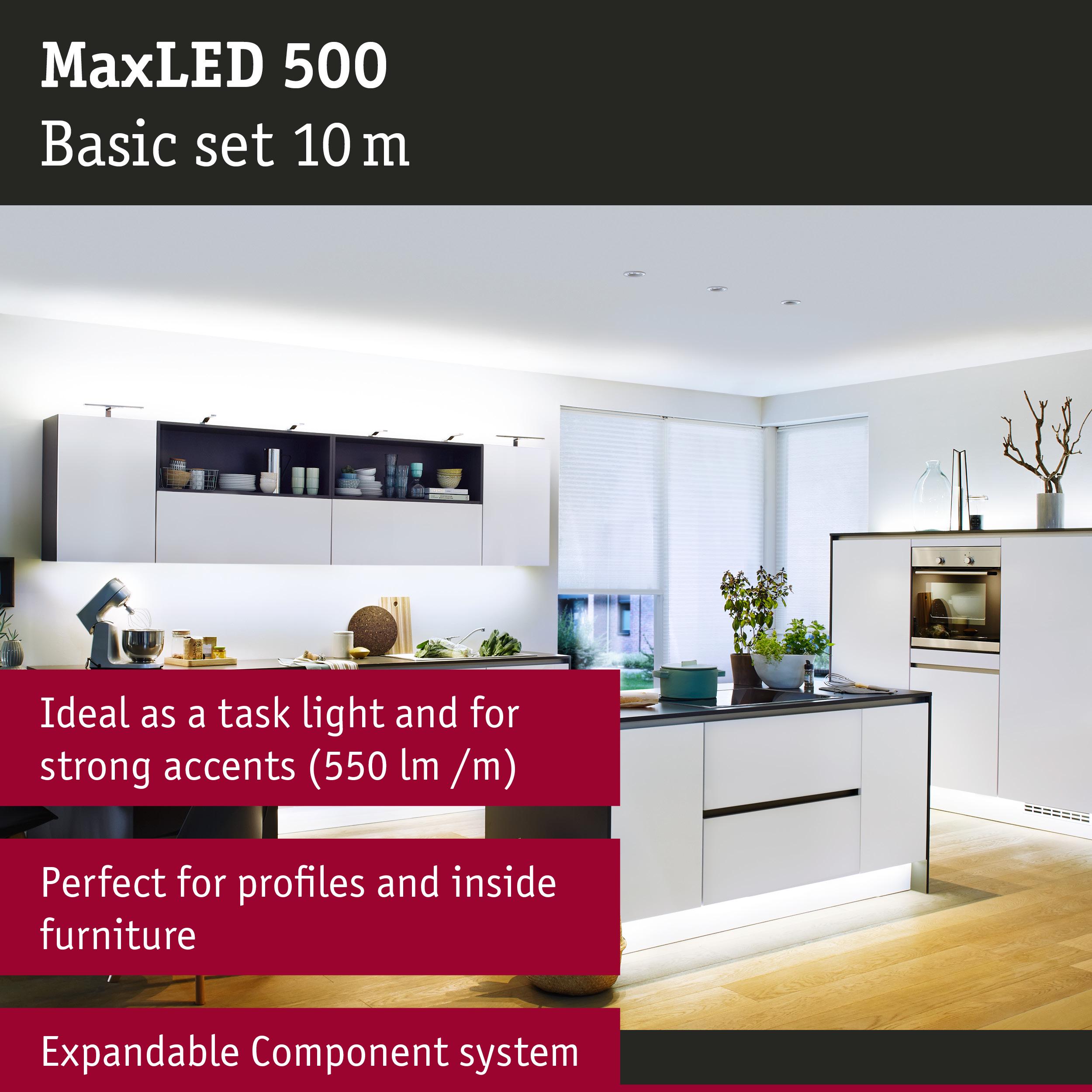

MaxLED strips are so powerful that they can be easily used for room lighting. They are real highlights especially in profiles. Daylight white strips provide room and workplace light that keeps you focused and active. The basic set contains not only the strip but also a suitable ballast. If required it can be extended by a control unit with remote control.
- Complete set incl. strip and power supply

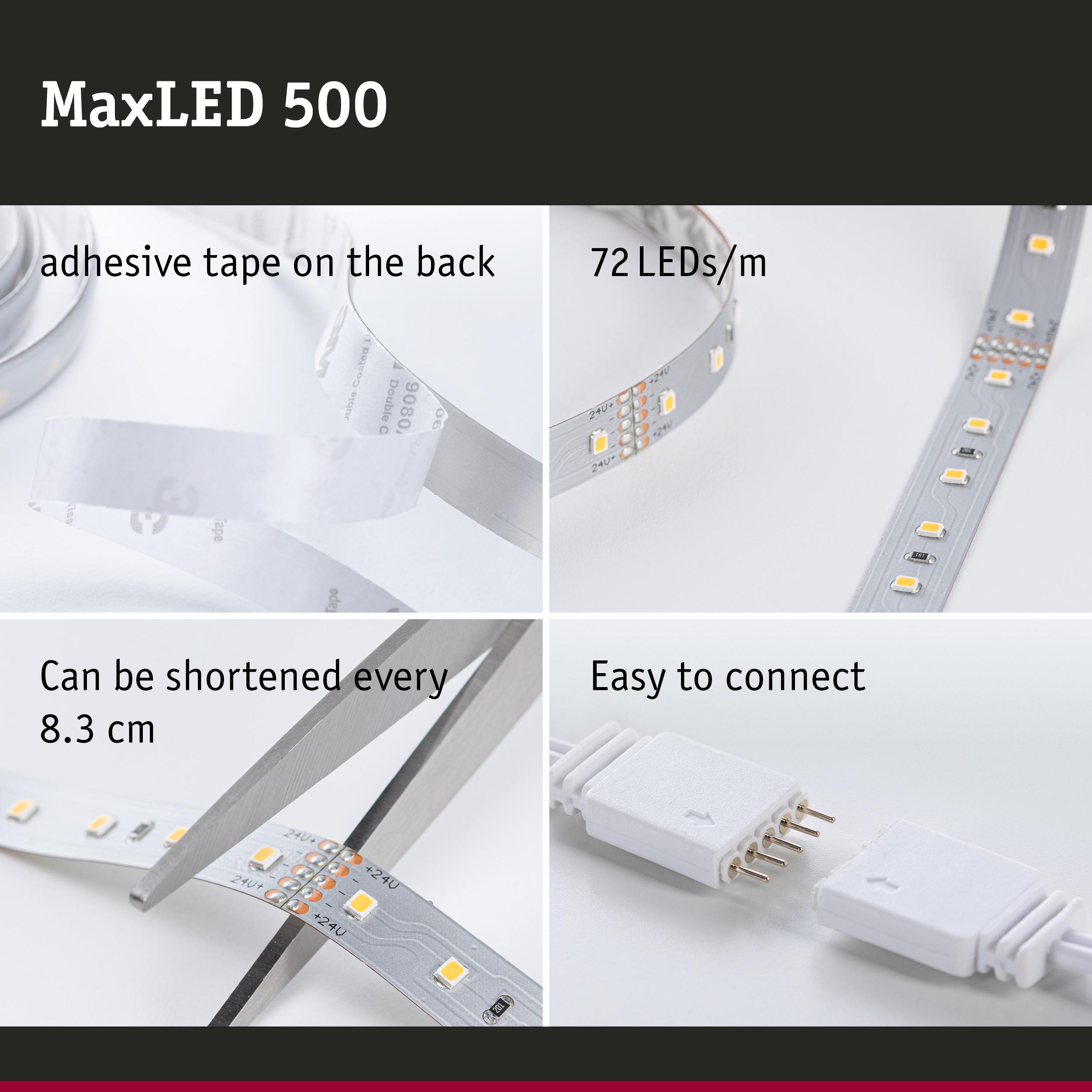

- Can be shortened as required

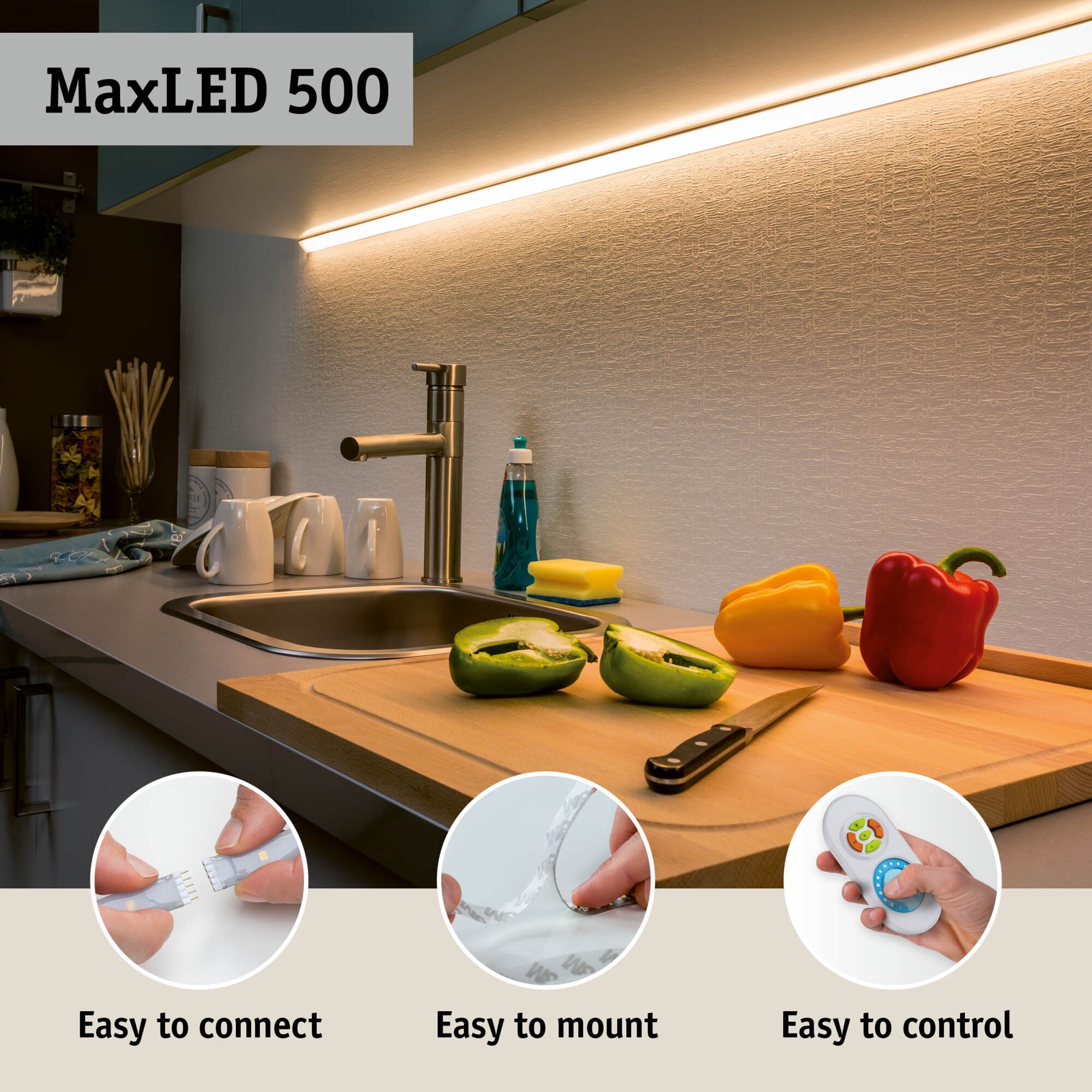

- Simple plug-in system for easy installation
- Rear self-adhesive for simple installation
- Flexible material for installation on flat or arched base surfaces
- Color temperatur: 6500K - Daylight white
- Energy-saving LED technology (conserves up to 80% in comparison to conventional light bulbs)
- Dimmable with MaxLED dim/switch controller

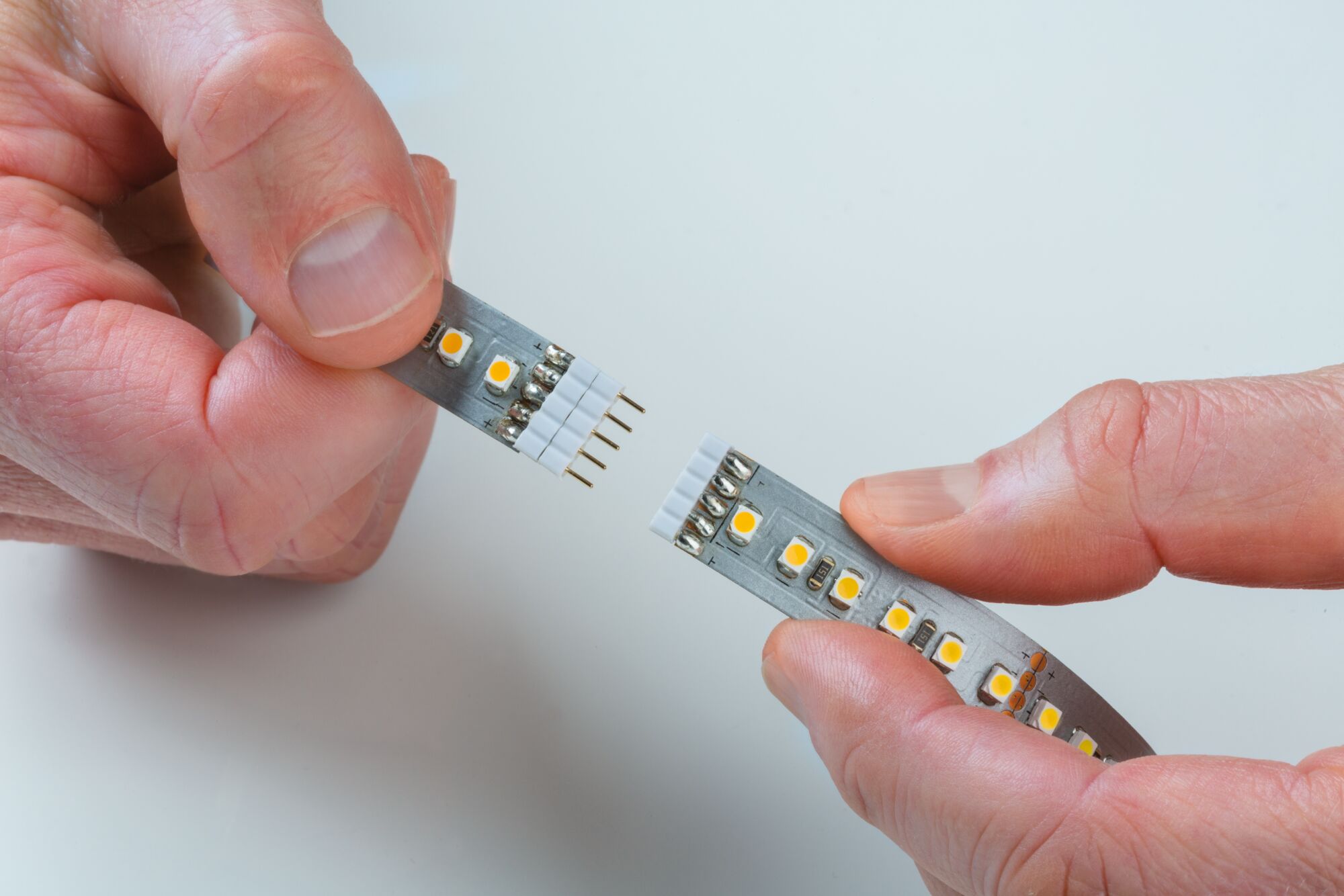

- Incl. 5-pin plug for easy connection of the strips
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 x T: 12,5 mm |
| Length | 10 m |
| Shortenability Strips | 83 mm |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Length max. | 20 m |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Daylight white, 6500 K |
| Nominal luminous flux | 5500 lm |
| Luminous flux LED module | 5500 lm |
| Color rendering index | > 80 Ra |
| Lumens per metre | 550 lm/m |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 50 W |
| Number of component parts | 1x |
| Number of LED's per meter | 72 |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 55 W |
| Adjustability | fixed |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 75 VA |
| Transformer height | 33 mm |
| Transformer width | 60 mm |
| Transformer depth | 190 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
