Article-No.:
71232

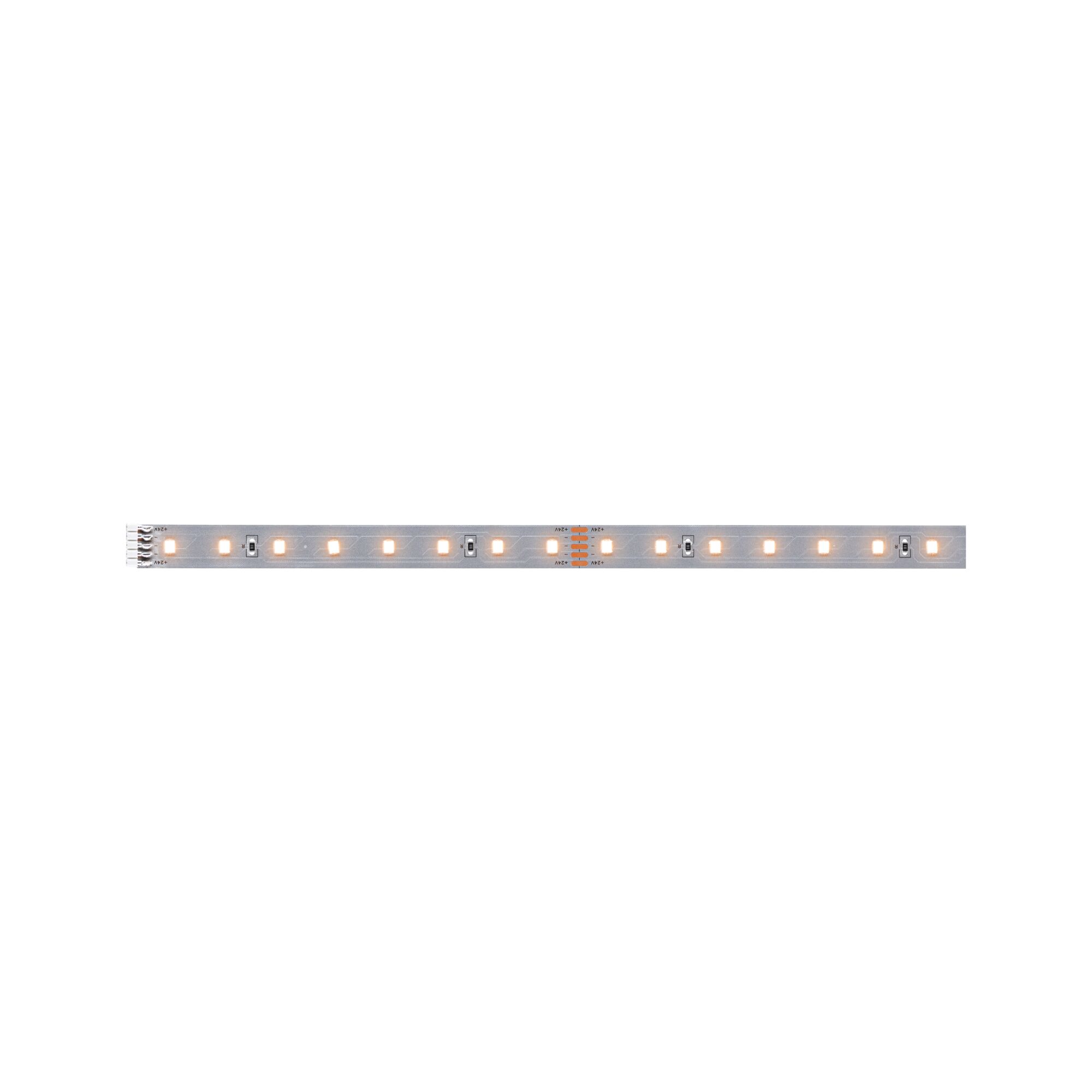

MaxLED 500LED Strip
Basic set 1,5m warmwhite
5,5W 550lm/m 2700K 20VA
5,5W 550lm/m 2700K 20VA
- Complete set incl. strip and power supply
- The high-efficiency LED strip consumes 40% less energy at the same light output
- Colour temperature: 2700K - warm white
MaxLED 500 LED Strip Basic set 1,5m warmwhite 5,5W 550lm/m 2700K 20VA
The warm white MaxLED 500 basic set is always a great choice for modern, energy-efficient lighting solutions. The LED strip offers 40% less energy consumption than traditional luminaires at the same light output. The strip is a great choice for profile applications, offering an attractive and glare-free work light at a colour temperature of 2700K. Additionally, the brightness is dimmable, creating the right light ambience for any occasion. The strip can easily be shortened with a pair of scissors to adapt its length to specific space requirements. The design options are virtually endless, as the strip is easily attached to furniture, shelves, or walls. The basic set contains not only the strip but also a suitable ballast. If required it can be extended by a control unit with remote control.
- Complete set incl. strip and power supply
- The high-efficiency LED strip consumes 40% less energy at the same light output
- Colour temperature: 2700K - warm white
- Can be shortened as required
- Simple plug-in system for easy installation
- Rear self-adhesive for simple installation
- Dimmable with MaxLED dim/switch controller
- Individual design options
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 1,5 x B: 12,5 mm |
| Length | 1,5 m |
| Shortenability Strips | 125 mm |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Metal, Plastic |
| Recycled material included | no |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Length max. | 5 m |
| Connections | |
|---|---|
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | D |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 825 lm |
| Luminous flux LED module | 825 lm |
| Color rendering index | > 80 Ra |
| Lumens per metre | 550 lm/m |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with optional system components |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 5,5 W |
| Number of component parts | 1x |
| Number of LED's per meter | 64 |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 7 W |
| Adjustability | fixed |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 20 VA |
| Transformer height | 21 mm |
| Transformer width | 43 mm |
| Transformer depth | 130 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
