Article-No.:
78866
MaxLED 250
LED Strip
Smart Home Zigbee 3.0
RGBW Coated Basic Set
3m IP44 15W 180lm/m 30 LEDs/m RGBW+ 36VA
3m IP44 15W 180lm/m 30 LEDs/m RGBW+ 36VA

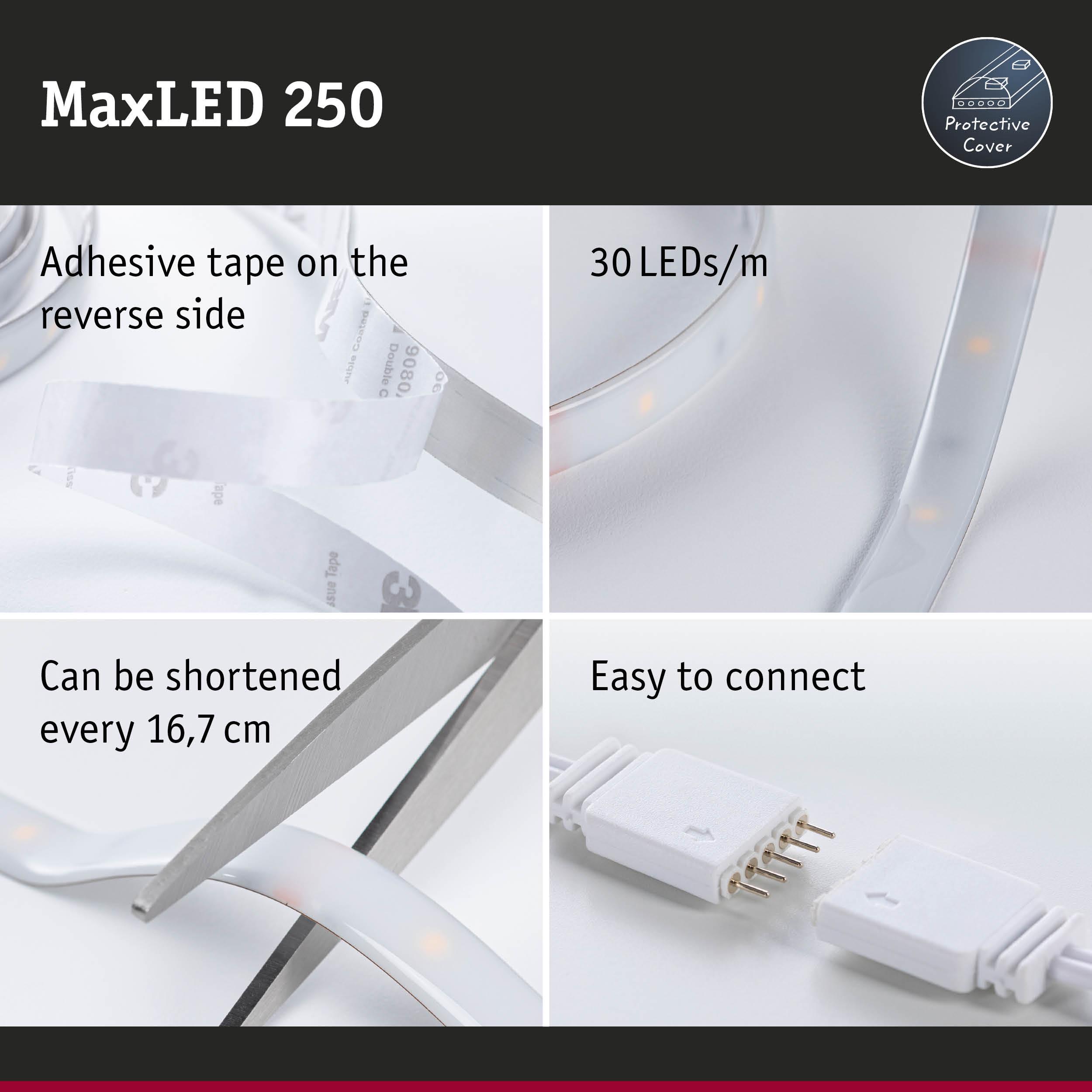

- Can be shortened as required
- RGBW colour control
- Coating protects against splashing water and dust
MaxLED 250 LED Strip Smart Home Zigbee 3.0 RGBW Coated Basic Set 3m IP44 15W 180lm/m 30 LEDs/m RGBW+ 36VA

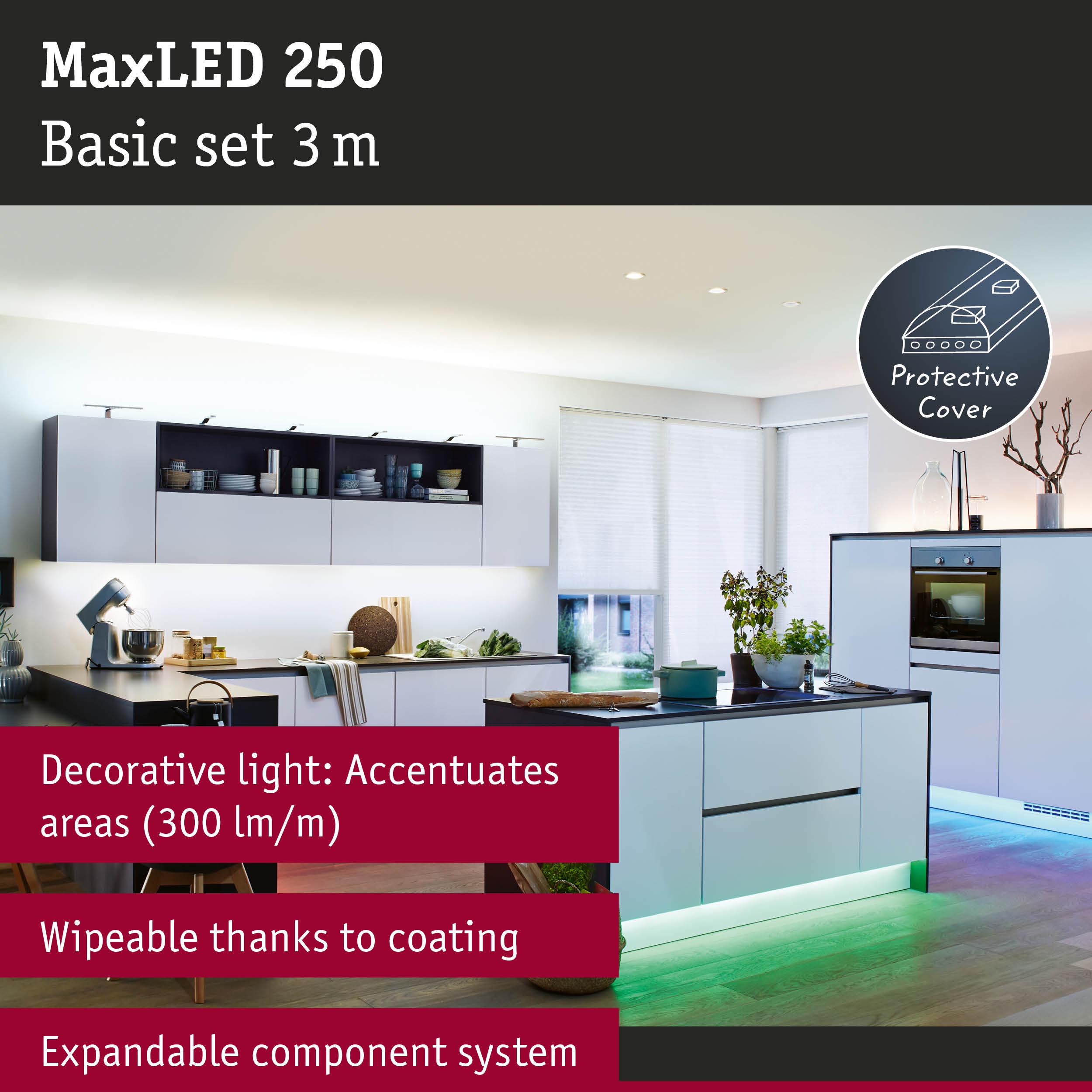

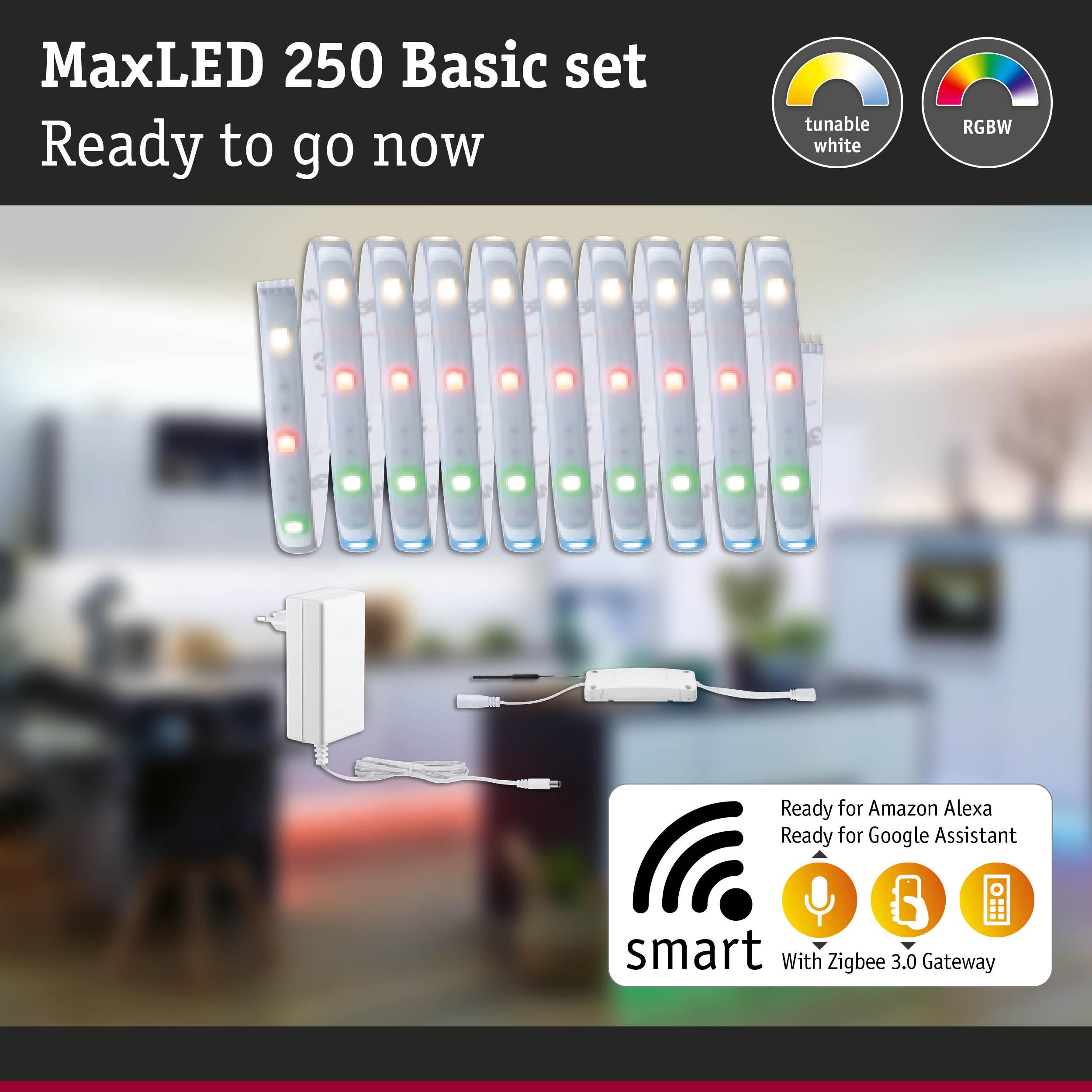

MaxLED 250 strips with 15W produce a pleasant decorative light and can be used with smart controls thanks to the integrated Zigbee 3.0 function. The atmospheric colour-change function allows you to create your own living atmosphere – ranging from continuous monochrome lighting to multi-coloured lighting effects. A diode in white (W) additionally provides a cosy warm white light and makes it unnecessary to mix a white tone from the colours red, green and blue (RGB). The basic set includes the strip incl. coating (Protect Cover) with a length of 3 m, a suitable ballast and a Zigbee 3.0 controller, which can be used for smart control. A remote control or a gateway for smart control are not included in this basic set. Zigbee 3.0 is a radio transmission protocol that interlinks devices from different manufacturers. The ballast contains an additional power buffer, allowing it to be expanded with additional strips as required without the need for tools. MaxLED Strips are a real highlight, especially in profiles. Paulmann also offers an extensive range of recessed and surface-mounted profiles to match the MaxLED Strips.
- Can be shortened as required
- RGBW colour control
- Coating protects against splashing water and dust
- Incl. 5-pin plug for easy connection of the strips
- Simple plug-in system for easy installation
- Rear self-adhesive for simple installation
- Flexible material for mounting on flat or curved surfaces
- Can be controlled with the Smart Home Zigbee remote control
- Usable with smart home gateways that have a Zigbee interface
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 x B: 12,5 x mm |
| Length | 3 m |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Plastic |
| Installation | |
|---|---|
| Length max. | 8 m |
| can be used with the following dimmers | Paulmann SmartHome Zigbee Gent2 501.40 |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Colour change | Color change RGBW, Tunable White |
| Usable luminous flux | 540 lm |
| Luminous flux LED module | 600 lm |
| color temp | 3000 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 15 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| IP protection | IP44 |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Total Width | 12,5 mm |
| Number of component parts | 1x |
| protection class | protection class II |
| Number of LED's per meter | 30 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 19 W |
| Transformer | |
|---|---|
| Transformer power | 36 VA |
| apparent power | 22 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
