Article-No.:
78865

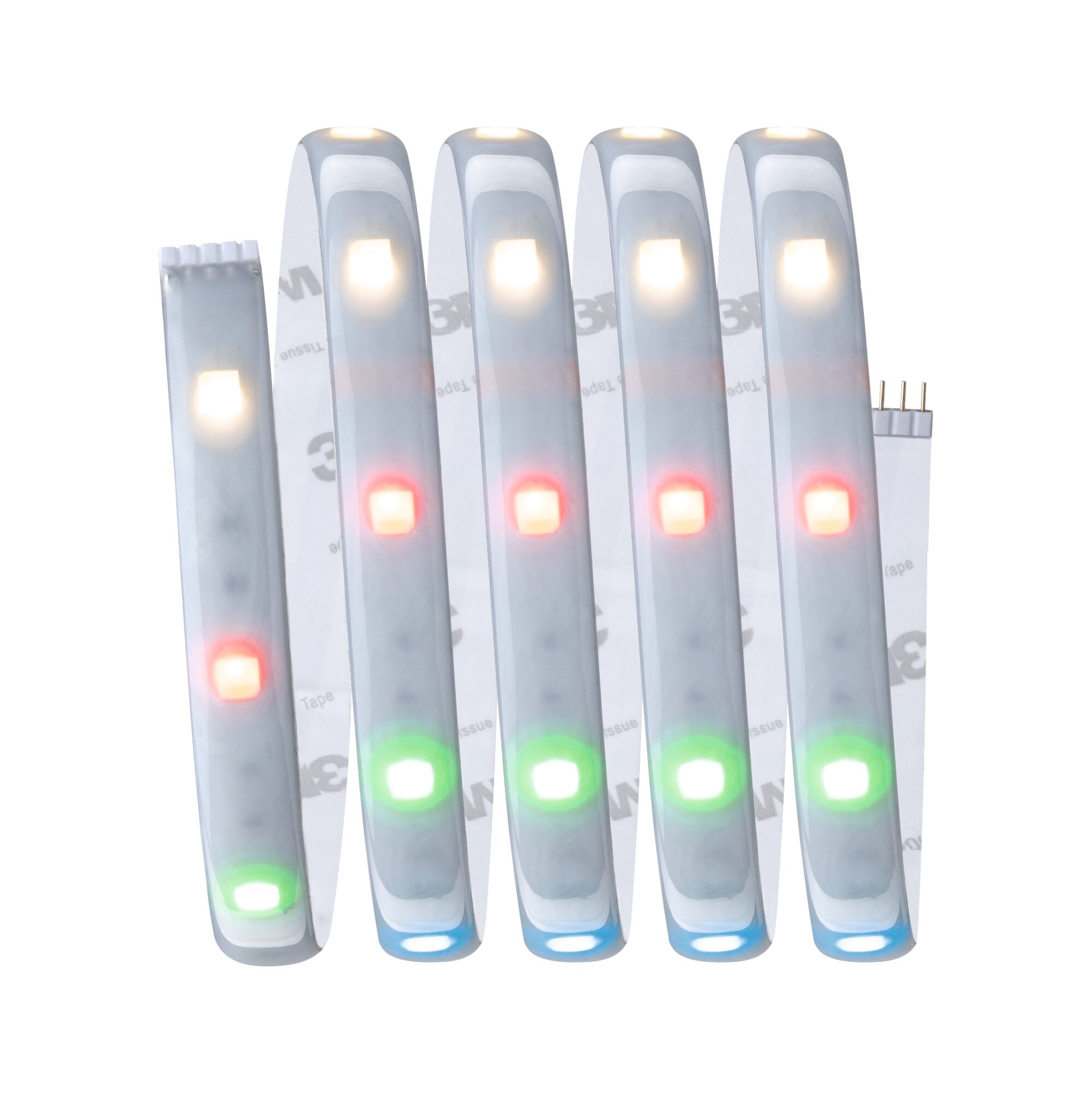

MaxLED 250
LED Strip
Smart Home Zigbee 3.0
Basic set 1,5m RGBW+
1,5m coated IP44 9W 200lm/m 30 LEDs/m RGBW+ 24VA
1,5m coated IP44 9W 200lm/m 30 LEDs/m RGBW+ 24VA
- Can be shortened as required

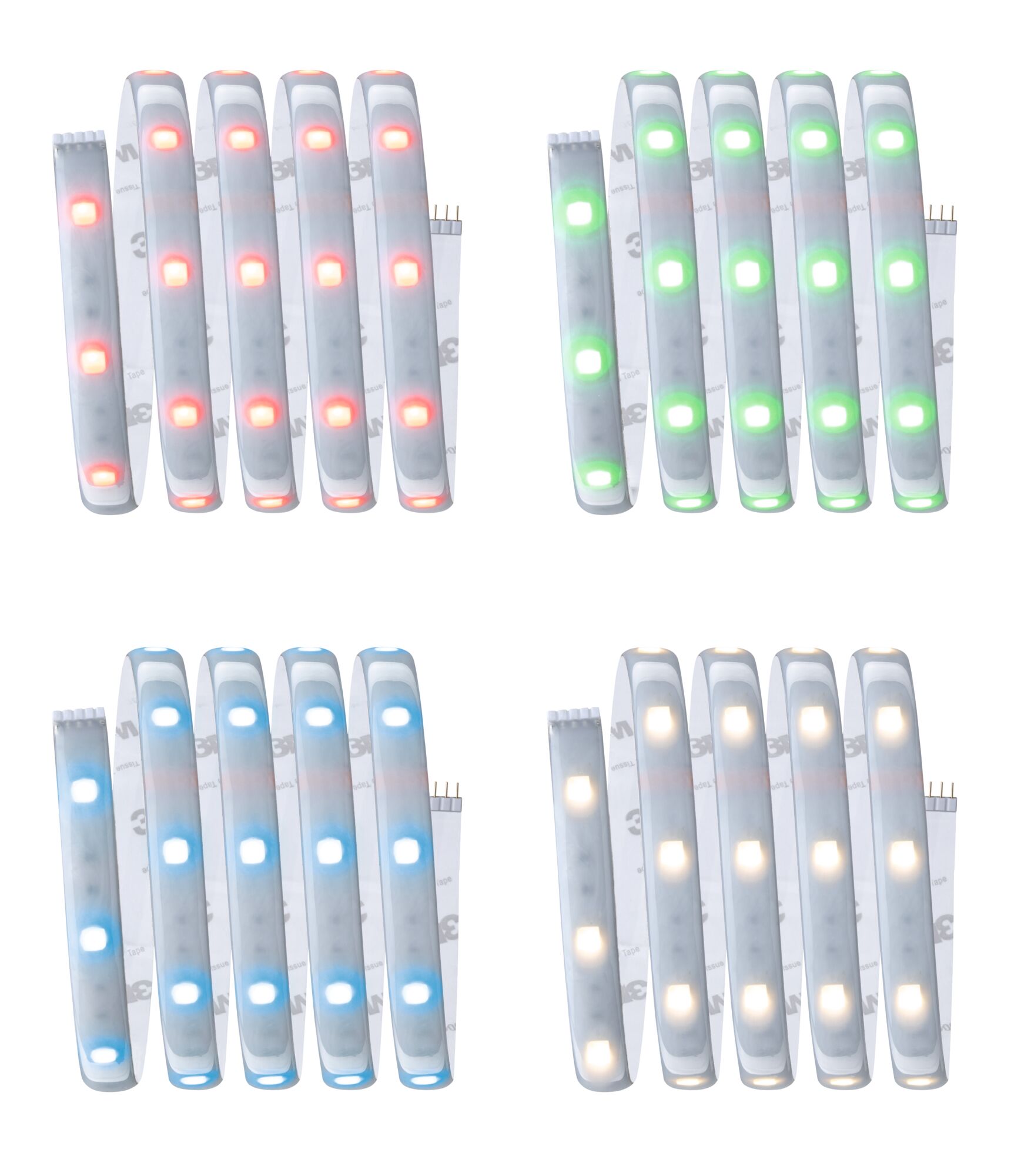

- RGBW colour control

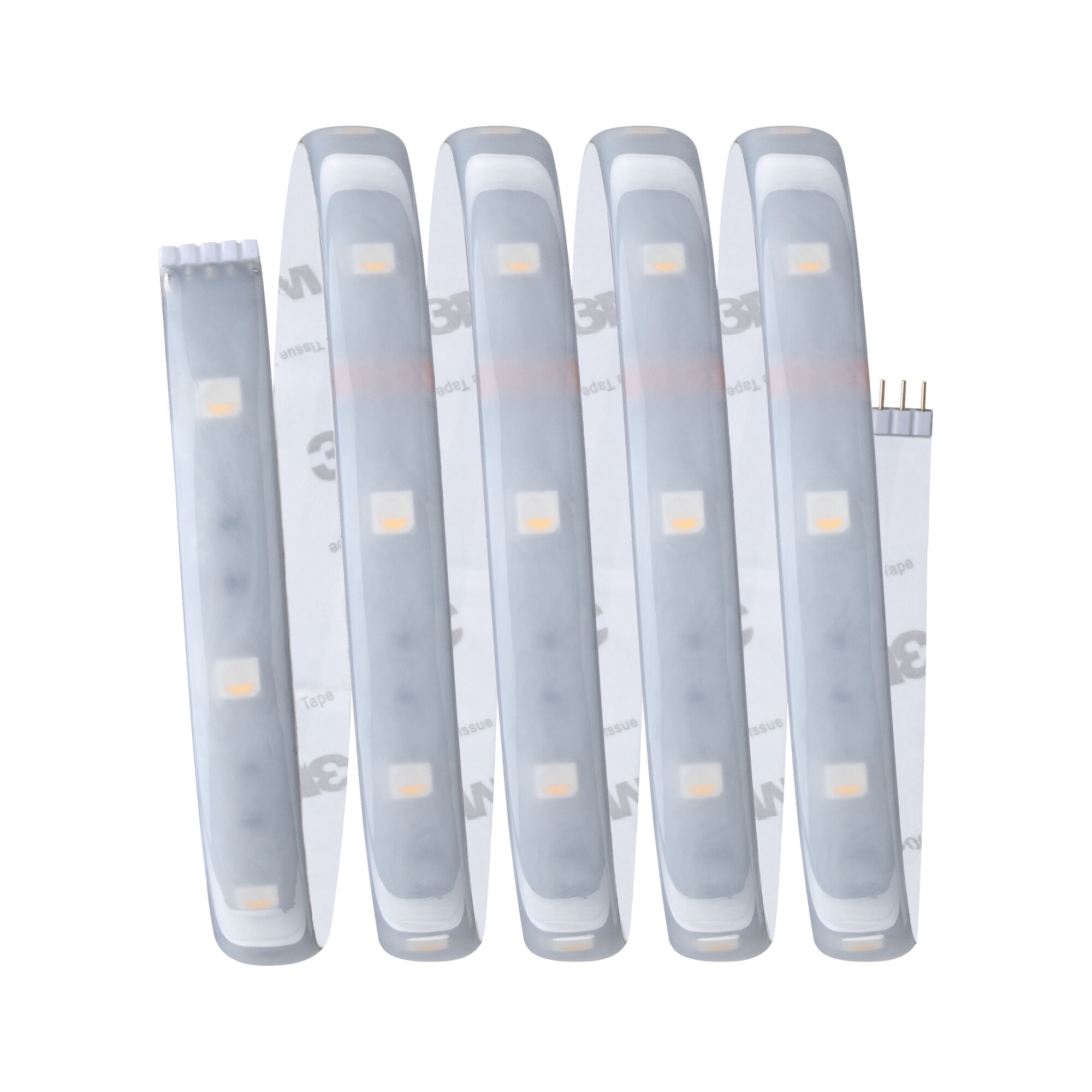

- Coating protects against splashing water and dust
MaxLED 250 LED Strip Smart Home Zigbee 3.0 Basic set 1,5m RGBW+ 1,5m coated IP44 9W 200lm/m 30 LEDs/m RGBW+ 24VA

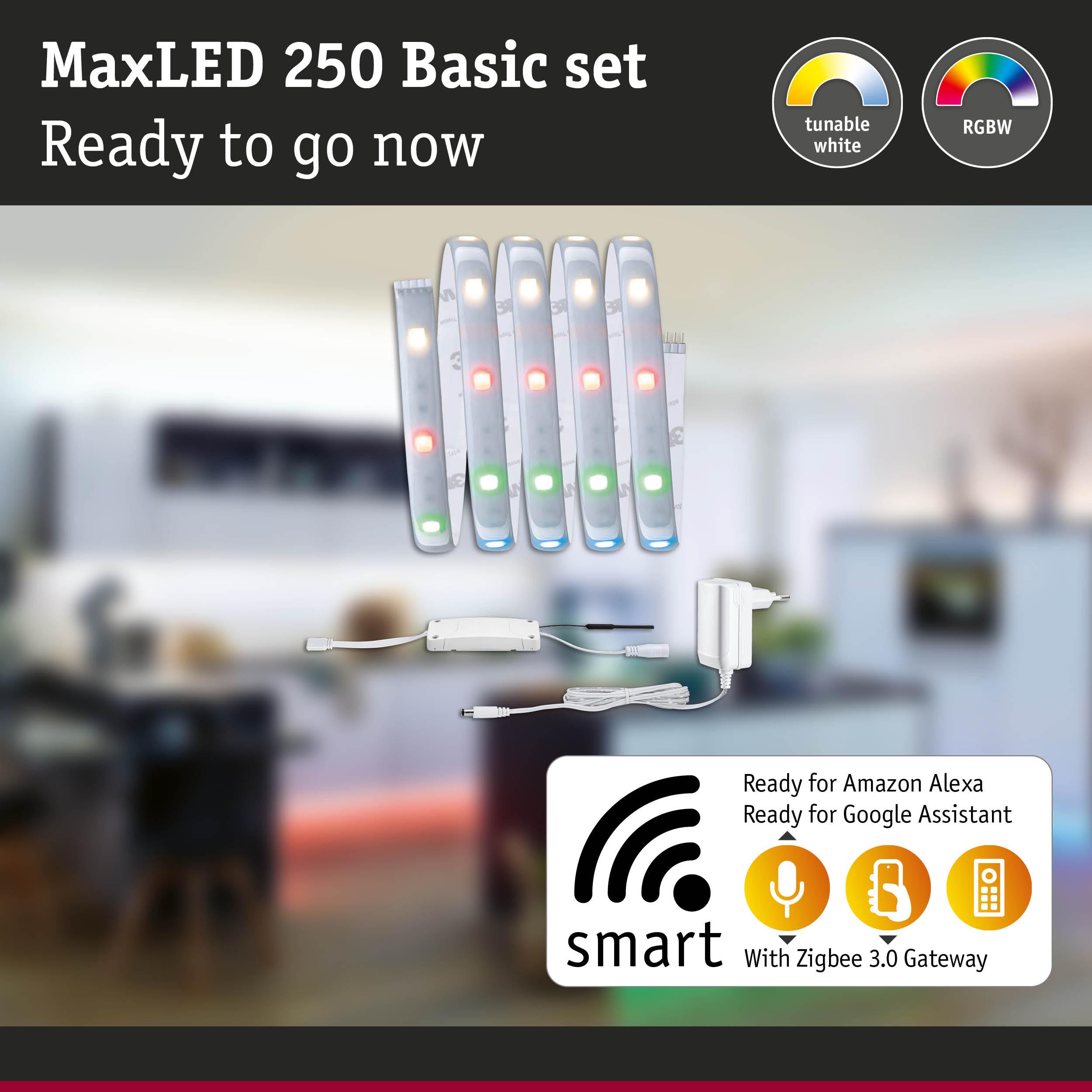

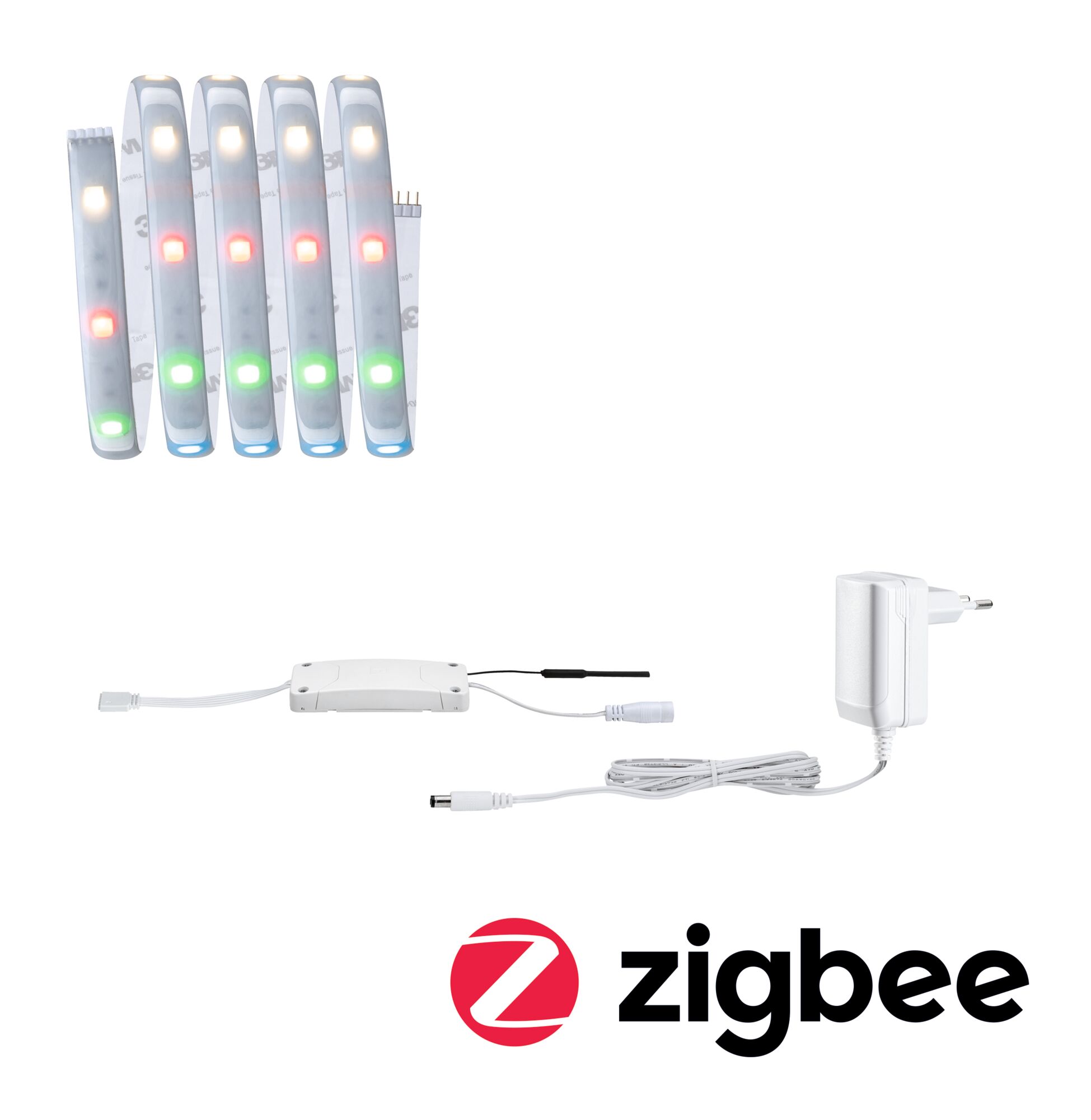

MaxLED 250 strips with 9W produce a pleasant, decorative light and can be controlled smartly thanks to the integrated Zigbee function. Thanks to the atmospheric colour-changing function, they create a personalised living ambience – from single-colour continuous lighting to multicoloured lighting effects, anything is possible. A white (W) LED also provides cosy, warm white light, eliminating the need to mix a white tone from the colours red, green and blue (RGB). In addition to the 1.5-metre-long strip (including the Protect Cover with a coating) and a matching ballast, the basic set contains a Zigbee controller, which allows for smart control. A remote control or Gateway for smart control is not included in this basic set. Zigbee is a wireless communication protocol that connects devices from different manufacturers. The ballast includes an additional power buffer, allowing it to be expanded with extra strips as required without the need for tools. The MaxLED Stripes are a real highlight, particularly when used in profiles. Paulmann also offers an extensive range of recessed and surface-mounted profiles compatible with the MaxLED Stripes.

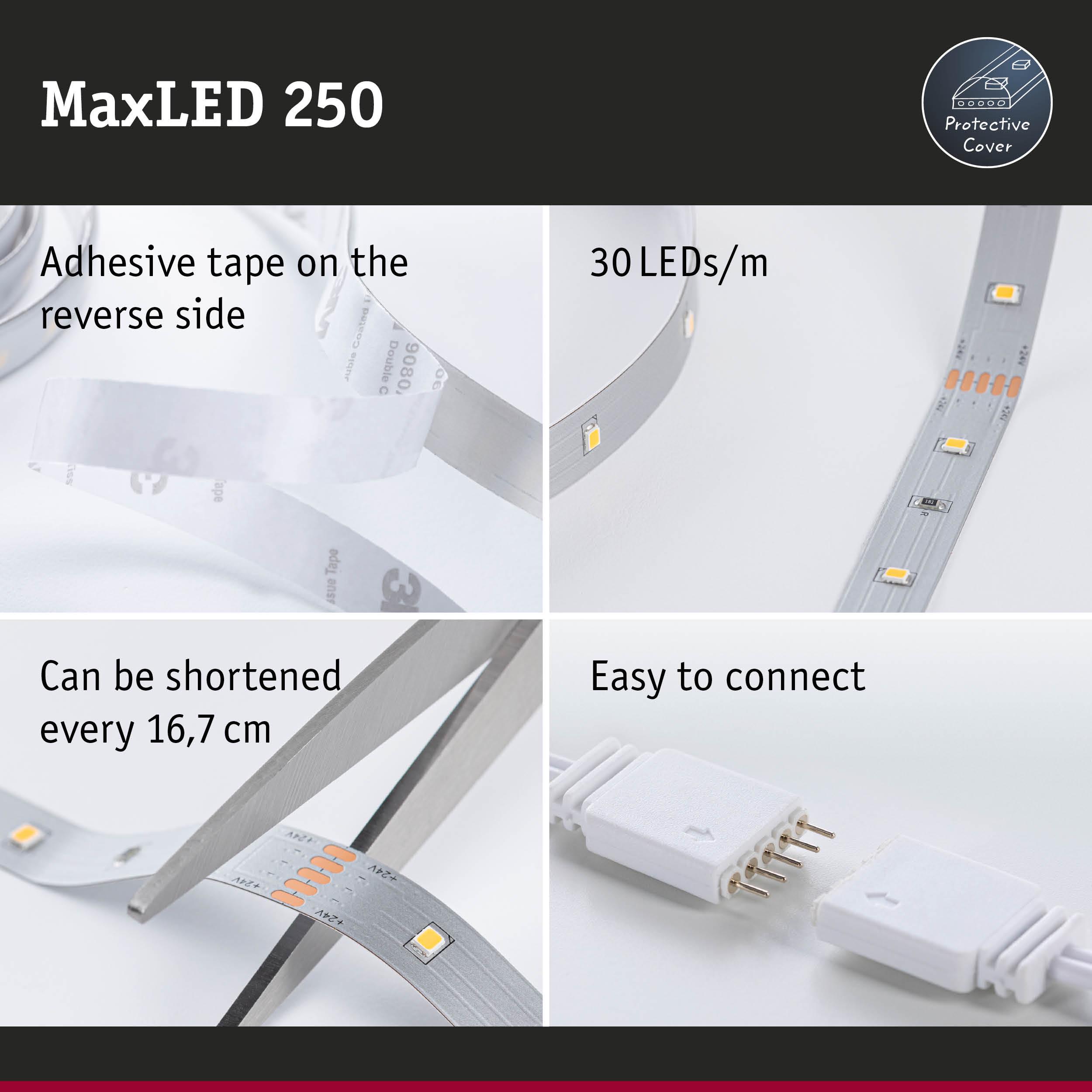

- Can be shortened as required
- RGBW colour control
- Coating protects against splashing water and dust
- Incl. 5-pin plug for easy connection of the strips
- Rear self-adhesive for simple installation
- Usable with smart home gateways that have a Zigbee interface
- Simple plug-in system for easy installation
- Flexible material for mounting on flat or curved surfaces
- Controllable with smart home Zigbee remote control
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 x B: 12,5 mm |
| Length | 1,5 m |
| Shortenability Strips | 167 mm |
| Net weight | 213 g |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Plastic |
| Installation | |
|---|---|
| Mounting location | universal |

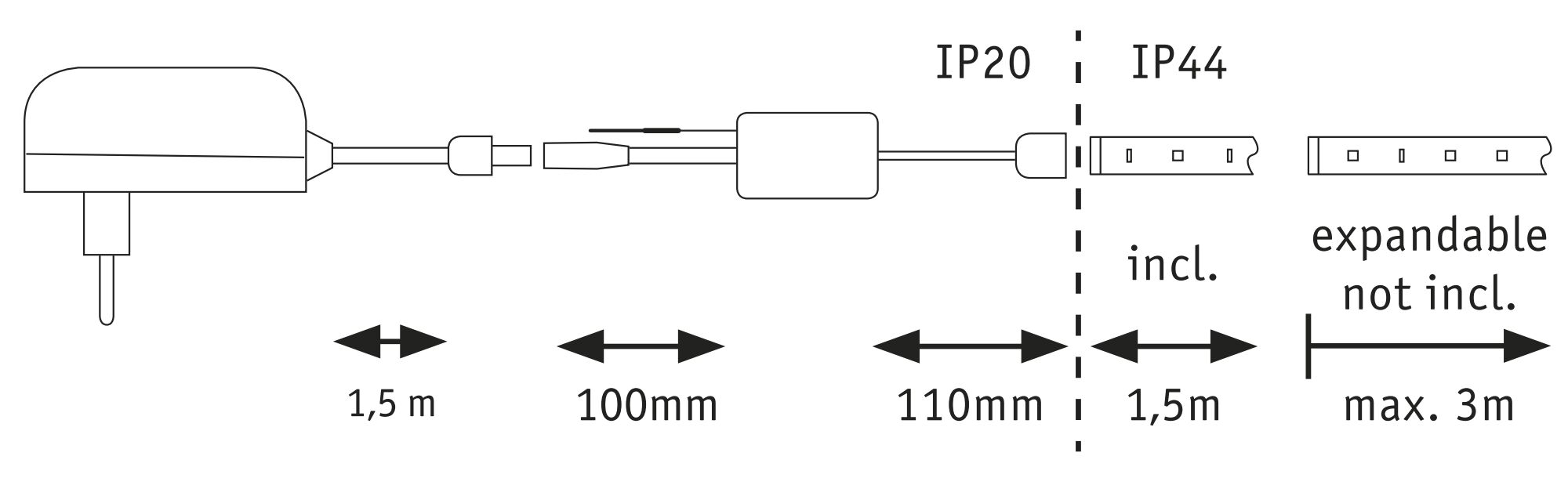

| Length max. | 3 m |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Dimming Control | with Smart Home |
| Inclusive lamp | yes |
| Component parts | 9 W |
| light source property | Light source integrated (non-replacable) |
| Compatible Smart Home technology | Zigbee |
| IP Protection | IP44 |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | Yes |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Number of LED's per meter | 30 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 11 W |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 24 VA |
| apparent power | 16 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee_certified |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
| Compatible smart home systems | Amazon Echo Smart Speaker with Zigbee 3.0 interface|Paulmann smik Gateway|Philips Hue Bridge 2 and Pro (excluded Hue Entertainment) |
| AVM Fritz! compatibility | Compatible with Fritz!Smart Gateway and FRITZ!Box models with Zigbee support |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 270 lm |
| Colour change | coloured light with Tunable White function (RGBW), Tunable White |
| Color rendering index | > 80 Ra |
| Lumens per metre | 200 lm/m |

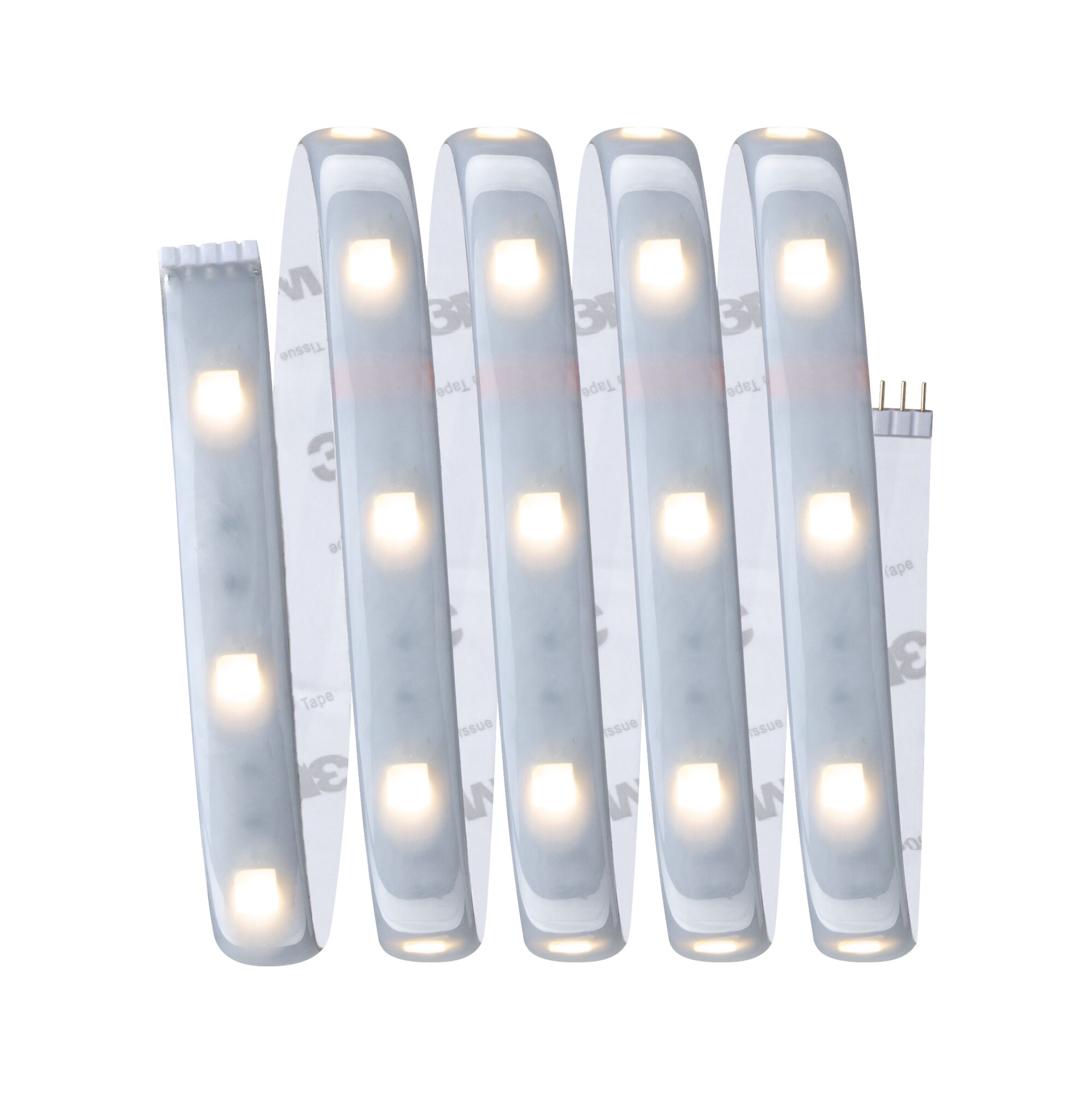

| Colour temperature | Warm white, 3000 K |
| Luminous flux LED module | 300 lm |
| Rechargeable battery / battery data | |
|---|---|
| Dimensions (Height x Width x Depth) | 3 x 12,5 mm |
