Article-No.:
79881

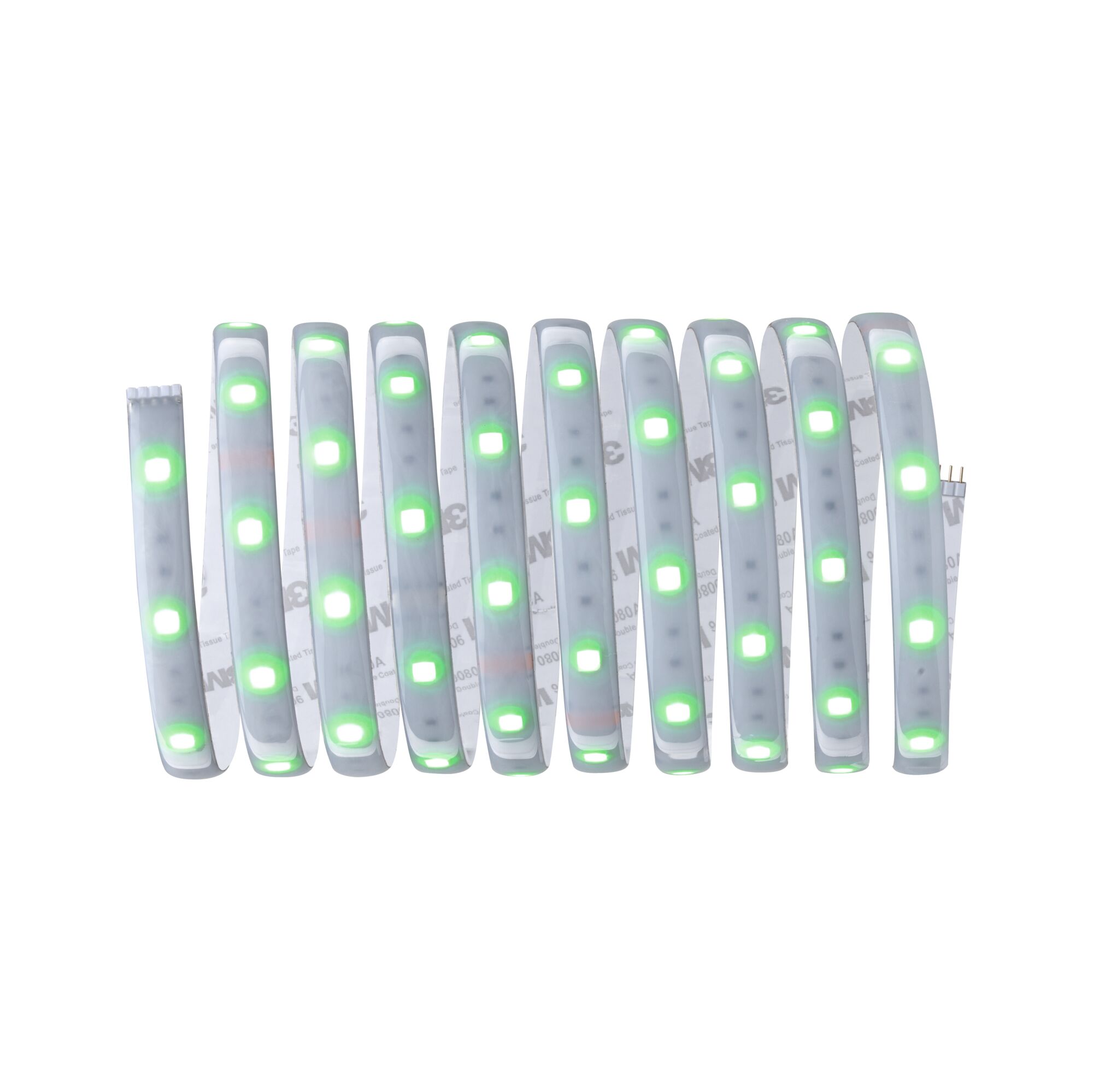

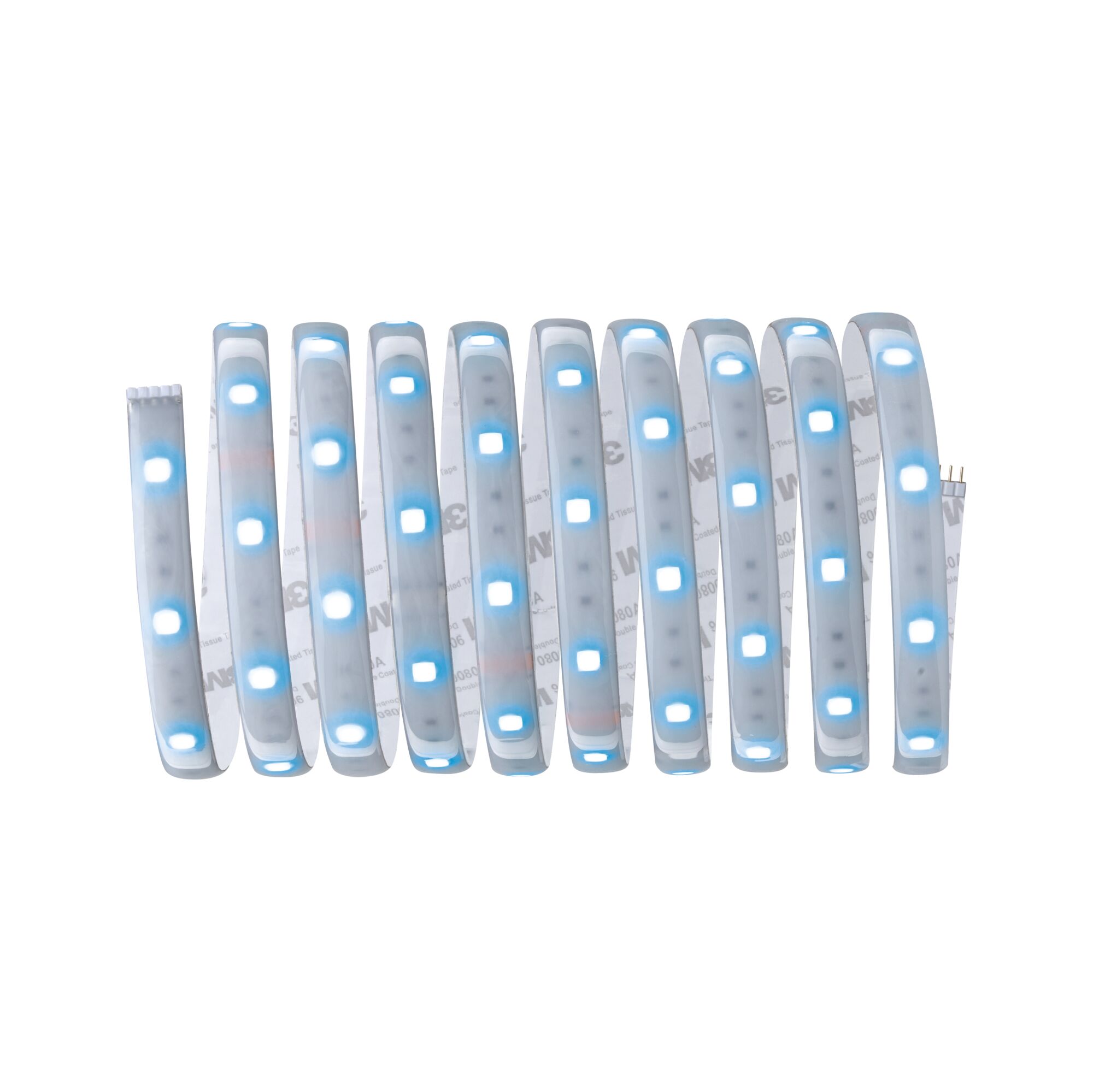

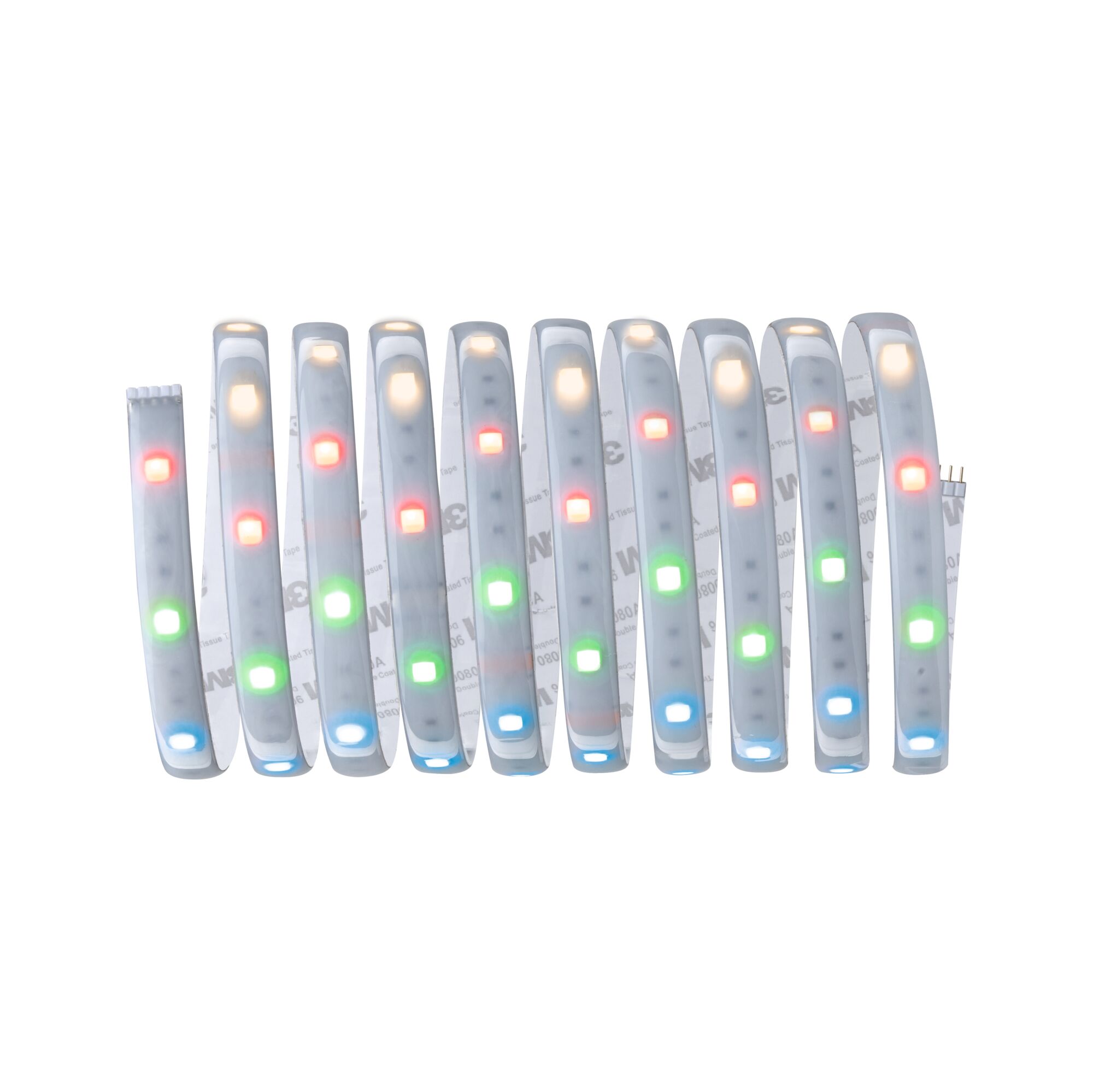

MaxLED 250LED Strip
Basic set 3m RGBW+
3m coated 20W 270lm/m 30 LEDs/m RGBW+ 36VA
3m coated 20W 270lm/m 30 LEDs/m RGBW+ 36VA

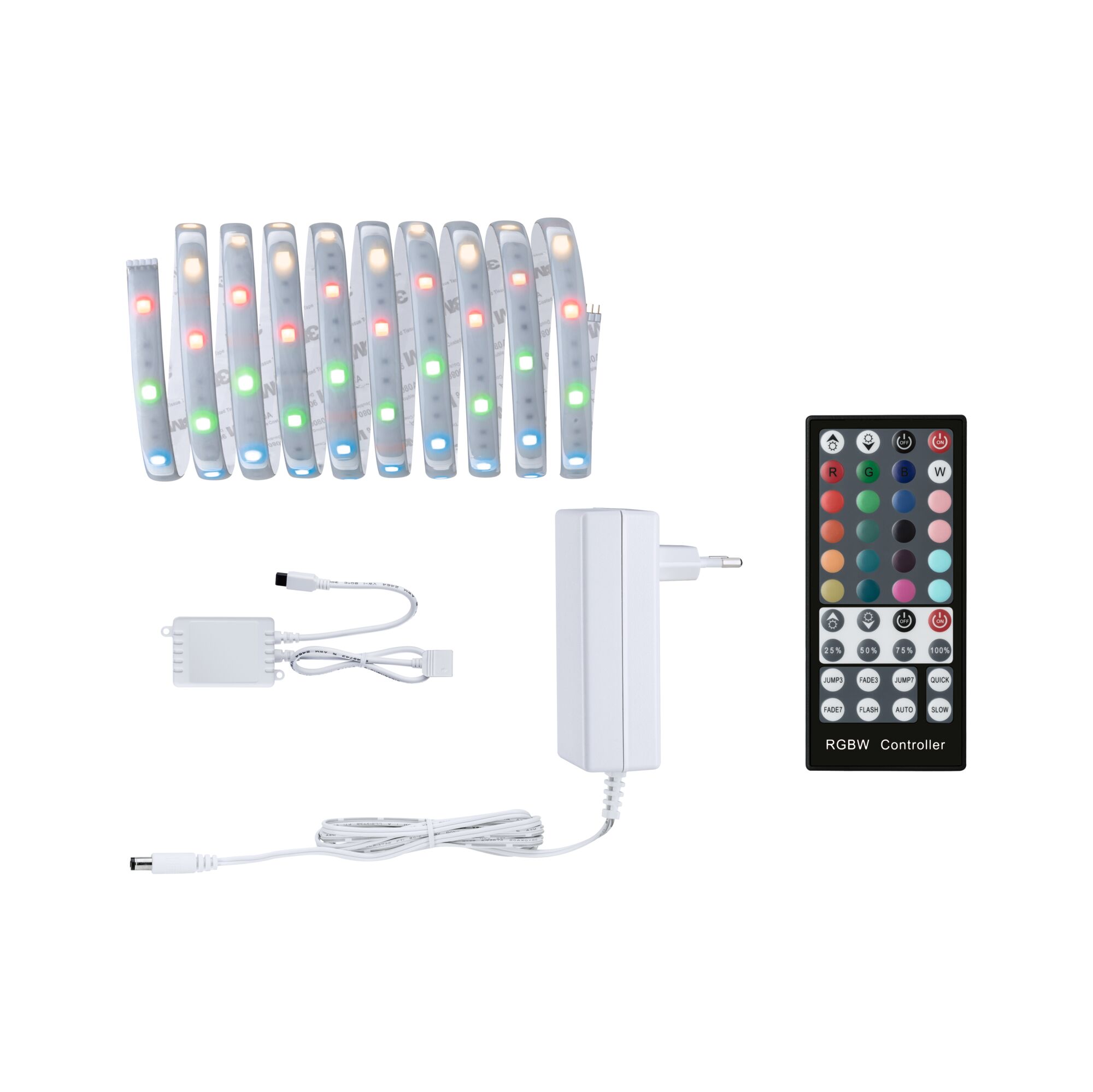

- Complete set incl. strip, power supply and remote control
- Simple plug-in system for easy installation
- RGB colour change
MaxLED 250 LED Strip Basic set 3m RGBW+ 3m coated 20W 270lm/m 30 LEDs/m RGBW+ 36VA

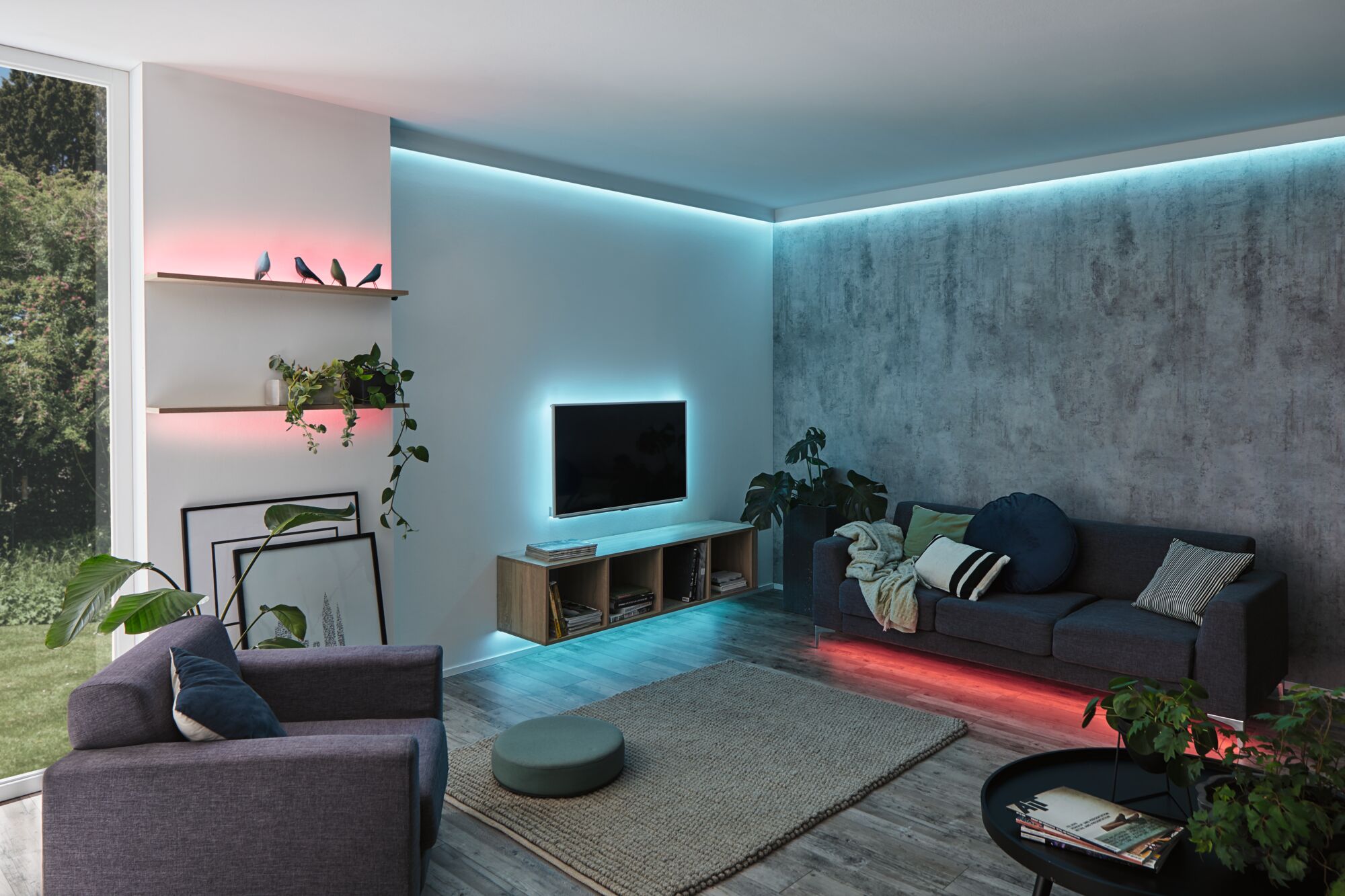

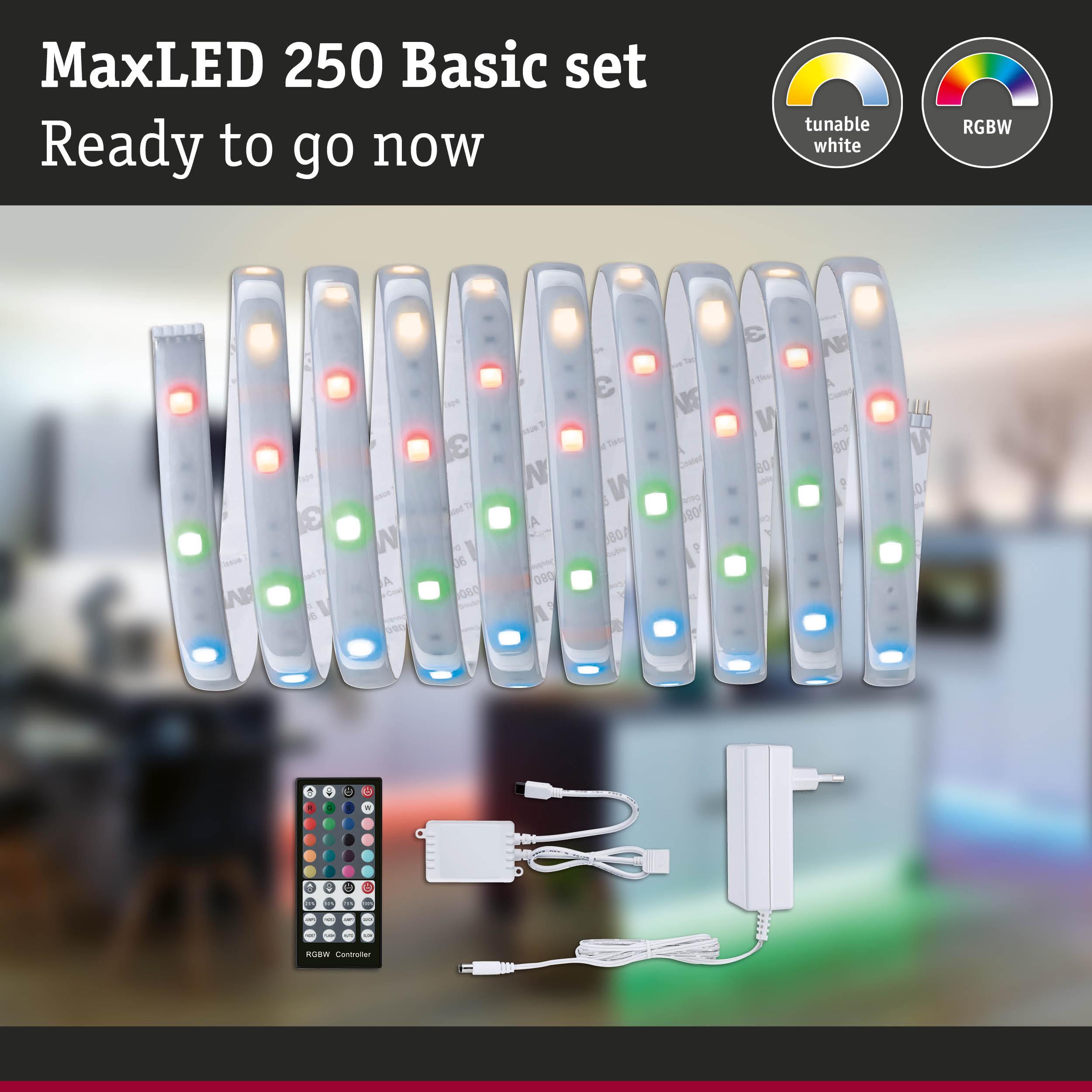

The MaxLED 250 basic set not only contains a 3m strip, but also a suitable ballast and a control unit with infra-red remote control. The strip can also be used in wet rooms, thanks to the new “Protecting Cover” IP44 coating. With an output of 20 watts, the MaxLED strips are so powerful that they can be easily used for room lighting. They are real highlights especially in profiles. The mood-setting colour-change function allows you to create your own living atmosphere – ranging from monochrome continuous lighting to multi-coloured light effects. A diode in white (W) additionally provides a cosy warm white light and eliminates the need to mix a white tone from the colours red, green and blue (RGB).
- Complete set incl. strip, power supply and remote control
- Simple plug-in system for easy installation
- RGB colour change

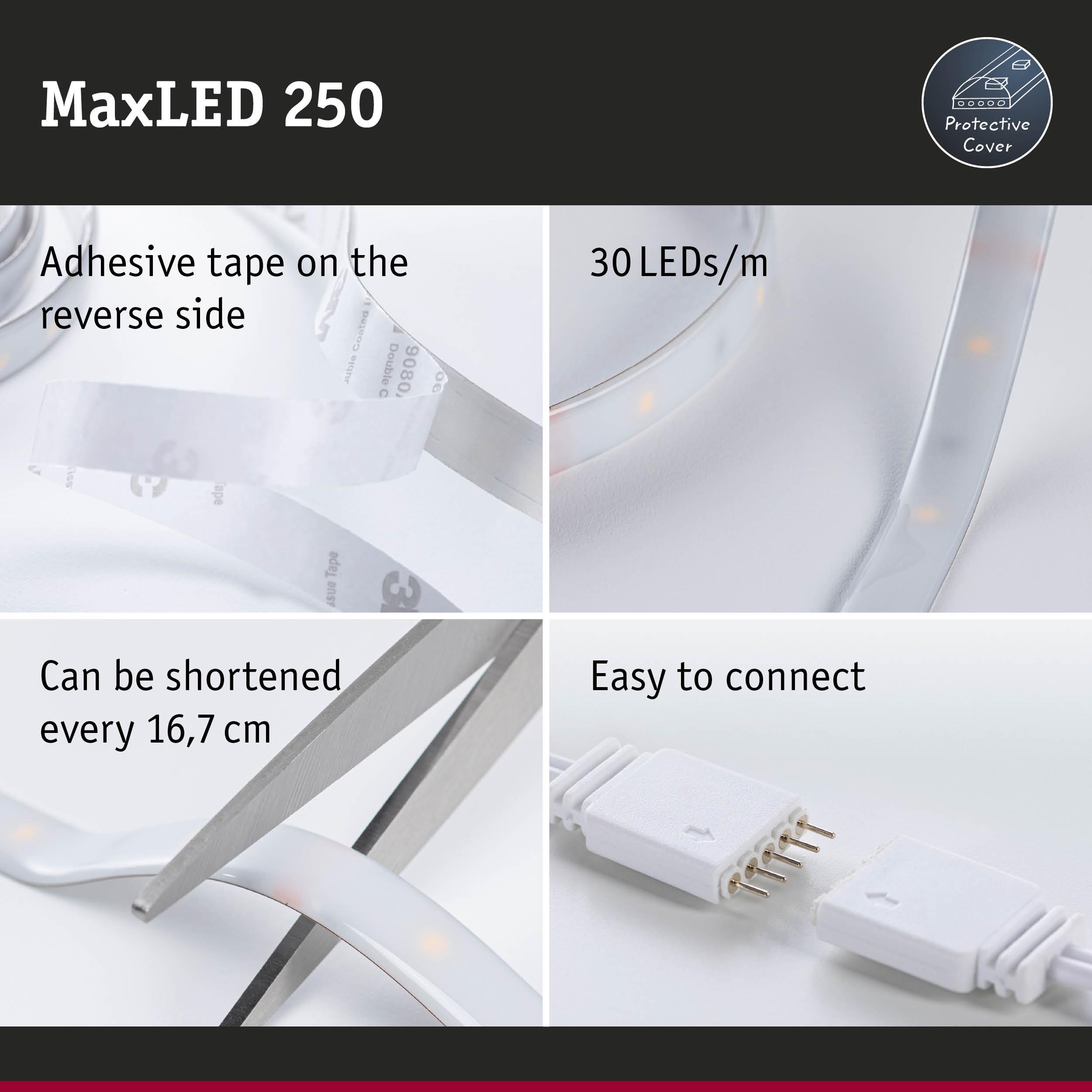

- Can be shortened as required
- Rear self-adhesive for simple installation
- Flexible material for installation on flat or arched base surfaces
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
- Incl. 5-pin plug for easy connection of the strips
| Dimension | |
|---|---|

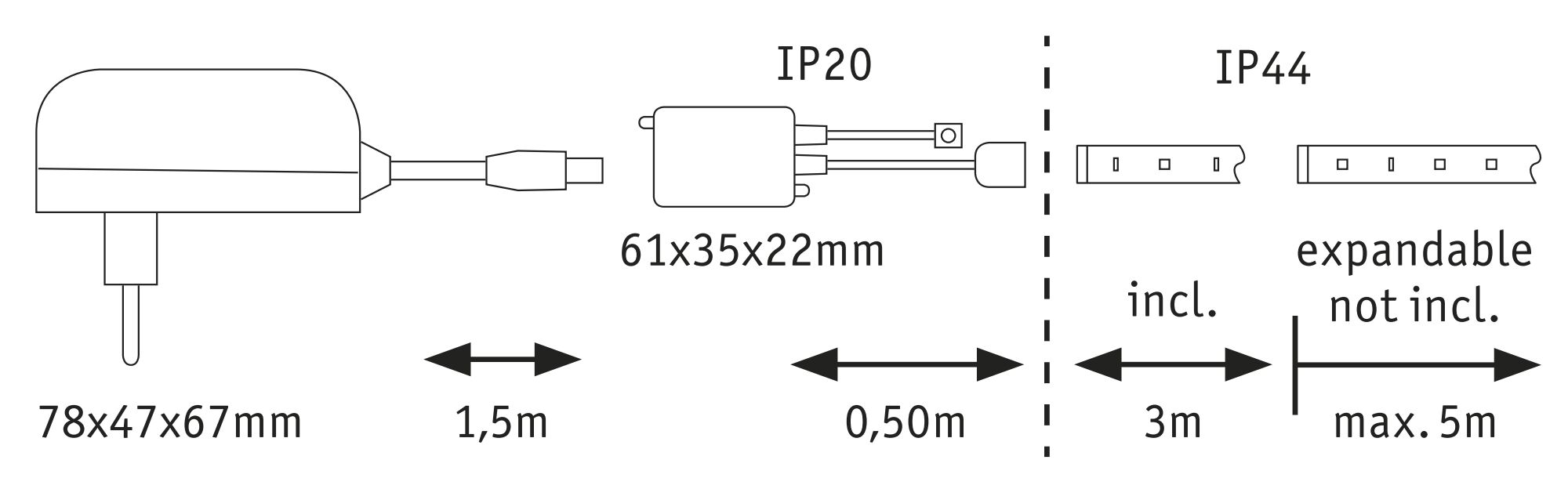

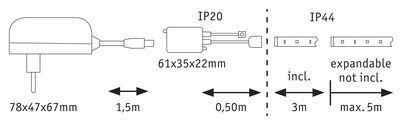

| Dimensions (Height x Width x Depth) | H: 3 x B: 3000 x T: 12,5 mm |
| Length | 3 m |
| Shortenability Strips | 167 mm |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Length max. | 5 m |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 3000 K |
| Nominal luminous flux | 690 lm |
| Luminous flux LED module | 810 lm |
| Color rendering index | > 80 Ra |
| Colour change | coloured light with Tunable White function (RGBW), Tunable White |
| Lumens per metre | 270 lm/m |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with remote control |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 26 W |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 20 W |
| Number of component parts | 1x |
| Number of LED's per meter | 30 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 22,3 W |
| Adjustability | fixed |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 36 VA |
| Transformer height | 51,2 mm |
| Transformer width | 51,2 mm |
| Transformer depth | 100,5 mm |
| Accessories | |
|---|---|
| Radio control included | yes |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
