Article-No.:
79876
MaxLED 250LED Strip
Basic set 1,5m Tunable White
1,5m coated IP44 5,5W 270lm/m 30 LEDs/m Tunable White 24VA
1,5m coated IP44 5,5W 270lm/m 30 LEDs/m Tunable White 24VA

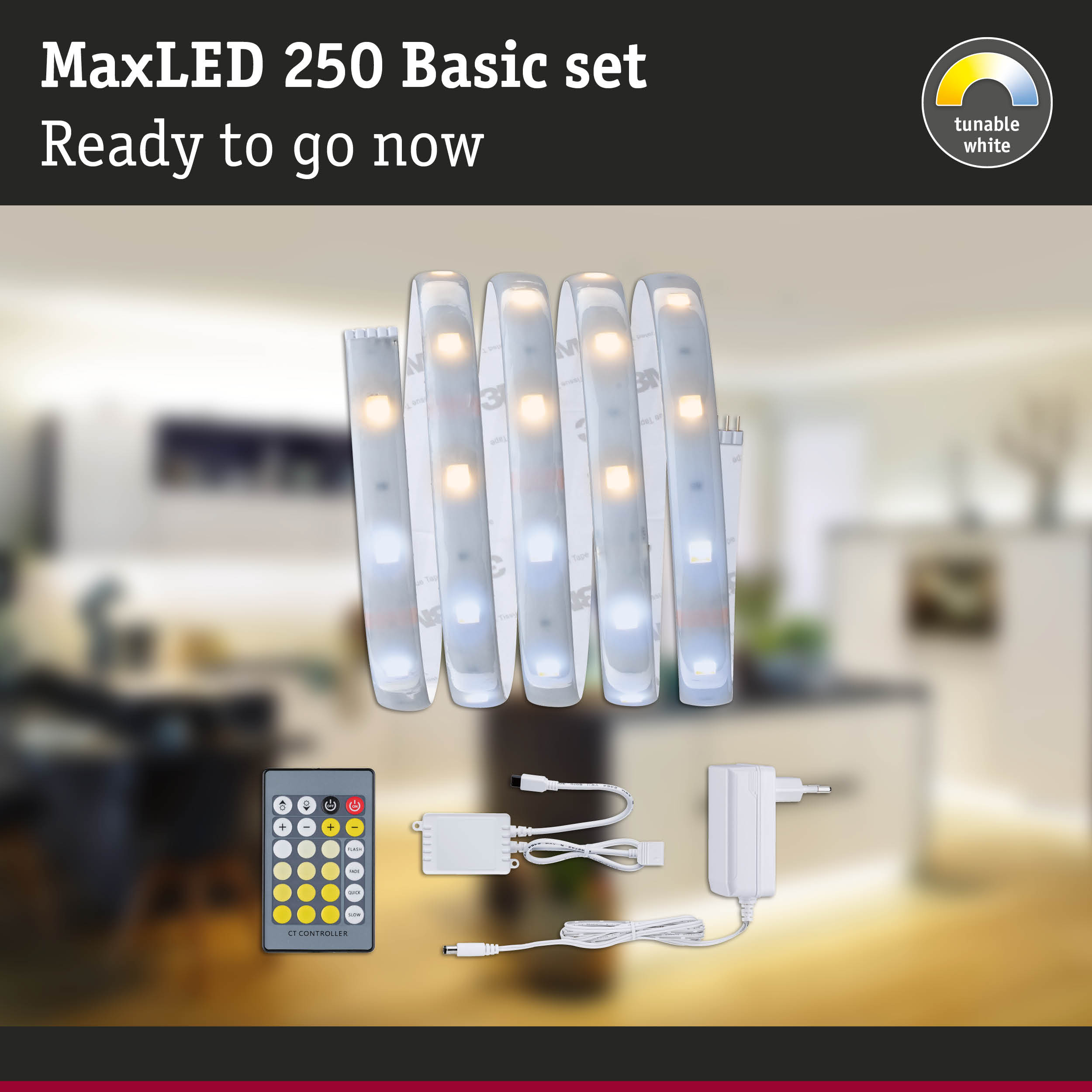

- Complete set incl. strip, power supply and tunable white controller
- Simple plug-in system for easy installation
- With white-light control (Tunable White)
MaxLED 250 LED Strip Basic set 1,5m Tunable White 1,5m coated IP44 5,5W 270lm/m 30 LEDs/m Tunable White 24VA

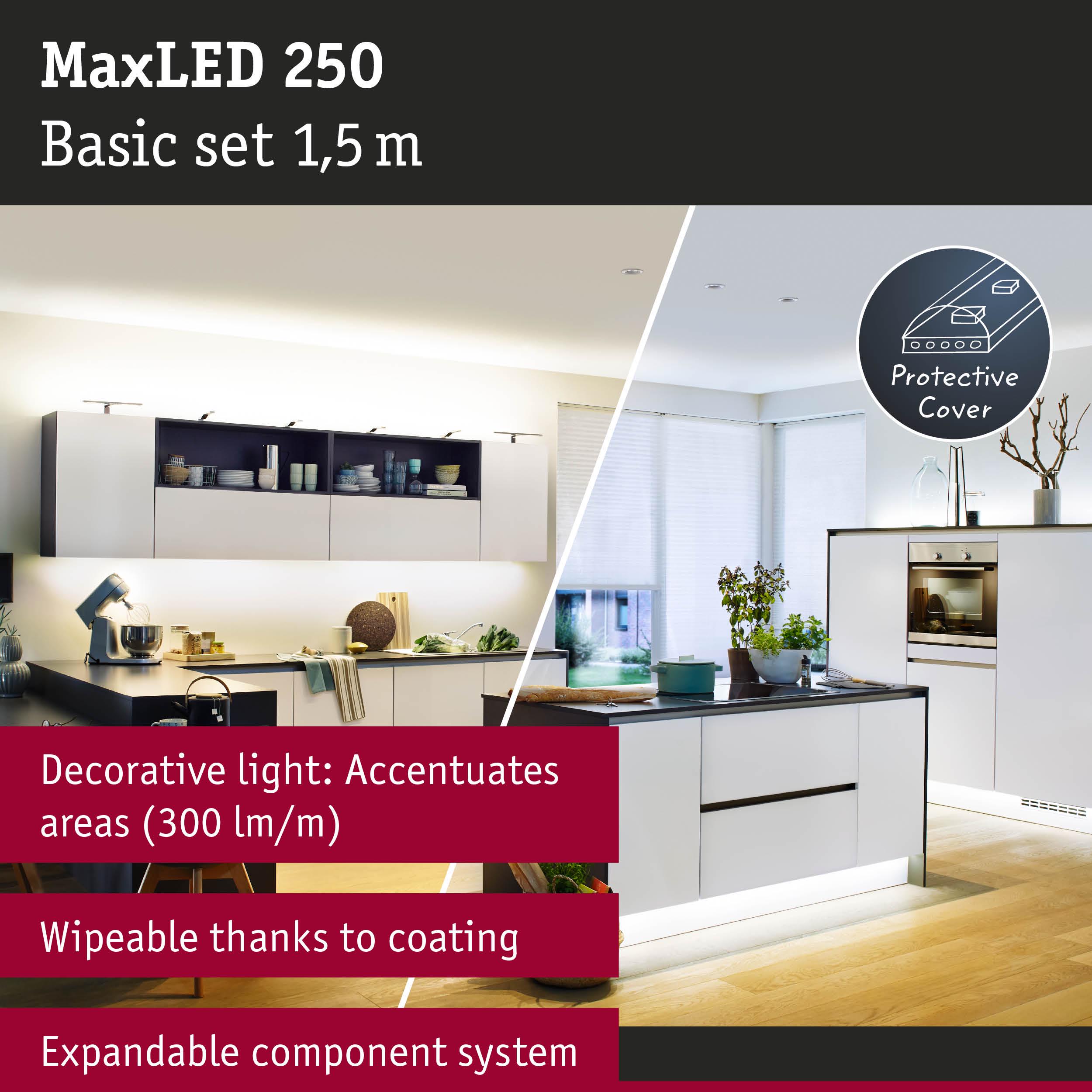

The MaxLED 250 basic set not only contains a 1,5m strip, but also a suitable ballast and a control unit with infra-red remote control. The basic set can also be used in wet rooms, thanks to the new “Protecting Cover” IP44 coating. With an output of 5.5 watts, the MaxLED strips are so powerful that they can easily be used for room lighting. They are real highlights especially in profiles. Thanks to the intelligent Tunable White light control, the light colour of the strips can be varied individually – ranging from daylight white work light to warm white relaxation light. Depending on your needs, the set can also be extended with additional strips and connectors.
- Complete set incl. strip, power supply and tunable white controller
- Simple plug-in system for easy installation
- With white-light control (Tunable White)
- IP44 - protected against water spray, even outdoors
- Color temperatur: 2700K - Warm white - 6500K -Daylight white

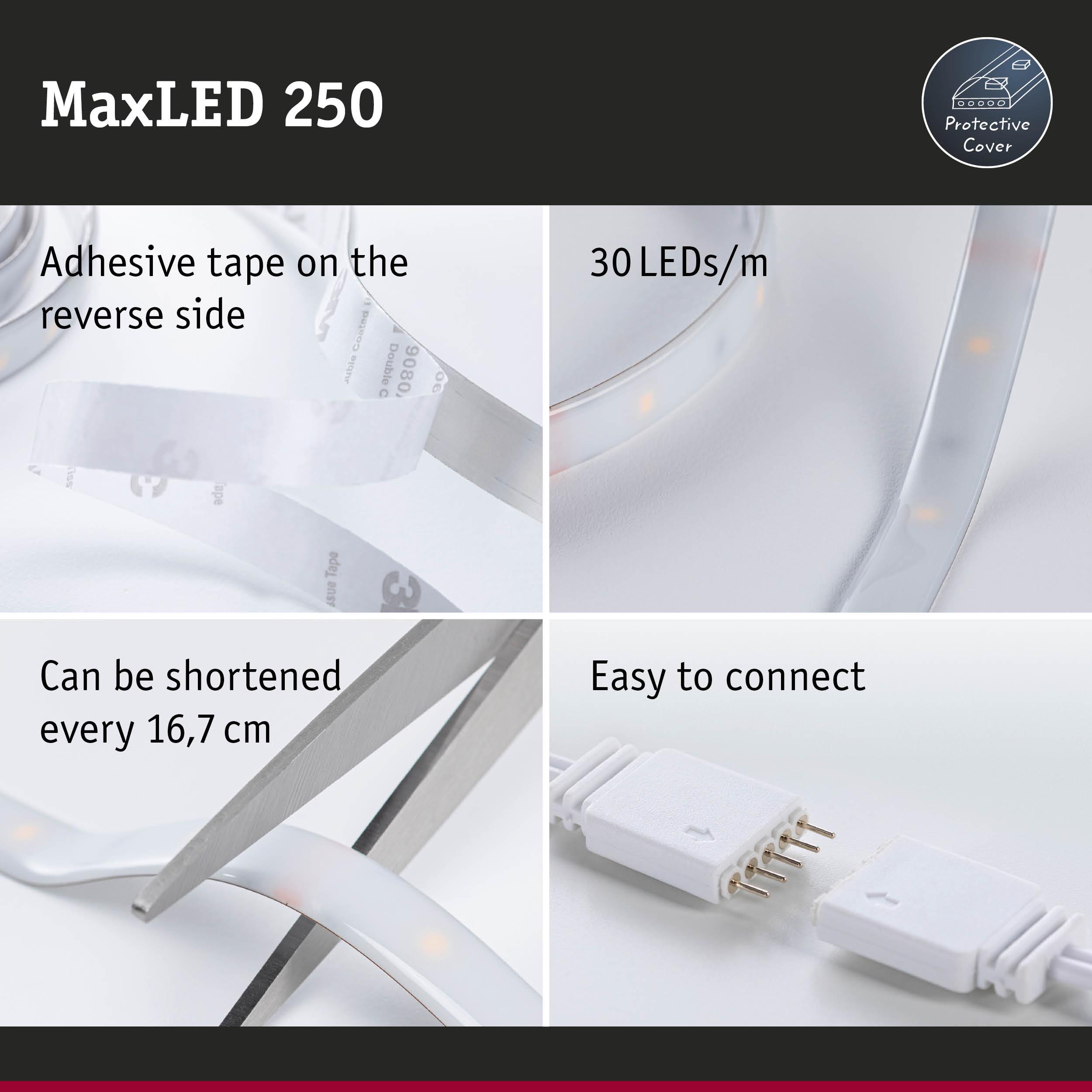

- Can be shortened as required
- Rear self-adhesive for simple installation
- Flexible material for installation on flat or arched base surfaces
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
- Incl. 5-pin plug for easy connection of the strips
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 x B: 1510 x T: 12,5 mm |
| Length | 1,5 m |
| Shortenability Strips | 167 mm |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Plastic |
| Recycled material included | no |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Length max. | 6 m |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature to | 6500 K |
| Colour temperature | Warm white to Daylight white, 2700 K |
| Nominal luminous flux | 345 lm |
| Luminous flux LED module | 405 lm |
| Color rendering index | > 80 Ra |
| Colour change | Tunable White |
| Lumens per metre | 270 lm/m |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with remote control |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 36 W |
| IP protection | IP44 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 5,5 W |
| Number of component parts | 1x |
| Number of LED's per meter | 30 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 7,2 W |
| Adjustability | fixed |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 24 VA |
| Transformer height | 67 mm |
| Transformer width | 47,3 mm |
| Transformer depth | 77,7 mm |
| Accessories | |
|---|---|
| Radio control included | yes |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
