Article-No.:
79872
MaxLED 250LED Strip
Basic set 1,5m 6500K
1,5m coated IP44 6W 300lm/m 30 LEDs/m 6500K 24VA
1,5m coated IP44 6W 300lm/m 30 LEDs/m 6500K 24VA

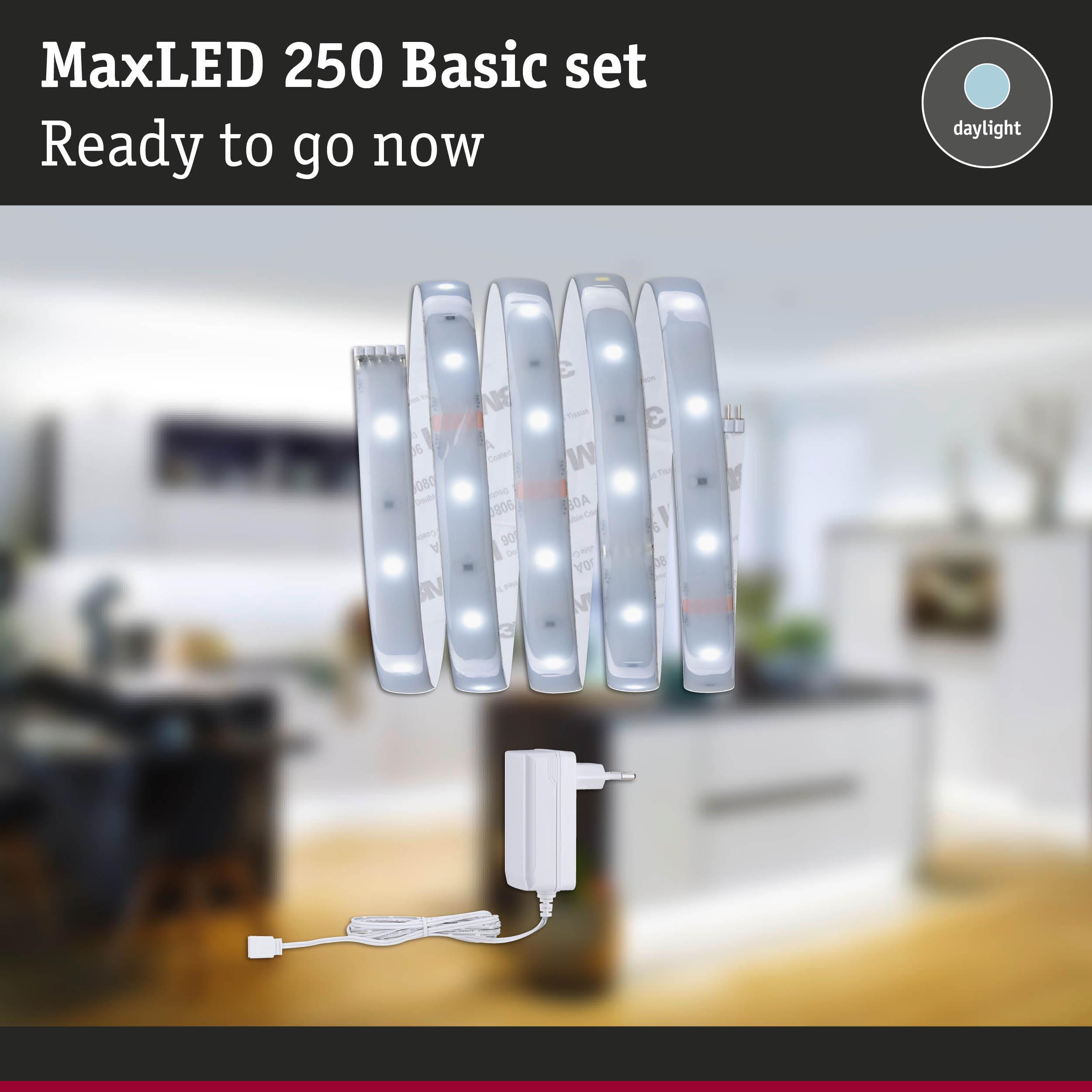

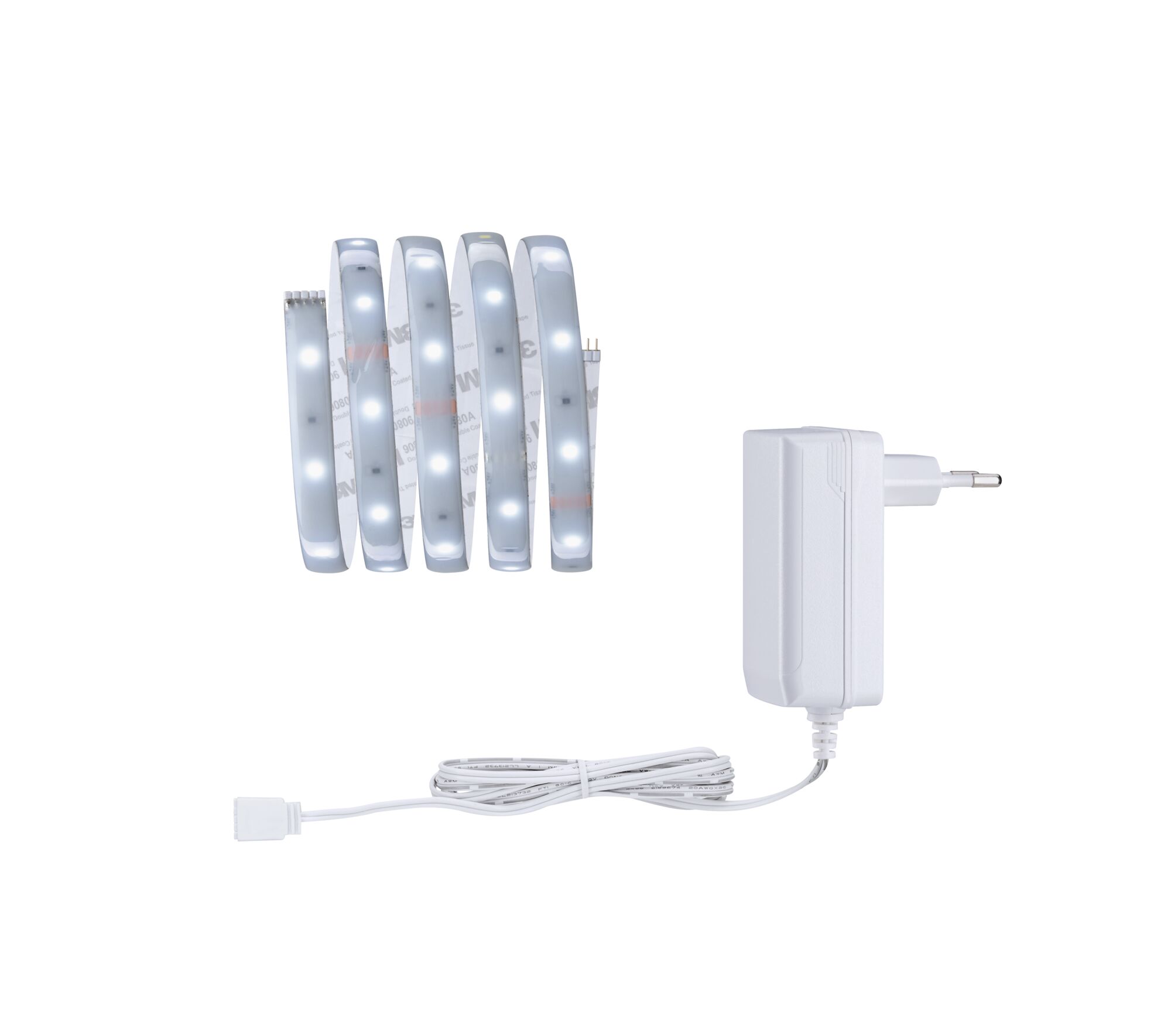

- Complete set incl. strip and power supply
- Simple plug-in system for easy installation
- IP44 - protected against water spray, even outdoors
MaxLED 250 LED Strip Basic set 1,5m 6500K 1,5m coated IP44 6W 300lm/m 30 LEDs/m 6500K 24VA

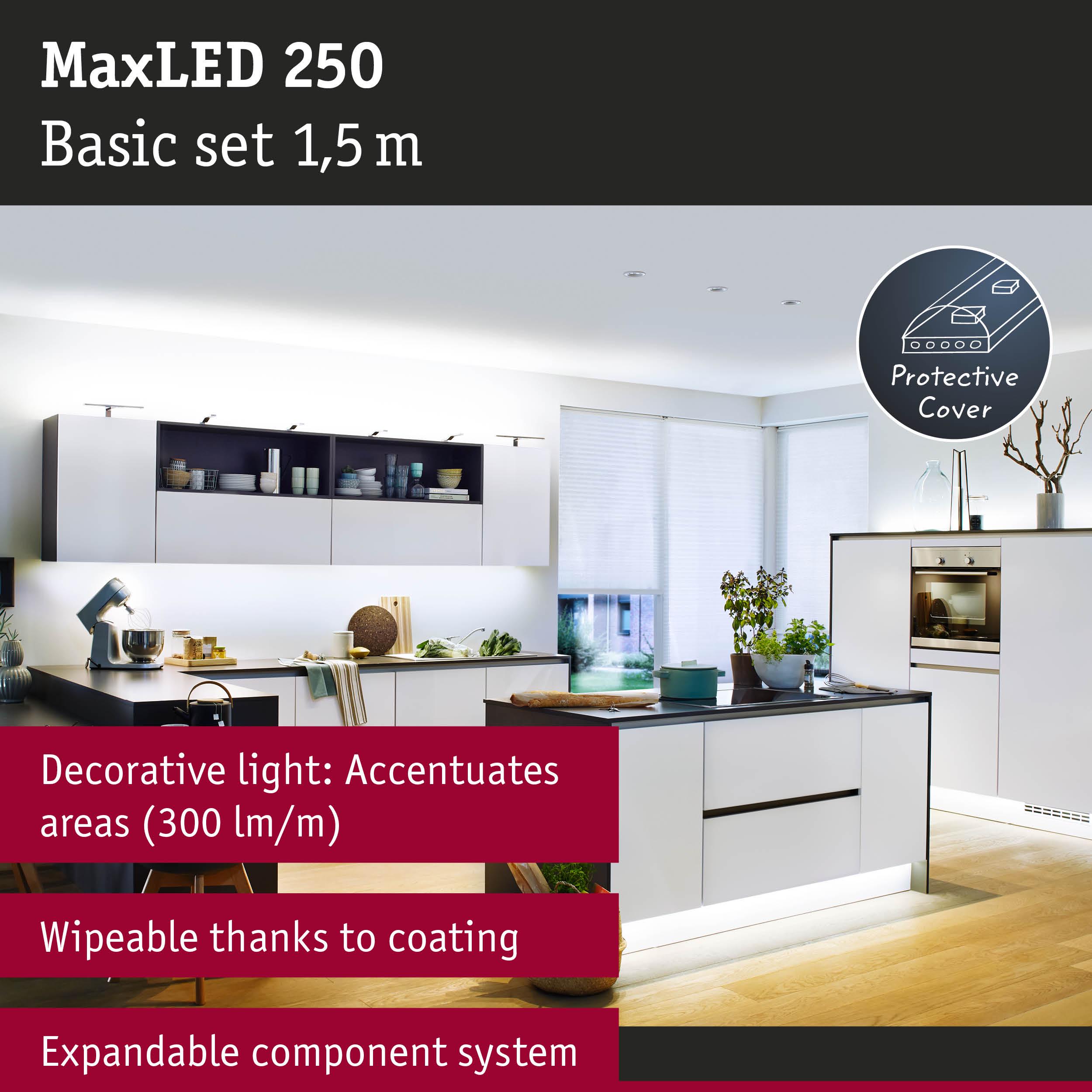

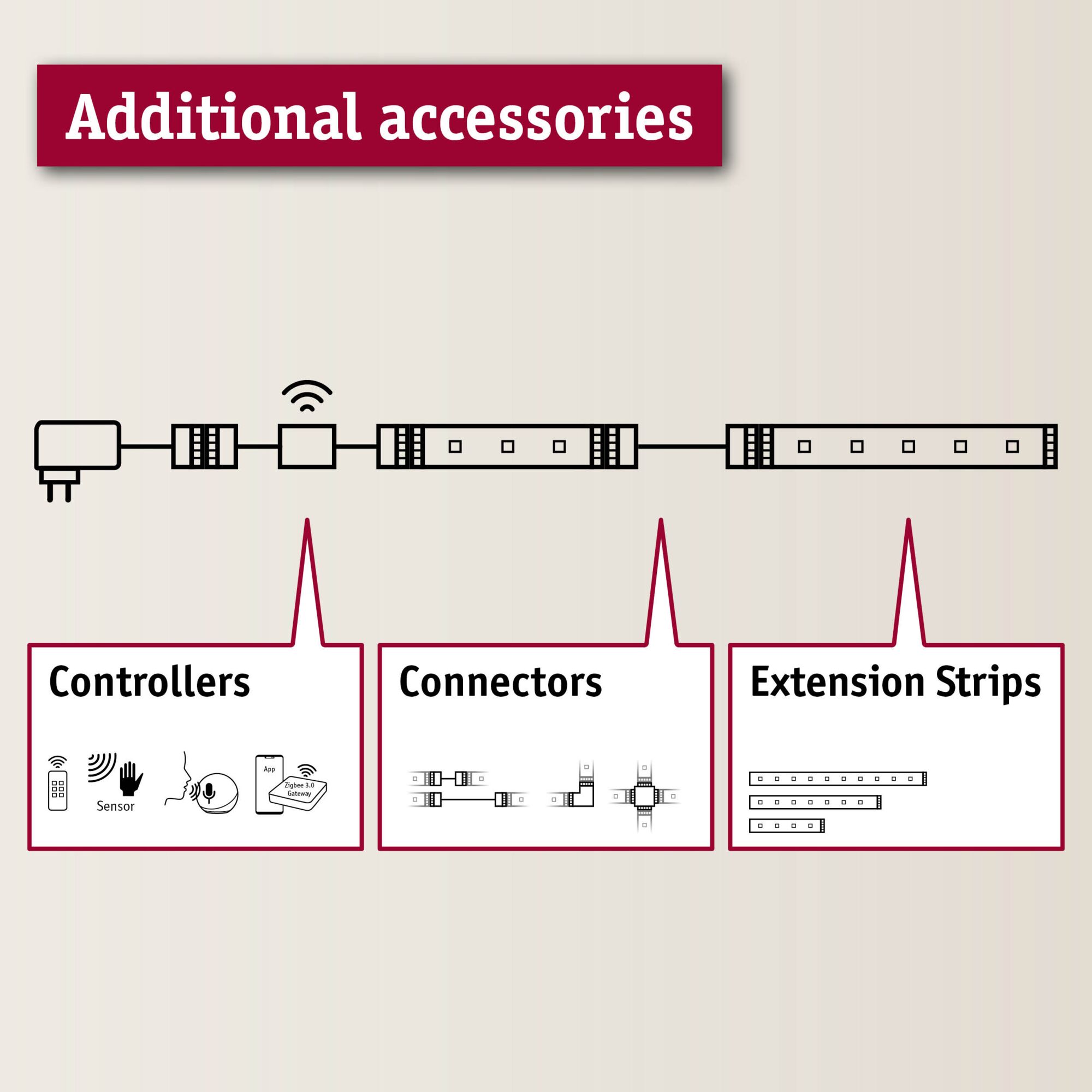

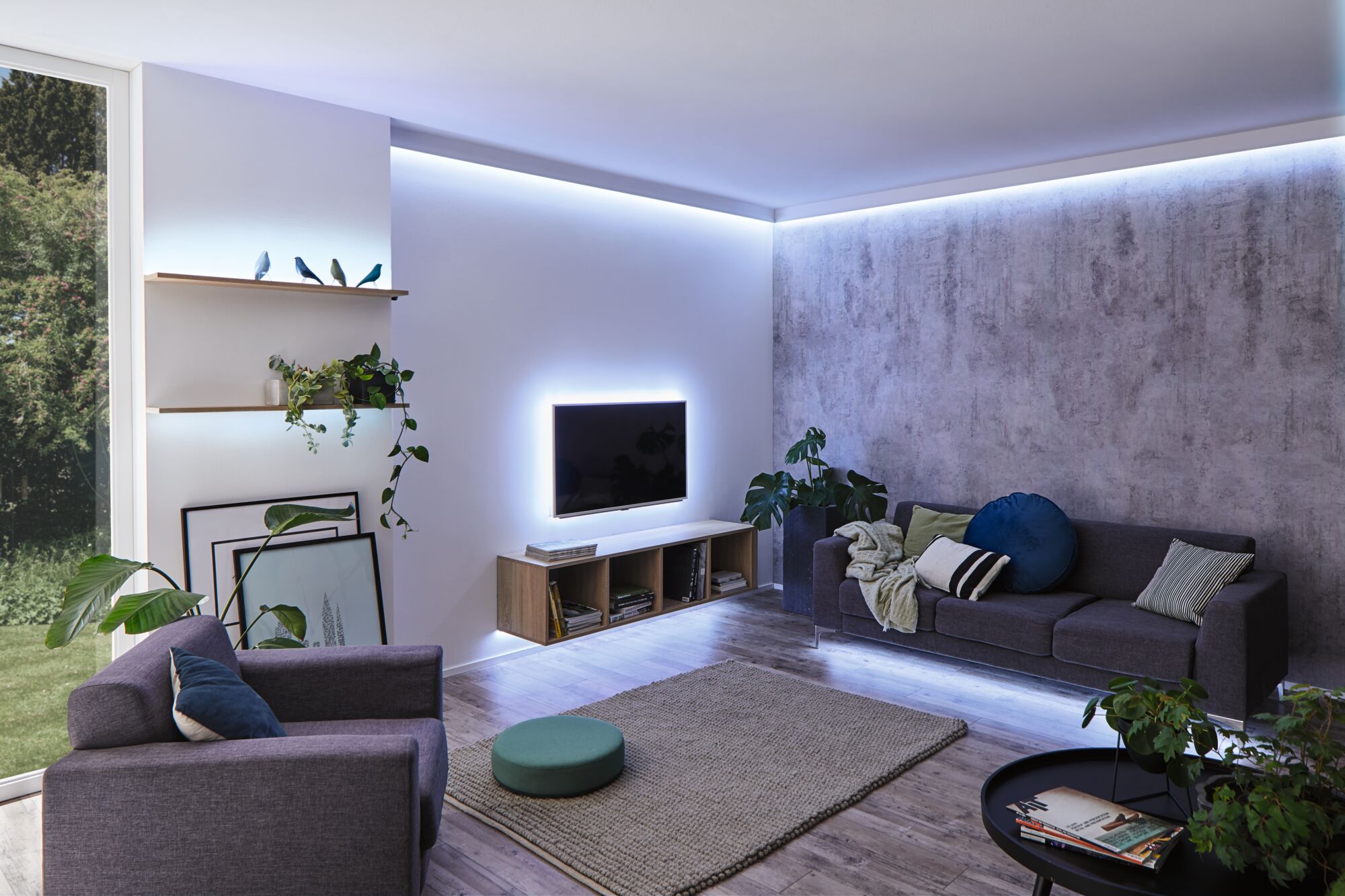

The MaxLED 250 basic set not only contains a 1,5m strip, but also a suitable ballast. If required it can be extended by a control unit with remote control. The basic set can also be used in wet rooms, thanks to the new “Protecting Cover” IP44 coating. With an output of 6 watts, the MaxLED strips are so powerful that they can easily be used for room lighting. They are real highlights especially in profiles. Daylight white strips provide room and workplace light that keeps you focused and active.
- Complete set incl. strip and power supply
- Simple plug-in system for easy installation
- IP44 - protected against water spray, even outdoors
- Color temperatur: 6500K - Daylight white

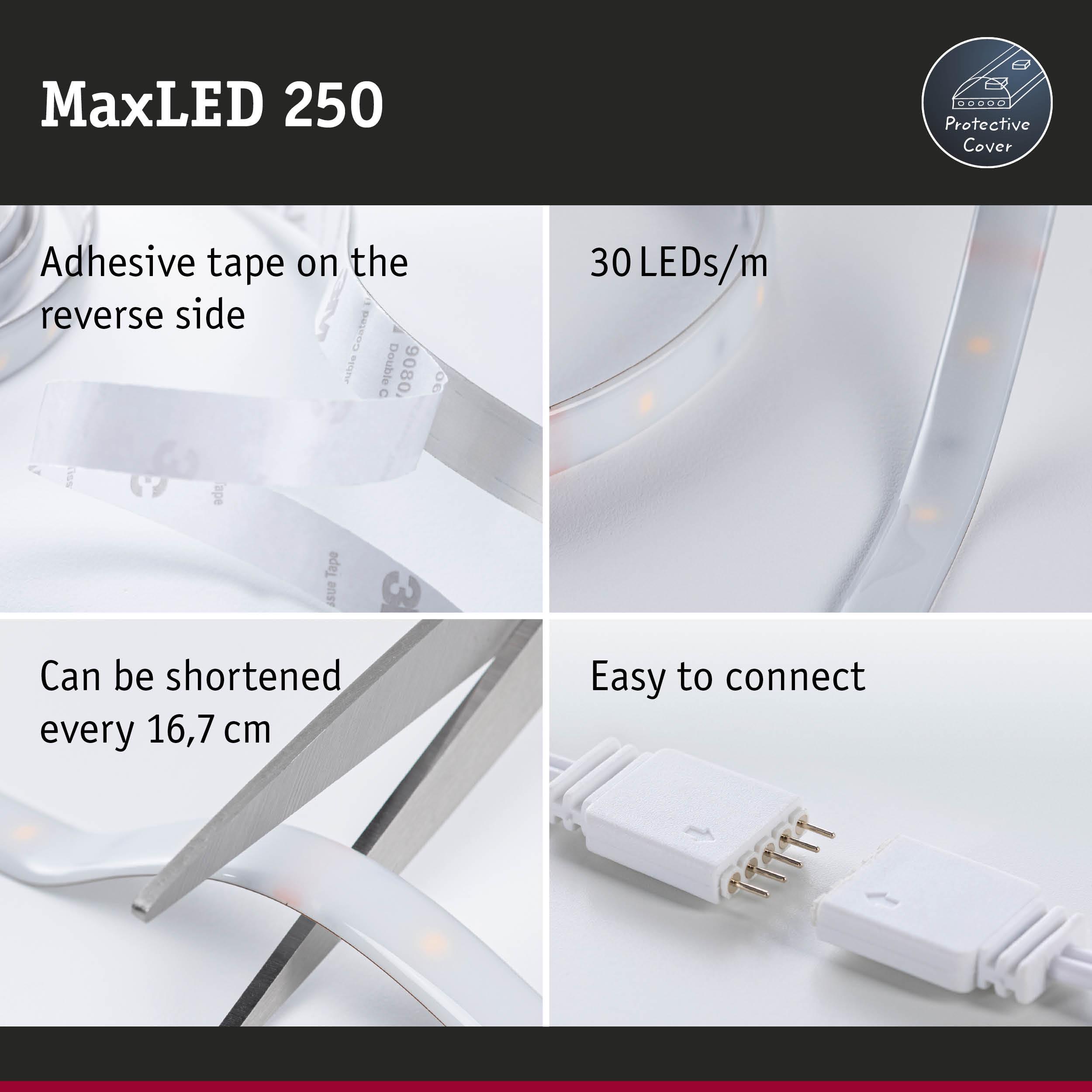

- Can be shortened as required
- Rear self-adhesive for simple installation

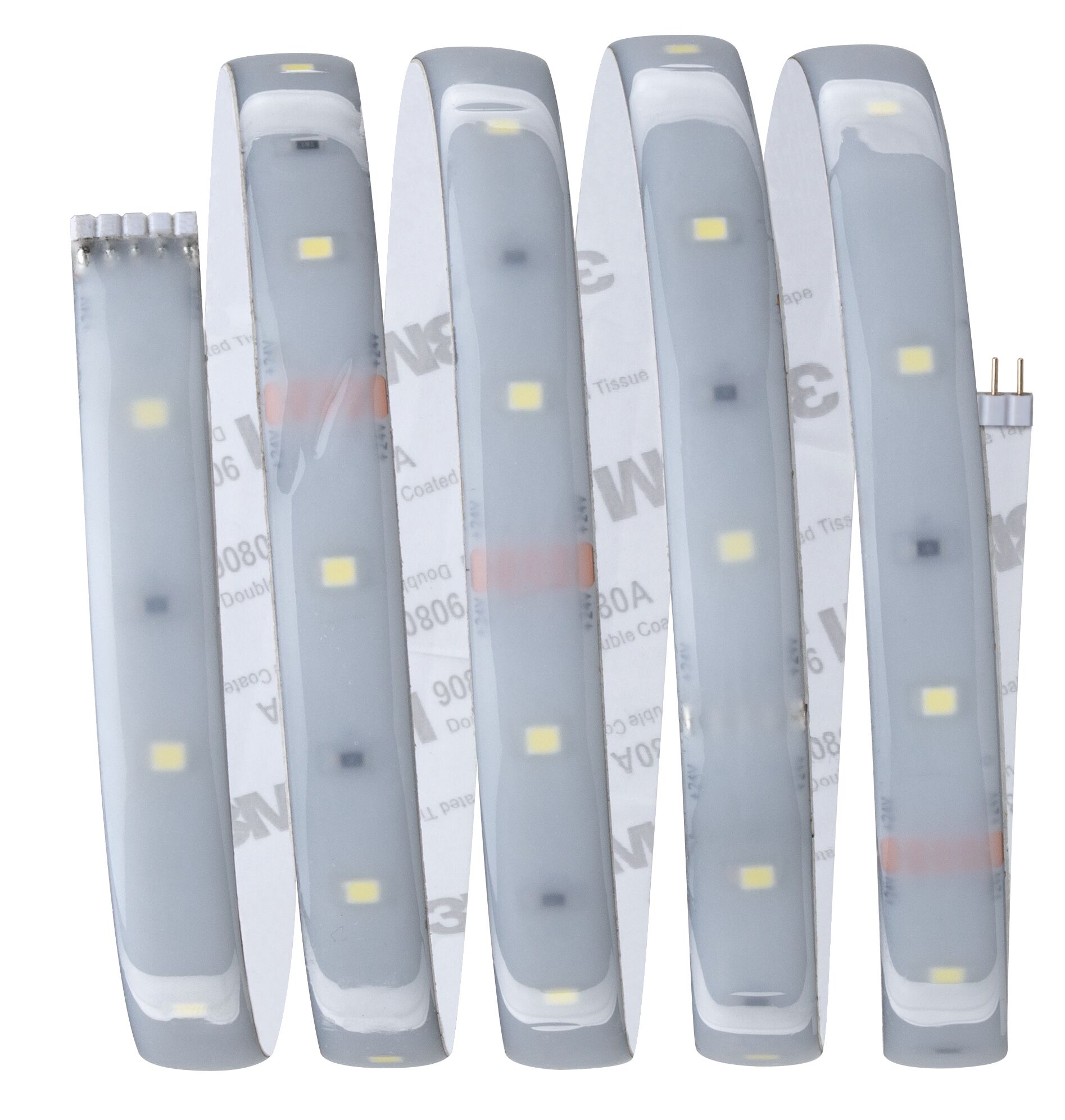

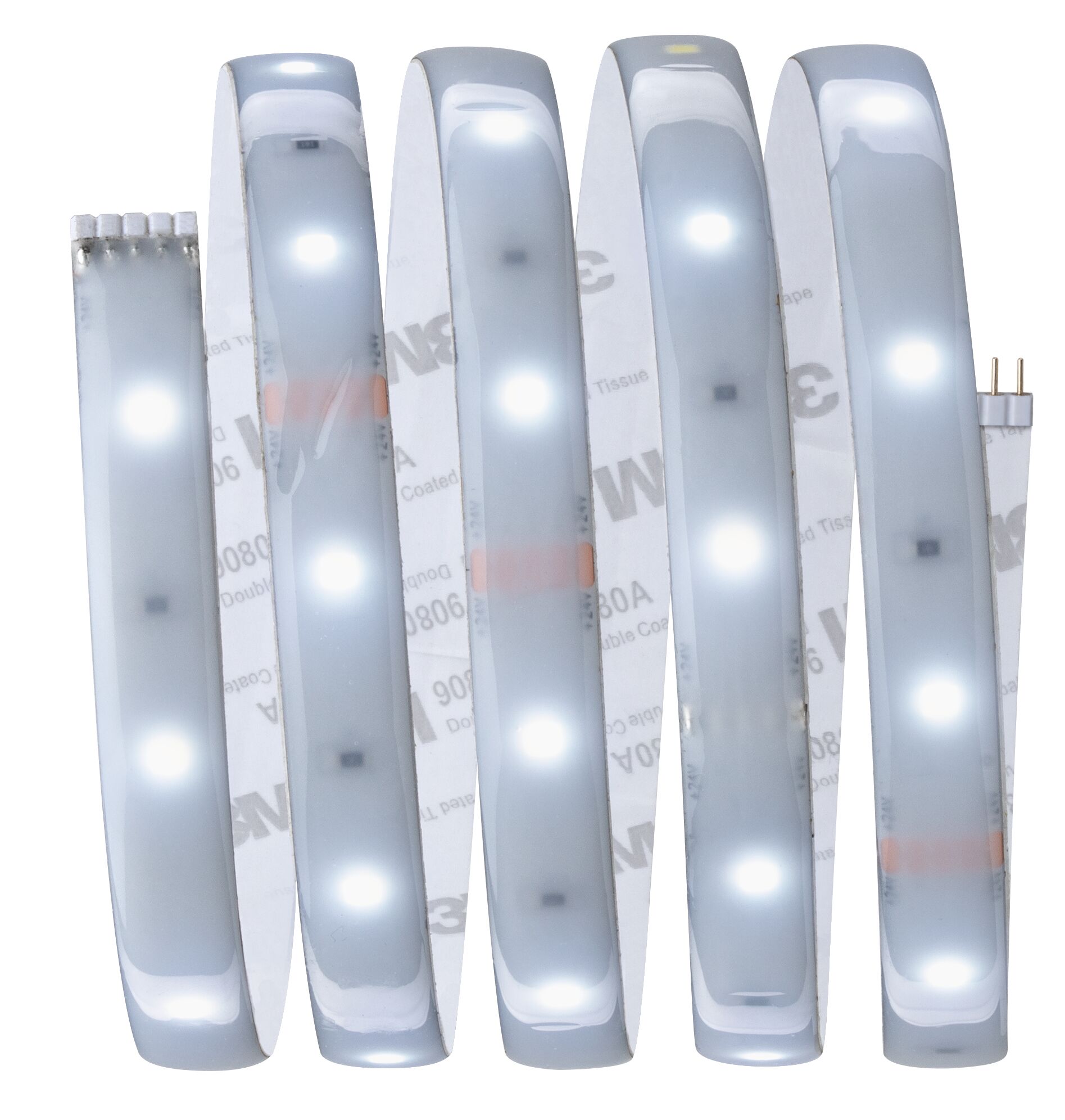

- Flexible material for installation on flat or arched base surfaces
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
- Incl. 5-pin plug for easy connection of the strips
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 x B: 1510 x T: 12,5 mm |
| Length | 1,5 m |
| Shortenability Strips | 167 mm |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Length max. | 5,5 m |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Daylight white, 6500 K |
| Nominal luminous flux | 360 lm |
| Luminous flux LED module | 450 lm |
| Color rendering index | > 80 Ra |
| Lumens per metre | 300 lm/m |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 39 W |
| IP protection | IP44 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 6 W |
| Number of component parts | 1x |
| Number of LED's per meter | 30 |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 7,2 W |
| Adjustability | fixed |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 24 VA |
| Transformer height | 67 mm |
| Transformer width | 47,3 mm |
| Transformer depth | 77,7 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
