Article-No.:
5060
MaxLED 1000
Set
Kitchen Comfort Indirect
3m protect cover IP44 35W 880lm/m 2700K 60VA
3m protect cover IP44 35W 880lm/m 2700K 60VA
- Set includes 1x 70576, 1x 70619, 1x 70670 and 1x 70676
- Complete set incl. strip and power supply
- Coating protects against splashing water and dust
MaxLED 1000 Set Kitchen Comfort Indirect 3m protect cover IP44 35W 880lm/m 2700K 60VA

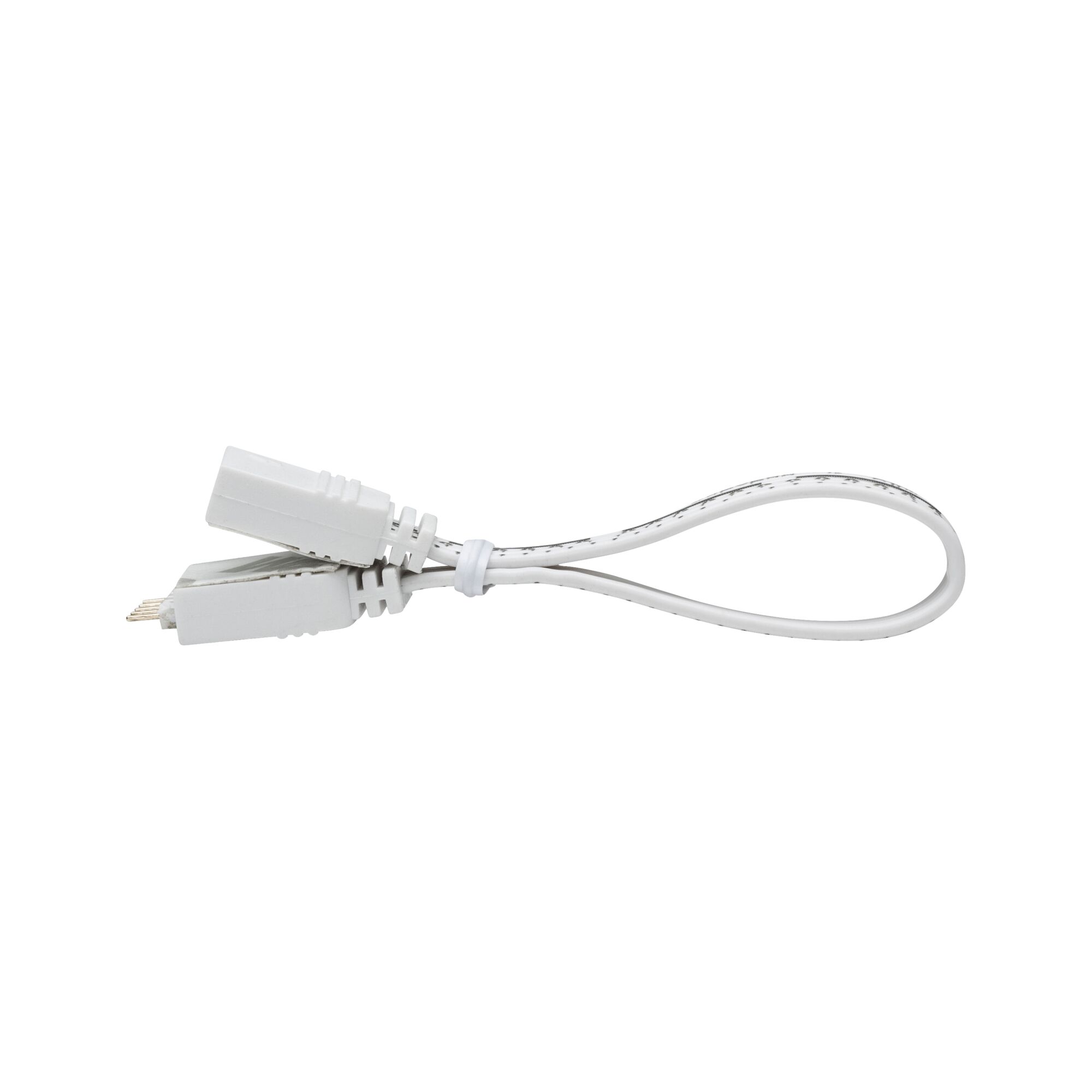

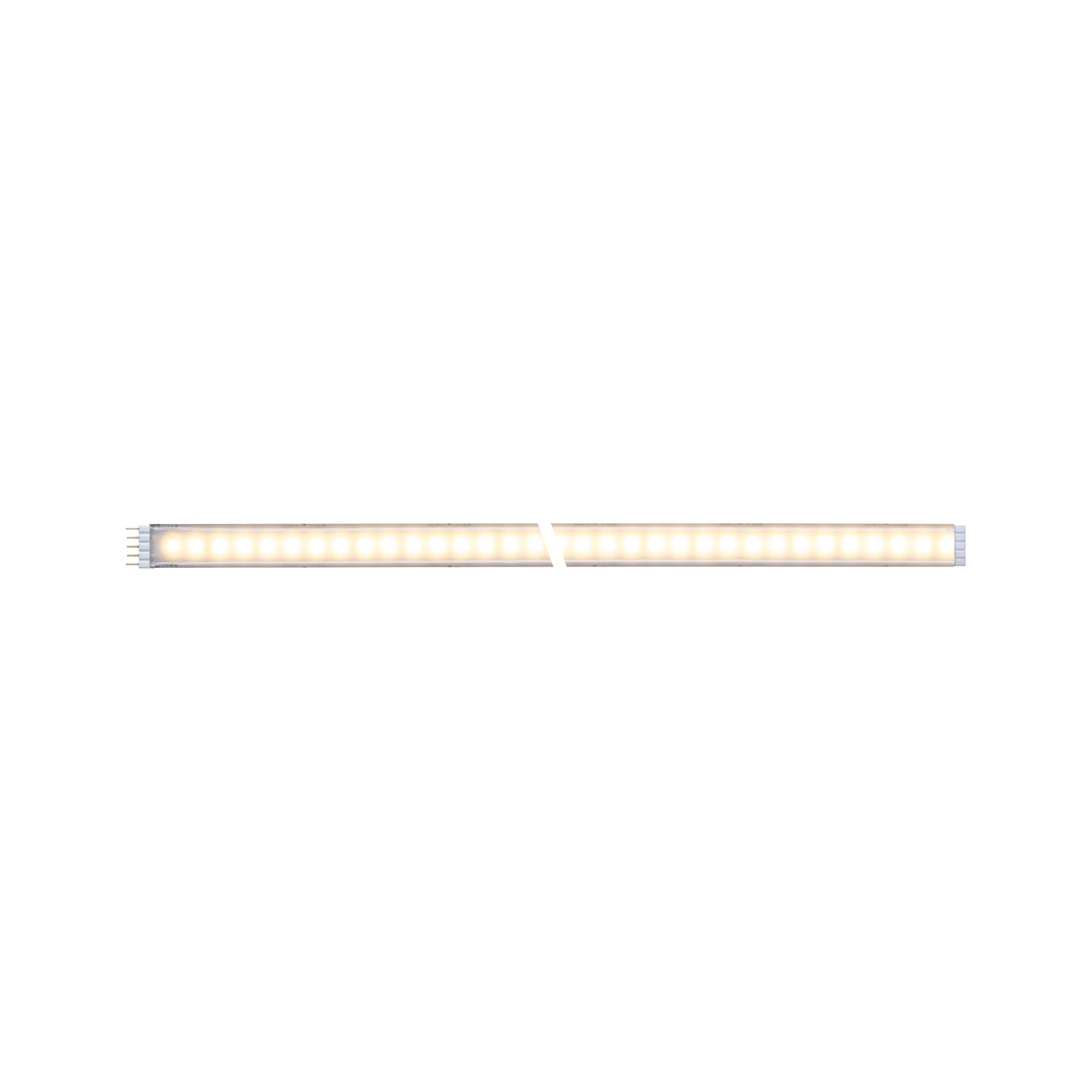

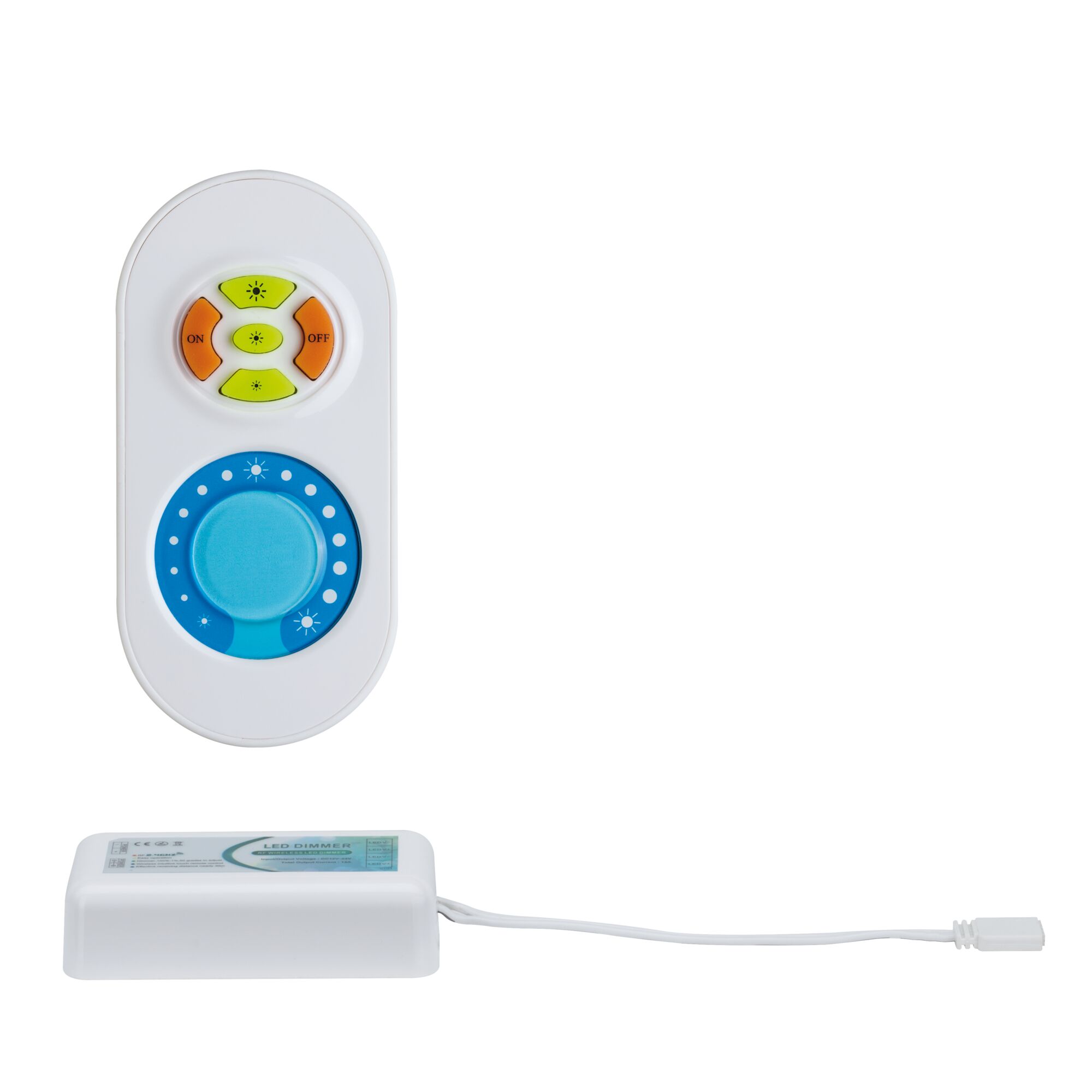

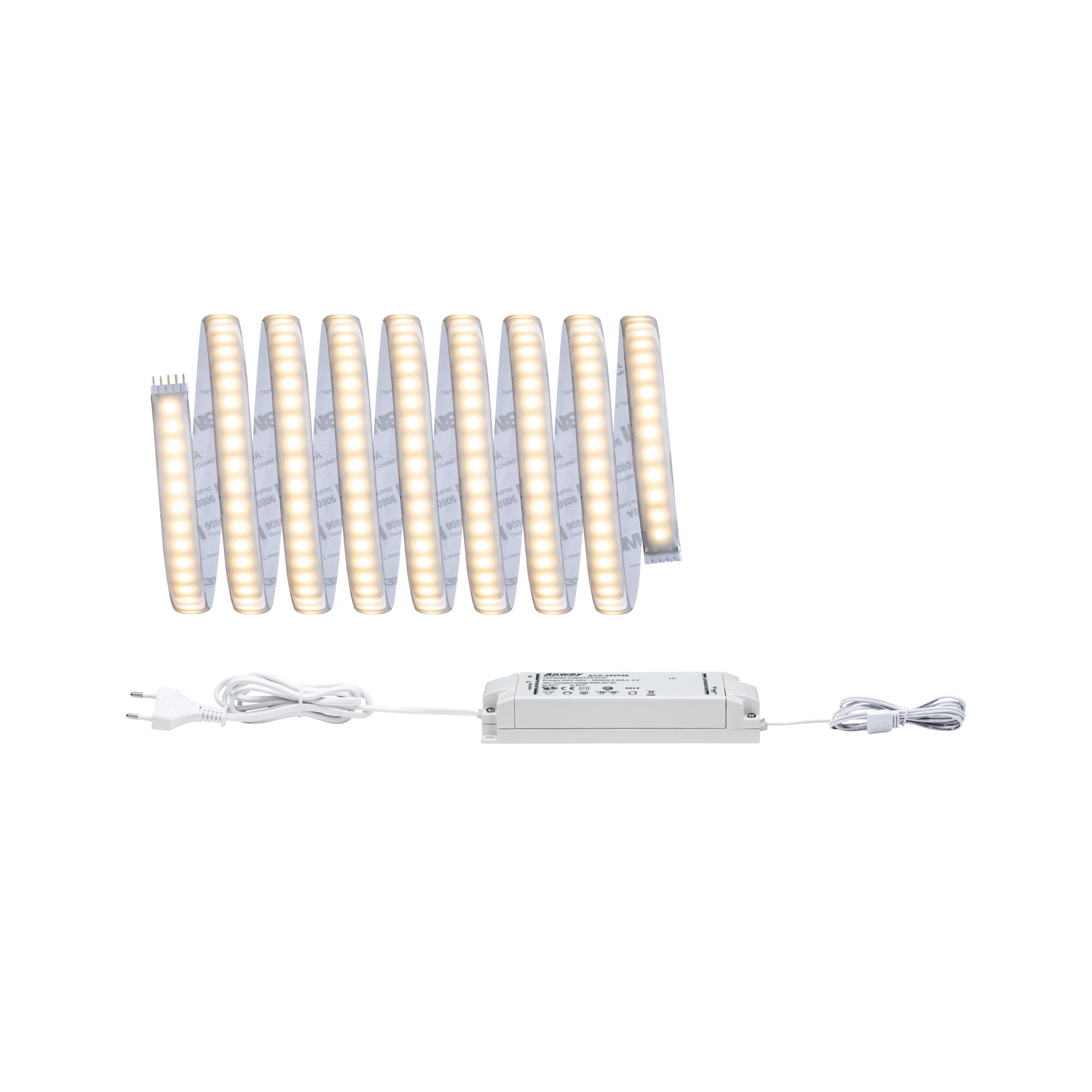

The MaxLED 1000 Comfort Set Kitchen set creates indirect light in the kitchen. It comprises a warm white MaxLED 1000 basic set 3 m, the MaxLED dim/switch controller, a warm white MaxLED individual strip 1 m and a MaxLED Flex connector. The strips are so powerful that they can be easily used for room lighting. The warm white light provides a cosy and relaxing atmosphere for living areas. With the MaxLED dim/switch controller and the supplied infra-red remote control, the monochrome strip can be switched and dimmed. A line of sight is required between remote control and receiver for this purpose. The four memory spaces enable the programming of individual requirements. The MaxLED connecting cable serves to extend or bridge distances.
- Set includes 1x 70576, 1x 70619, 1x 70670 and 1x 70676
- Complete set incl. strip and power supply
- Coating protects against splashing water and dust
- In conjunction with a shrink-on sleeve, can also be used in wet rooms
- Incl. 5-pin plug for easy connection of the strips
- Simple plug-in system for easy installation
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 4 x T: 12,5 mm |
| Length | 3 m |
| Shortenability Strips | 41.5 mm |
| Net weight | 744 g |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Length max. | 5,5 m |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) | F |
| Lamp Features | |
|---|---|
| Dimming Control | with remote control |
| Inclusive lamp | yes |
| Component parts | 35 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 190 W |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | Yes |
| Number of component parts | 1x |
| Number of LED's per meter | 144 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 40 W |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 60 VA |
| Accessories | |
|---|---|
| Radio control included | yes |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 2640 lm |
| Colour temperature | Warm white, 2700 K |
| Luminous flux LED module | 3300 lm |
