Article-No.:
71049
MaxLED 1000LED Strip
Basic set 3m Warm white
3m 36W 1080lm/m 528 LEDs/m 2700K 50VA
3m 36W 1080lm/m 528 LEDs/m 2700K 50VA
- Color temperatur: 2700K - Warm white

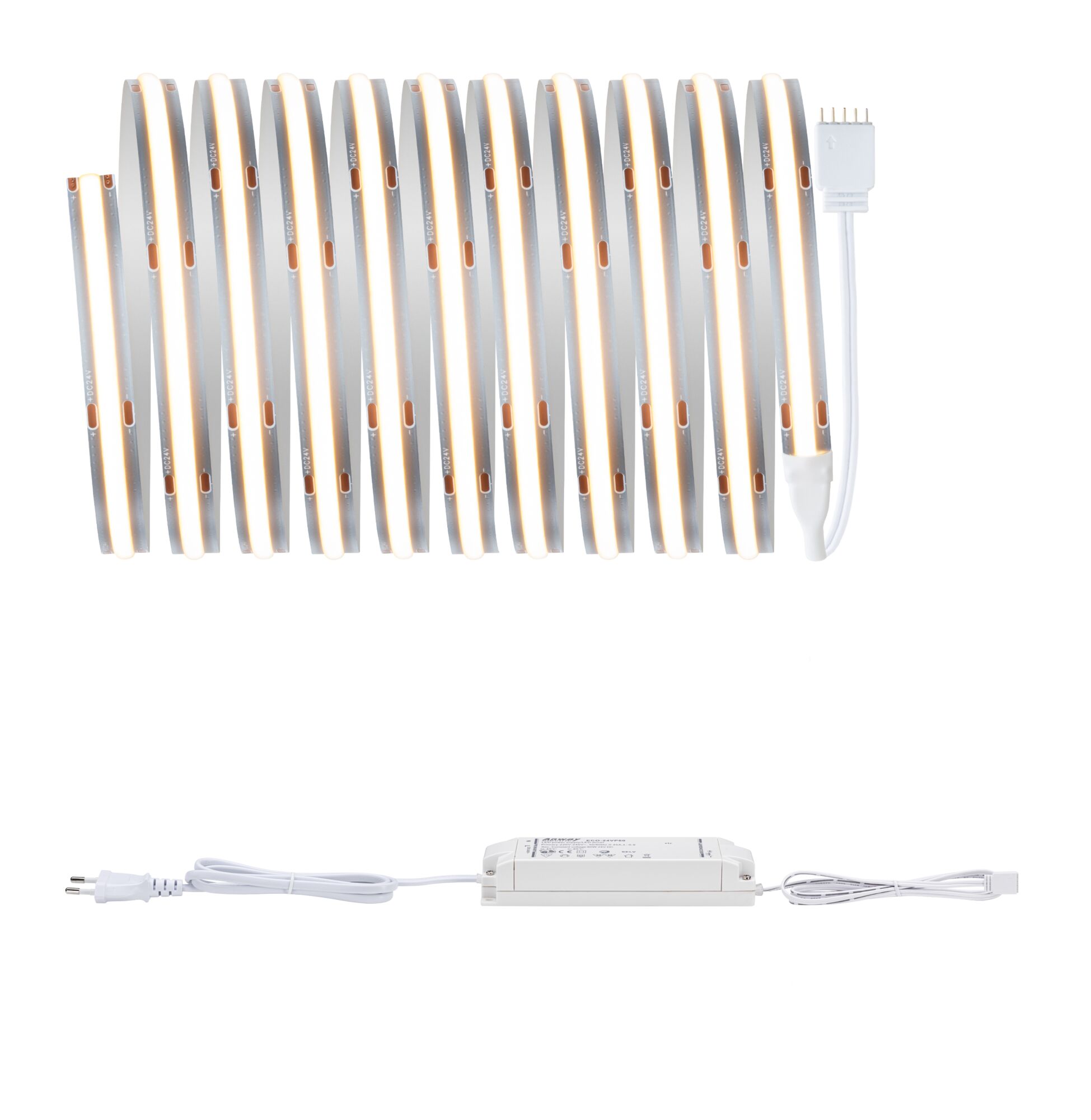

- Complete set incl. strip and power supply

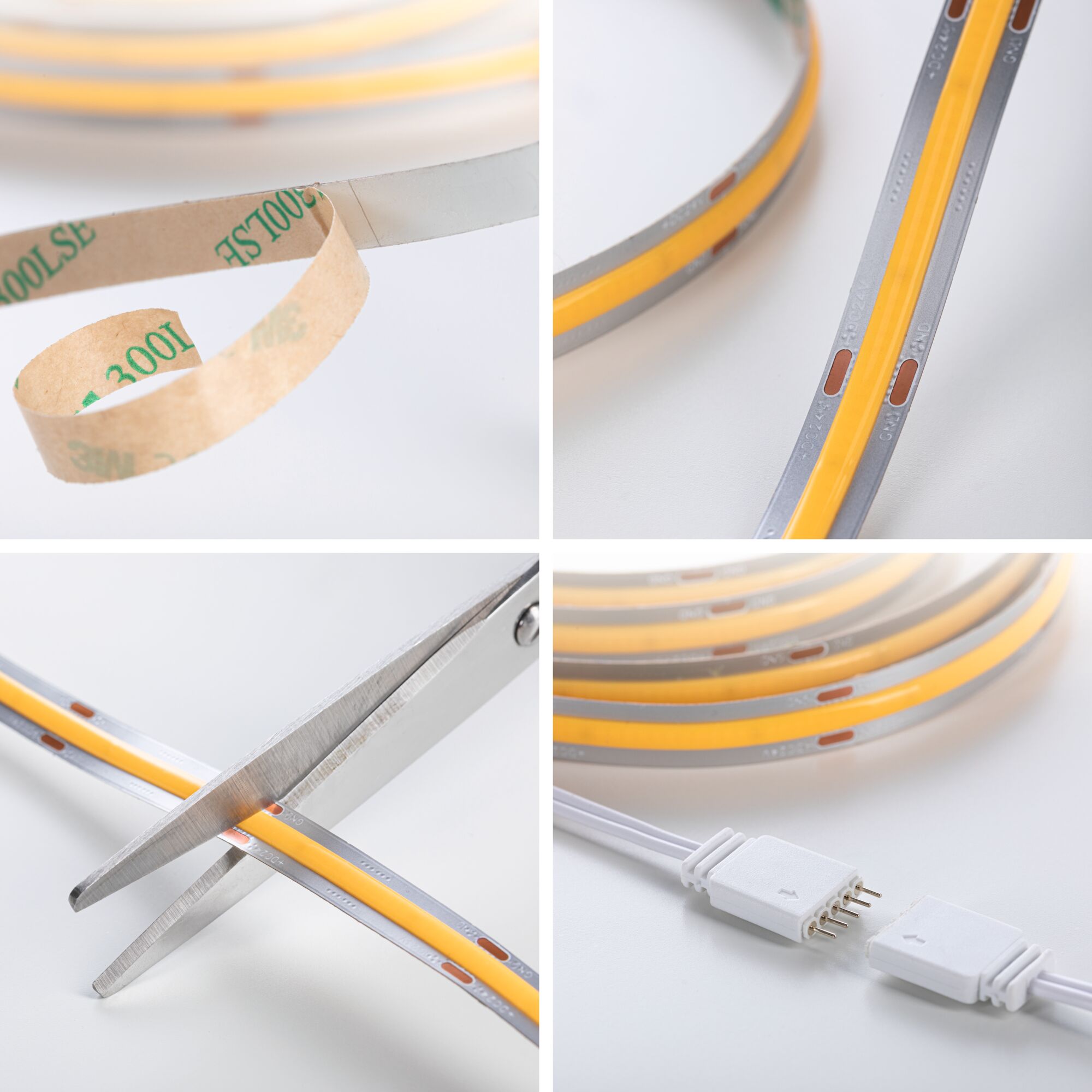

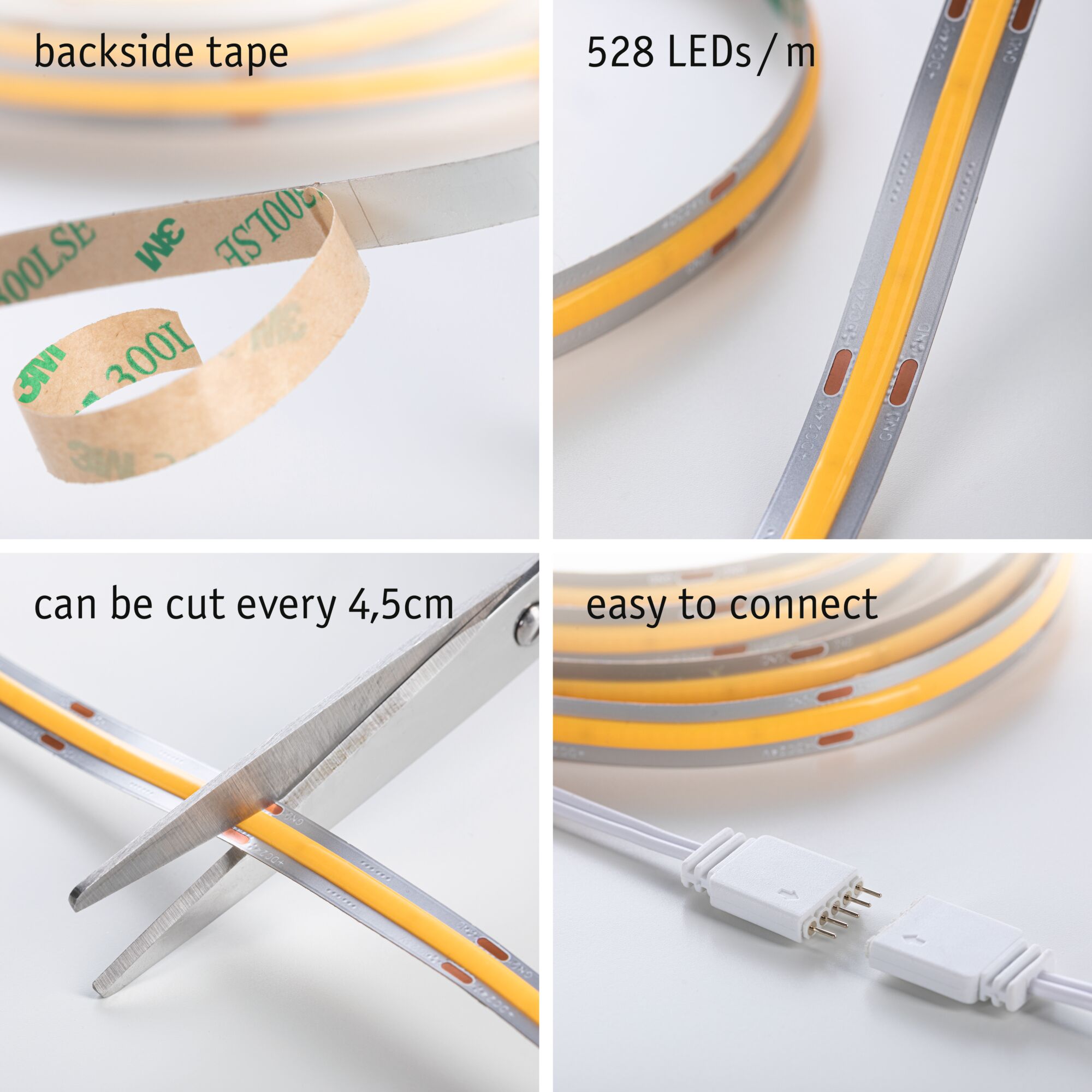

- Can be shortened as required
MaxLED 1000 LED Strip Basic set COB 3m Warm white 3m 36W 1080lm/m 528 LEDs/m 2700K 50VA

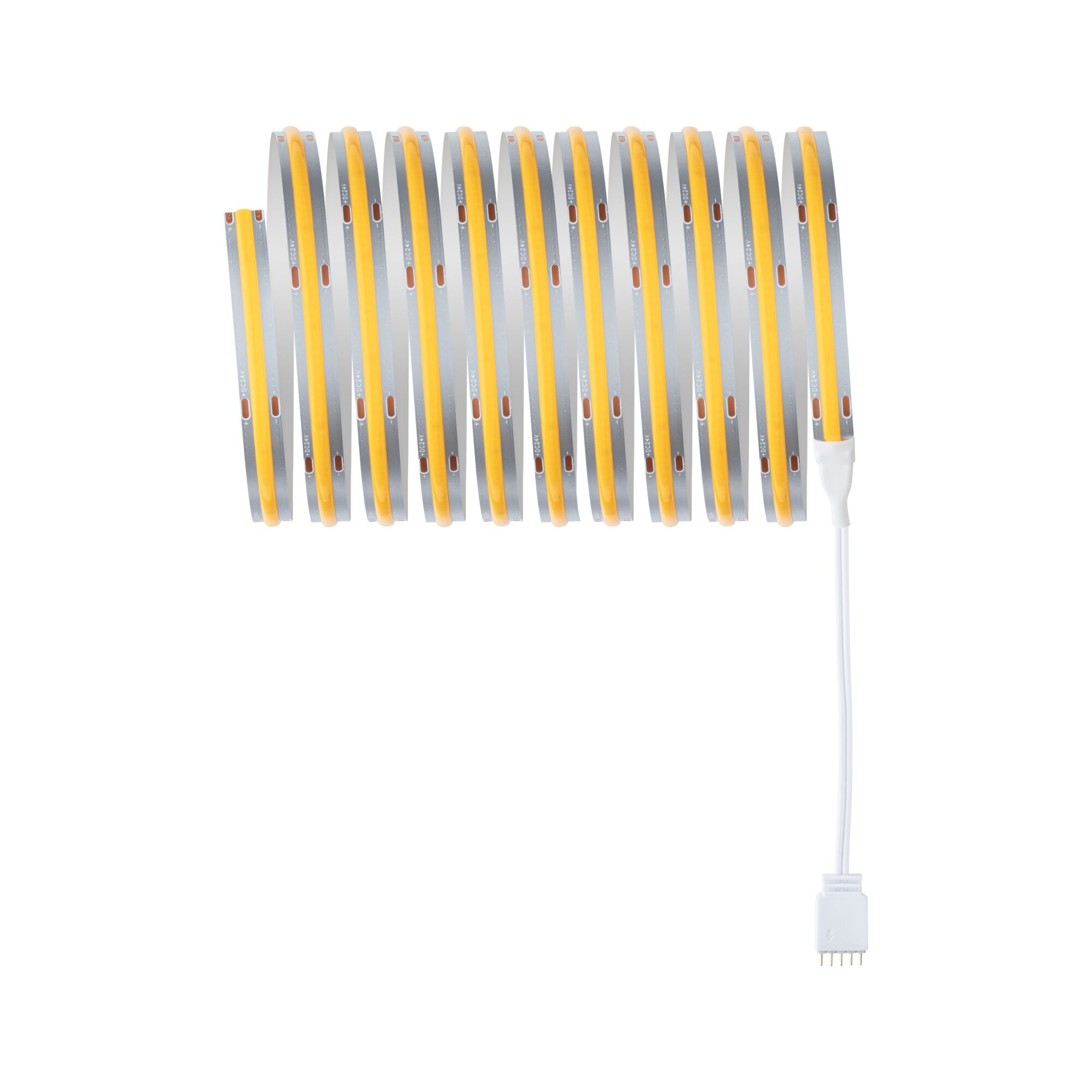

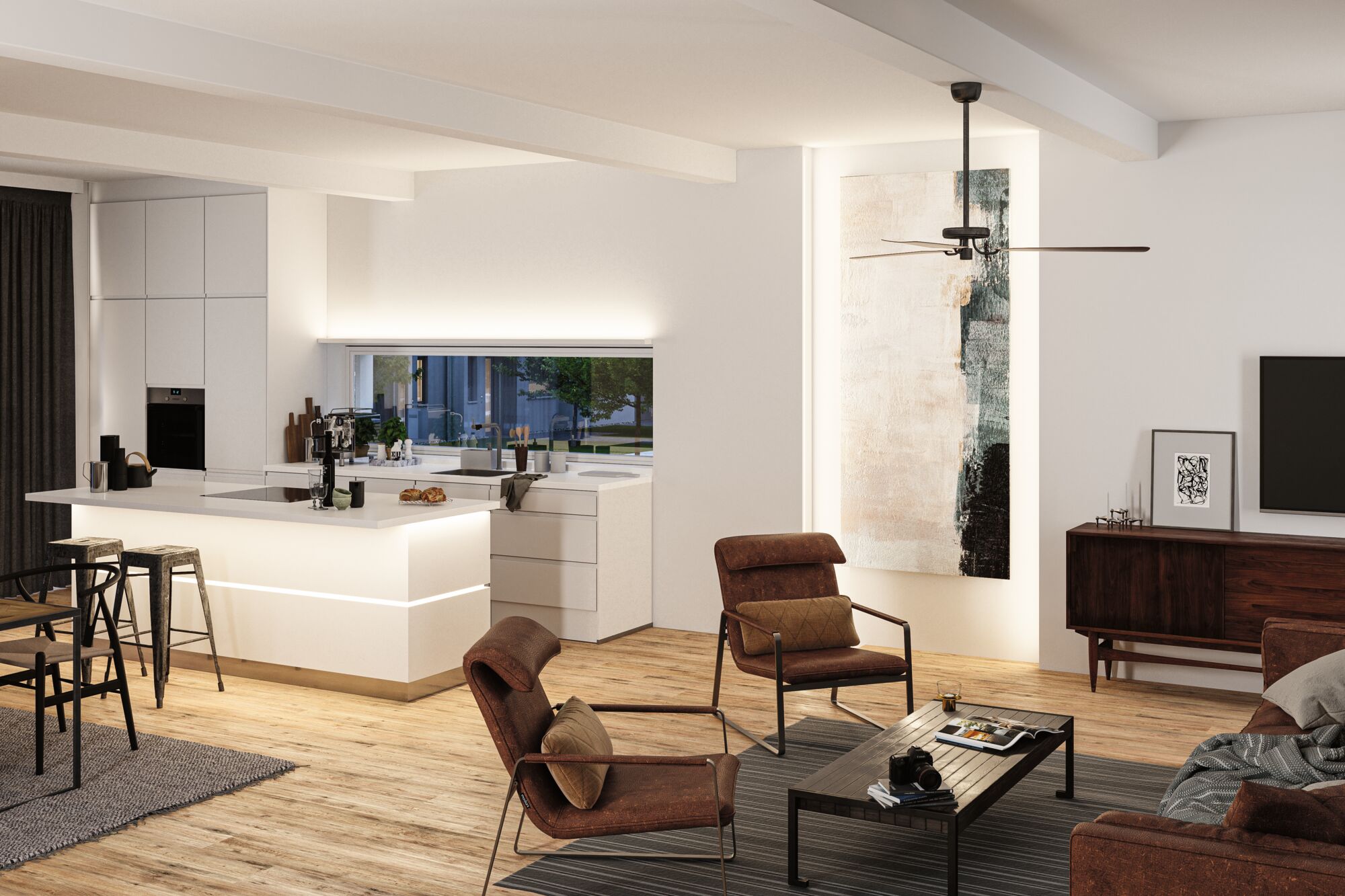

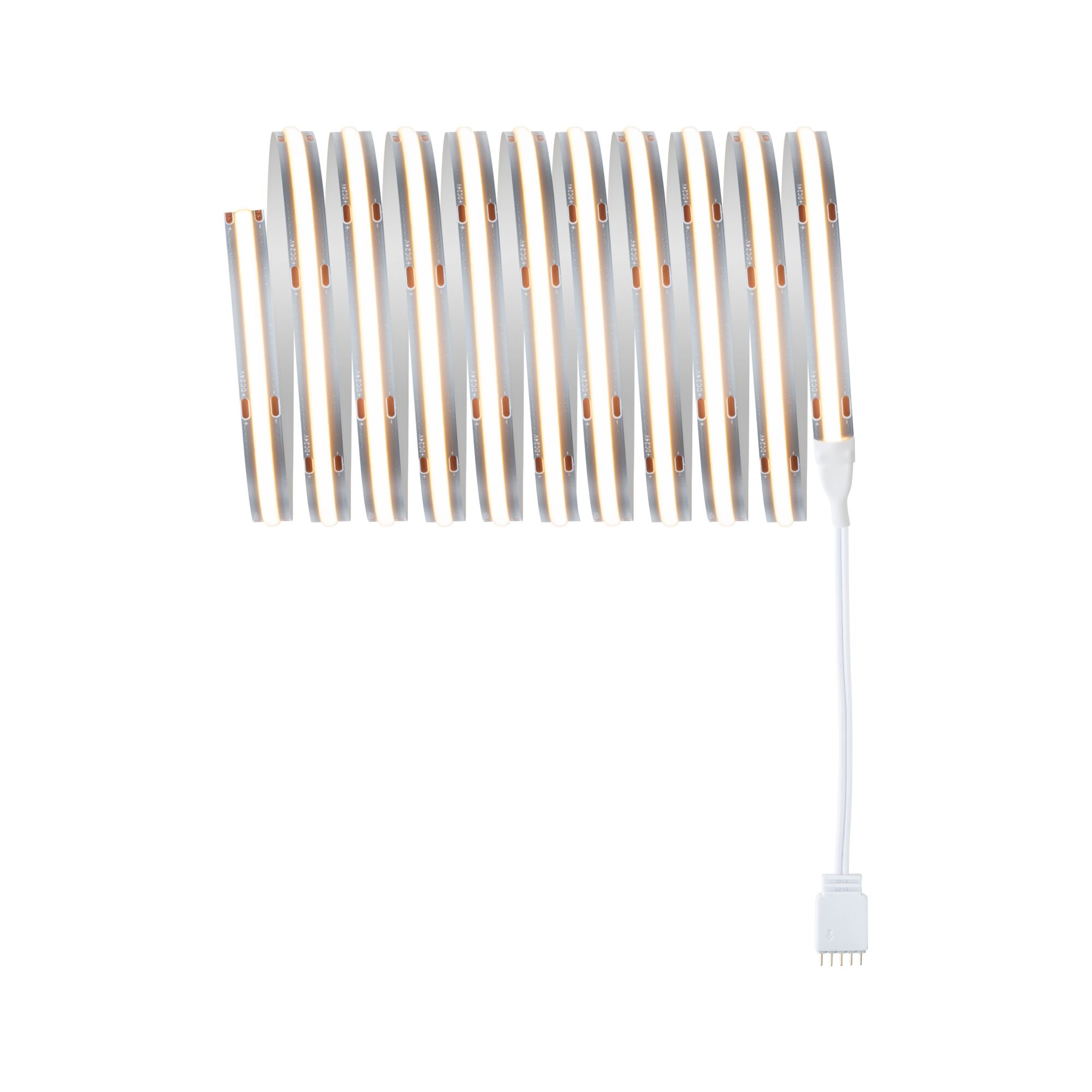

The MaxLED 1000 Full-Line COB strips are so powerful that they are ideal for using as room illumination. The MaxLED 1000 COB basic set with 528 LEDs/m produces a completely uniform light pattern without visible light points. The light connector allows seamless connection and continues the linear light pattern without interruption. The strip is particularly narrow at 8 mm and therefore also fits into very delicate LED profiles. The wide beam angle of 180° optimally distributes the light without creating shadows. The phosphor coating throughout protects the LEDs from dust and moisture; the contact points have an IP20 rating. The warm white basic set can easily be extended with the matching single strip.
- Color temperatur: 2700K - Warm white
- Complete set incl. strip and power supply
- Can be shortened as required
- Coating protects against splashing water and dust
- Simple plug-in system for easy installation
- Rear self-adhesive for simple installation
- Flexible material for installation on flat or arched base surfaces
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 1,6 x B: 10 mm |
| Length | 3 m |
| Shortenability Strips | 50 mm |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |

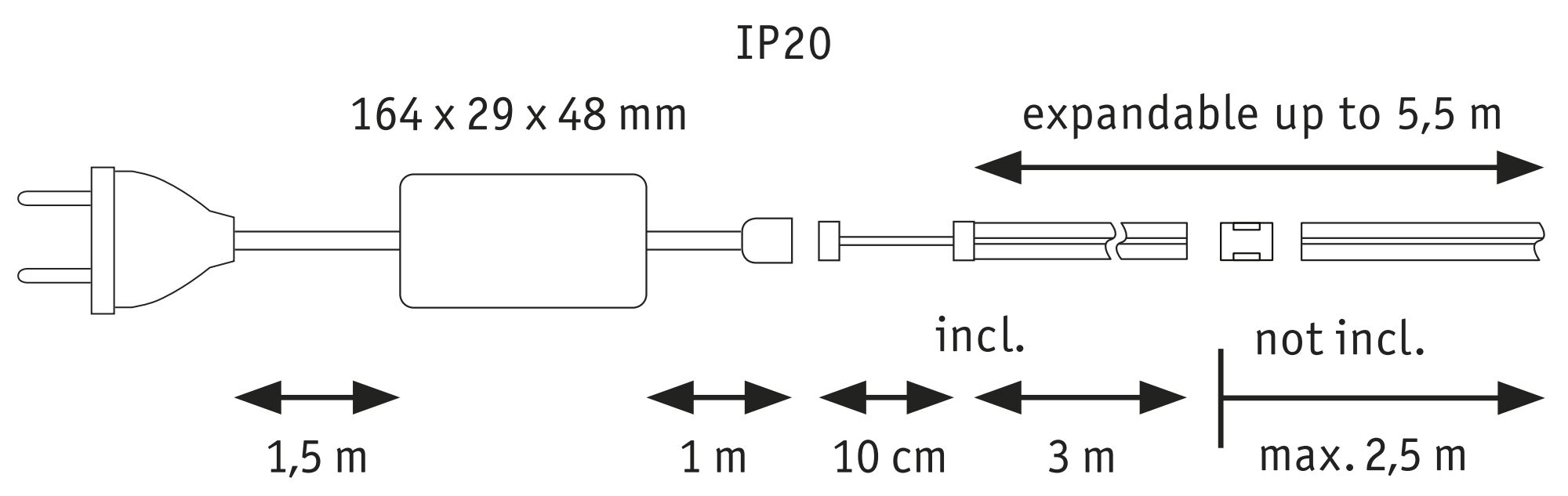

| Length max. | 5,5 m |
| Connections | |
|---|---|
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 20000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 3240 lm |
| Luminous flux LED module | 3240 lm |
| Lumens per metre | 1080 lm/m |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with remote control |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 36 W |
| Number of component parts | 1x |
| Number of LED's per meter | 528 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 40 W |
| Adjustability | fixed |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| apparent power | 39 VA |
| Transformer power range | 50 VA |
| Transformer height | 29 mm |
| Transformer width | 164 mm |
| Transformer depth | 48 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
