Article-No.:
70569
MaxLED 1000LED Strip
Daylight white Individual Strip
1m 11,5W 1100lm/m 144 LEDs/m 6500K
1m 11,5W 1100lm/m 144 LEDs/m 6500K
- Individual strips

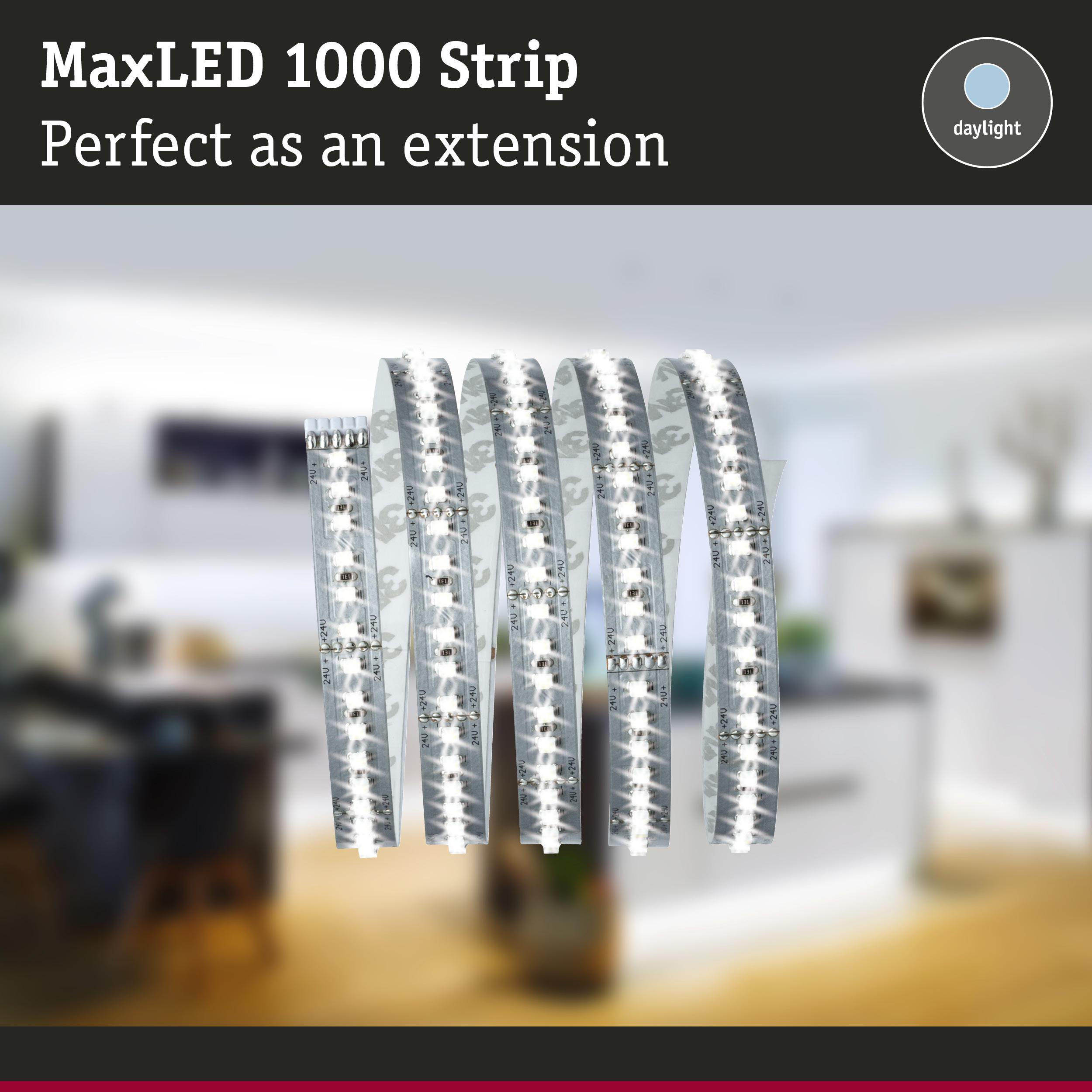

- To extend the MaxLED basic set
- Can be shortened as required

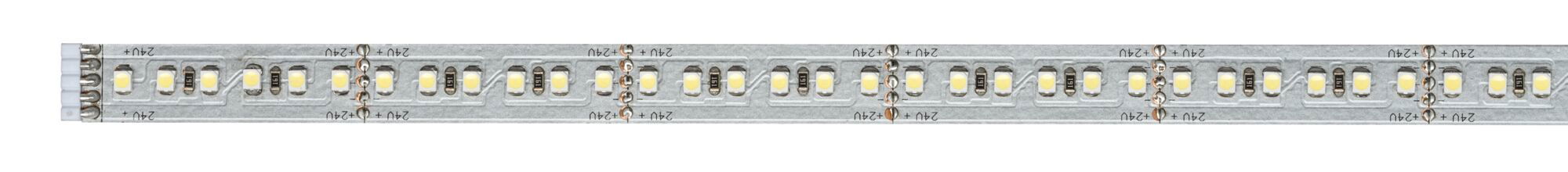

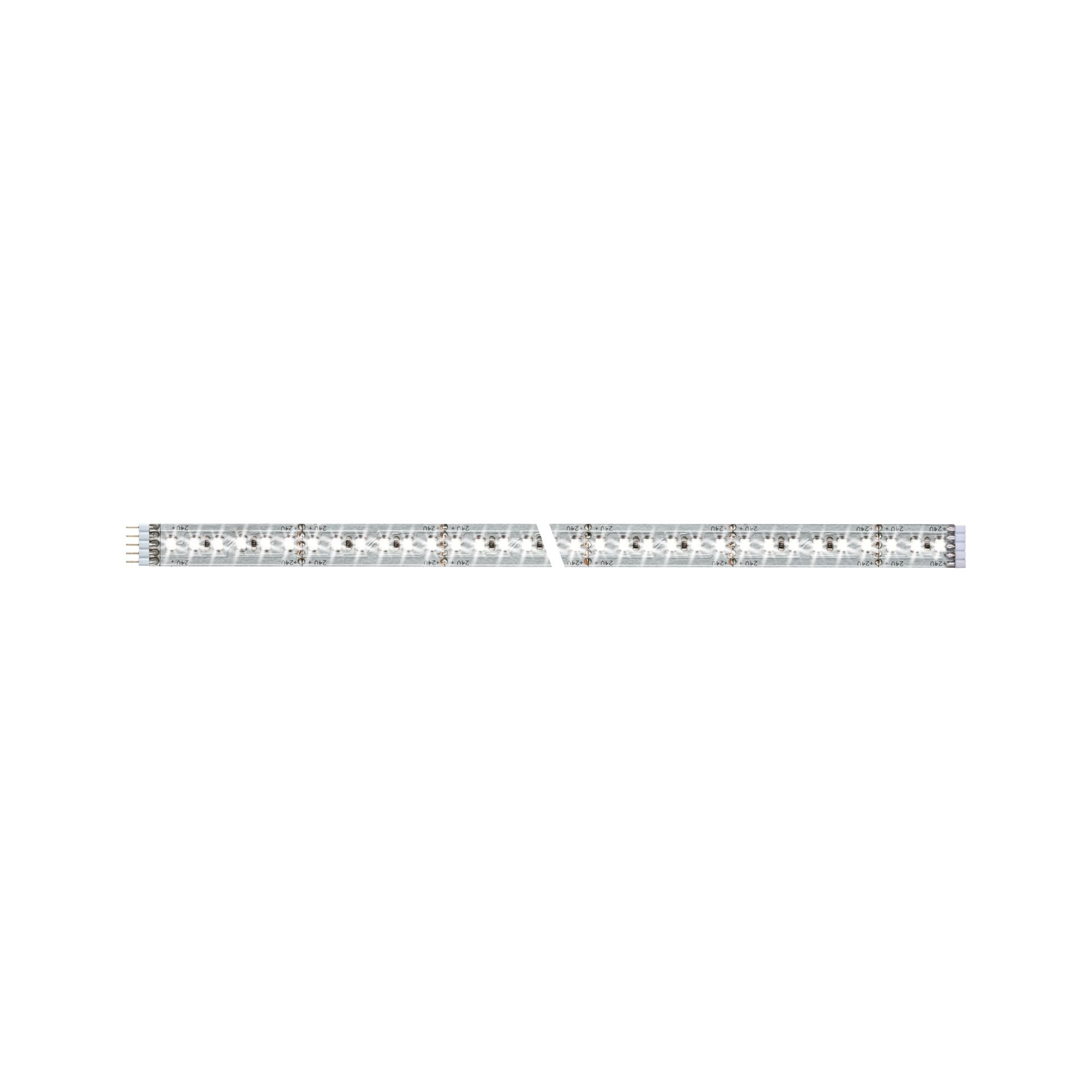

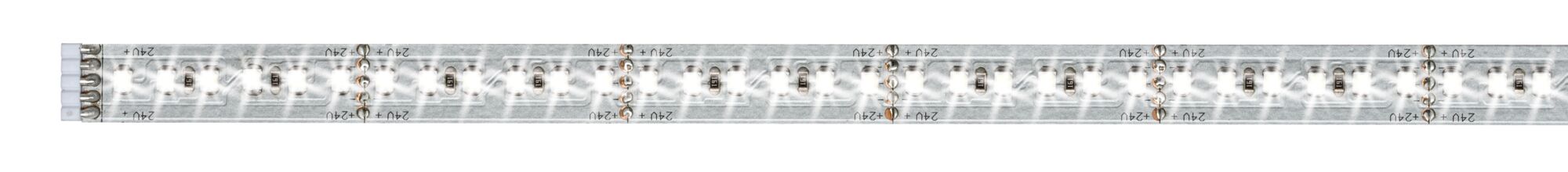

MaxLED 1000 LED Strip Daylight white Individual Strip 1m 11,5W 1100lm/m 144 LEDs/m 6500K

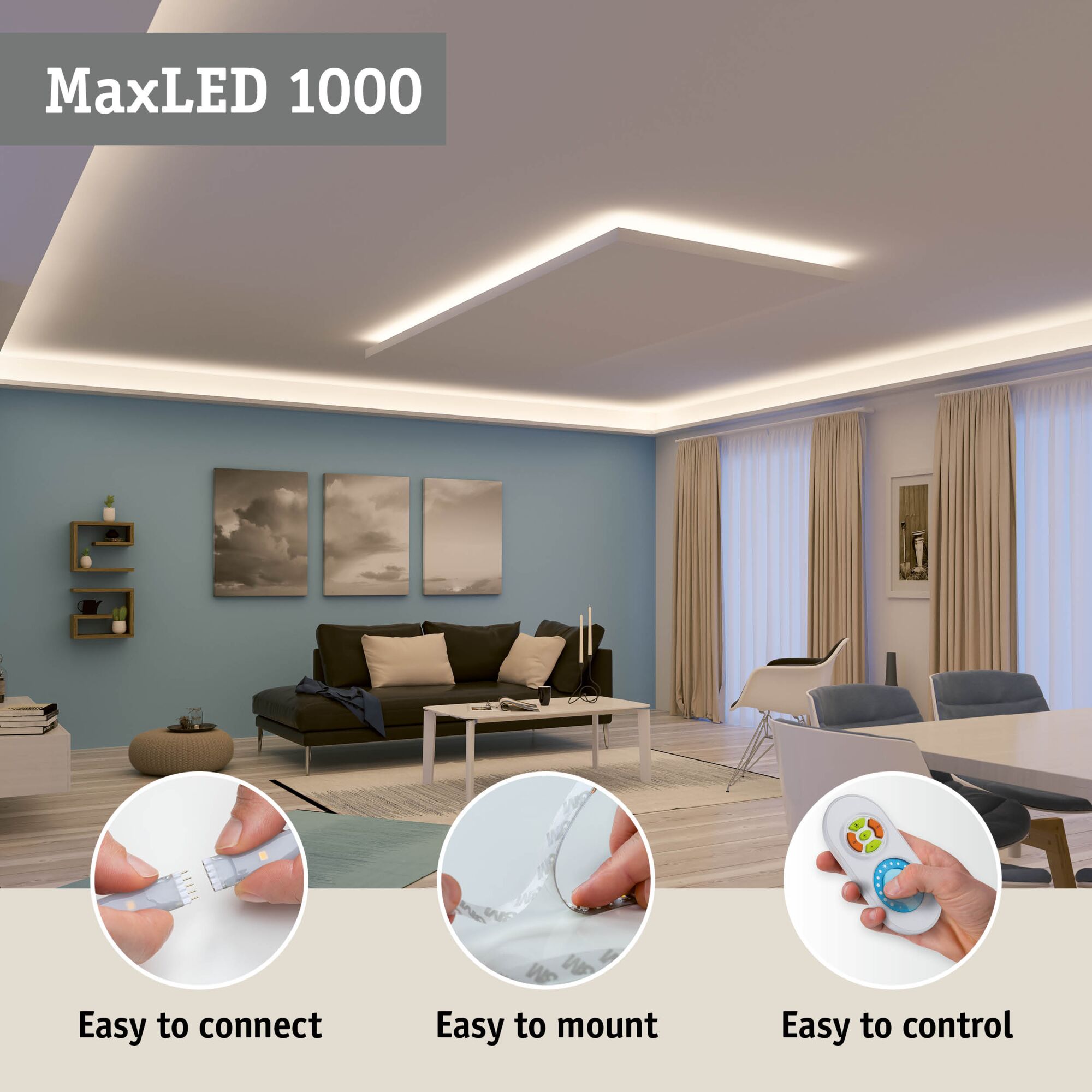

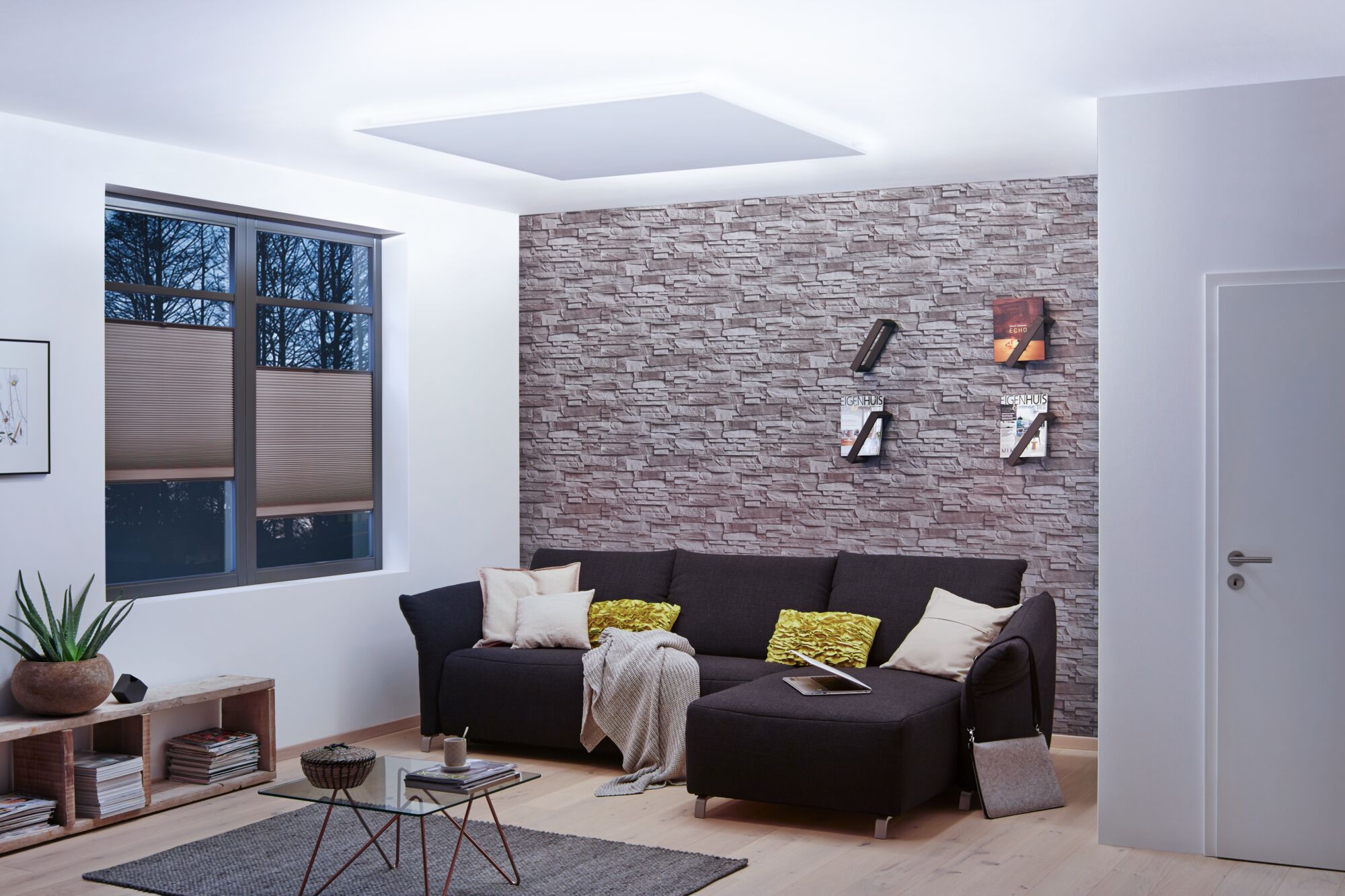

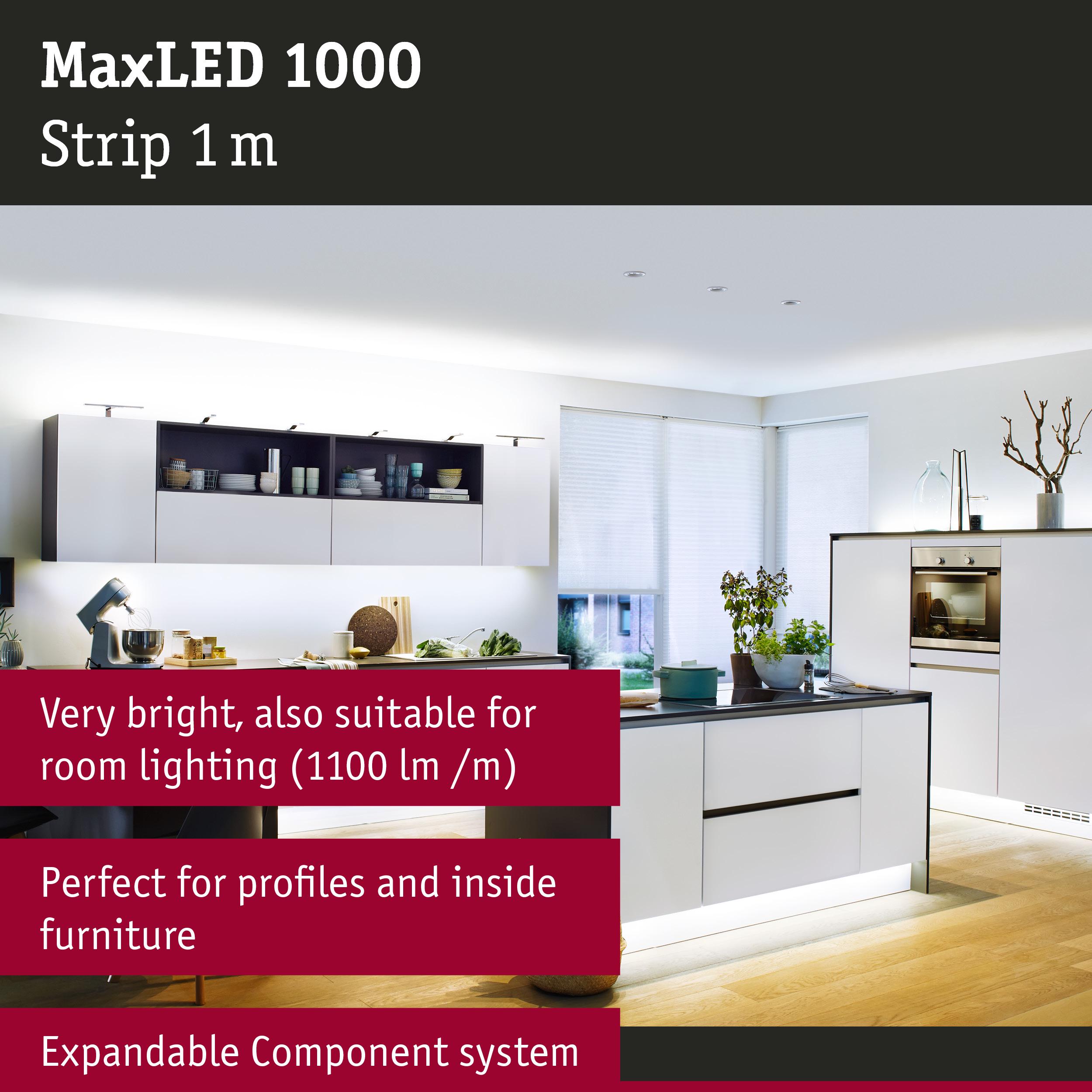

MaxLED strips are so powerful that they can easily be used as room lighting. They are real highlights especially in profiles. Warm white strips provide a cosy and relaxed room and workplace light. The basic set contain a suitable ballast in addition to the strip. Where required, it can be extended with additional strips, connectors and control units with remote control. When planning, please keep in mind the maximum length specified for the basic set, which must not be exceeded.
- Individual strips
- To extend the MaxLED basic set

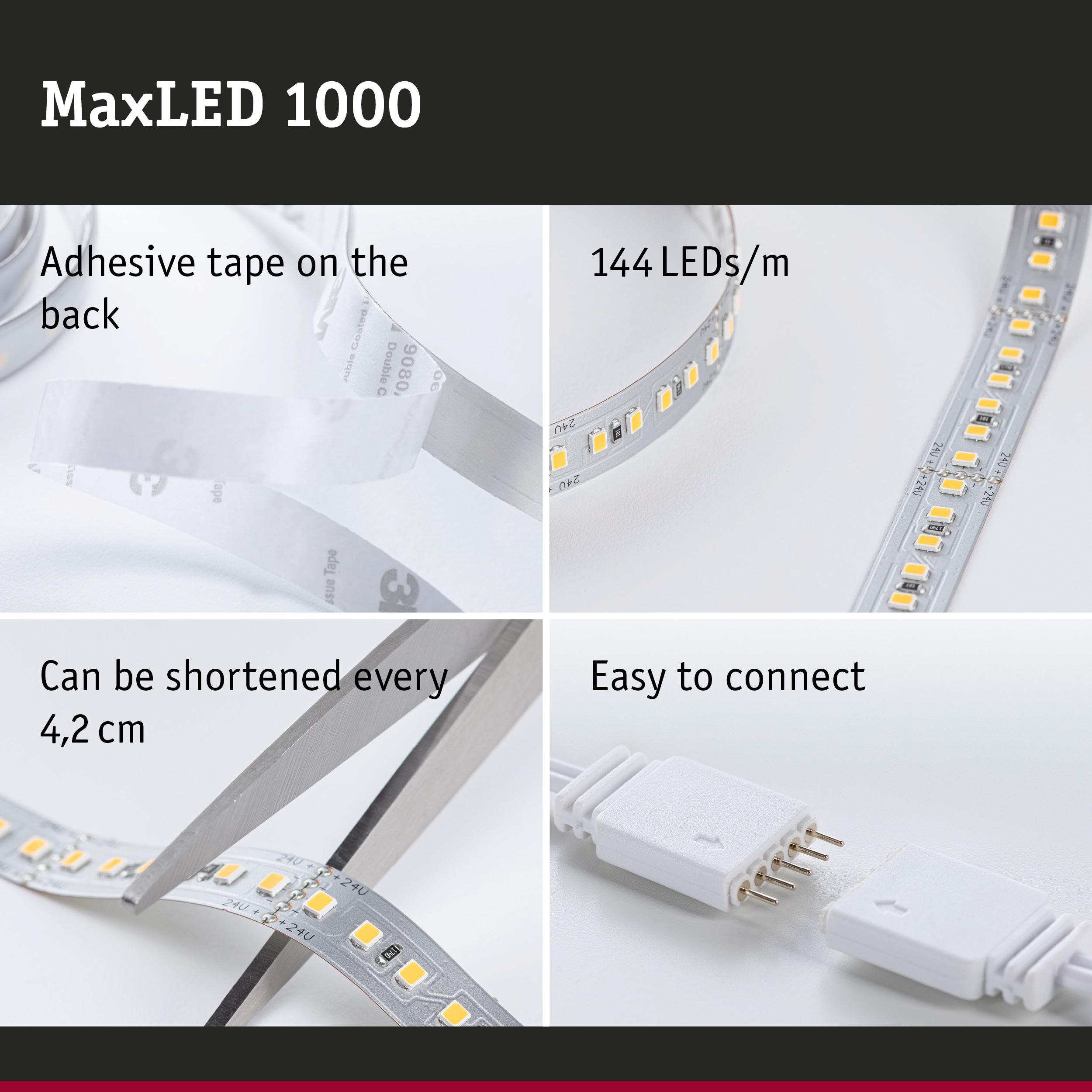

- Can be shortened as required
- Simple plug-in system for easy installation
- Rear self-adhesive for simple installation
- Flexible material for installation on flat or arched base surfaces
- Color temperatur: 6500K - Daylight white
- Energy-saving LED technology (conserves up to 80% in comparison to conventional light bulbs)
- Dimmable with MaxLED dim/switch controller
- Incl. 5-pin plug for easy connection of the strips
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 x B: 12,5 x mm |
| Length | 1 m |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Metal |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 6500 K |
| Usable luminous flux | 1100 lm |
| Lumens per metre | 1100 lm/m |
| color temp | 6500 K |
| Color rendering index | > 80 Ra |
| Rated luminous flux (Lumen) | 1100 lm |
| Lamp Features | |
|---|---|
| Component parts | 11,5 W |
| Technique | LED |
| IP protection | IP20 |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Number of component parts | 1x |
| protection class | protection class III |
| Number of LED's per meter | 144 |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 11,5 W |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
