Article-No.:
70671

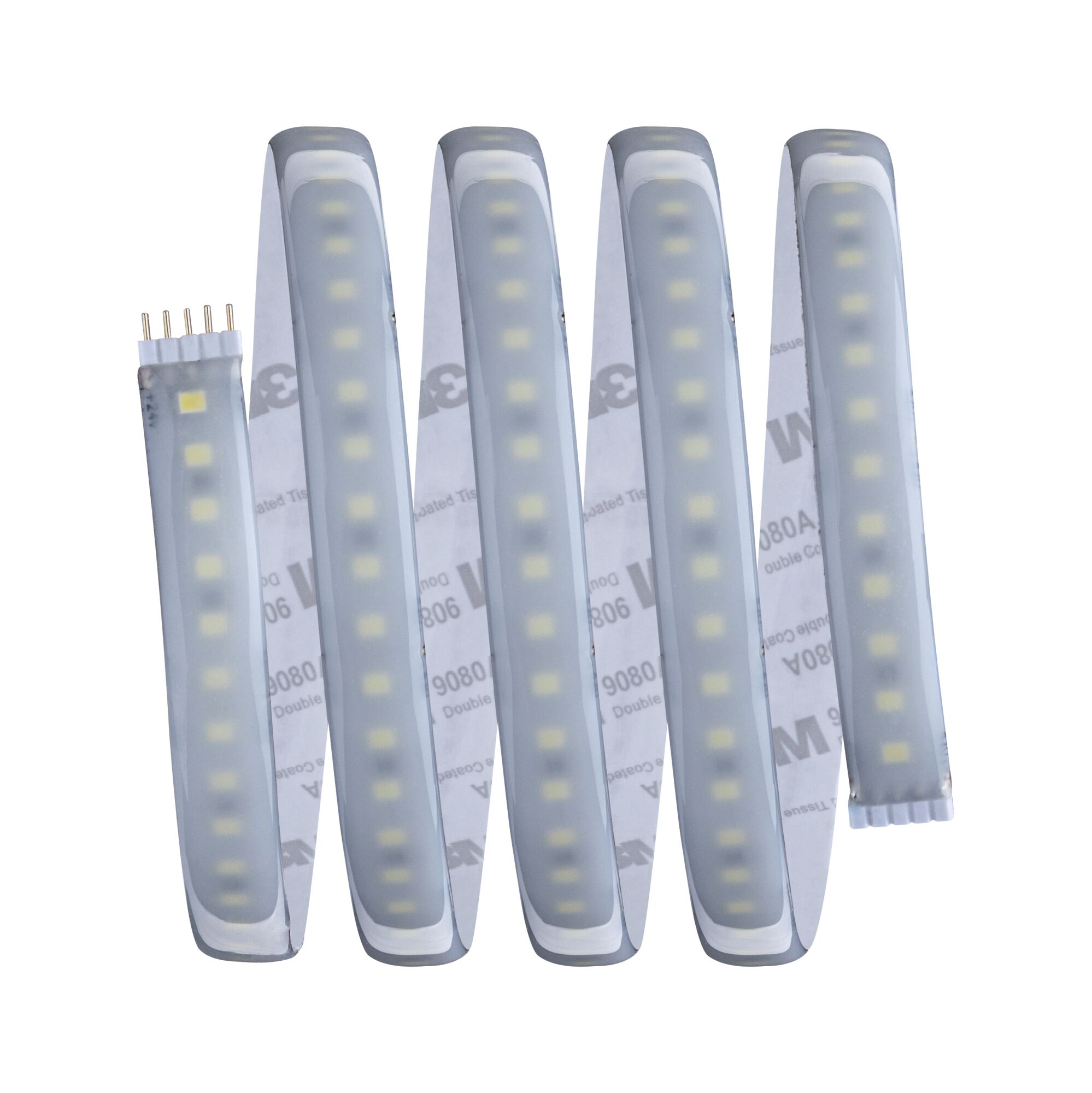

MaxLED 1000
LED Strip
Daylight white Basic Set
1,5m protect cover IP44 18W 880lm/m 144 LEDs/m 6500K 36VA
1,5m protect cover IP44 18W 880lm/m 144 LEDs/m 6500K 36VA

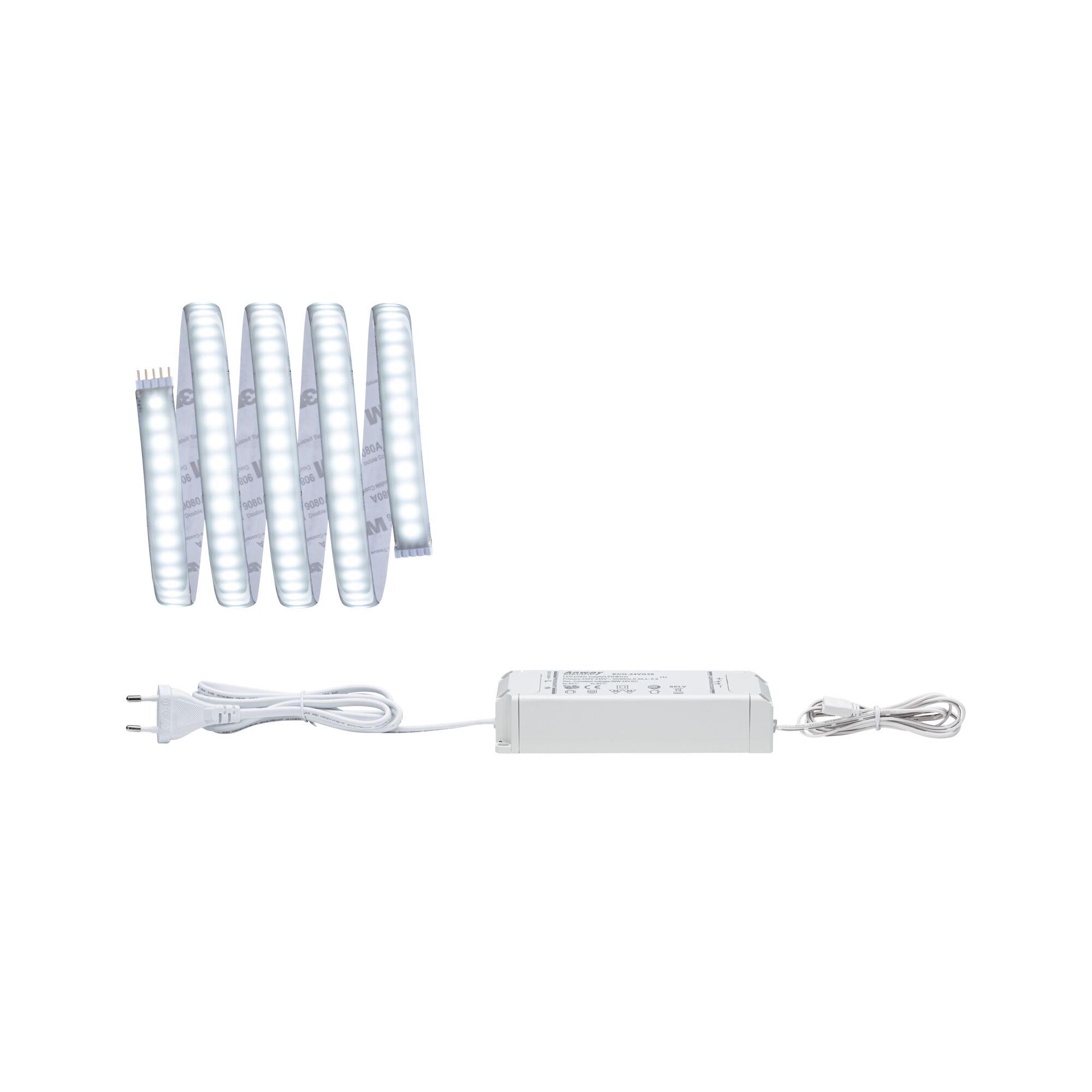

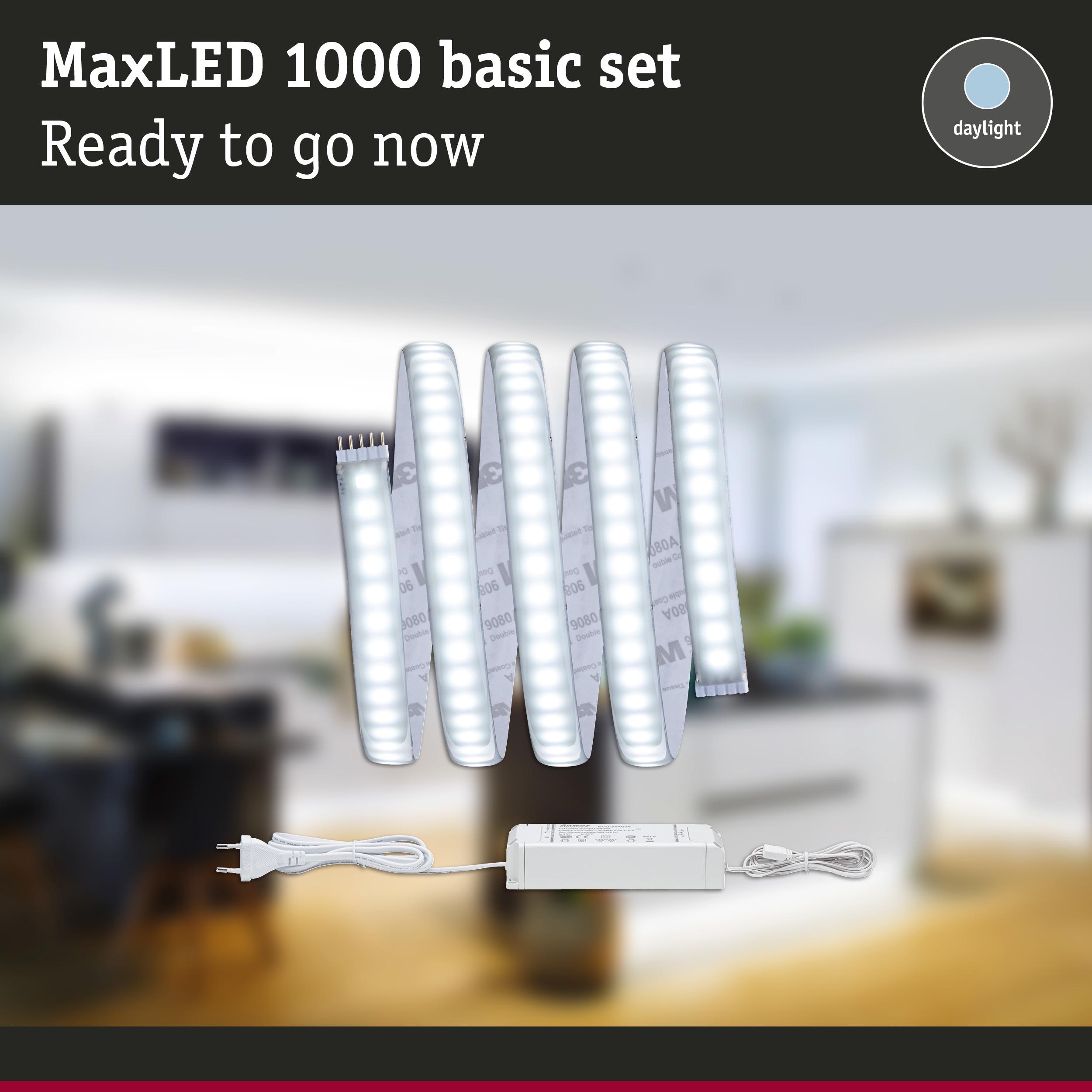

- Complete set incl. strip and power supply
- Coating protects against splashing water and dust
- In conjunction with a shrink-on sleeve, can also be used in wet rooms
MaxLED 1000 LED Strip Daylight white Basic Set 1,5m protect cover IP44 18W 880lm/m 144 LEDs/m 6500K 36VA

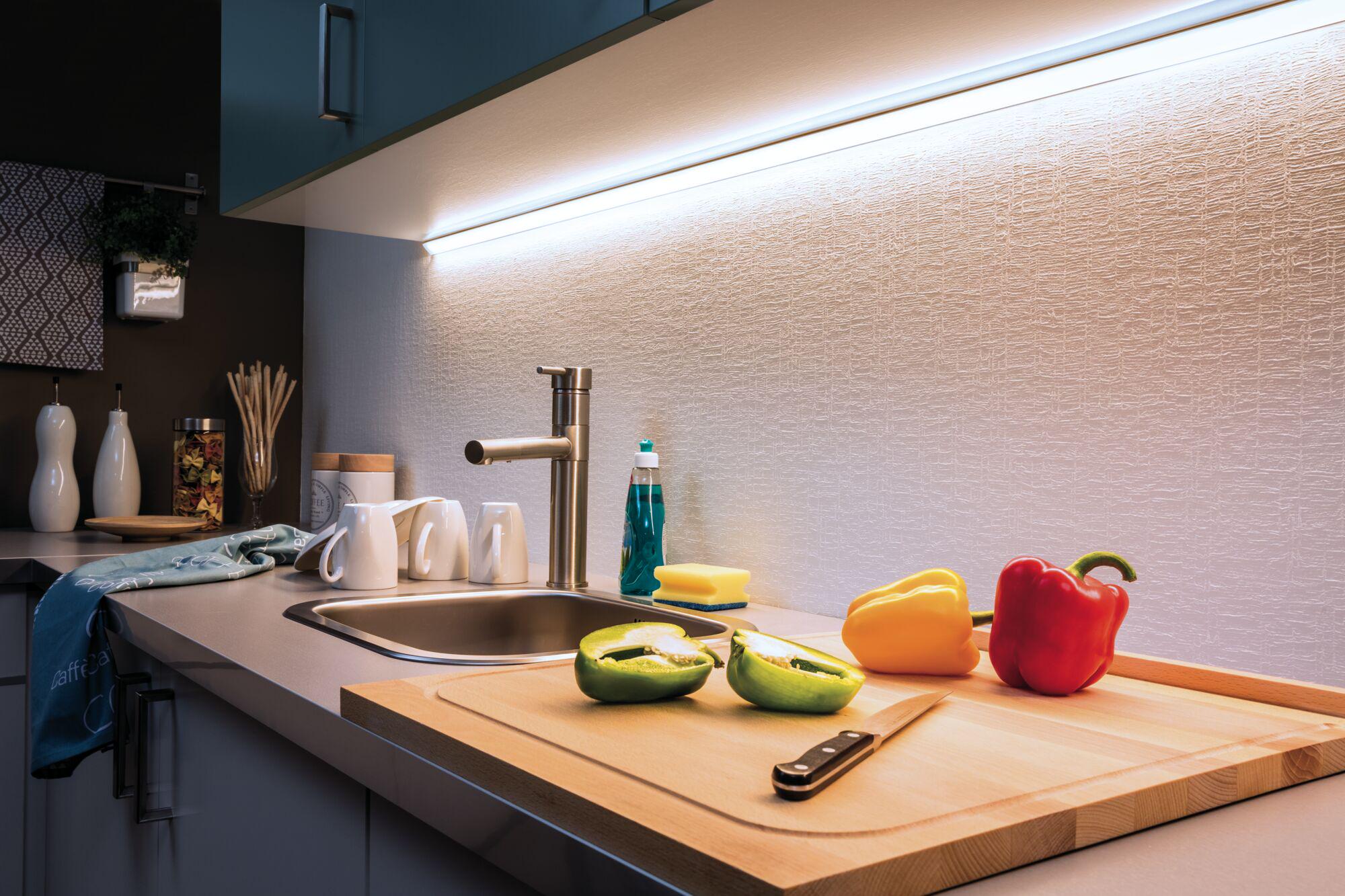

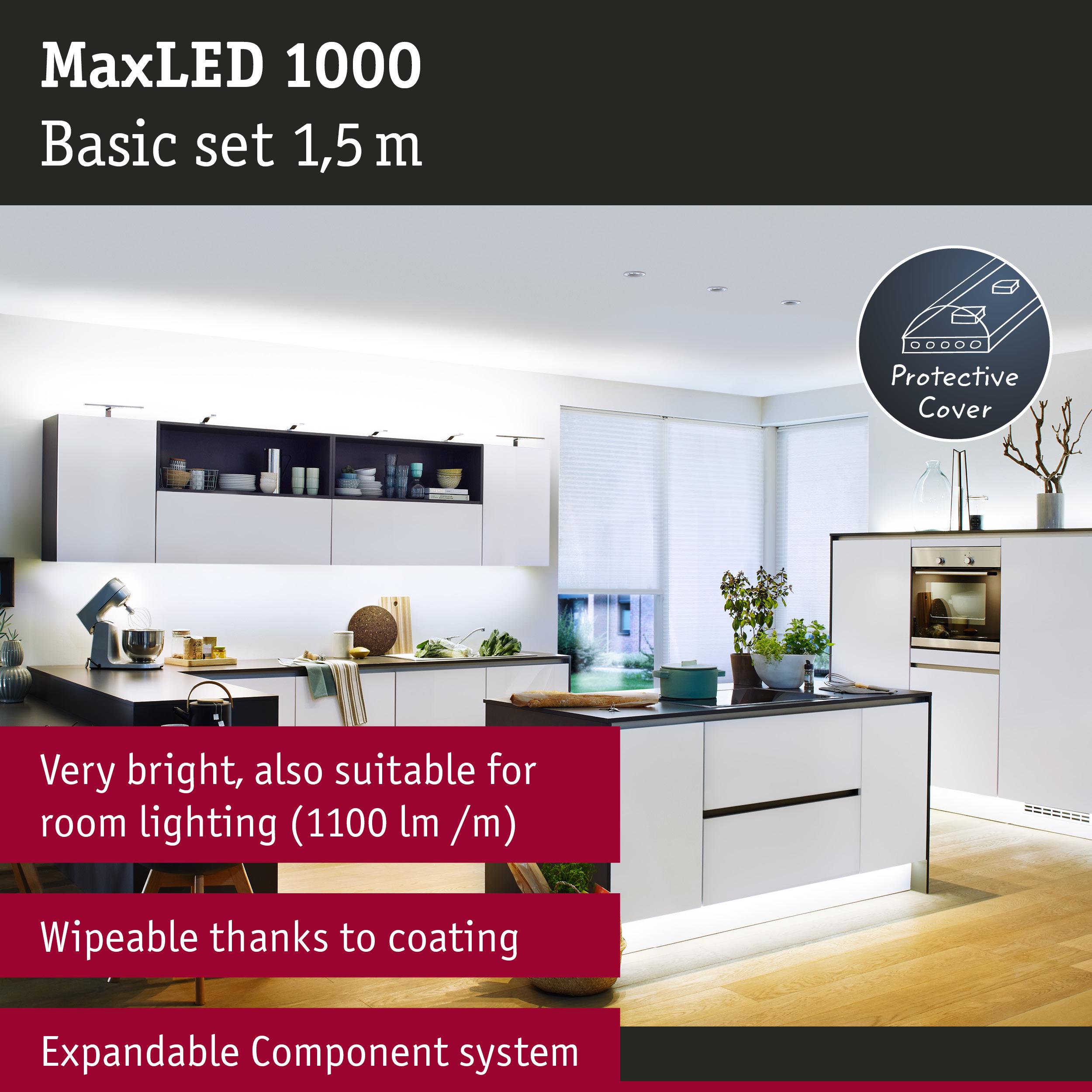

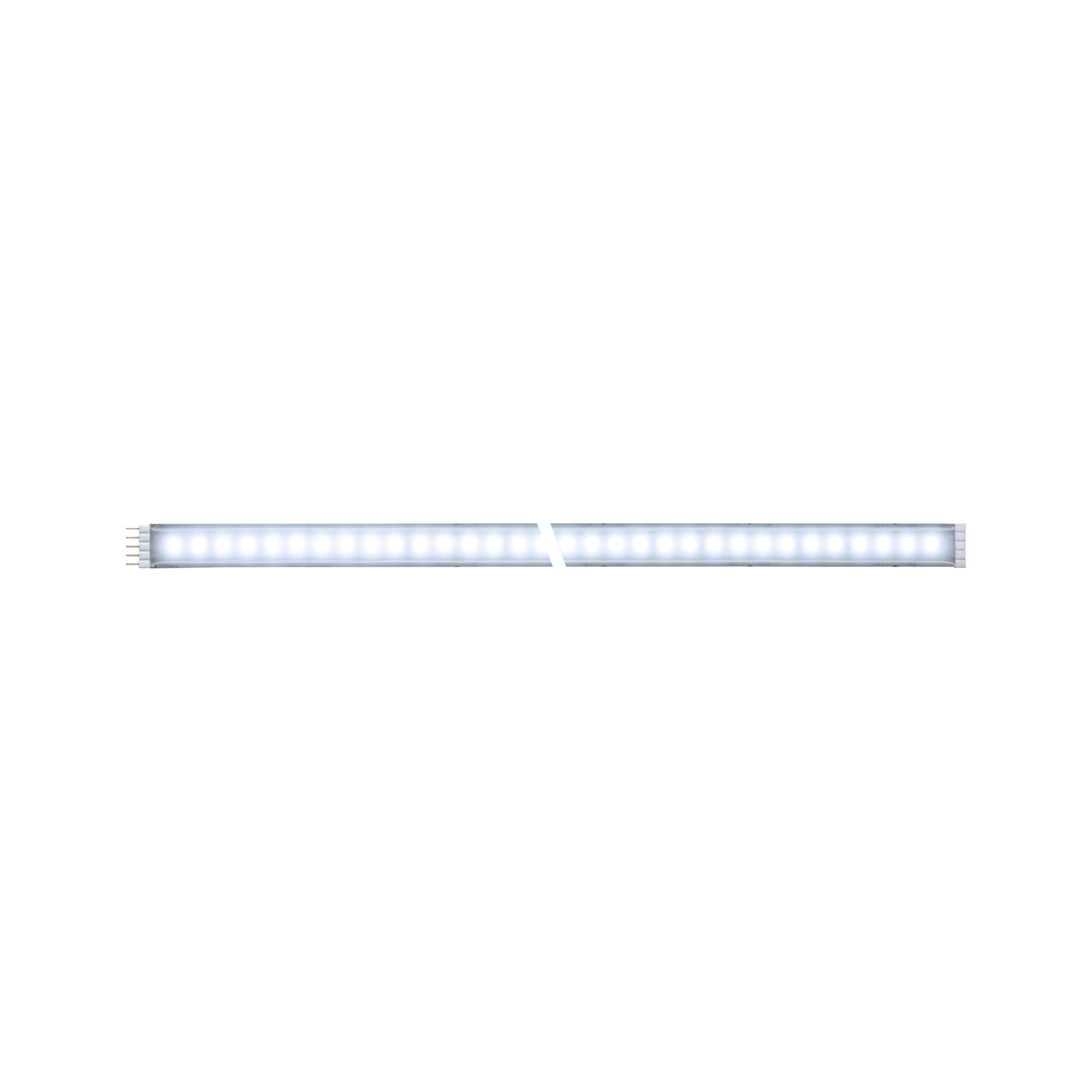

MaxLED strips are so powerful that they can easily be used as room lighting. They are real highlights especially in profiles. Warm white strips provide a cosy and relaxed room and workplace light. The basic set contain a suitable ballast in addition to the strip. Where required, it can be extended with additional strips, connectors and control units with remote control. When planning, please keep in mind the maximum length specified for the basic set, which must not be exceeded.
- Complete set incl. strip and power supply
- Coating protects against splashing water and dust
- In conjunction with a shrink-on sleeve, can also be used in wet rooms

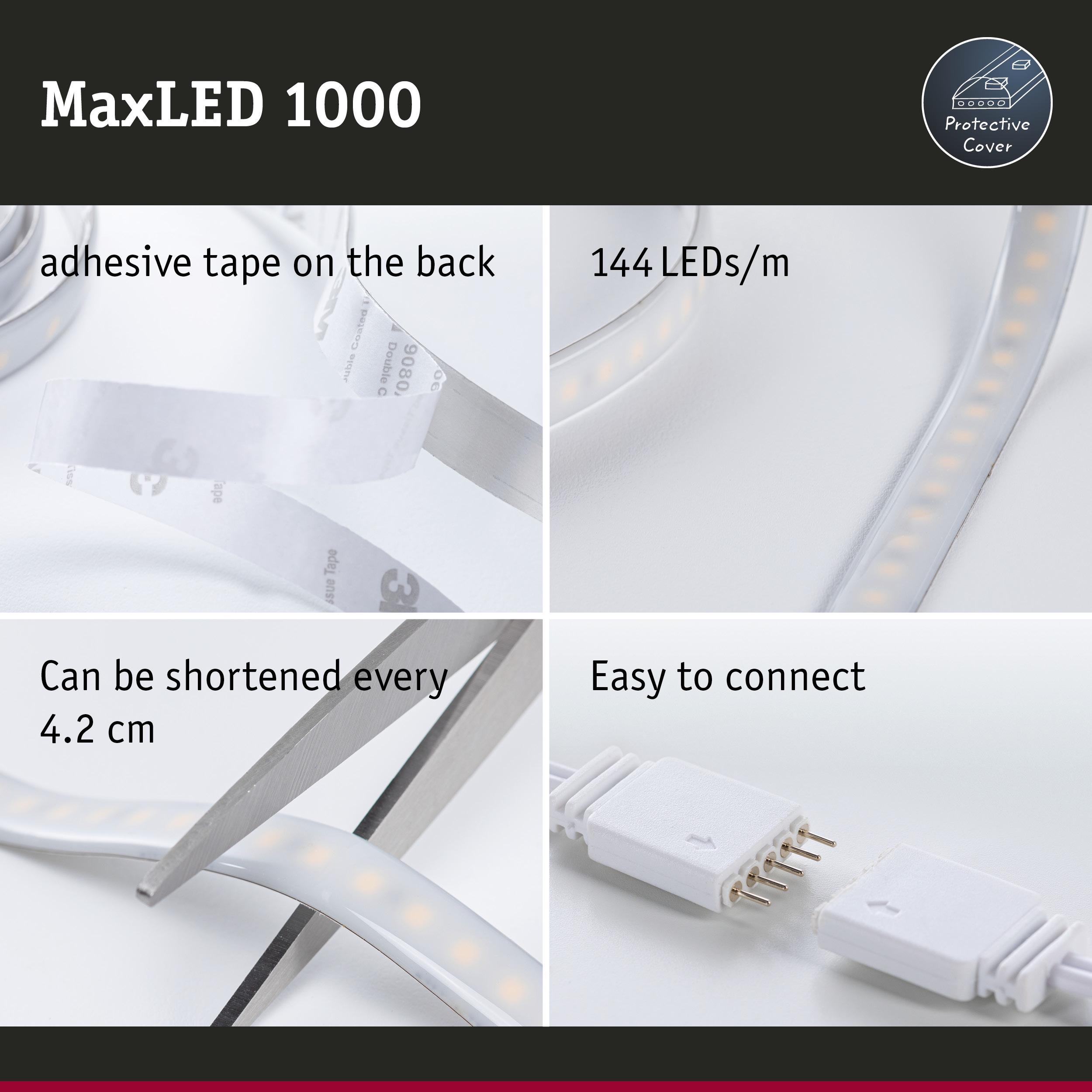

- Can be shortened as required

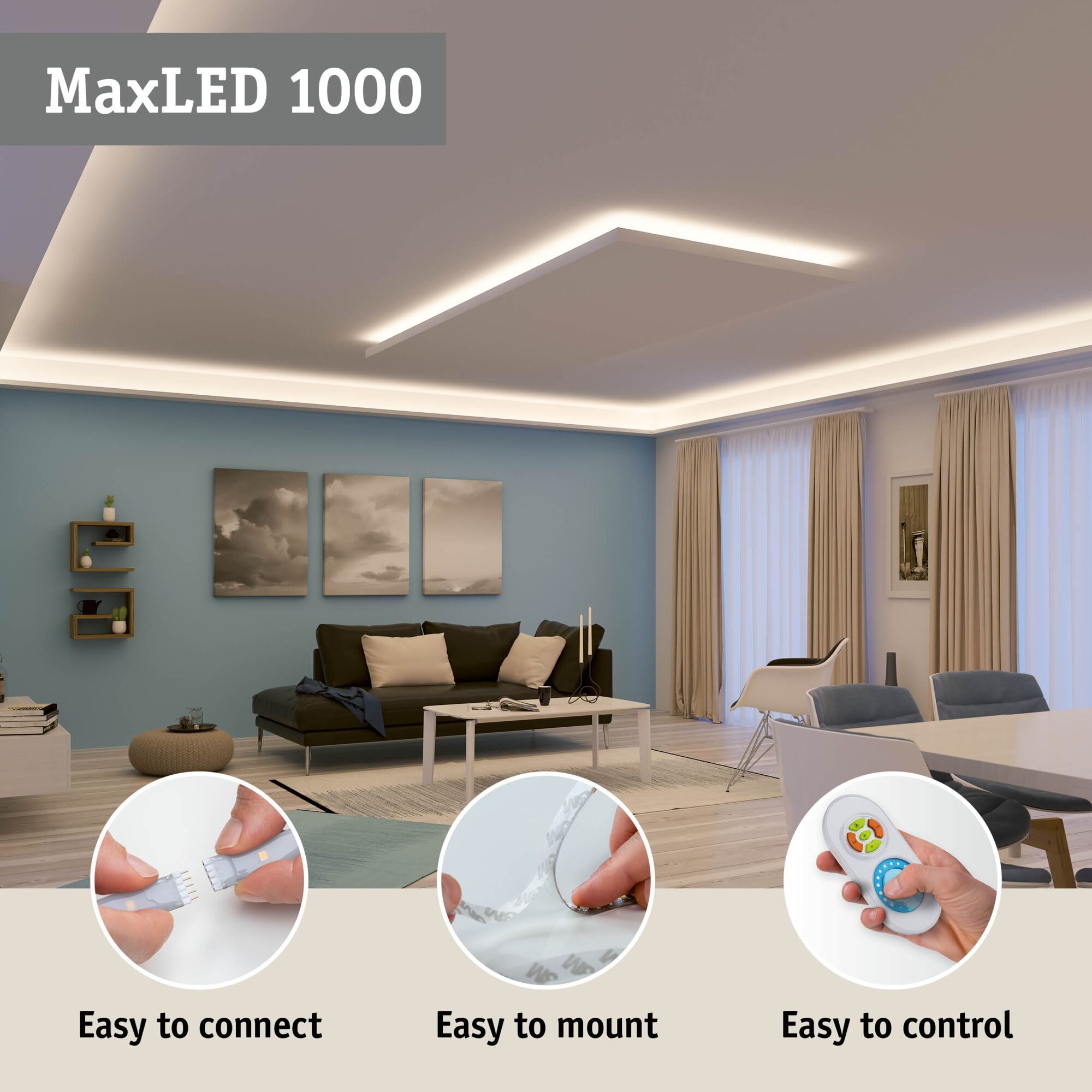

- Simple plug-in system for easy installation

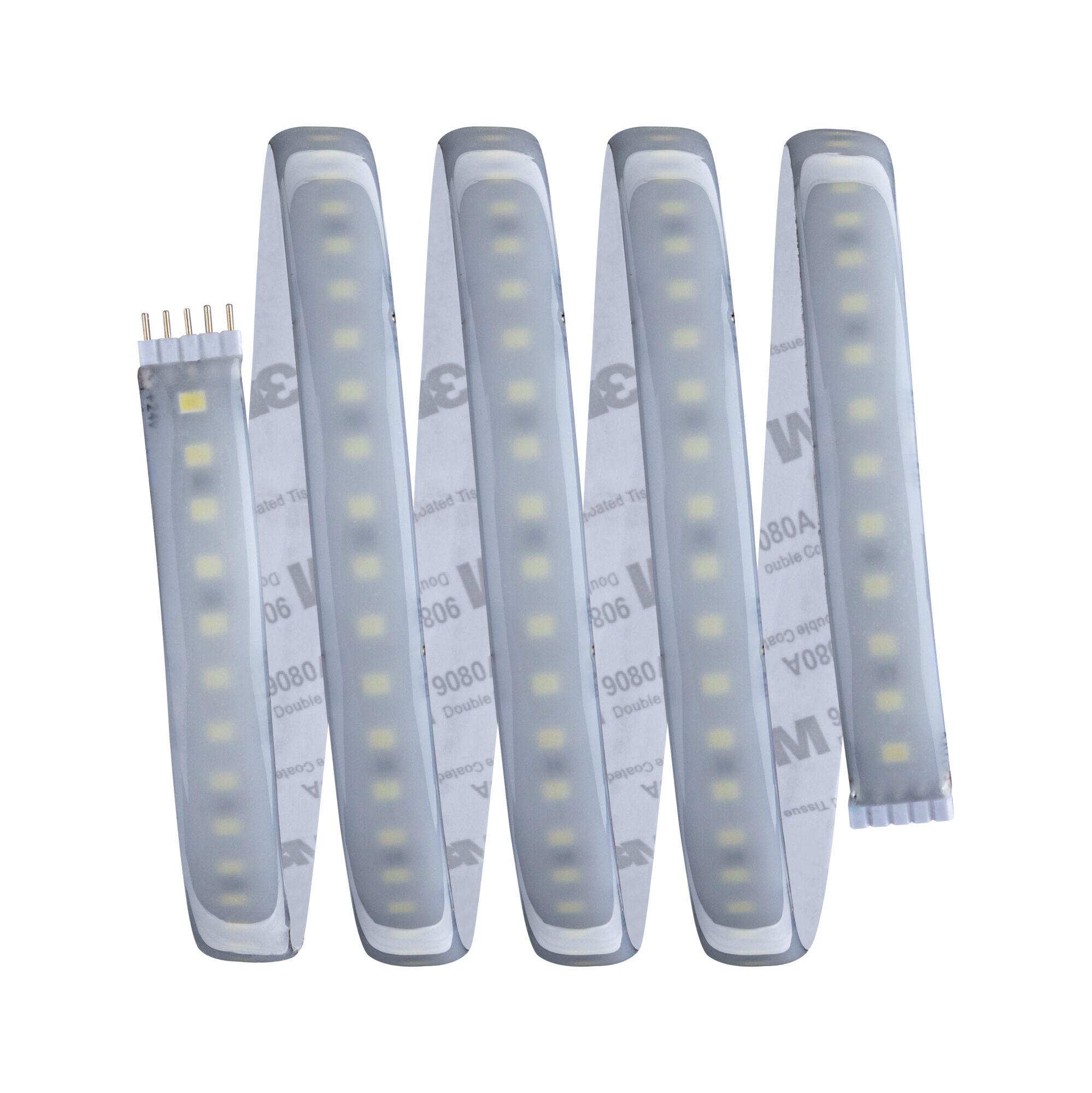

- Rear self-adhesive for simple installation

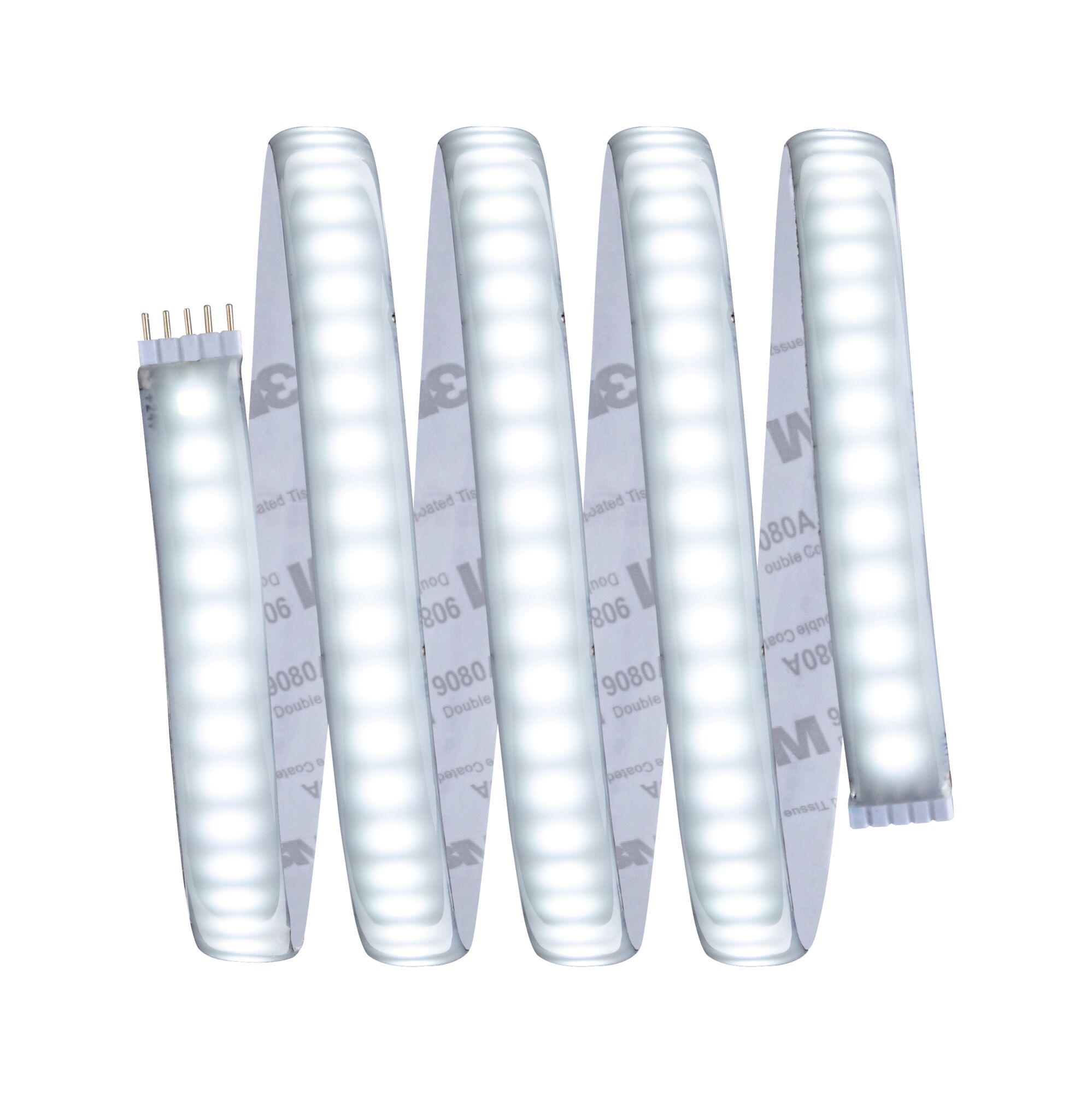

- Flexible material for installation on flat or arched base surfaces
- Color temperatur: 6500K - Daylight white
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps

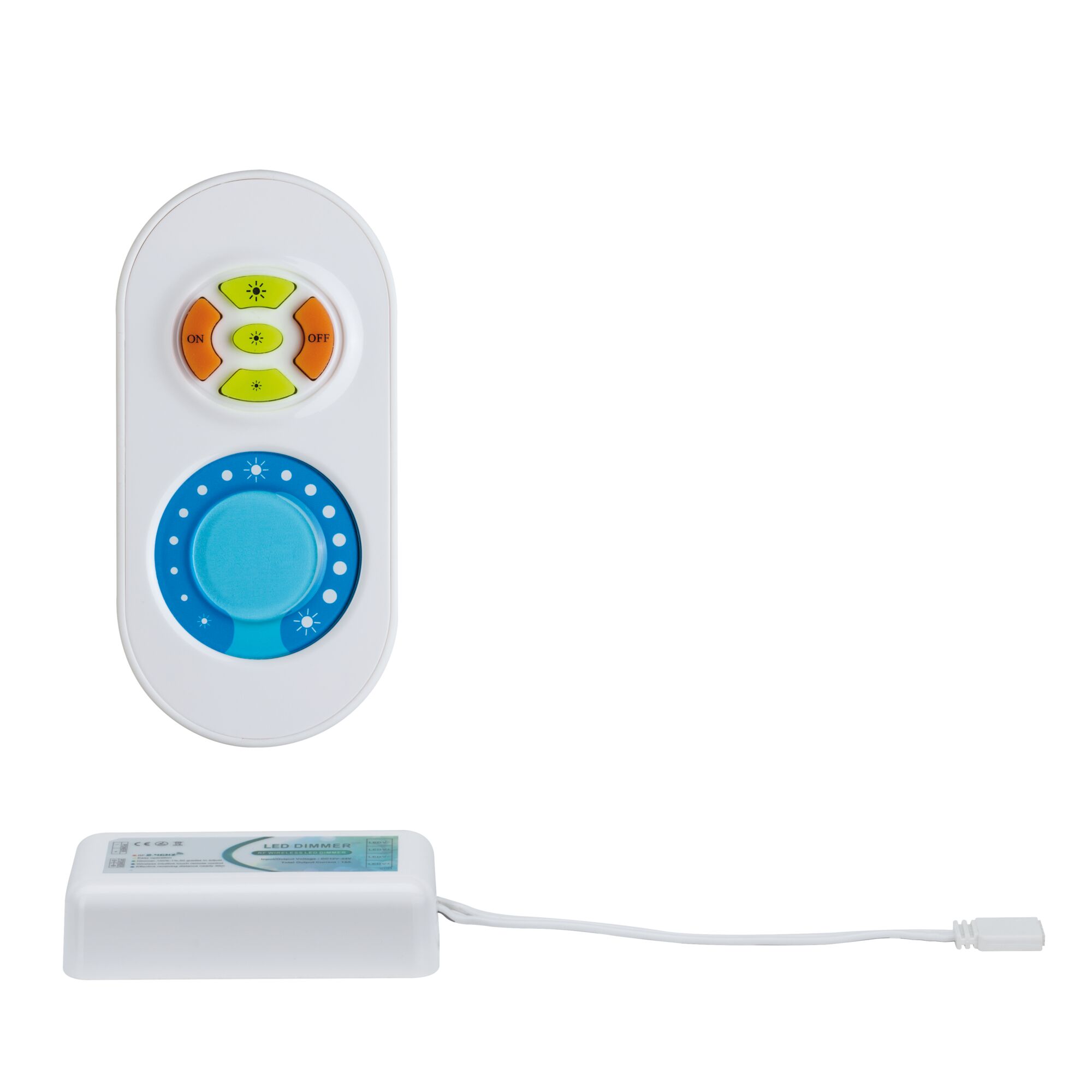

- Dimmable with MaxLED dim/switch controller
- Incl. 5-pin plug for easy connection of the strips
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 4 T: 12,5 mm |
| Length | 1,5 m |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Plastic |
| Installation | |
|---|---|
| Length max. | 3 m |
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 6500 K |
| Usable luminous flux | 1320 lm |
| Luminous flux LED module | 1650 lm |
| color temp | 6500 K |
| Color rendering index | > 80 Ra |
| Rated luminous flux (Lumen) | 1650 lm |
| Lamp Features | |
|---|---|
| Component parts | 18 W |
| Technique | LED |
| IP protection | IP44 |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 107 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Number of LED's per meter | 144 |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 20 W |
| Transformer | |
|---|---|
| Transformer power | 36 VA |
| Transformer height | 30 mm |
| Transformer width | 43 mm |
| Transformer depth | 137 mm |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
