Article-No.:
70589
MaxLED 1000LED Strip
Basic set 3m Daylight white
35W 1100lm/m 6500K 60VA
35W 1100lm/m 6500K 60VA

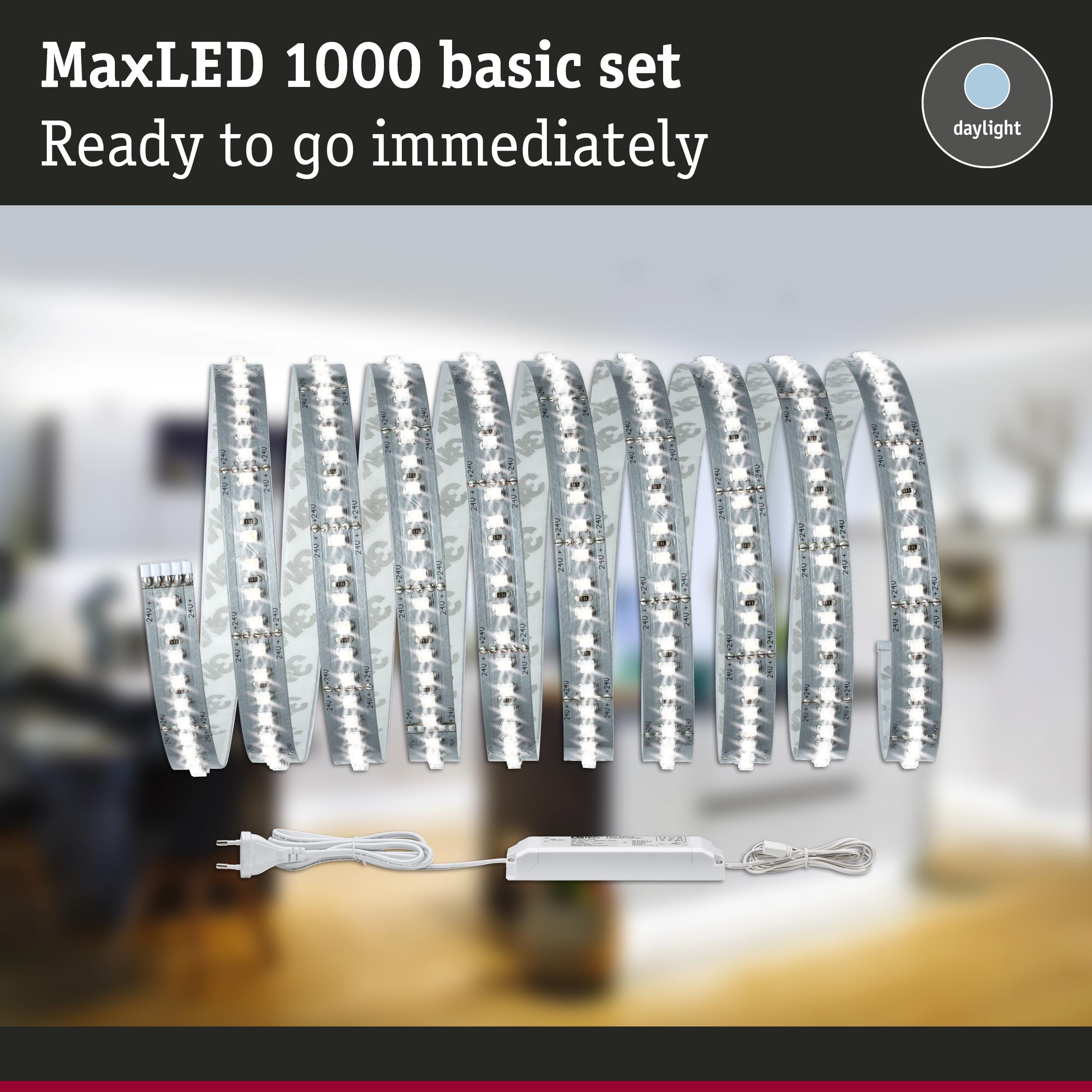

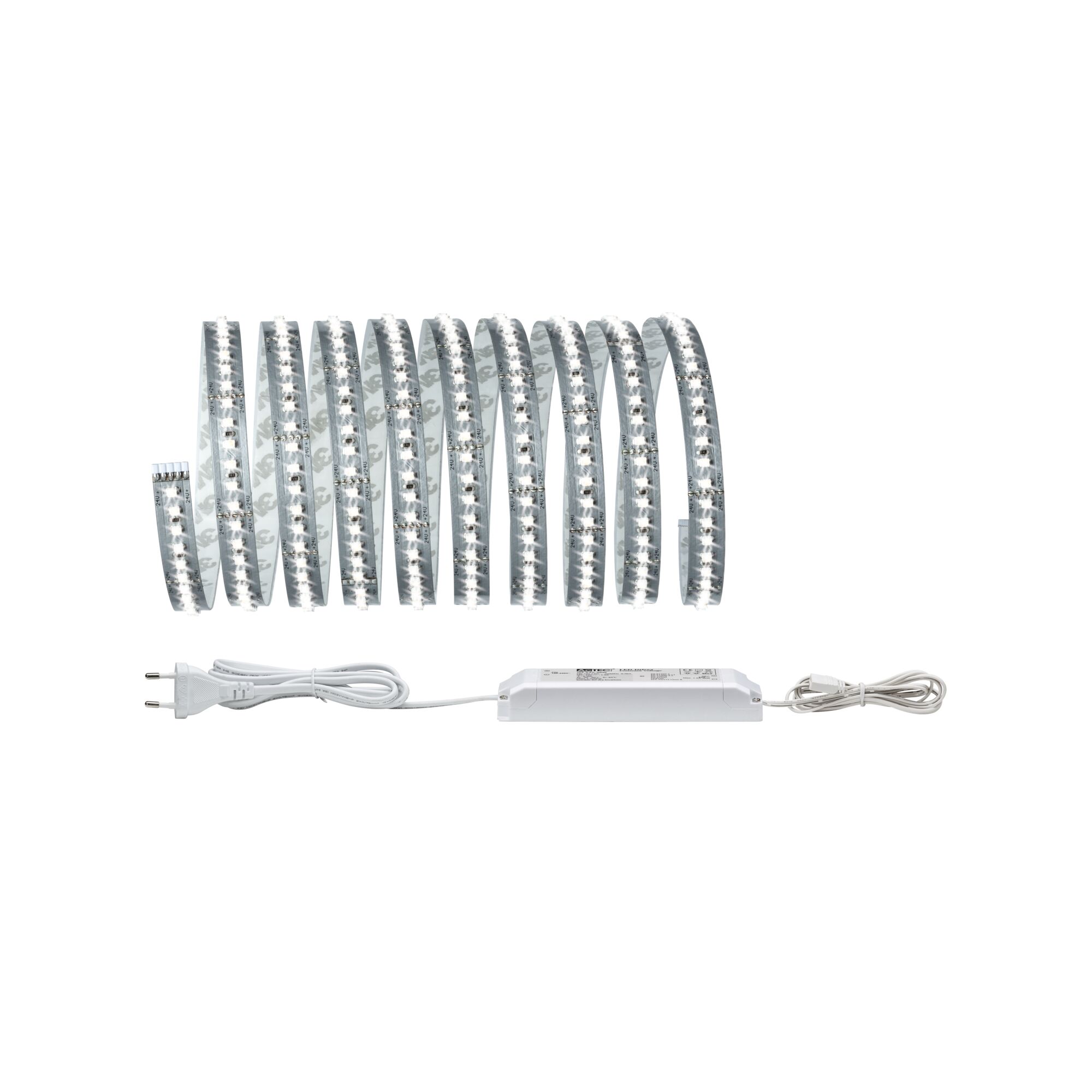

- Complete set incl. strip and power supply
- Can be shortened as required
- Simple plug-in system for easy installation

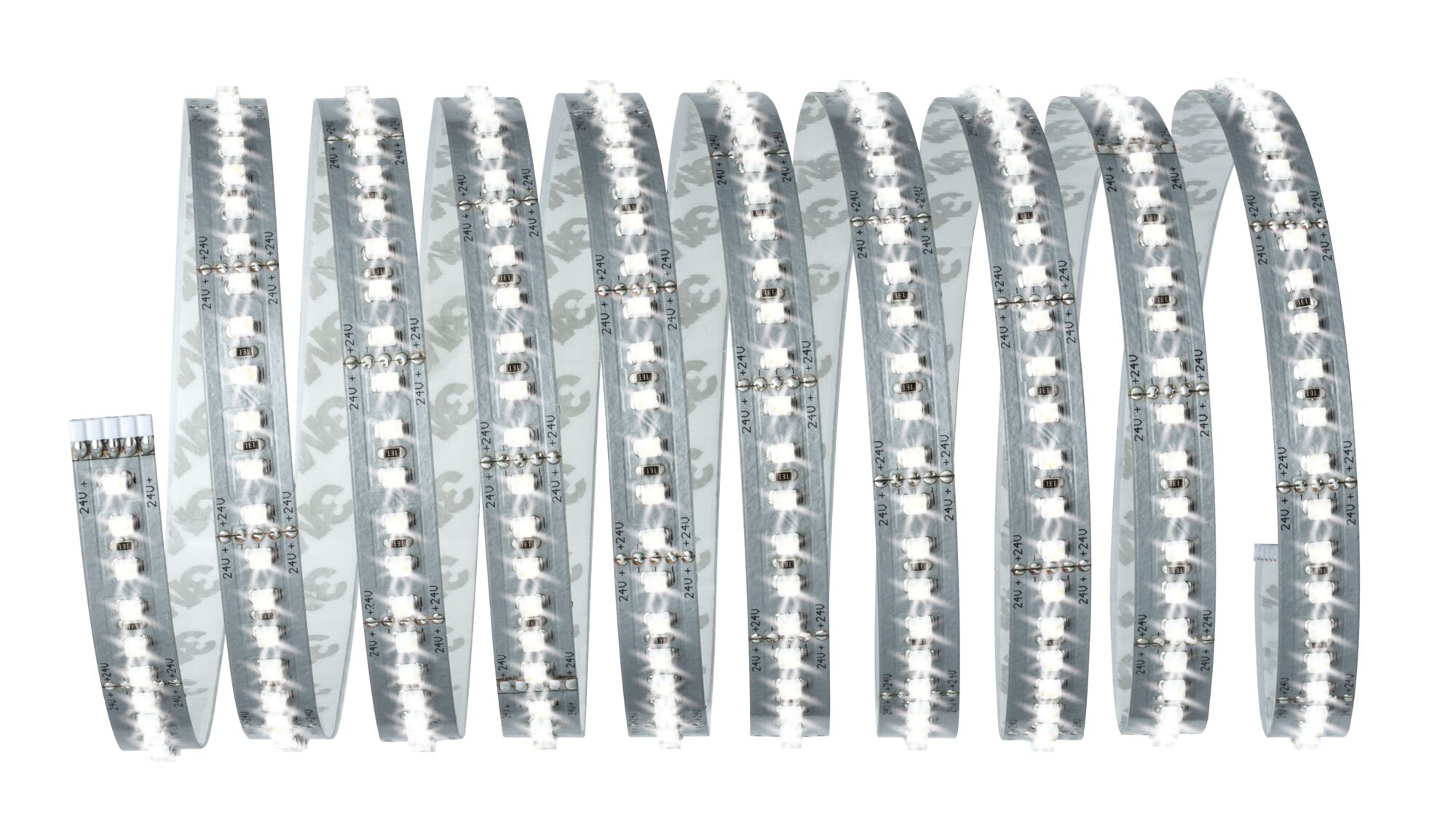

MaxLED 1000 LED Strip Basic set 3m Daylight white 35W 1100lm/m 6500K 60VA

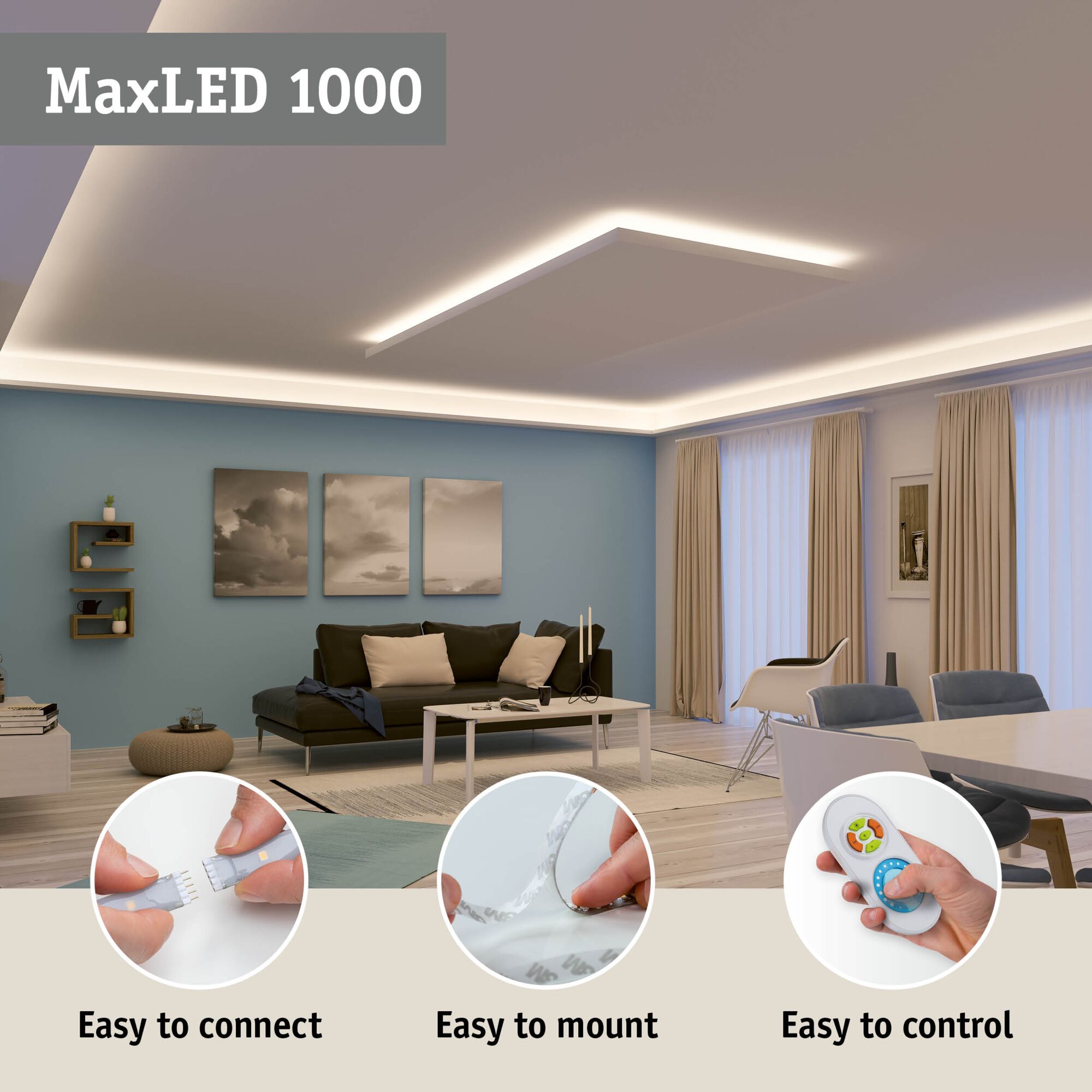

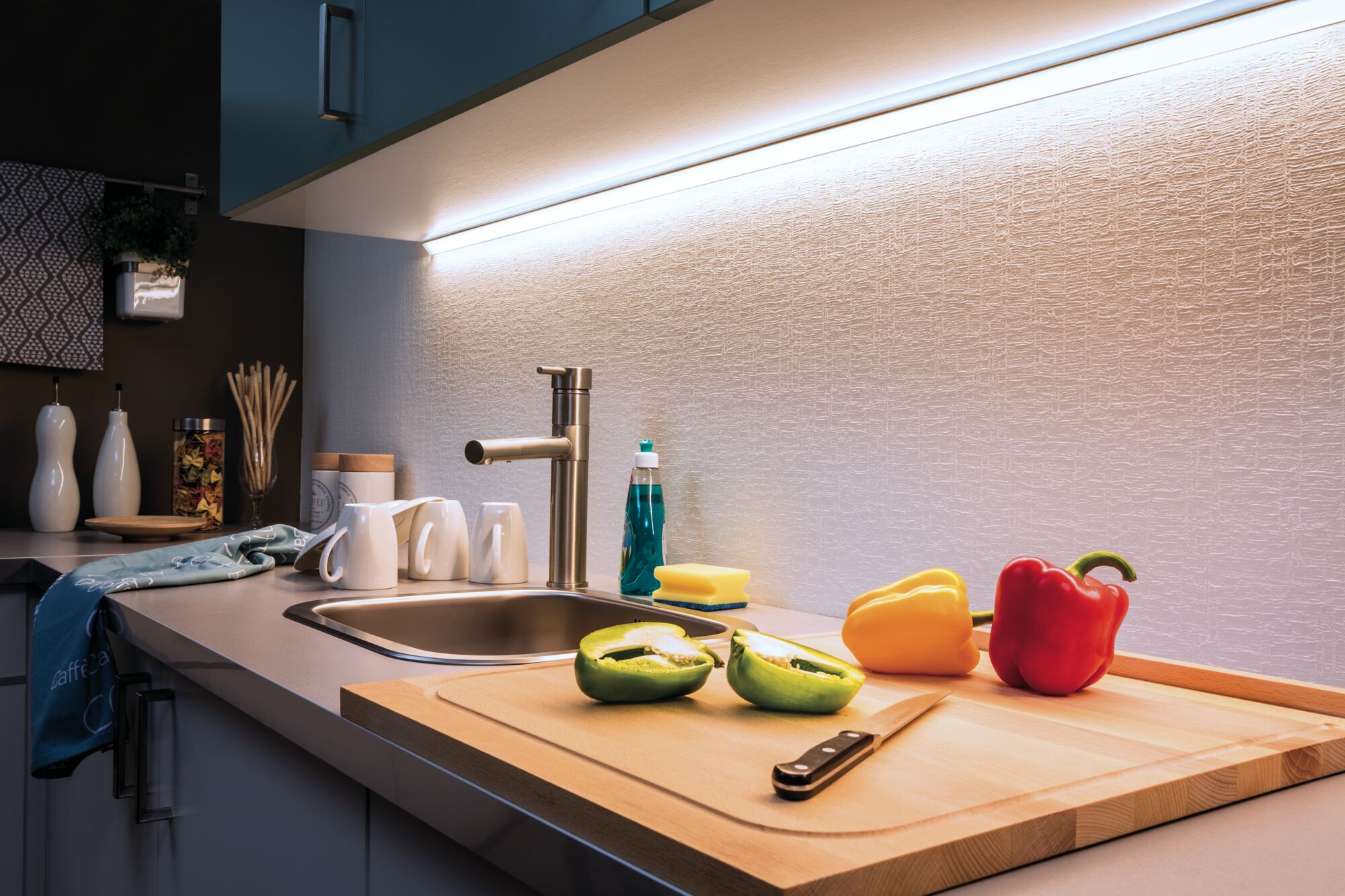

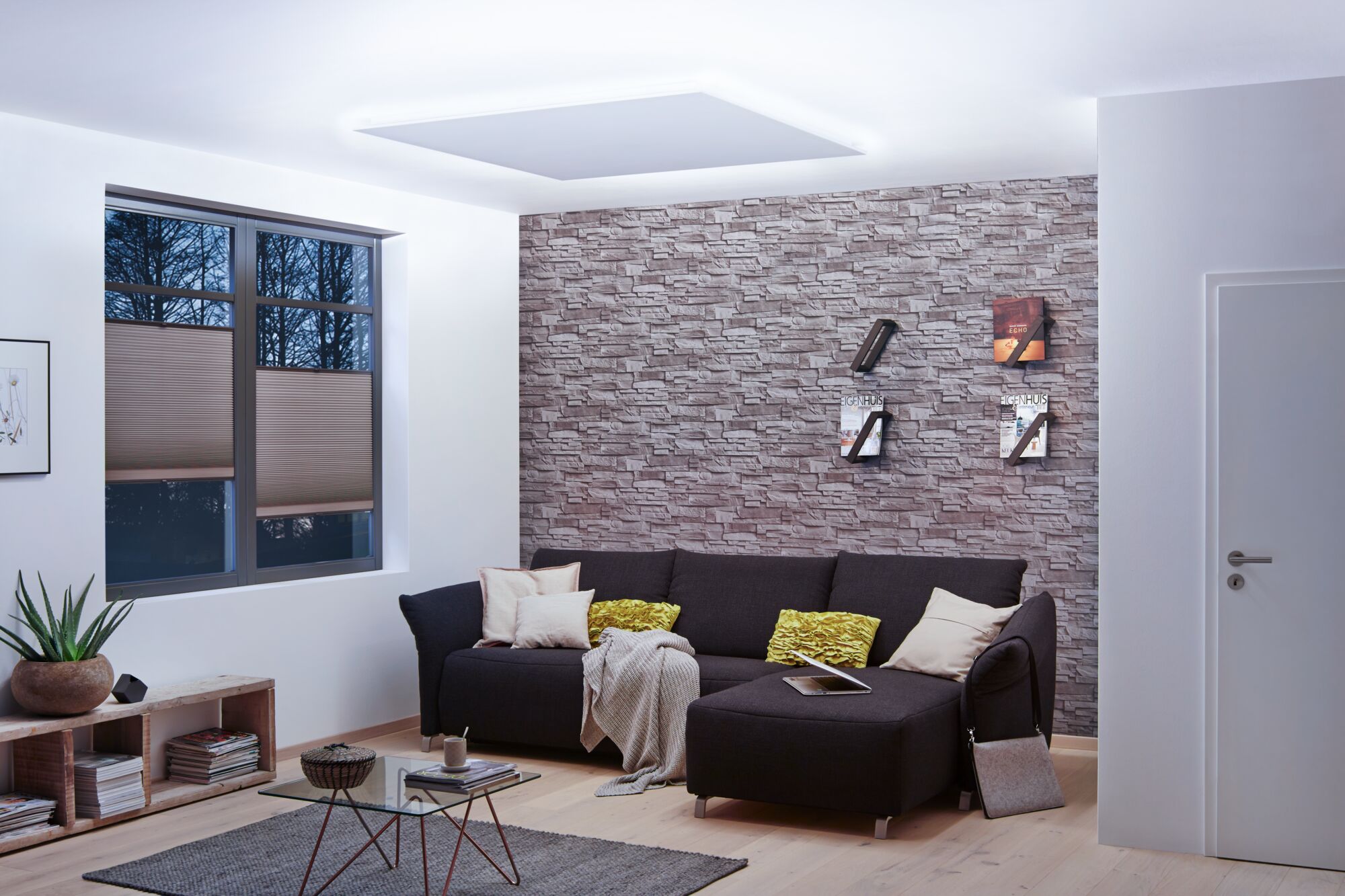

MaxLED strips are so powerful that they can easily be used as room lighting. They are real highlights especially in profiles. Warm white strips provide a cosy and relaxed room and workplace light. The basic set contain a suitable ballast in addition to the strip. Where required, it can be extended with additional strips, connectors and control units with remote control. When planning, please keep in mind the maximum length specified for the basic set, which must not be exceeded.
- Complete set incl. strip and power supply
- Can be shortened as required
- Simple plug-in system for easy installation

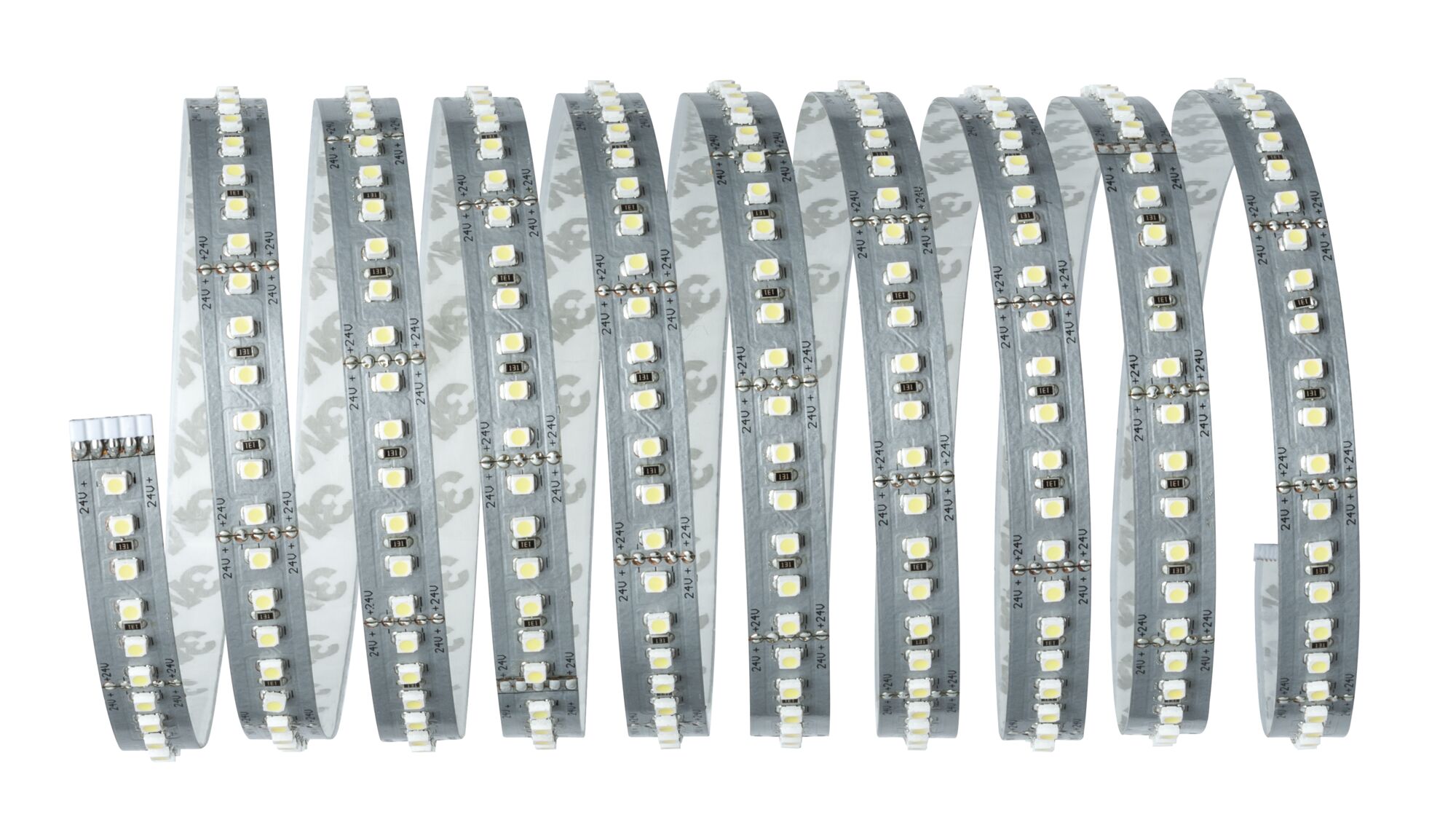

- Rear self-adhesive for simple installation
- Flexible material for installation on flat or arched base surfaces
- Color temperatur: 6500K - Daylight white
- Energy-saving LED technology (conserves up to 80% in comparison to conventional light bulbs)

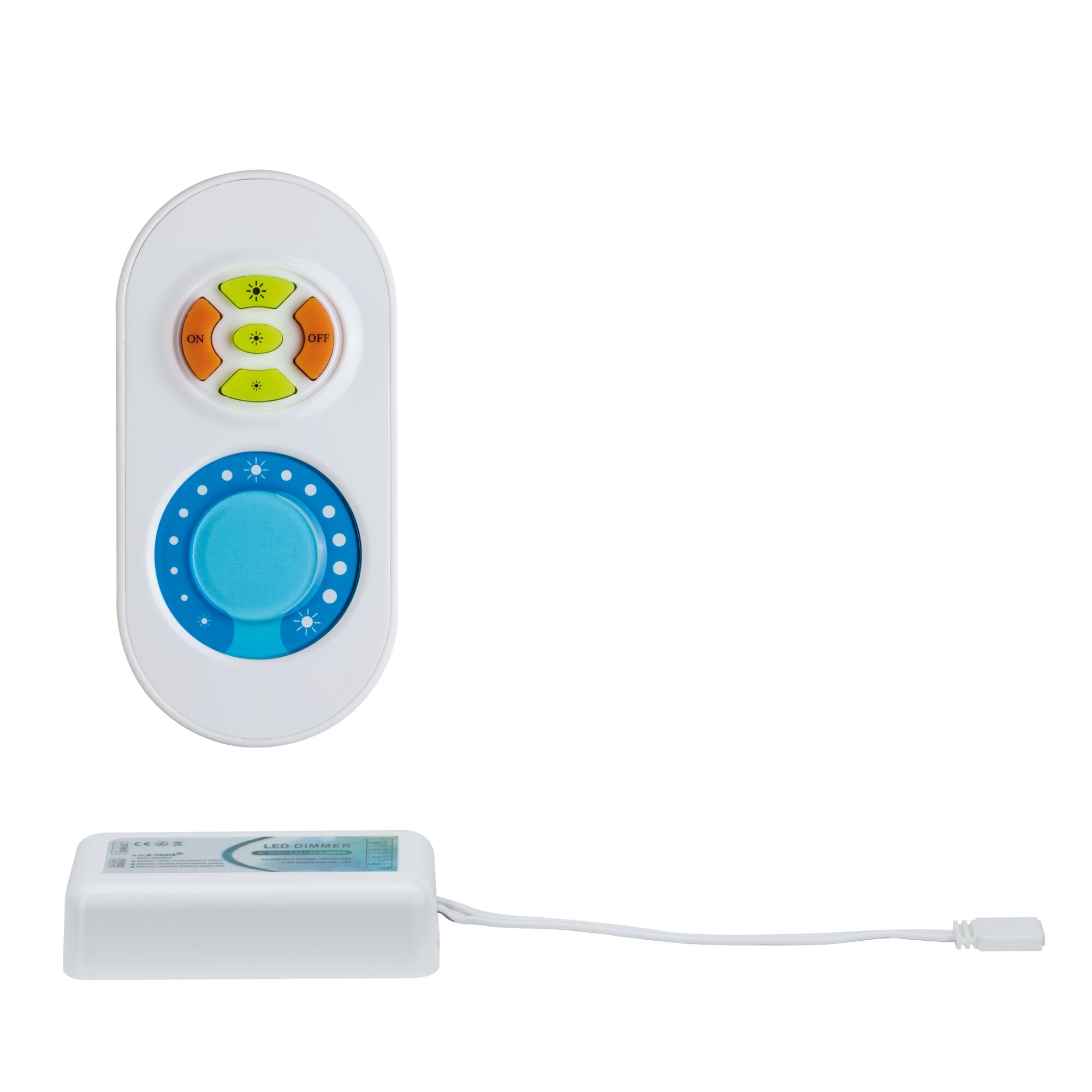

- Dimmable with MaxLED dim/switch controller
- Incl. 5-pin plug for easy connection of the strips
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 x T: 12,5 mm |
| Length | 3 m |

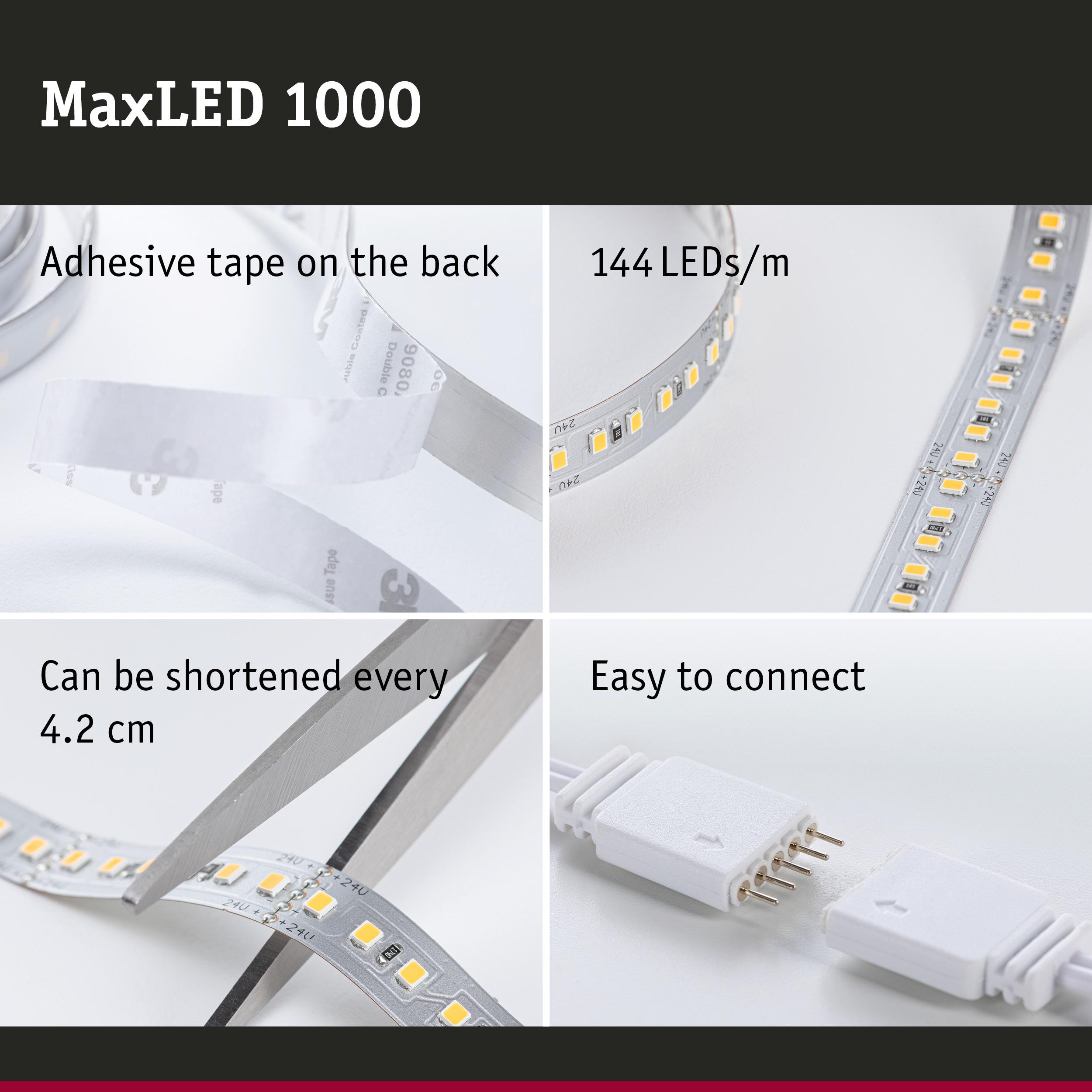

| Shortenability Strips | 41.5 mm |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Metal |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |

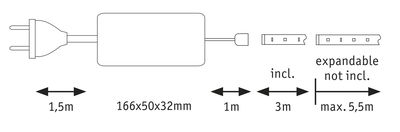

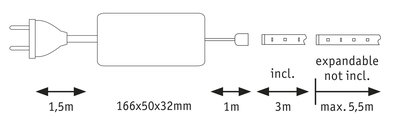

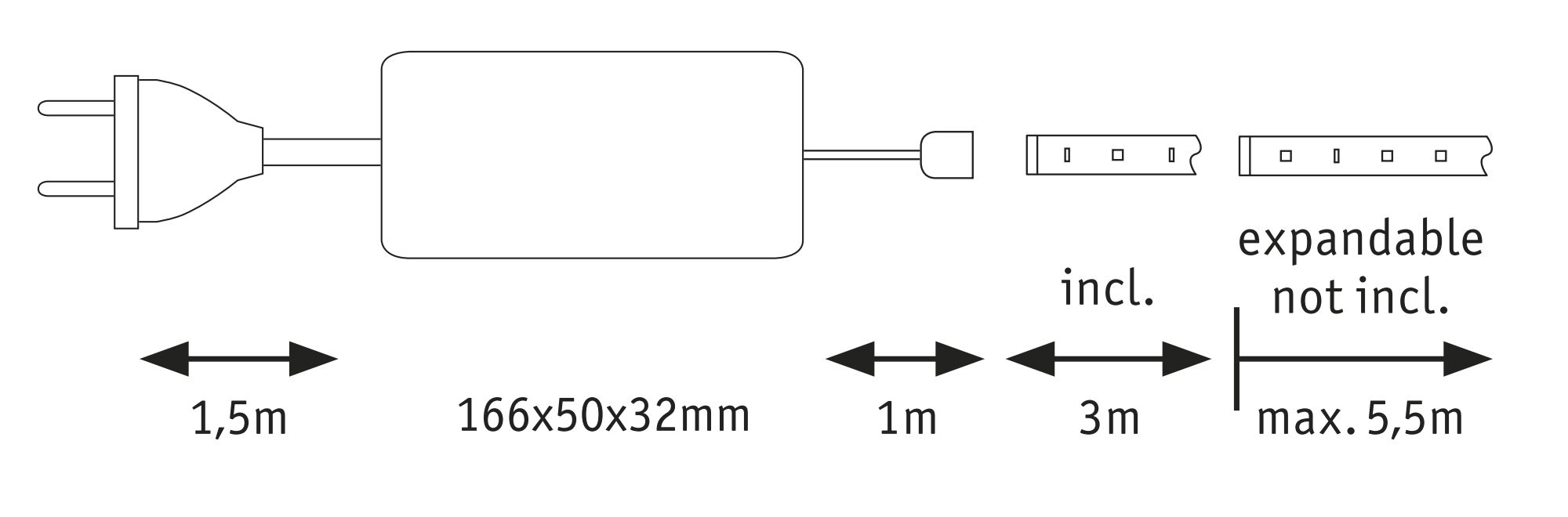

| Length max. | 5,5 m |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Daylight white, 6500 K |
| Nominal luminous flux | 3300 lm |
| Luminous flux LED module | 3300 lm |
| Color rendering index | > 80 Ra |
| Lumens per metre | 1100 lm/m |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 35 W |
| Number of component parts | 1x |
| Number of LED's per meter | 144 |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 40 W |
| Adjustability | fixed |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 60 VA |
| Transformer height | 32 mm |
| Transformer width | 50 mm |
| Transformer depth | 166 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
- MaxLED 1000
- LED Strip

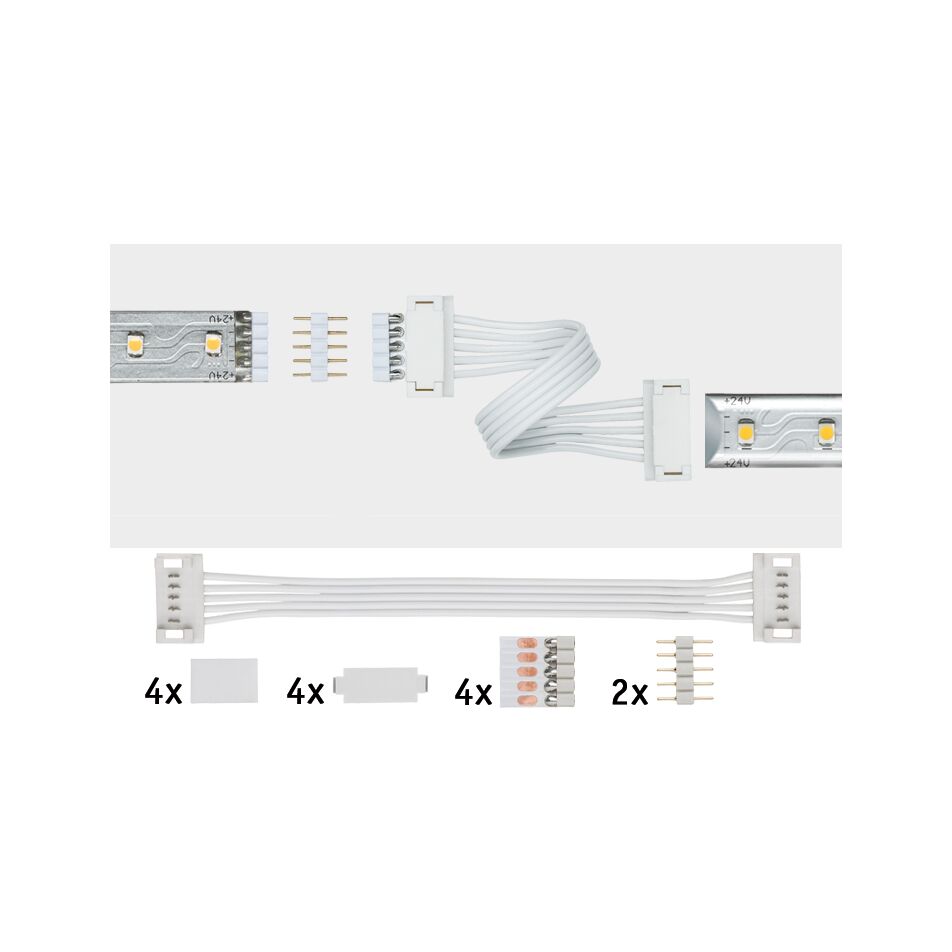

- MaxLED accessoires
