Article-No.:
78400
LumiTiles
LED Tiles

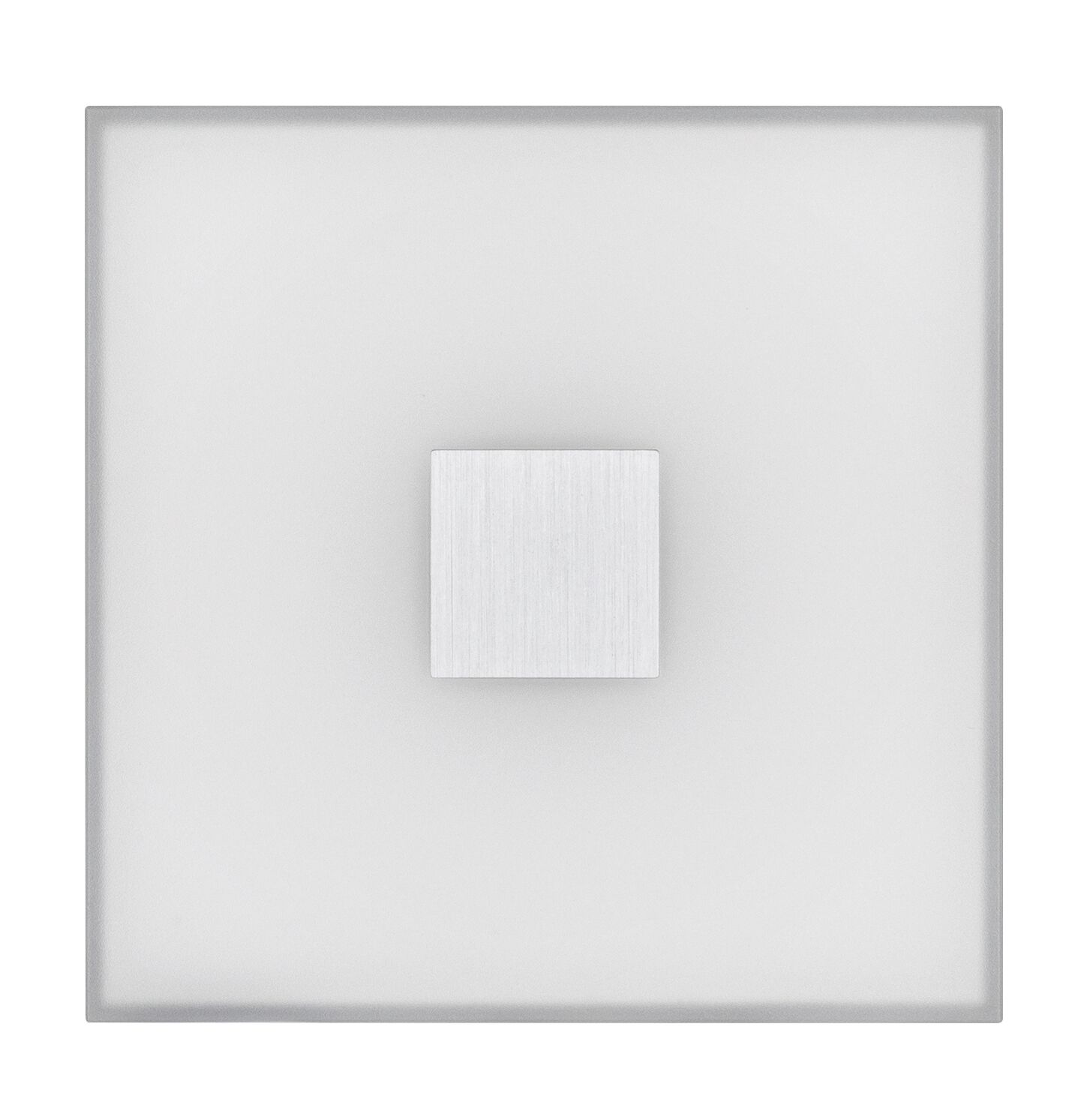

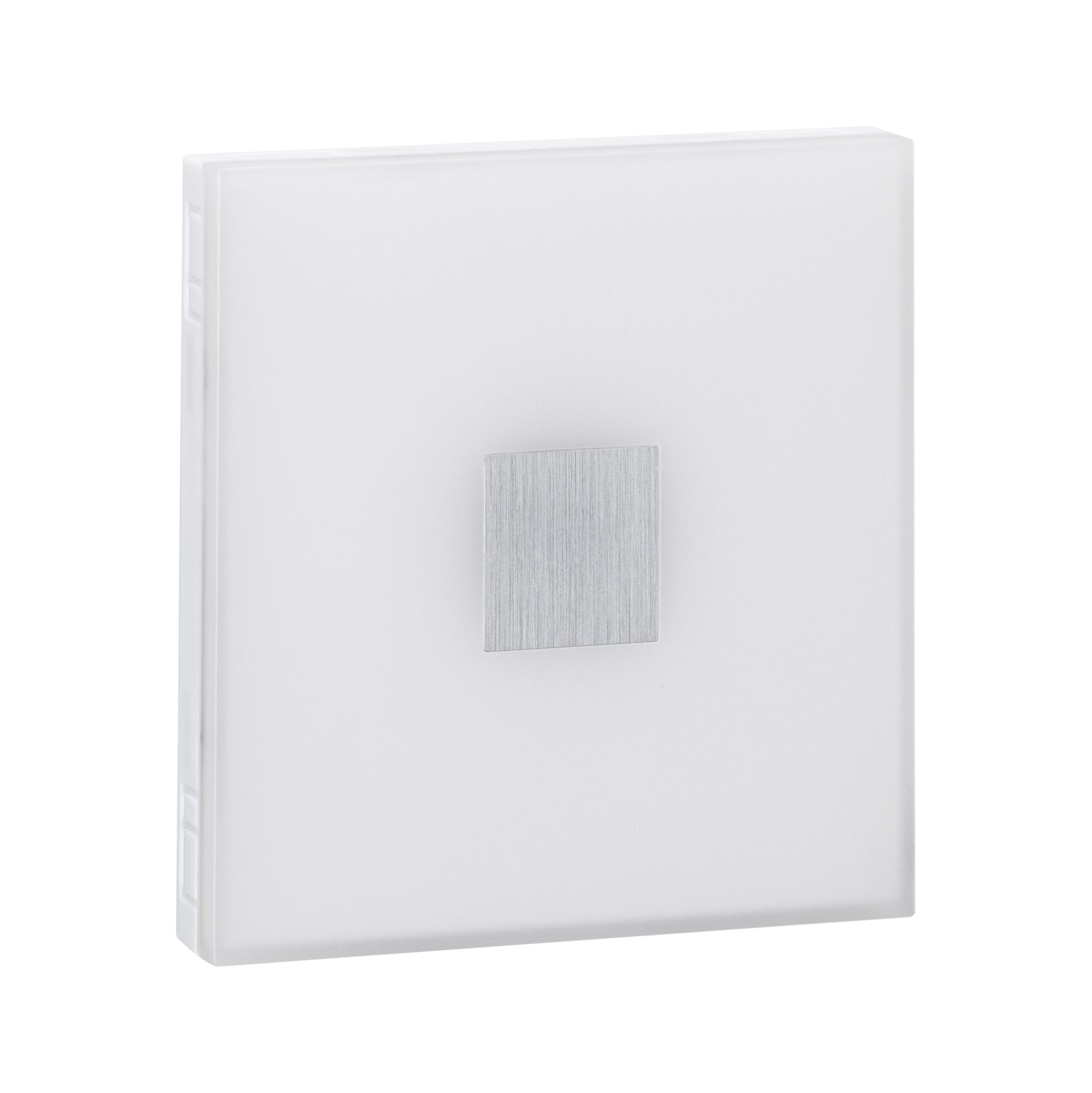

Square Single Tile
IP44 100x10mm 20lm 12V 0,8W 2700K White Plastic/Aluminium
IP44 100x10mm 20lm 12V 0,8W 2700K White Plastic/Aluminium
- LumiTiles LED tiles produce homogeneous light full of effects
- Area lighting
- Color temperatur: 2700K - Warm white

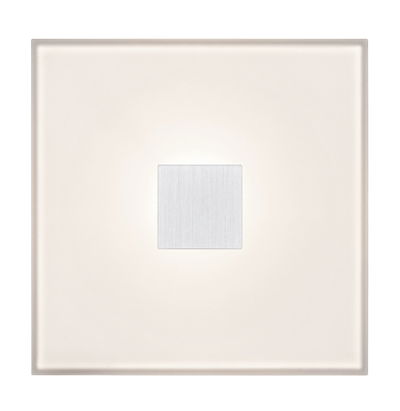

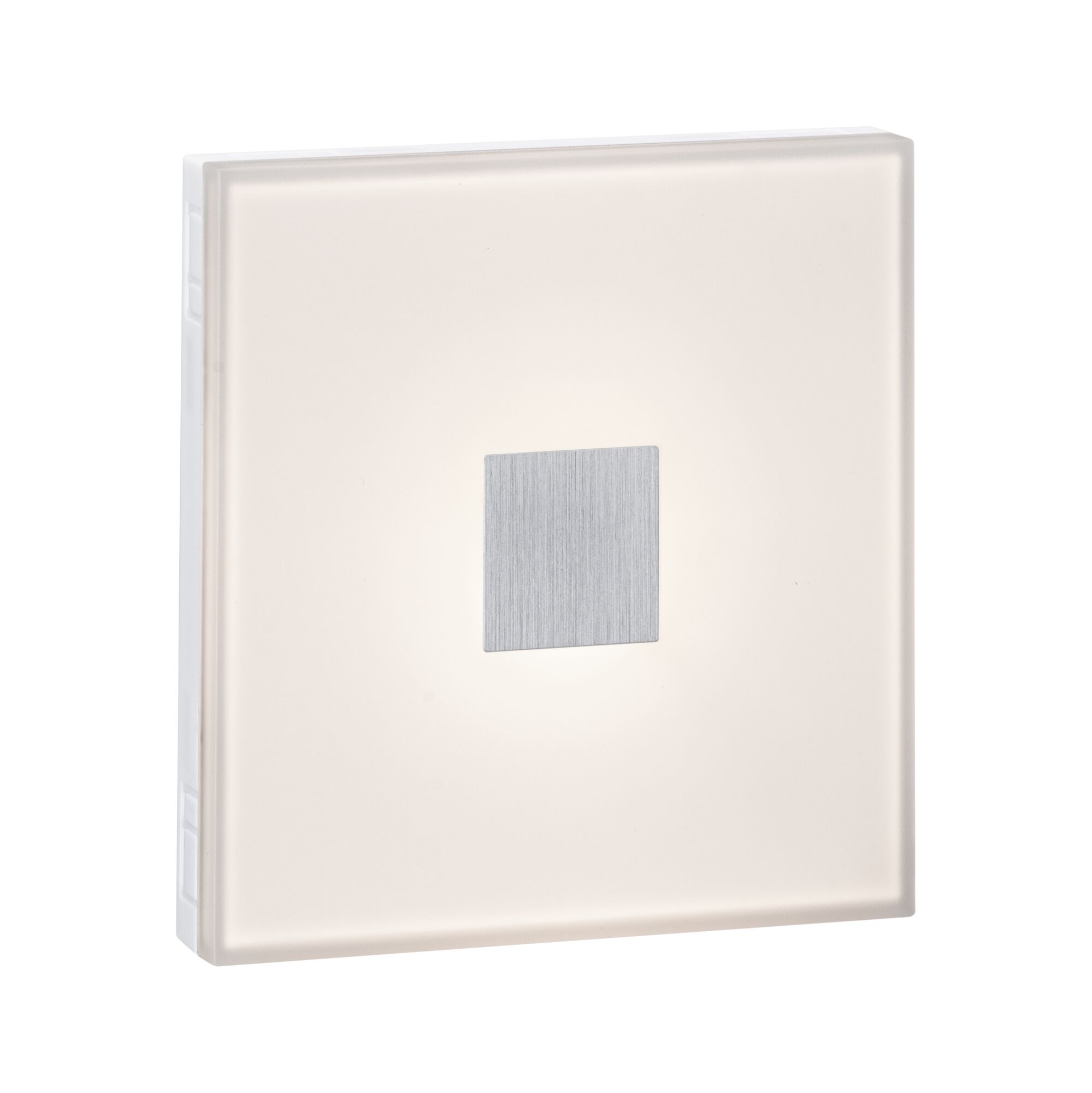

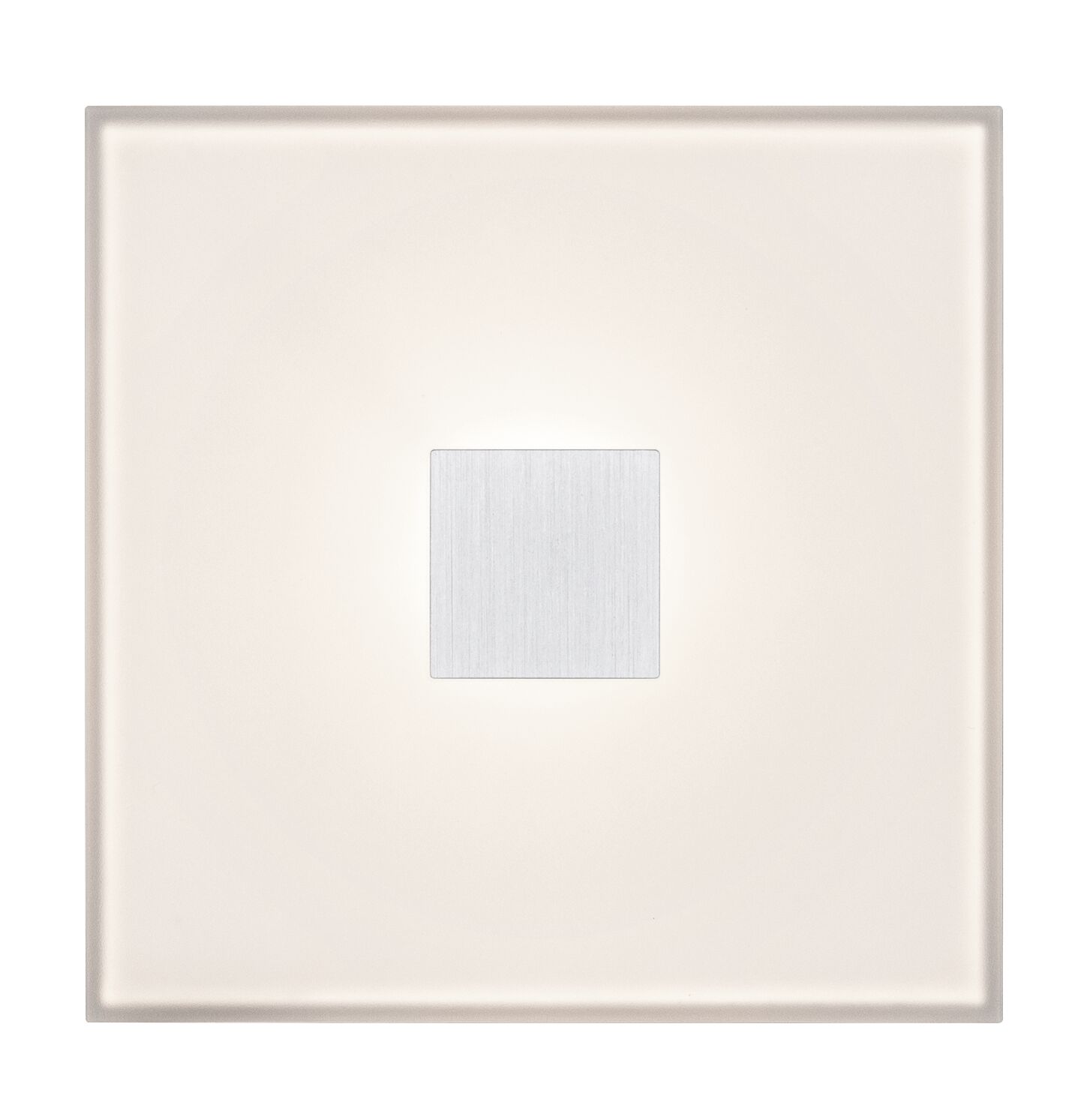

LumiTiles LED Tiles Square Single Tile IP44 100x10mm 20lm 12V 0,8W 2700K White Plastic/Aluminium

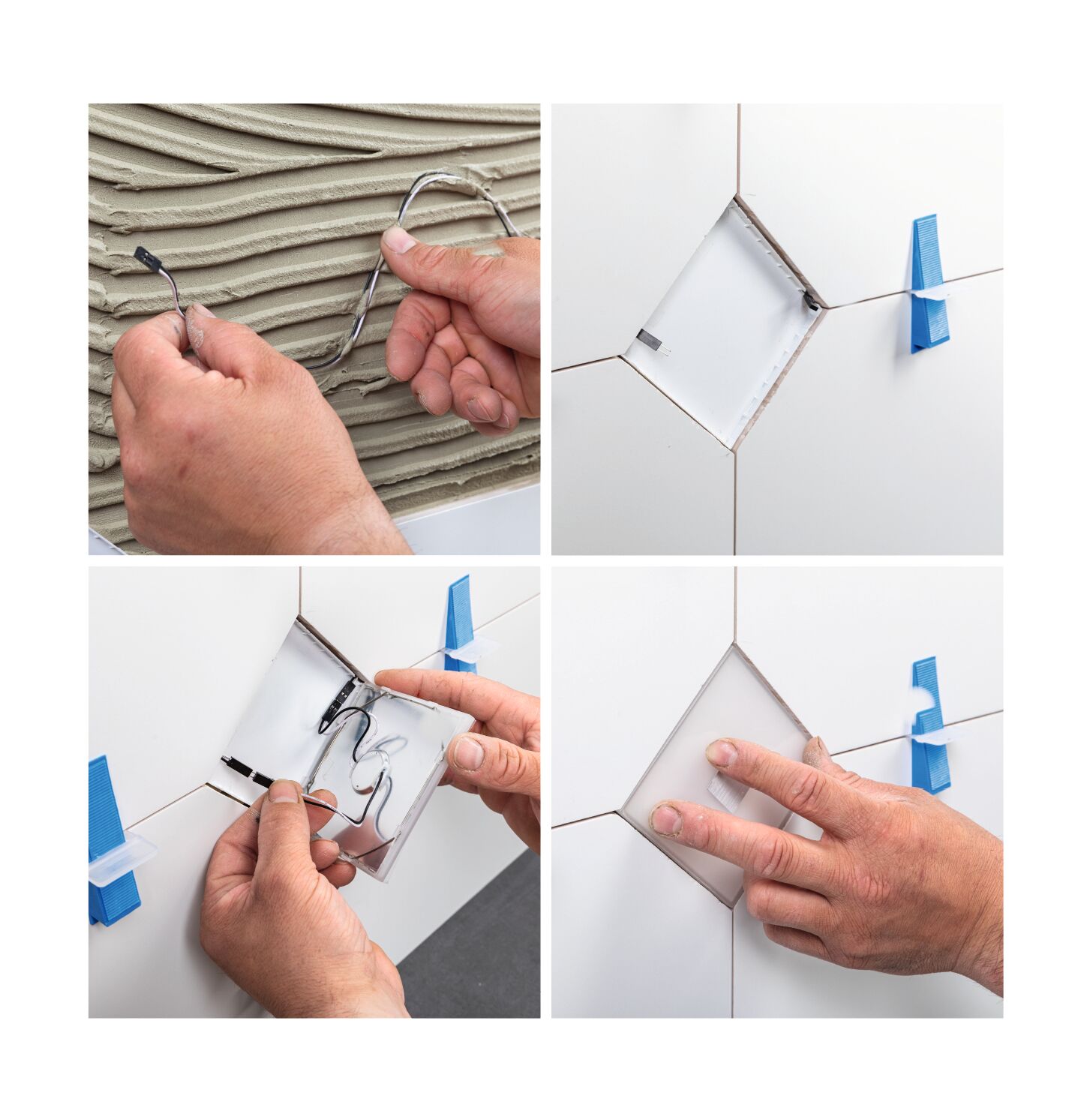

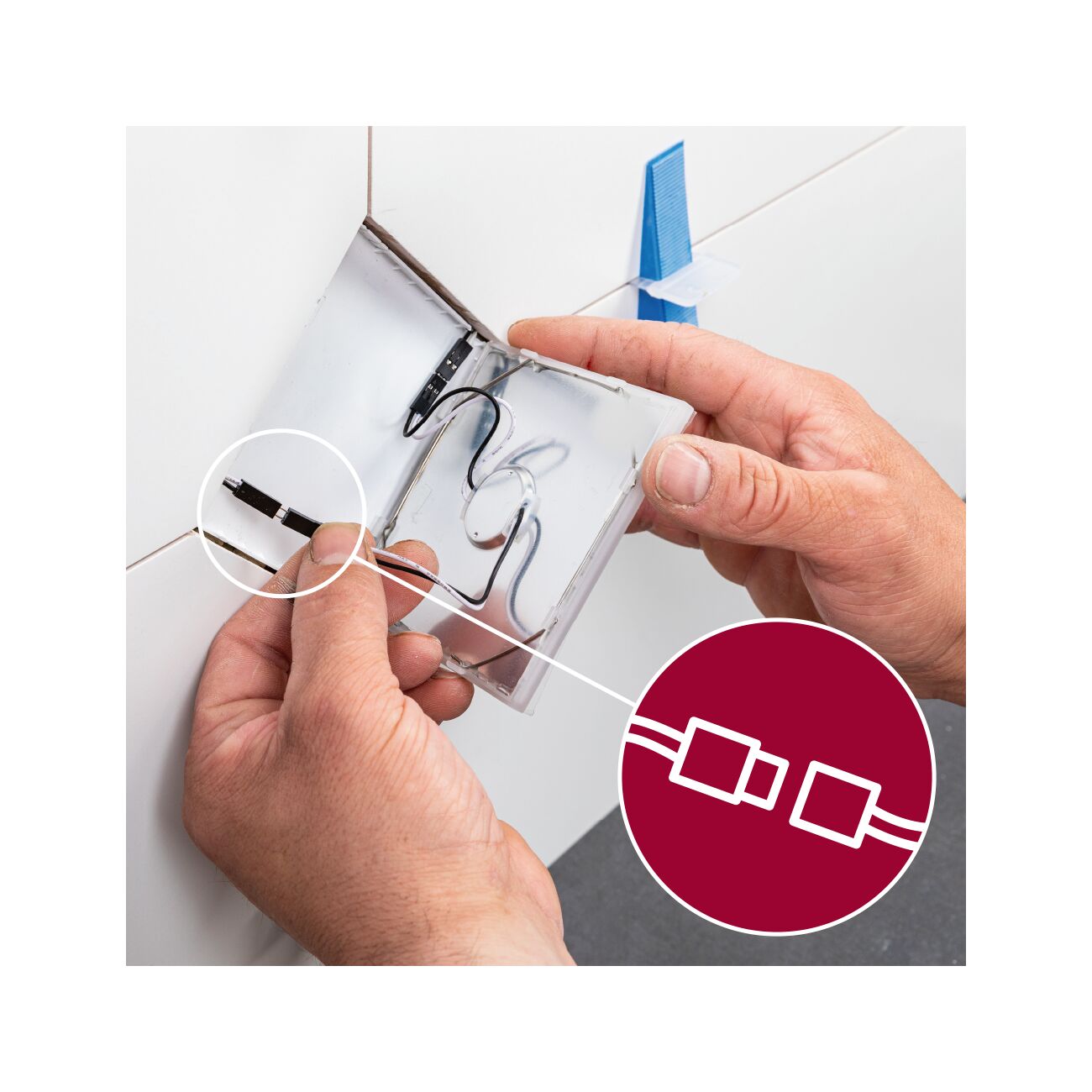

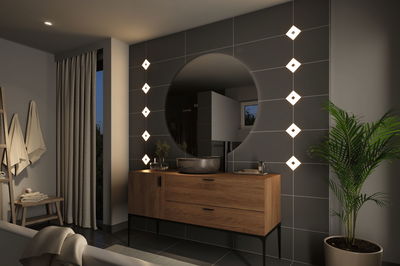

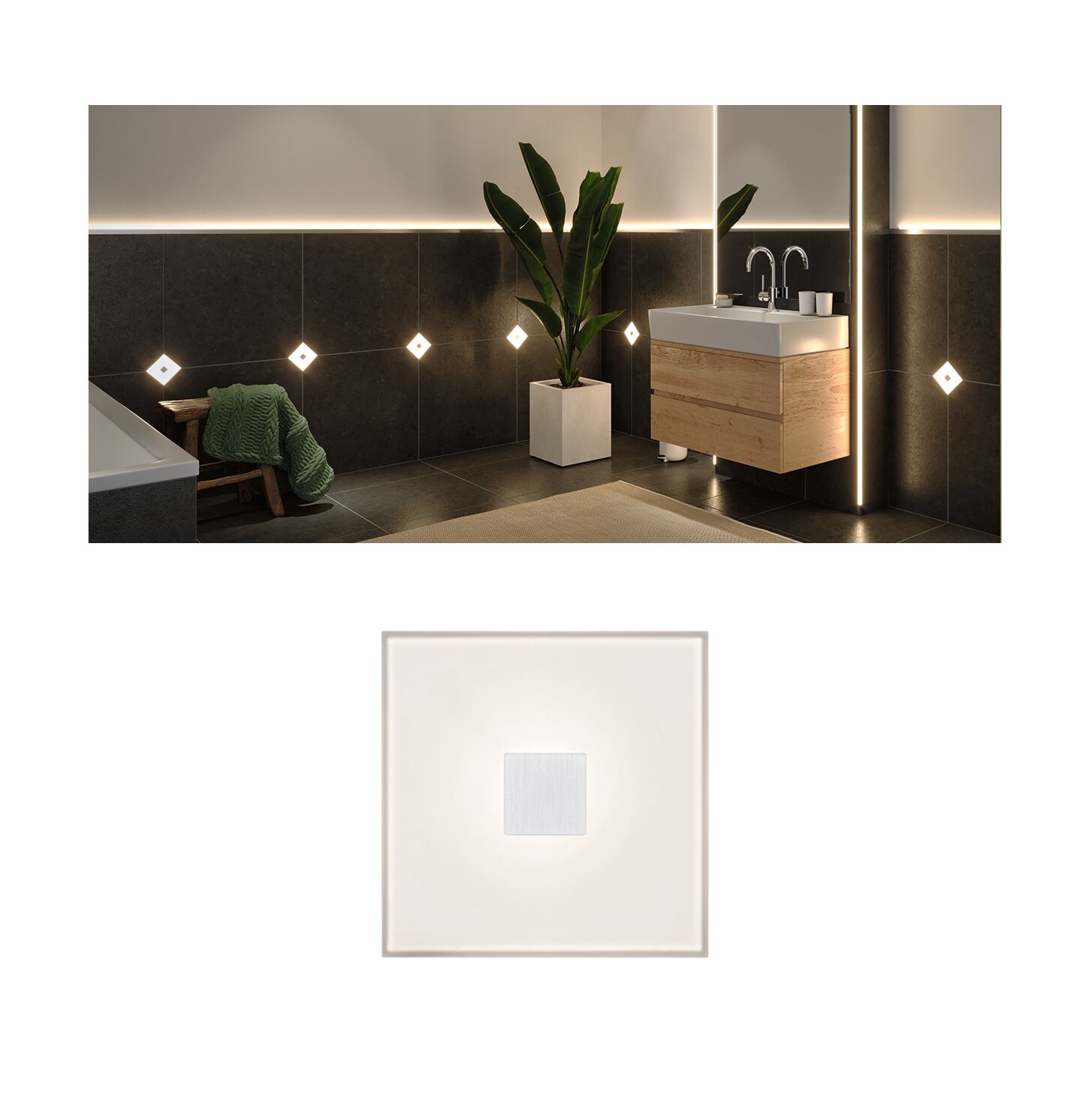

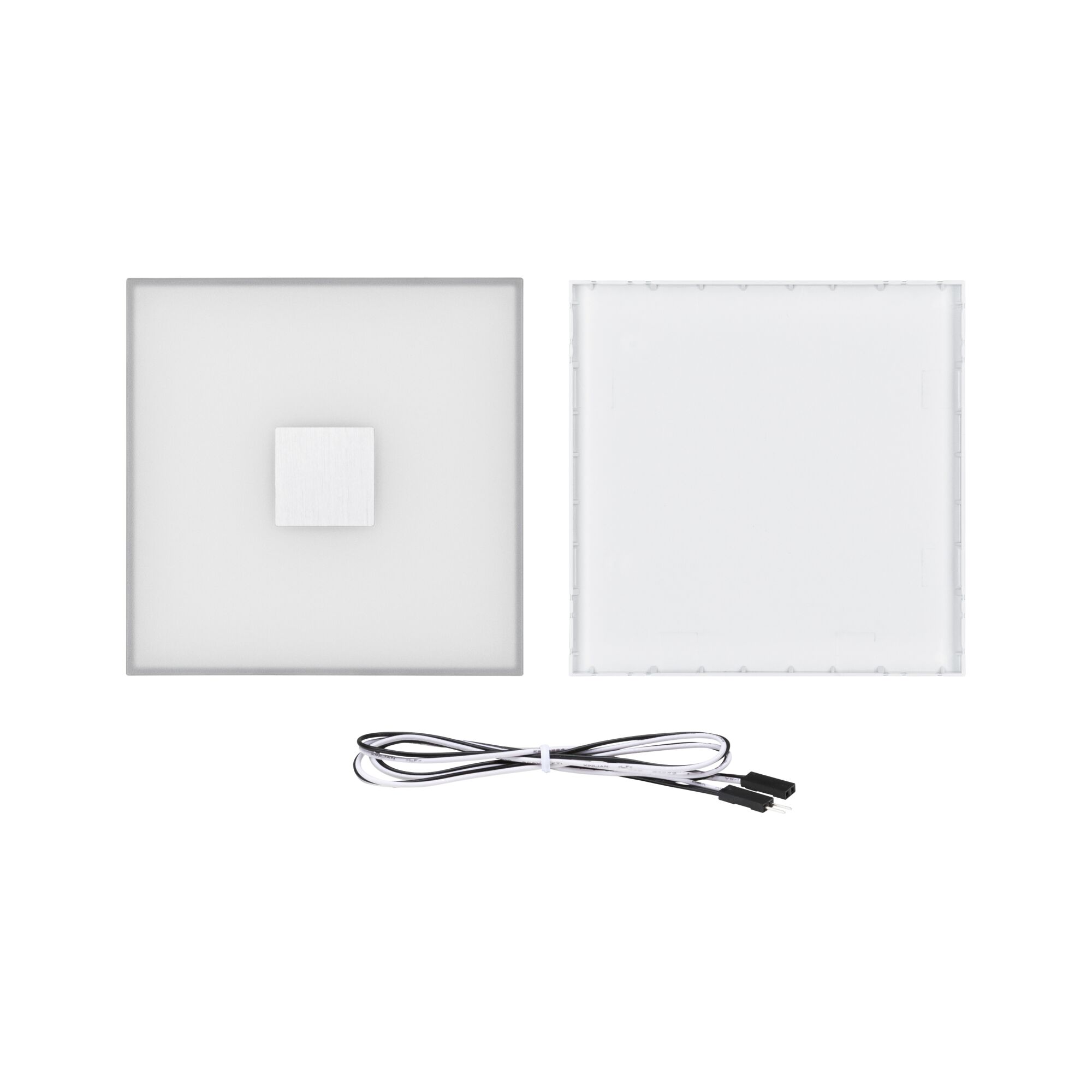

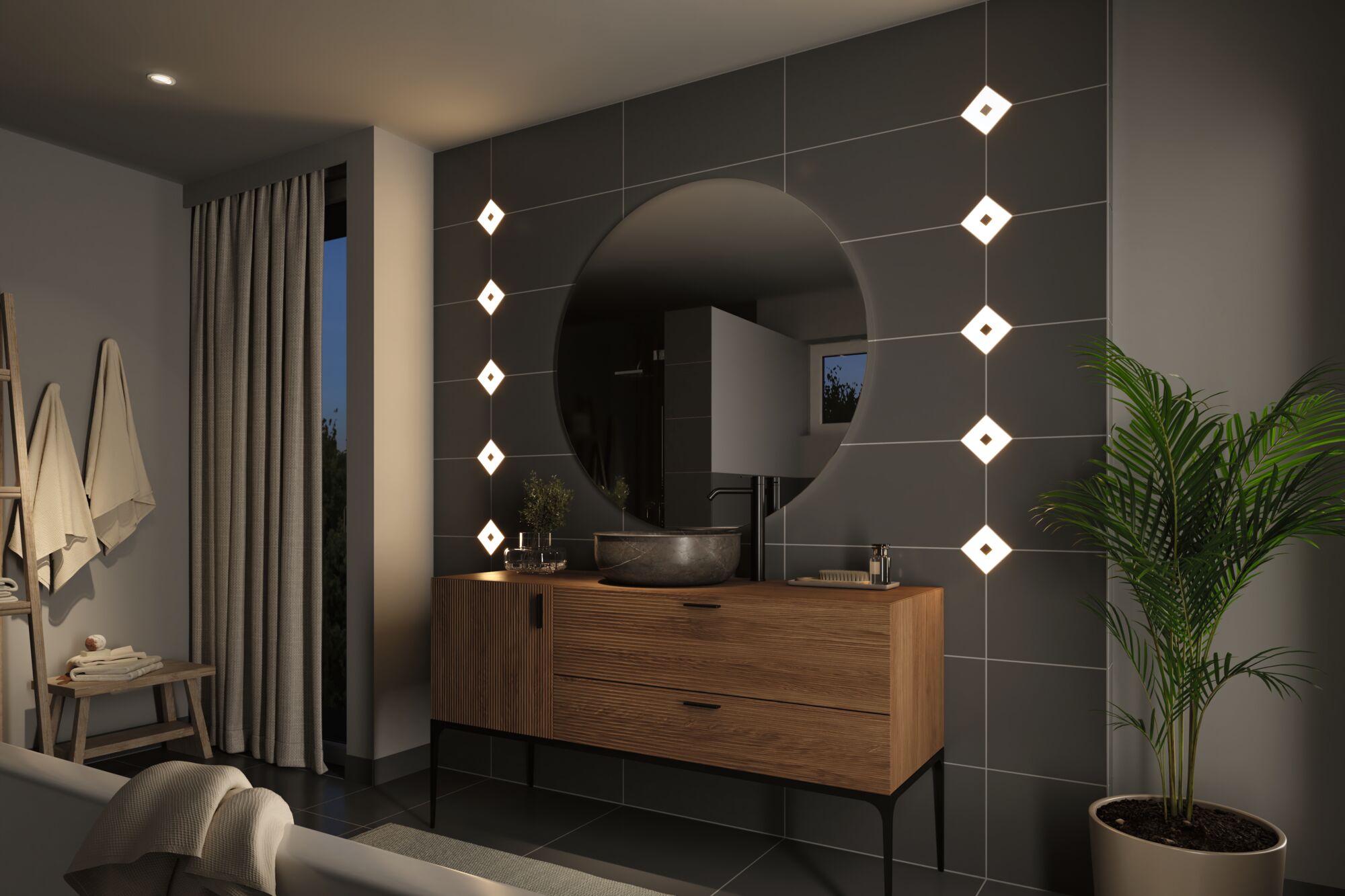

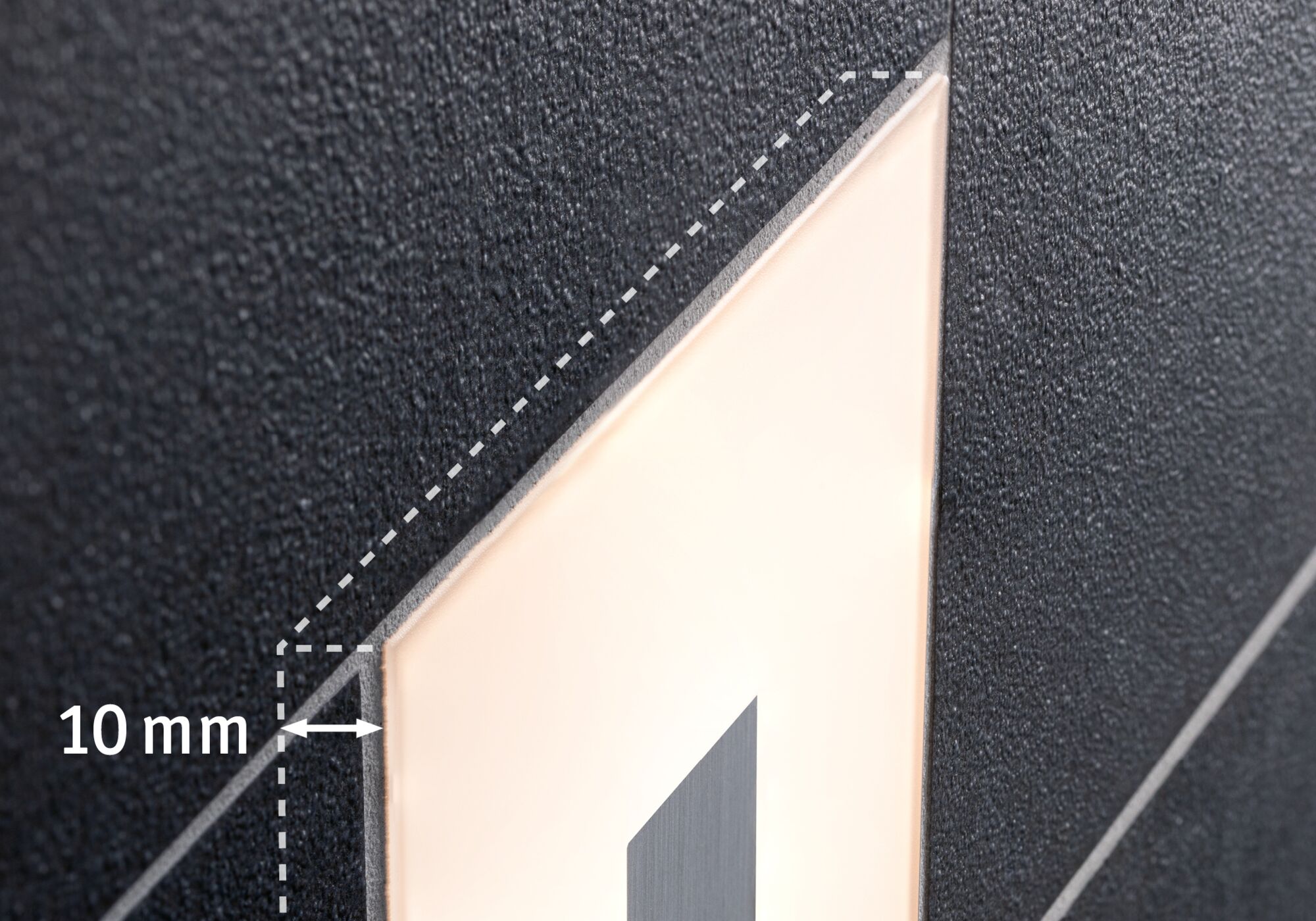

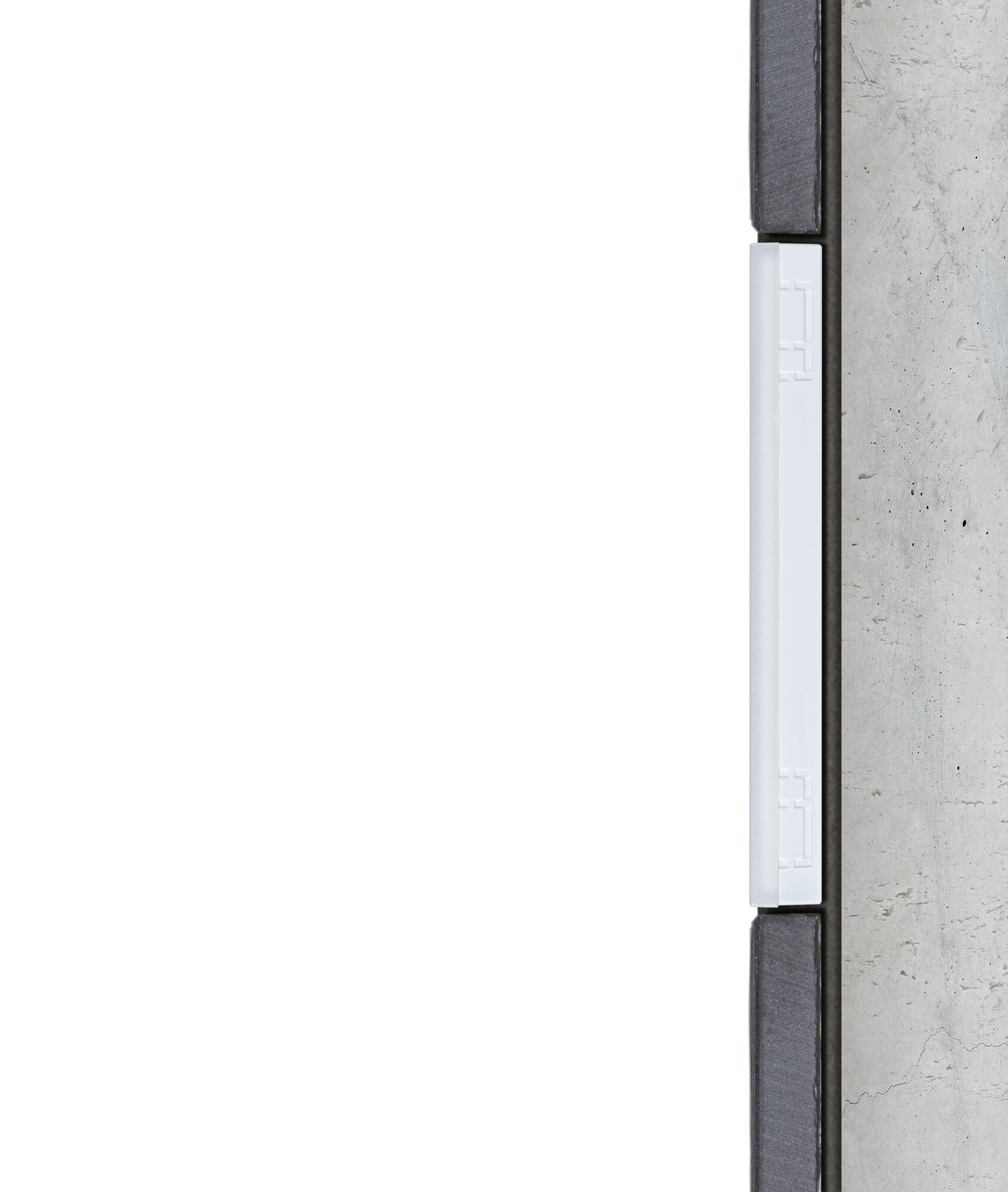

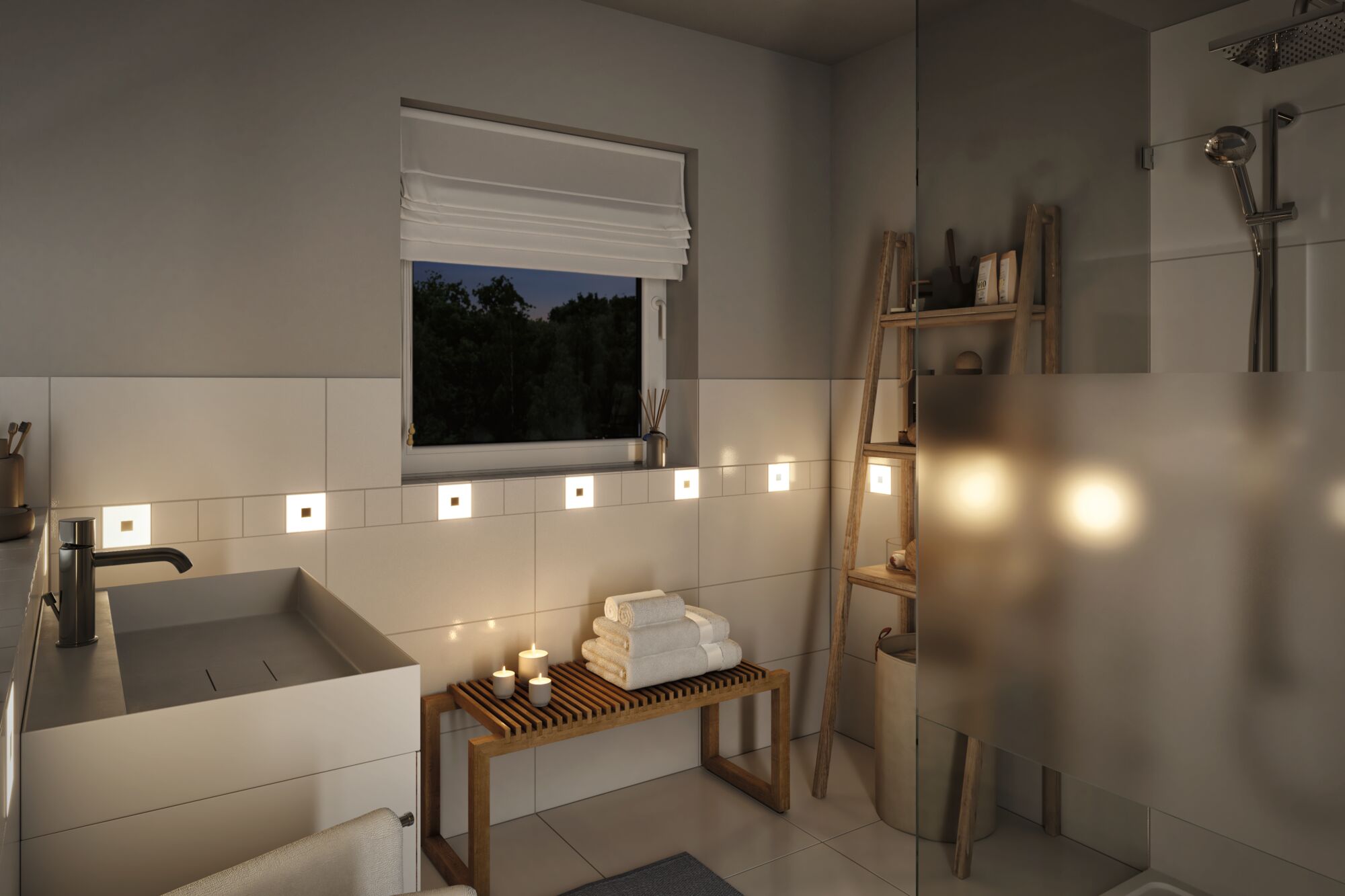

The efficient 100x10mm LumiTiles LED Square tile, with an output of 0,8W, is suitable as an addition to the basic set. The light module can be freely arranged within the tile pattern and enables simple extension of the set via the Plug & Play connector system. It can be connected by cable with 65, 105 or 205Â cm spacing. The warm white LED tile has a minimal installation depth of only 10 mm. This means it fits between standard wall tiles and can be easily controlled via the connection to the light switch. Innovative luminous tiles turn your tiling project into a real highlight! The light modules generate decorative, diffuse accent lighting and are permanently integrated in the tile pattern of your bathroom or kitchen. Thanks to its outstanding flexibility, easy installation and extra-long service life, the Paulmann LumiTiles system is suitable for every project.
- LumiTiles LED tiles produce homogeneous light full of effects
- Area lighting
- Color temperatur: 2700K - Warm white
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 100 x B: 100 x T: 10 mm |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic, Aluminium |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Usable luminous flux | 20 lm |
| Luminous flux LED module | 70 lm |
| color temp | 2700 K |
| Lamp Features | |
|---|---|
| Component parts | 0,8 W |
| Technique | LED |
| IP protection | IP44 |
| Dimmable | No |
| Inclusive lamp | yes |
| Total Width | 100 mm |
| Number of component parts | 1x |
| protection class | protection class III |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 0,8 W |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
