Article-No.: 78414

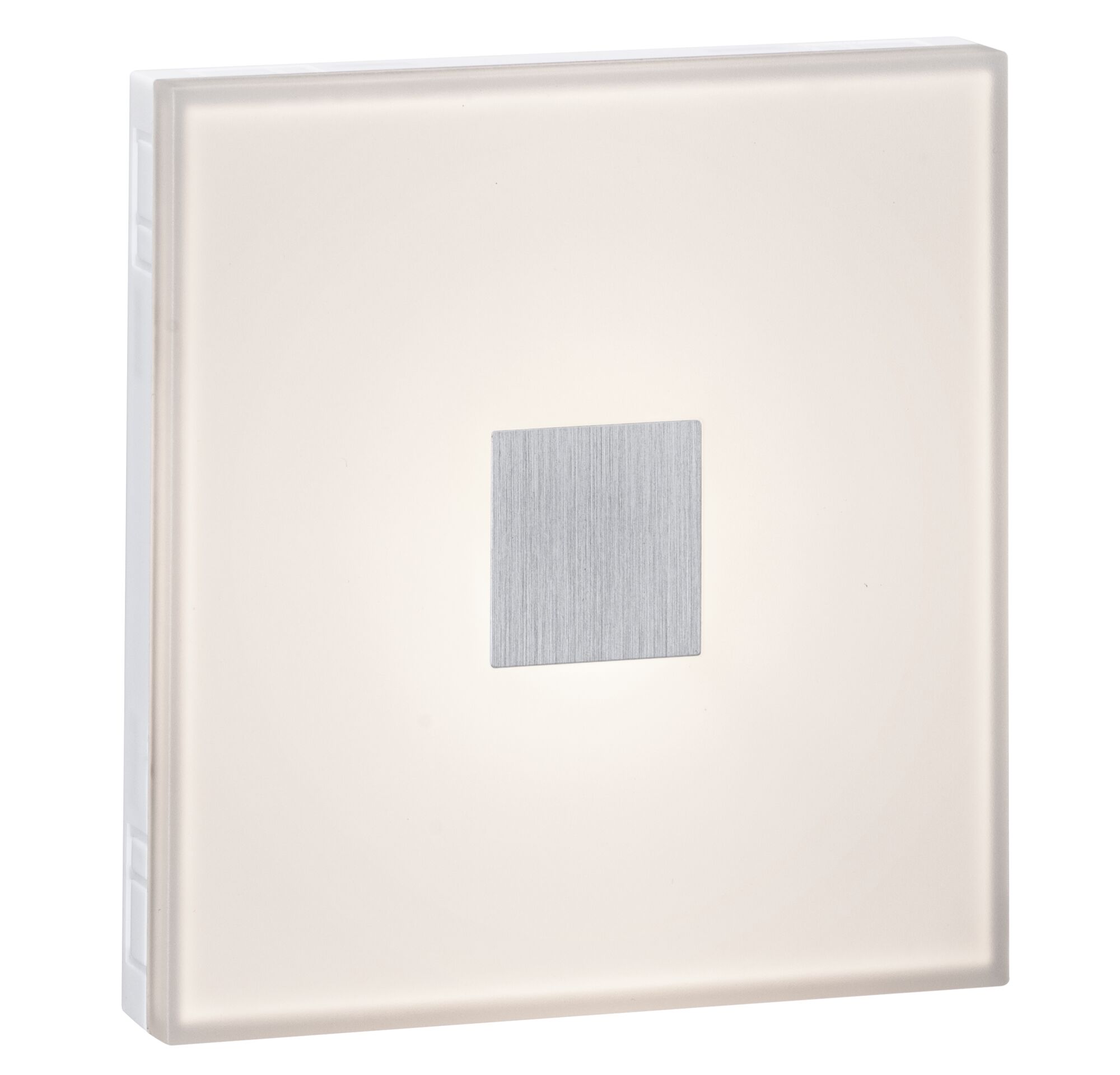

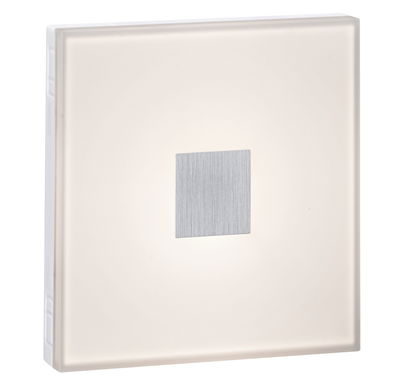

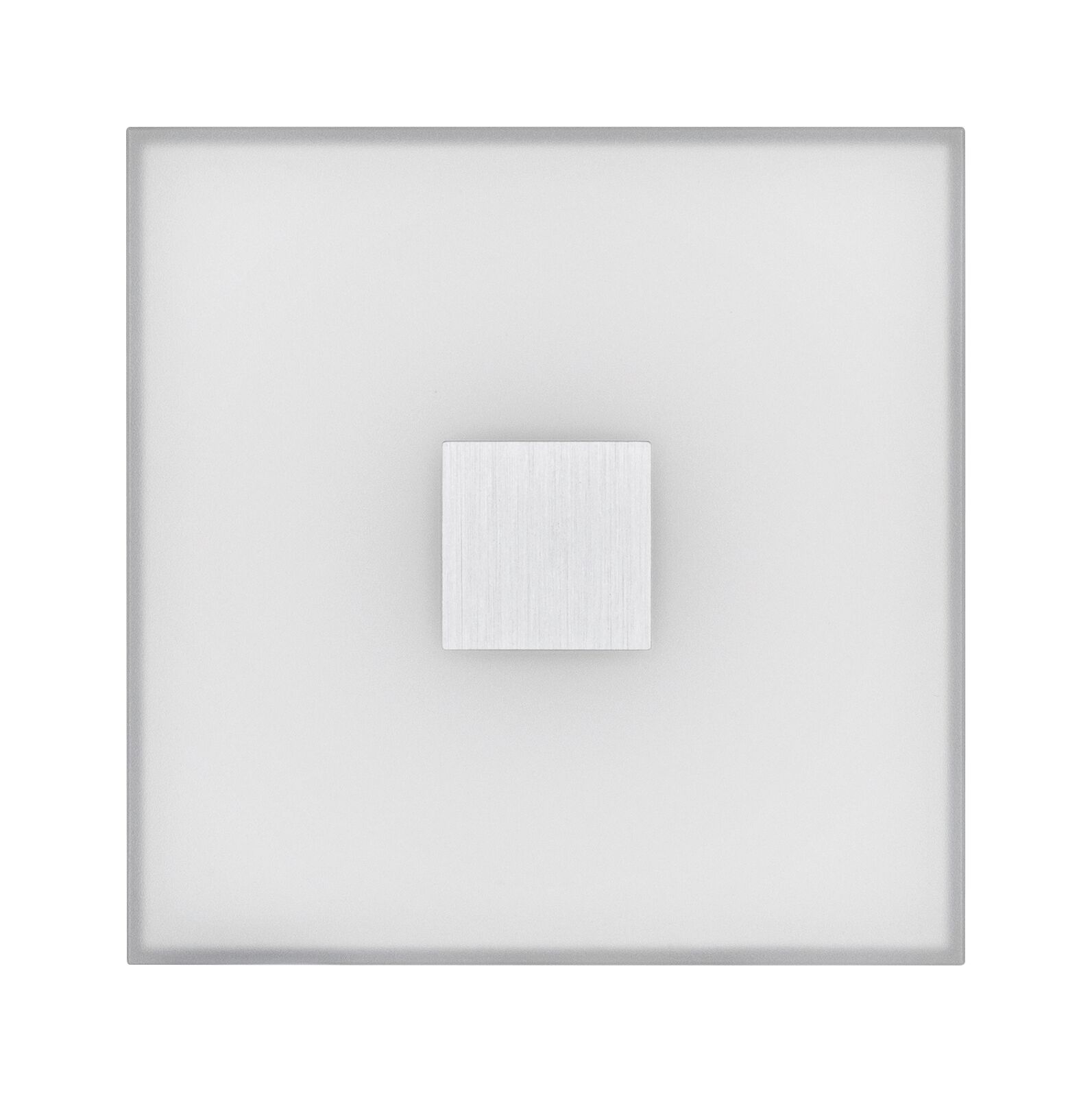

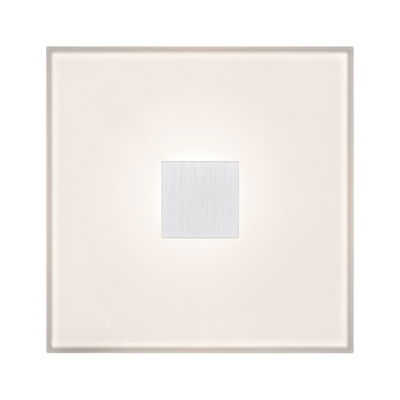

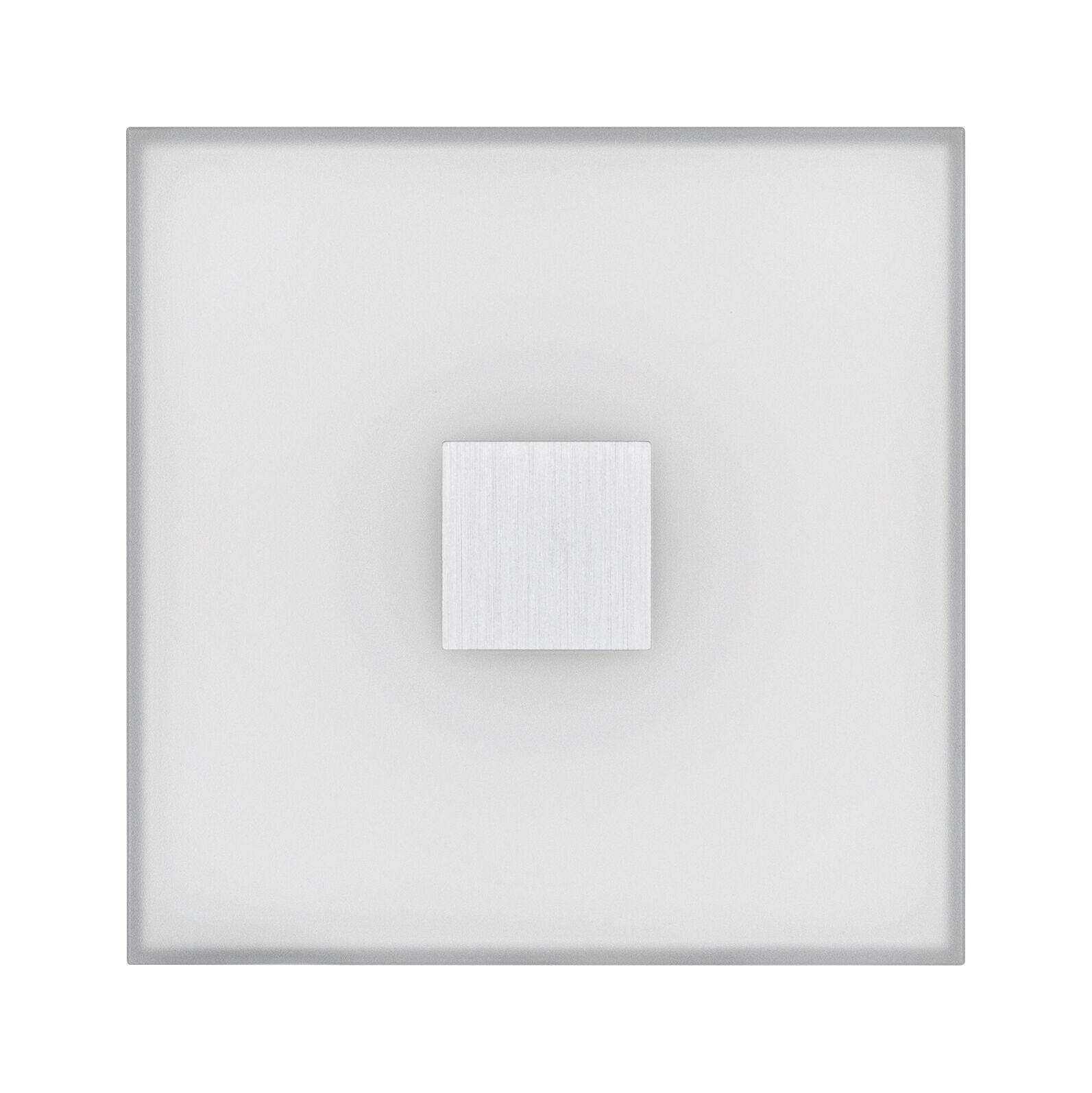

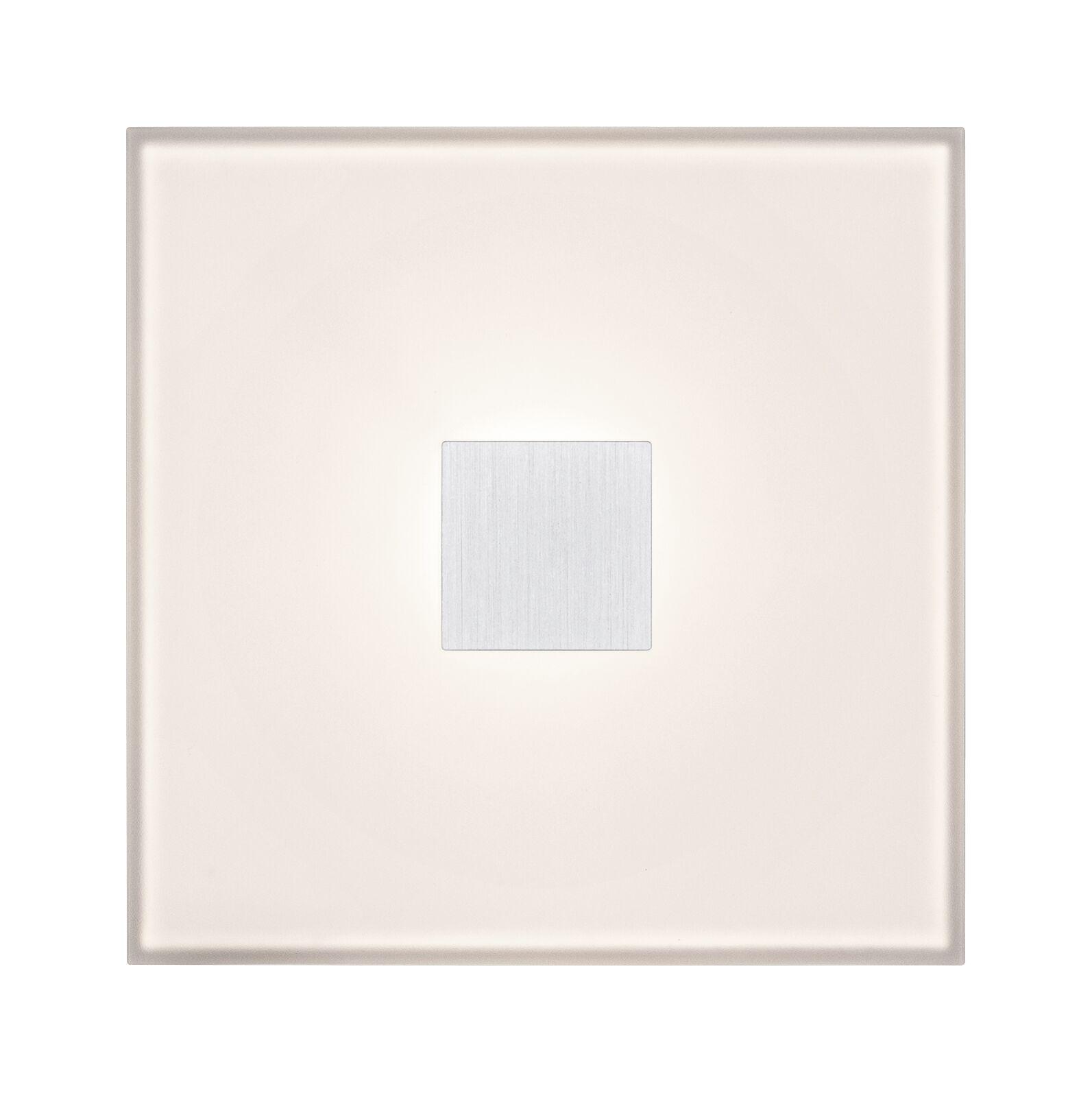

LumiTiles LED Tiles Square Single tile

IP44 100x10mm 12lm 12V 0,75W dimmable RGBW+ White Plastic/Aluminium

Version: Single tile
Light colour: RGBW+

  • LumiTiles LED tiles produce homogeneous light full of effects
  • Area lighting

LumiTiles LED Tiles Square Single tile IP44 100x10mm 12lm 12V 0,75W dimmable RGBW+ White Plastic/Aluminium

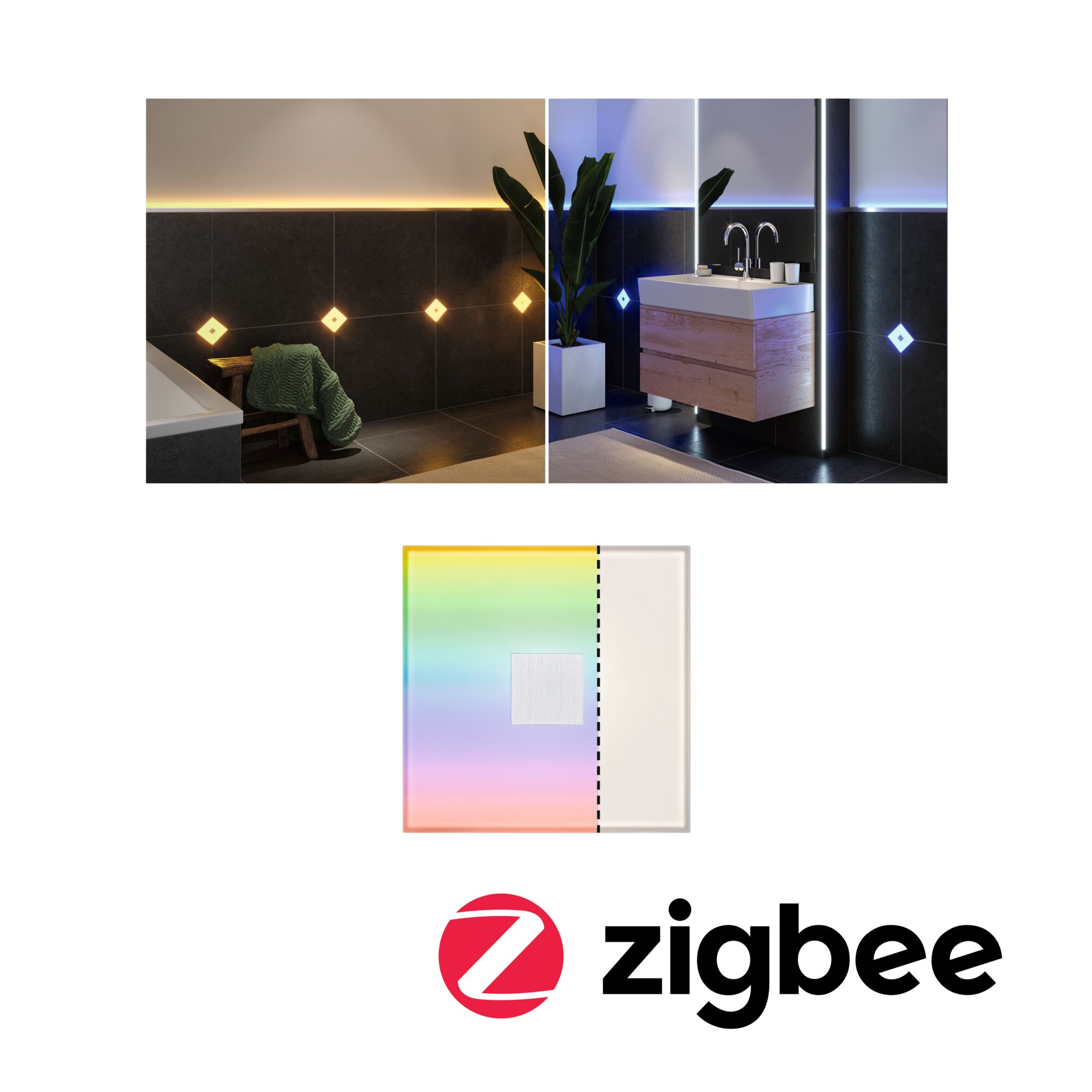

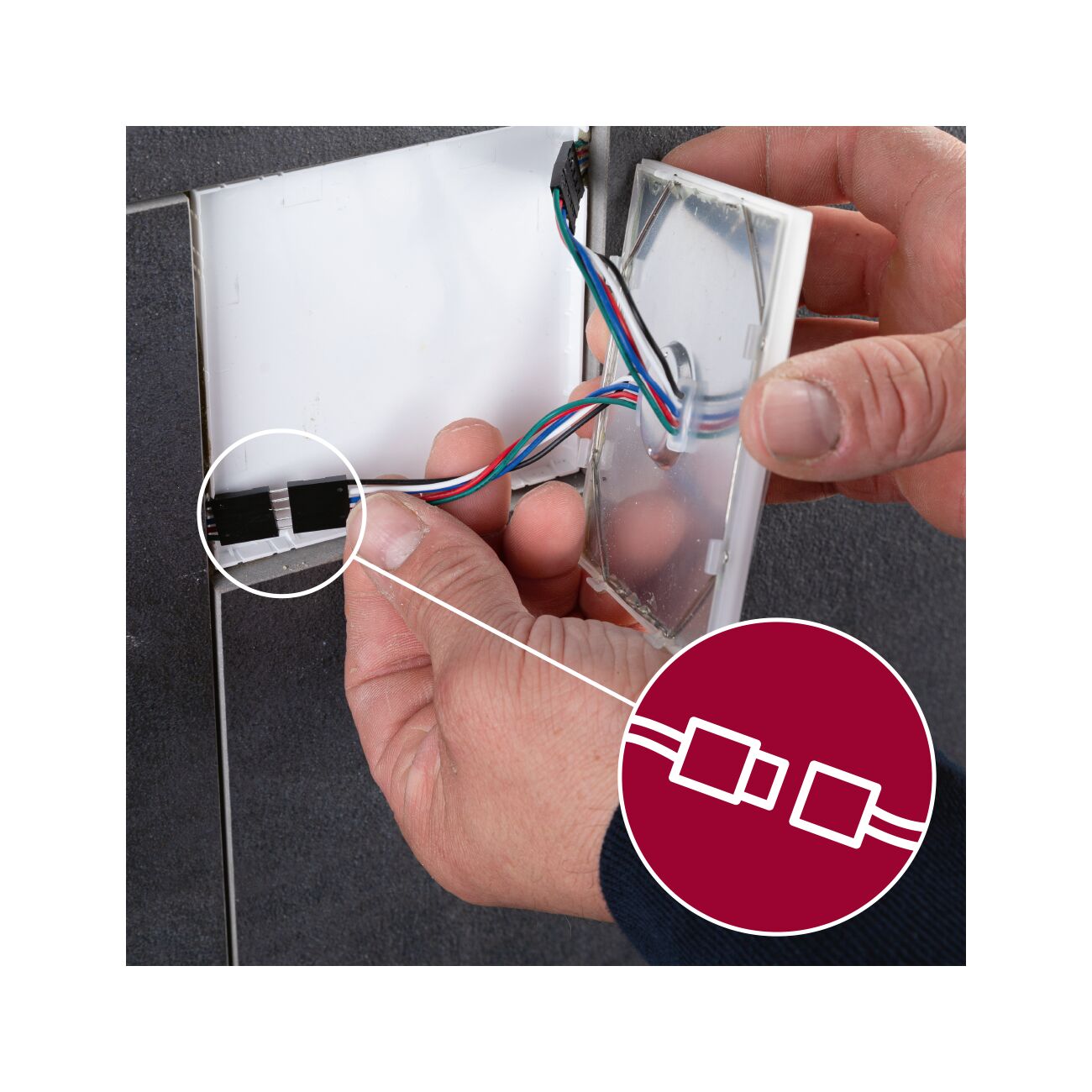

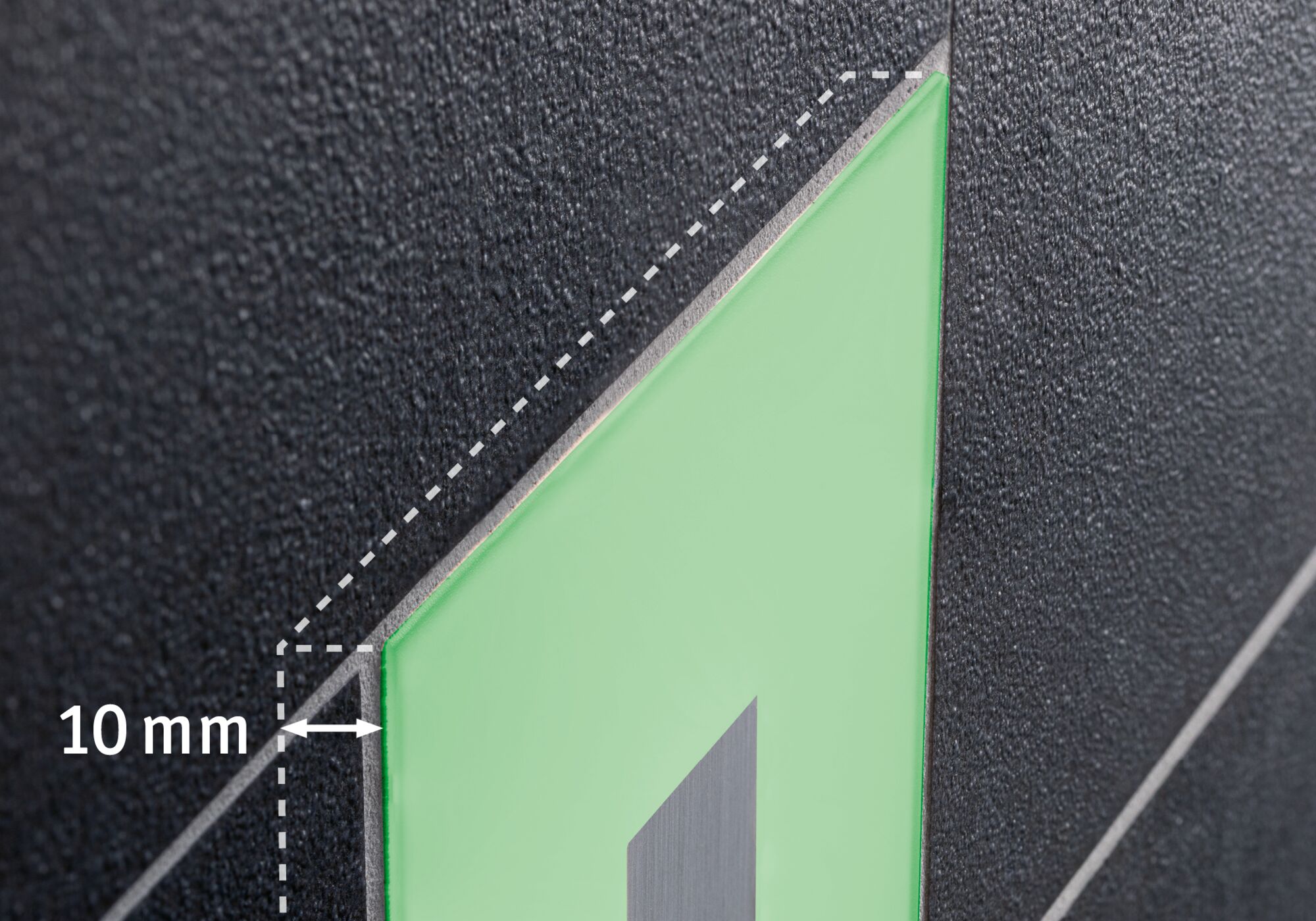

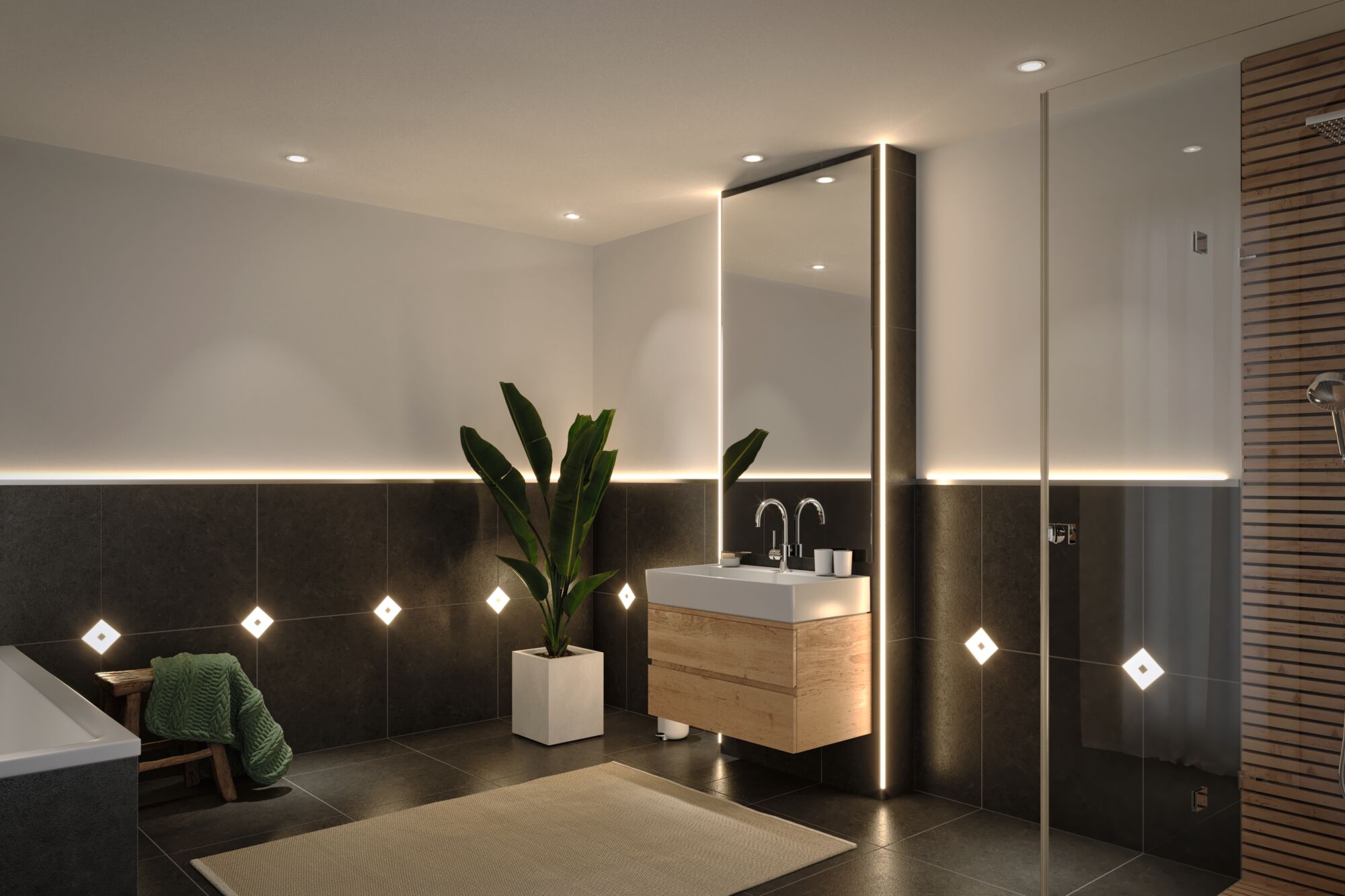

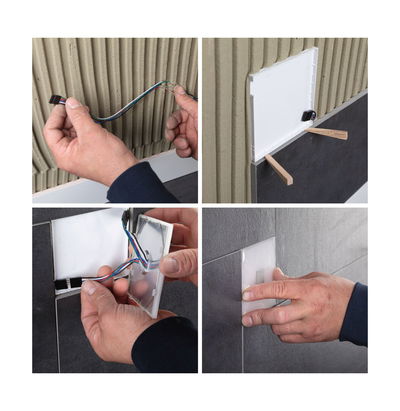

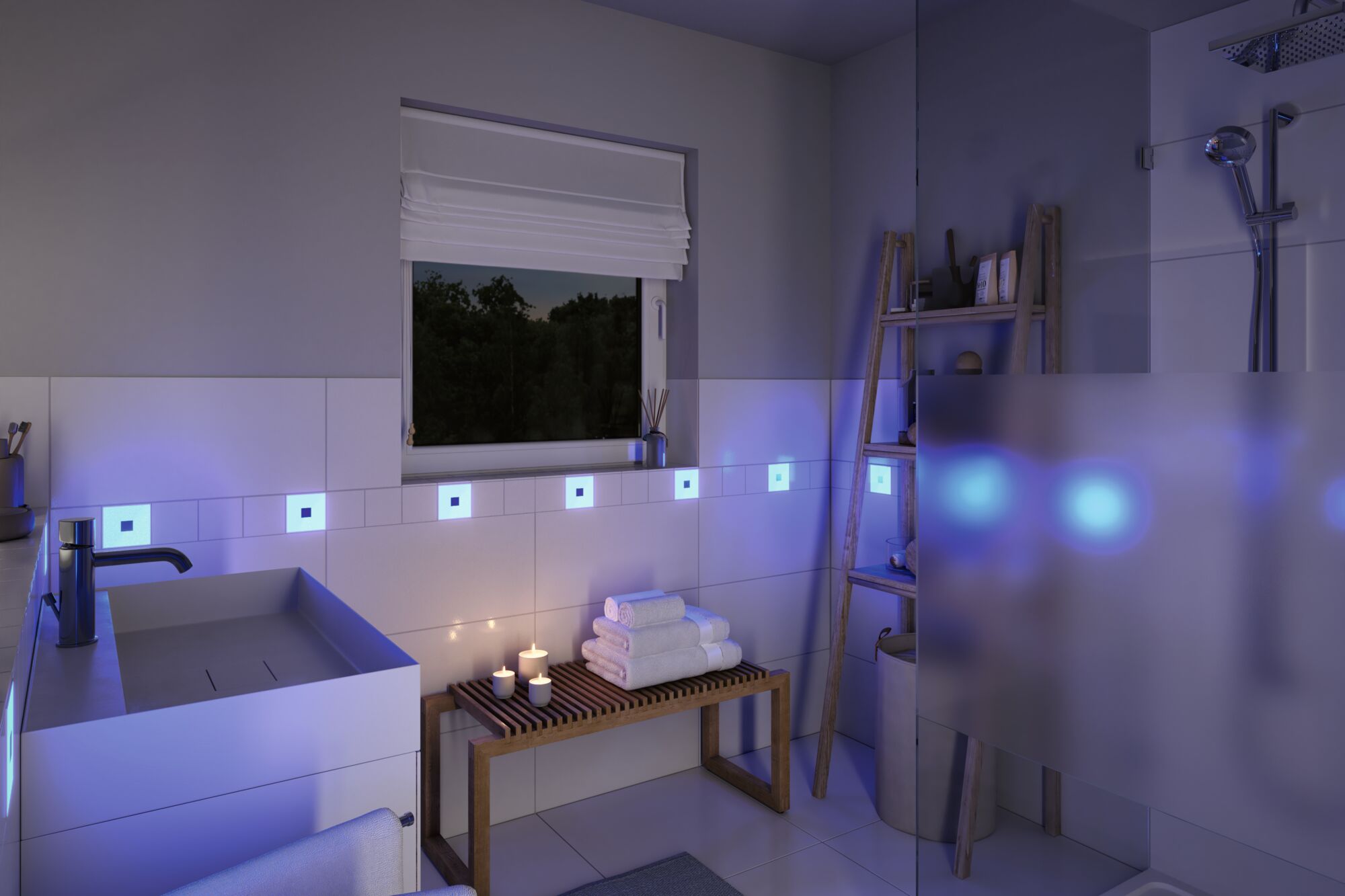

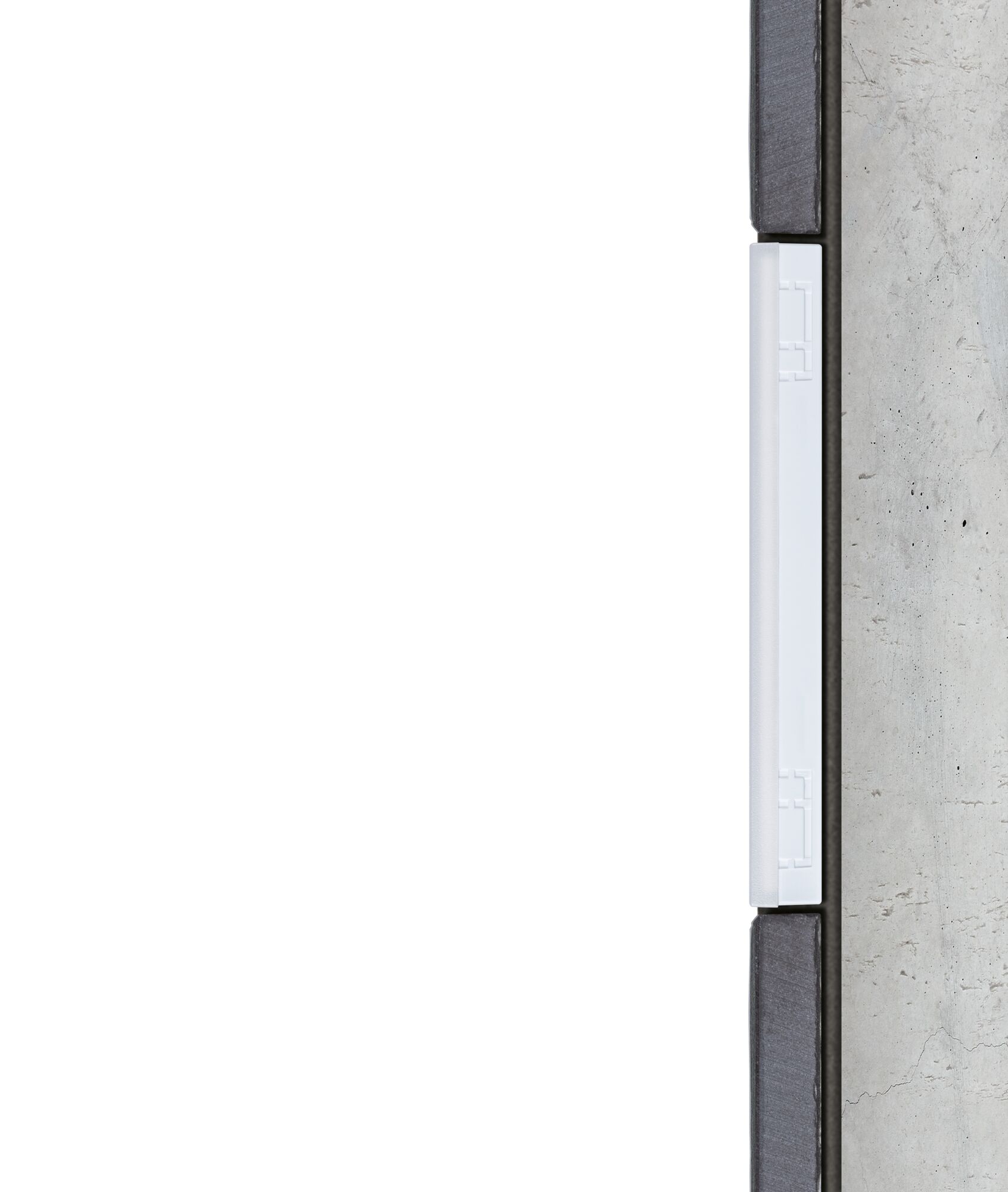

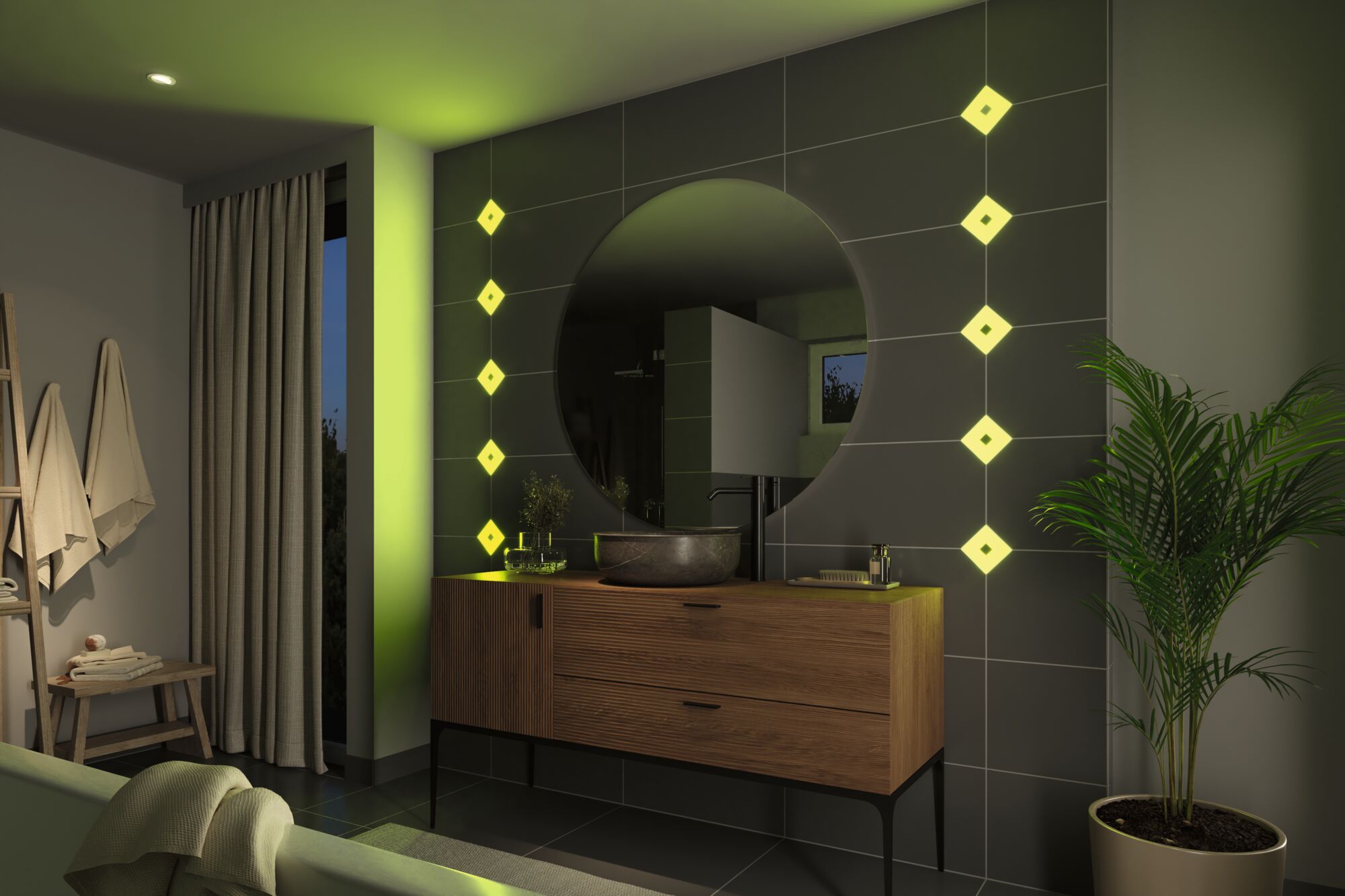

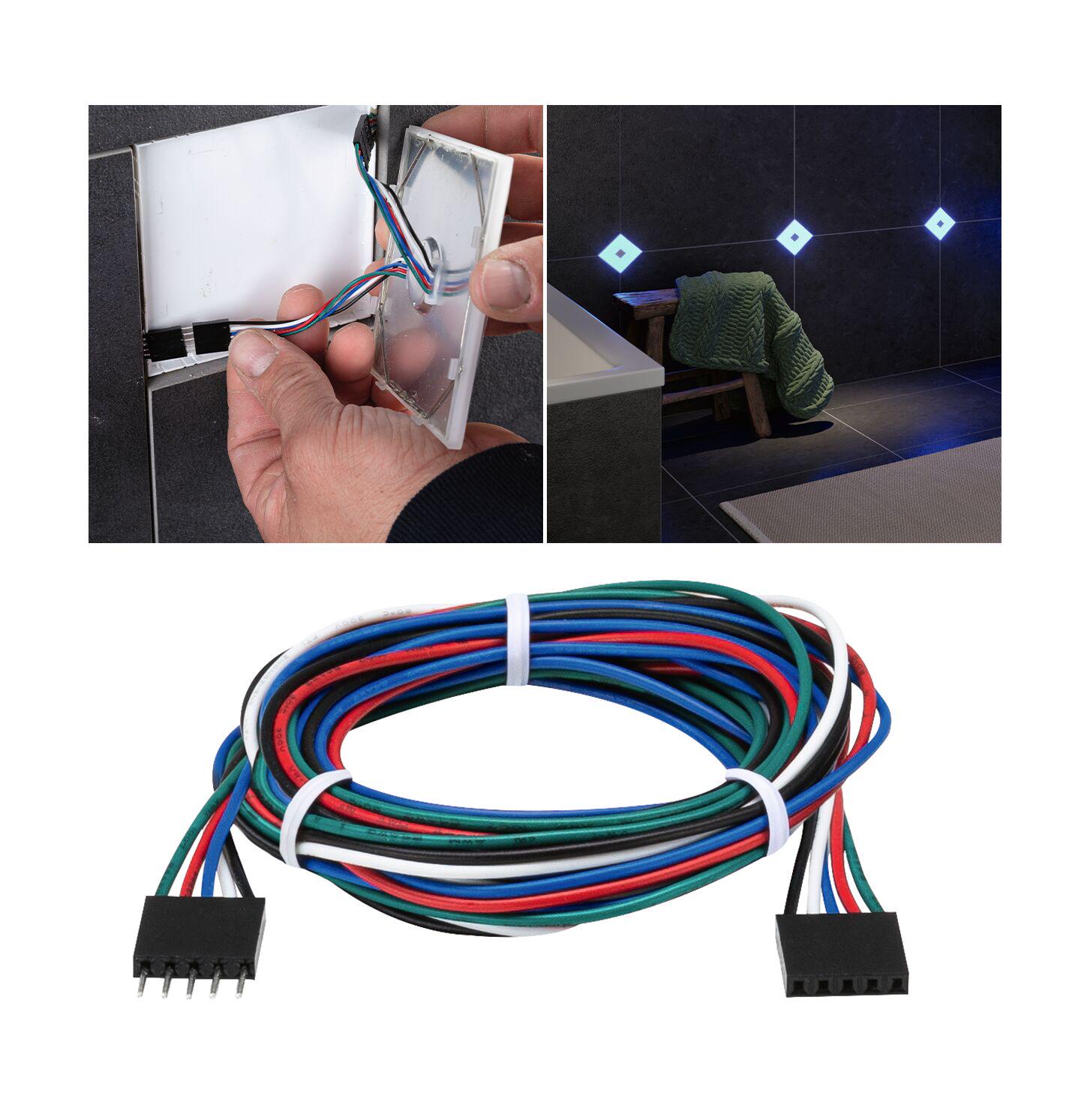

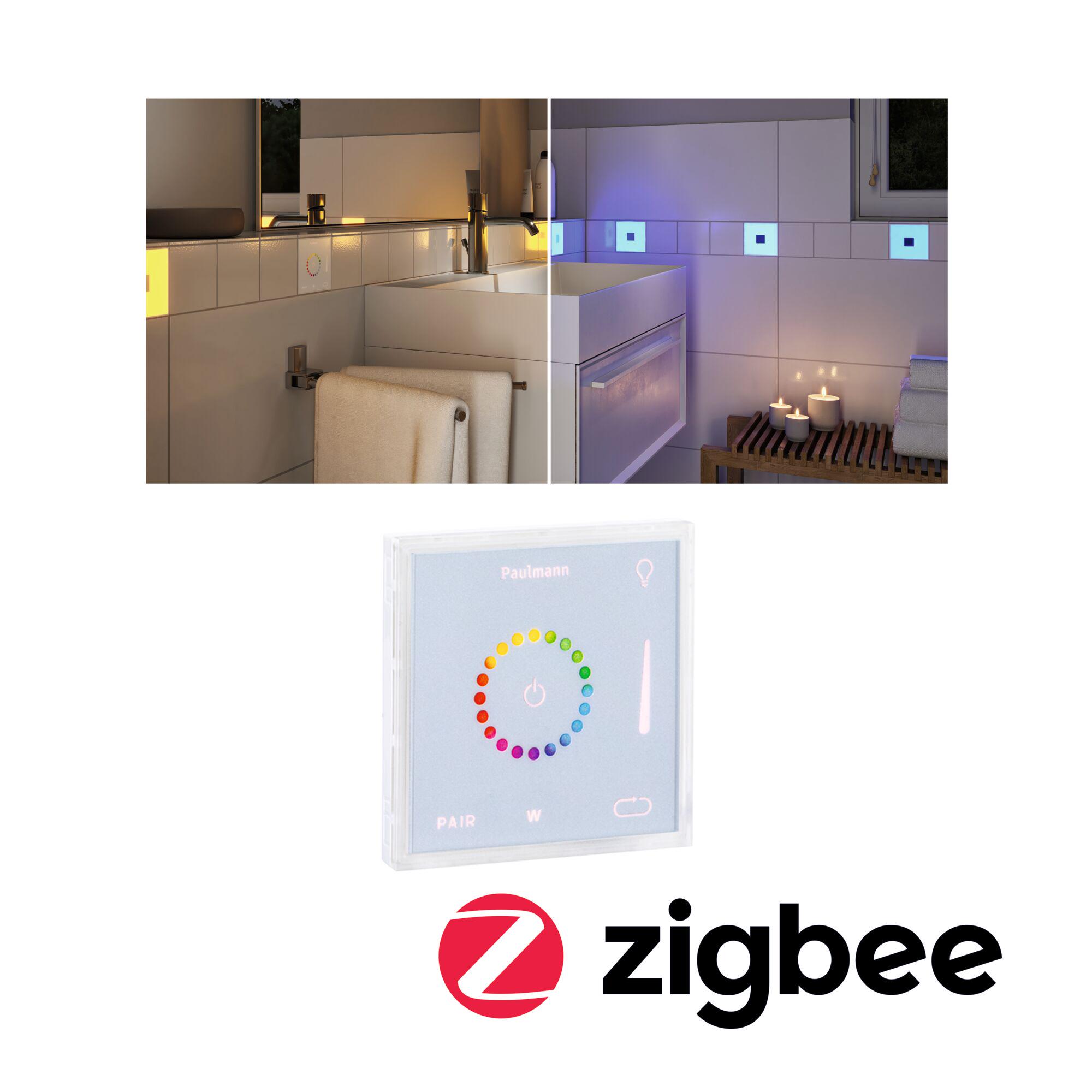

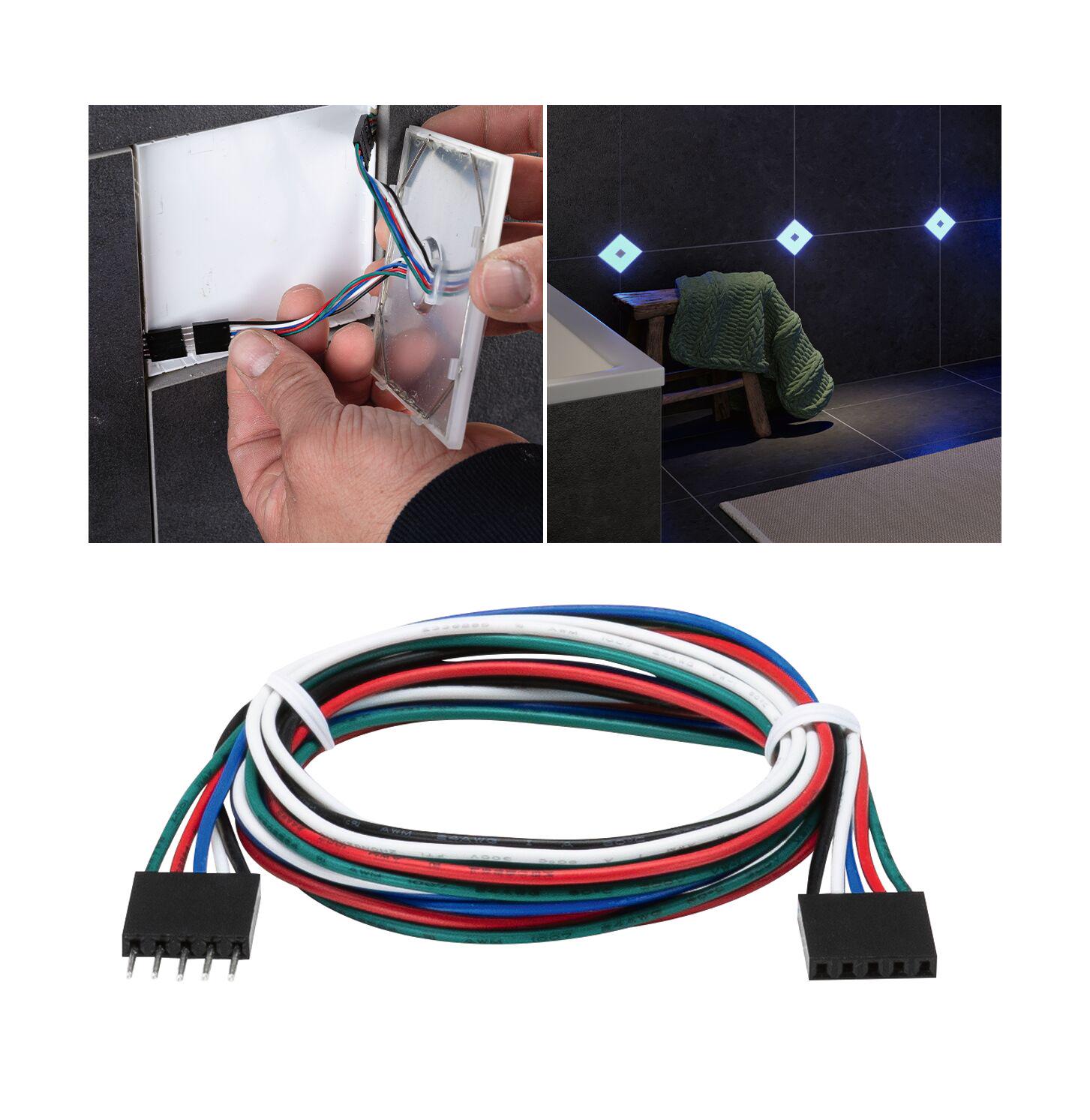

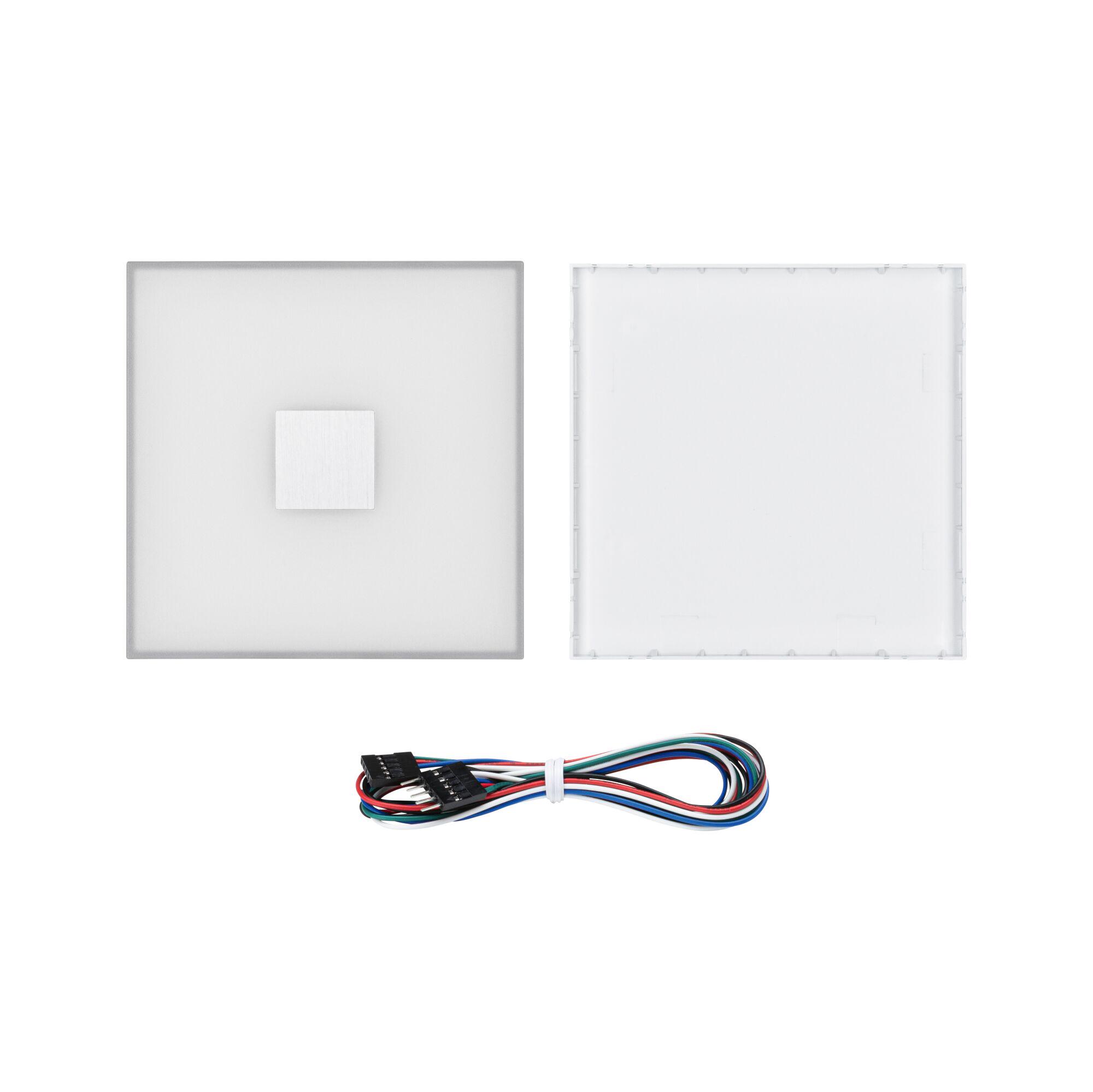

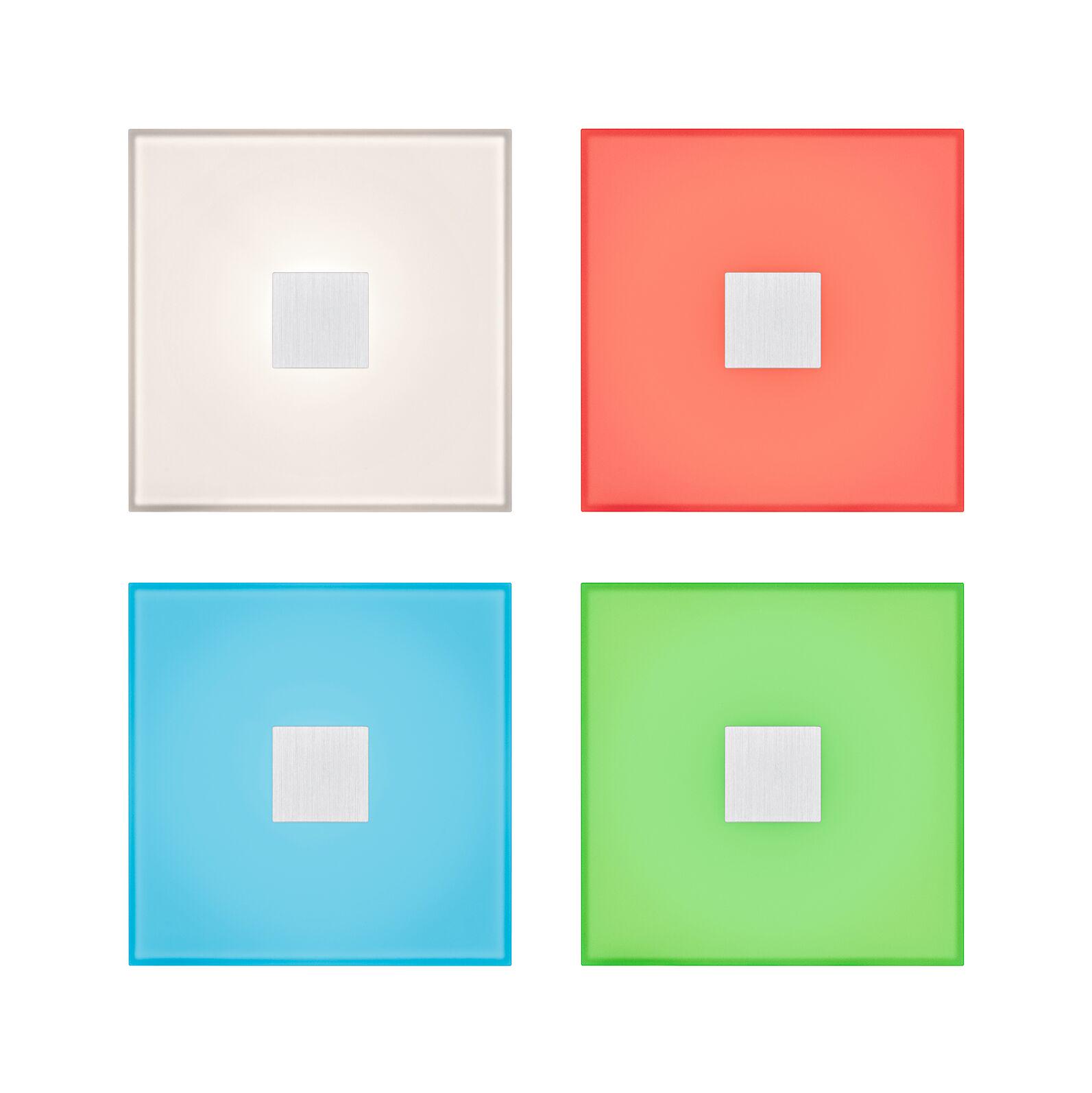

The efficient 100x10mm RGBW LumiTiles LED Square tile, with an output of 0,75W, is suitable as an addition to the basic set. The light module can be freely arranged within the tile pattern and enables simple extension of the set via the Plug & Play connector system. It can be connected by cable with 65, 105 or 205 cm spacing. The LED tile with RGBW multicolour colour-change function has a minimal installation depth of only 10 mm. This means it fits between standard wall tiles and can be easily controlled via the connection to the light switch. Innovative luminous tiles turn your tiling project into a real highlight! The light modules generate decorative, diffuse accent lighting and are permanently integrated in the tile pattern of your bathroom or kitchen. Thanks to its outstanding flexibility, easy installation and extra-long service life, the Paulmann LumiTiles system is suitable for every project.
  • LumiTiles LED tiles produce homogeneous light full of effects
  • Area lighting
Dimension
Dimensions (Height x Width x Depth) H: 100 x B: 100 x T: 10 mm
Design and Material
Colour White
Material Plastic, Aluminium
Energy consumption
energy efficiency (A to G) G
Service life
lifetime 30.000 h
Light Characteristics
Color temp. 2700 K

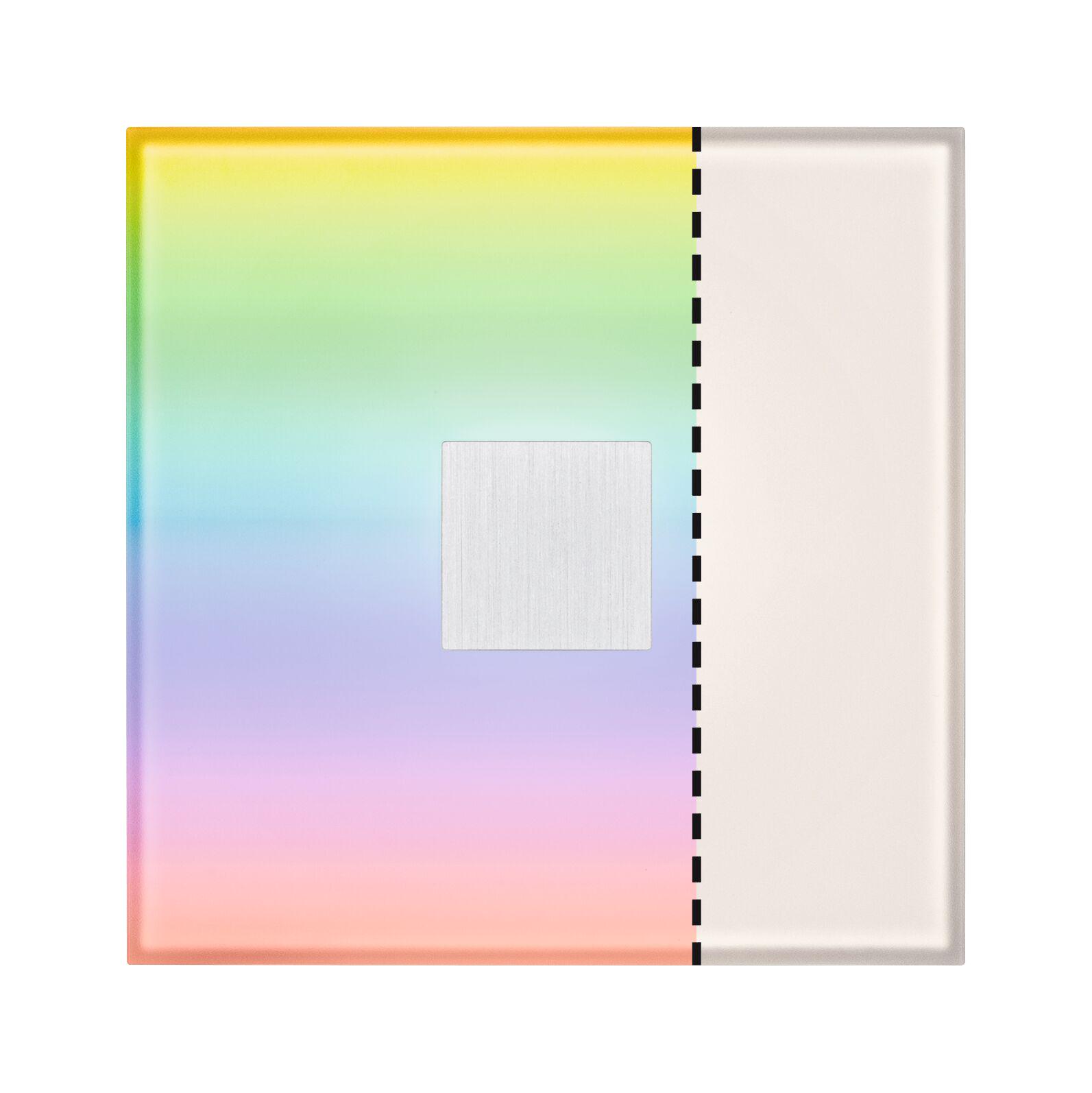

Color change Color change RGBW, Tunable White
Useful luminous flux 12 lm
Luminous flux LED module 65 lm
color temp 2.700 K
Color rendering index > 80 Ra
Lamp Features
Component parts 0,75 W
Dimmable Yes
Technique LED
IP protection IP44
Number of component parts 1x
protection class protection class III
Replacable 1 Lightsource is replaceable without damage the lighting fixture by enduser.
Power consumption 0,72 W
