Article-No.: 78402

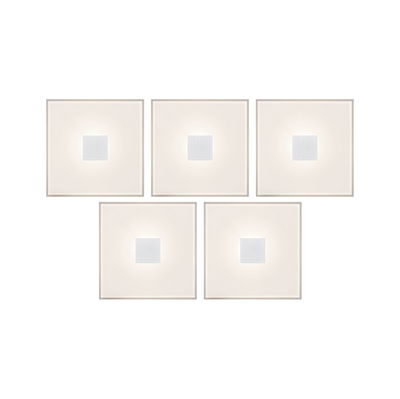

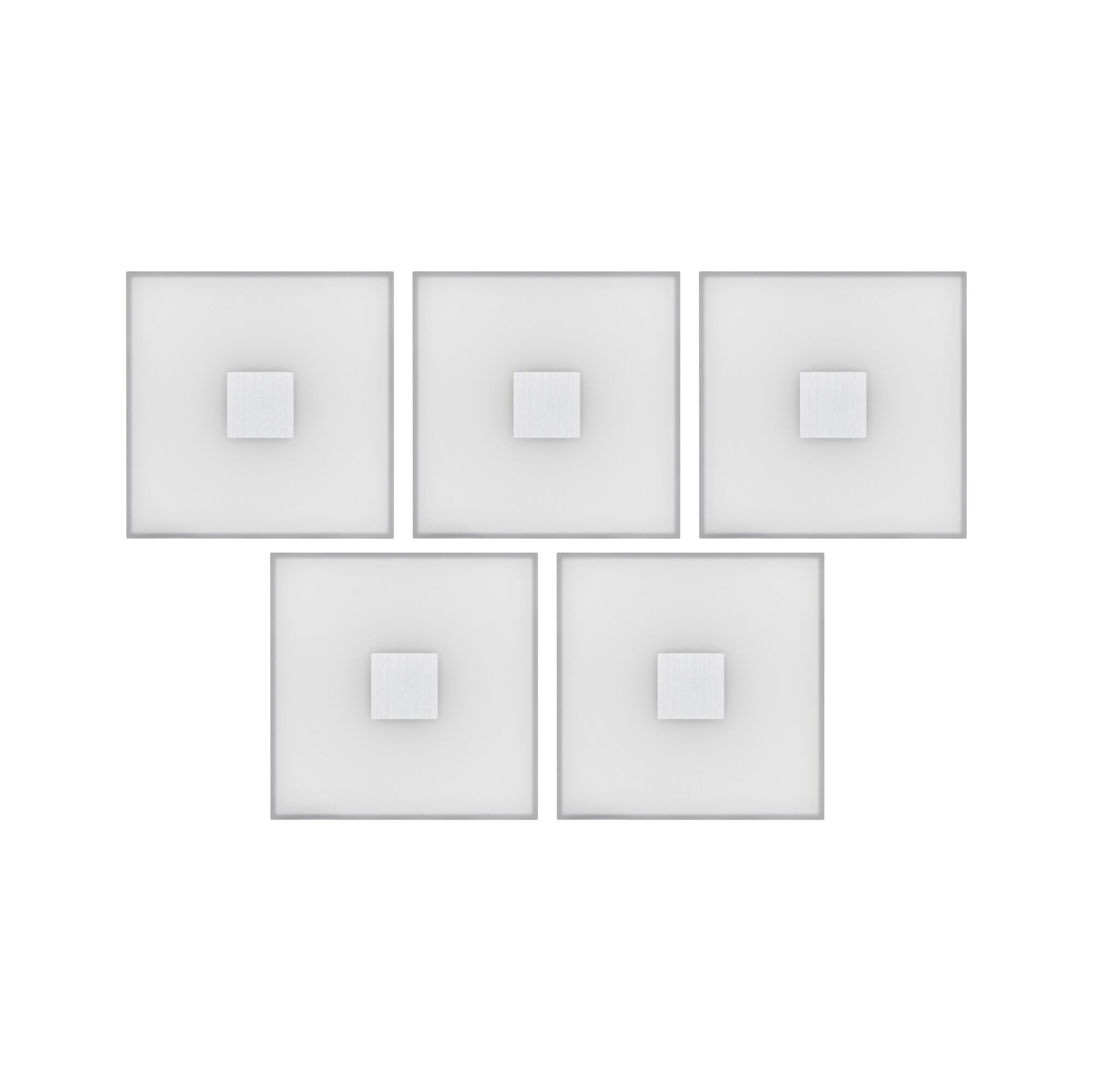

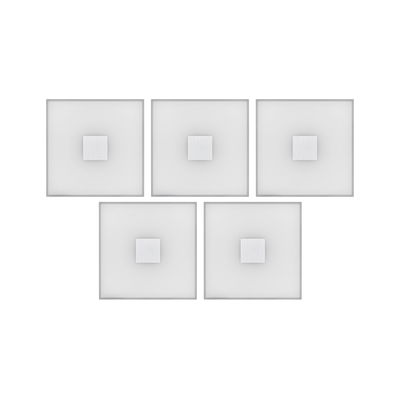

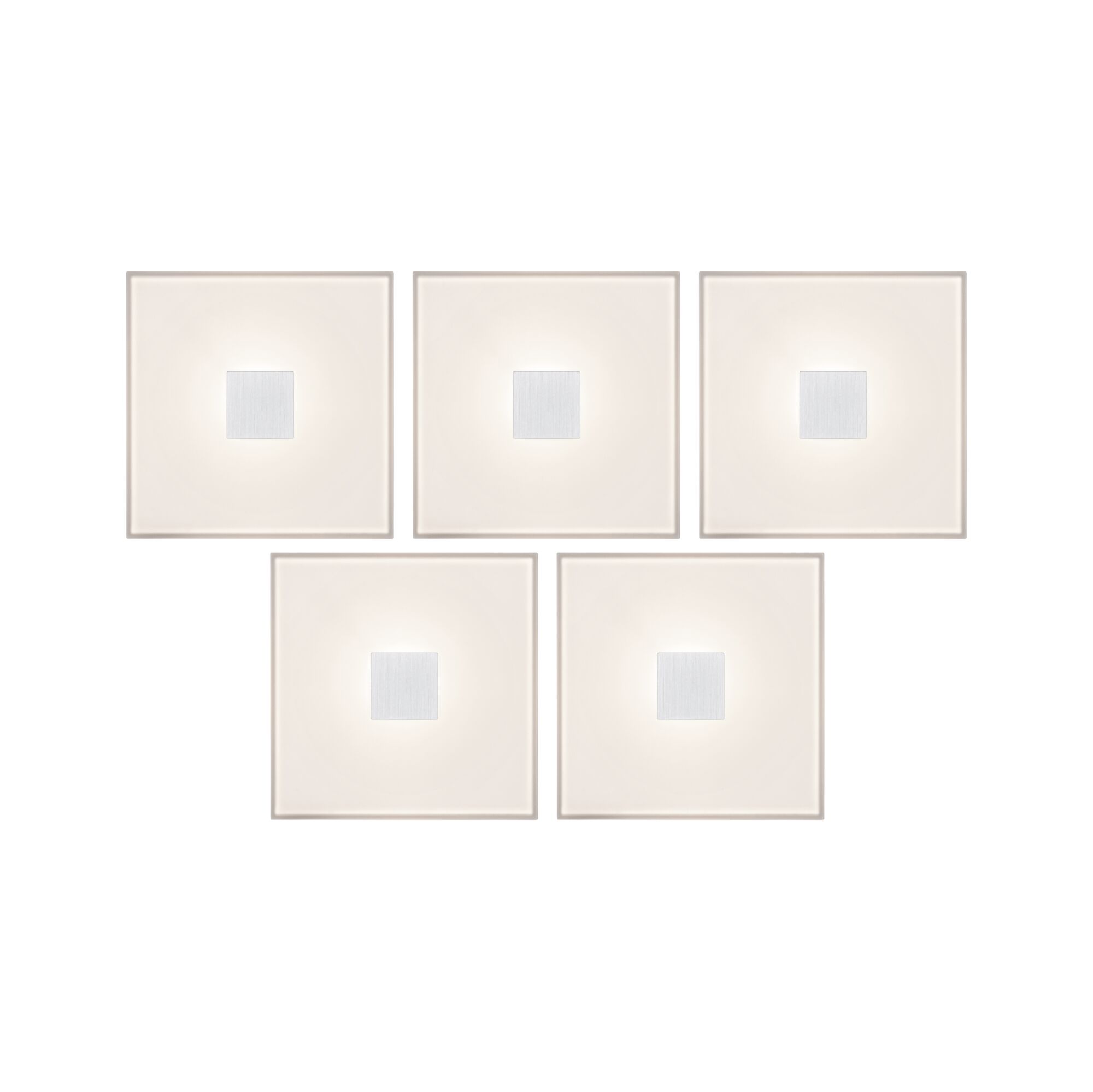

LumiTiles LED Tiles Square 5-piece set

IP44 100x10mm 5x20lm 230/12V 5x0,8W 2700K White Plastic/Aluminium

Version: 5-piece set
Light colour: 2700K

  • LumiTiles LED tiles produce homogeneous light full of effects
  • Area lighting
  • Color temperatur: 2700K - Warm white

LumiTiles LED Tiles Square 5-piece set IP44 100x10mm 5x20lm 230/12V 5x0,8W 2700K White Plastic/Aluminium

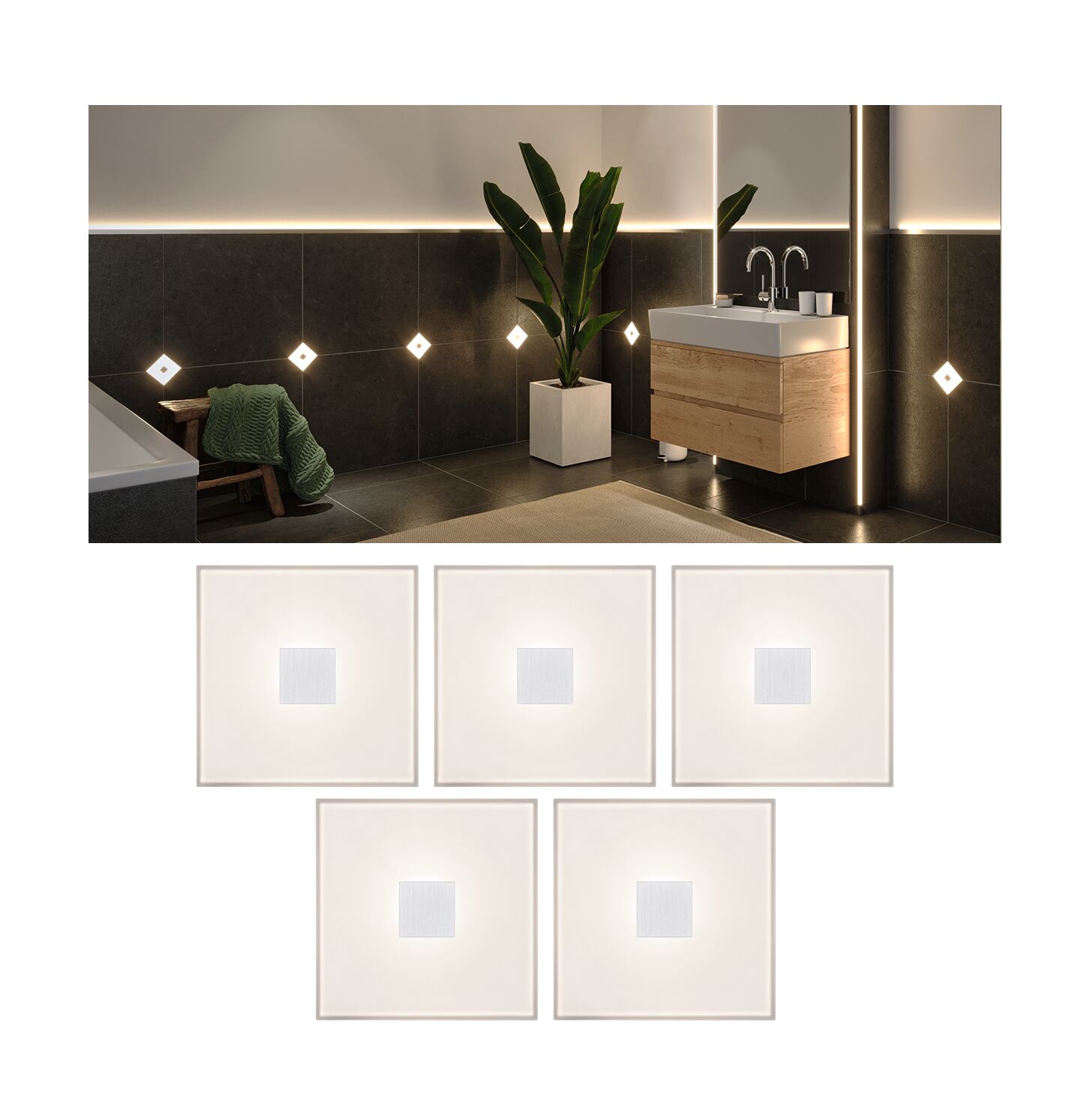

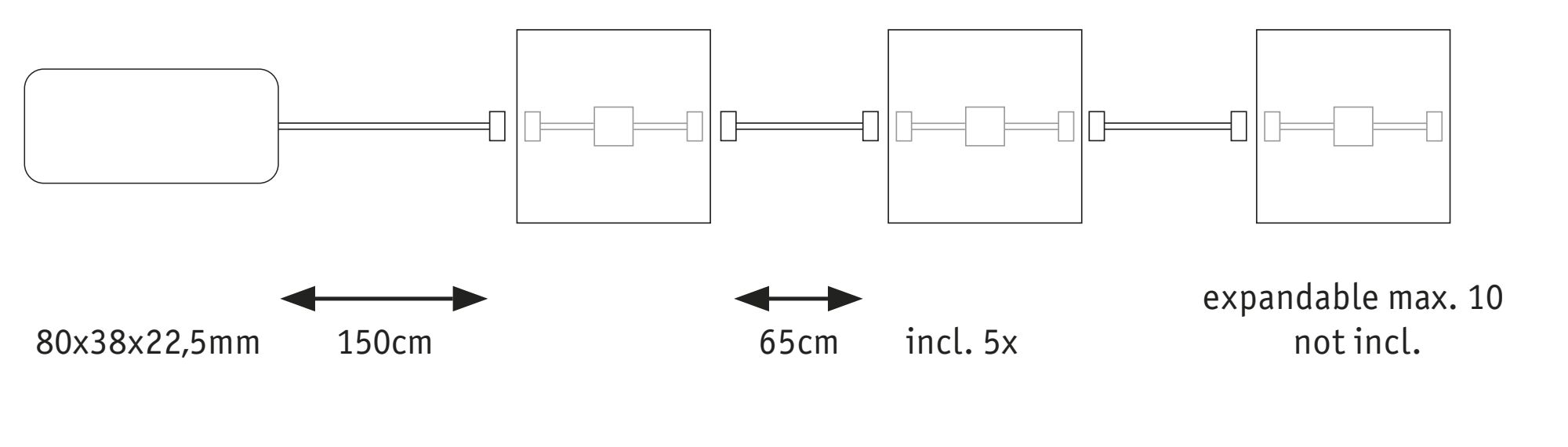

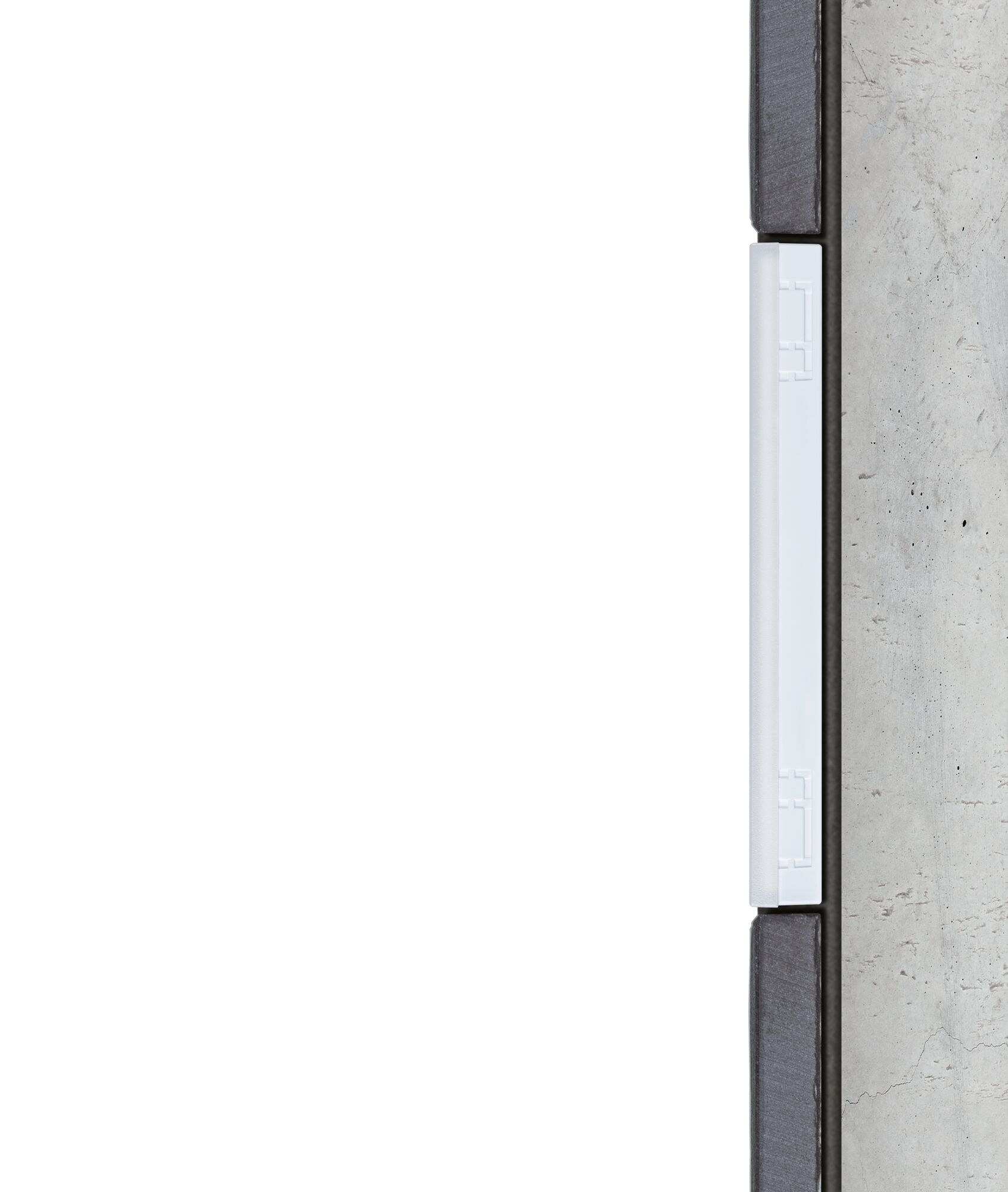

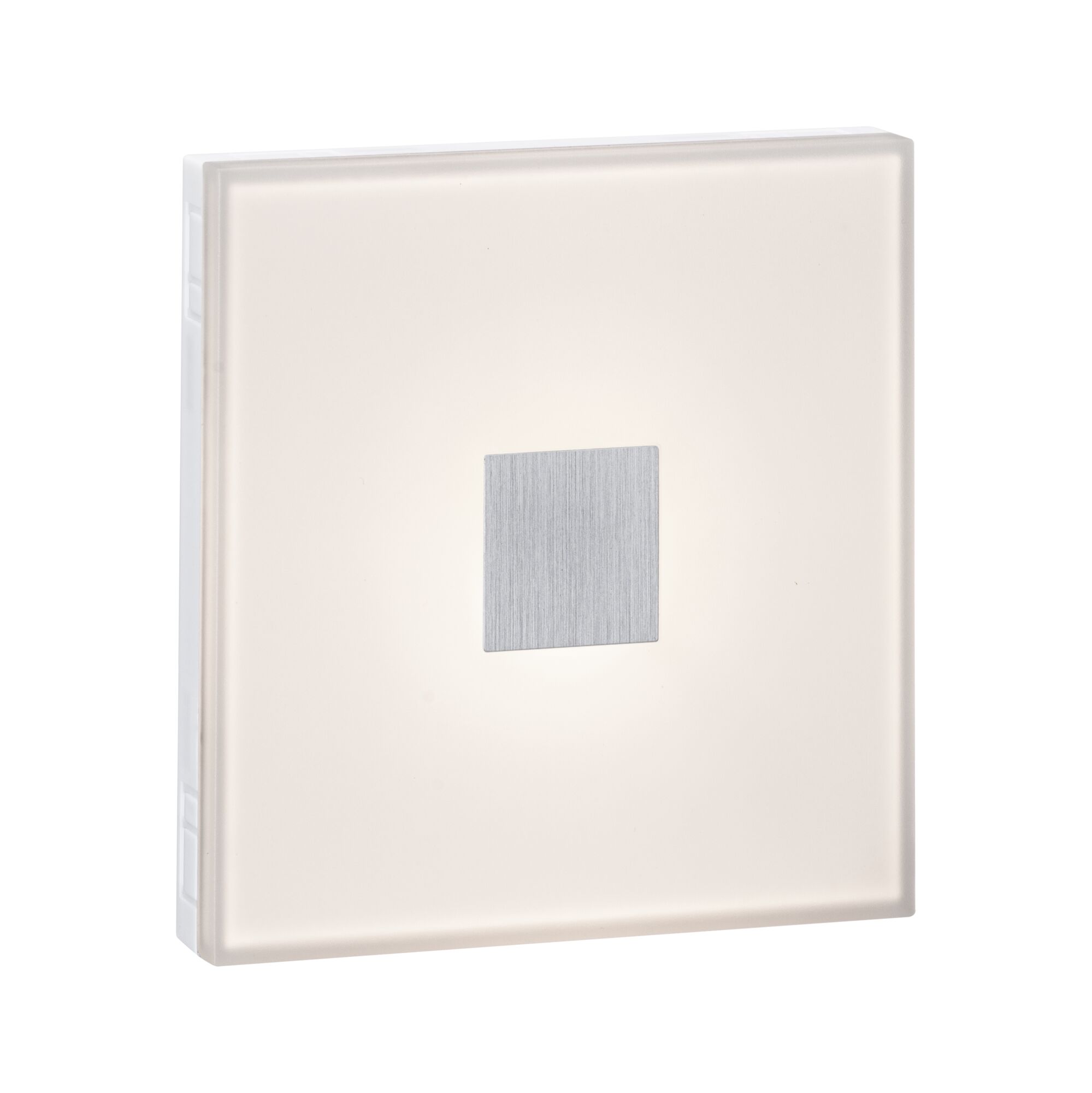

The efficient 100x10mm LumiTiles LED Square tile basic set, with an output of 5x0,8W, consists of five tiles, four connecting cables (length: 60 cm) and a transformer incl. connection. The warm white LED tiles have a minimal installation depth of only 10 mm. This means they fit between standard wall tiles and can be easily controlled via the connection to the light switch. The five light modules can be freely arranged within the tile pattern and connected very simply using the Plug & Play connector system. The modules can be connected by cables with 65, 105 or 205 cm spacing. Innovative luminous tiles turn your tiling project into a real highlight! The light modules generate decorative, diffuse accent lighting and are permanently integrated in the tile pattern of your bathroom or kitchen. Thanks to its outstanding flexibility, easy installation and extra-long service life, the Paulmann LumiTiles system is suitable for every project.
  • LumiTiles LED tiles produce homogeneous light full of effects
  • Area lighting
  • Color temperatur: 2700K - Warm white
Dimension

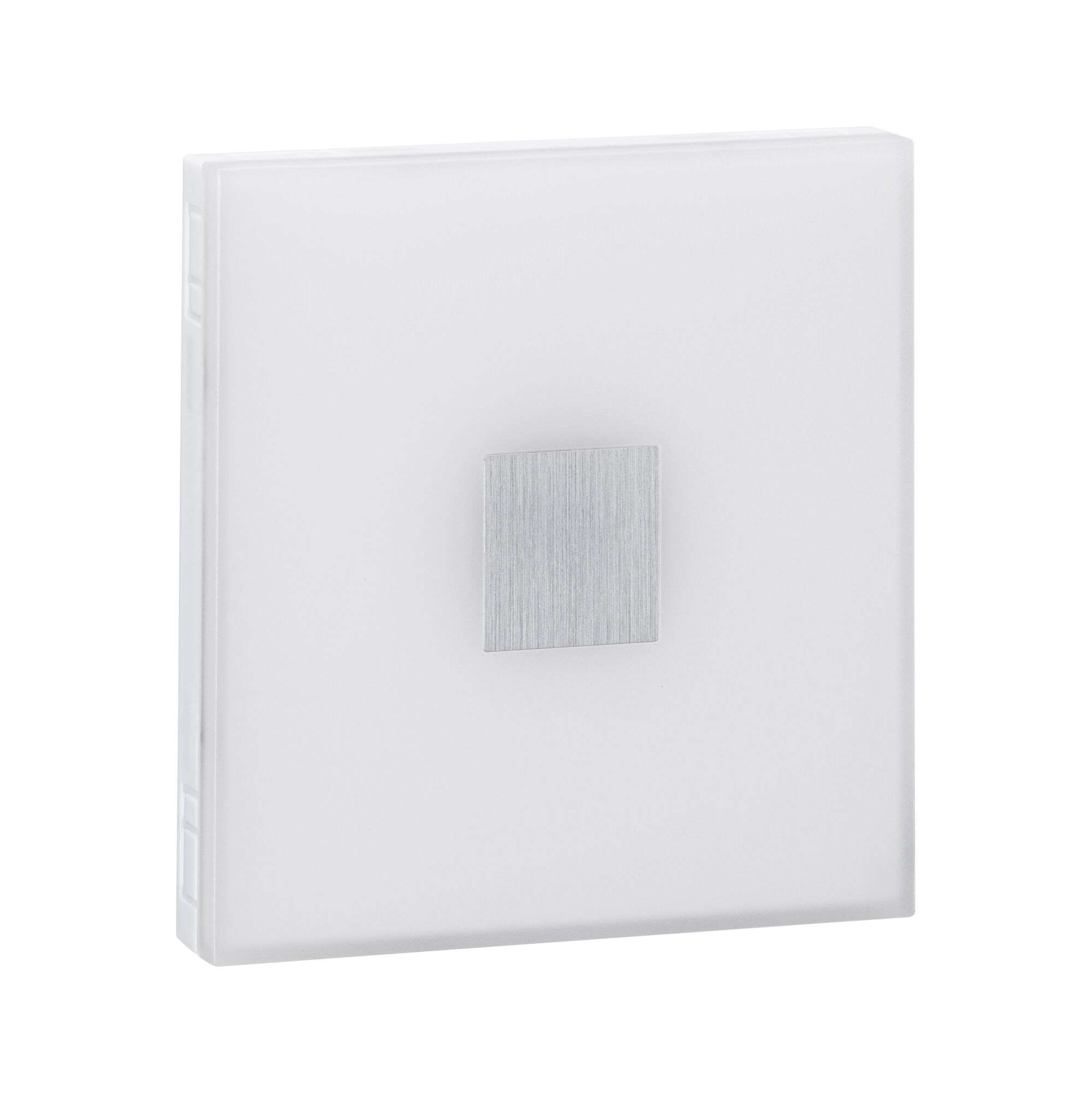

Dimensions (Height x Width x Depth) H: 100 x B: 100 x T: 10 mm
Design and Material
Colour White
Material Plastic, Aluminium
Energy consumption
energy efficiency (A to G) G
Service life
lifetime 30.000 h
Light Characteristics
Color temp. 2700 K
Useful luminous flux 20 lm
Luminous flux LED module 70 lm
color temp 2.700 K
Lamp Features
Component parts 0,8 W
Technique LED
IP protection IP44
Inclusive lamp
Number of component parts 5x
protection class protection class II
Replacable 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician.
Power consumption 4,8 W
Transformer
Transformer power 12 VA
apparent power 10.5 VA
Transformer height 23 mm
Transformer width 38 mm
Transformer depth 80 mm
Labelling
WEEE-Reg.-No DE 39236390
