Article-No.:
78413

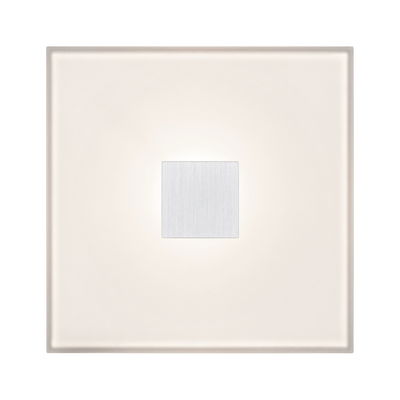

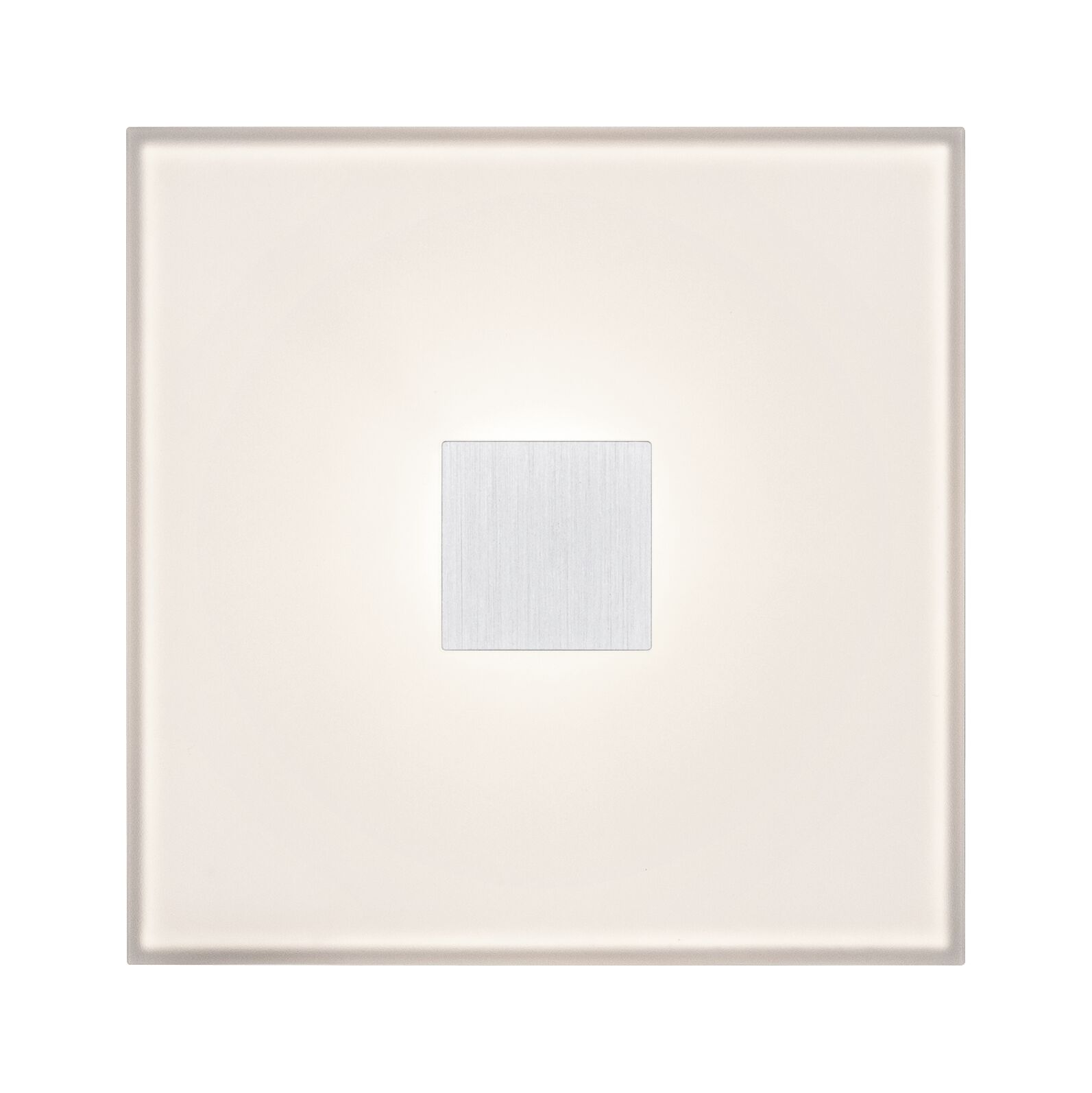

LumiTiles
LED Tiles
Square 5-piece set
IP44 100x10mm 5x12lm 230/12V 5x0,8W dimmable RGBW+ White Plastic/Aluminium
IP44 100x10mm 5x12lm 230/12V 5x0,8W dimmable RGBW+ White Plastic/Aluminium
- LumiTiles LED tiles produce homogeneous light full of effects
- Area lighting
LumiTiles LED Tiles Smart Home Zigbee Square 5-piece set IP44 100x10mm 5x12lm 230/12V 5x0,8W dimmable RGBW+ White Plastic/Aluminium

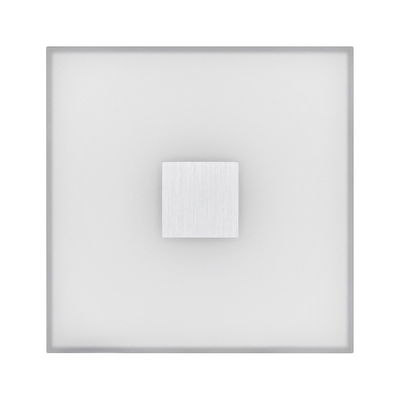

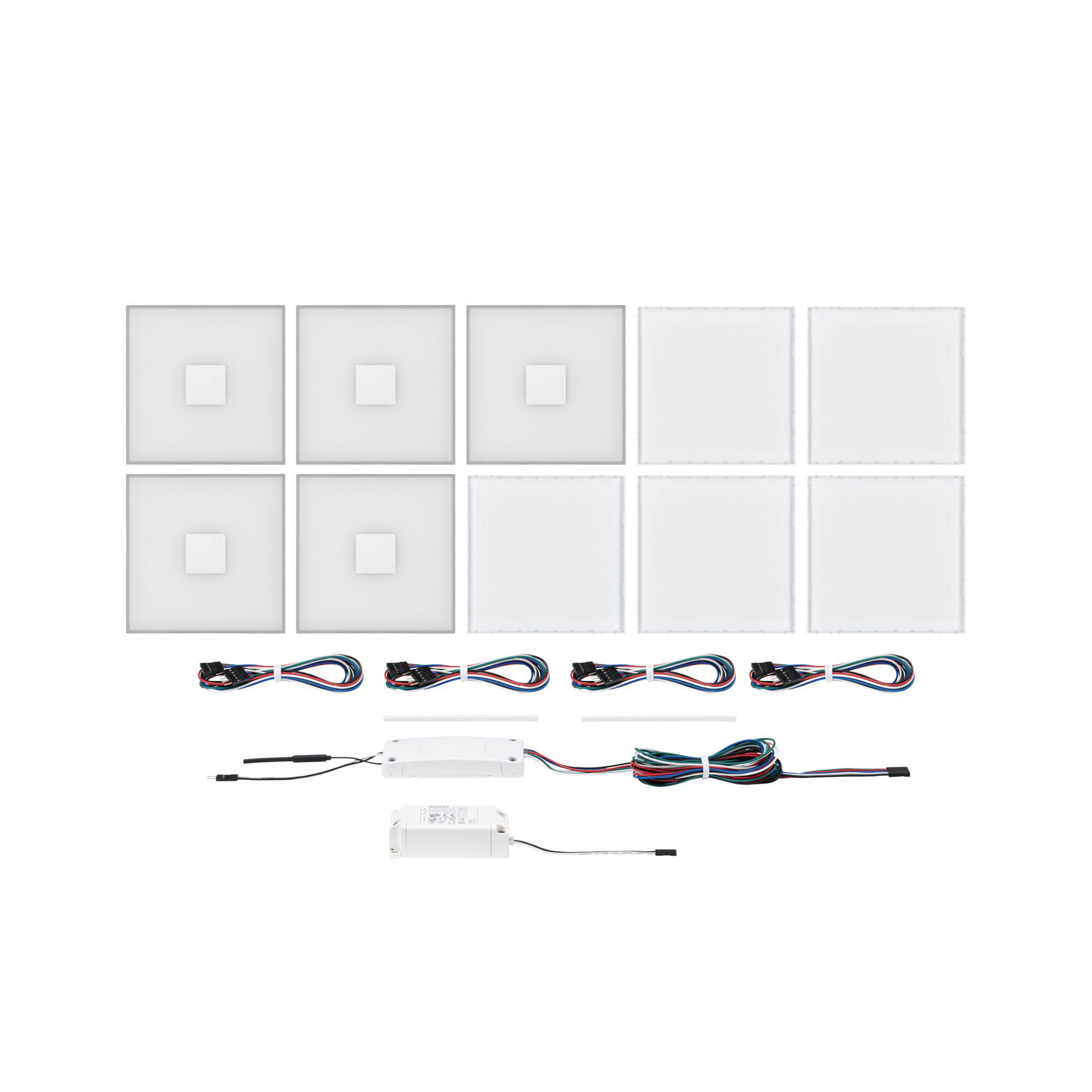

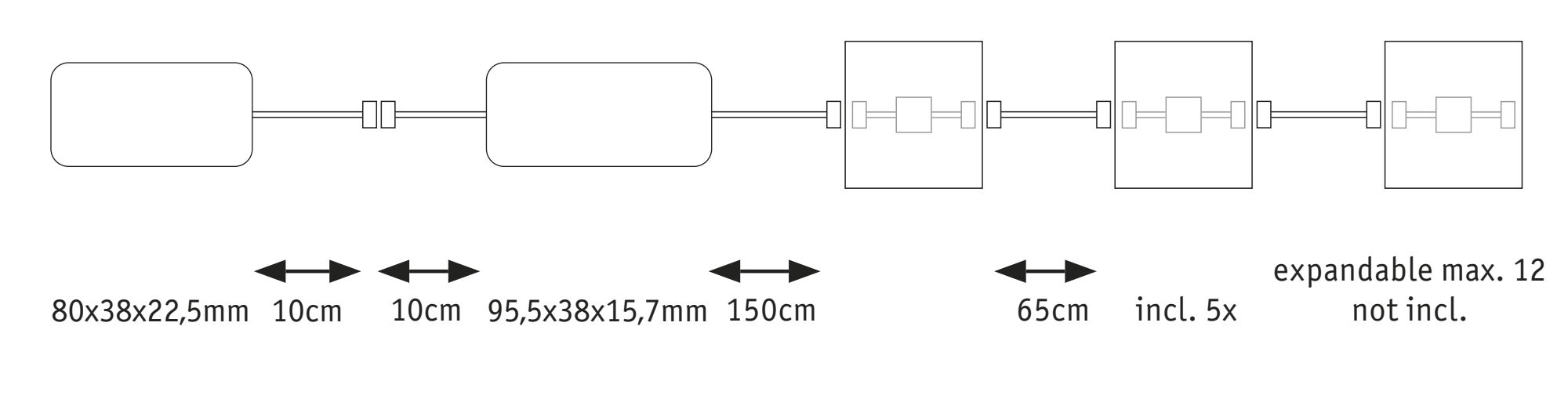

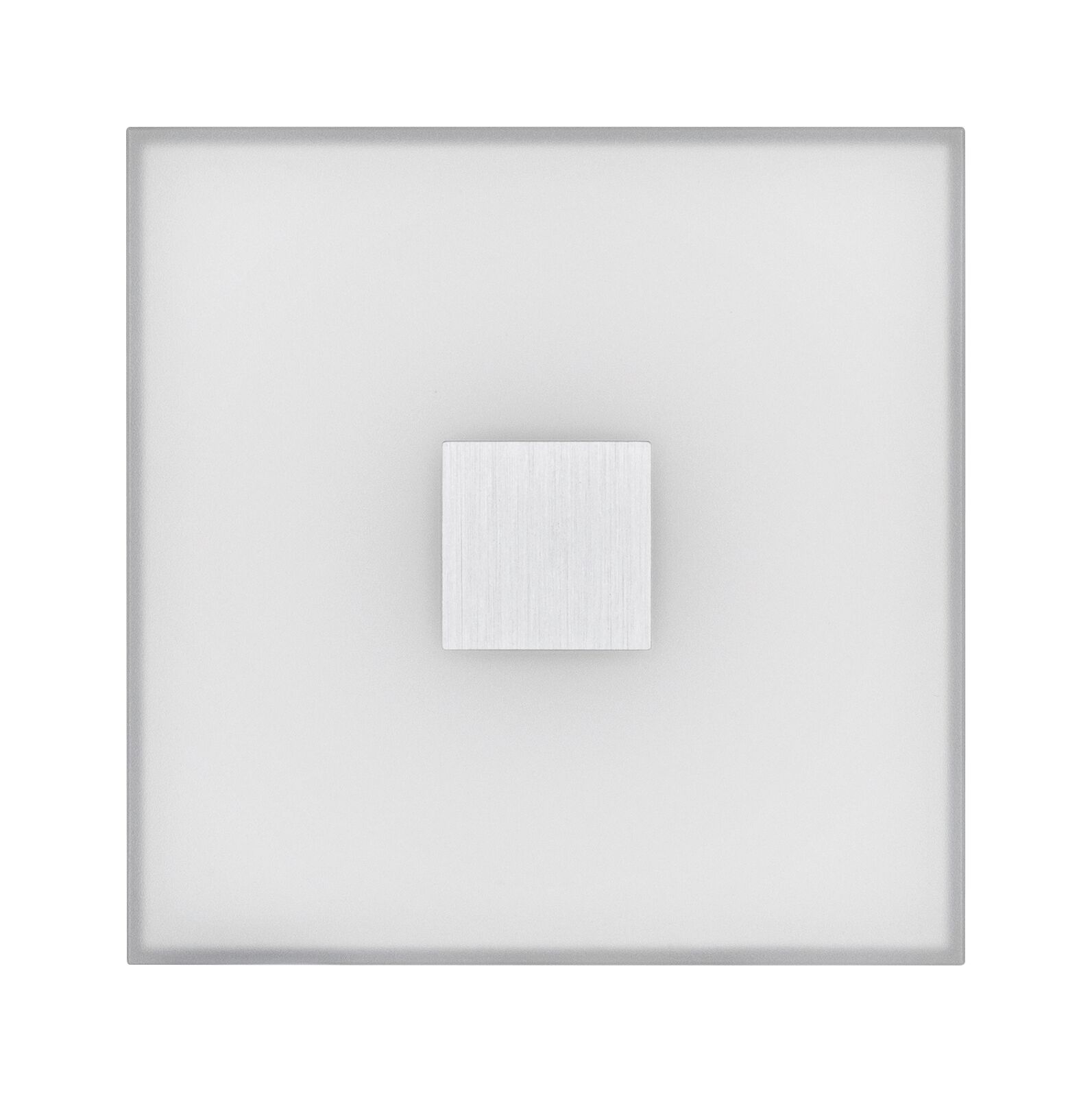

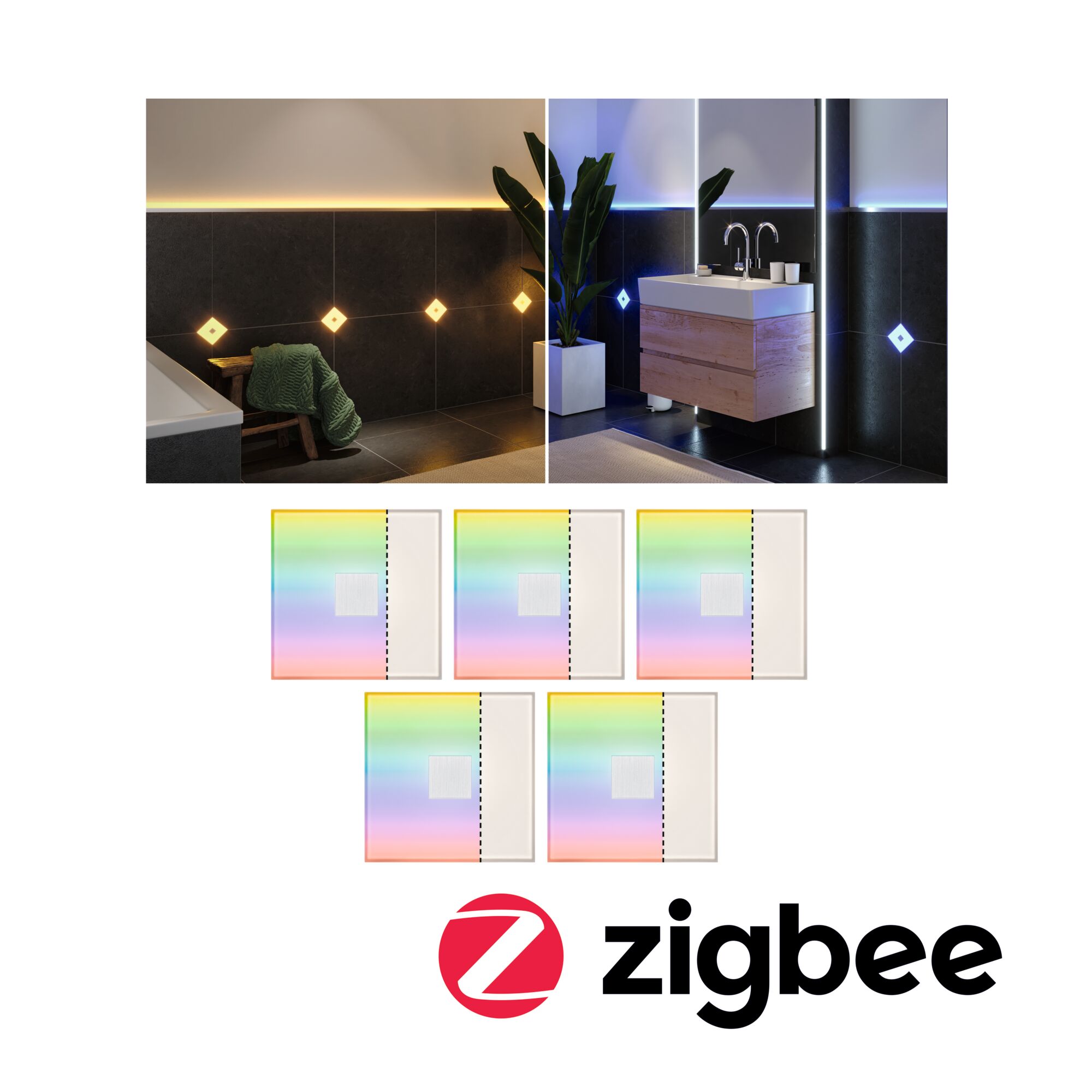

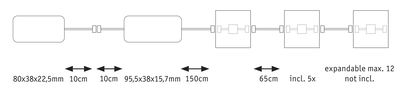

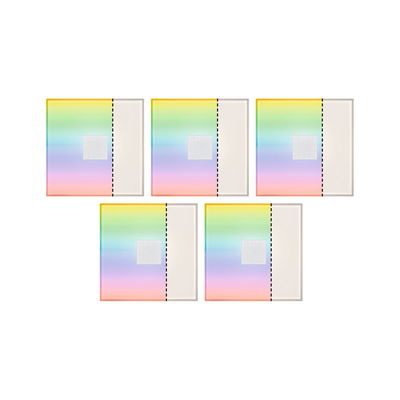

The efficient 100x10mm LumiTiles LED Square tile basic set, with an output of 5x0,8W, consists of five tiles, four connecting cables (length: 60 cm), a transformer incl. connection, and an RGBW Zigbee controller. The LED tiles with RGBW multicolour colour-change function have a minimal installation depth of only 10 mm. This means they fit between standard wall tiles and can be easily controlled via the connection to the light switch. The five light modules can be freely arranged within the tile pattern and connected very simply using the Plug & Play connector system. The modules can be connected by cables with 65, 105 or 205 cm spacing. Innovative luminous tiles turn your tiling project into a real highlight! The light modules generate decorative, diffuse accent lighting and are permanently integrated in the tile pattern of your bathroom or kitchen. Thanks to its outstanding flexibility, easy installation and extra-long service life, the Paulmann LumiTiles system is suitable for every project.
- LumiTiles LED tiles produce homogeneous light full of effects
- Area lighting
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 100 x B: 100 x T: 10 mm |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic, Aluminium |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann SmartHome Zigbee Gent 500.67 |
| Energy consumption | |
|---|---|
| energy efficiency (A to G) | G |
| Service life | |
|---|---|
| lifetime | 30.000 h |
| Light Characteristics | |
|---|---|
| Color temp. | 2700 K |

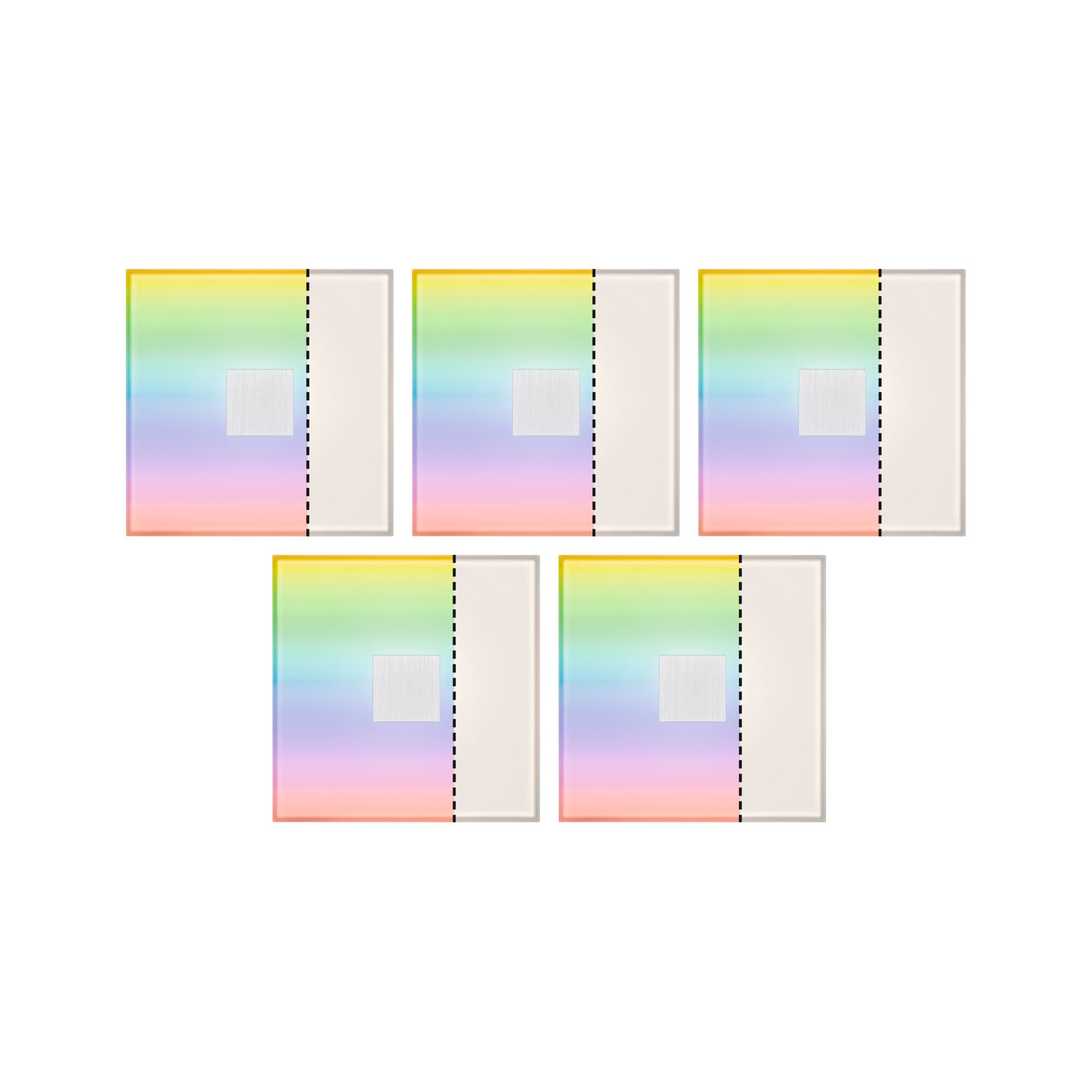

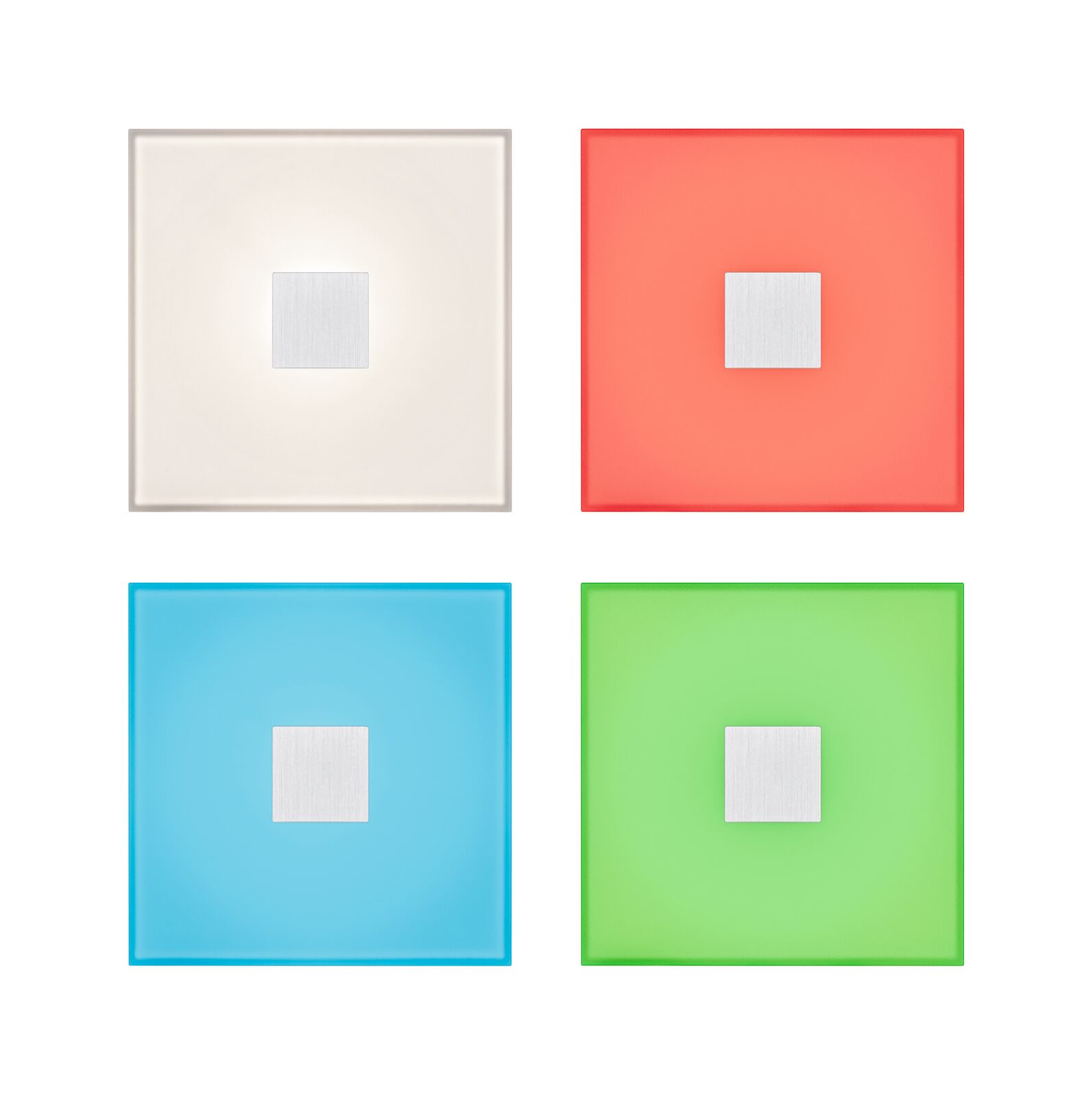

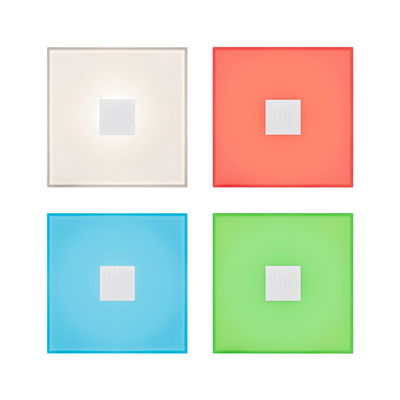

| Color change | Color change RGBW, Tunable White |
| Useful luminous flux | 12 lm |
| Luminous flux LED module | 65 lm |
| color temp | 2.700 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 0,75 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| IP protection | IP44 |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | ✓ |
| Number of component parts | 5x |
| protection class | protection class II |
| Radio frequency | 2,4 GHz |
| Radio range | 20 m |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 4,8 W |
| Transformer | |
|---|---|
| Transformer power | 12 VA |
| apparent power | 11 VA |
| Transformer height | 23 mm |
| Transformer width | 38 mm |
| Transformer depth | 80 mm |
