Article-No.:
78425
LumiTiles
LED Strip
Full-Line COB Slim
2m IP44 6W 230lm/m 280 LEDs/m 2700K 7VA
2m IP44 6W 230lm/m 280 LEDs/m 2700K 7VA
- Super narrow LED strip, only 8 mm wide
- Controllable via app or voice control in smart Zigbee systems
- Suitable for any installation: Strips can be shortened every 25 mm

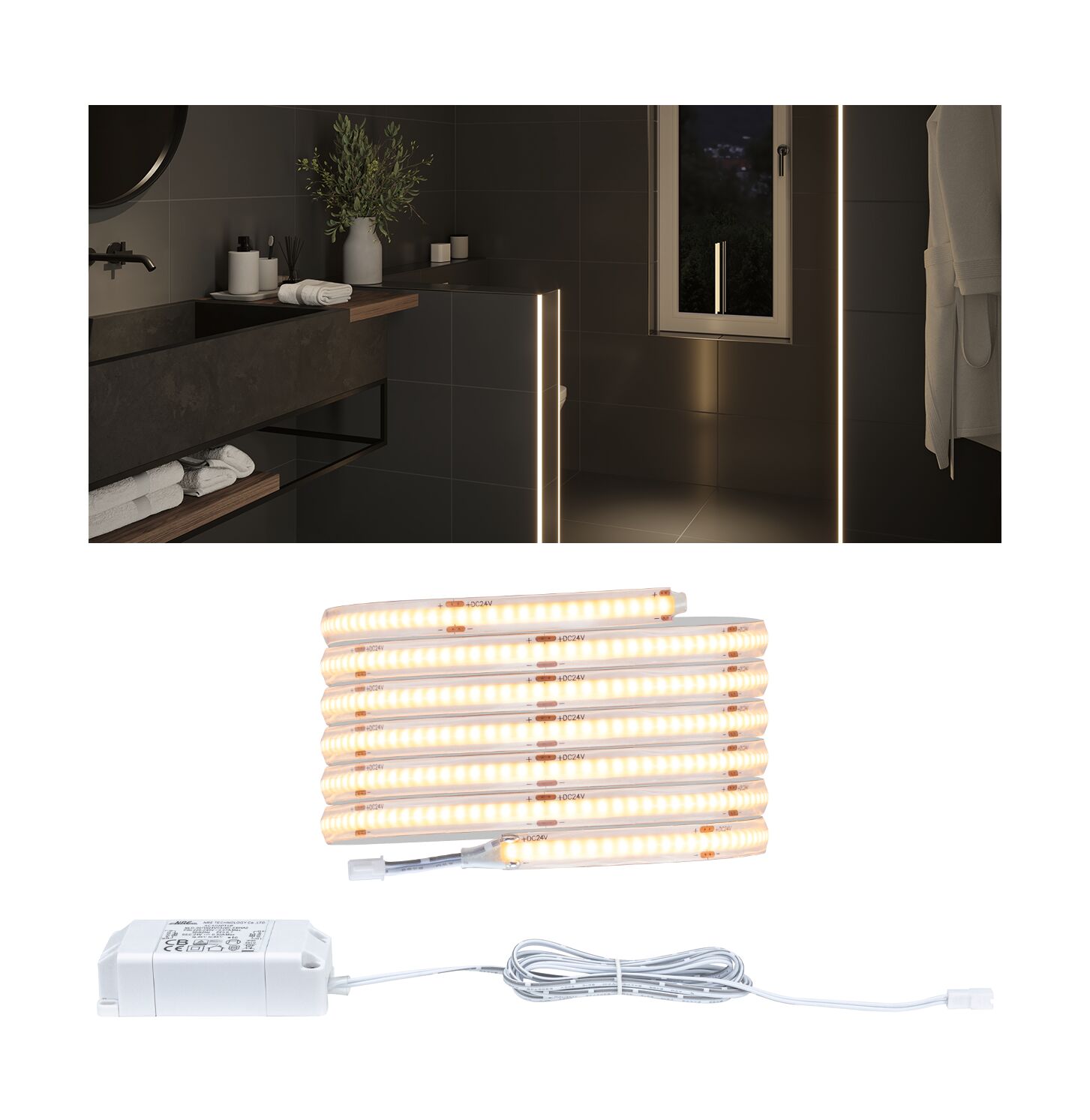

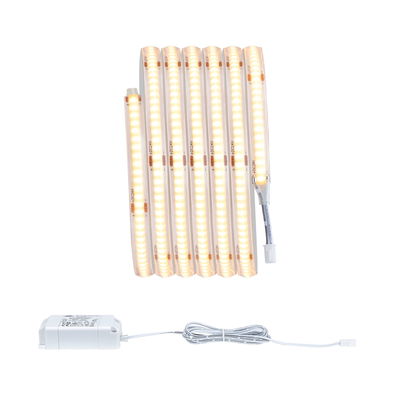

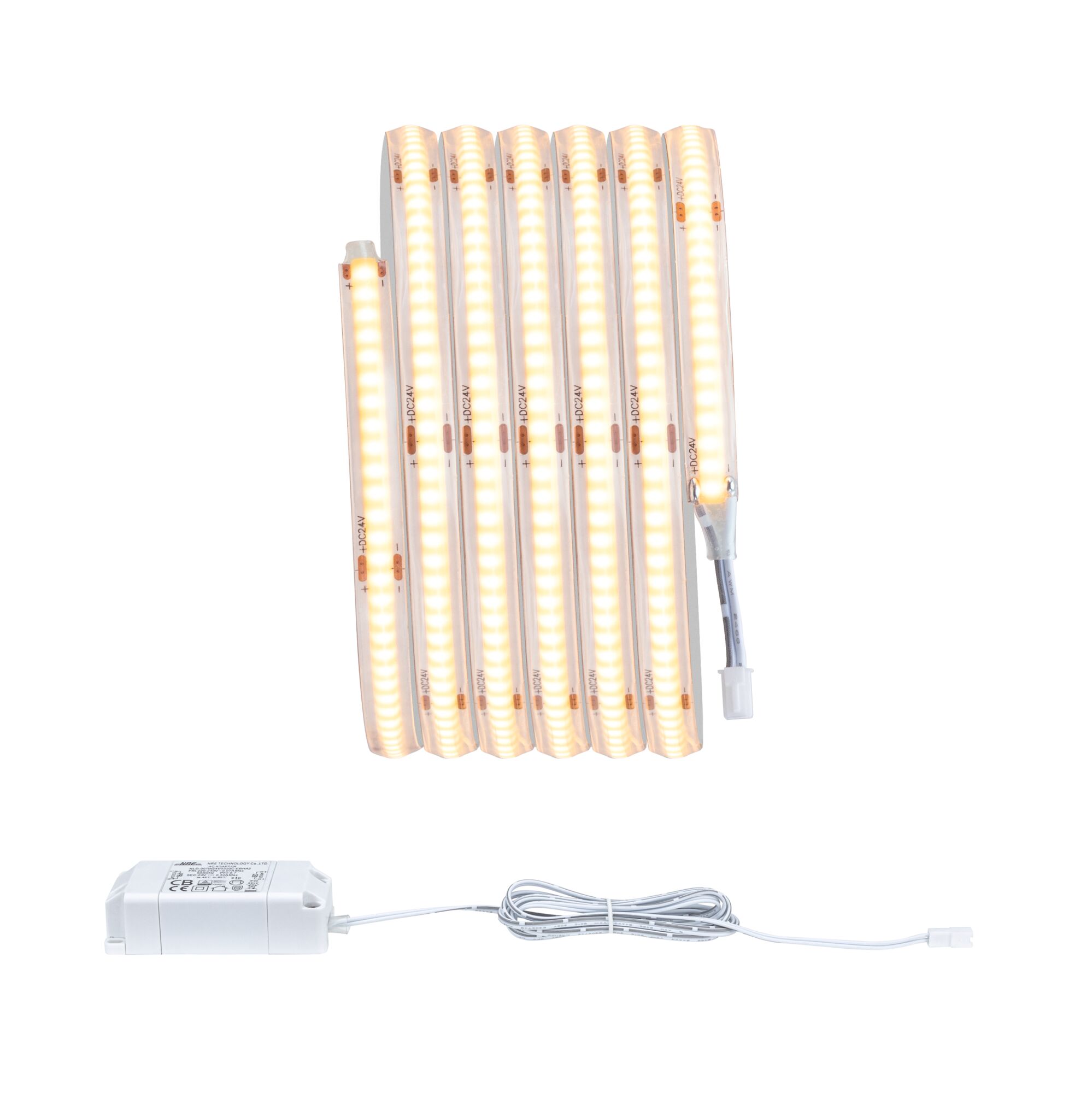

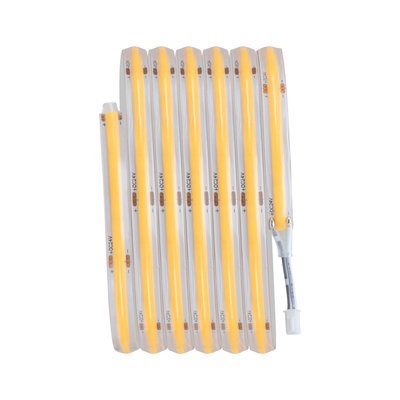

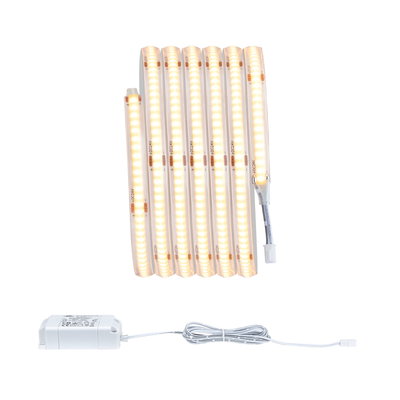

LumiTiles LED Strip Full-Line COB Slim 2m IP44 6W 230lm/m 280 LEDs/m 2700K 7VA

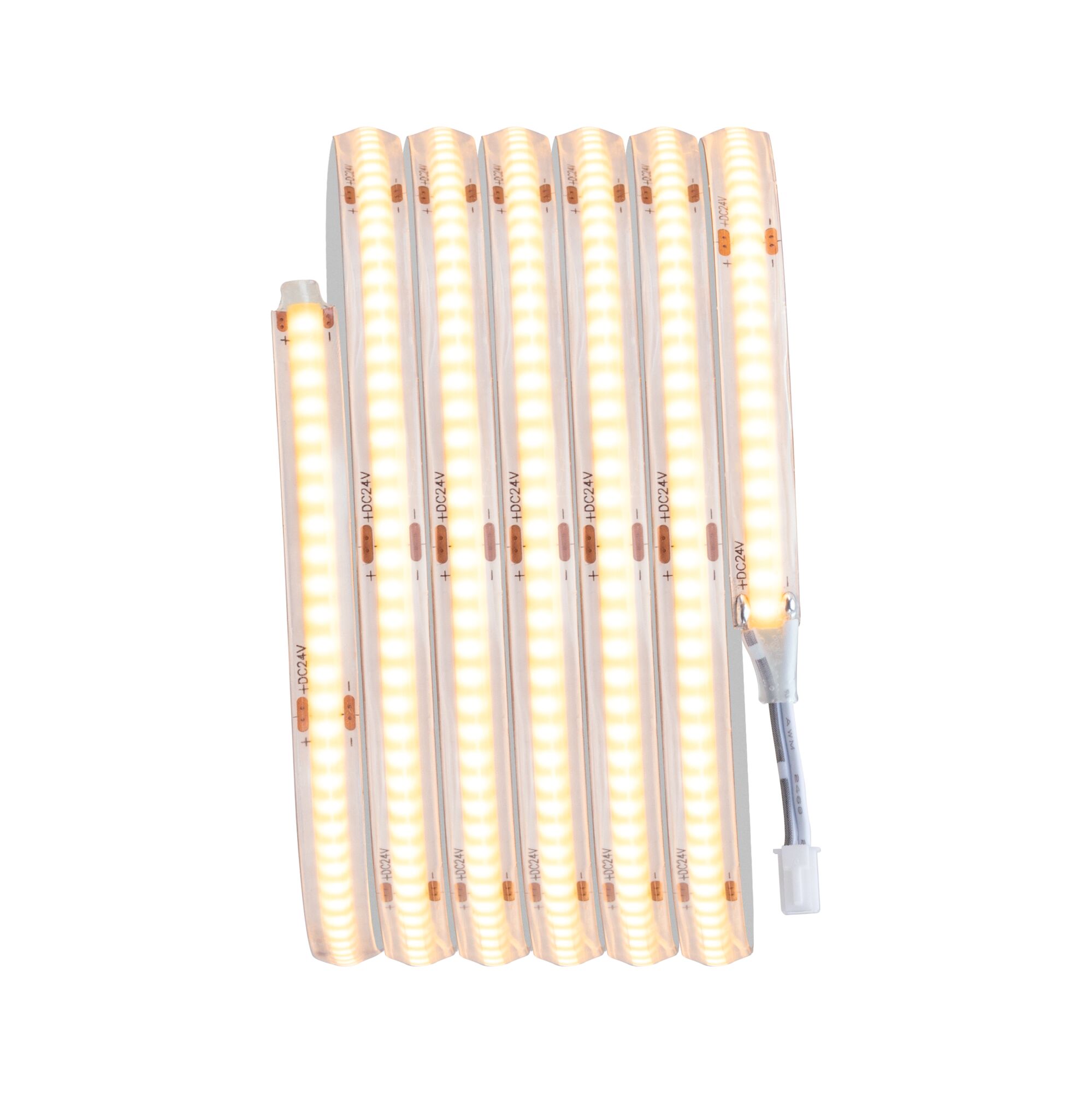

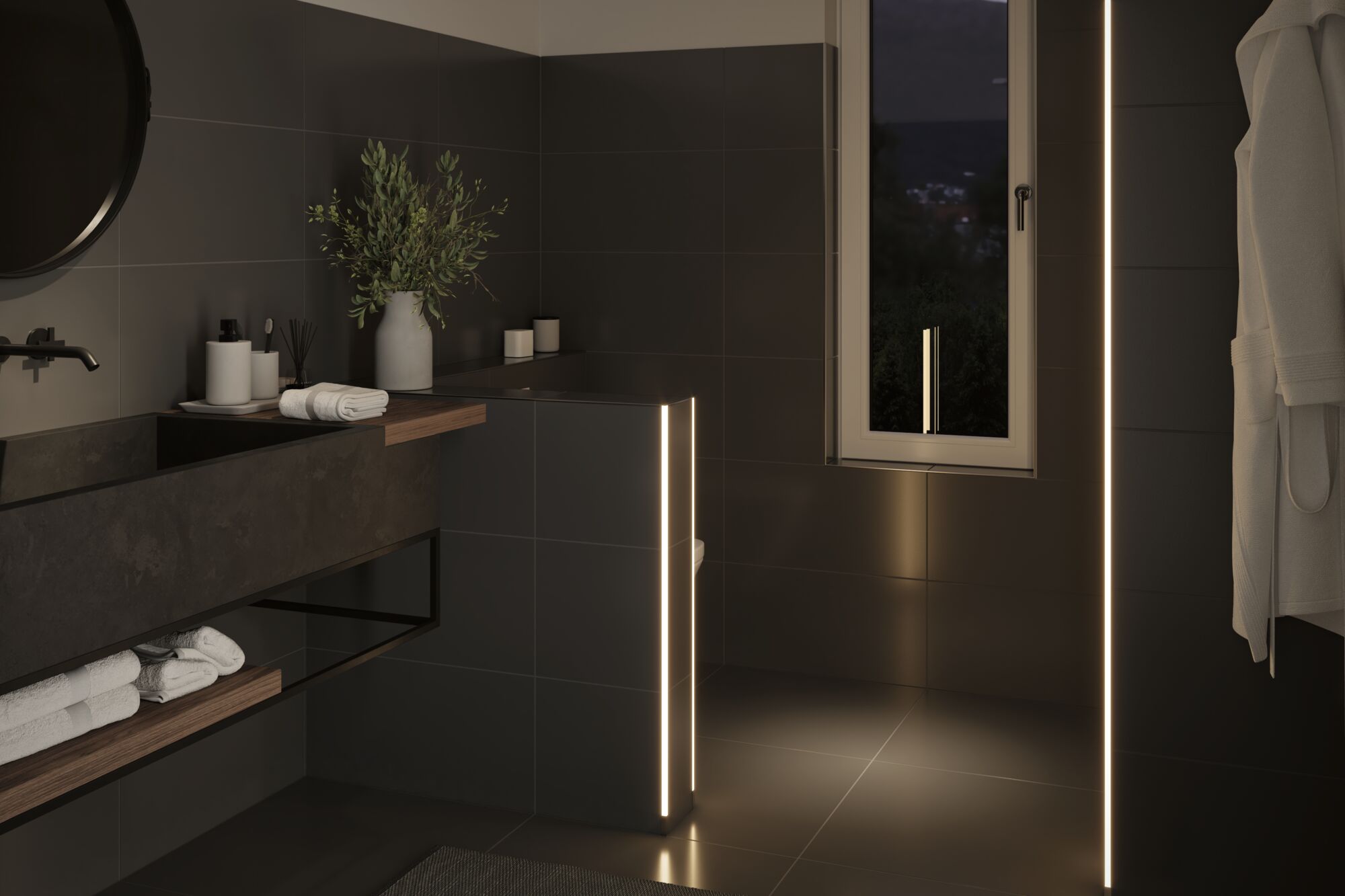

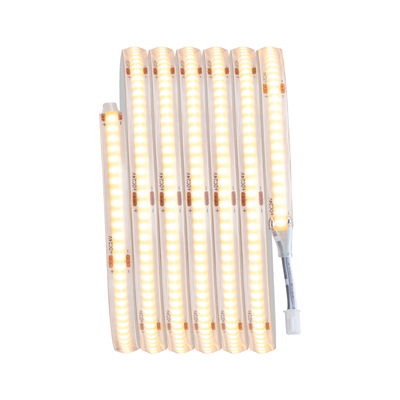

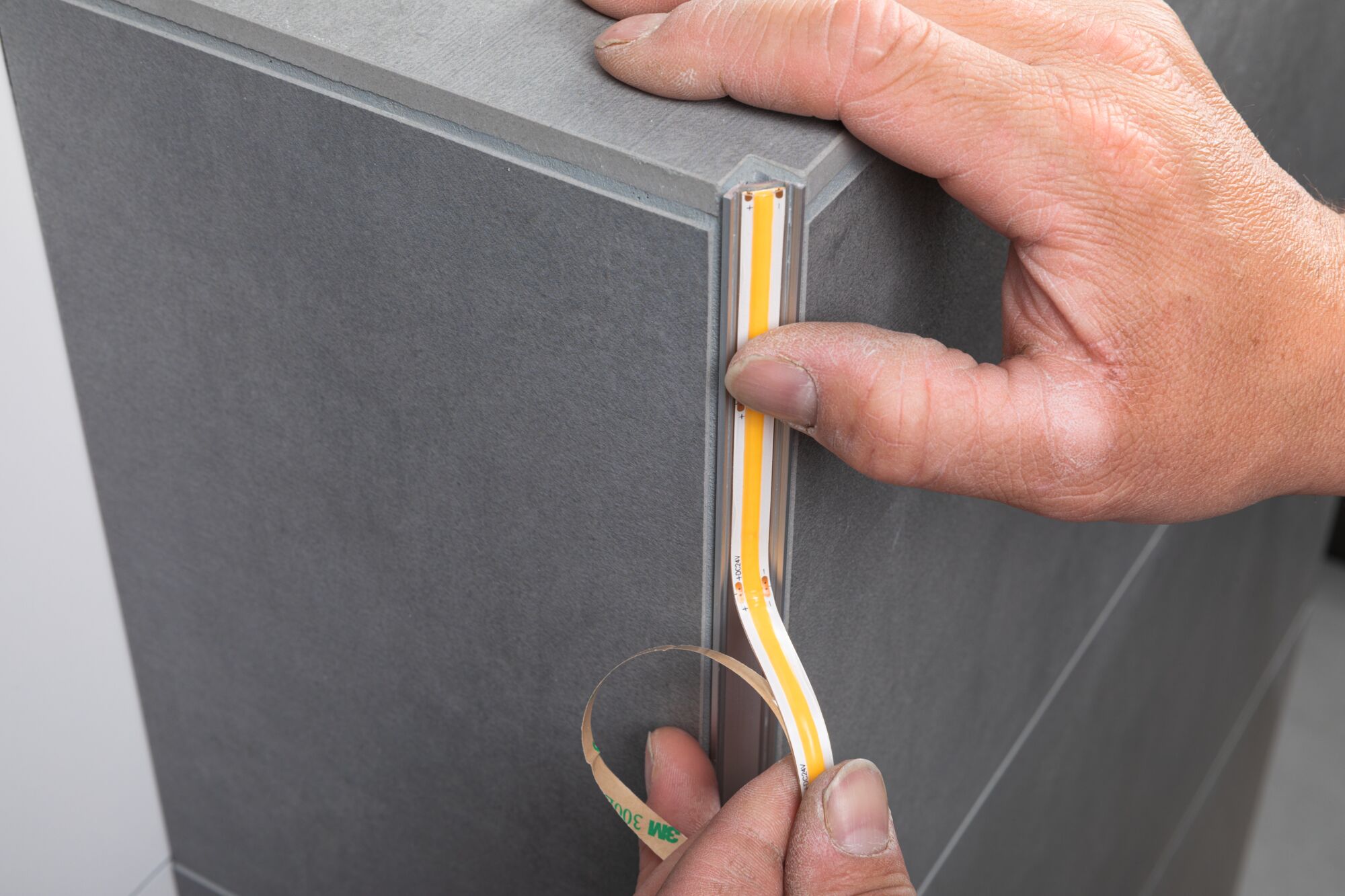

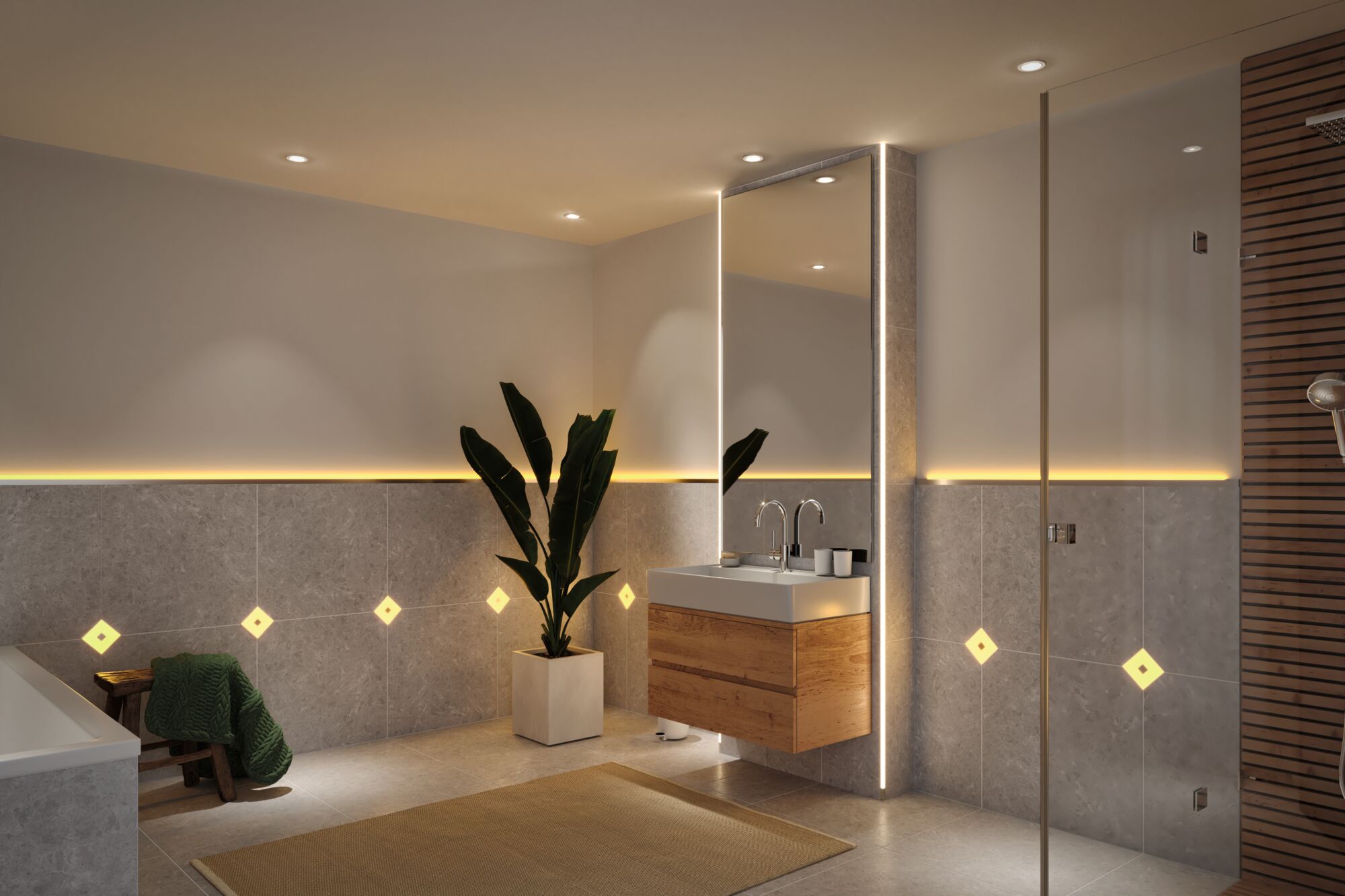

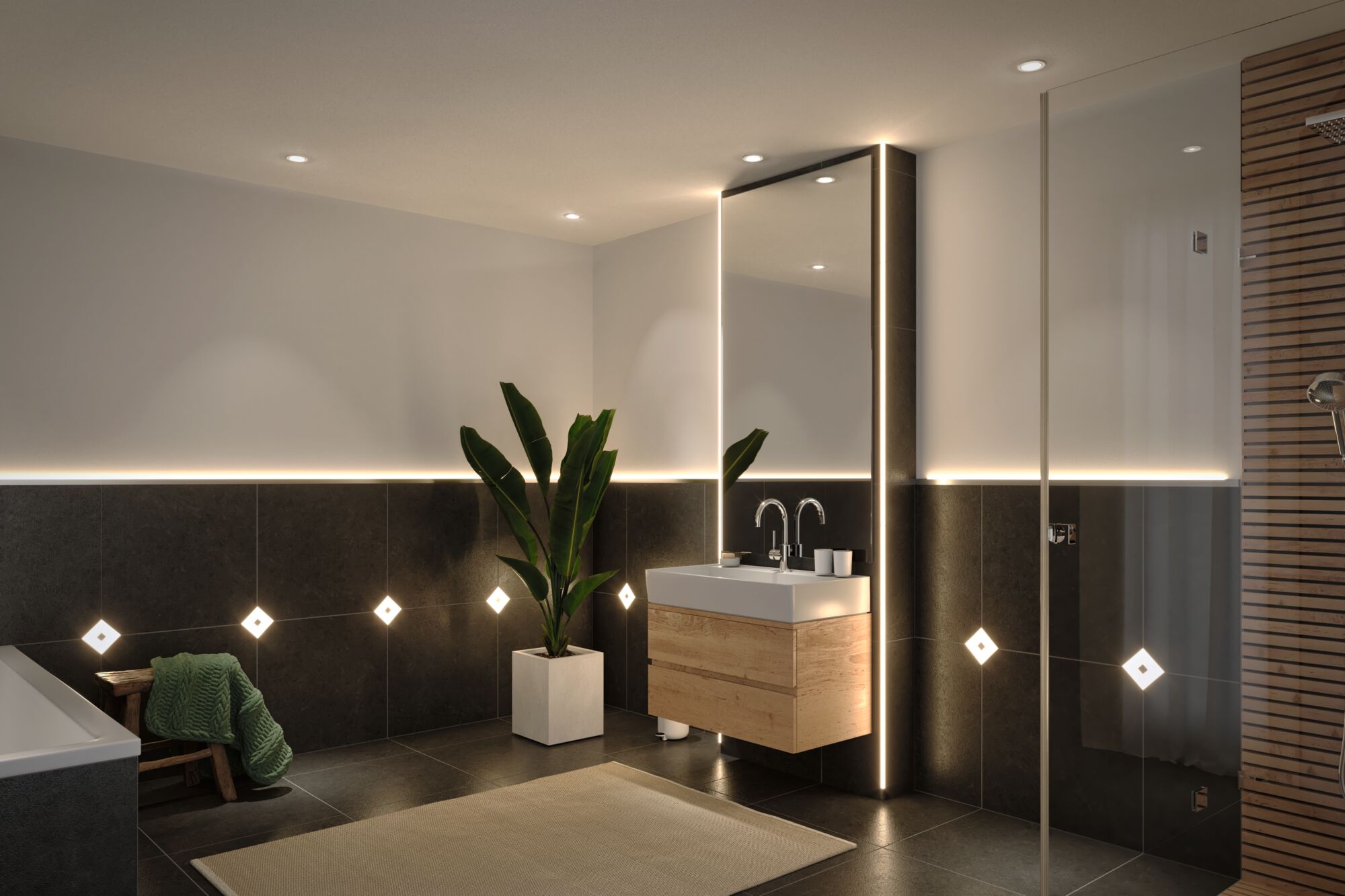

The COB slim strip, which is 2m long and 8 mm wide, has been developed specially for the Frame profile. It creates an impressive linear lighting effect on the diffuser. When switched off, the strip is invisible. The strip, with a warm white light colour, is switched on/off via the connection on the light switch. The strip can be trimmed every 25 mm. Incremental shortening of the strip enables a precise fit of the profile without shadows.
- Super narrow LED strip, only 8 mm wide
- Controllable via app or voice control in smart Zigbee systems
- Suitable for any installation: Strips can be shortened every 25 mm

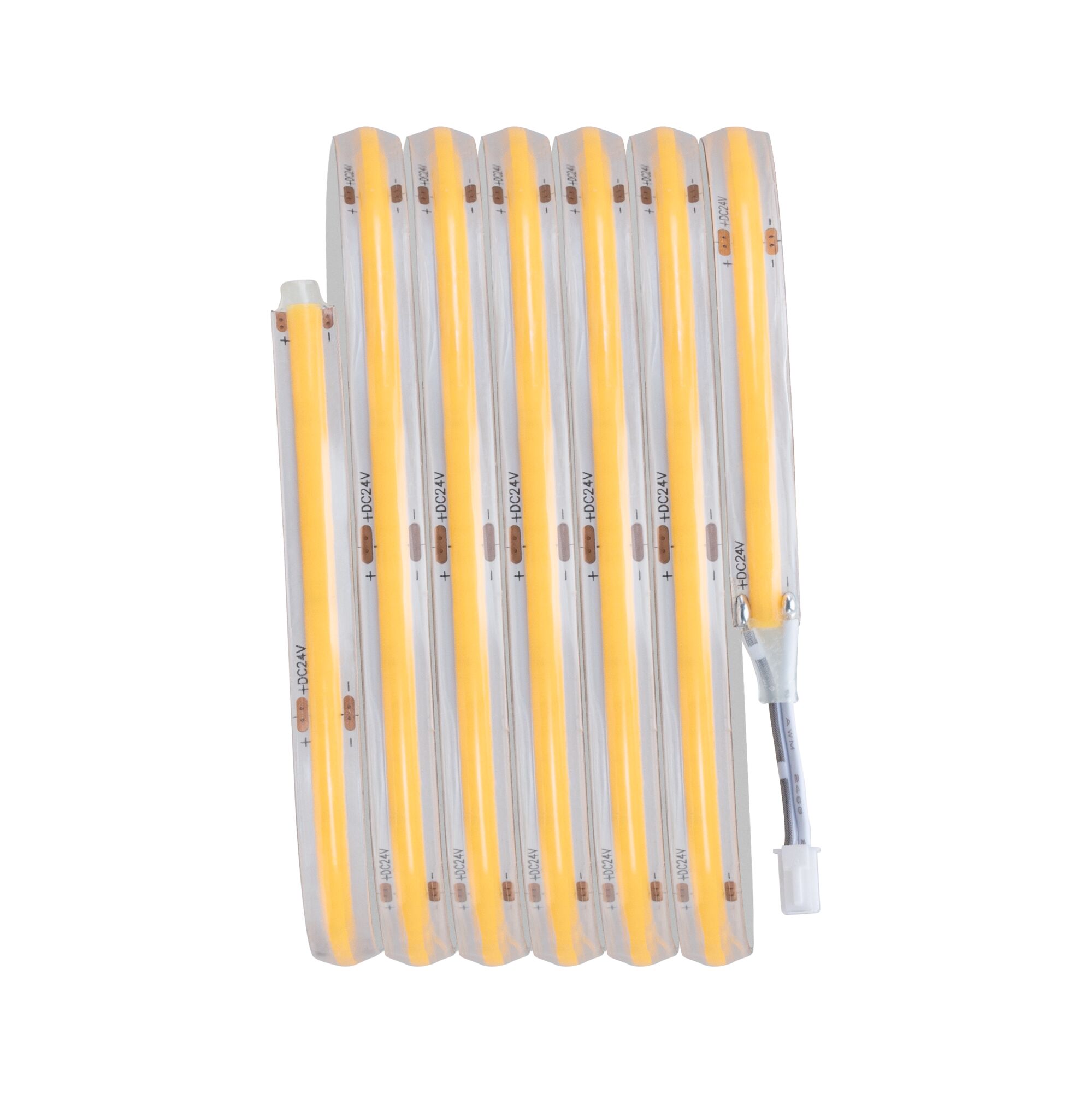

- New innovative COB strip technology with 544 LEDs per metre
- IP44 protective coating against splashing water
- Uniform lighting effect along the entire length, no light points in combination with the profile

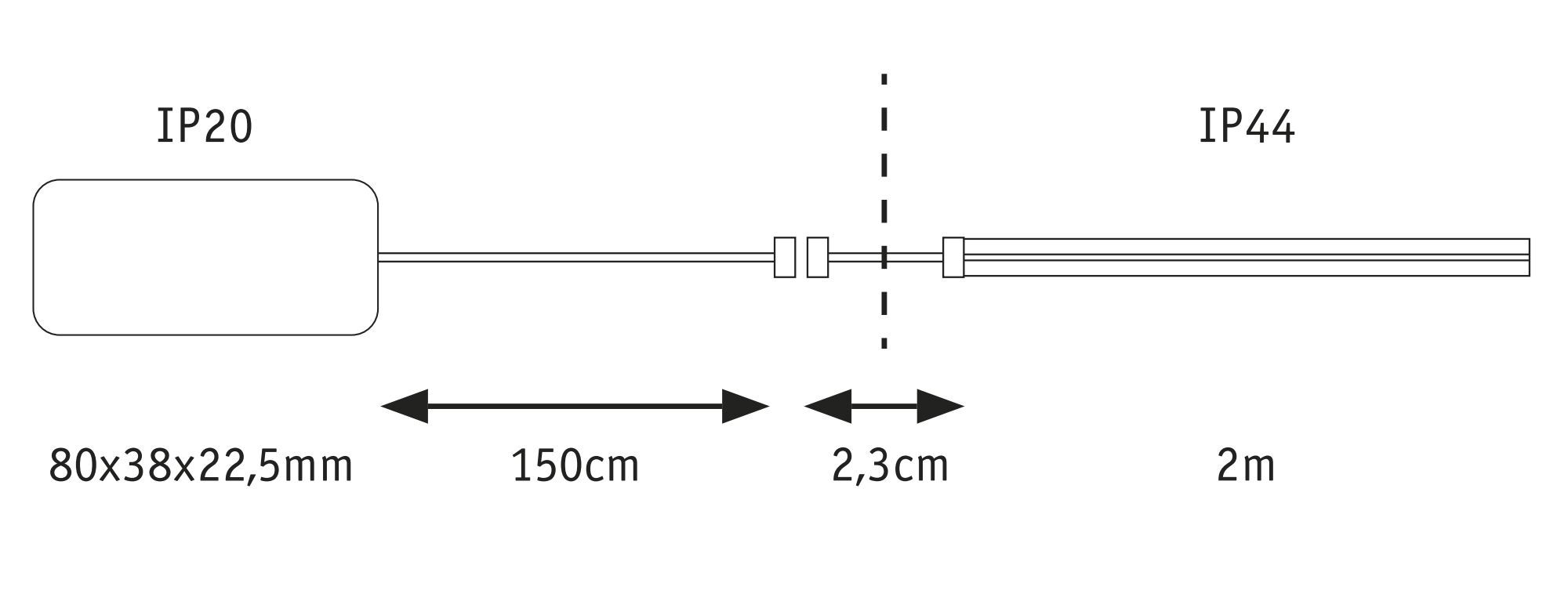

| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 x B: 8 x mm |
| Length | 2 m |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 20000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Usable luminous flux | 460 lm |
| Luminous flux LED module | 460 lm |
| color temp | 2700 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 6 W |
| Technique | LED |
| IP protection | IP44 |
| Dimmable | No |
| Inclusive lamp | yes |
| Total Width | 8 mm |
| Number of component parts | 1x |
| protection class | protection class II |
| Number of LED's per meter | 280 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 8 W |
| Transformer | |
|---|---|
| Transformer power | 7 VA |
