Article-No.:
78423
LumiTilesAccessoriesSmart Home Zigbee 3.0
Square Touch Modul
IP44 100x10mm RGBW+ White Plastic/Aluminium
IP44 100x10mm RGBW+ White Plastic/Aluminium
- For direct colour control
- Replaceable touch module
- Controls, dims and switches the LumiTiles LED tiles
LumiTiles Accessories Smart Home Zigbee 3.0 Square Touch Modul IP44 100x10mm RGBW+ White Plastic/Aluminium

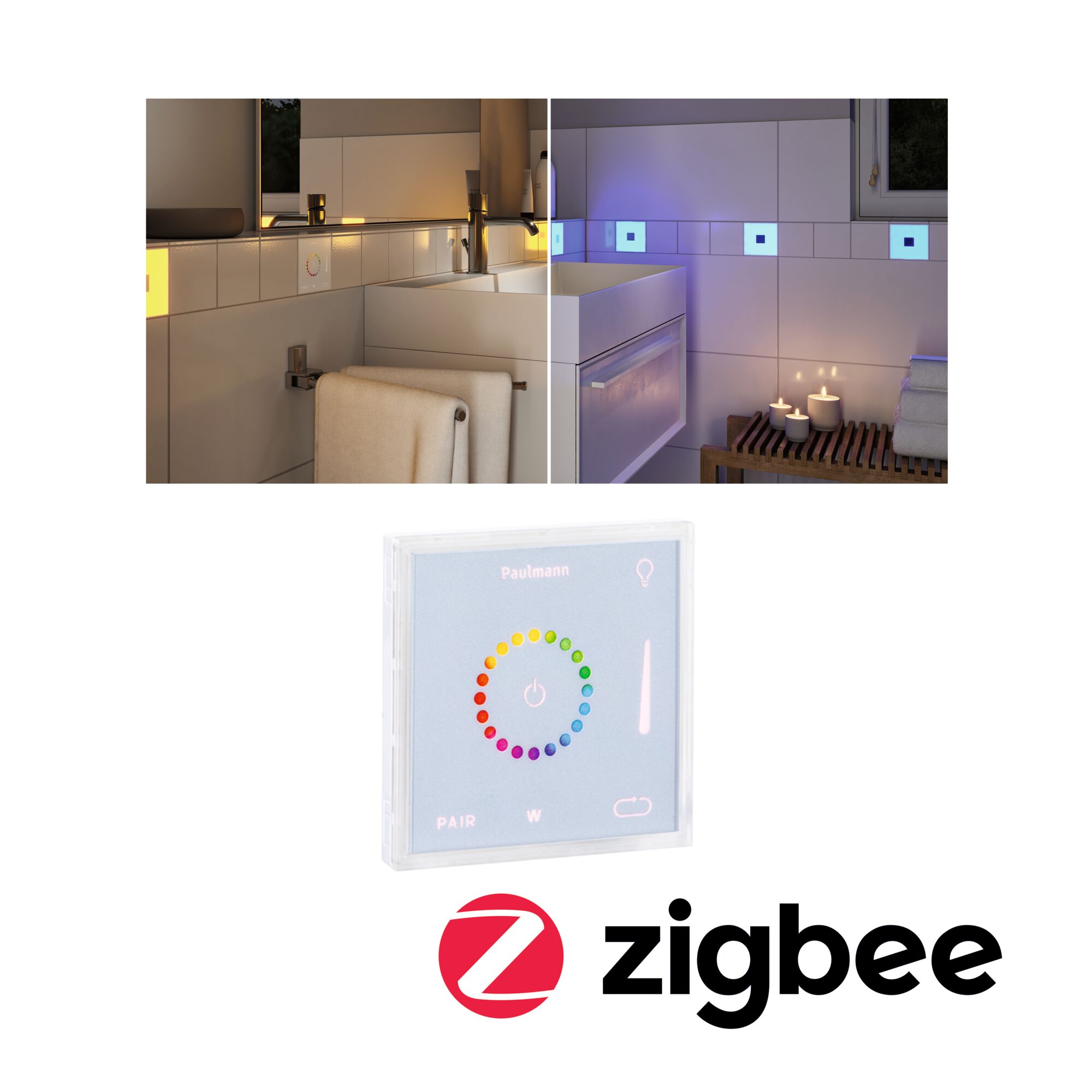

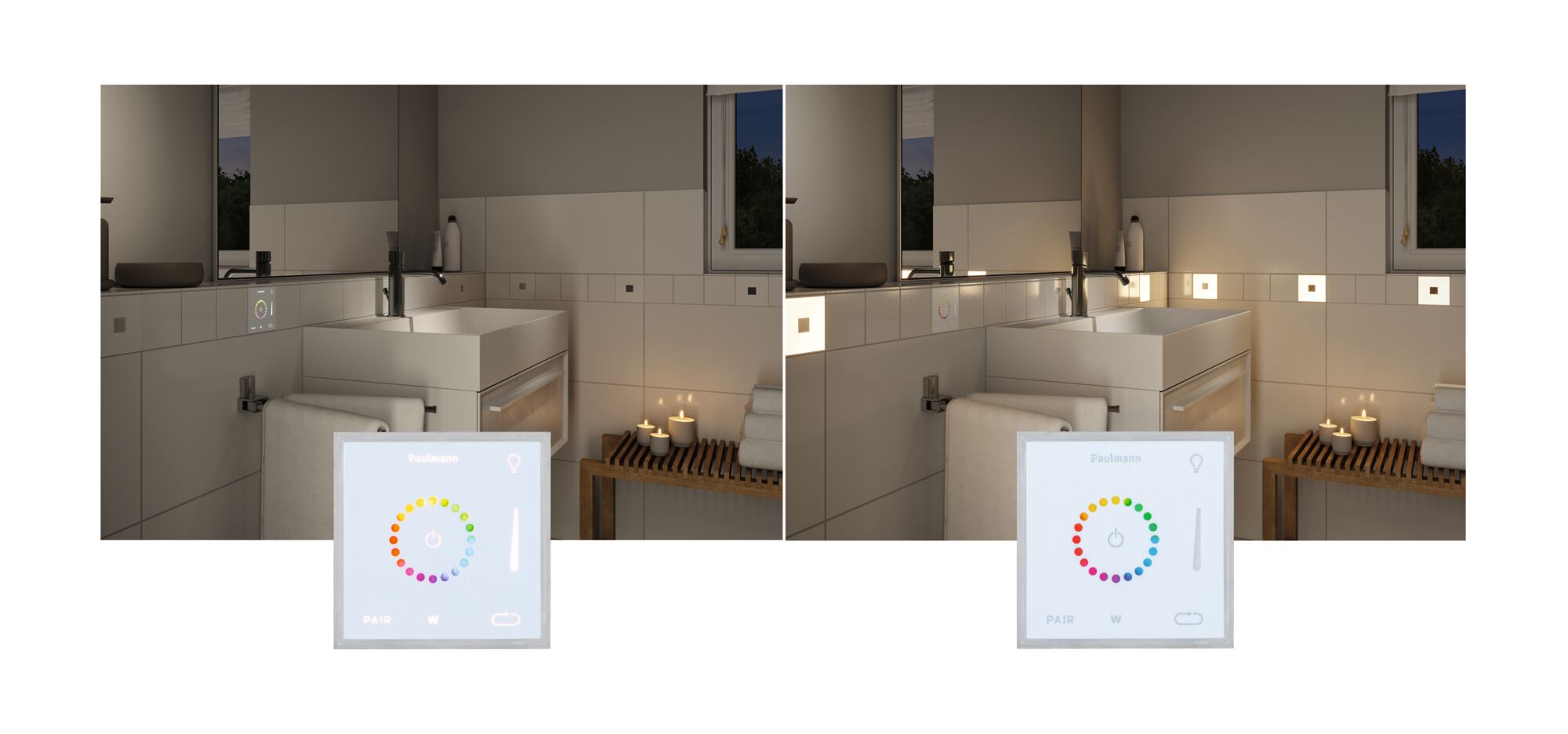

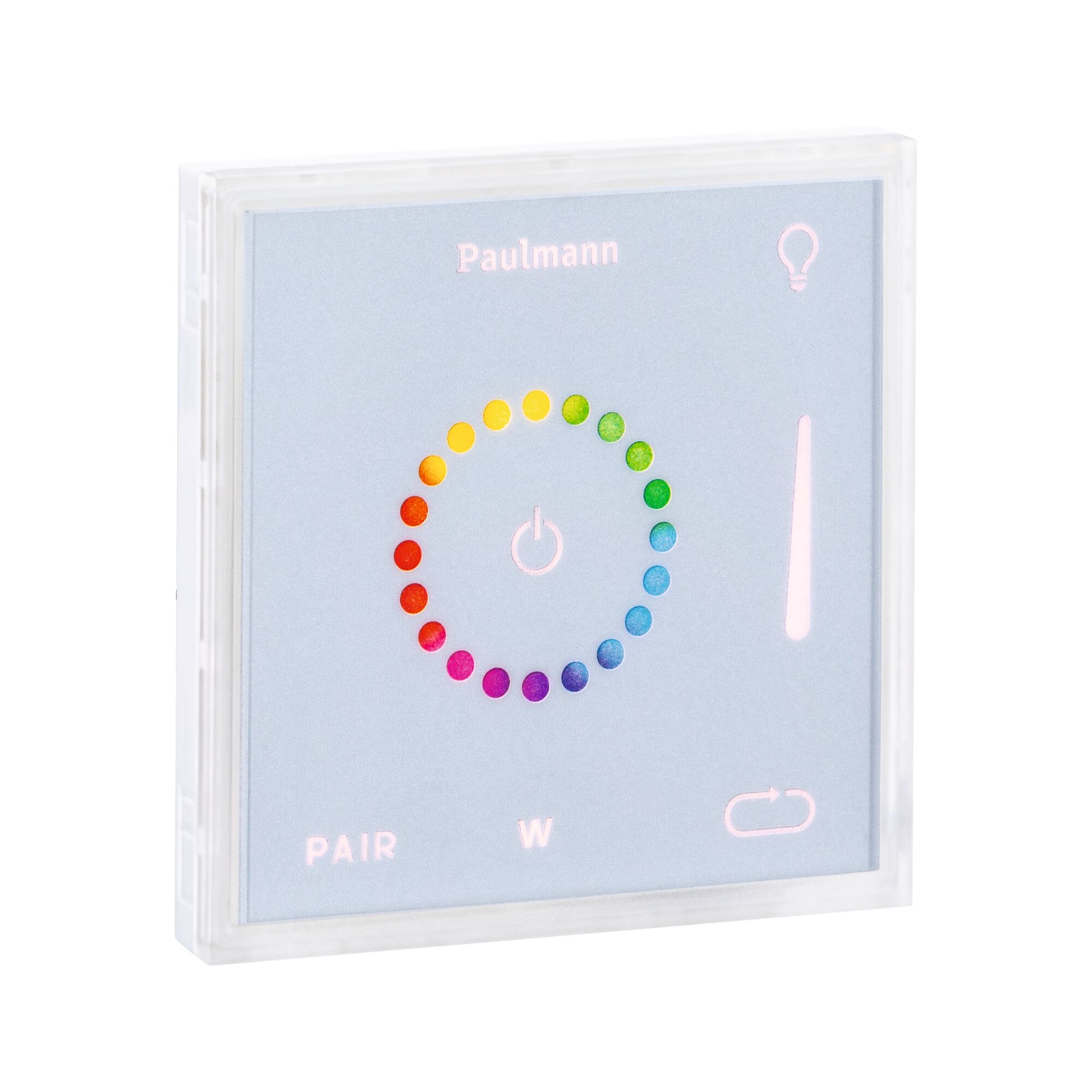

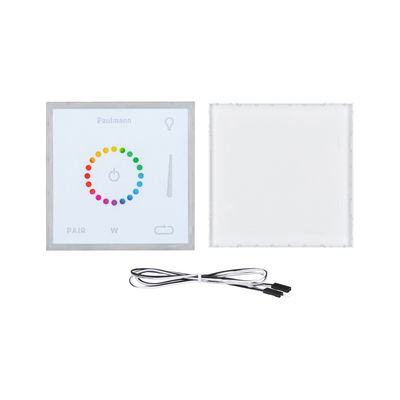

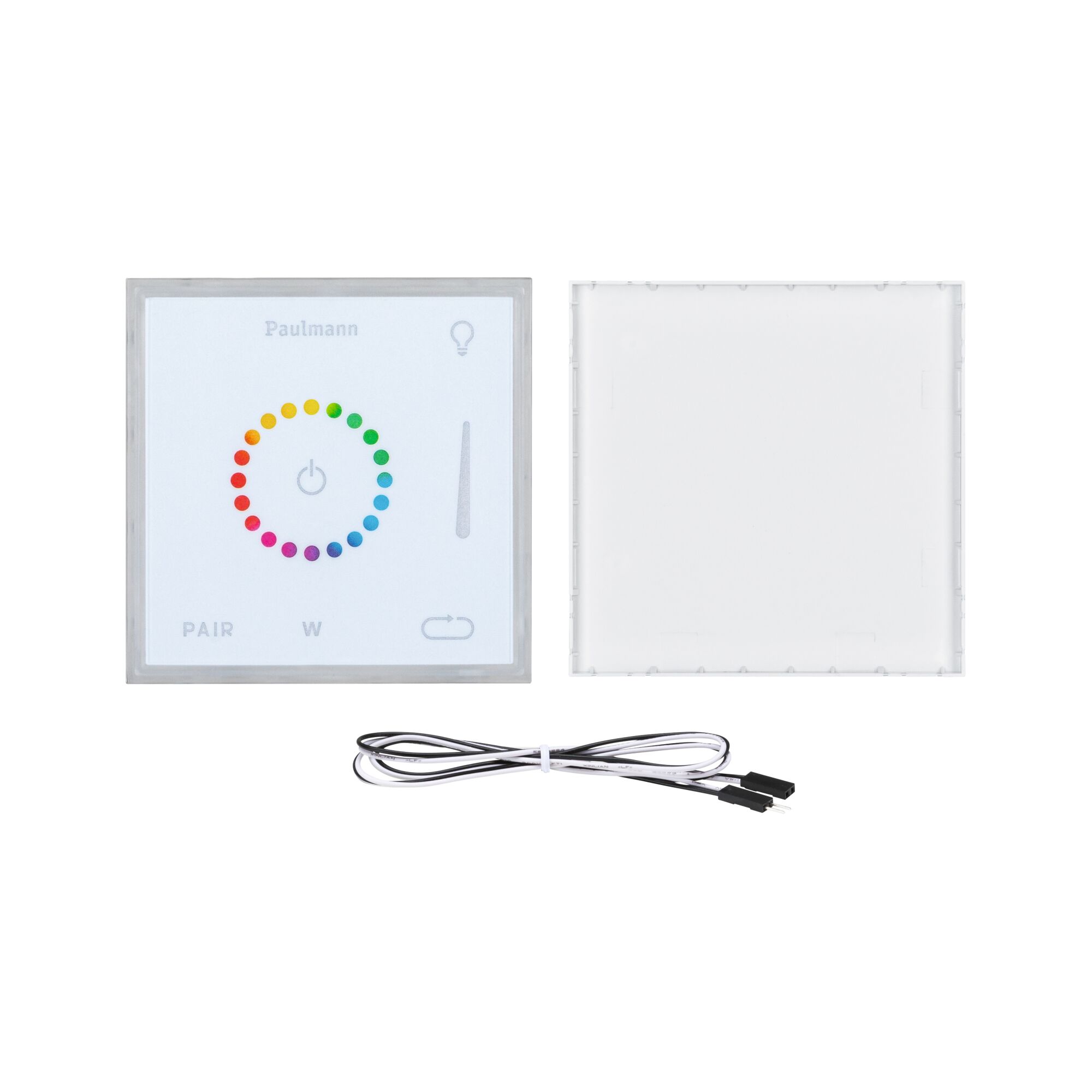

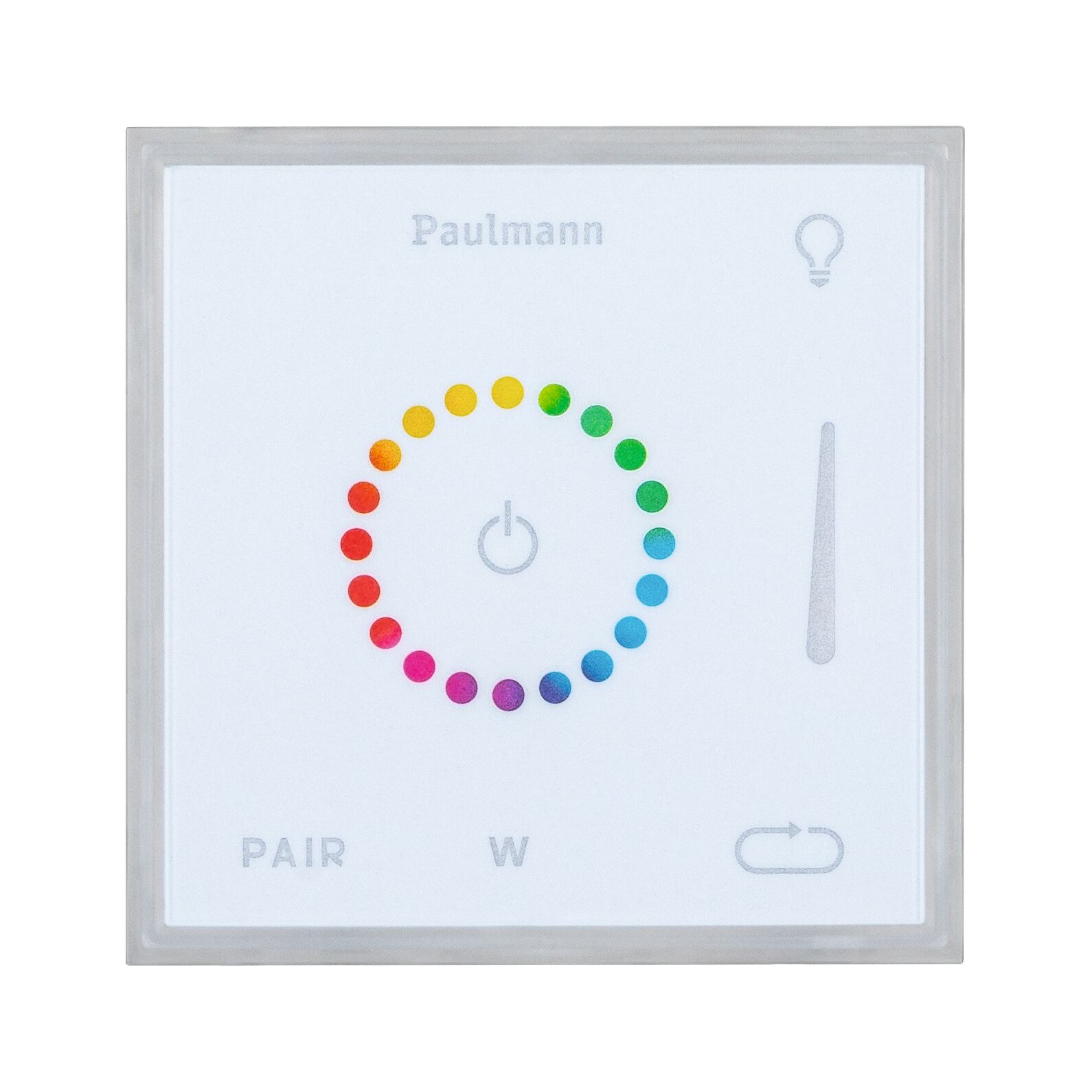

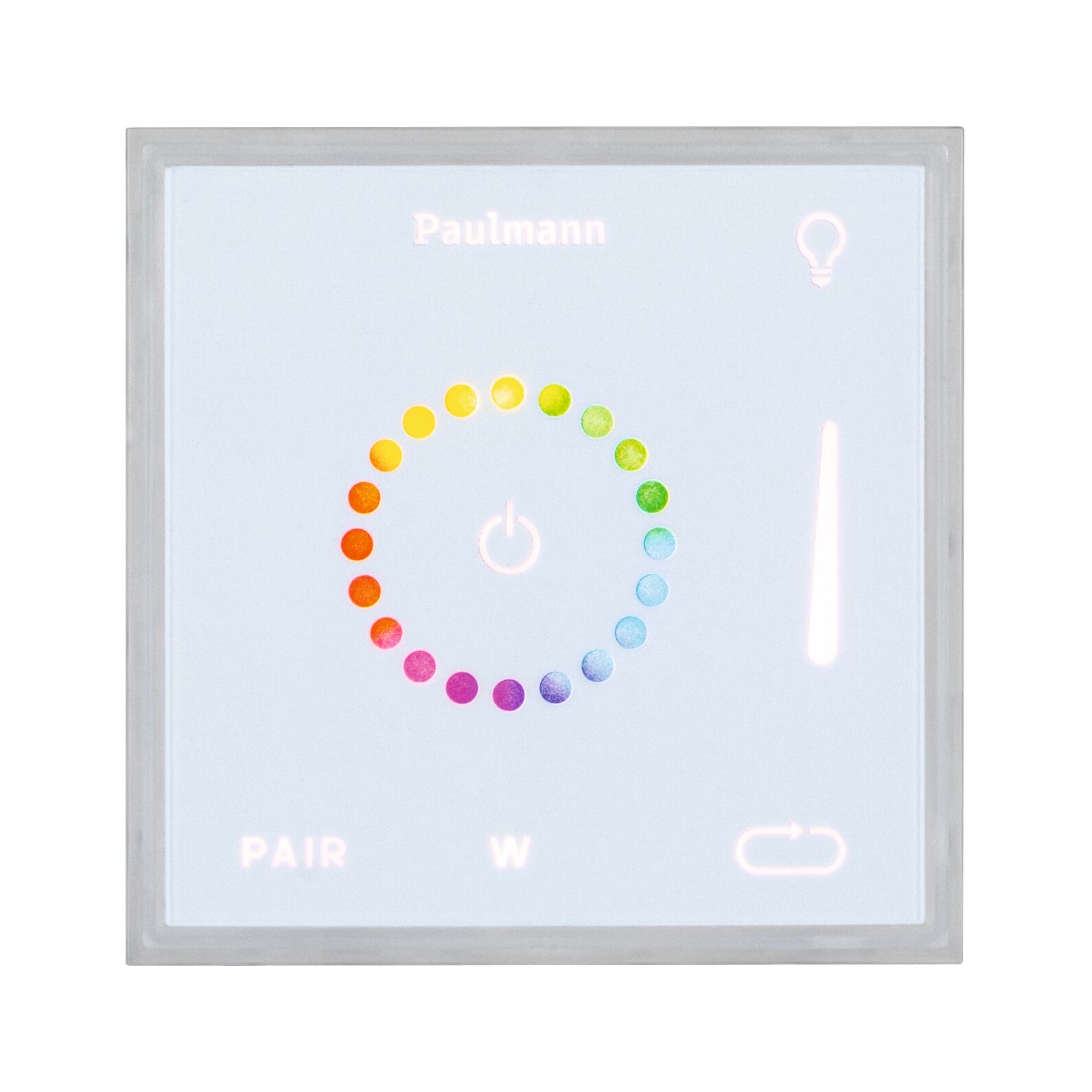

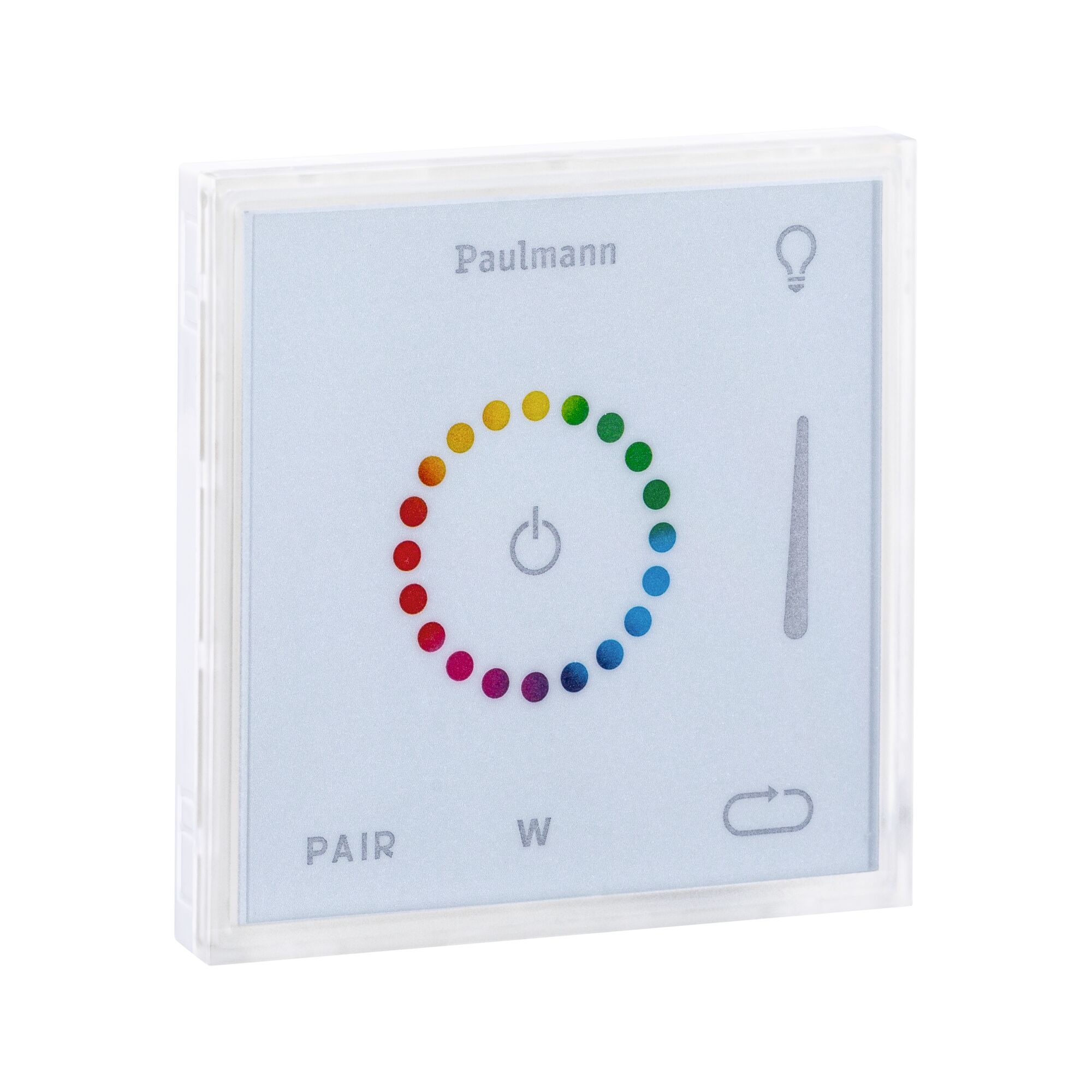

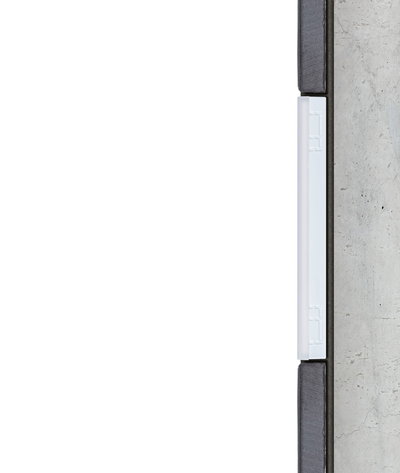

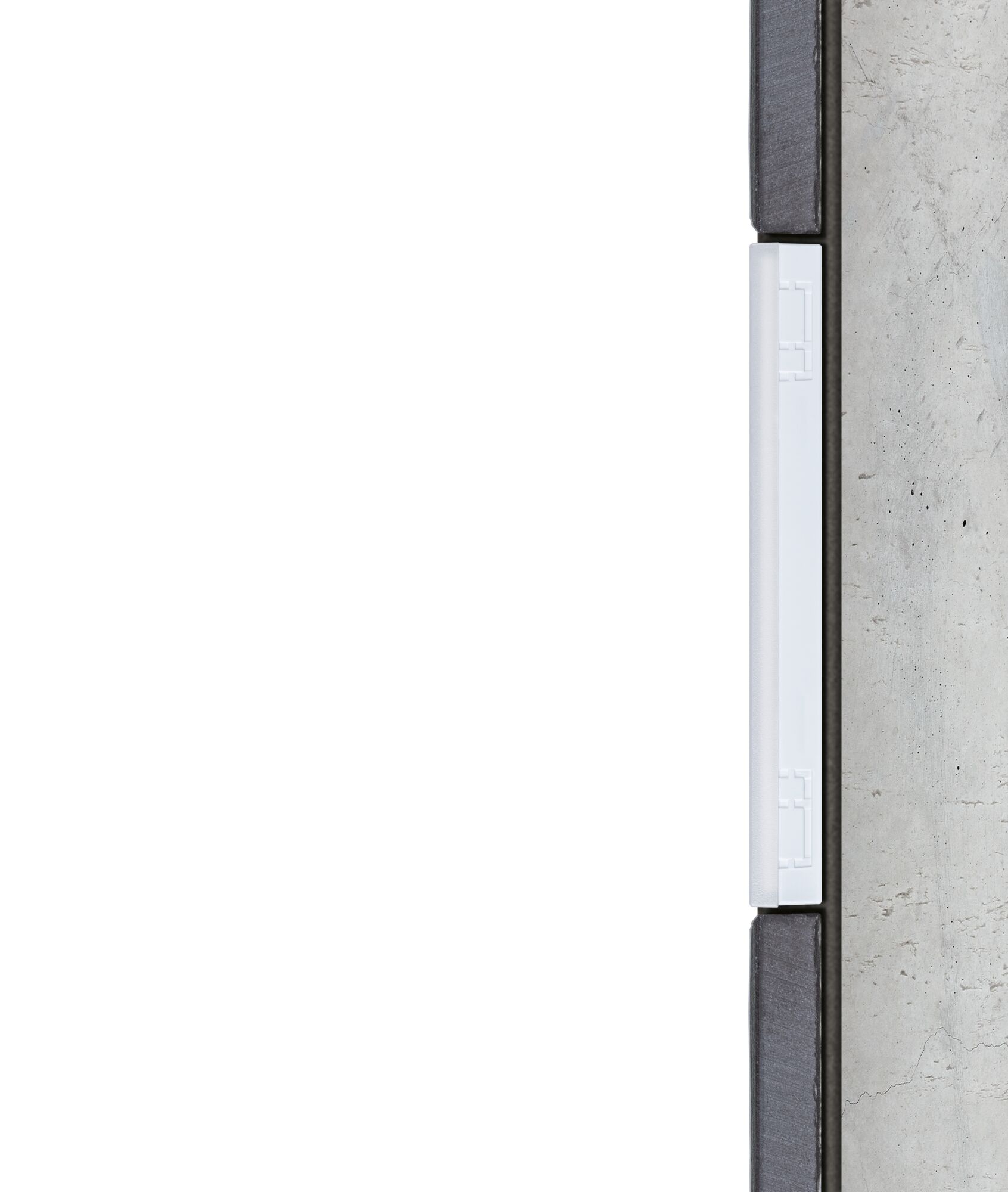

The touch module Square lets you control, dim and switch LED RGBW LumiTiles. The module consists of two parts: the base plate and control module. The base plate, with the dimensions 10 x 10 cm, is permanently affixed with tile cement. Once the cement is dry, the module is simply inserted in the base plate. Just like the LED tiles, the module can easily be replaced later.
- For direct colour control
- Replaceable touch module
- Controls, dims and switches the LumiTiles LED tiles
- RGBW colour control
| Dimension | |
|---|---|

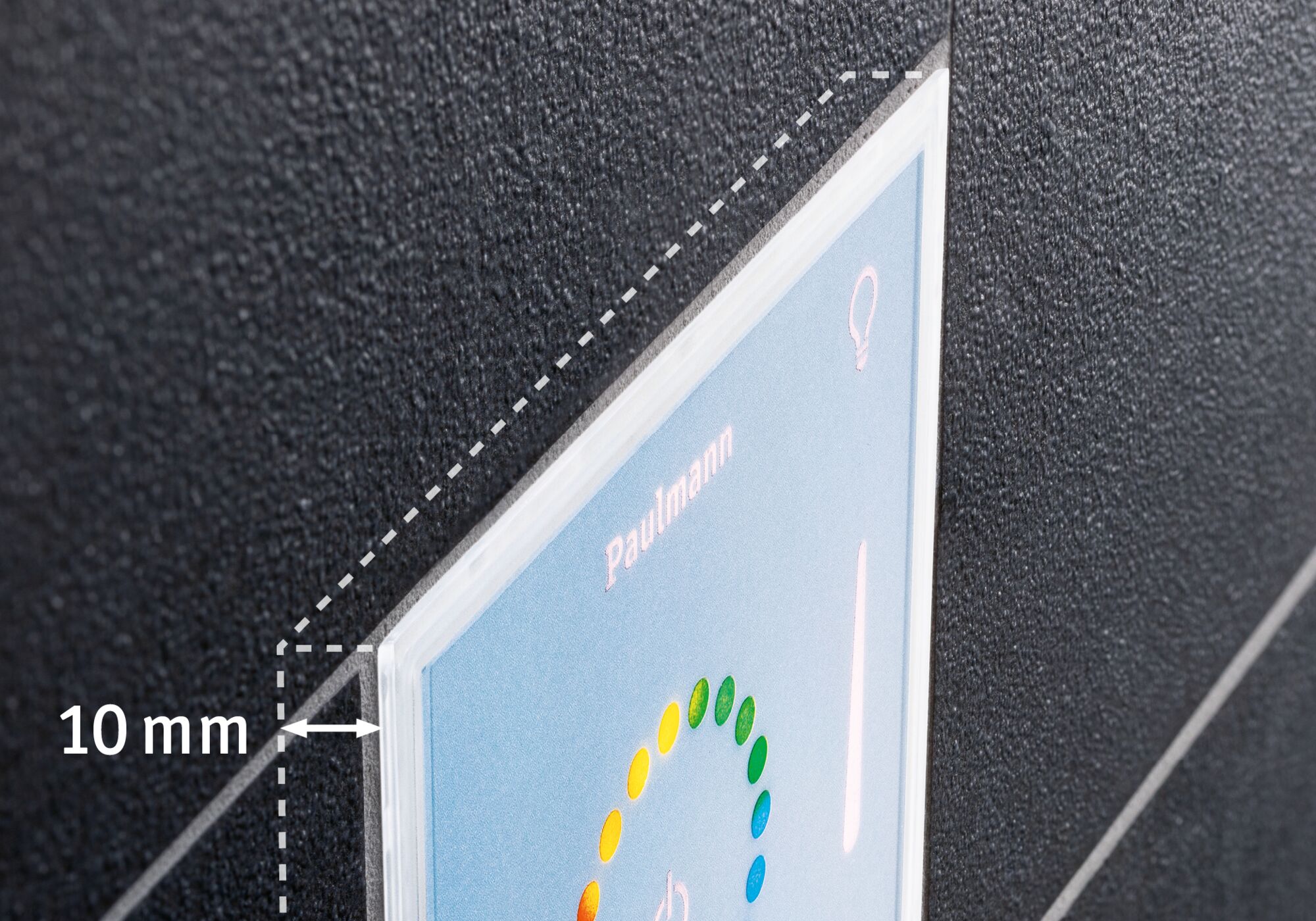

| Dimensions (Height x Width x Depth) | H: 100 x B: 100 x T: 10 mm |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic, Aluminium |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour change | Color change RGBW, Tunable White |
| Lamp Features | |
|---|---|
| Compatible Smart Home technology | Zigbee |
| Technique | Accessories without bulbs |
| IP protection | IP44 |
| Inclusive lamp | no |
| Adjustability | fixed |
| protection class | protection class III |
| Replacable | 7 not concerned. |
| Power consumption | 0,25 W |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 25 m |
Downloads

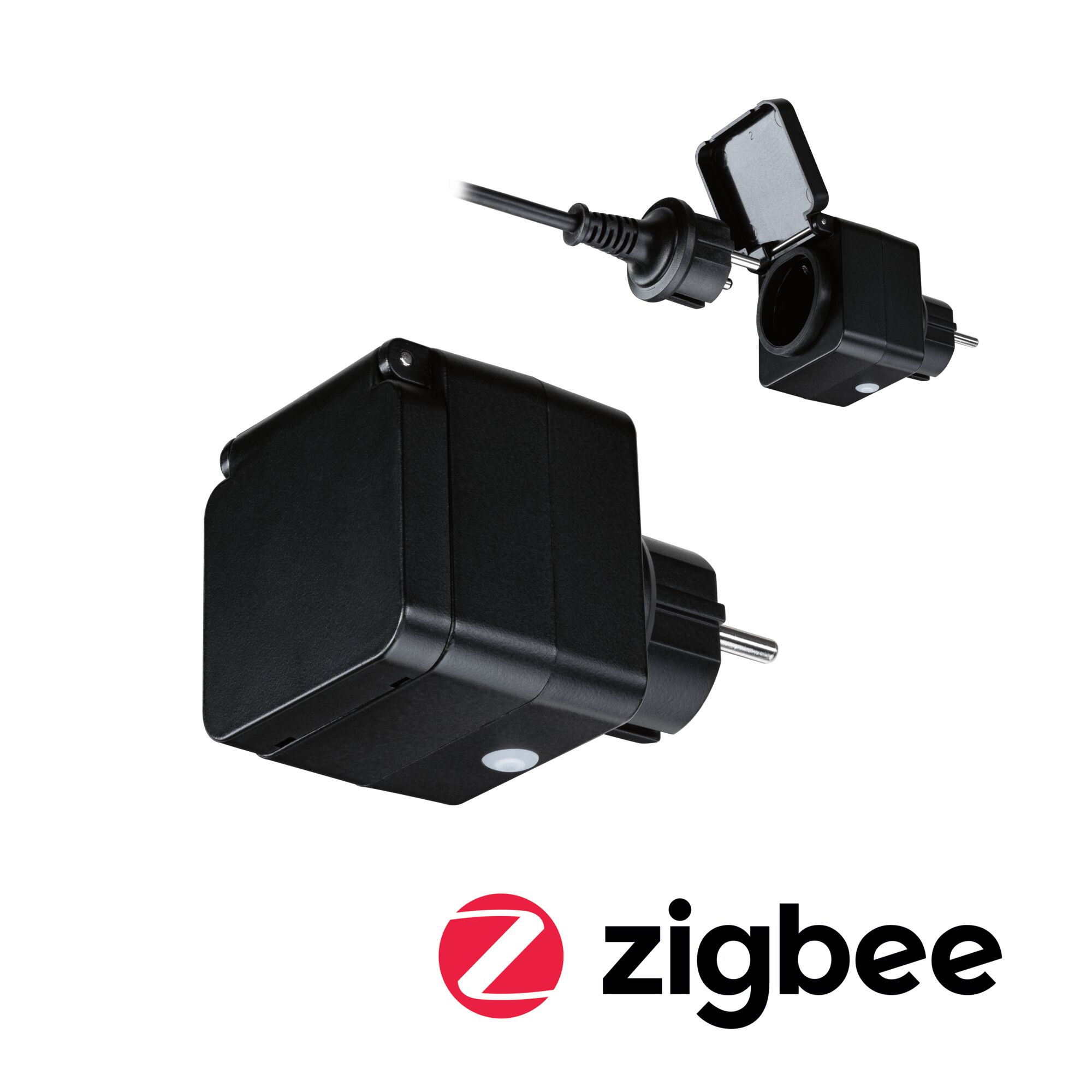

- Plug adapter
- Plug adapter
- Remote control
- Remote control

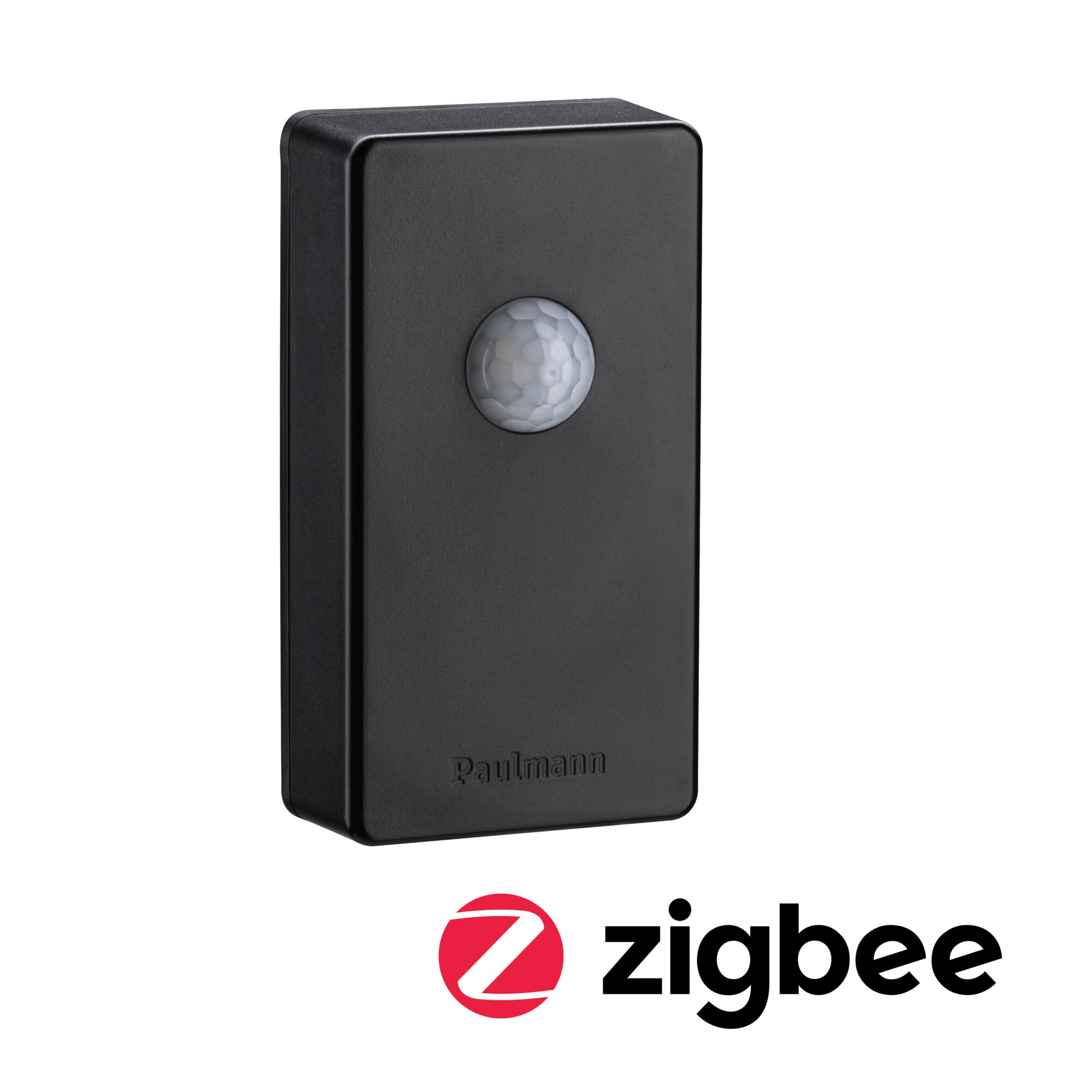

- Sensor

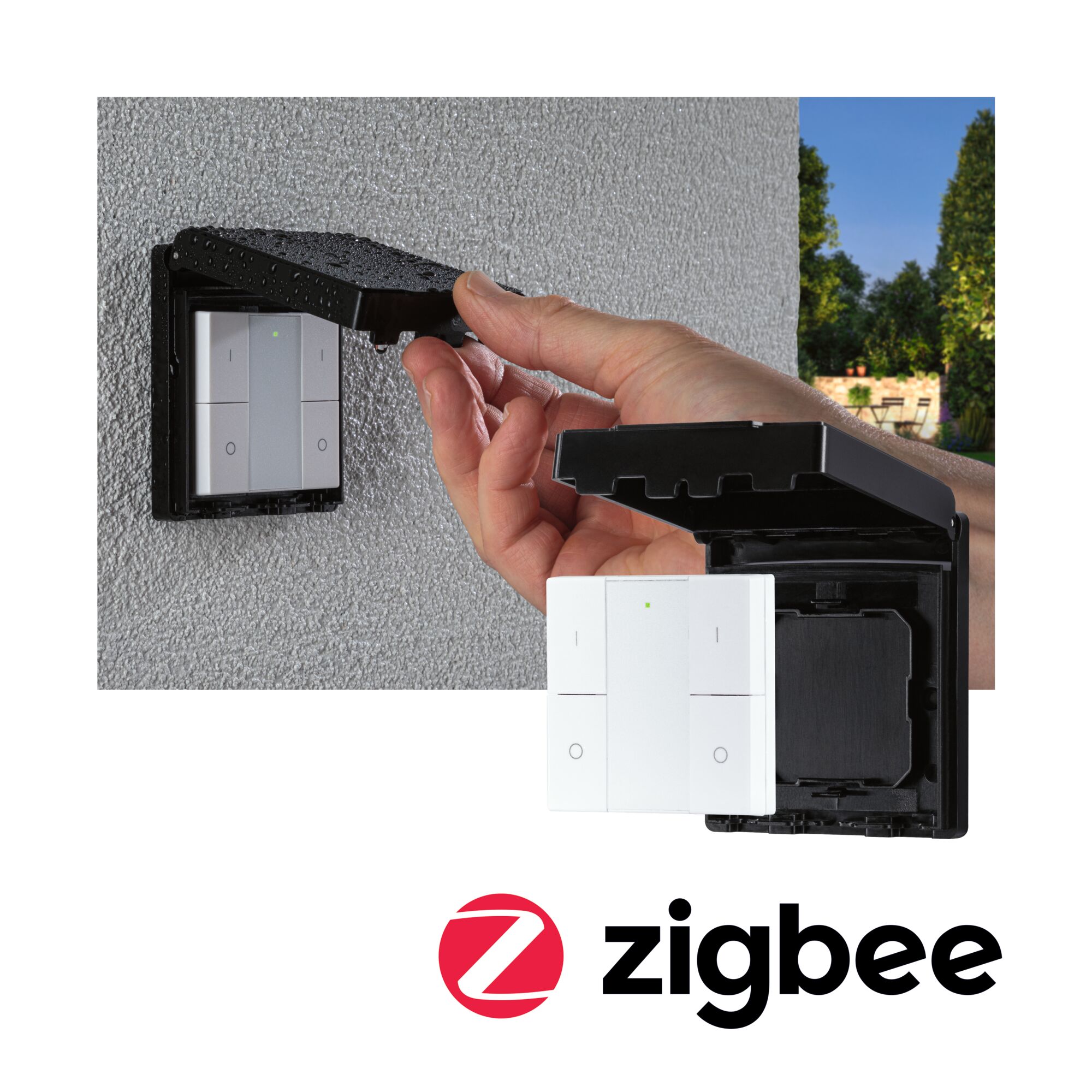

- Wall switch
