Article-No.:
28910
Low voltage reflector
Juwel
GU5,3 12V 230lm 3W 2700K Silver
GU5,3 12V 230lm 3W 2700K Silver
A
G
G
- Directional light
- Reflector
- Long lifetime: 15,000 h

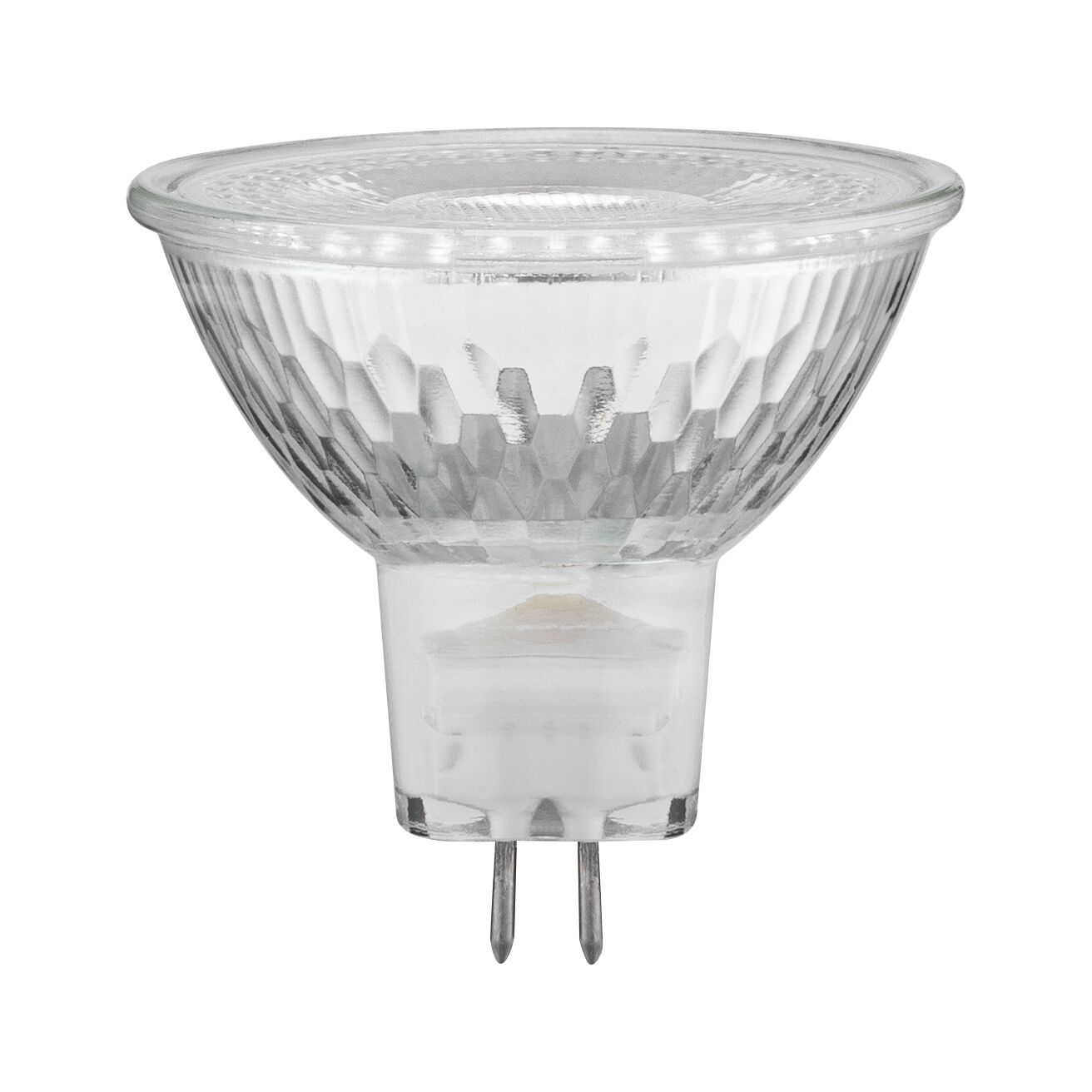

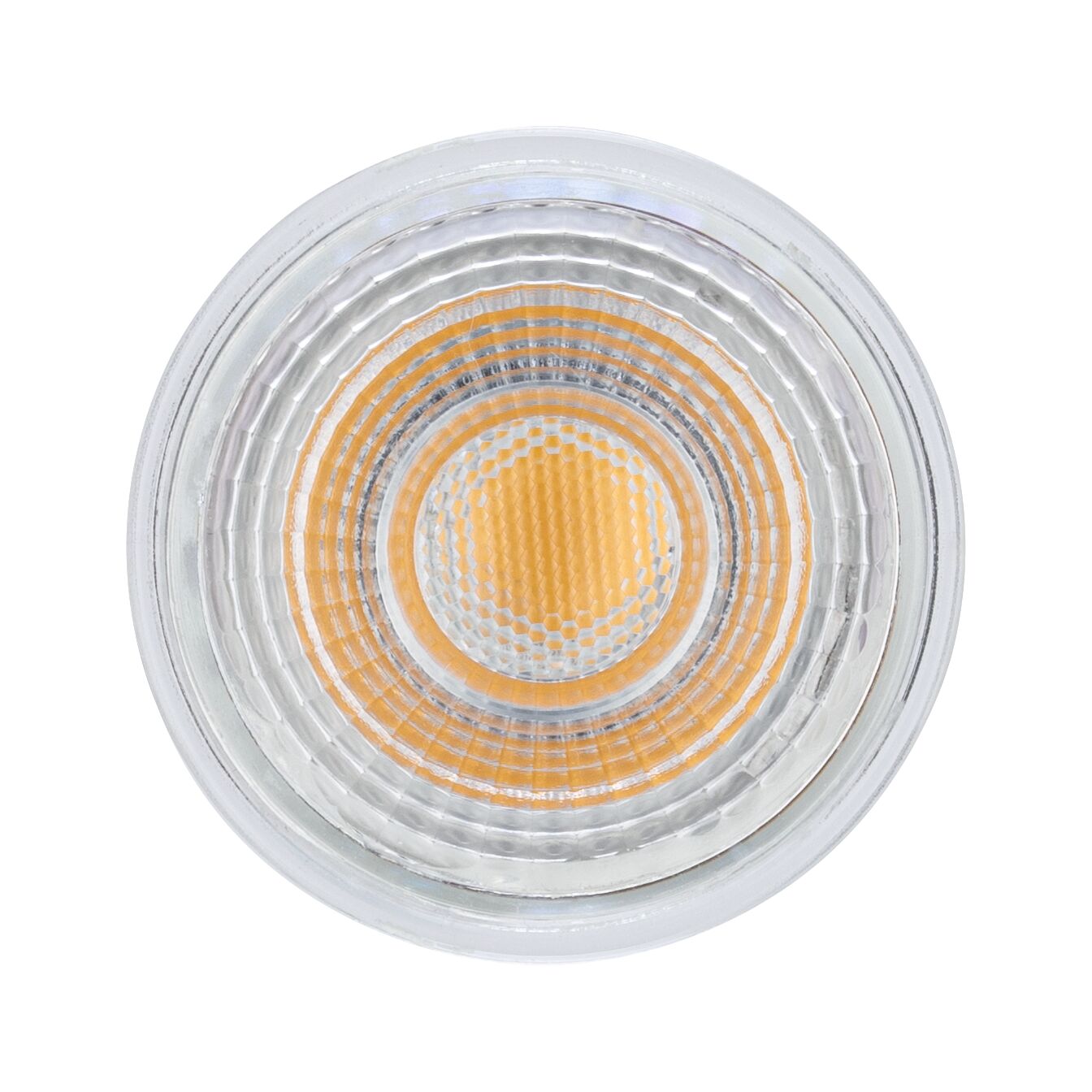

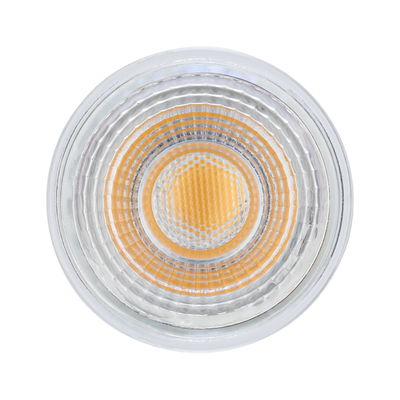

Low voltage reflector Juwel GU5,3 12V 230lm 3W 2700K Silver

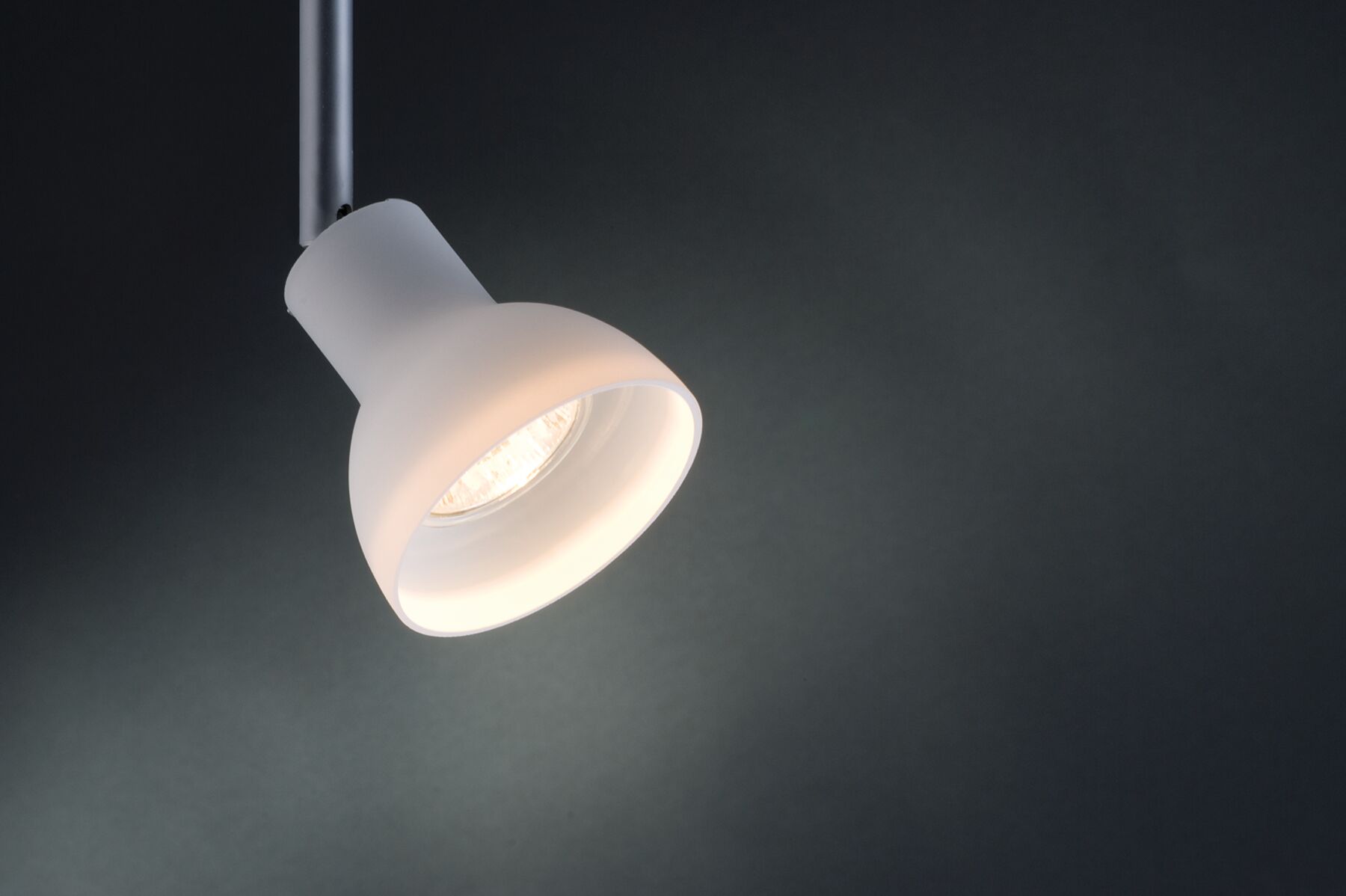

Reflector lamps for directed light in spotlights, spots and downlights
- Directional light
- Reflector
- Long lifetime: 15,000 h
- Dimmable
| Dimension | |
|---|---|

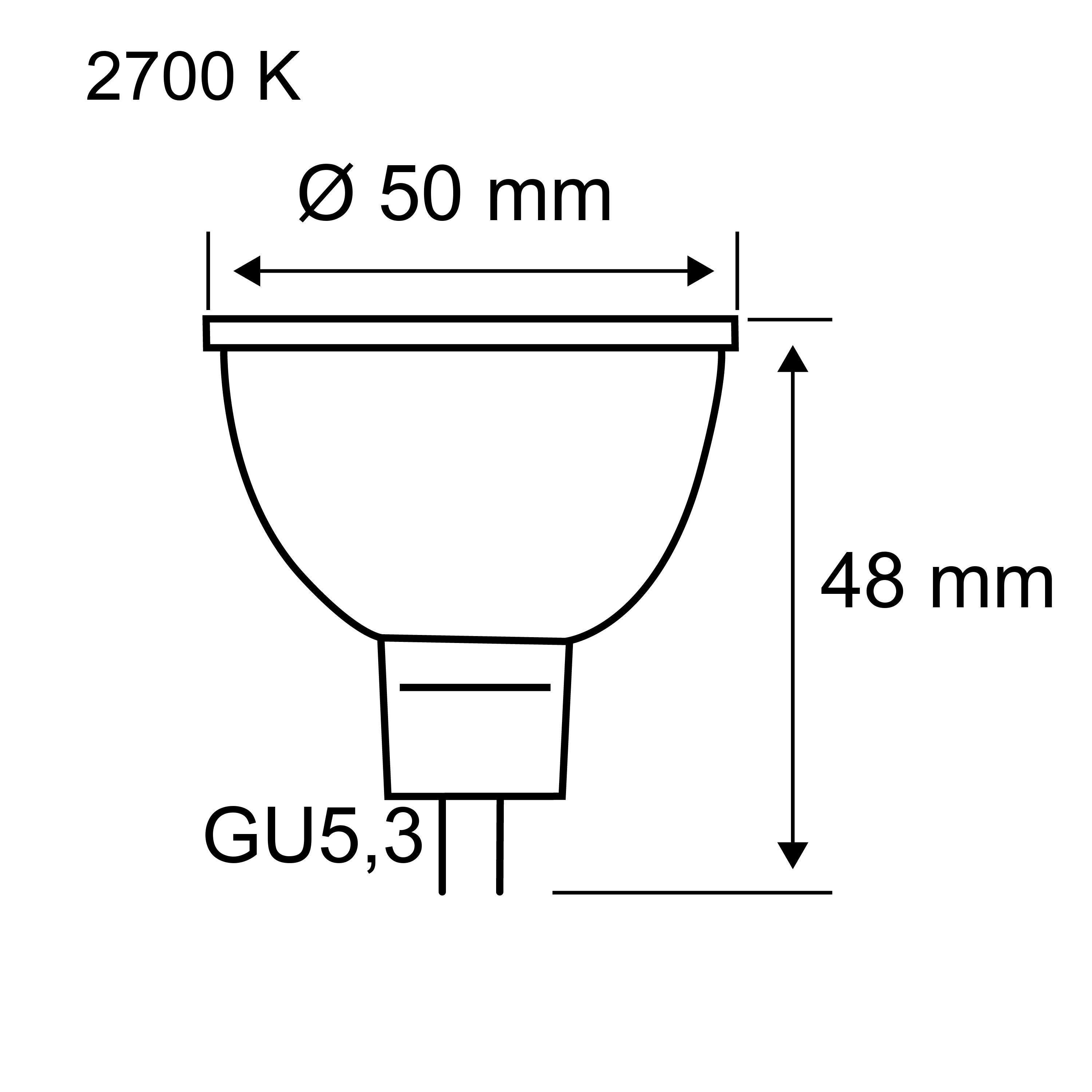

| Dimensions (Height x Width x Depth) | H: 48 mm |
| Ø | 50 mm |
| Design and Material | |
|---|---|
| Colour | Silver |
| Energy consumption | |
|---|---|
| energy efficiency (A to G) | G |
| Energy consumption | 3 kWh_1000h |
| Service life | |
|---|---|
| Lamp lumen maintenance factor 6000h | 85 % |
| luminous flux at the end of lamplife | 75 % |
| Number of switching cycles >= | 50000 |
| lifetime | 15.000 h |
| Rated life time | 15000 h |
| Light Characteristics | |
|---|---|
| Color temp. | 2700 K |
| Beam angle | 38 ° |
| Useful luminous flux | 230 lm |
| color temp | 2.700 K |
| colour consistency | <= 6 Step of the MacAdam ellipse |
| Color rendering index | > 80 Ra |
| Rated peak intensity | 520 cd |
| Luminous intensity | 520 cd |
| Rated luminous flux (Lumen) | 230 lm |
| Lamp Features | |
|---|---|
| Component parts | 3 W |
| Technique | LED |
| Socket | GU5,3 |
| Type | Reflector |
| Dimmable | No |
| Incandescent Equivalent | 26 W |
| Inclusive lamp | ✓ |
| Number of component parts | 1x |
| Transformer | |
|---|---|
| apparent power | 4 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
