Article-No.:
5476
Linion
Light Channel
Smart Home Zigbee 3.0
S-shape Complete Set
230/24V W 3000K Chrome matt
230/24V W 3000K Chrome matt
- Complete set for installing lighting in an S-shape

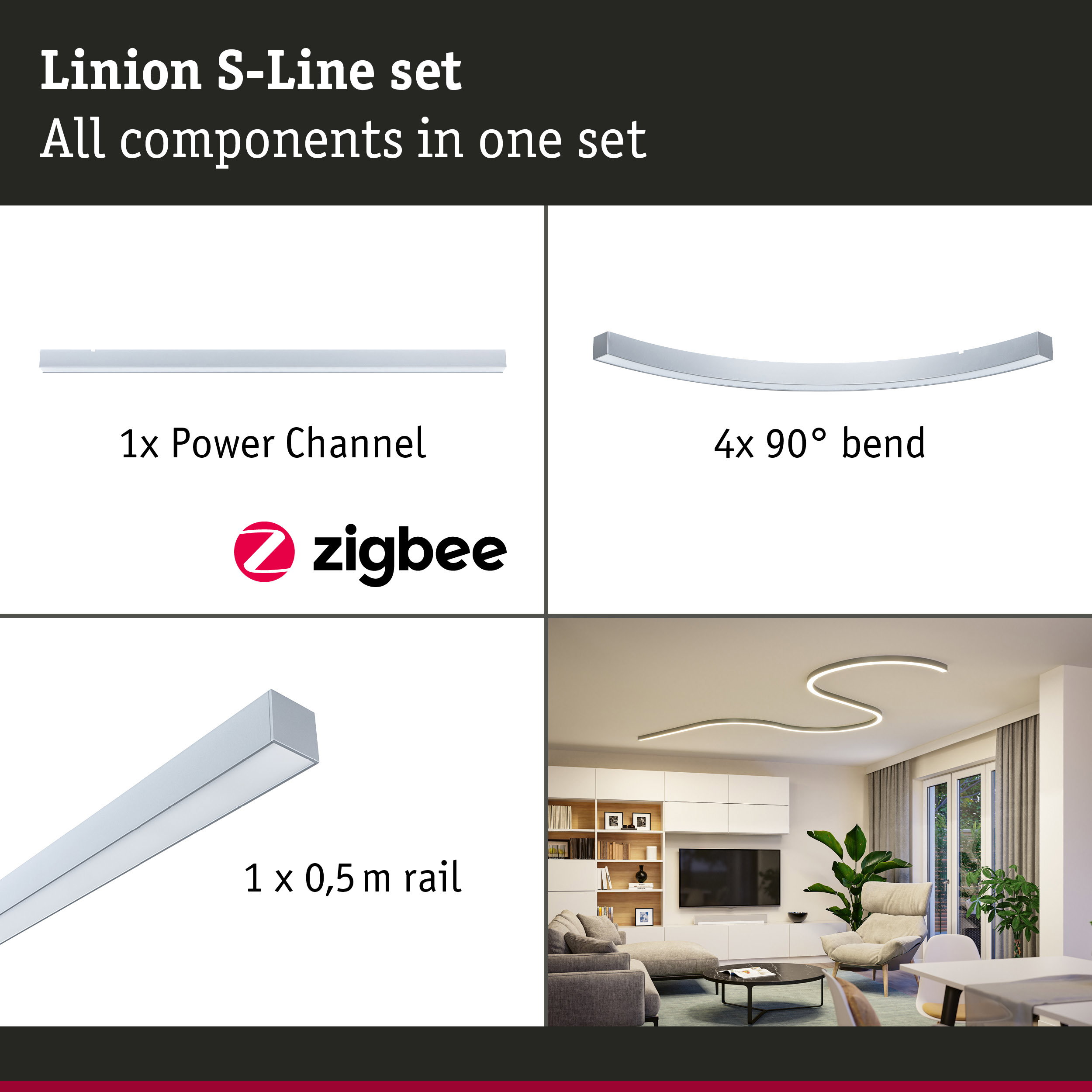

- Included in the pack: 1x Power Channel Zigbee (1m), 1x Light Channel (0.5m), 4x Bend (90°)
- Seamless lines of light, thanks to modular components
Linion Light Channel Smart Home Zigbee 3.0 S-shape Complete Set 230/24V W 3000K Chrome matt

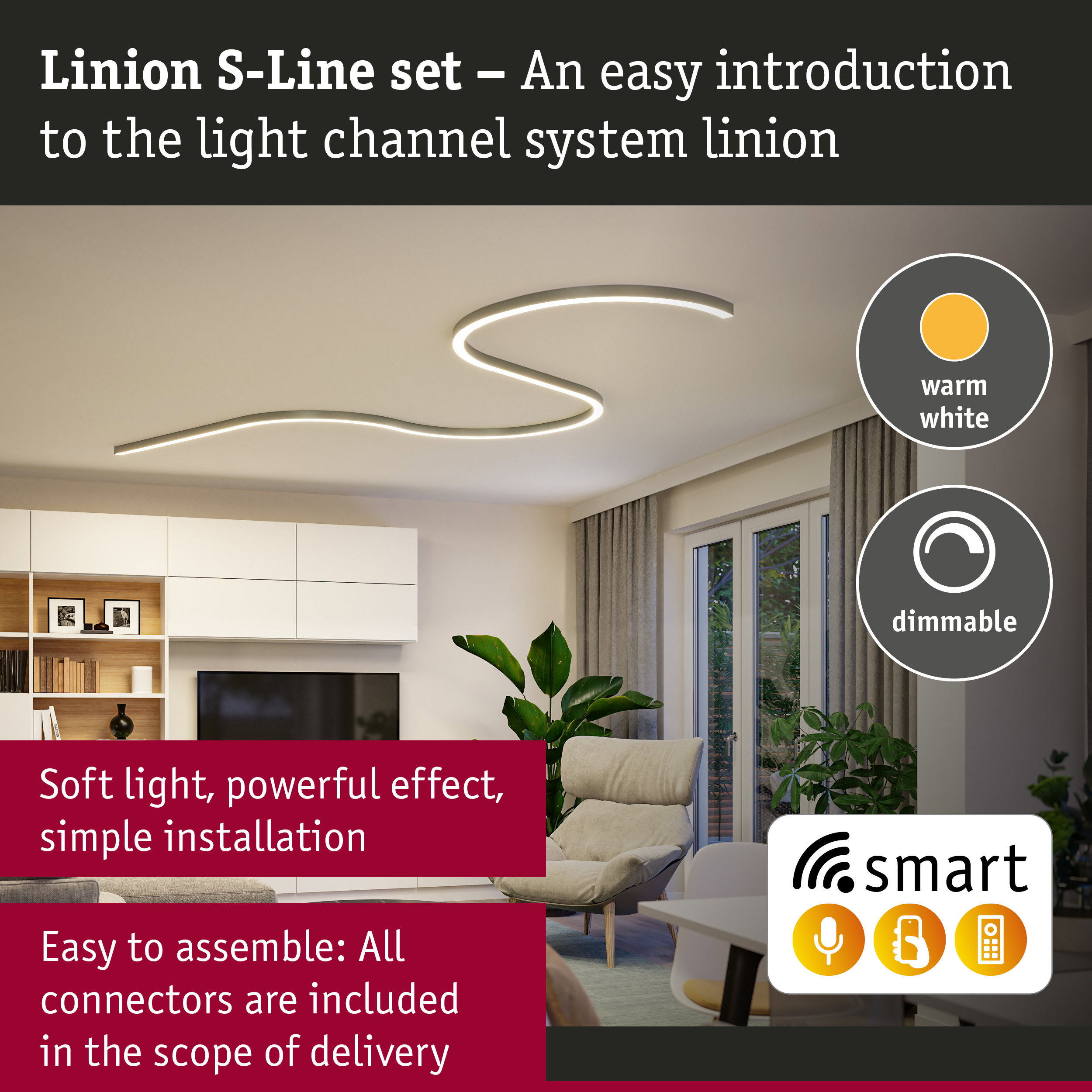

The unique light channel system linion sets new standards when it comes to custom indoor lighting. With its sleek and clear design, the System provides attractive and seamless lighting. The modular lighting components are available as straight sections, curves, and corners and can be flexibly combined. This complete set in Chrome matt contains all the necessary components for an S-shaped light channel installation. The set includes 4x 90° curves, 1x 0.5 m light channel, and a 1 m Power Channel with an integrated transformer and Zigbee interface. This can be mounted directly on the power outlet and allows for the connection of additional lighting components from the System on both sides, up to 8 m and 124 W. Thanks to the Zigbee 3.0 interface, the connected lighting components can be conveniently dimmed via remote control, voice control, and a Zigbee gateway. The components feature a high-quality aluminum housing in a timeless signal black finish. With a colour temperature of 3000K, they create a bright, warm white lighting atmosphere. All necessary connectors and end caps are included in the package.
- Complete set for installing lighting in an S-shape
- Included in the pack: 1x Power Channel Zigbee (1m), 1x Light Channel (0.5m), 4x Bend (90°)
- Seamless lines of light, thanks to modular components
- Uniform and glare-free light for your living space
- High-quality aluminium housing
- Colour temp.: 3000K – warm white
- Enables convenient controls via Zigbee technology
- Easy to assemble using a ‘plug & play’ connection
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 40 mm |
| Length | 3,5 m |
| Net weight | 3143 g |
| Design and Material | |
|---|---|
| Colour | Chrome matt |
| Material | Plastic, Aluminium |
| Installation | |
|---|---|
| Mounting location | Ceiling, Wall |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Dimming Control | with Smart Home, with remote control |
| Inclusive lamp | yes |
| Component parts | 77,5 W |
| light source property | Light source integrated (non-replacable) |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | Yes |
| Maximum wattage range | max. 144 W |
| Protection class | Protection class II |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 150 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 4560 lm |
| Color rendering index | > 80 Ra |
| Colour temperature | Warm white, 3000 K |
| Luminous flux LED module | 8270 lm |
| Rechargeable battery / battery data | |
|---|---|
| Dimensions (Height x Width x Depth) | 40 mm |
