Article-No.:
98176
Linion
Light Channel
90 °
24V 3,5W 3000K Chrome matt
24V 3,5W 3000K Chrome matt
- Seamless lines of light, thanks to modular components
- Uniform and glare-free light for your living space
- Clean, attractive design

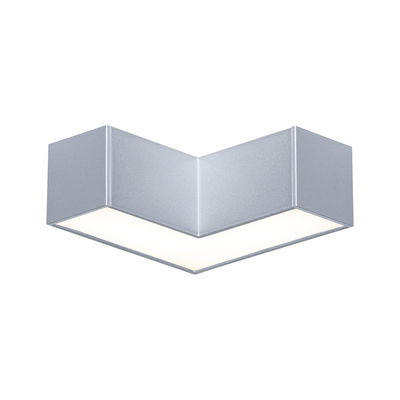

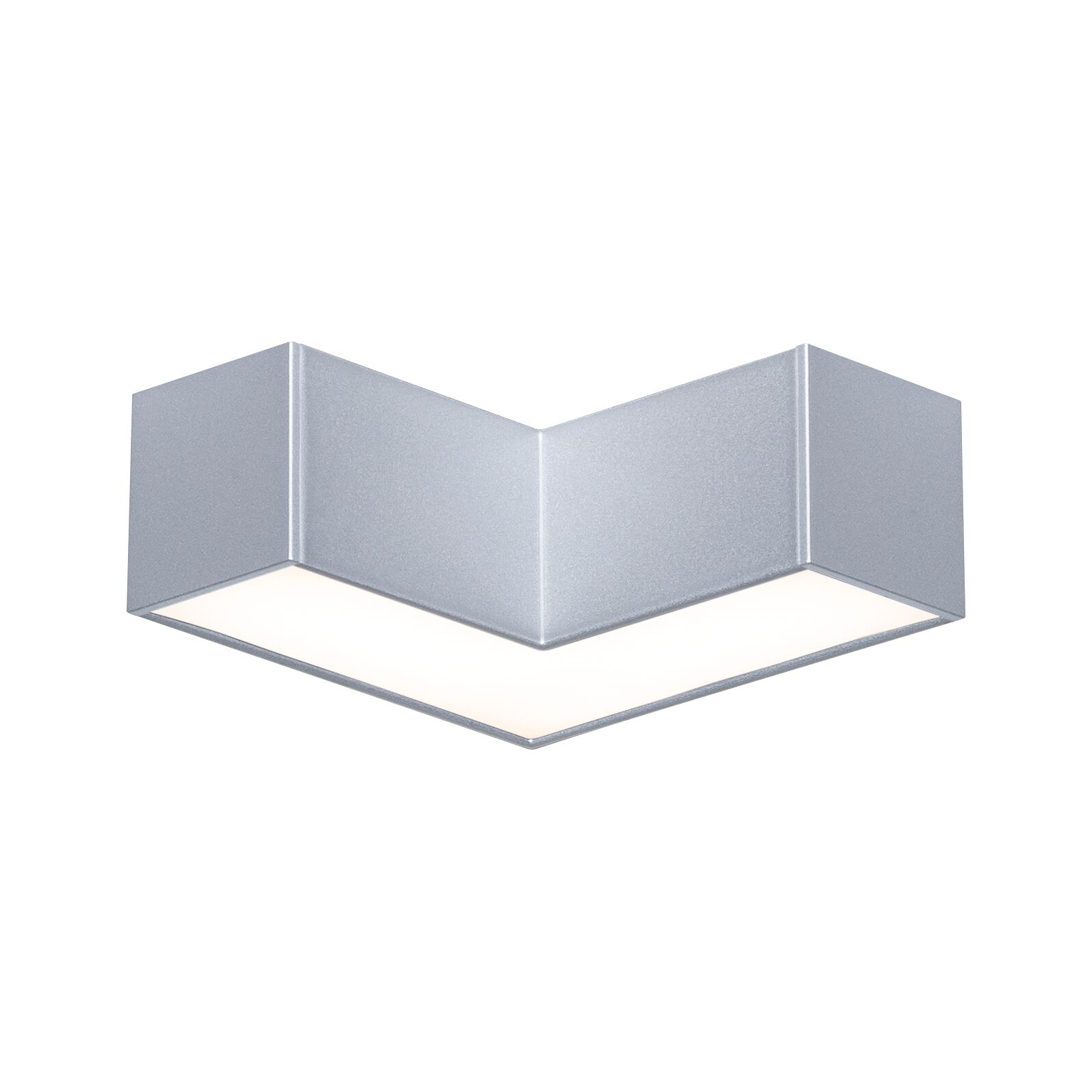

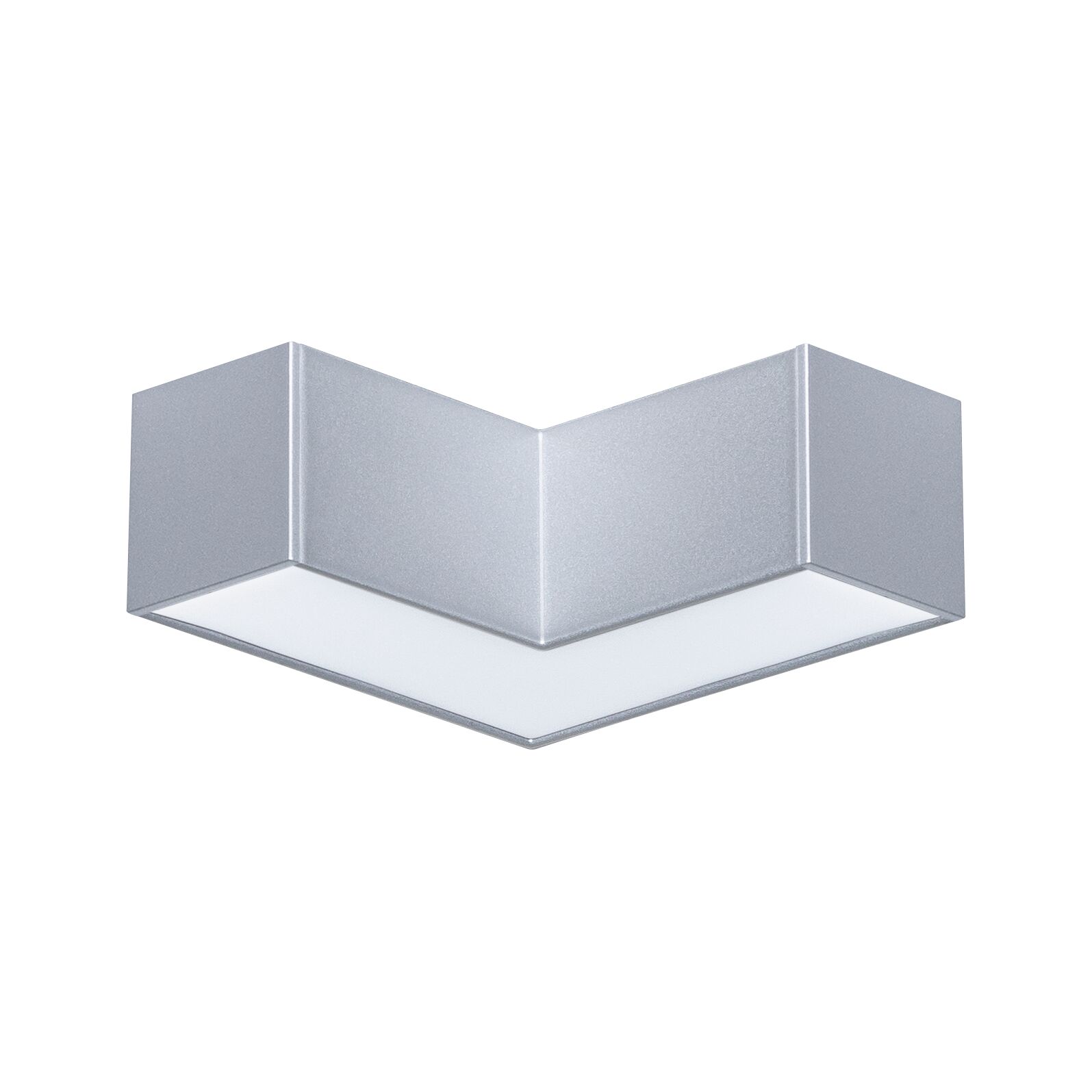

Linion Light Channel 90 ° 24V 3,5W 3000K Chrome matt

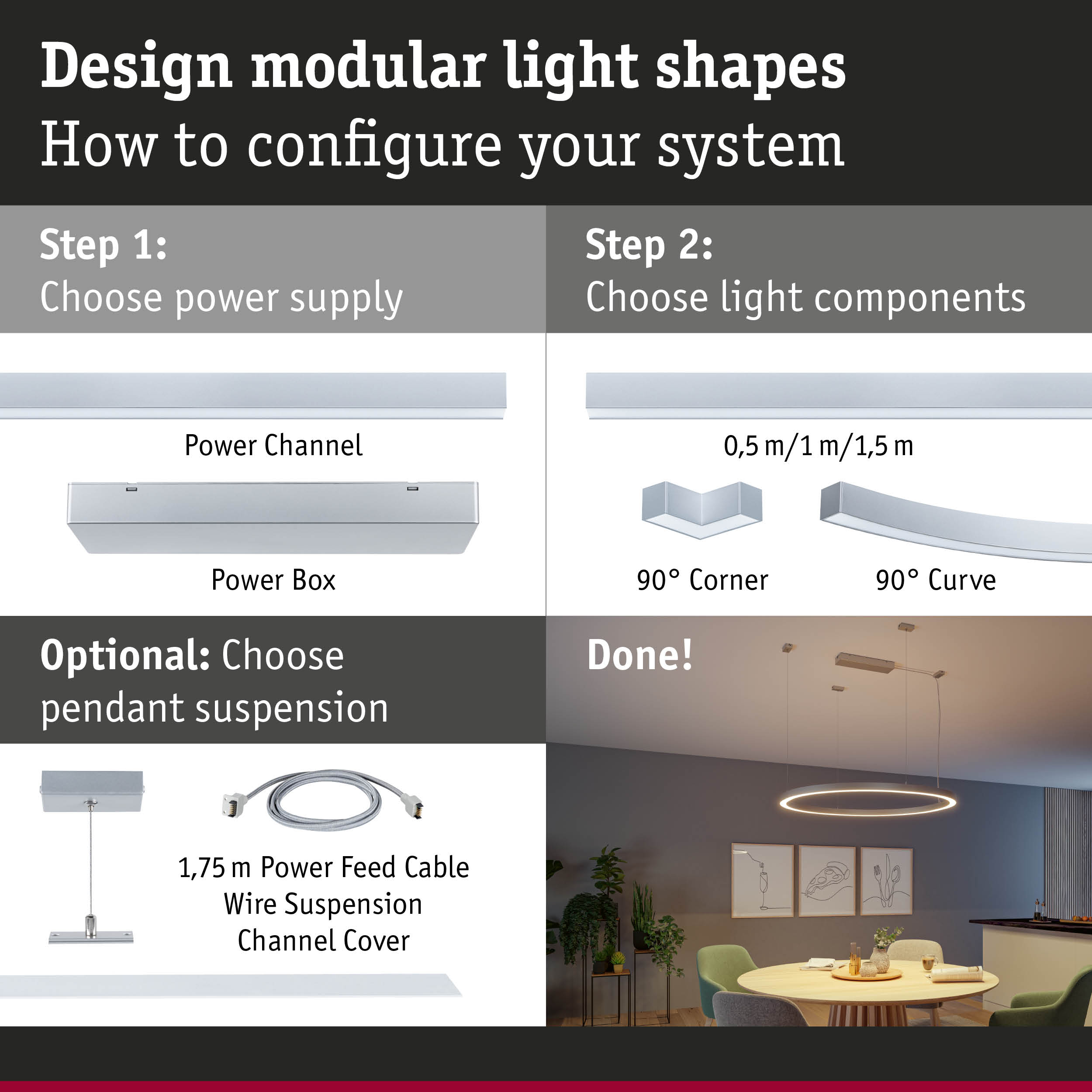

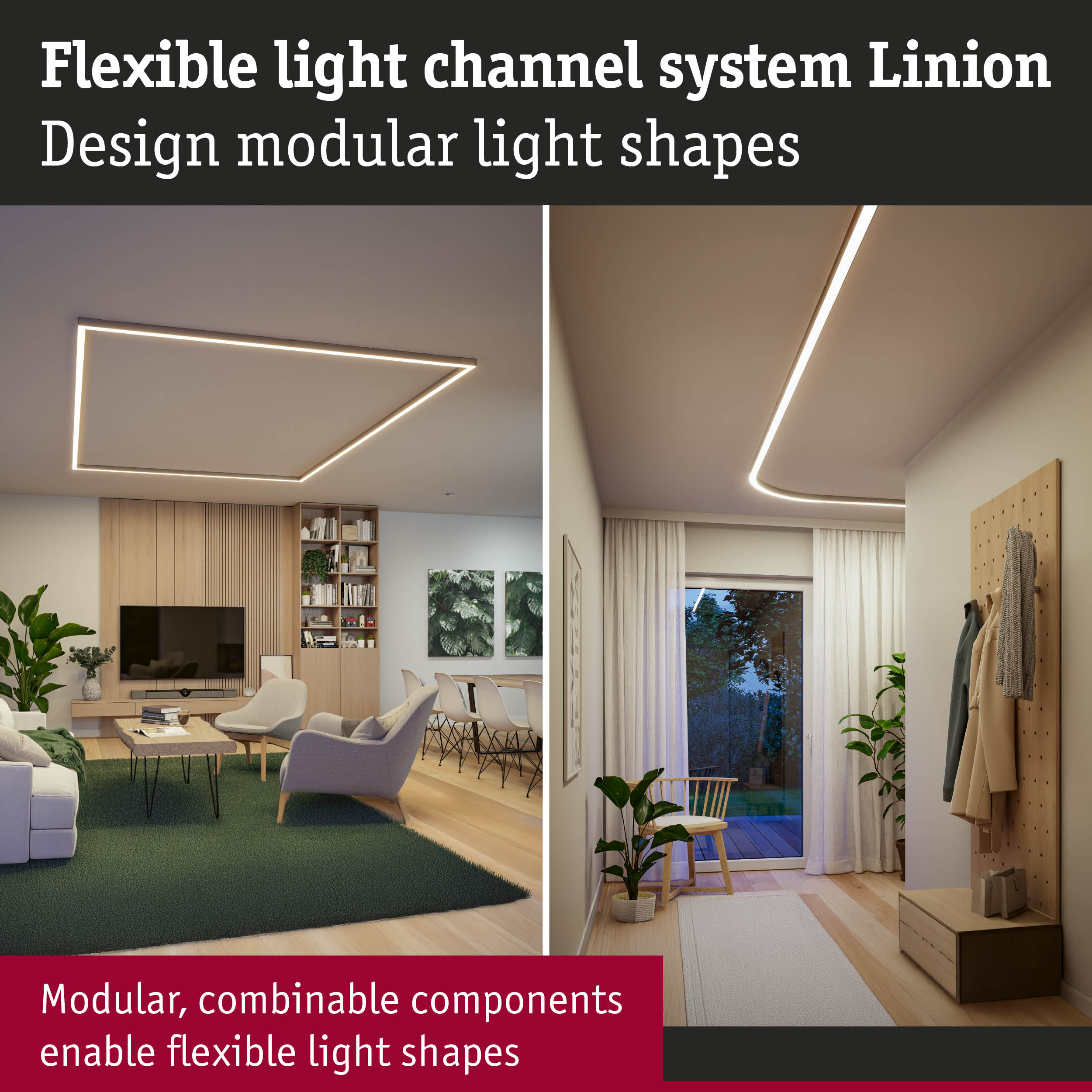

The unique Linion light channel system sets new standards in individual room lighting. With its aesthetically pleasing and clean design, the system provides seamless and attractive lighting. The modular light components are available as straight, curved and corner pieces and can be flexibly combined. This results in individual light shapes that can be compiled up to a system length of 8 metres – suitable for every living concept. The Light channel corner with a 90° angle consists of a high-quality aluminium housing in timeless Chrome matt and creates a bright, warm white lighting atmosphere with an output of 3,5W and a colour temperature of 3000K. With the corresponding infeed module, the system can also be dimmed via Zigbee technology. Installation couldn’t be easier, as all the necessary connectors are already included in delivery. If you want to use your system as a pendant light, additional optional accessories are available to you. Now you can make your system truly eye-catching. Note: The end caps are not included in the scope of delivery and are only supplied with the power supplies.
- Seamless lines of light, thanks to modular components
- Uniform and glare-free light for your living space
- Clean, attractive design
- High-quality aluminium housing
- Color temperatur: 3000K - Warm white
- Convenient controls possible using Zigbee technology

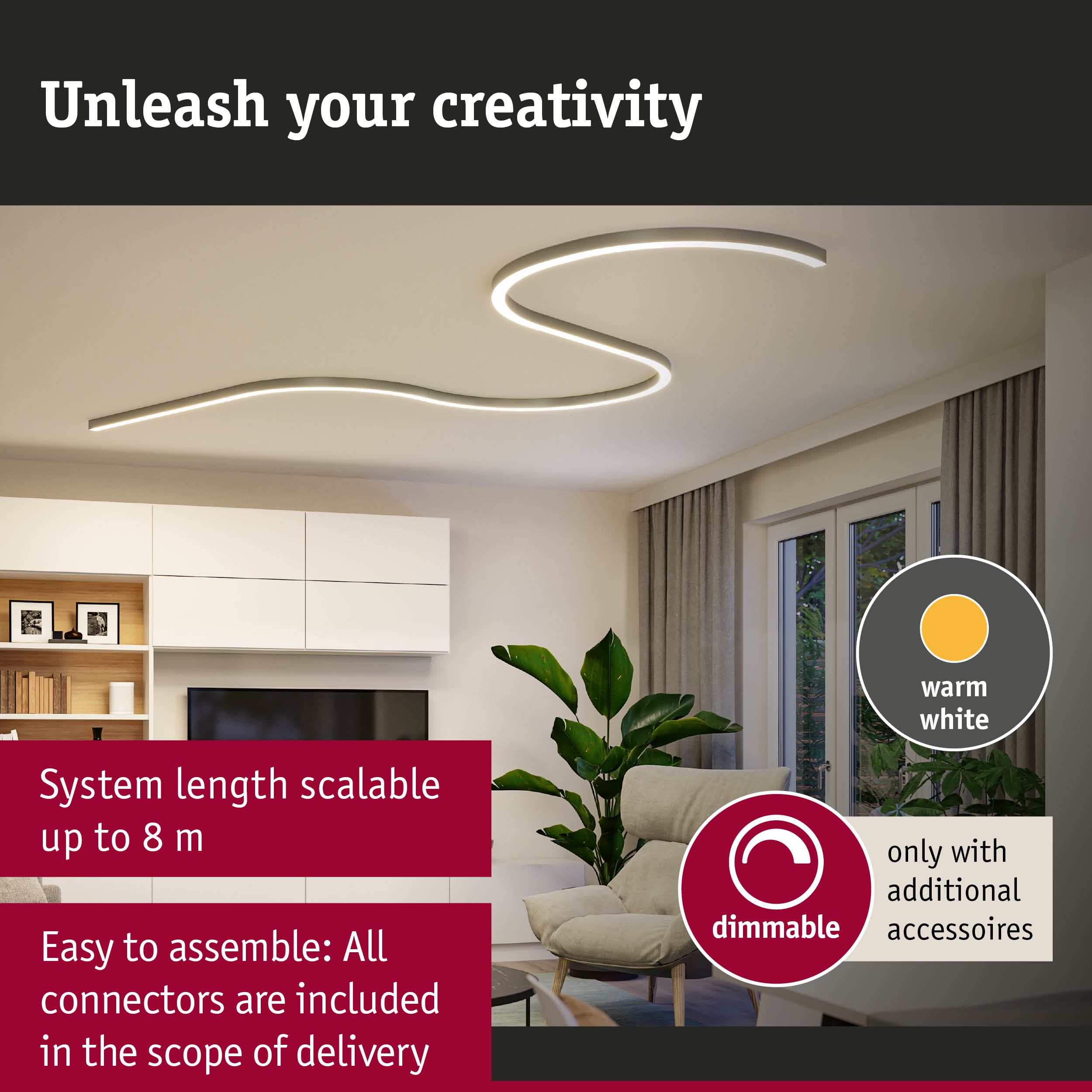

- with Zigbee controls, scalable up to a system length of 8m

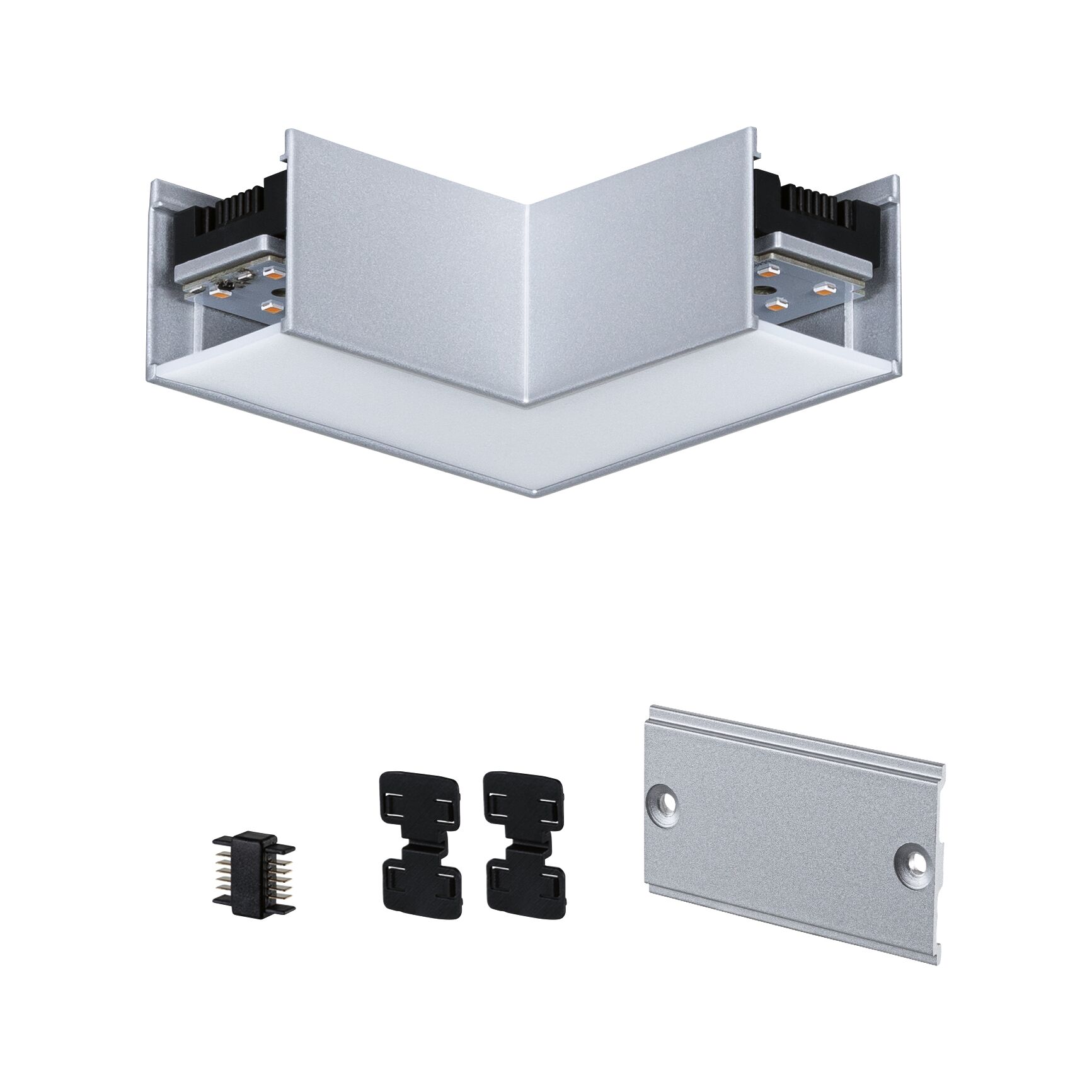

- Included in delivery: light channel corner including connectors and stability disc
- Easy to assemble using a ‘plug & play’ connection
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 40 x B: 100 x T: 100 mm |
| net weight | 252 g |
| Design and Material | |
|---|---|
| Colour | Chrome matt |
| Material | Plastic, Aluminium |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 200 lm |
| Color rendering index | > 80 Ra |
| Colour temperature | Warm white, 3000 K |
| Luminous flux LED module | 350 lm |
| Lamp Features | |
|---|---|
| Dimming Control | with Smart Home, with remote control |
| Inclusive lamp | yes |
| Component parts | 3,5 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 32 W |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | Yes |
| IP protection | IP20 |
| Protection class | Protection class III |
| Number of component parts | 1x |
| Power consumption | 3,5 W |
| Voltage | 24 V |
| Voltage type | DC |
| Transformer | |
|---|---|
| apparent power | 3.5 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
