Article-No.:
93583

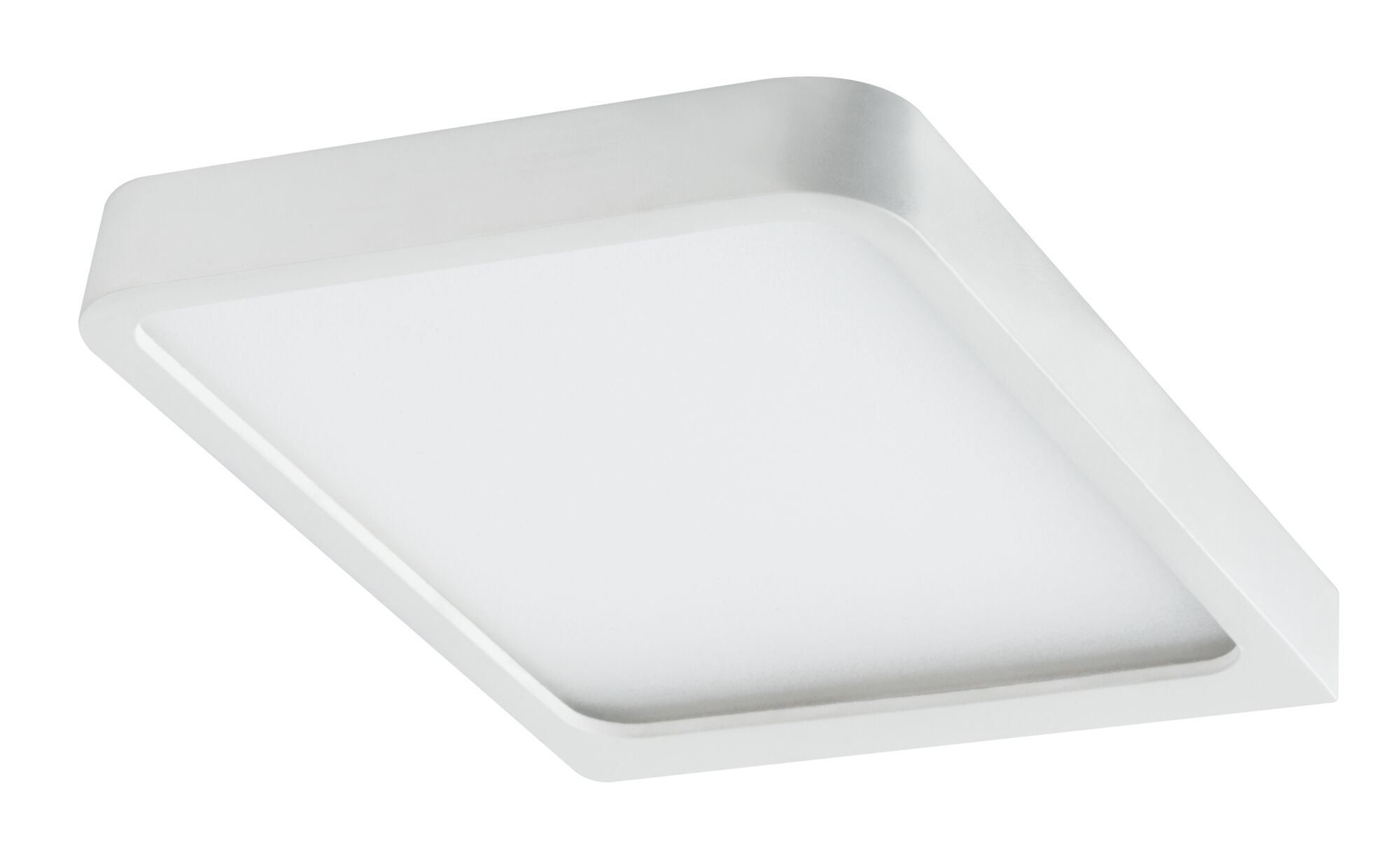

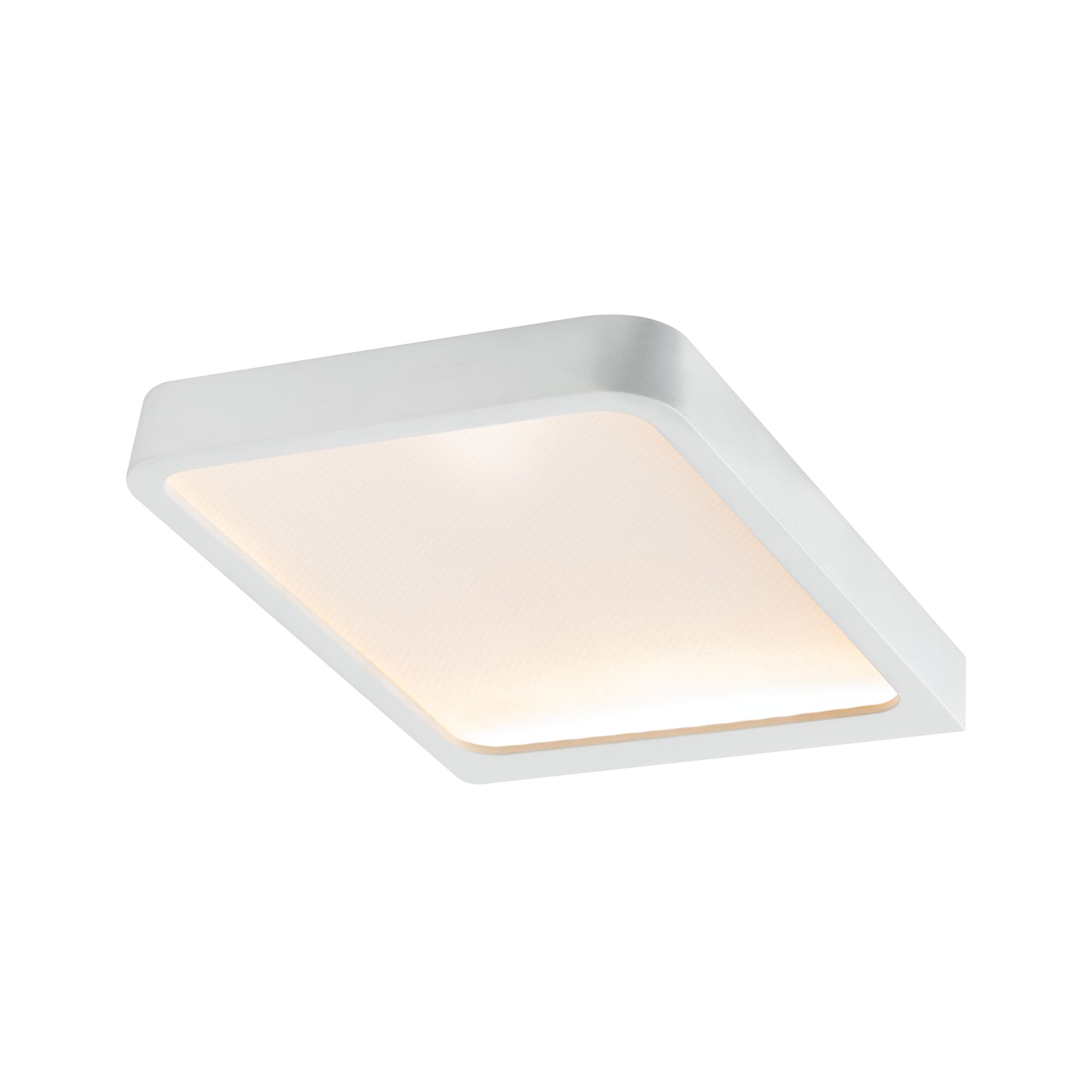

LED Under-cabinet luminaire
Vane
2x8W 105x140mm 2x430lm 230/12V angular Matt white
2x8W 105x140mm 2x430lm 230/12V angular Matt white

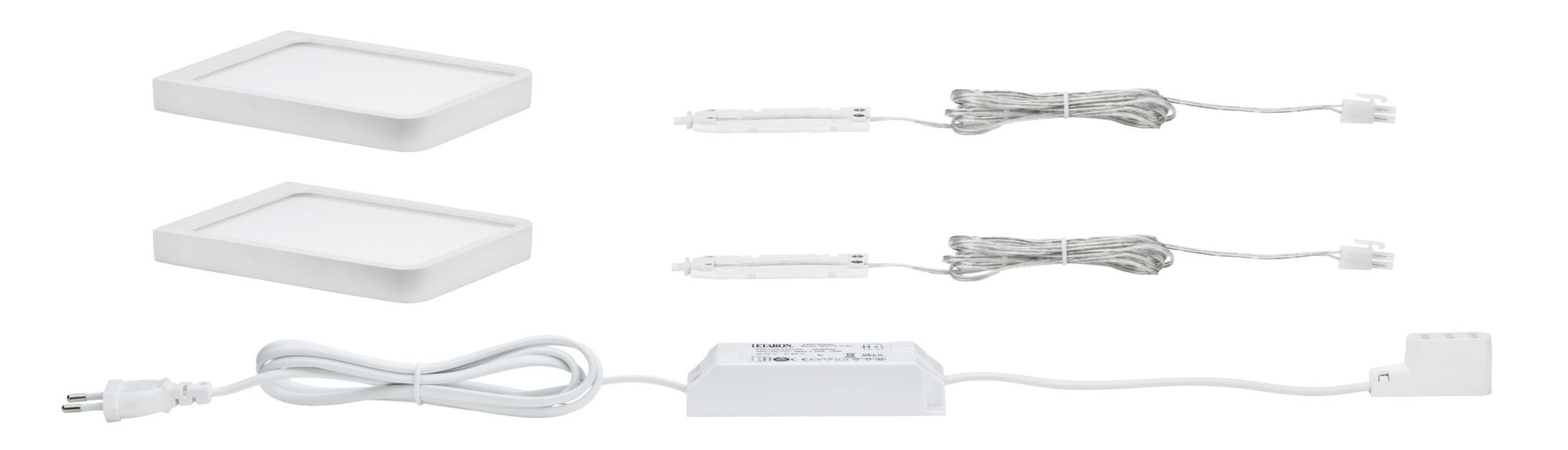

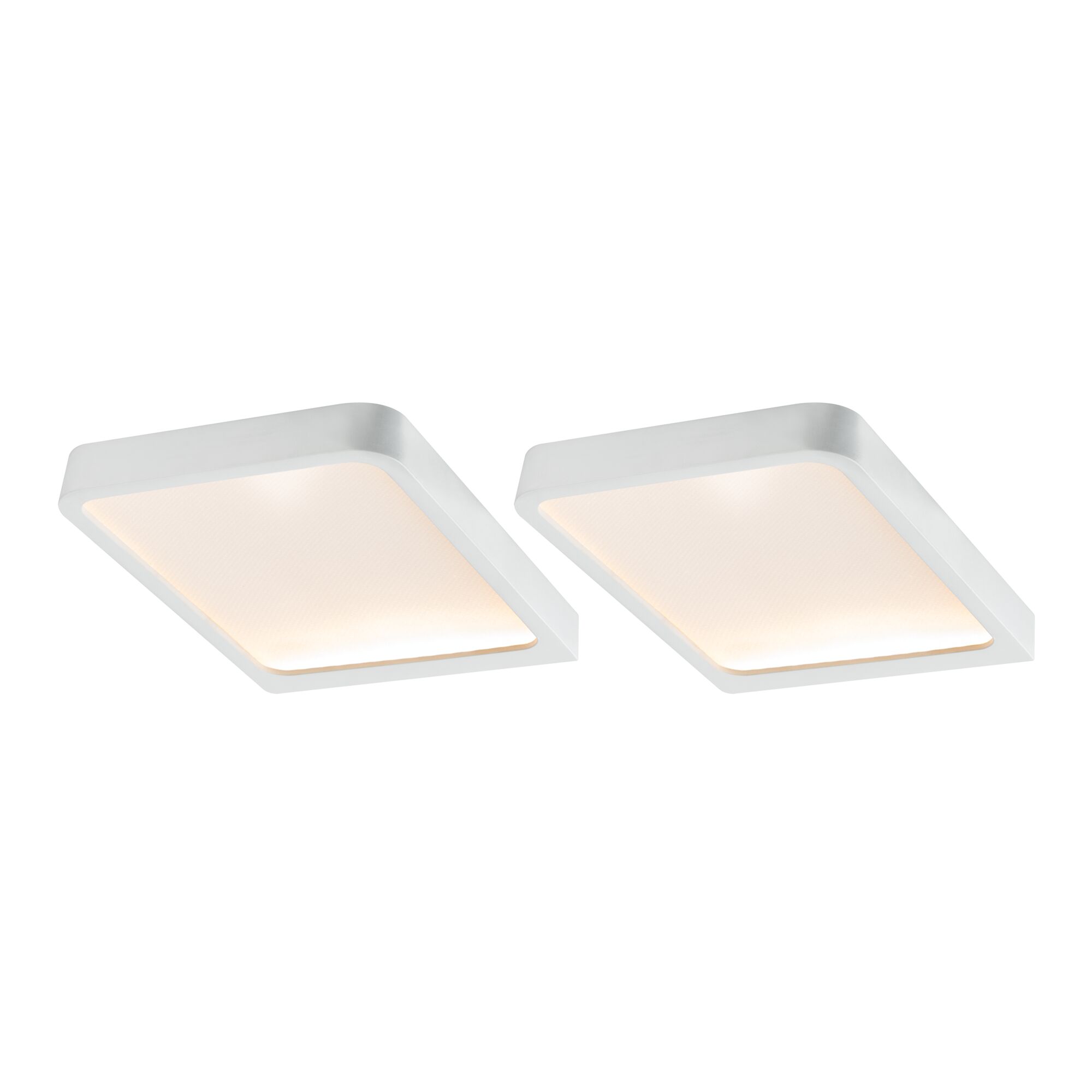

- Set of 2 luminaires incl. LED module and power supply unit

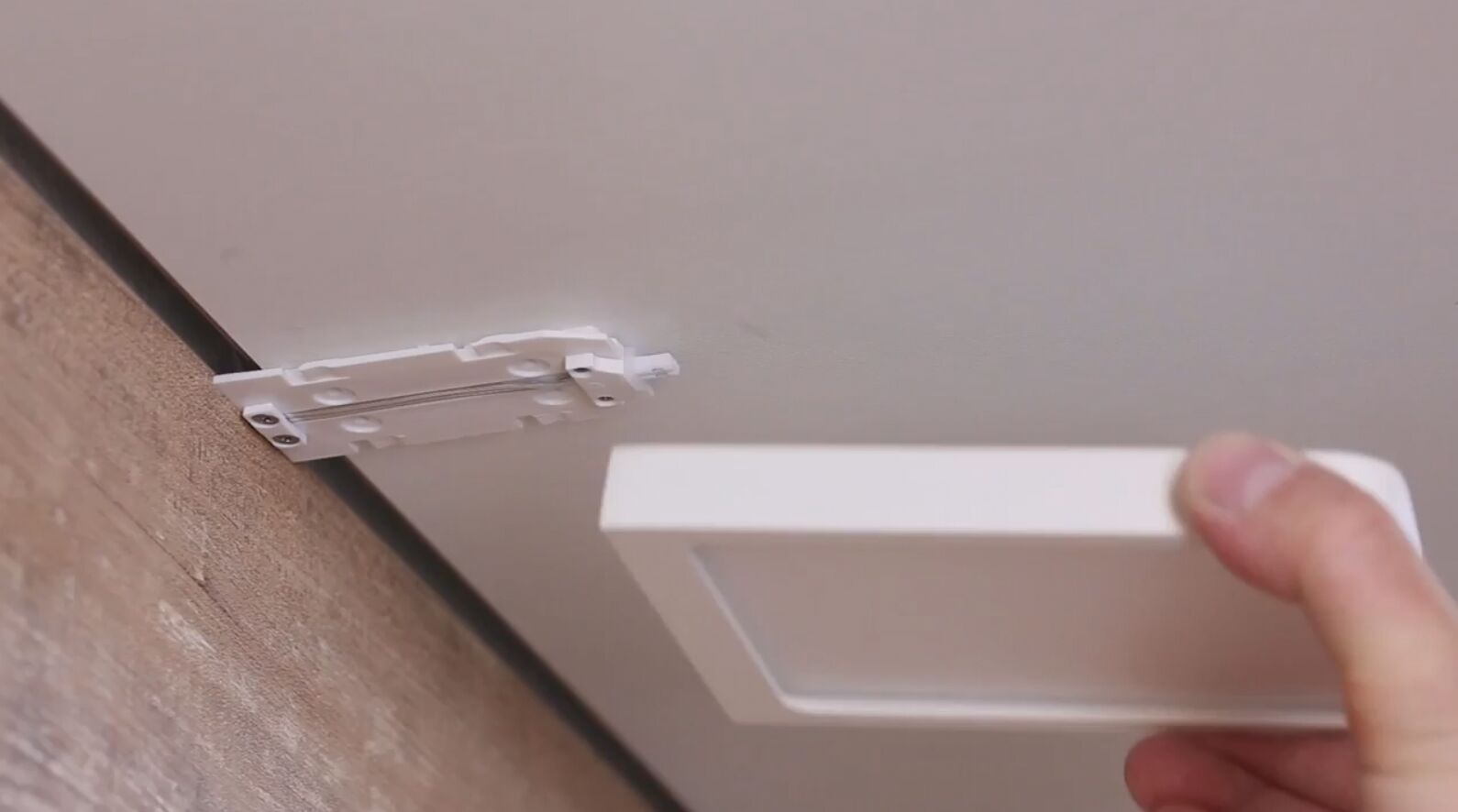

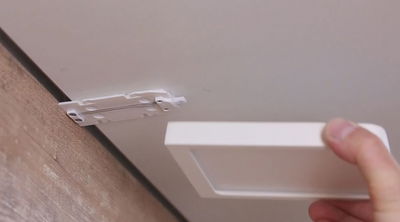

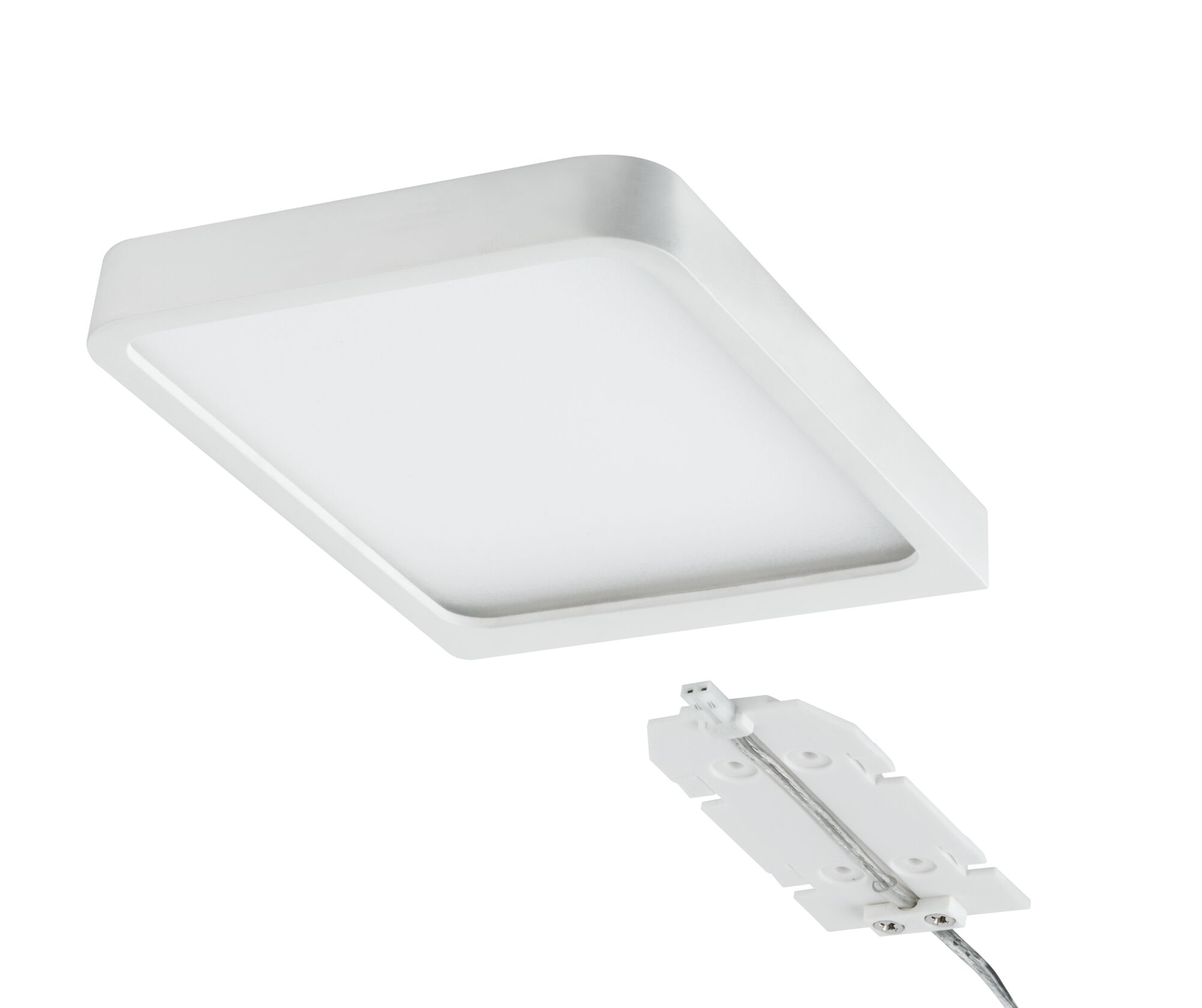

- Luminaires can be pulled off the holder for cleaning
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
LED Under-cabinet luminaire Vane 2x8W 105x140mm 2x430lm 230/12V angular Matt white

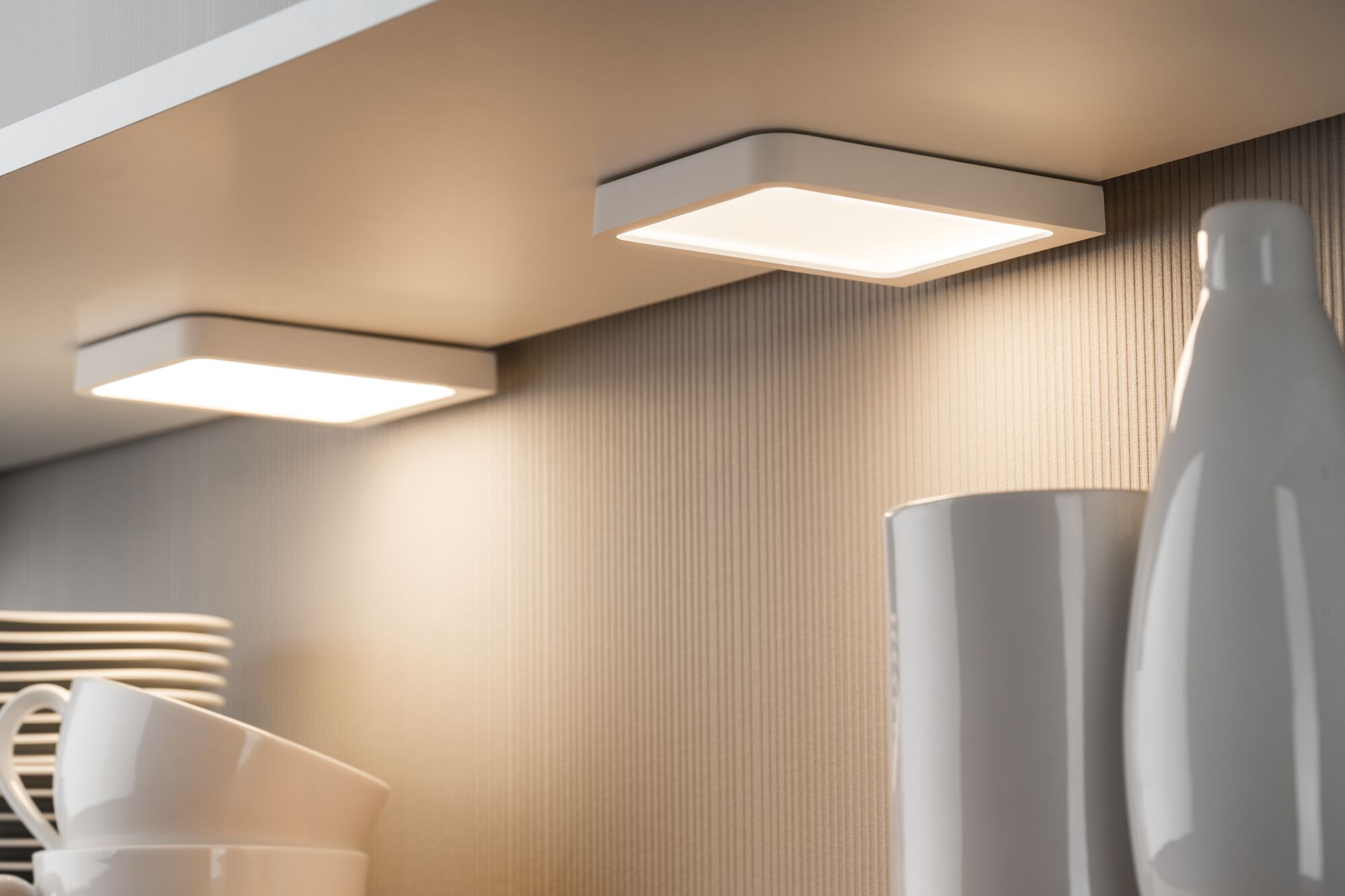

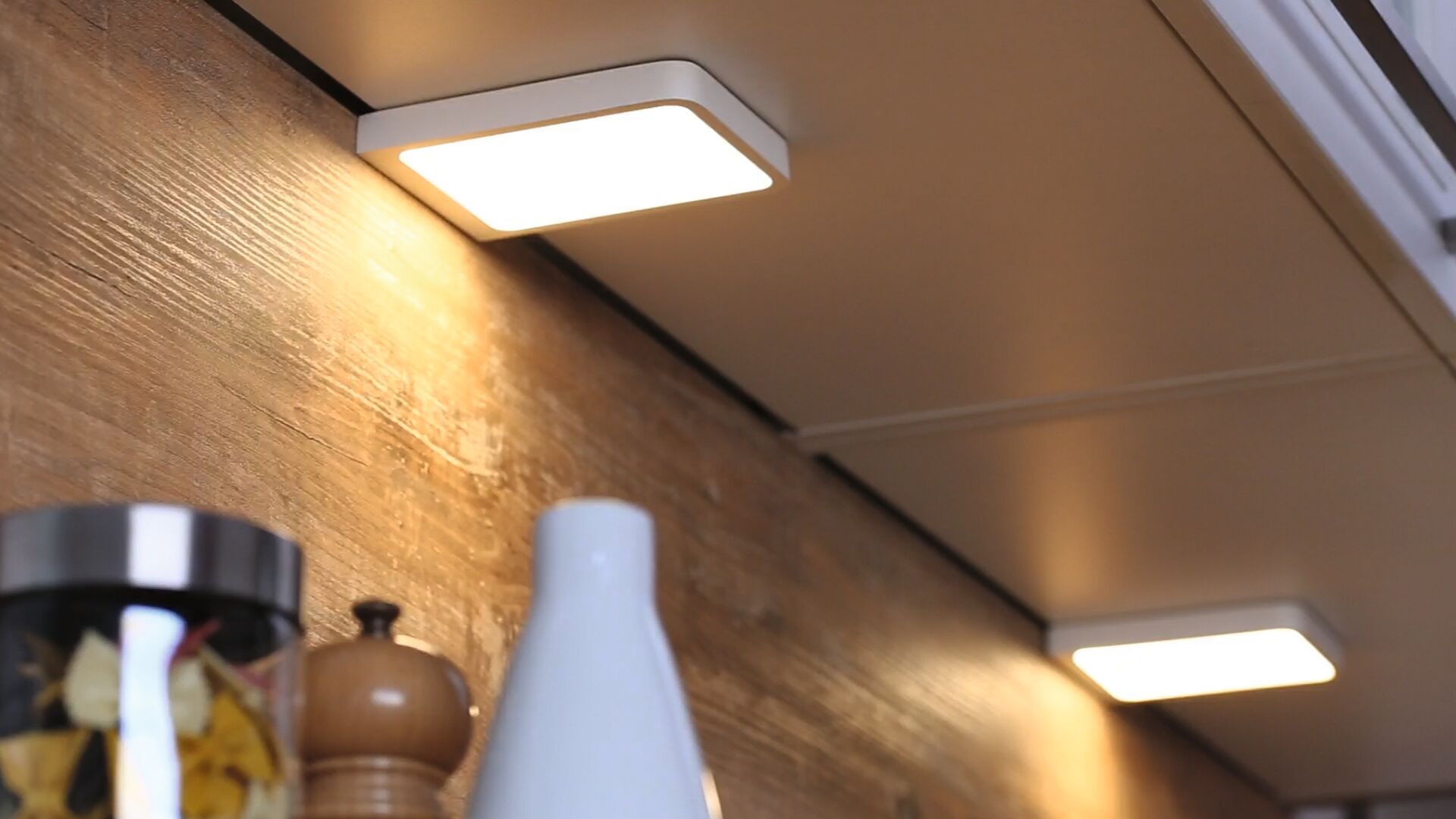

Furniture surface-mounted spotlight illuminate inside and below cabinets, shelves and display cabinets. They provide a good overview and showcase your collection. The rectangular set Vane with its satined surface provides for glare-free and generous light in a cosy warm white. Thanks to its splash protection, it can also be used trouble-free in the sink area or above the washbasin. The luminaires are fixed in the required position with screws; the wiring can be routed behind the item of furniture and connected there to the ballast. Please note that a socket is needed near the power supply unit in order to start the luminaire.
- Set of 2 luminaires incl. LED module and power supply unit
- Luminaires can be pulled off the holder for cleaning
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
- Color temperatur: 2700K - Warm white
- Optionally combinable with wireless socket and suitable switch or infrared switch sensor
- Incl. euro plug
- Incl. plug-in connection
| Dimension | |
|---|---|

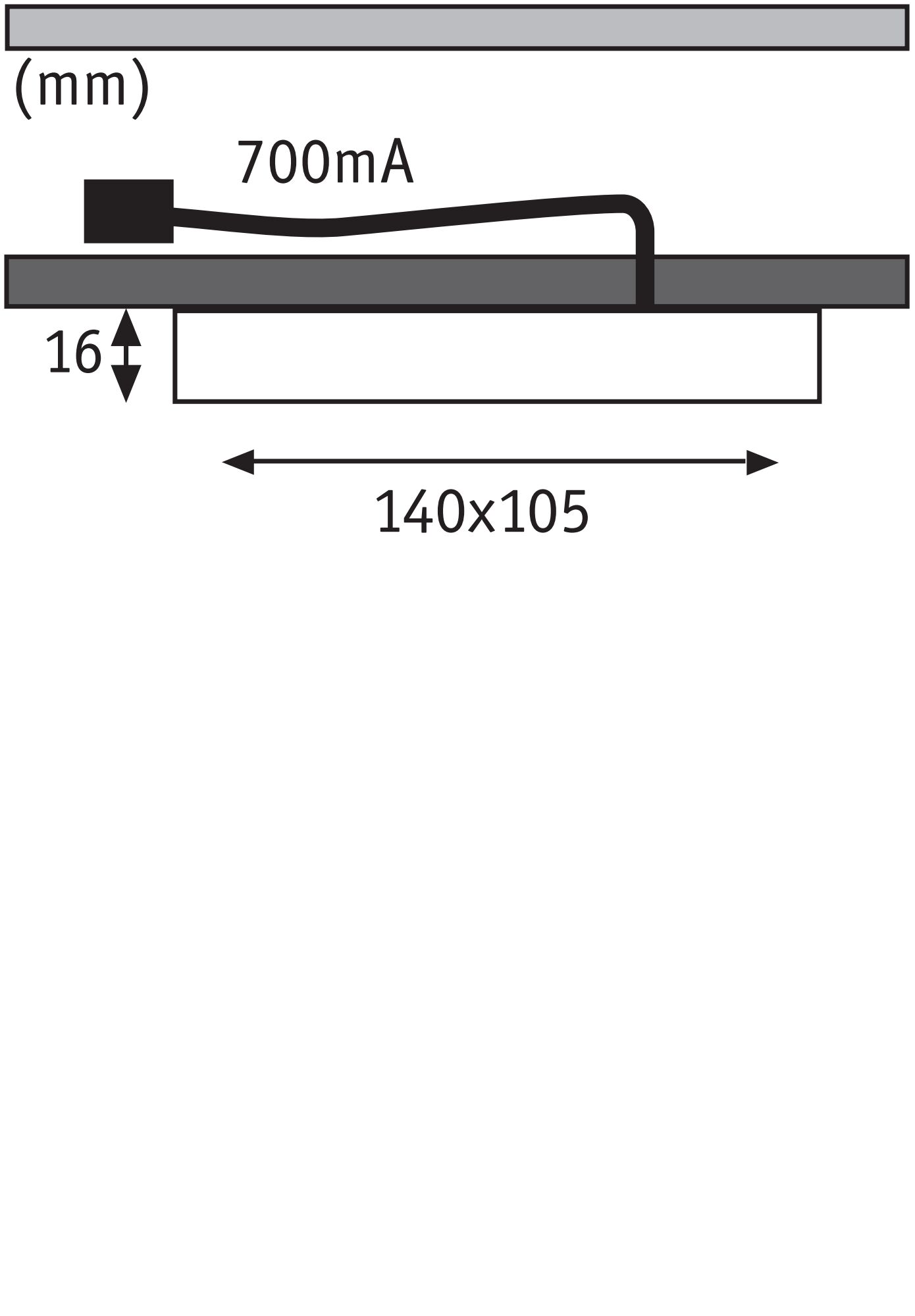

| Dimensions (Height x Width x Depth) | H: 16 x B: 105 x T: 140 mm |
| Design and Material | |
|---|---|
| Form | angular |
| Colour | Matt white |
| Material | Aluminium |
| Installation | |
|---|---|
| Installation site (recommendation) | Installation on cabinet |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 20000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 430 lm |
| Luminous flux LED module | 790 lm |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| IP protection | IP44 ceiling mounting |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 8 W |
| Number of component parts | 2x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 18,2 W |
| Adjustability | fixed |
| Voltage | 230/12 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 15 VA |
| Transformer height | 24 mm |
| Transformer width | 40 mm |
| Transformer depth | 114 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
