Article-No.:
79782
LED Table luminaire
Smart Home Zigbee 3.0
Puric Pane
2700K 400lm 4,5W Black
2700K 400lm 4,5W Black
- Usable with smart home gateways that have a Zigbee interface
- Creates an inviting living ambience in the living room, bedroom, hallway, and more.
- Color temperatur: 2700K - Warm white

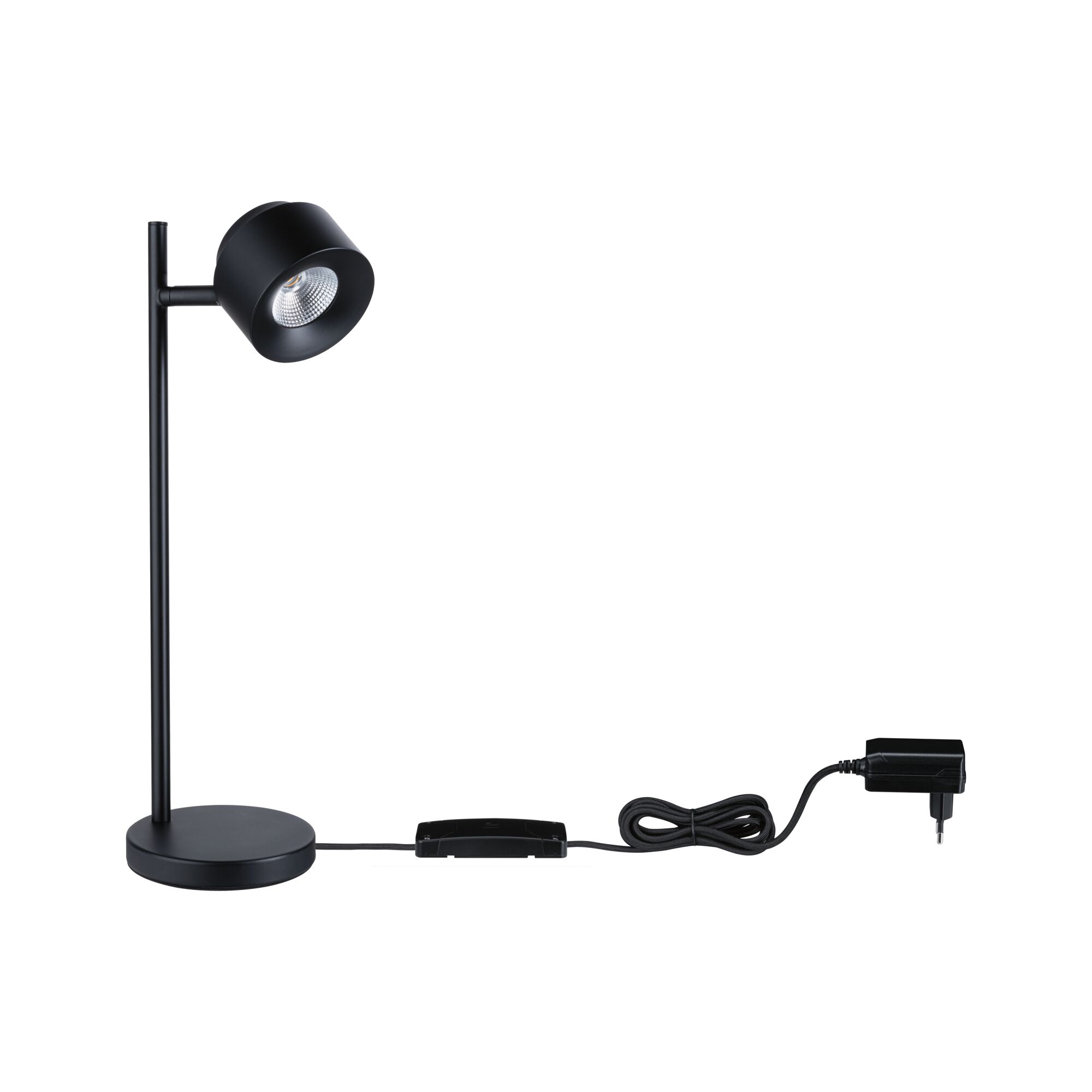

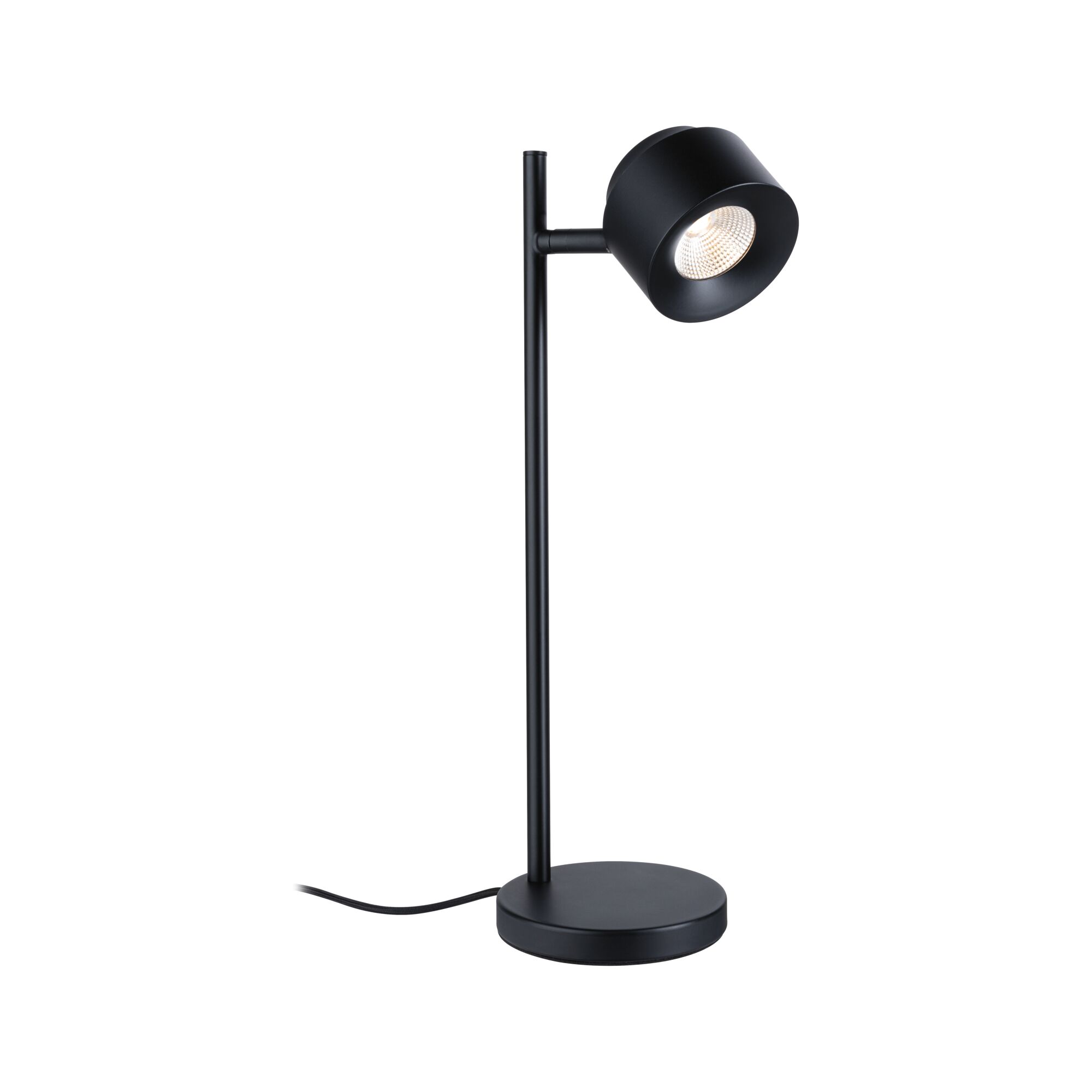

LED Table luminaire Smart Home Zigbee 3.0 Puric Pane 2700K 400lm 4,5W Black

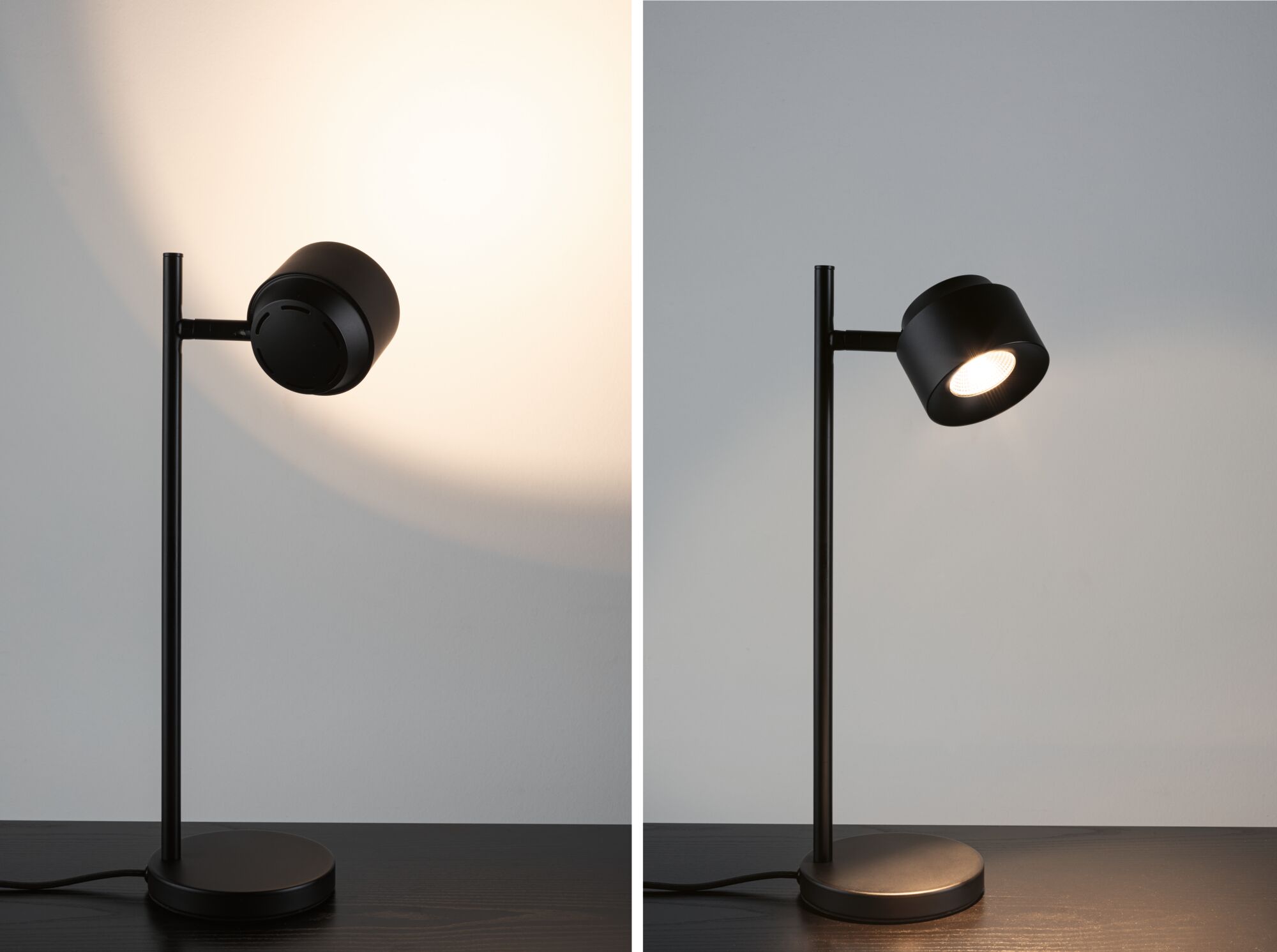

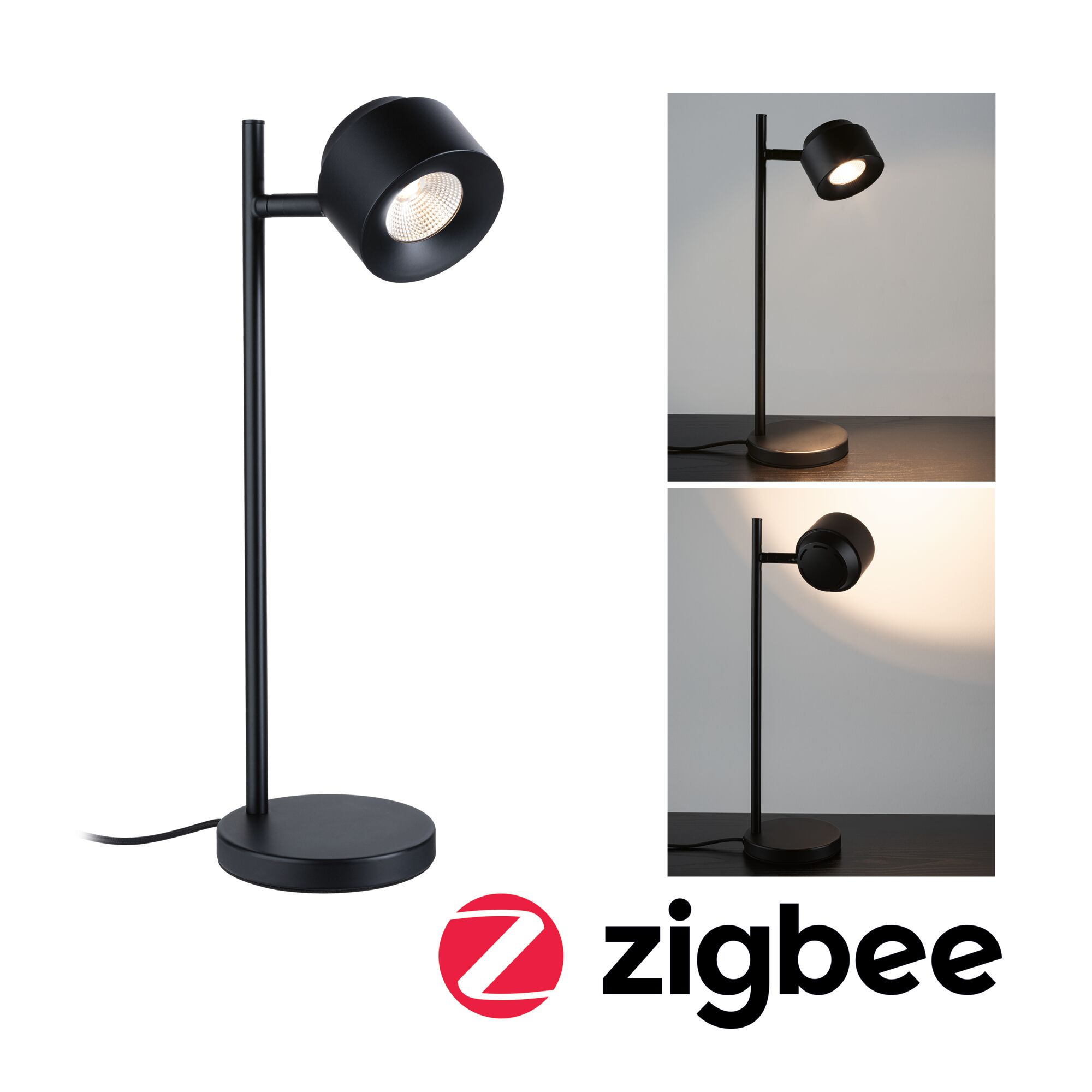

The Puric Pane table luminaire creates a pleasant lighting mood with its subtle design and modern technology. It can be flexibly used in the living room or in the study as a desk luminaire. The spot head, which can be rotated by 350° and swivelled by 90°, enables customisable alignment. The table luminaire highly efficient thanks to its special facet lens, which directs the majority of the light emitted by the LED chip out towards the front, creating fascinating light effects. The luminaire is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol that interlinks devices from different manufacturers. This allows not only the centralised control of lighting; shutters, heating and alarm systems, for example, can also be integrated. In combination with other luminaires, the Puric Pane series lets you create your very own living atmosphere.
- Usable with smart home gateways that have a Zigbee interface
- Creates an inviting living ambience in the living room, bedroom, hallway, and more.
- Color temperatur: 2700K - Warm white
- Cable with fabric sheath
- Efficient LED technology
- Dimmable

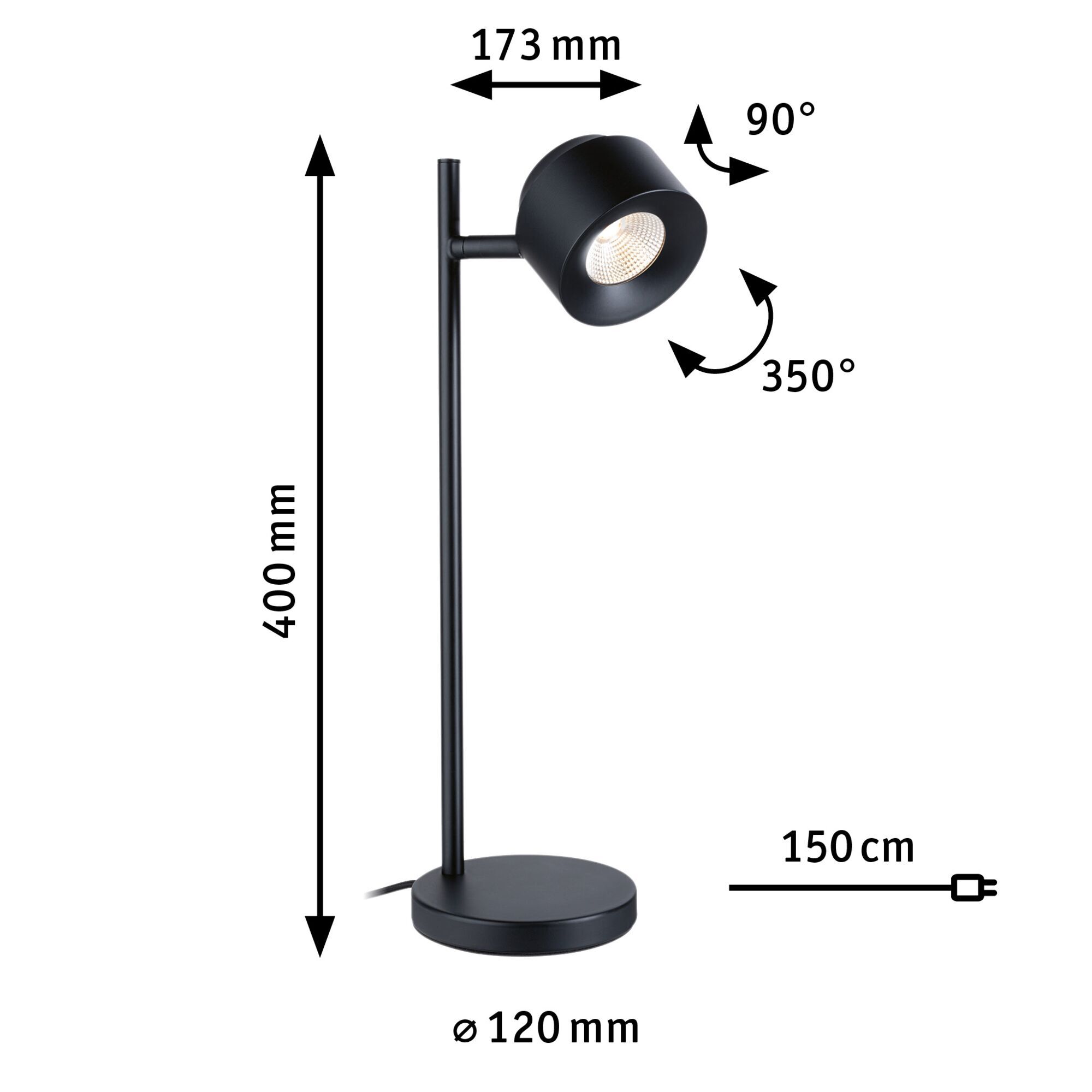

| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 400 mm |
| Ø | 120 mm |
| Design and Material | |
|---|---|
| Textile cable | Textile cable |
| Colour | Black |
| Material | Metal, Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann 501.34 Smart Switch, Paulmann SmartHome Zigbee Gent2 501.40 |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 48 ° |
| Usable luminous flux | 400 lm |
| Luminous flux LED module | 600 lm |
| color temp | 2700 K |
| Color rendering index | > 80 Ra |
| Beam angle LED module | 48 ° |
| Lamp Features | |
|---|---|
| Component parts | 4,5 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 48 W |
| Maximum wattage range | max. 4,5 W |
| Number of component parts | 1x |
| protection class | protection class I |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 8 W |
| Transformer | |
|---|---|
| apparent power | 10.5 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
