Article-No.:
78494
LED Table lamp
3-Step-Dim
Pane
2700K 328lm 3W Cream
2700K 328lm 3W Cream
- Light in a soft cream tone
- Fascinating lighting effect thanks to faceted lens
- Colour temperature: 2700K - Warm white
LED Table lamp 3-Step-Dim Pane 2700K 328lm 3W Cream

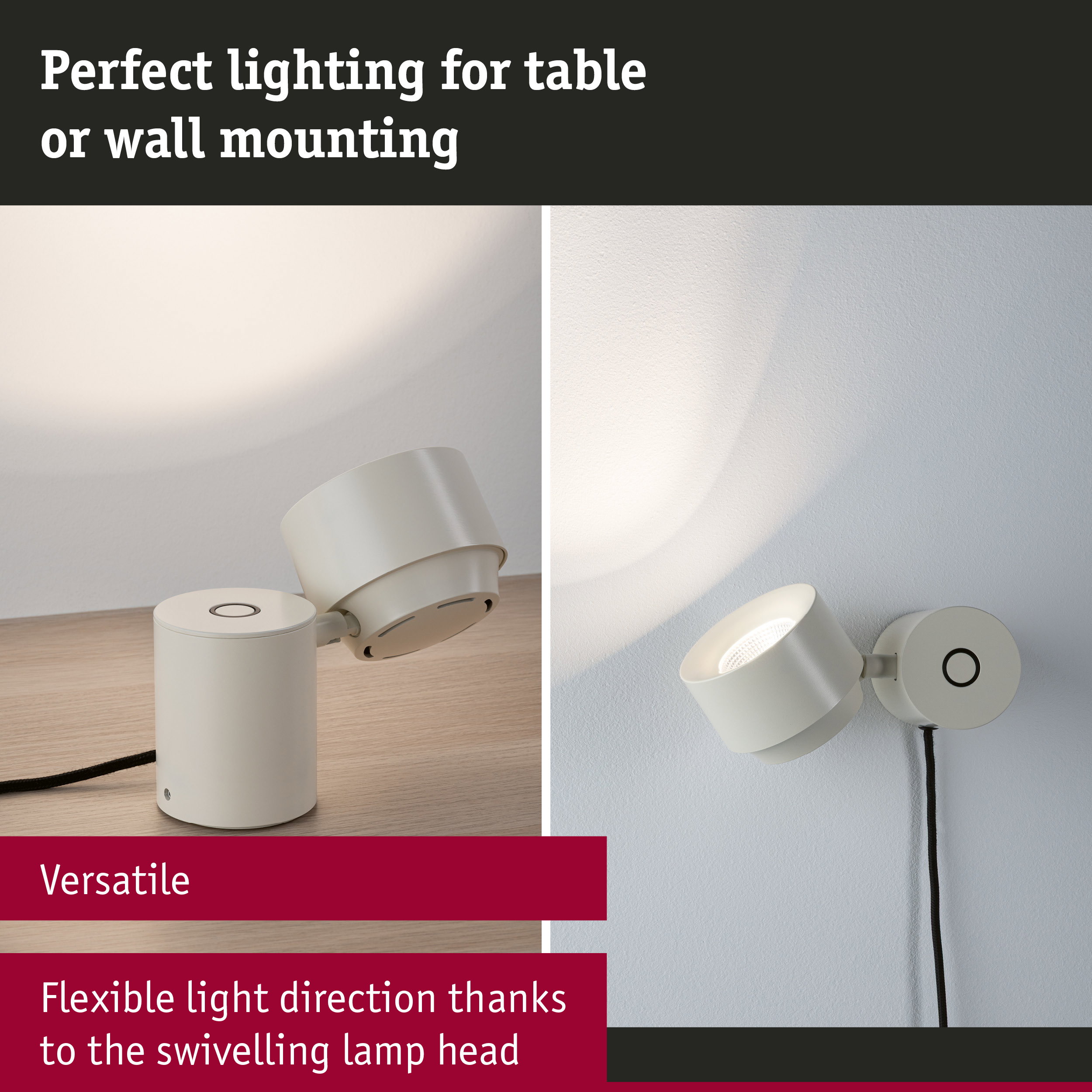

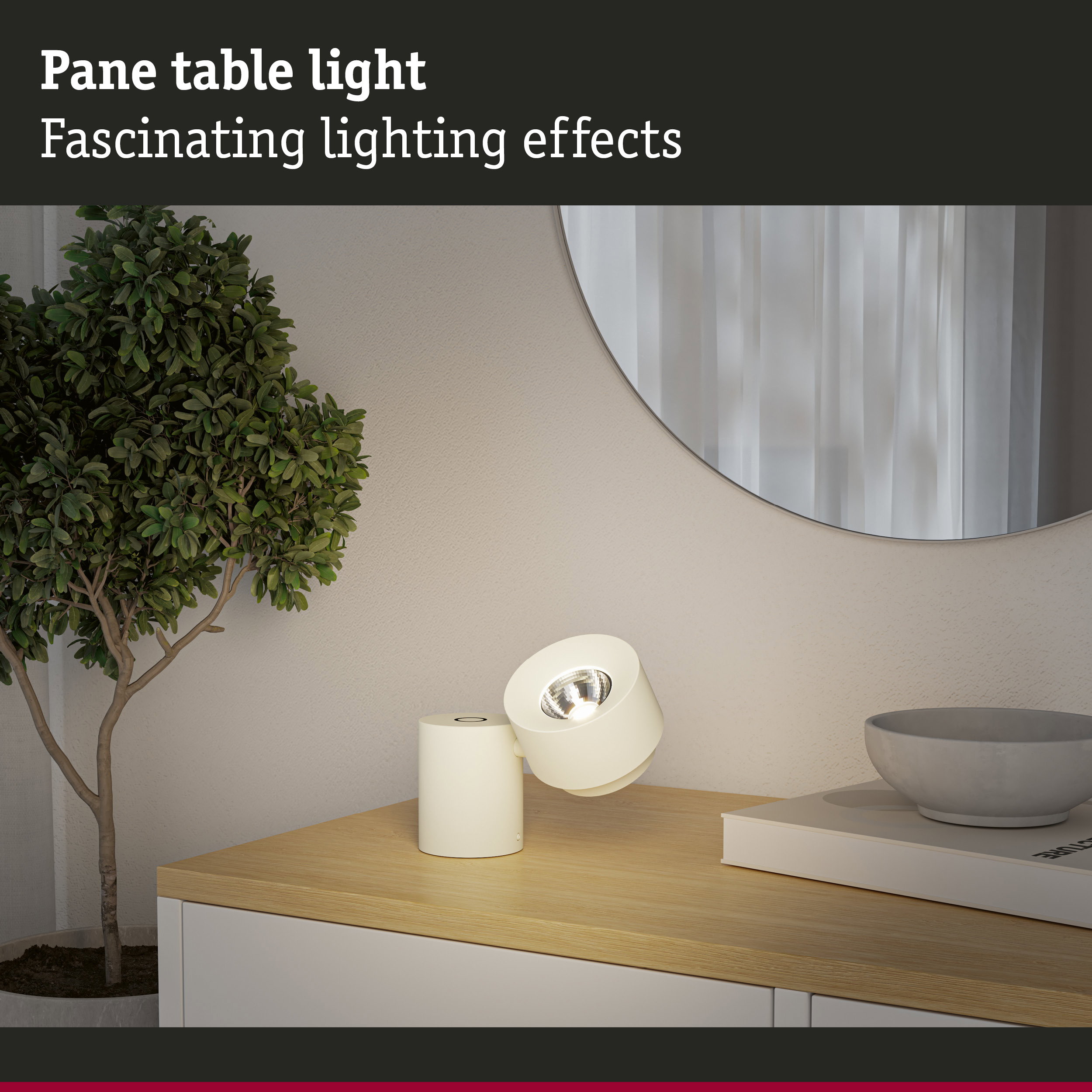

The swivel table luminaire Pane impresses with modern technology and a discreet design in a soft cream shade. Thanks to its 2-in-1 function, the luminaires can be used flexibly as table and wall luminaires. Its special facetted lens creates fascinating lighting effects. It can be combined with other luminaires from the Pane series to create an individual living ambience. Thanks to the integrated 3-step dimming function, the luminaire can be dimmed in 3 steps using the integrated touch switch.
- Light in a soft cream tone
- Fascinating lighting effect thanks to faceted lens
- Colour temperature: 2700K - Warm white
- Cable with fabric sheath

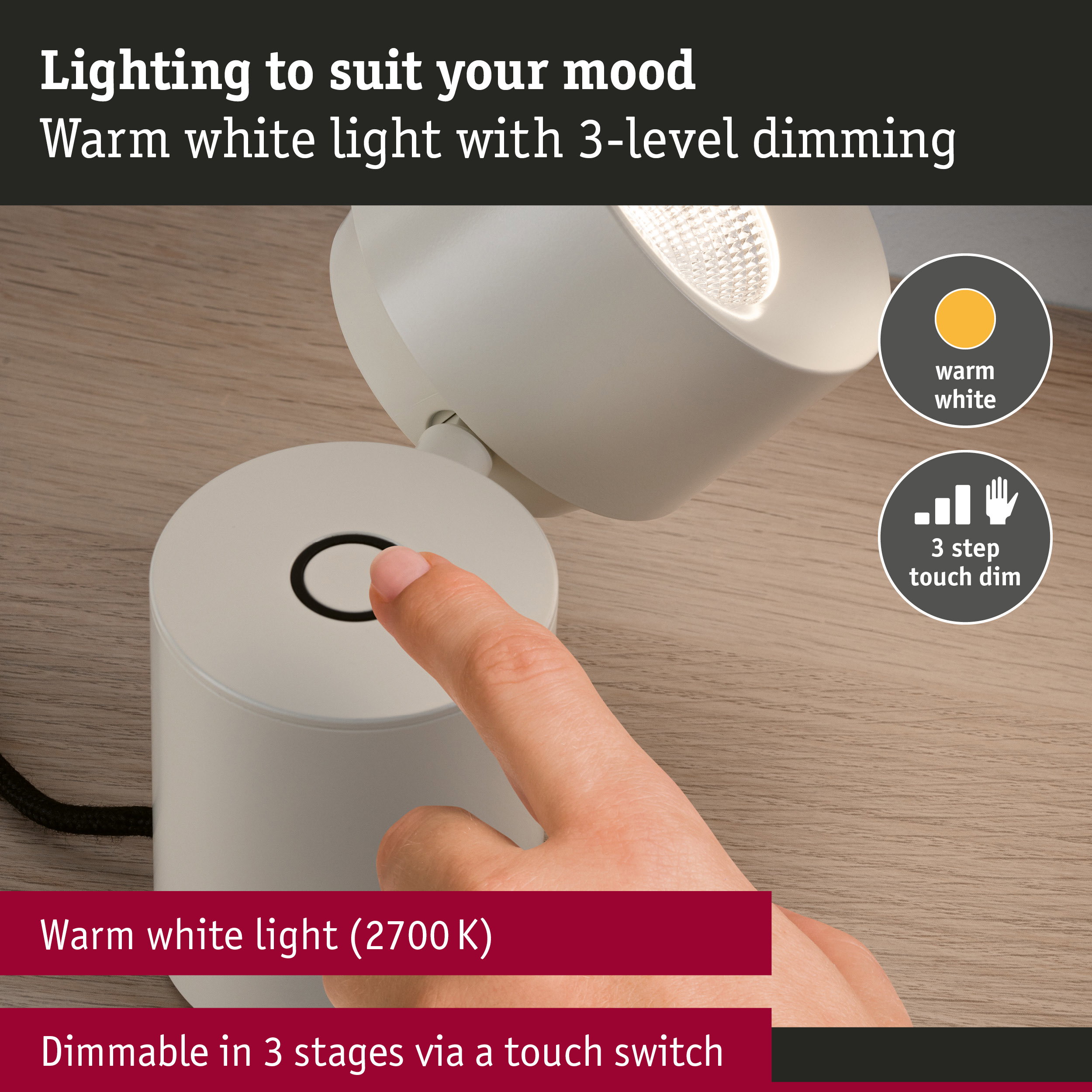

- Dimmable in 3 stages via touch switch
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 65 x B: 160 x T: 82 mm |
| Net weight | 1500 g |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Cream |
| Material | Plastic, Aluminium |
| Textile cable | Textile cable |
| Installation | |
|---|---|
| Installation site (recommendation) | Table plate |
| Connections | |
|---|---|

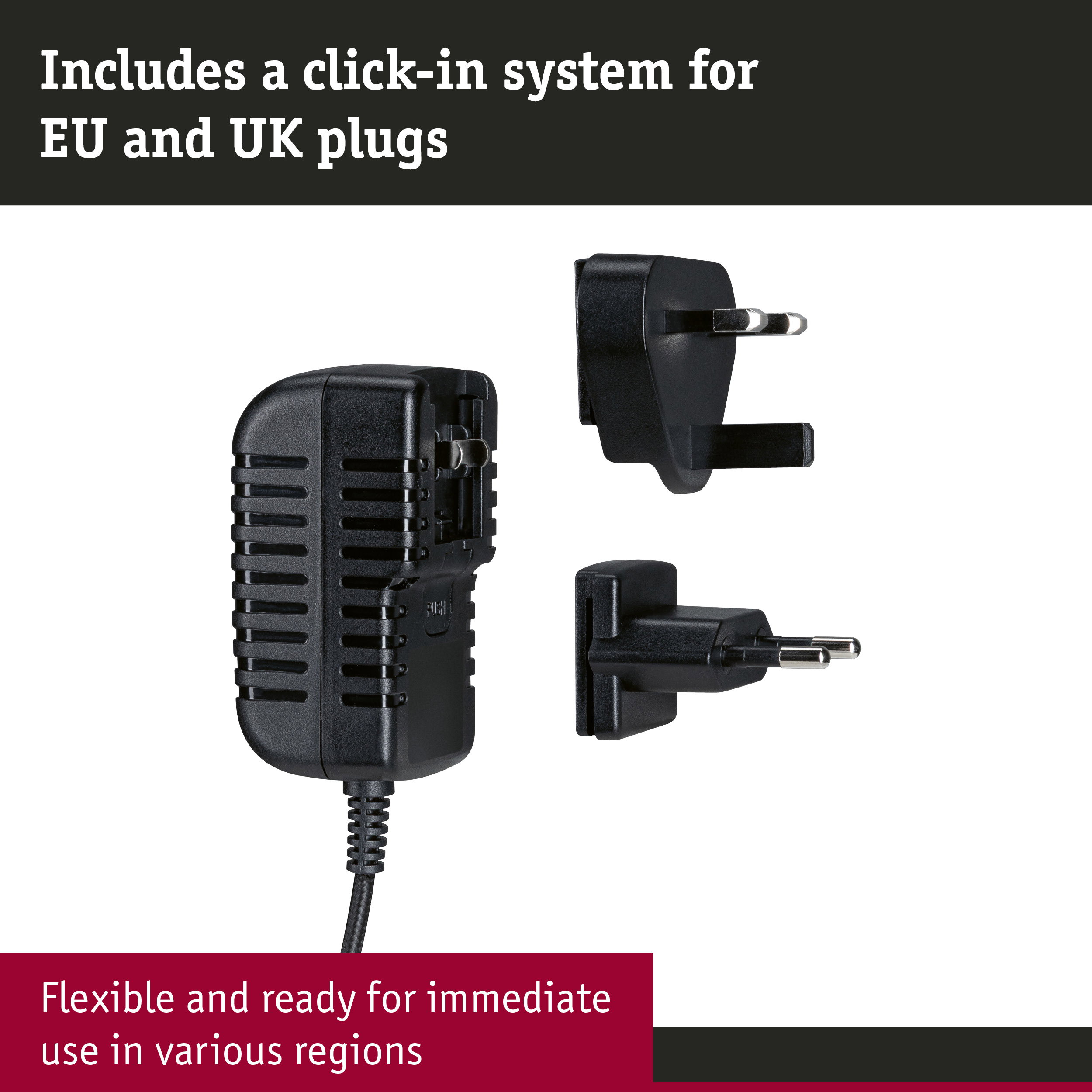

| Transformator plug | With plug-in transformer incl. EU/UK plug attachment |
| Plug | Type C, F/ UK type G |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | C |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Dimming Control | with multi-level touch dimmer |
| Inclusive lamp | yes |
| Component parts | 3 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 36 W |
| Technique | LED |
| Adjustability | swivelling/tilting |
| Dimmable | Yes |
| Maximum wattage range | max. 3 W |
| Protection class | Protection class I |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 4,5 W |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 7 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 328 lm |
| Color rendering index | > 80 Ra |
| Beam angle | 48 ° |
| Colour temperature | Warm white, 2700 K |
| Luminous flux LED module | 542 lm |
| Rechargeable battery / battery data | |
|---|---|
| Dimensions (Height x Width x Depth) | 65 x 160 x 82 mm |
