Article-No.:
70410
LED Strip recessed profile
Floor 1m
Aluminium/Satin
Aluminium/Satin
- Profile can be shortened according to required length
- Max. load up to 130 kg
- With satined diffusor for uniform light distribution

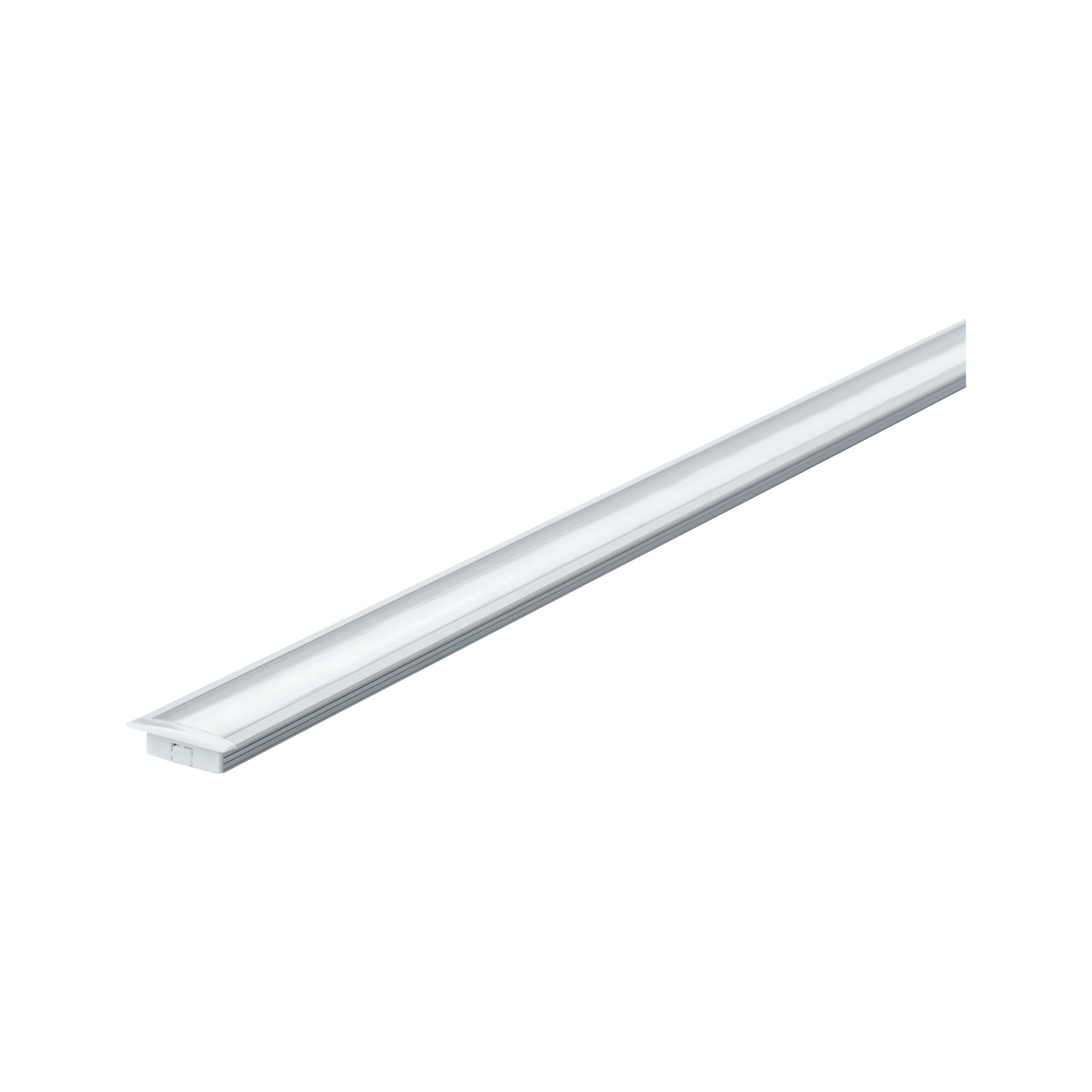

LED Strip recessed profile Floor 1m Aluminium/Satin

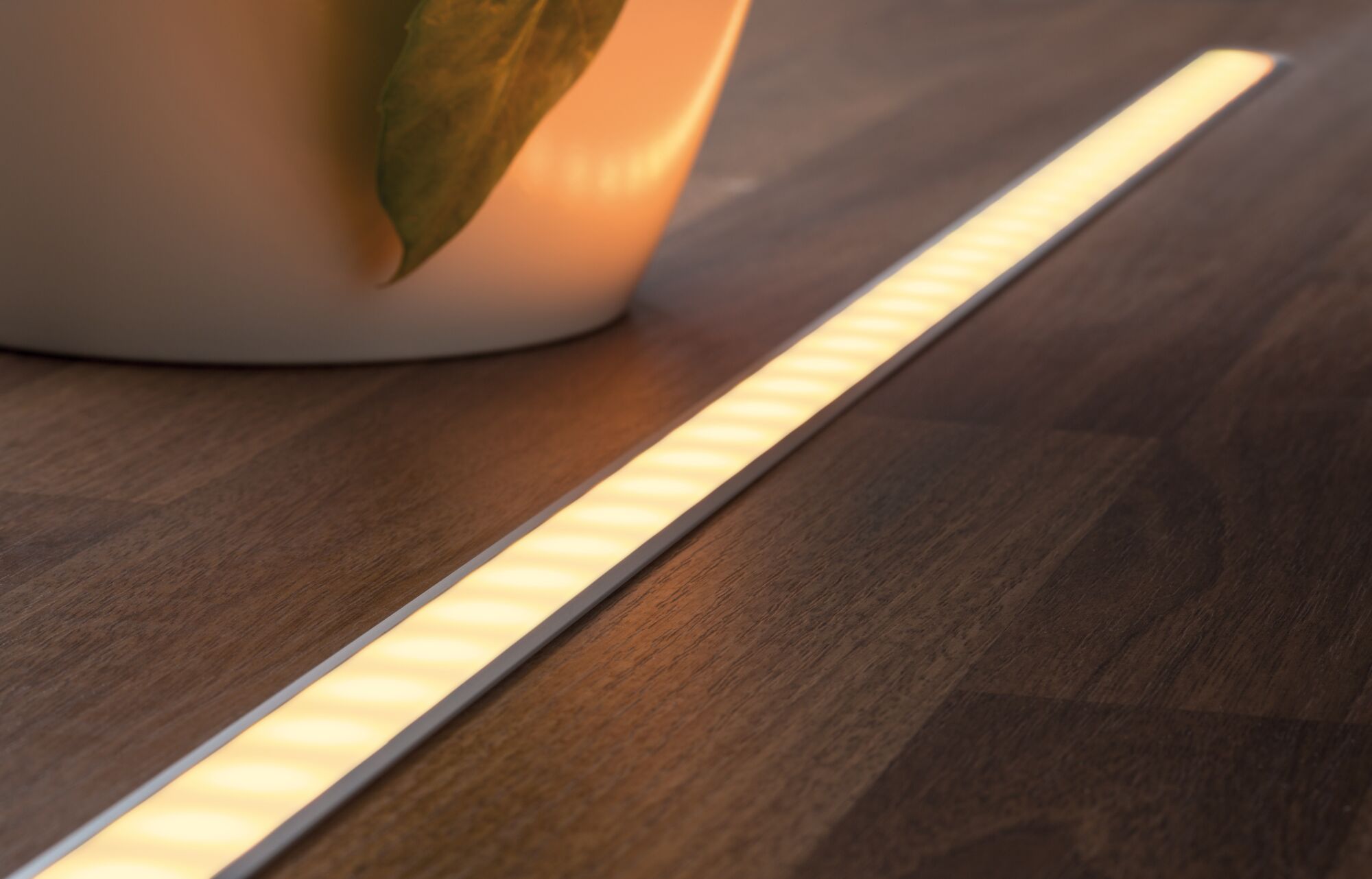

The Floor Profile can be fitted out with LED strips in the light colour of your choice, thus providing decorative effects for skirting boards and closing edges. It can also be used for orientation or guiding purposes in shady and hazardous areas. Continuous light with efficient LED placement. Can also be used as decorative edging or optical partition lines if required. The profile can stand loads of up to 130Â kg, can be glued into floor surfaces from 8Â mm in thickness or in furniture items with material thickness of at least 12Â mm.
- Profile can be shortened according to required length
- Max. load up to 130 kg
- With satined diffusor for uniform light distribution

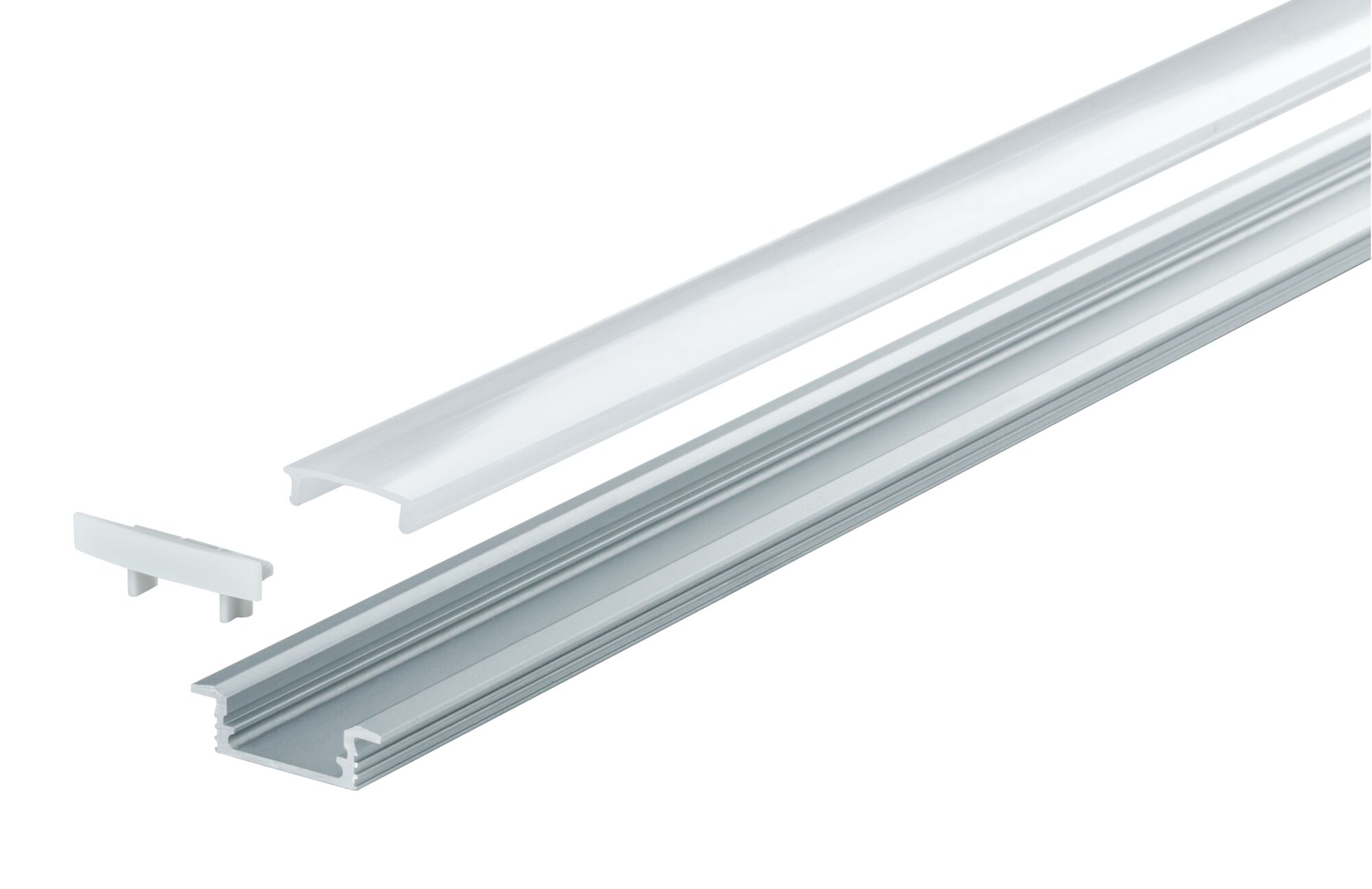

- High-quality U-profile made of aluminium with an anodised finish
- Aluminium profile with cooling effect for LED Strips
- With end caps and a support surface to prevent sinking or cover untidy groove edges
- Can be combined with YourLED and MaxLED strips
- Don't forget to add the matching LED strips to your order!

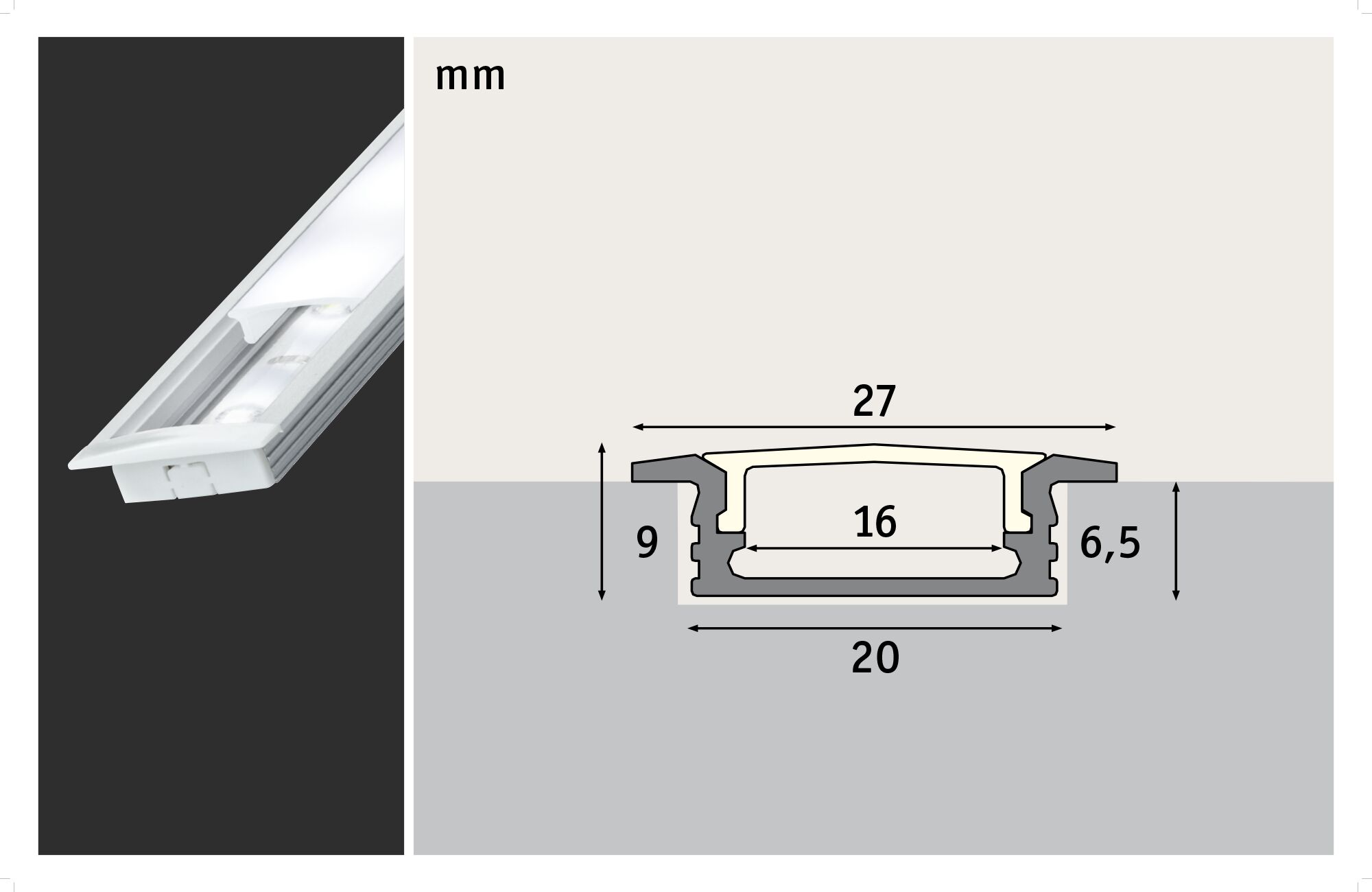

| Dimension | |
|---|---|
| mounting hole 2 | 20 mm |
| Total Mounting depth | 7 mm |
| Dimensions (Height x Width x Depth) | H: 9 T: 27 mm |
| Mounting hole | 1003 mm |
| Length | 1 m |
| Form | square |
| Depth of hollow wall | 7 mm, 7 mm |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | Satin, Aluminium |
| Material | Plastic, Aluminium |
| Installation | |
|---|---|
| Installation site (recommendation) | Floor mounting |
| Lamp Features | |
|---|---|
| Technique | Accessories without bulbs |
| Inclusive lamp | no |
| Maximum load | 130 kg |
| Replacable | 7 not concerned. |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
