Article-No.:
99495

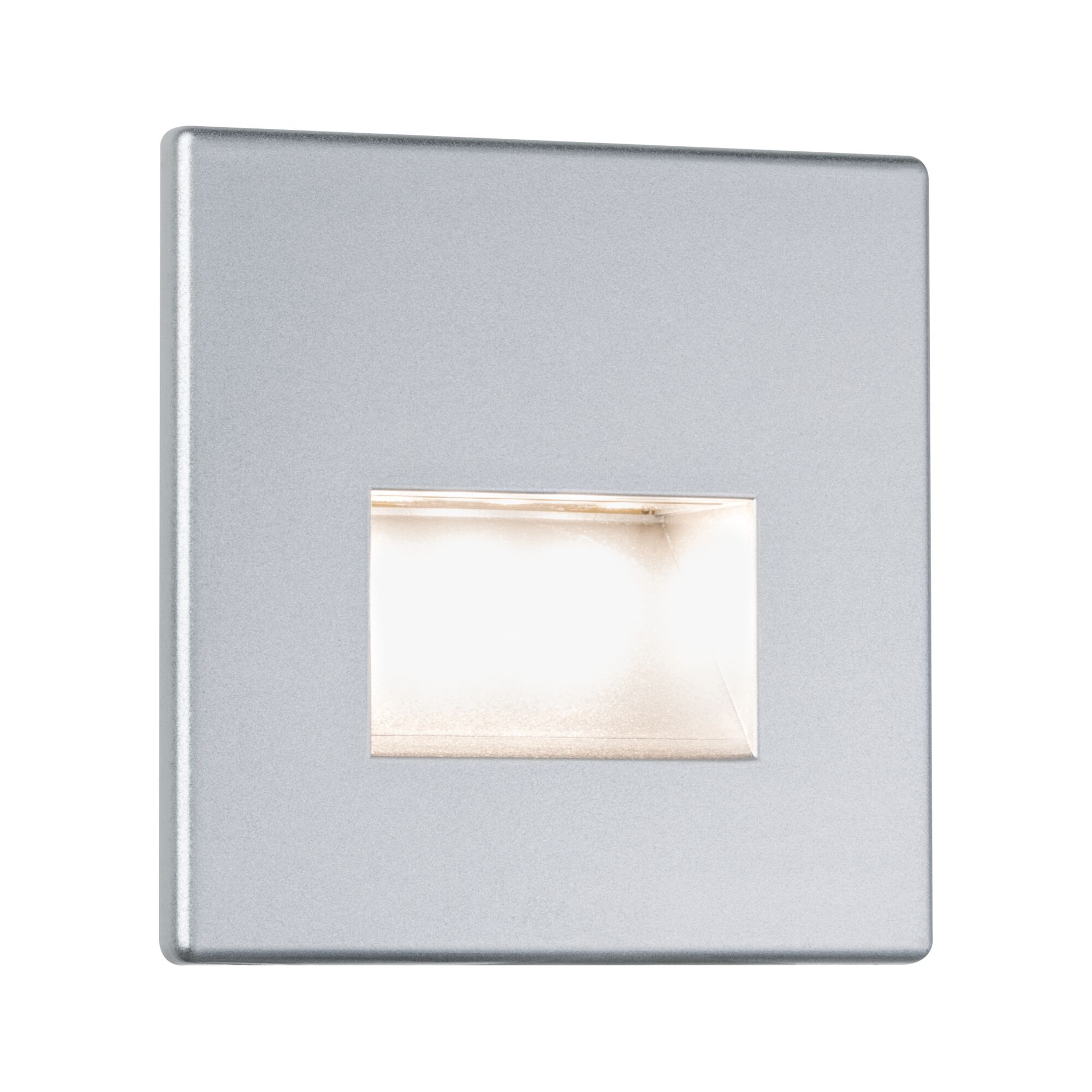

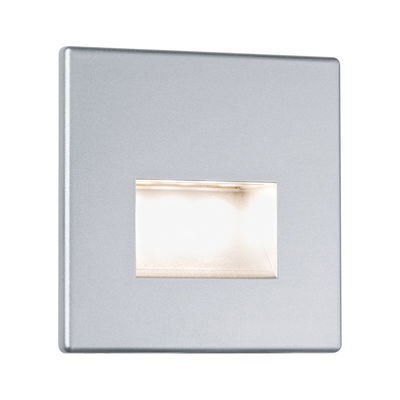

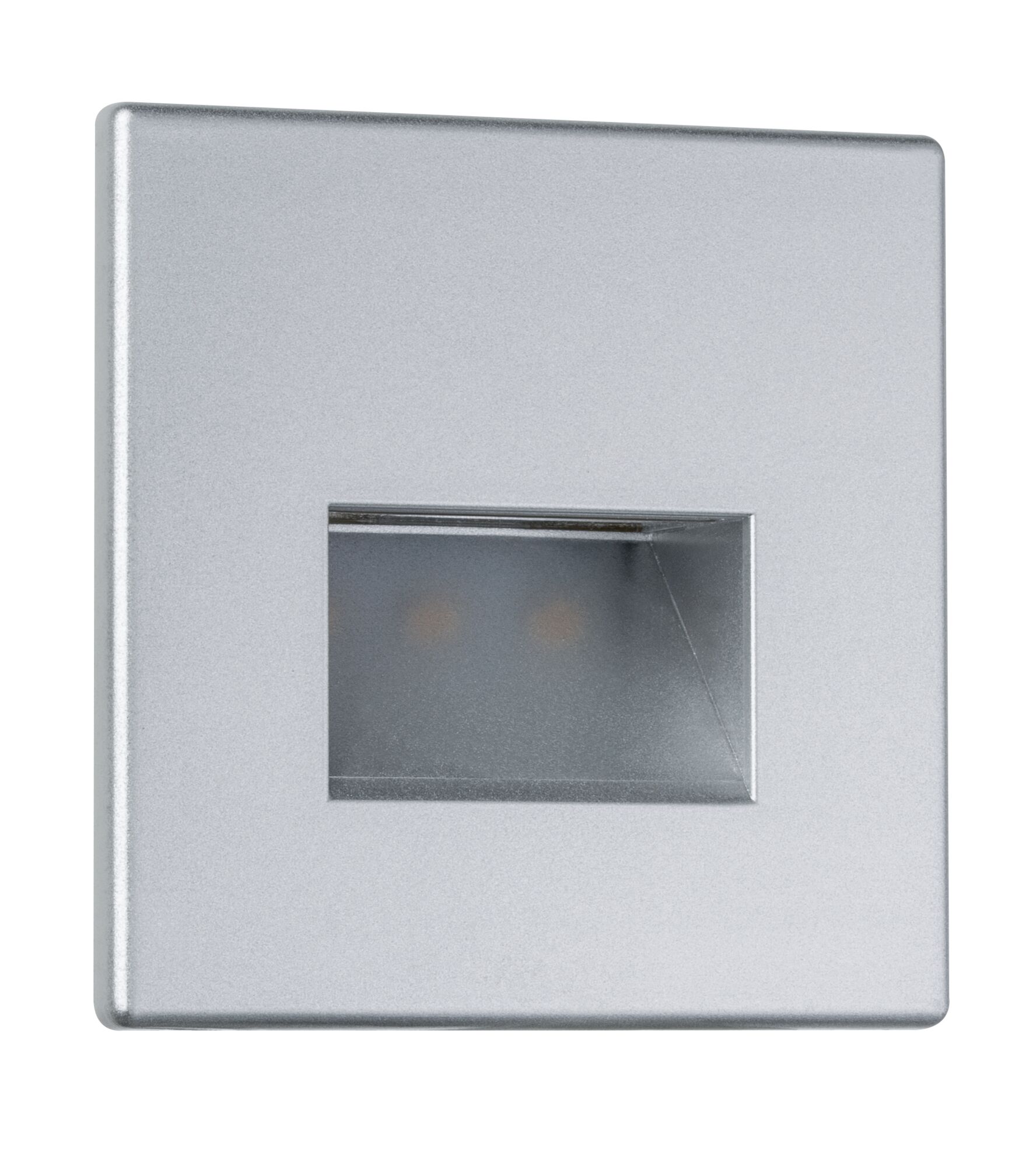

LED Recessed wall luminaire
Edge Quadro
square 80x5mm 1,2W 50lm 230V 2700K Chrome matt
square 80x5mm 1,2W 50lm 230V 2700K Chrome matt
- Decorative lighting effects highlight the wall
- Efficient LED technology
- LED lamp (fixed) included in scope of delivery
LED Recessed wall luminaire Edge Quadro square 80x5mm 1,2W 50lm 230V 2700K Chrome matt

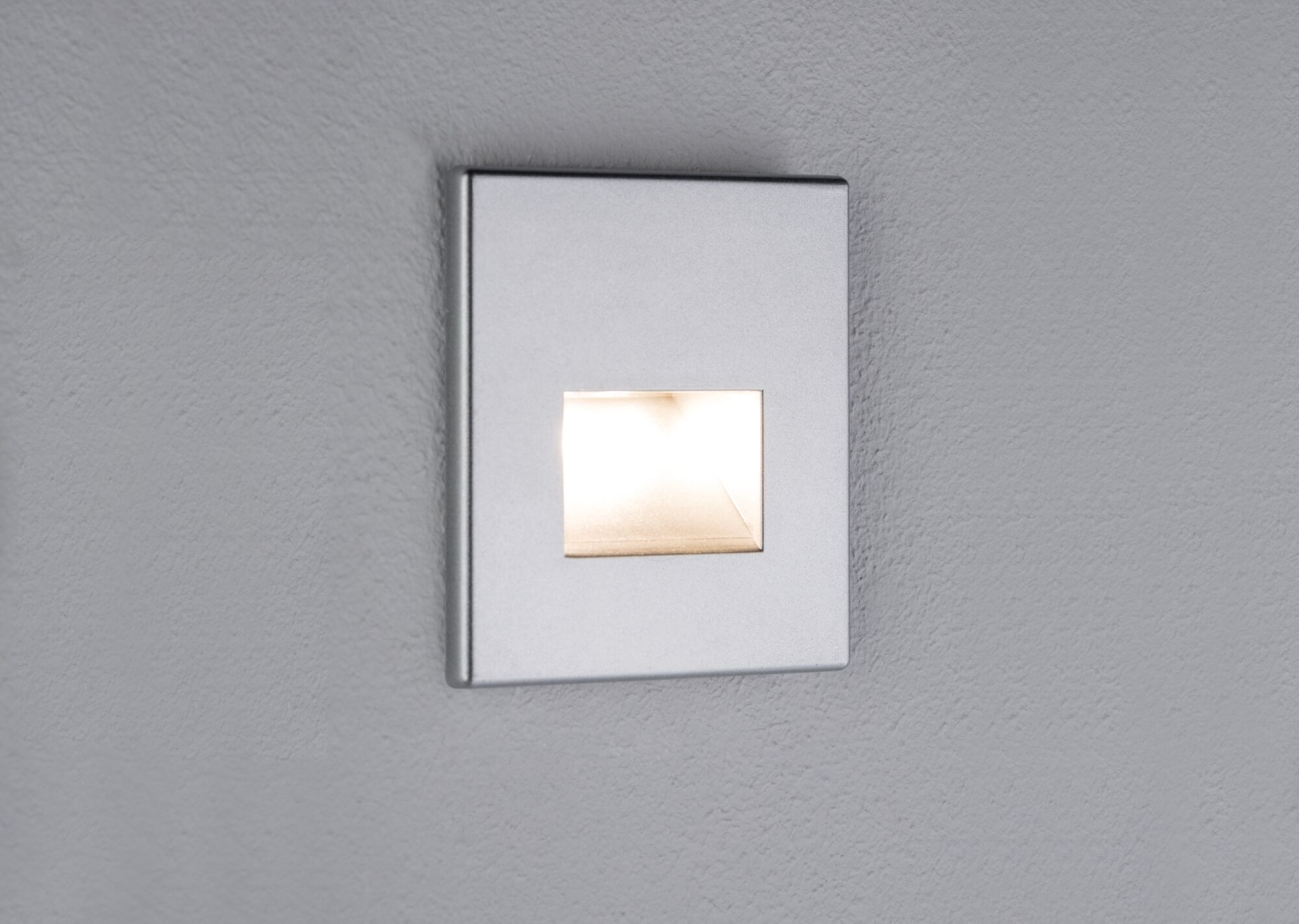

Light need not always come from the ceiling. The Edge spotlight is specially designed for in-wall mounting, creating attractive lighting effects and increasing safety in corridors or staircases. The advantages of the non-replaceable LED lamp include its energy efficiency and long service life.
- Decorative lighting effects highlight the wall
- Efficient LED technology
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 2700K - Warm white

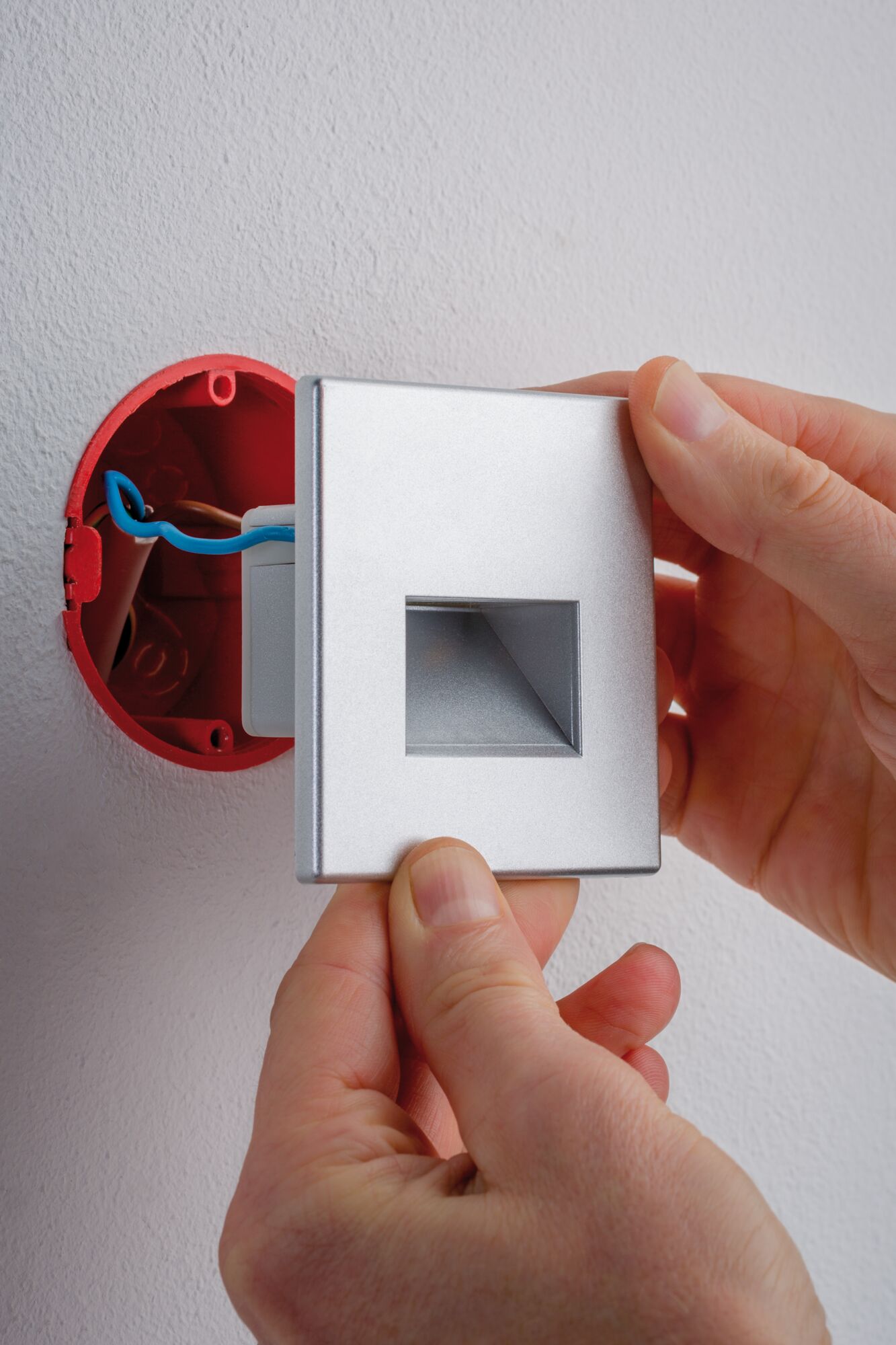

- For standard recessed device sockets with a 68 mm diameter
| Dimension | |
|---|---|
| Total Mounting depth | 30 mm |

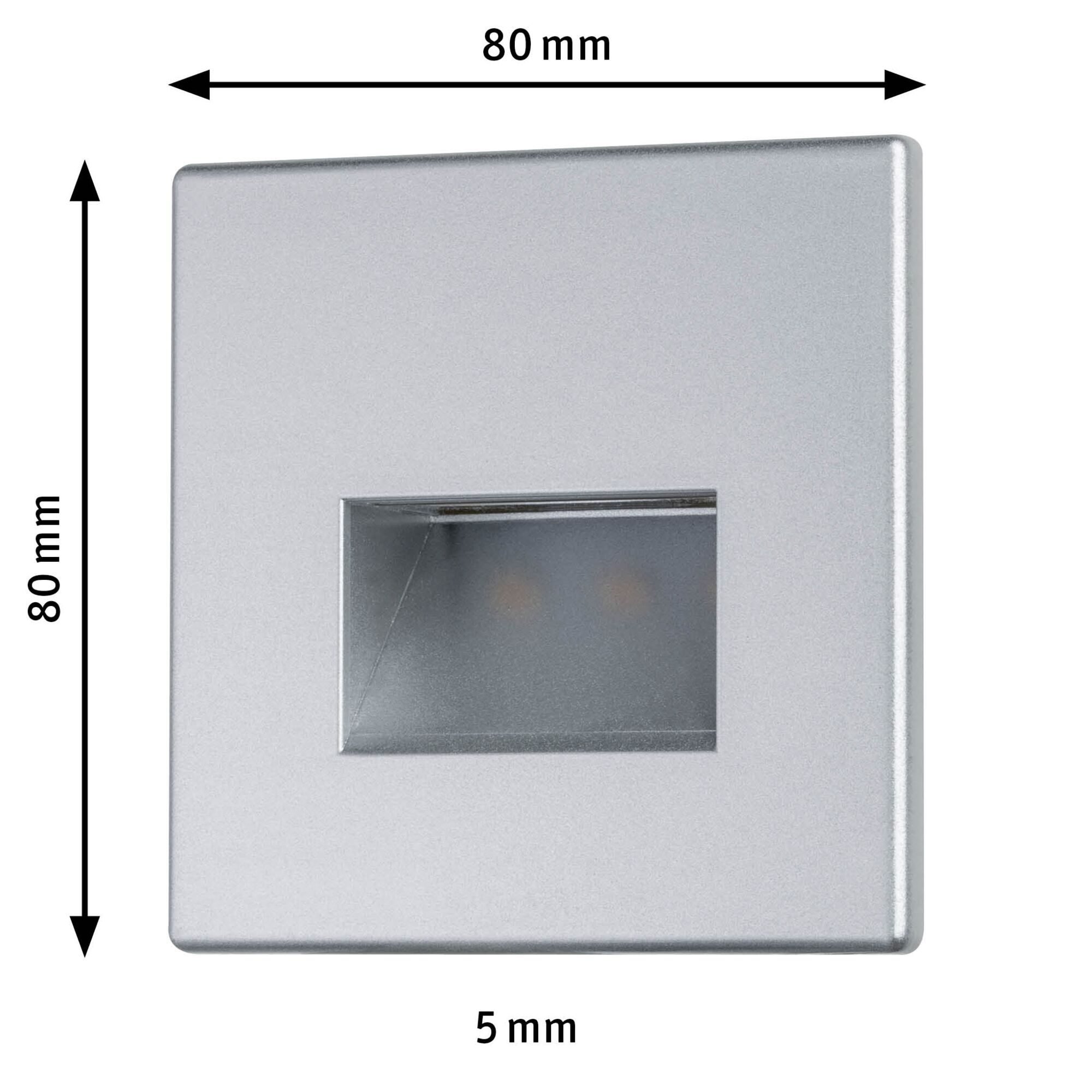

| Dimensions (Height x Width x Depth) | H: 80 x B: 80 x T: 5 mm |
| Mounting hole | 55 mm |
| Form | square |
| Depth of hollow wall | 15 mm, 15 mm |
| Design and Material | |
|---|---|
| stainless | stainless polycarbonate |
| Colour | Chrome matt |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Wall mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 20000 h |
| Rated life time | 20000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 100 ° |
| Usable luminous flux | 50 lm |
| Luminous flux LED module | 100 lm |
| color temp | 2700 K |
| Beam angle LED module | 100 ° |
| Rated luminous flux (Lumen) | 50 lm |
| Lamp Features | |
|---|---|
| Component parts | 1,2 W |
| Technique | LED |
| IP protection | IP20 |
| Inclusive lamp | yes |
| Total Width | 80 mm |
| Incandescent Equivalent | 12.8 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 1,4 W |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
