Article-No.:
93135

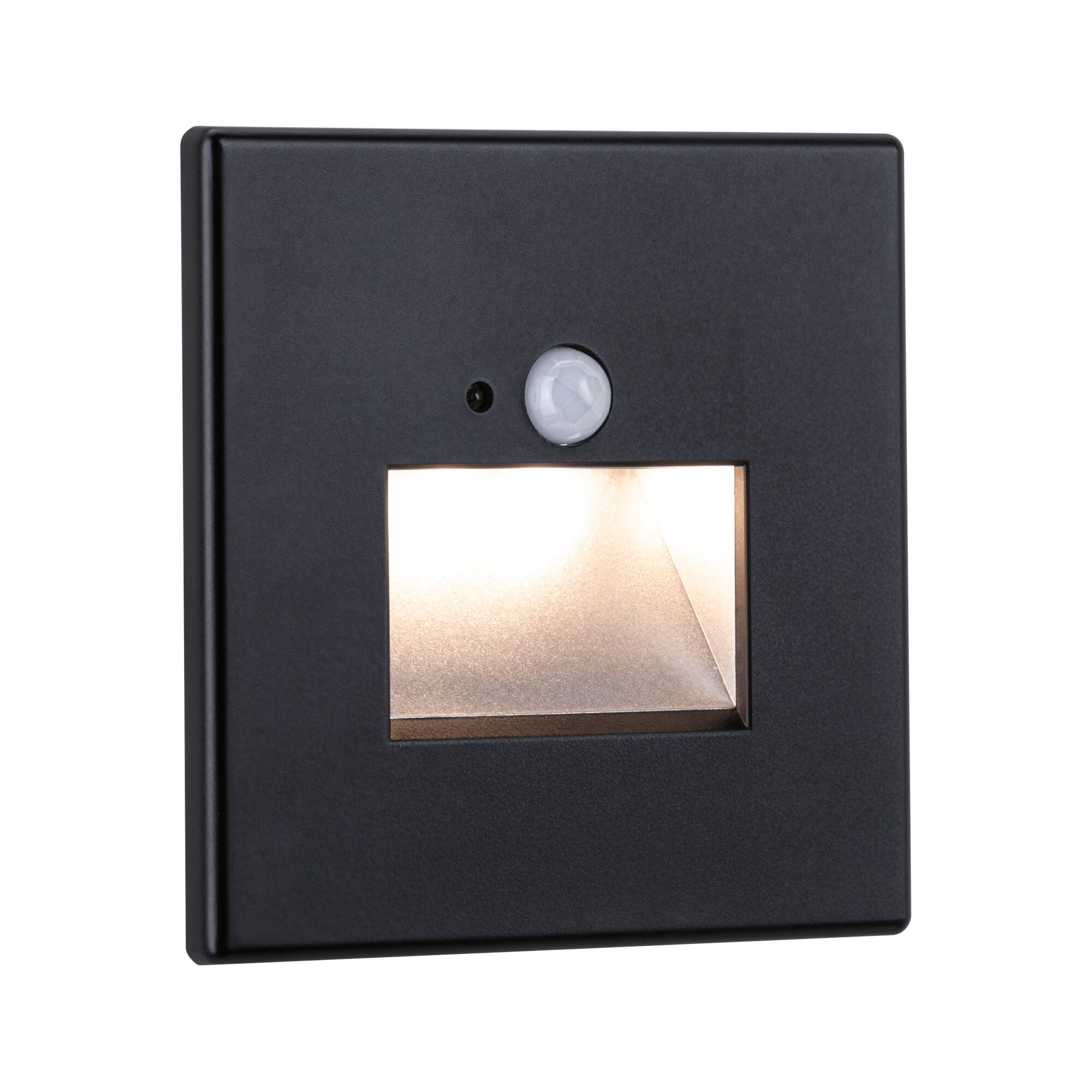

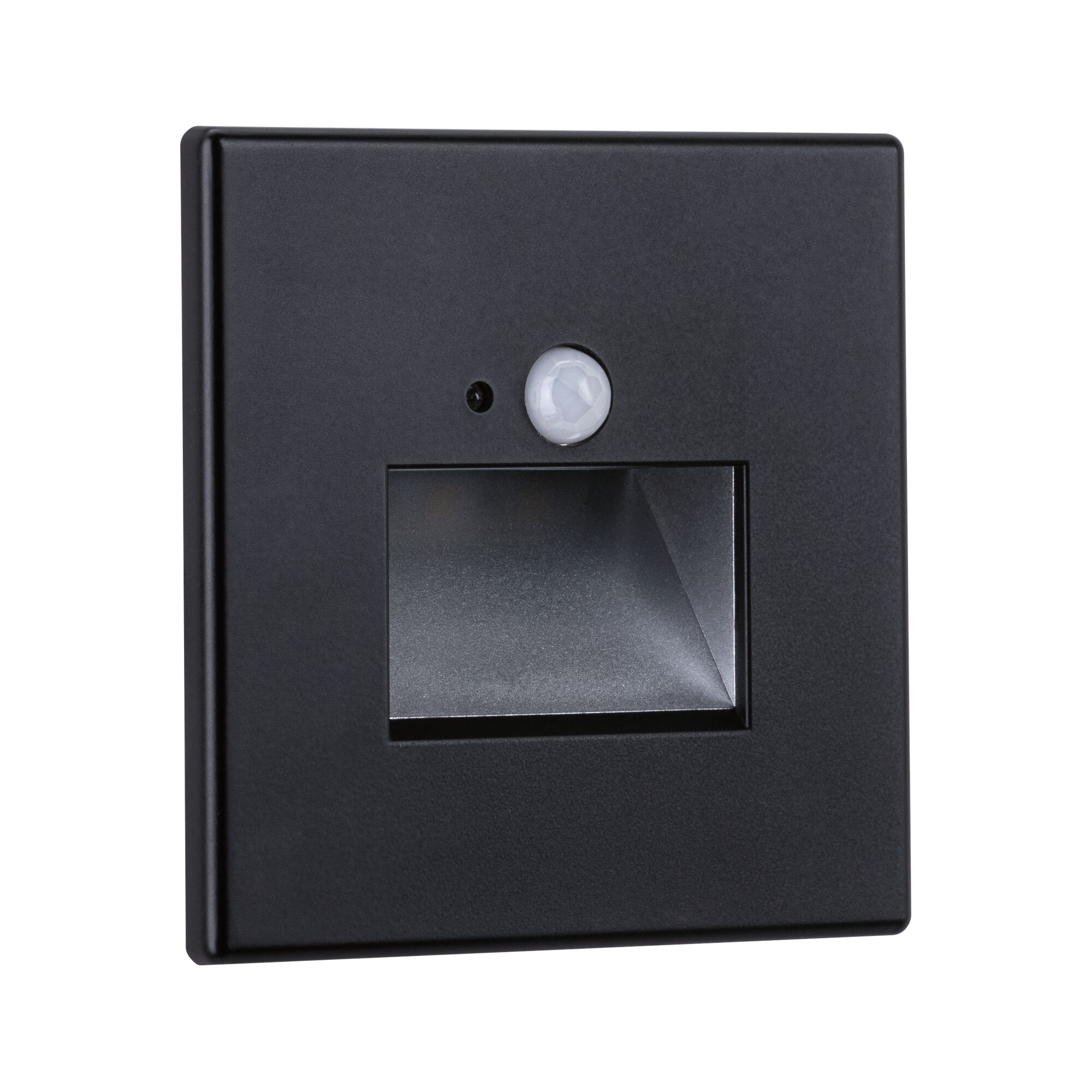

LED Recessed wall luminaire
Edge Quadro
angular 80x42mm 1,2W 25lm 230V 2700K Black matt
angular 80x42mm 1,2W 25lm 230V 2700K Black matt
- Color temperatur: 2700K - Warm white

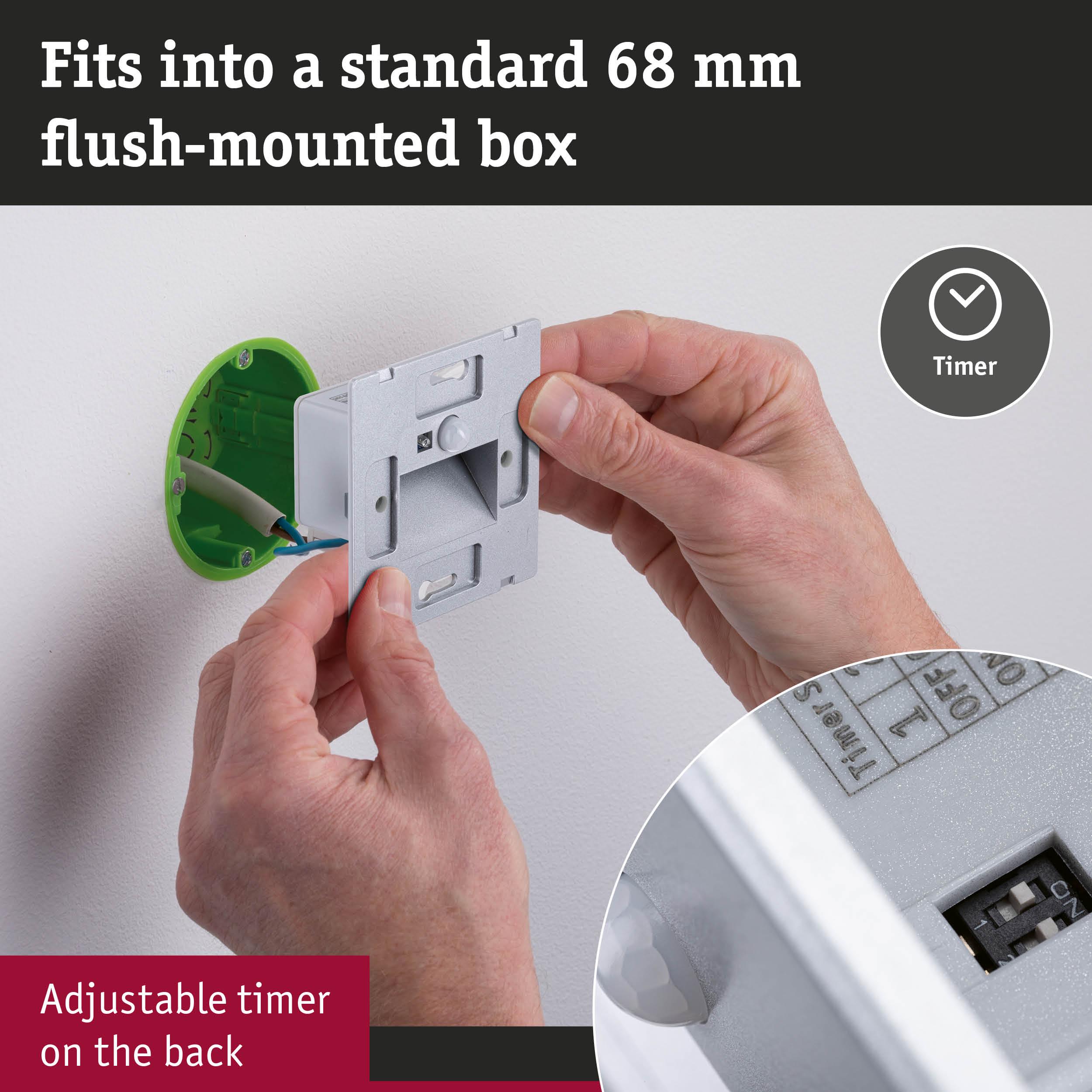

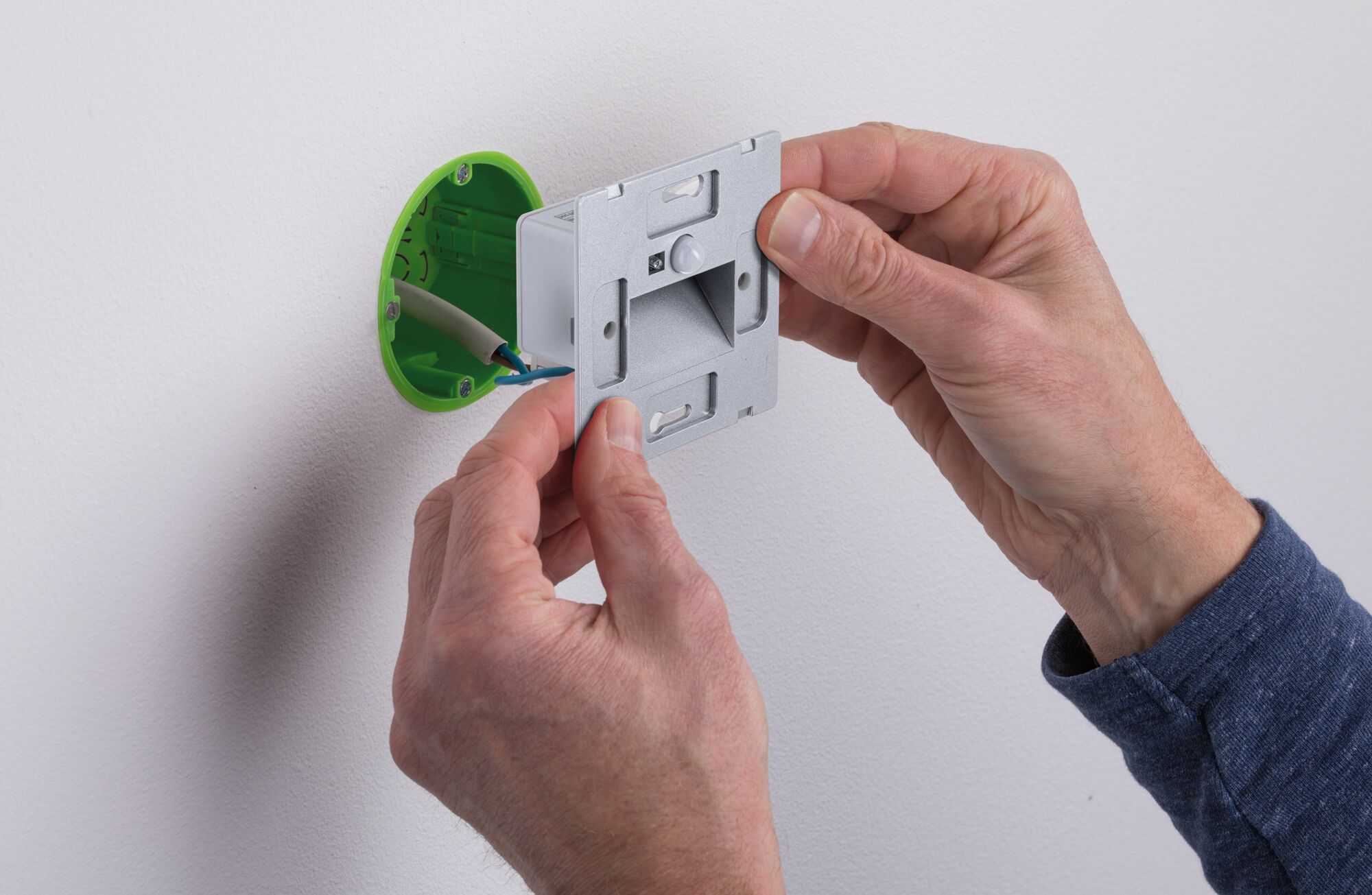

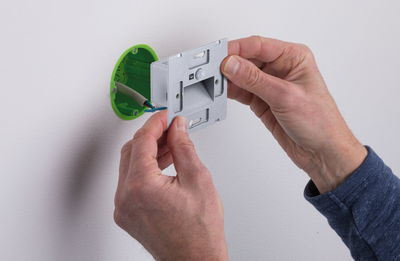

- For standard recessed device sockets with a 68 mm diameter
- LED lamp (fixed) included in scope of delivery
LED Recessed wall luminaire Edge Quadro angular 80x42mm 1,2W 25lm 230V 2700K Black matt

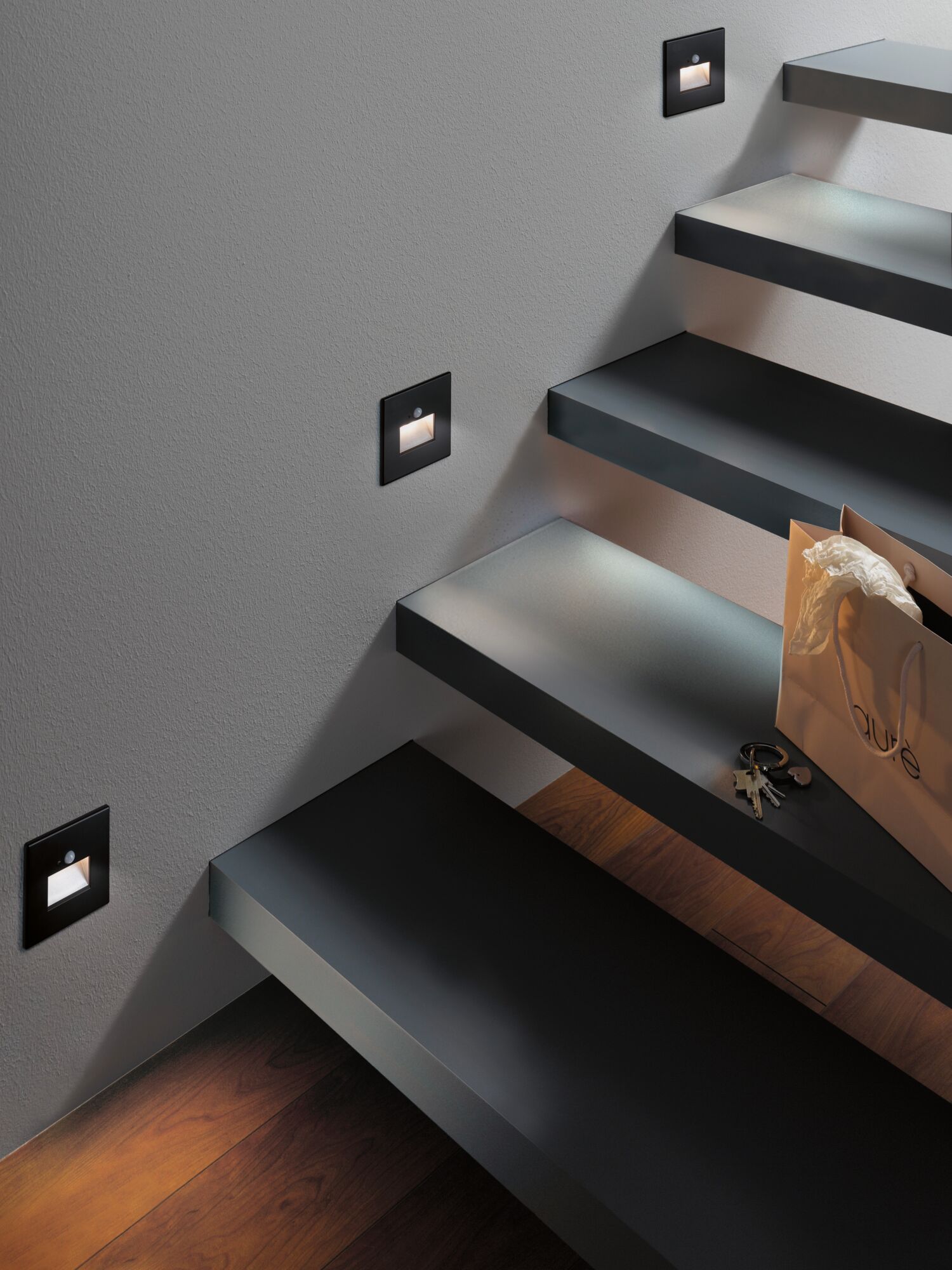

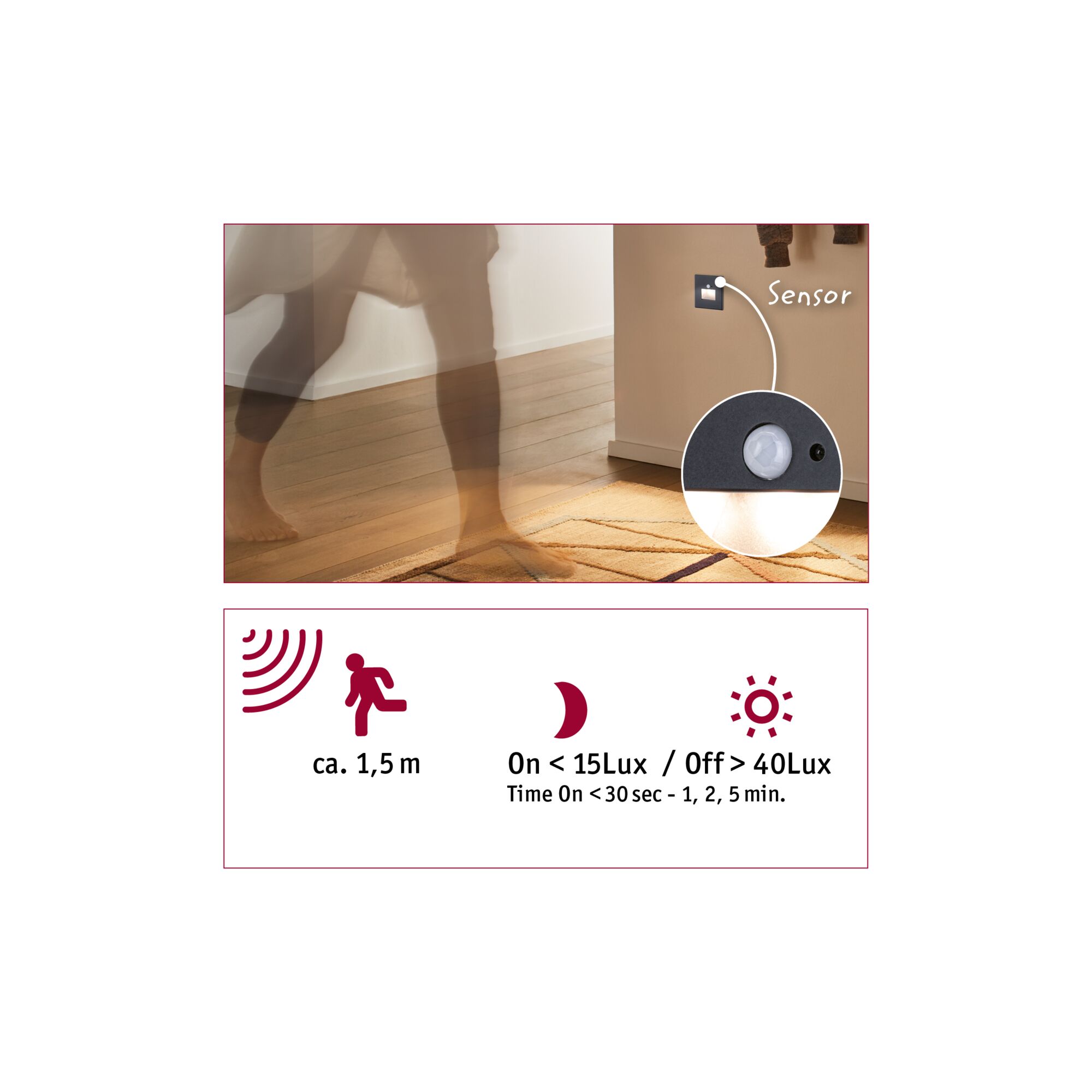

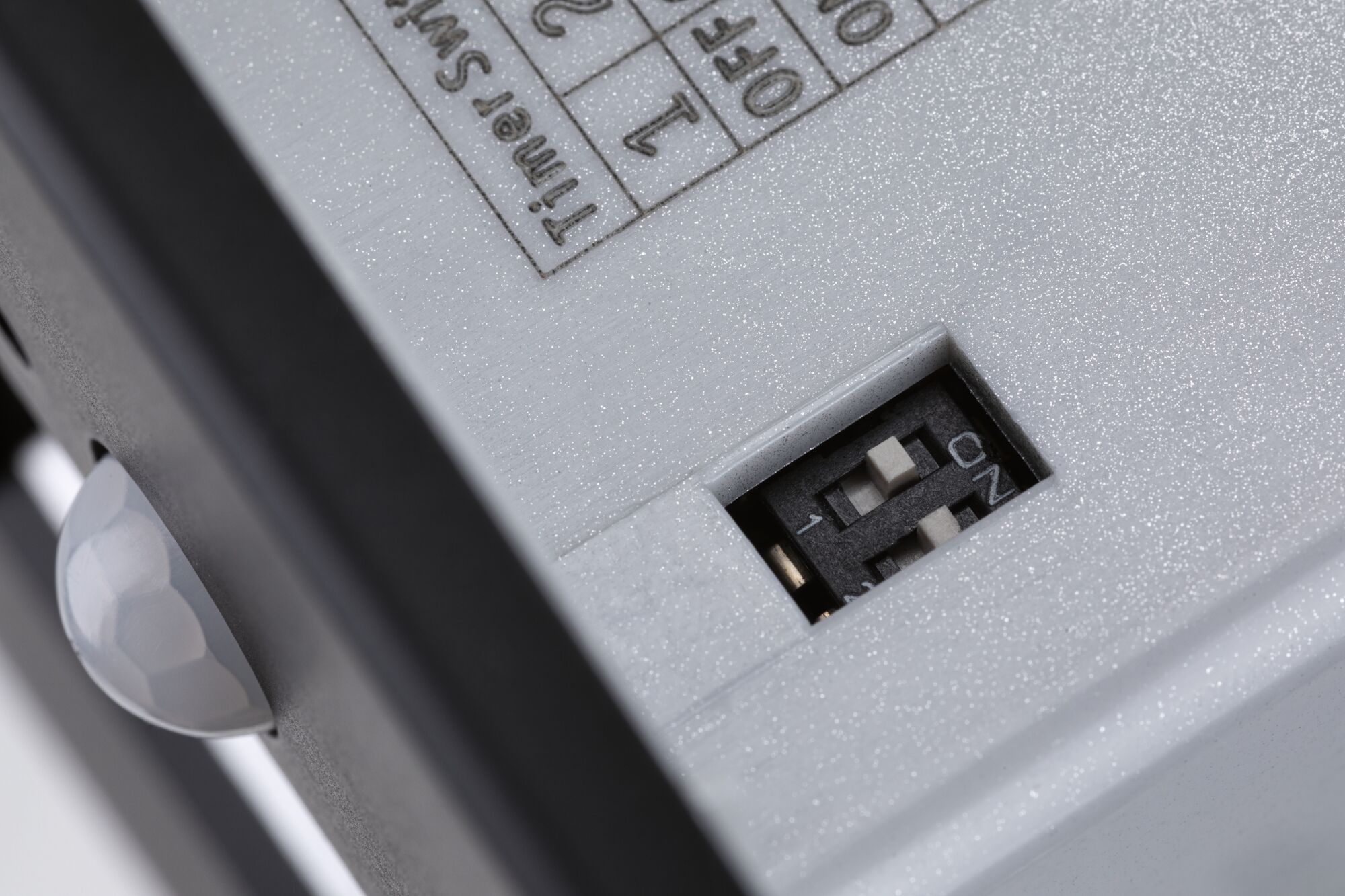

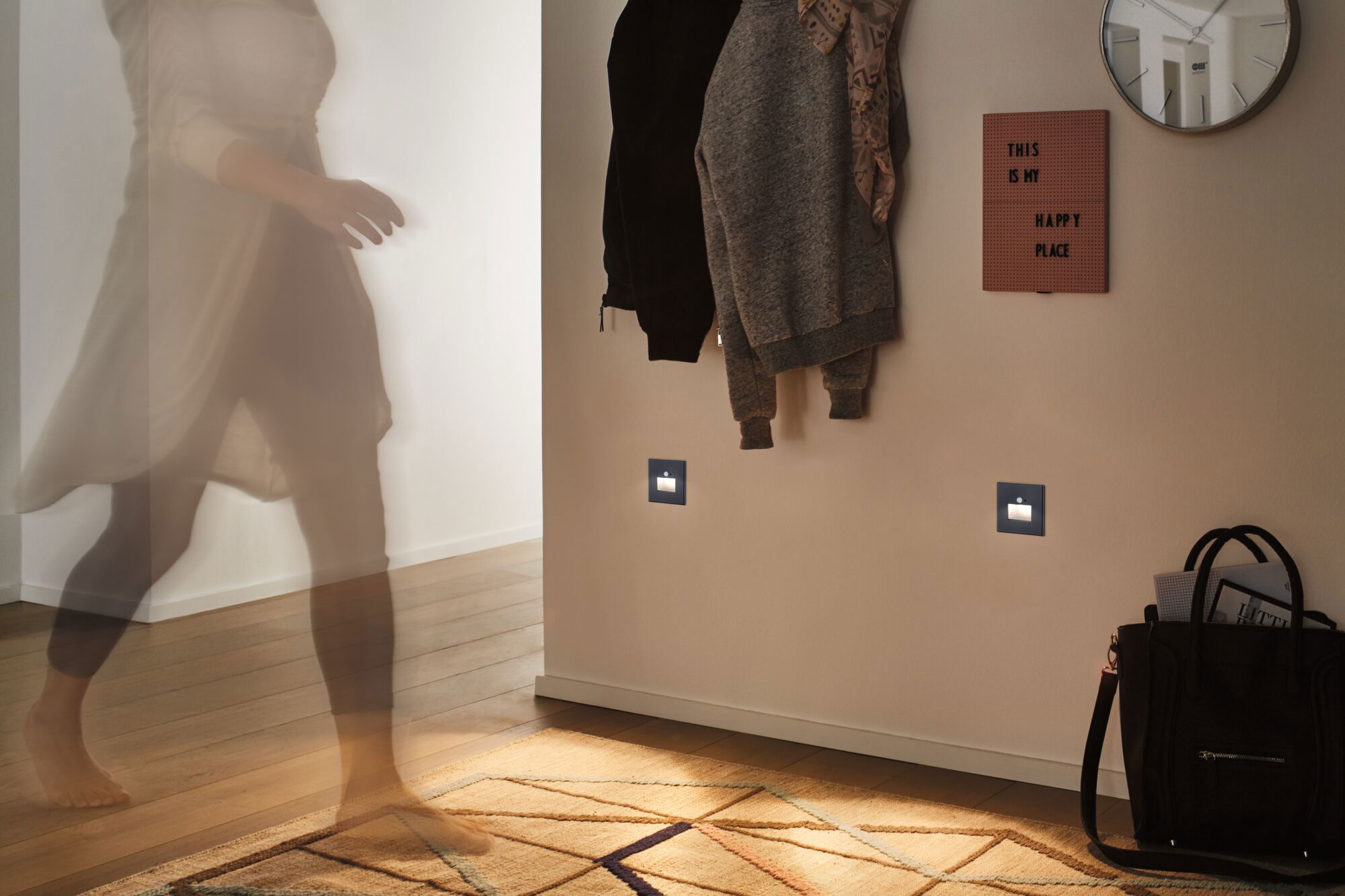

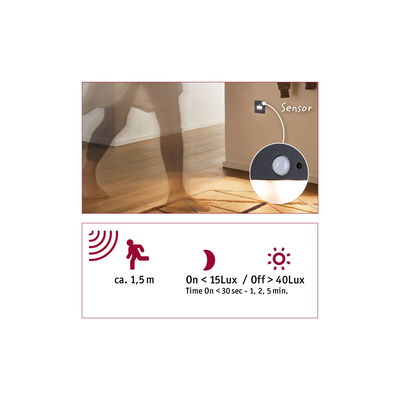

Light need not always come from the ceiling. The Edge spotlight in Black matt was designed specifically for in-wall mounting to create attractive lighting effects, and to increase safety in corridors or stairwells. The advantages of the non-replaceable LED lamp include its energy efficiency and long service life. The PIR-Sensor activates illumination automatically when motion is detected, while the timer function controls the time interval before automatic deactivation.
- Color temperatur: 2700K - Warm white
- For standard recessed device sockets with a 68 mm diameter
- LED lamp (fixed) included in scope of delivery
- Efficient LED technology
- Decorative lighting effects highlight the wall
| Dimension | |
|---|---|

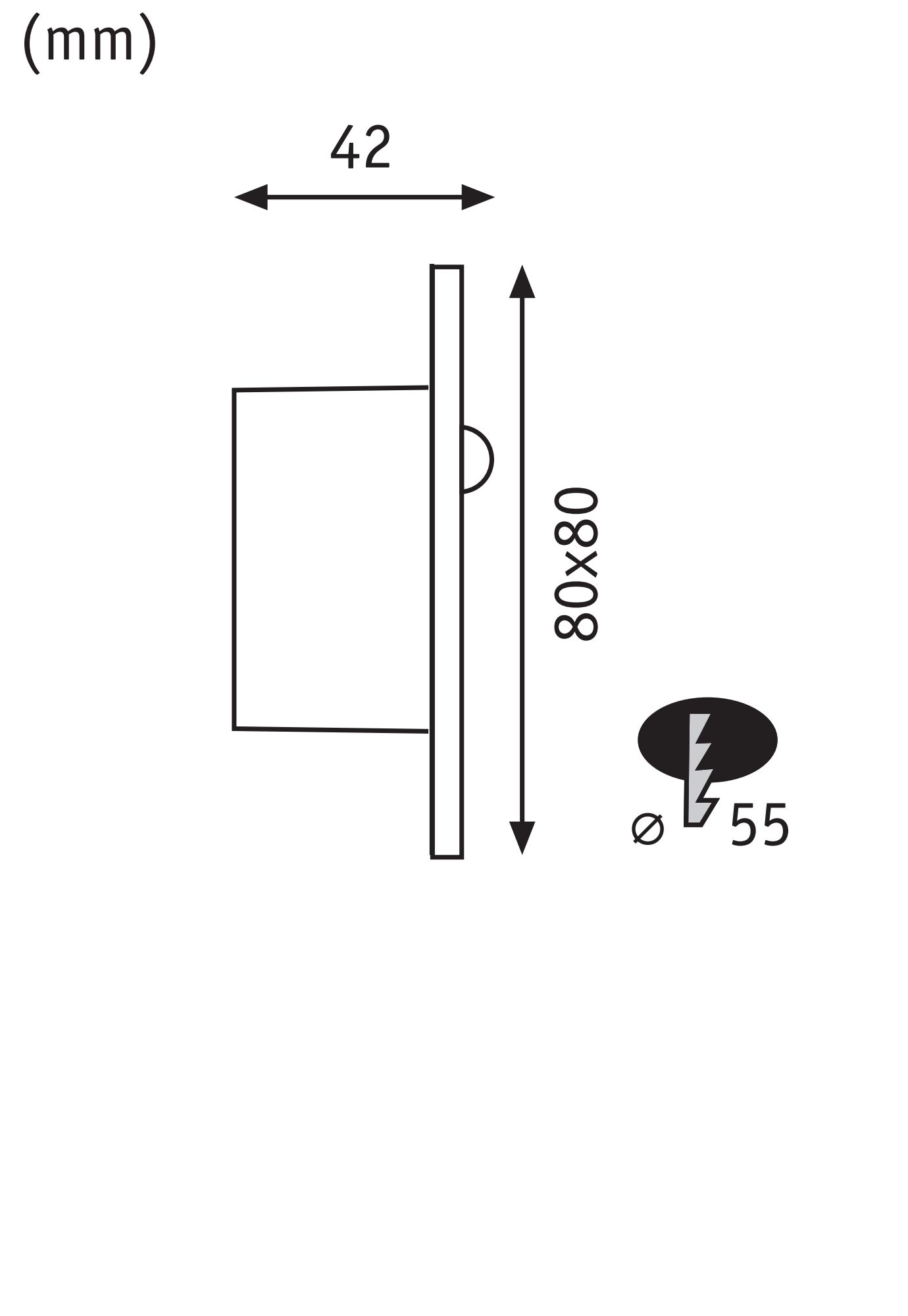

| Dimensions (Height x Width x Depth) | H: 80 x B: 80 x T: 42 mm |
| Built-in diameter | 68 mm |
| Mounting depth | 35 mm |
| Depth of hollow wall | 20 mm |
| Design and Material | |
|---|---|
| Form | angular |
| Colour | Black matt |
| Material | Plastic |
| Stainless | stainless polycarbonate |
| Recycled material included | no |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Features | |
|---|---|

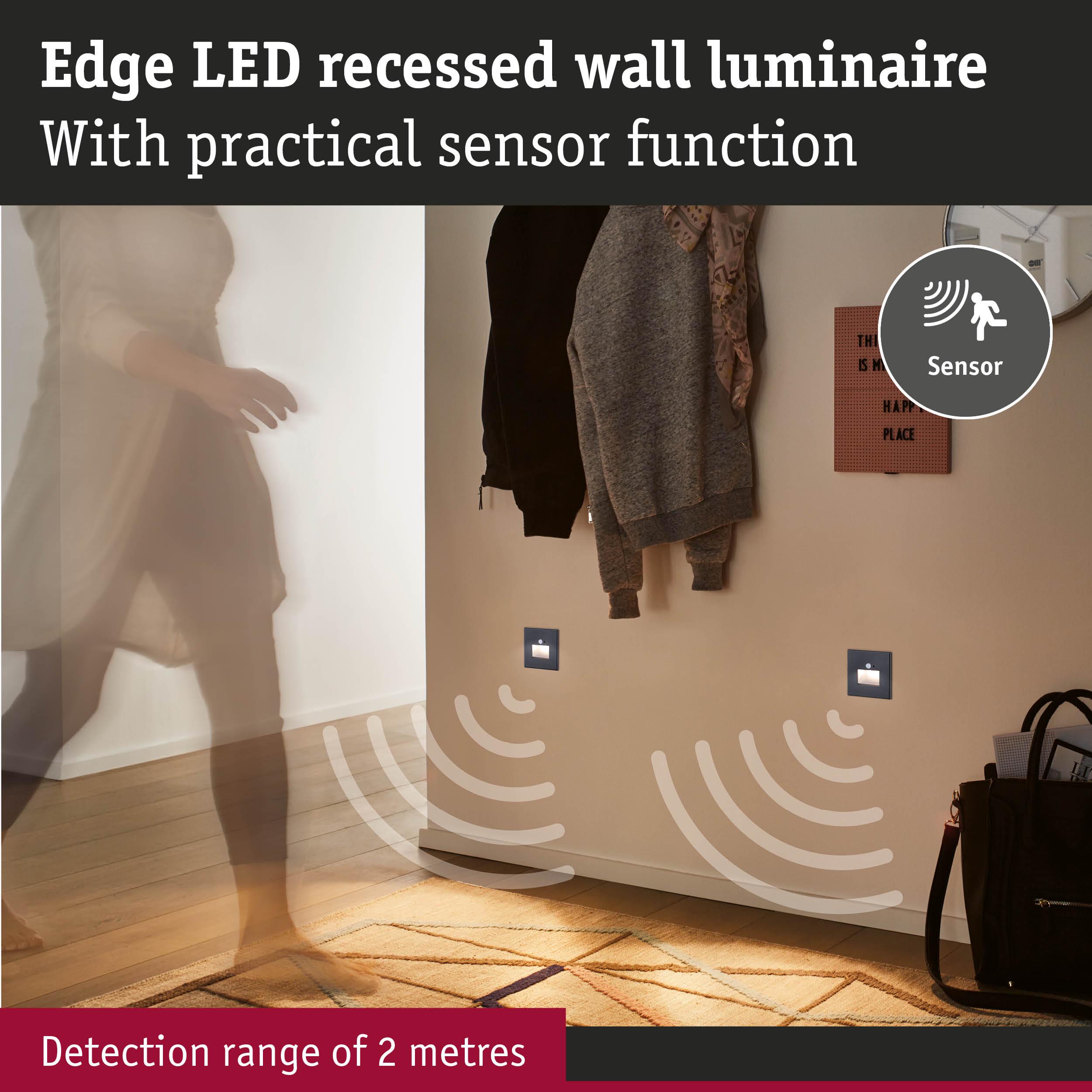

| Sensors | Twilight-controlled motion detector (IR) |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|

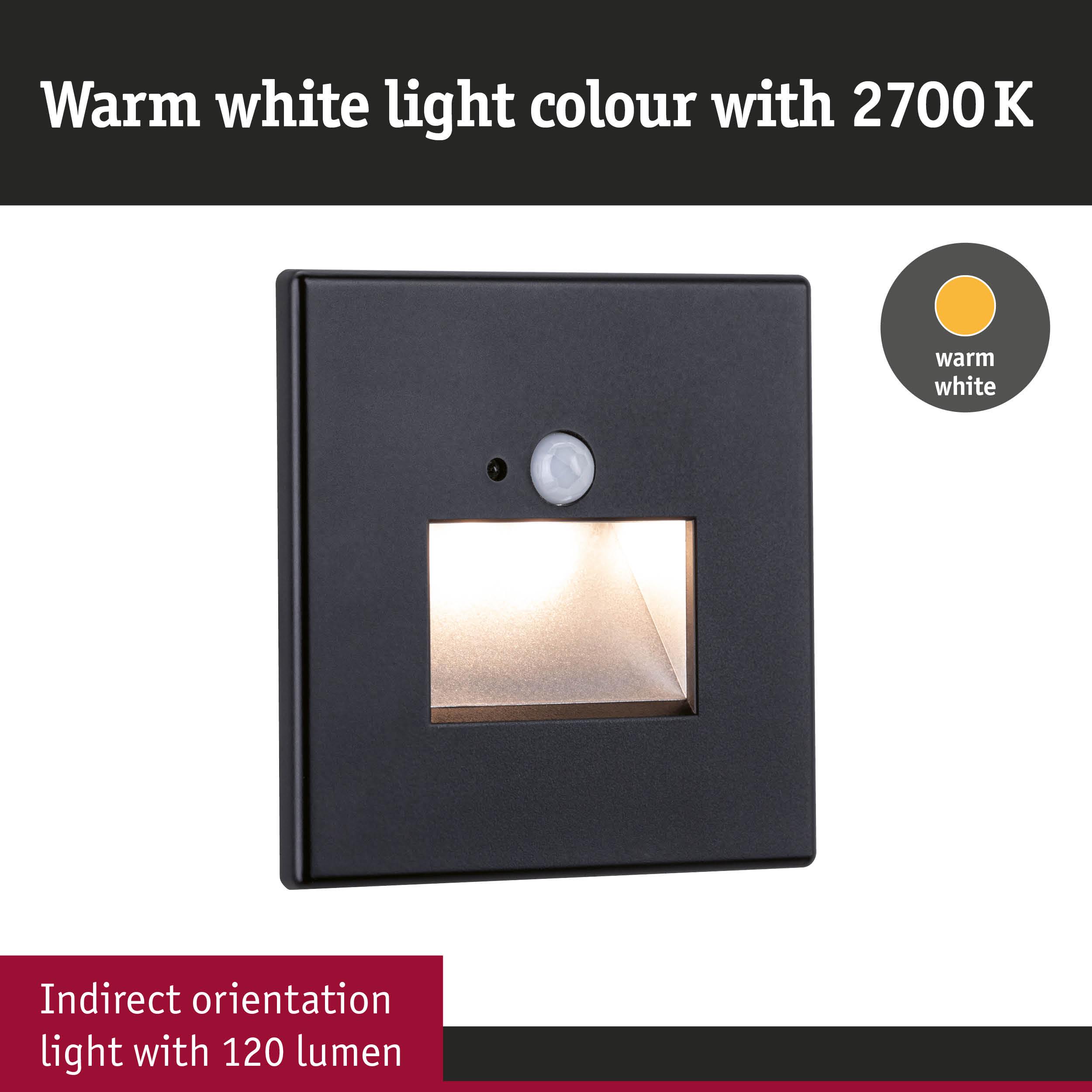

| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 25 lm |
| Luminous flux LED module | 120 lm |
| Color rendering index | > 80 Ra |
| Beam angle | 78 ° |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 13 W |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 1,2 W |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 2,2 W |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 5.5 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
