Article-No.: 92065

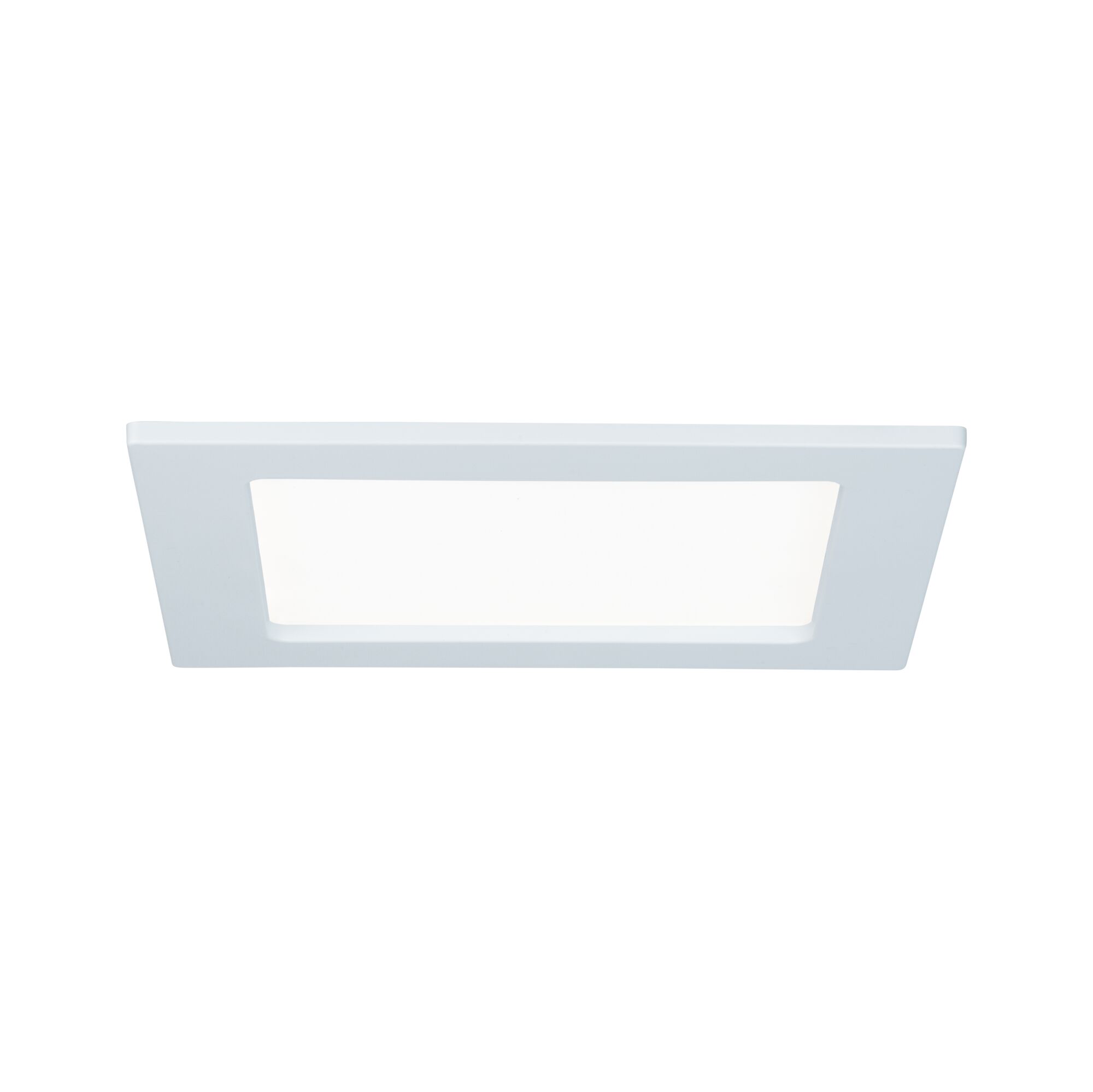

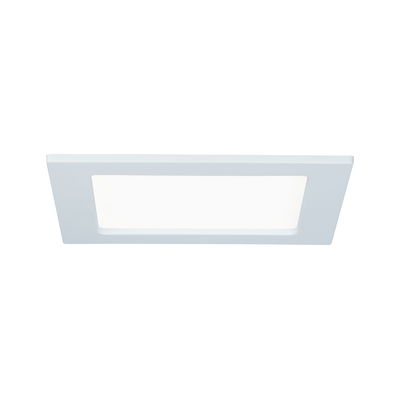

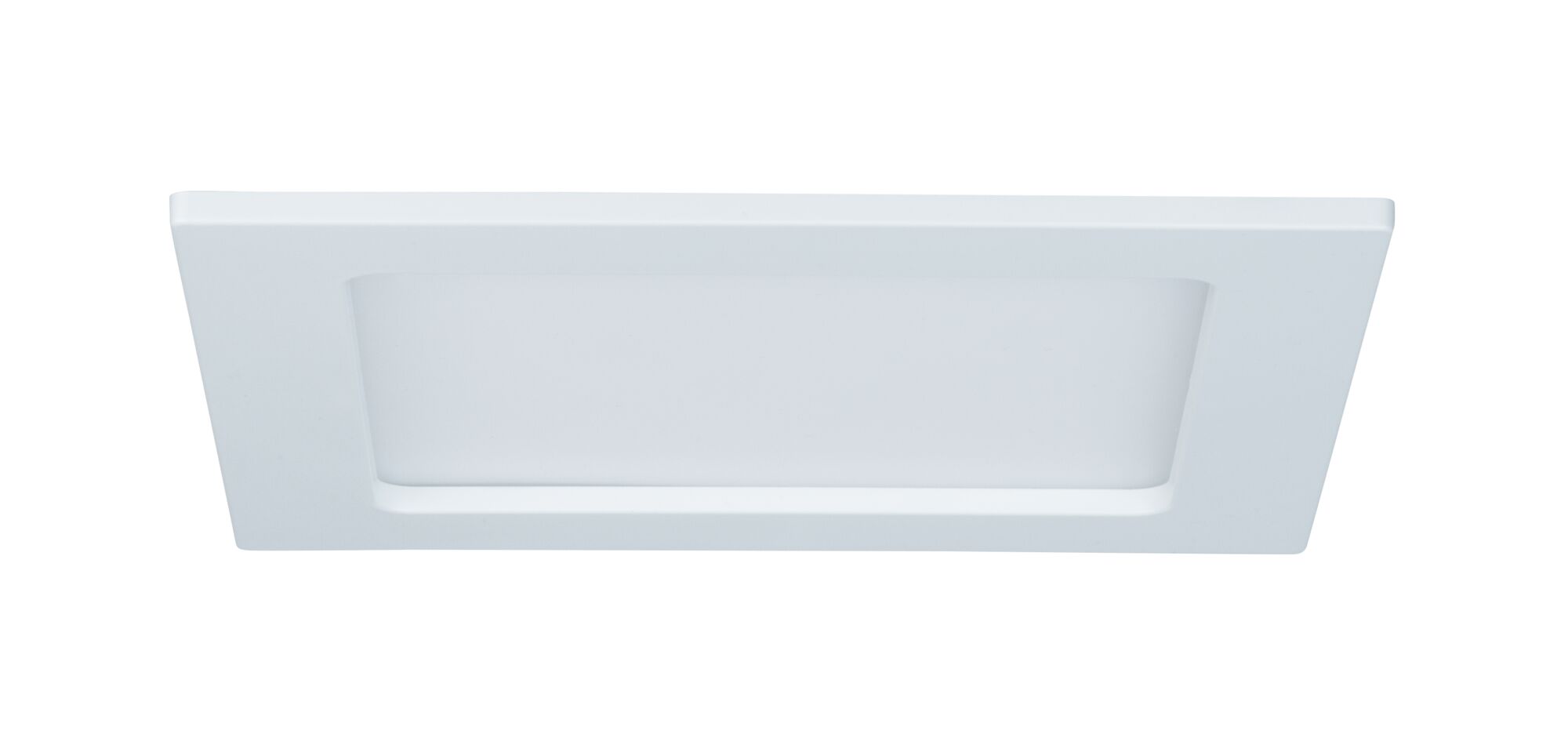

LED Recessed panel LED Recessed panel IP44 square 165x165mm 4000K White

IP44 square 165x165mm 4000K White

Form: square
Colour: White
Output:
Dimension:

  • Single luminaire incl. LED module
  • Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
  • Color temperatur: 4000K - Neutral white

LED Recessed panel IP44 square 165x165mm 4000K White

LED panels with IP44 protection are protected in particular against splash water penetrating the luminaire and therefore ideal for installation in wet locations. In interior bathrooms they are a great substitute for windows – the bathroom is illuminated evenly, glare-free and brightly as though through a skylight. Thanks to their shallow installation depth recessed panels can be mounted into practically any suspended ceiling. In addition, through highly efficient LED technology, they also offer great potential for energy saving, in turn saving you money.
  • Single luminaire incl. LED module
  • Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
  • Color temperatur: 4000K - Neutral white
  • IP protection: IP44 splash-protected

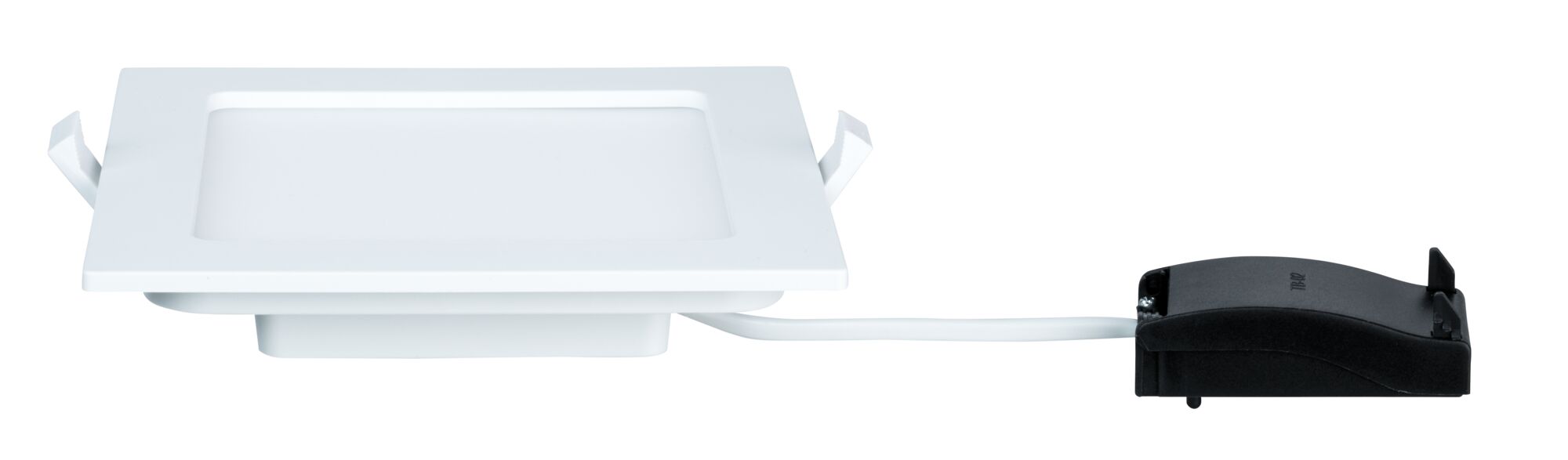

  • Incl. junction box with double quick clamp for feeding through wires

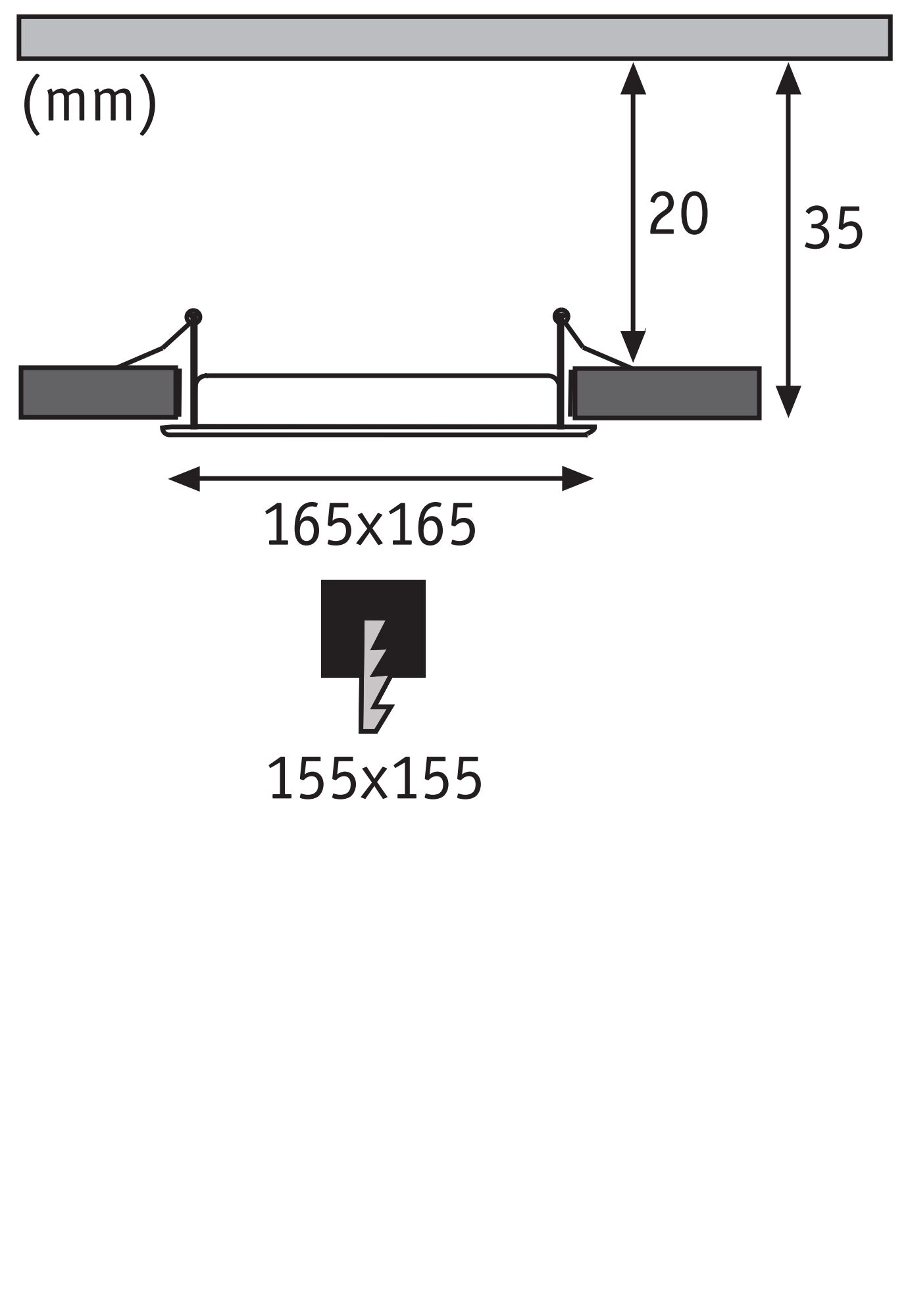

Dimension
mounting hole 2 155mm
depth of hollow wall 20mm
Mounting depth 35mm
Dimensions (Height x Width x Depth) H: 5 x B: 165 x T: 165mm
Mounting hole 155mm
Form square
Depth of hollow wall 20mm
Design and Material
stainless stainless
Colour White
Material Plastic
Installation
Installation site (recommendation) Ceiling mounting
Energy consumption
energy efficiency (A to G) E
Service life
lifetime 30.000h
Rated life time 30000h
Light Characteristics
Color temp. 4000K
Beam angle 120°
Useful luminous flux 850lm
Luminous flux LED module 1263lm
color temp 4.000K
Beam angle LED module 118°
Rated luminous flux (Lumen) 850lm
Lamp Features
Component parts 12W
Dimmable No
Technique LED
IP protection IP44 ceiling mounting
Incandescent Equivalent 86 W
Inclusive lamp
Number of component parts 1x
protection class protection class II
Replacable 3 Lightsource is not replaceable, the complete lighting must be replaced.
Labelling
MM symbol MM symbol
WEEE-Reg.-No DE 39236390
