Article-No.:
92070
LED Recessed panel
LED Recessed panel IP44 round 115mm 6W 390lm 4000K Chrome matt
IP44 round 115mm 6W 390lm 4000K Chrome matt
IP44 round 115mm 6W 390lm 4000K Chrome matt
- Single light incl. LED module
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
- Color temperatur: 4000K - Neutral white
LED Recessed panel IP44 round 115mm 6W 390lm 4000K Chrome matt
LED panels with IP44 protection are protected in particular against splash water penetrating the light and therefore ideal for installation in wet locations. In interior bathrooms they are a great substitute for windows – the bathroom is illuminated evenly, glare-free and brightly as though through a skylight. Thanks to their shallow installation depth recessed panels can be mounted into practically any suspended ceiling. In addition, through highly efficient LED technology, they also offer great potential for energy saving, in turn saving you money.
- Single light incl. LED module
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
- Color temperatur: 4000K - Neutral white
- IP protection: IP44 splash-protected
- Incl. junction box with double quick clamp for feeding through wires

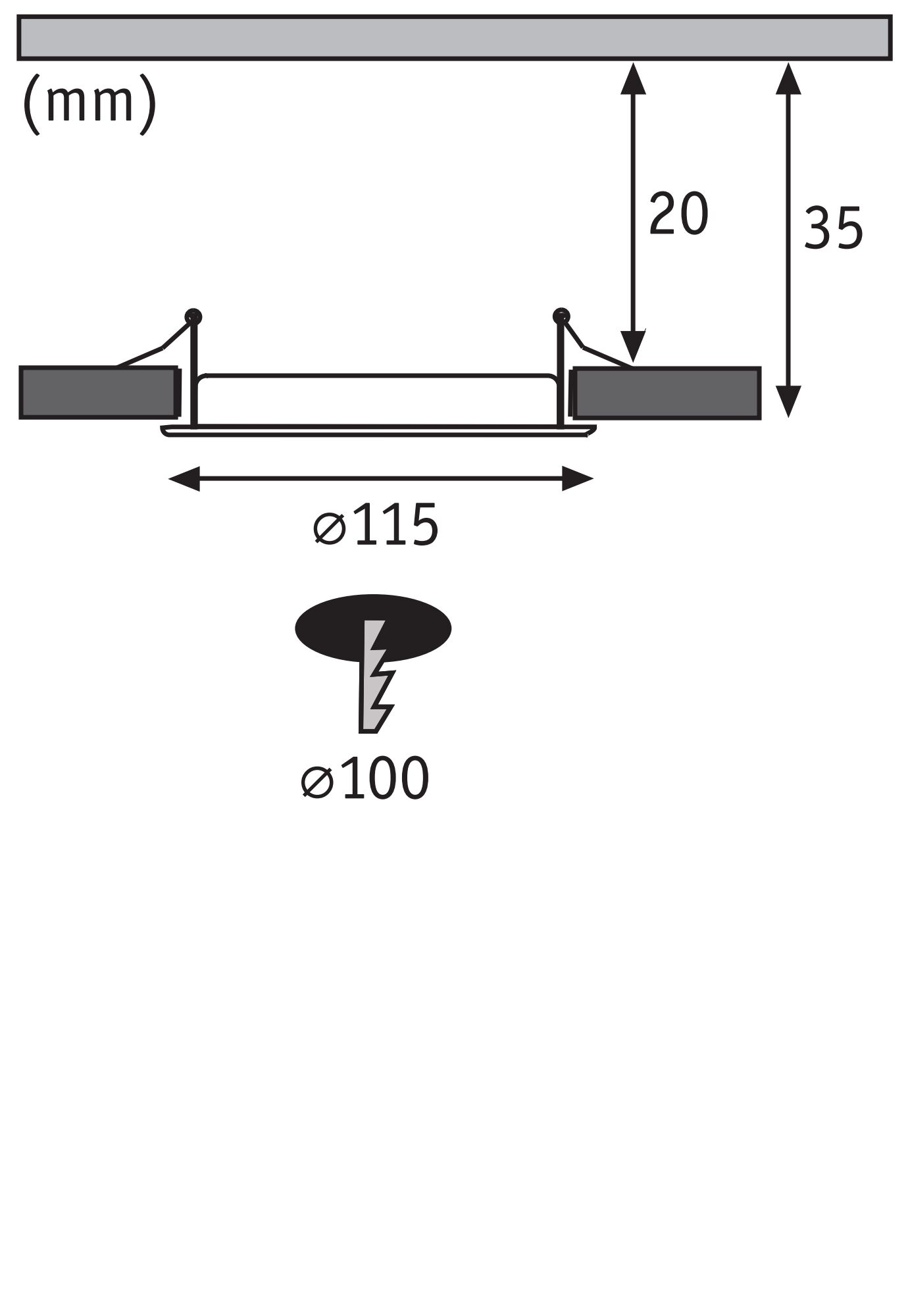

| Dimension | |
|---|---|
| Diameter | 115 mm |
| Dimensions (Height x Width x Depth) | H: 5 mm |
| Built-in diameter | 100 mm |
| Mounting depth | 35 mm |
| Depth of hollow wall | 20 mm |
| net weight | 171 g |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Chrome matt |
| Material | Plastic |
| Stainless | stainless |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 390 lm |
| Beam angle | 110 ° |
| Colour temperature | Neutral white, 4000 K |
| Luminous flux LED module | 671 lm |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Component parts | 6 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 51 W |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | No |
| IP protection | IP44 ceiling mounting |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 6 W |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
