Article-No.:
92943
LED Recessed panel
Areo
round 180mm 11W 770lm 3000K Matt white
round 180mm 11W 770lm 3000K Matt white
- Complete set incl. panel, supply line and fixation material
- Satined plastic cover for fine diffusion of light
- Low mounting depth: only 35mm

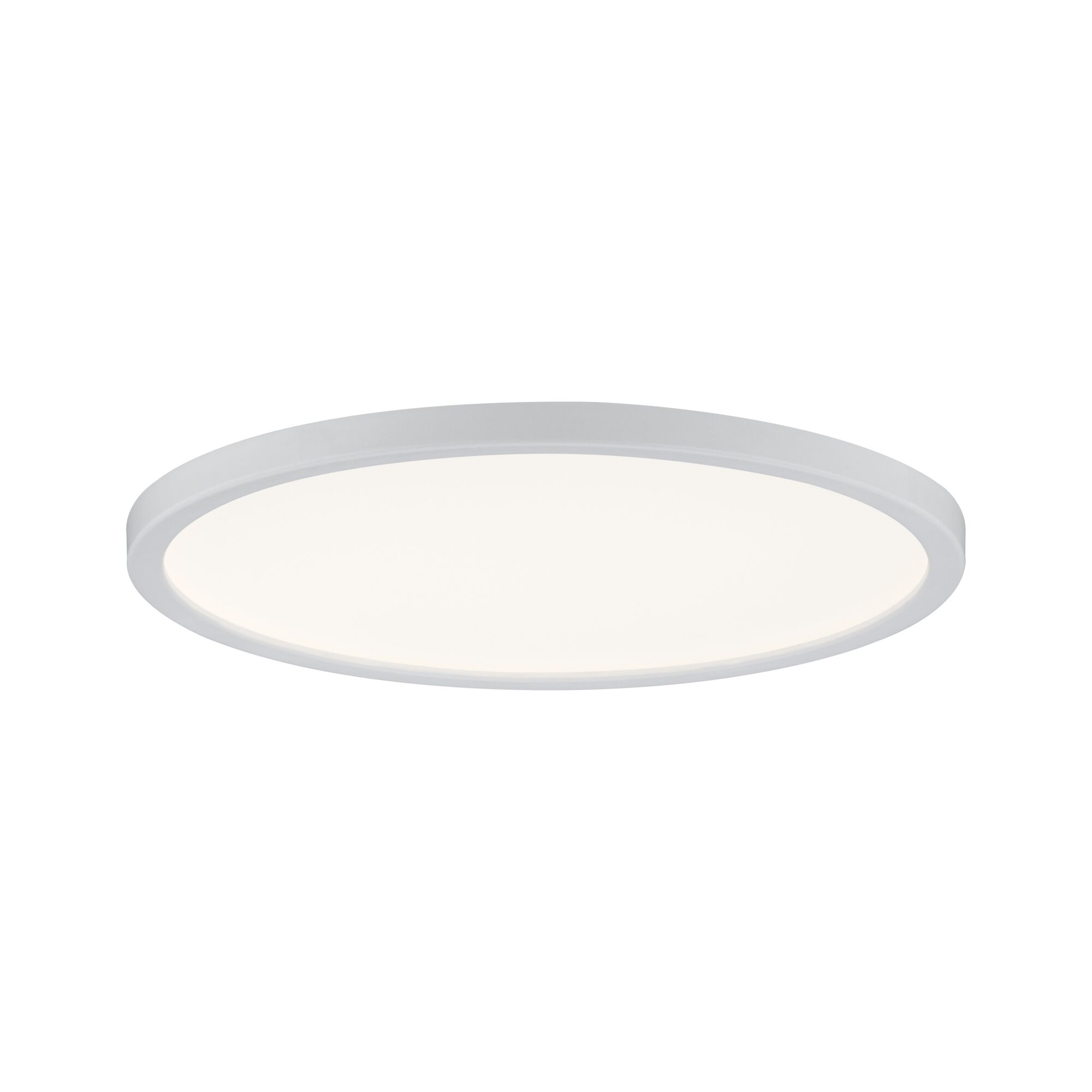

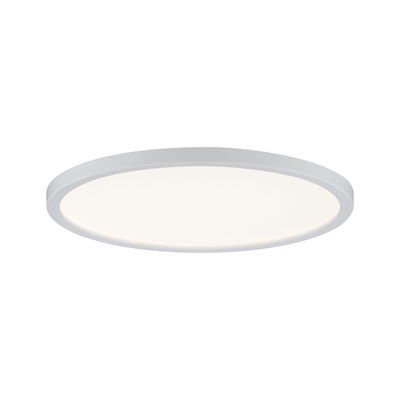

LED Recessed panel Areo round 180mm 11W 770lm 3000K Matt white
The Areo round LED panel with an output of 12 watts provides uniform room illumination. The matt white edge is especially narrow, so that it is hardly noticed. The light is made of plastic and is thus particularly easy to keep clean. It is also easy to install on account of its low weight.

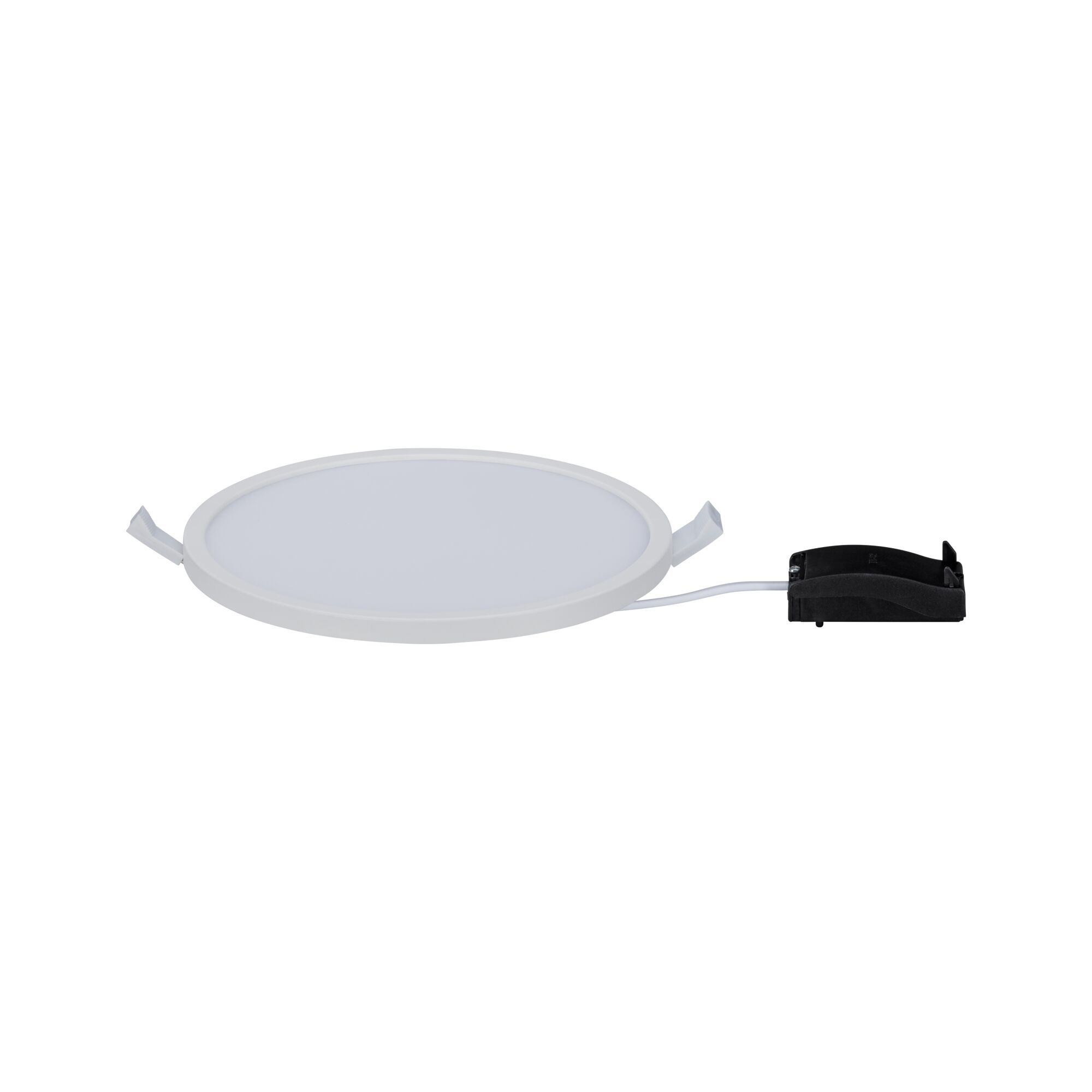

- Complete set incl. panel, supply line and fixation material
- Satined plastic cover for fine diffusion of light
- Low mounting depth: only 35mm
- For 230 V direct connection
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 3000K - Warm white

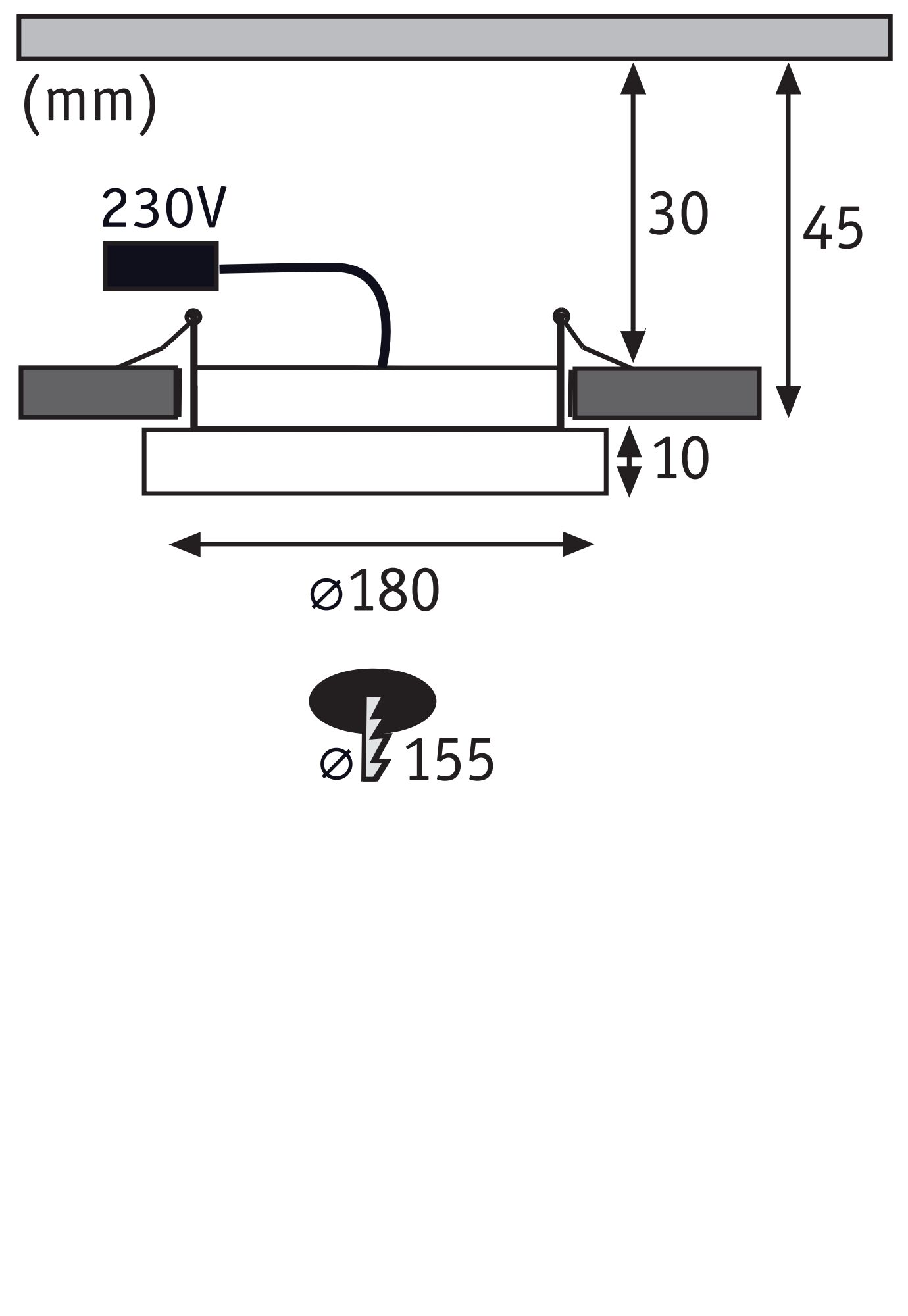

| Dimension | |
|---|---|
| Diameter | 180 mm |
| Dimensions (Height x Width x Depth) | H: 10 mm |
| Built-in diameter | 155 mm |
| Mounting depth | 35 mm |
| Depth of hollow wall | 20 mm |
| net weight | 301 g |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Matt white |
| Material | Plastic |
| Stainless | stainless |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 770 lm |
| Color rendering index | > 80 Ra |
| Colour temperature | Warm white, 3000 K |
| Luminous flux LED module | 1200 lm |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Component parts | 11 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 83 W |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | No |
| IP protection | IP23 ceiling mounting |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 13 W |
| Voltage | 230 V |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
