Article-No.: 92940

LED Recessed panel Areo

IP44 square 120x120mm 6,5W 418lm 3000K Nickel matt dimmable

Form: square
Colour: Nickel matt
Dimension: 120x120mm

  • Made of easy-care plastic

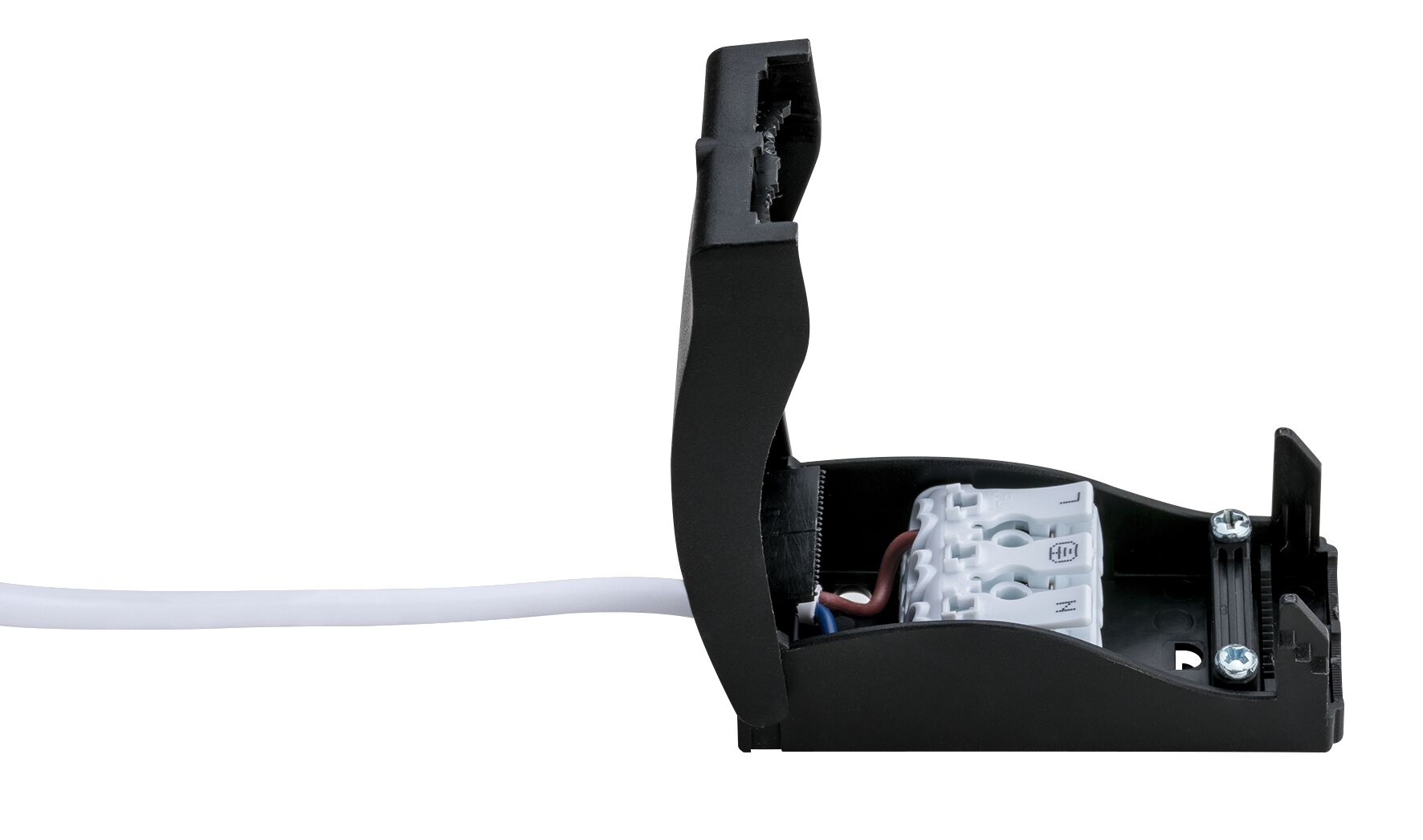

  • For 230 V direct connection
  • IP protection: IP44 splash-protected

LED Recessed panel Areo IP44 square 120x120mm 6,5W 418lm 3000K Nickel matt dimmable

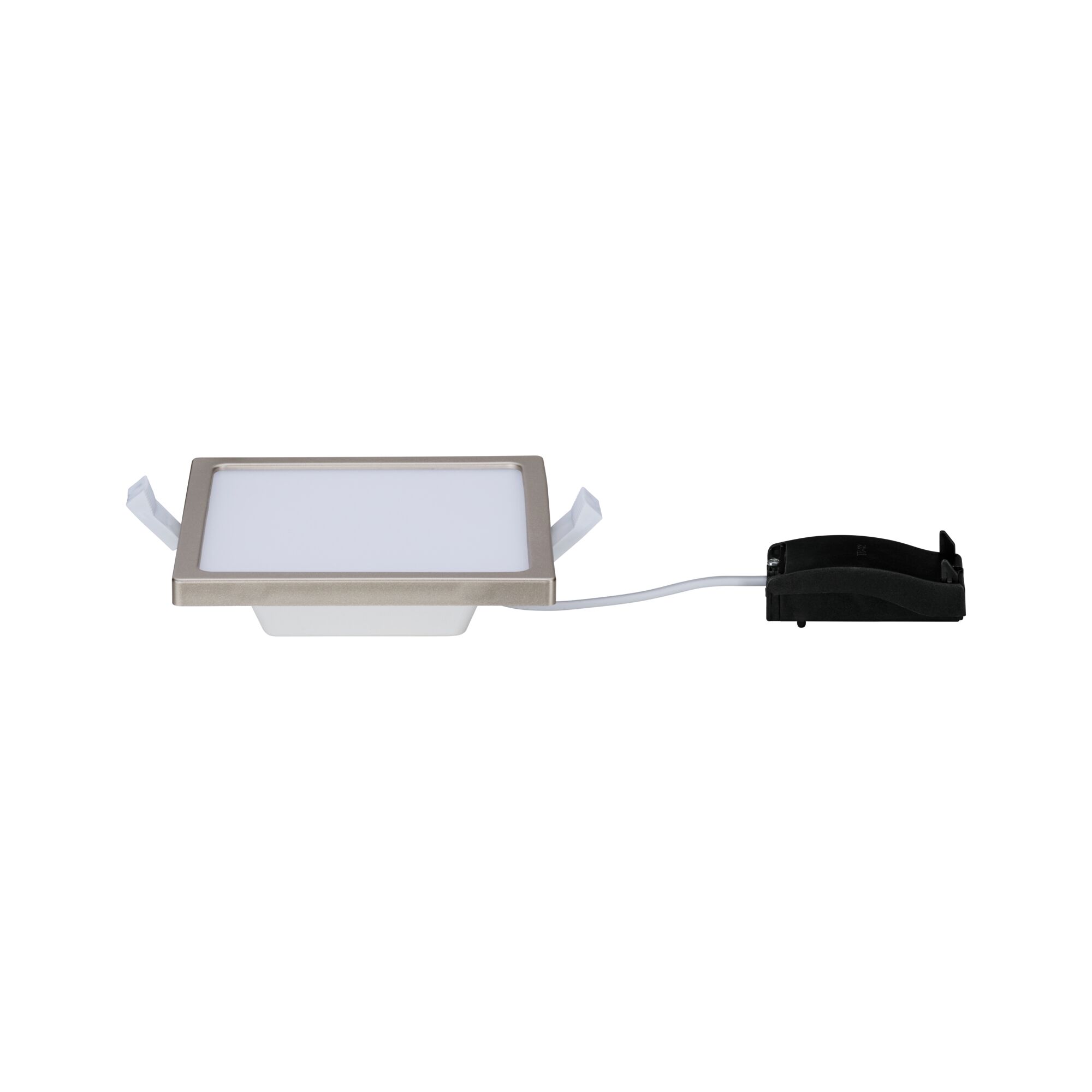

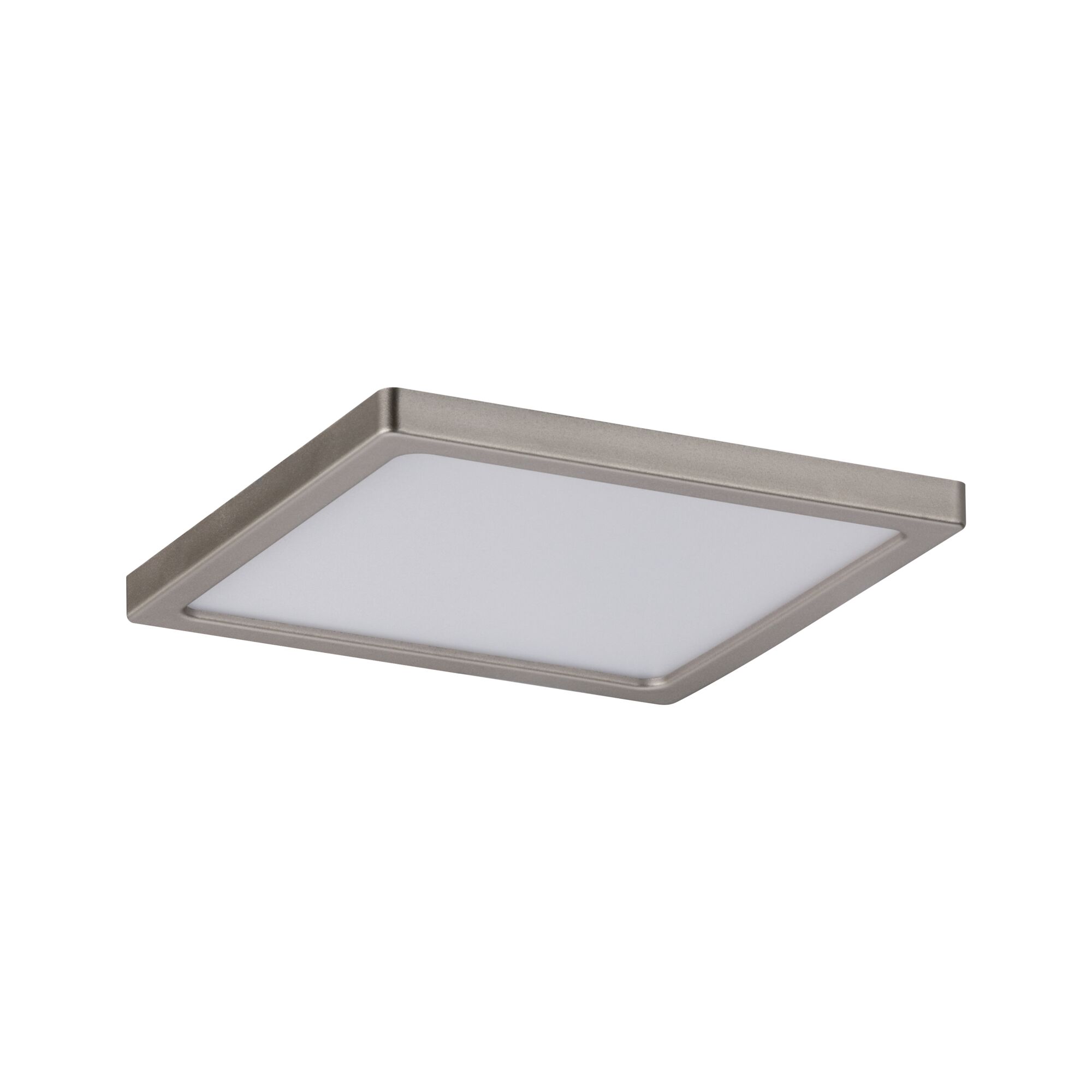

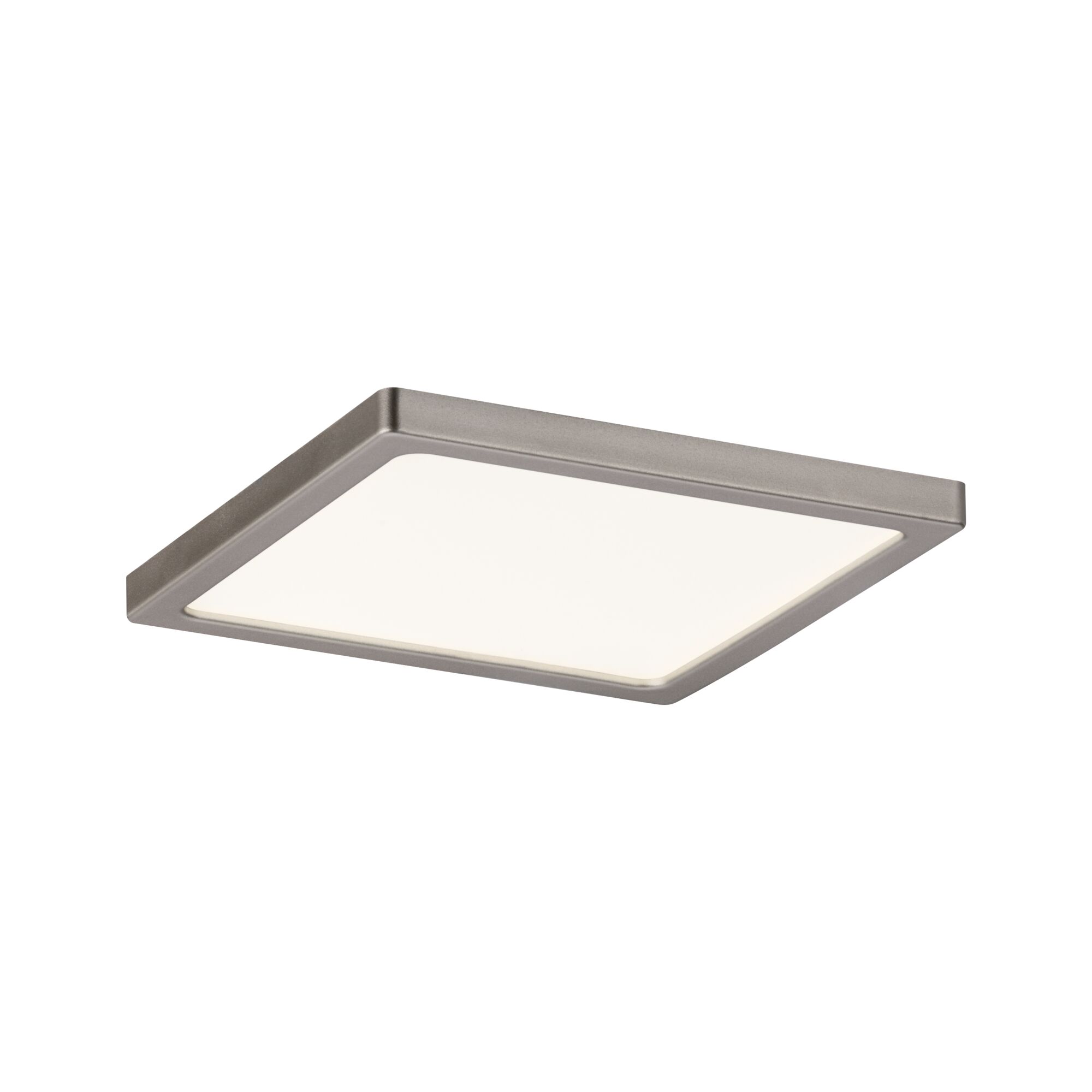

The rectangular Areo LED recessed panel with an edge length of 12 centimetres and 8W power features an extra-narrow edge and dimming function. The matt nickel-coloured plastic housing is particularly easy to install and keep clean thanks to its low weight.
  • Made of easy-care plastic
  • For 230 V direct connection
  • IP protection: IP44 splash-protected
  • LED lamp (fixed) included in scope of delivery
  • Color temperatur: 3000K - Warm white
  • Dimmable

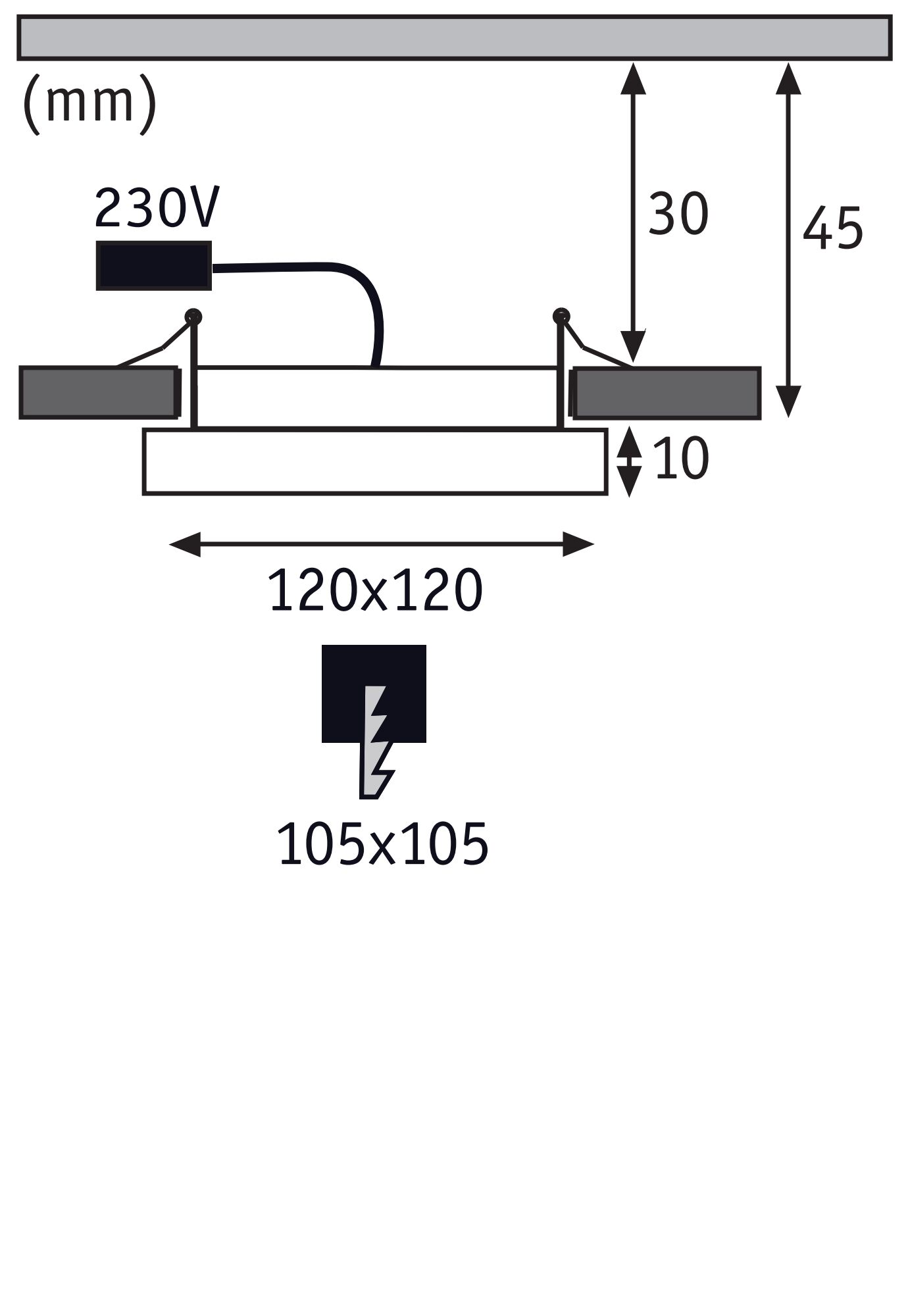

Dimension
mounting hole 2 105 mm
Total Mounting depth 35 mm
Dimensions (Height x Width x Depth) H: 10 x B: 120 x T: 120 mm
Mounting hole 105 mm
Form square
Depth of hollow wall 20 mm, 20 mm
Design and Material
stainless stainless
Colour Nickel matt
Material Plastic
Installation
Installation site (recommendation) Ceiling mounting
Energy consumption
Energy efficiency (A to G) F
Service life
Lifetime 30000 h
Light Characteristics
Colour temp. 3000 K
Usable luminous flux 418 lm
Luminous flux LED module 630 lm
color temp 3000 K
Lamp Features
Component parts 6,5 W
Technique LED
IP protection IP44 ceiling mounting
Dimmable with dimmer R+C f.elect.trafos+230V bulbs
Inclusive lamp yes
Total Width 120 mm
Incandescent Equivalent 50 W
Number of component parts 1x
protection class protection class II
Replacable 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced.
Power consumption 8 W
Labelling
MM symbol MM symbol
WEEE-Reg.-No DE 39236390

Downloads

Flyer and Safety instructions
Safety instructions Downlights
