Article-No.:
92939
LED Recessed panel
Areo
IP44 angular 180x180mm 11W 770lm 3000K Nickel matt dimmable
IP44 angular 180x180mm 11W 770lm 3000K Nickel matt dimmable
- Made of easy-care plastic

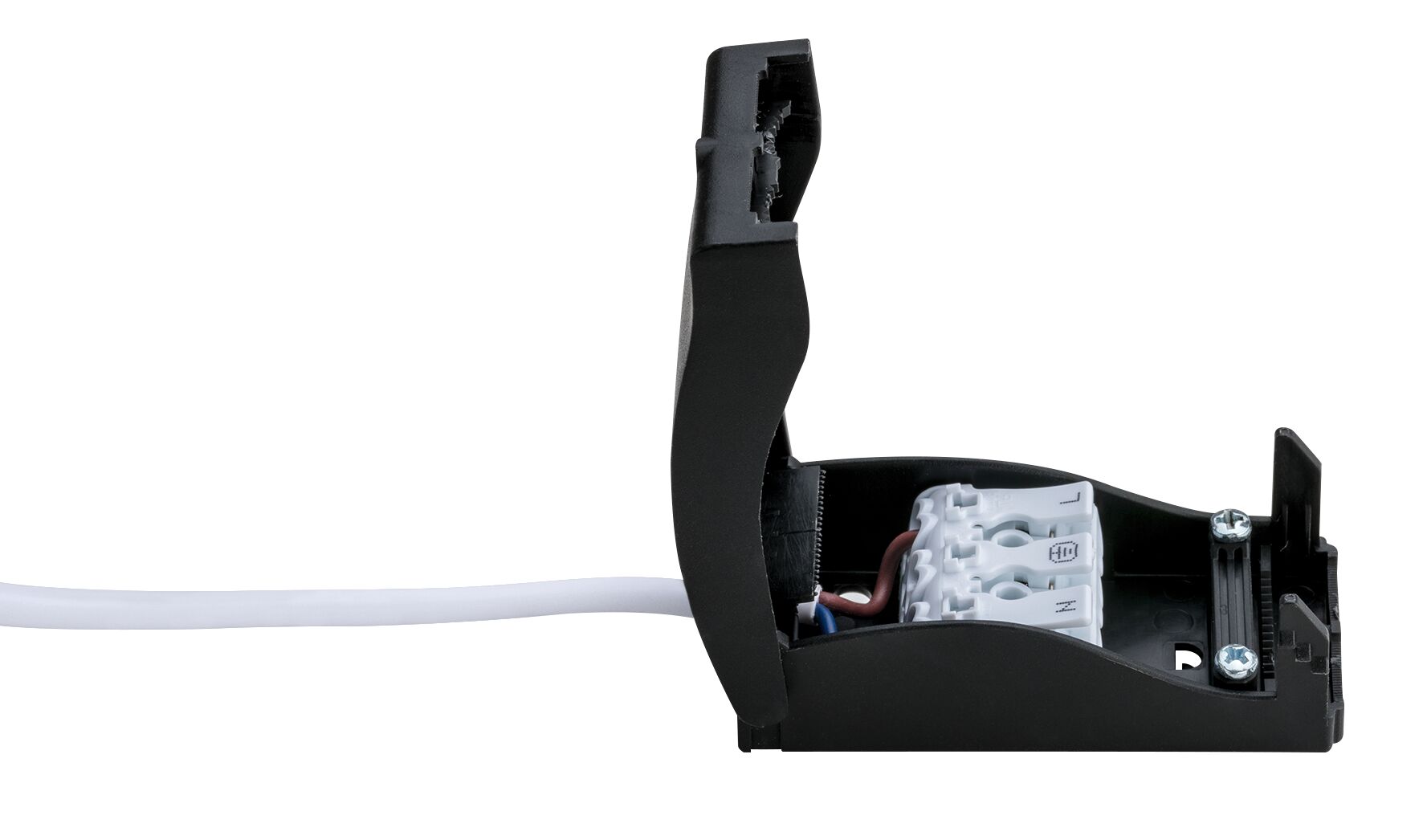

- For 230 V direct connection
- IP protection: IP44 splash-protected
LED Recessed panel Areo IP44 angular 180x180mm 11W 770lm 3000K Nickel matt dimmable

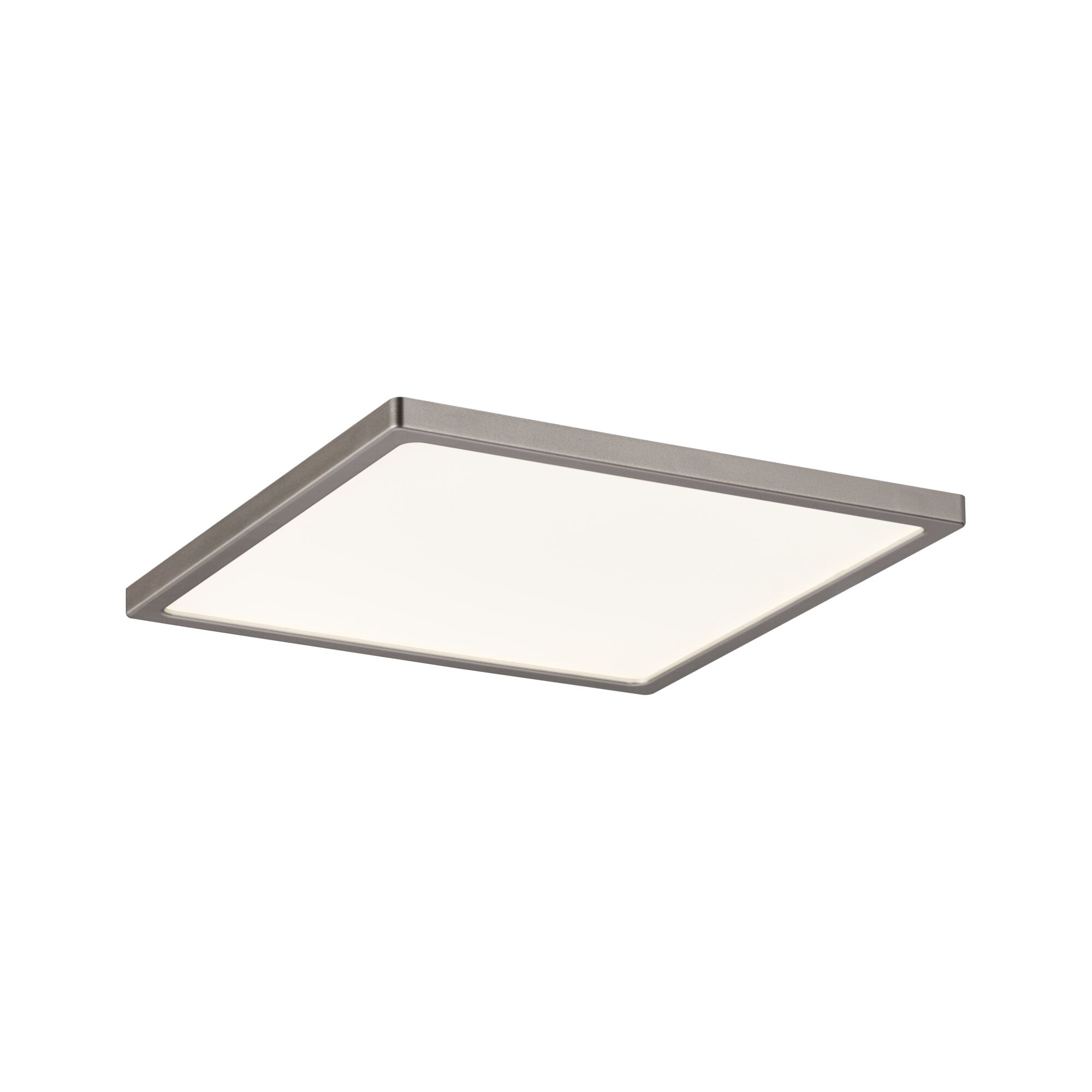

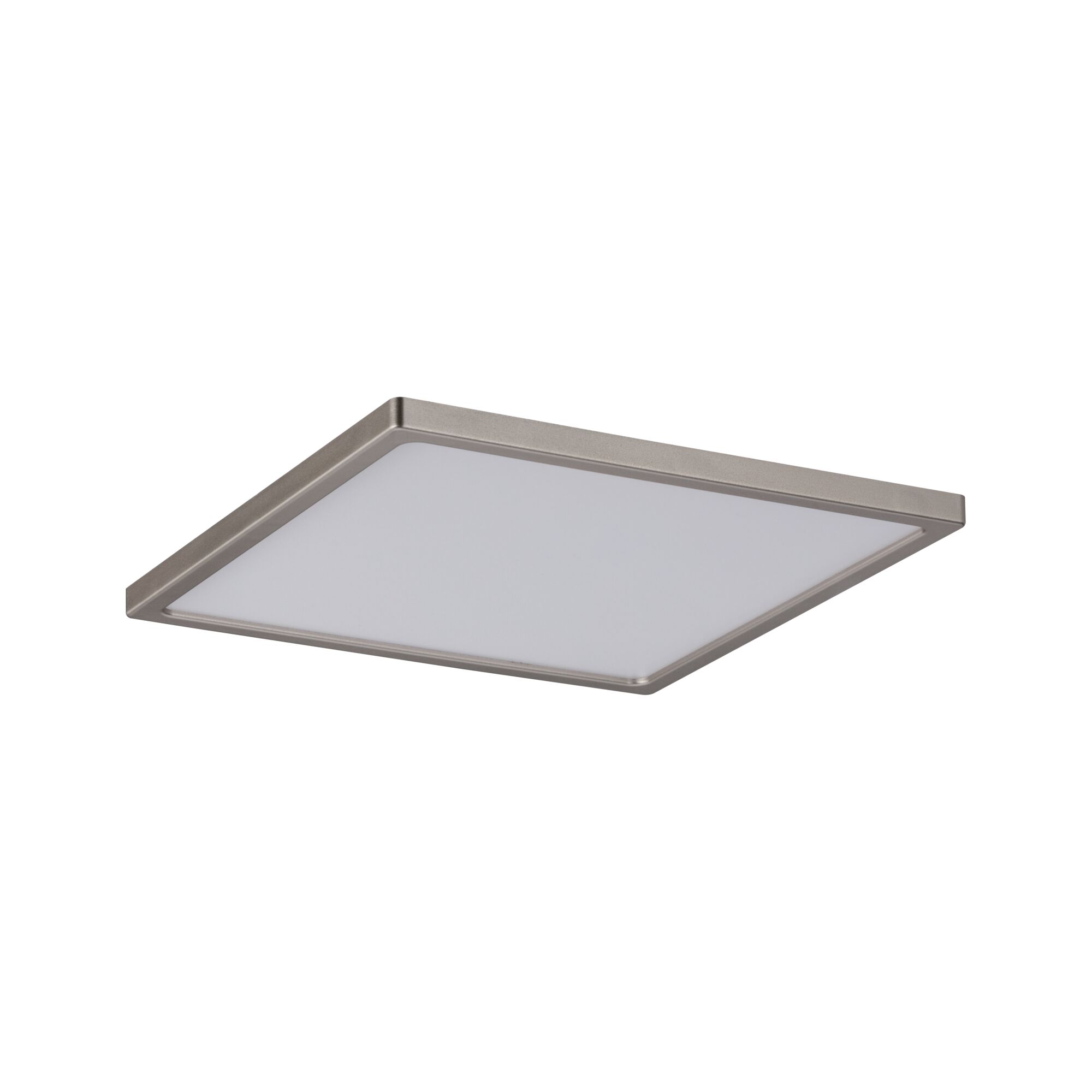

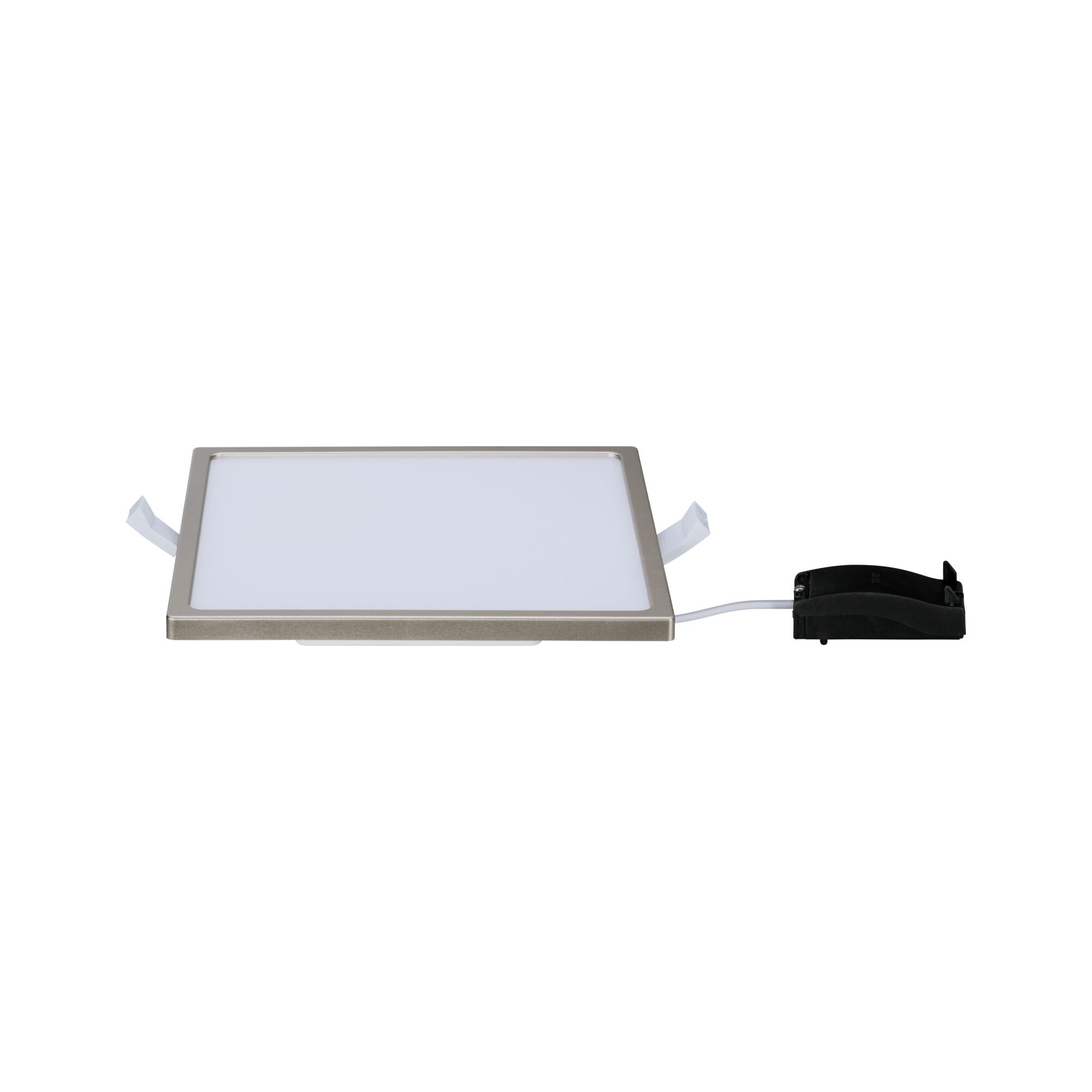

The rectangular Areo LED recessed panel with an edge length of 18 centimetres and 12W power features an extra-narrow edge and dimming function. The matt nickel-coloured plastic housing is particularly easy to install and keep clean thanks to its low weight.
- Made of easy-care plastic
- For 230 V direct connection
- IP protection: IP44 splash-protected
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 3000K - Warm white
- Dimmable
| Dimension | |
|---|---|

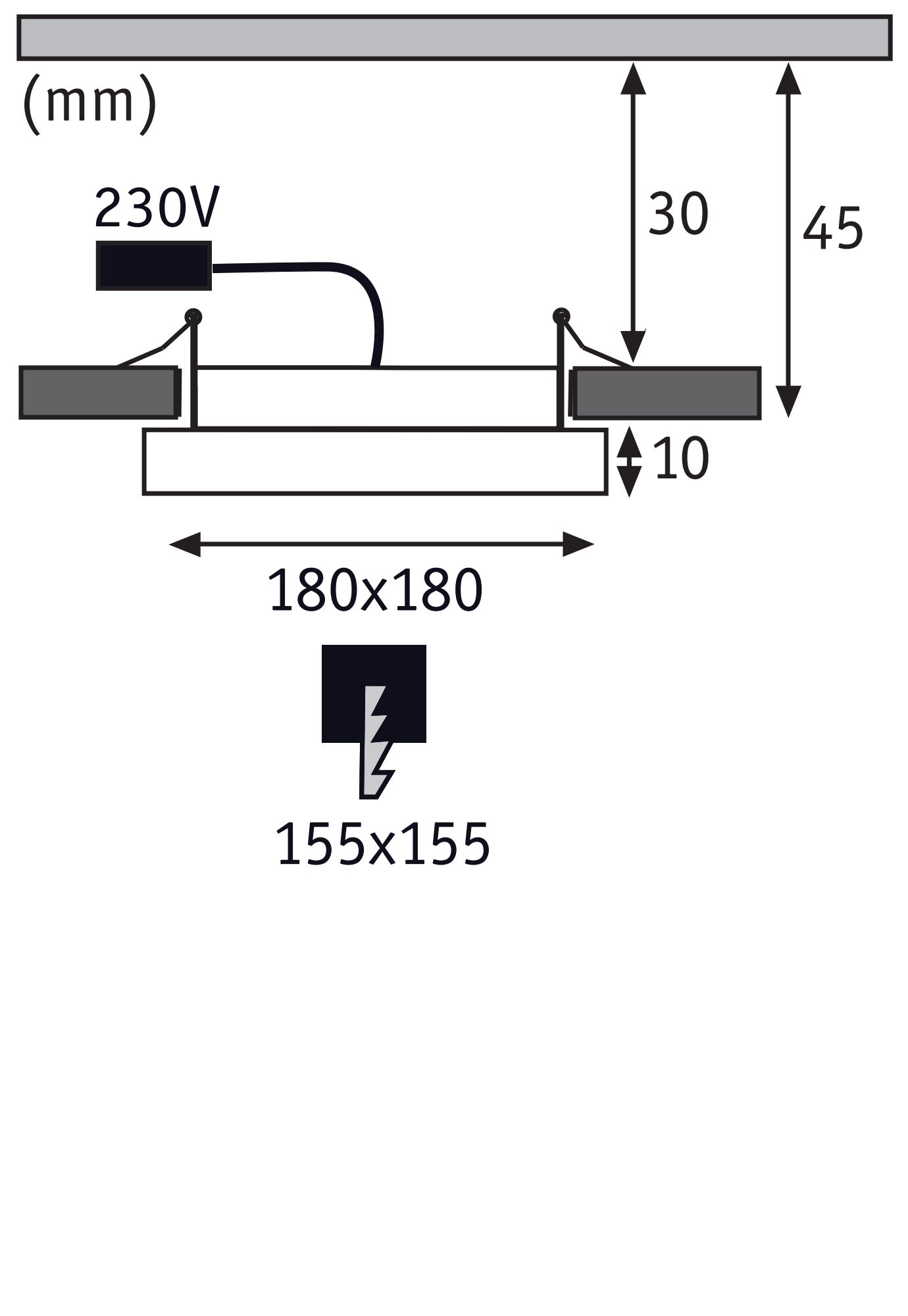

| Dimensions (Height x Width x Depth) | H: 10 x B: 180 x T: 180 mm |
| Einbauöffnung__Breite_x_Tiefe | 155 x 155 mm |
| Mounting depth | 35 mm |
| Depth of hollow wall | 20 mm |
| Net weight | 370 g |
| Design and Material | |
|---|---|
| Form | angular |
| Colour | Nickel matt |
| Material | Plastic |
| Stainless | stainless |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Component parts | 11 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 83 W |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| IP protection | IP44 ceiling mounting |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 13 W |
| Voltage | 230 V |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 770 lm |
| Colour temperature | Warm white, 3000 K |
| Luminous flux LED module | 1200 lm |
