Article-No.:
92467

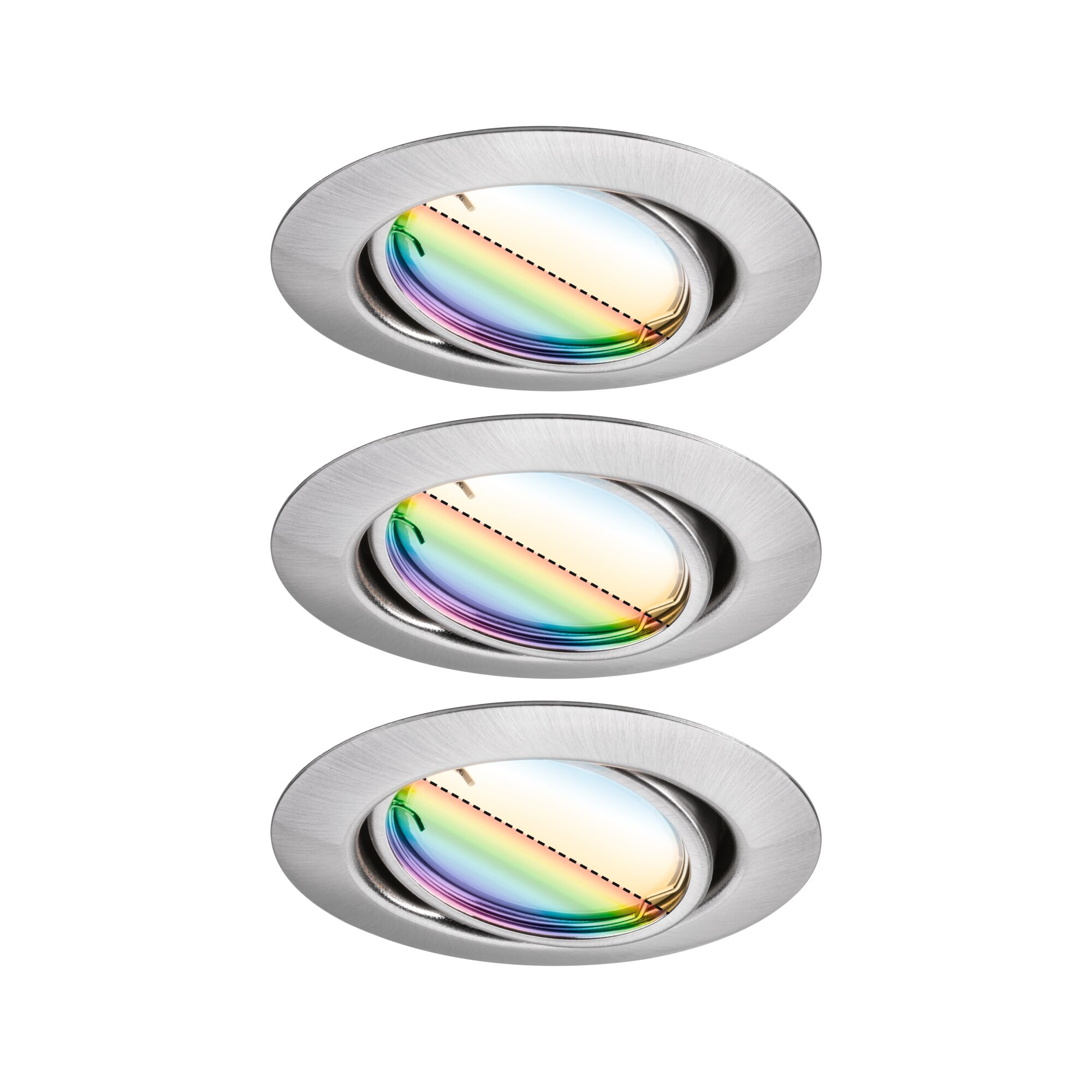

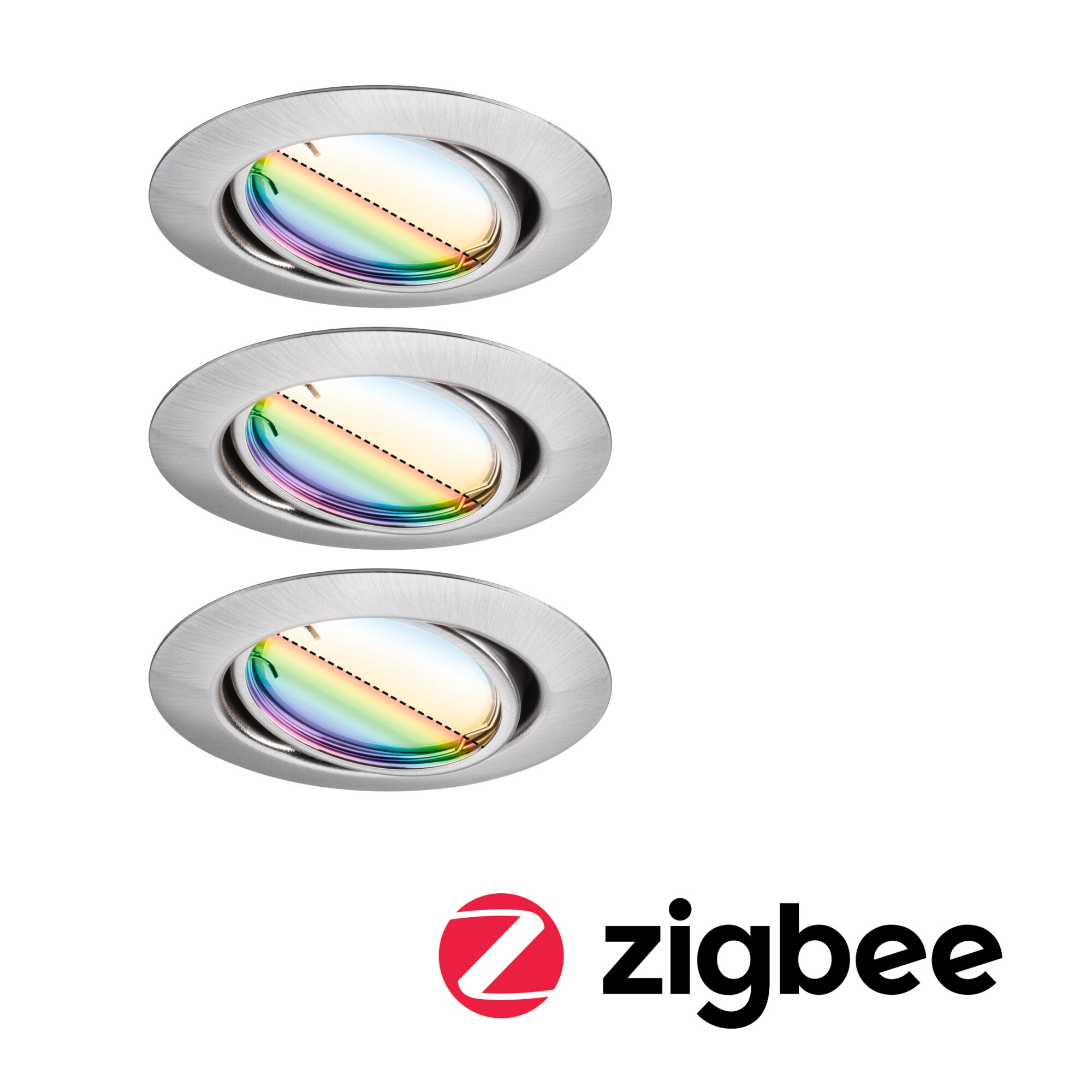

LED Recessed luminaireSmart Home Zigbee 3.0
Base Coin Basic Set Swivelling
round 90mm 20° Coin 3x4,9W 3x420lm 230V dimmable RGBW+ Brushed iron
round 90mm 20° Coin 3x4,9W 3x420lm 230V dimmable RGBW+ Brushed iron

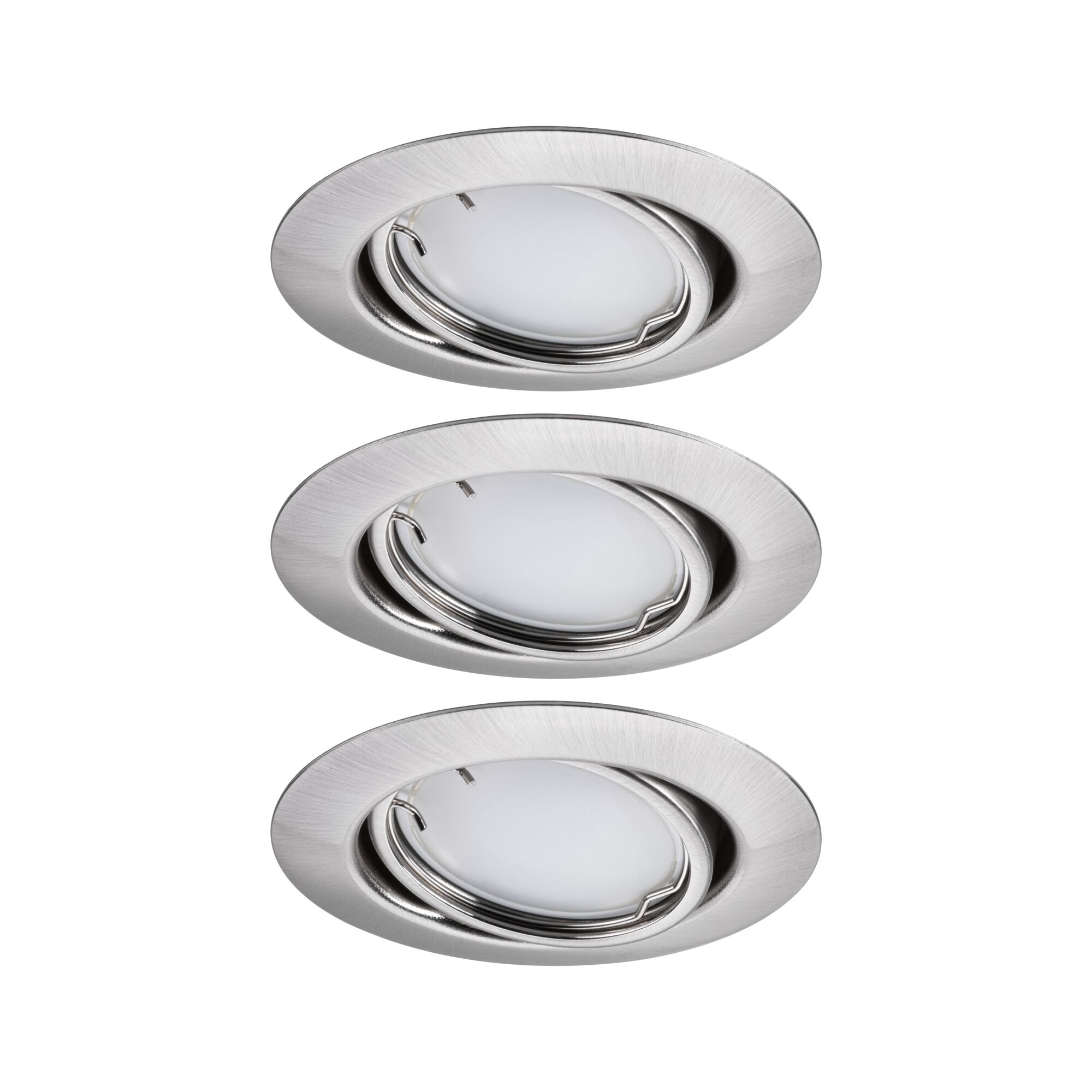

- Set of 3 luminaires
- With swivelling spots for ideal illumination
- RGBW function offers a free choice of light colour
LED Recessed luminaire Smart Home Zigbee 3.0 Base Coin Basic Set Swivelling round 90mm 20° Coin 3x4,9W 3x420lm 230V dimmable RGBW+ Brushed iron

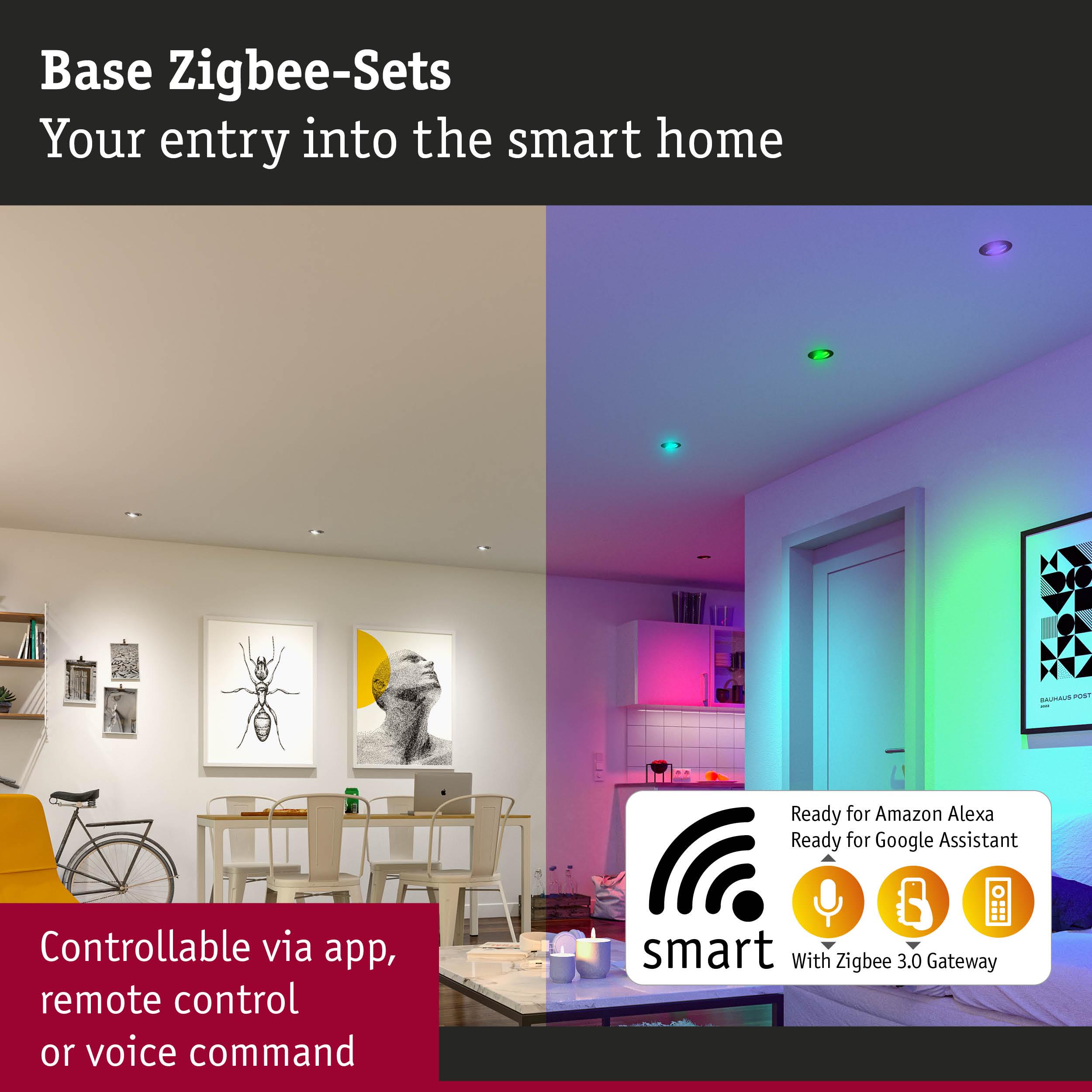

The smart recessed spotlights in Brushed iron with 3x4,9W are robust and user-friendly Metal spots that are suitable for new installations or the upgrade of existing installations alike. The scope of delivery includes exchangeable Coin LED lamps with RGBW Zigbee 3.0 control. The luminaires can be controlled individually or in groups via app, remote control, or voice command. The combinations of Tunable White, RGB and dimming function are virtually endless – from gentle, dimmed warm white to objective daylight white or colourful colour gradients. Thanks to the 230V direct connection, an unlimited number of luminaires can easily be linked together.
- Set of 3 luminaires
- With swivelling spots for ideal illumination

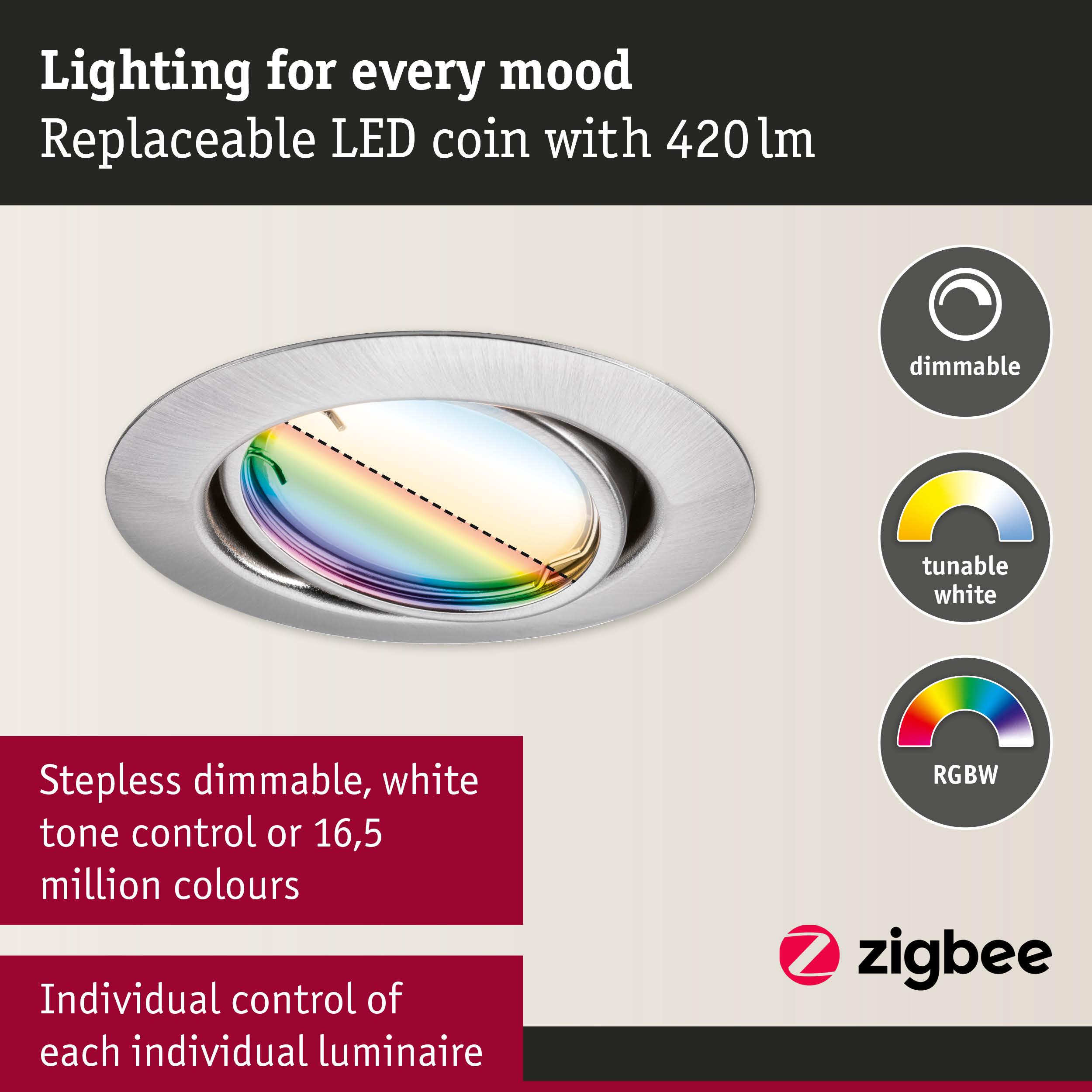

- RGBW function offers a free choice of light colour
- Can be controlled with the Smart Home Zigbee remote control
- Usable with smart home gateways that have a Zigbee interface
- Can still be switched on and off with the light switch

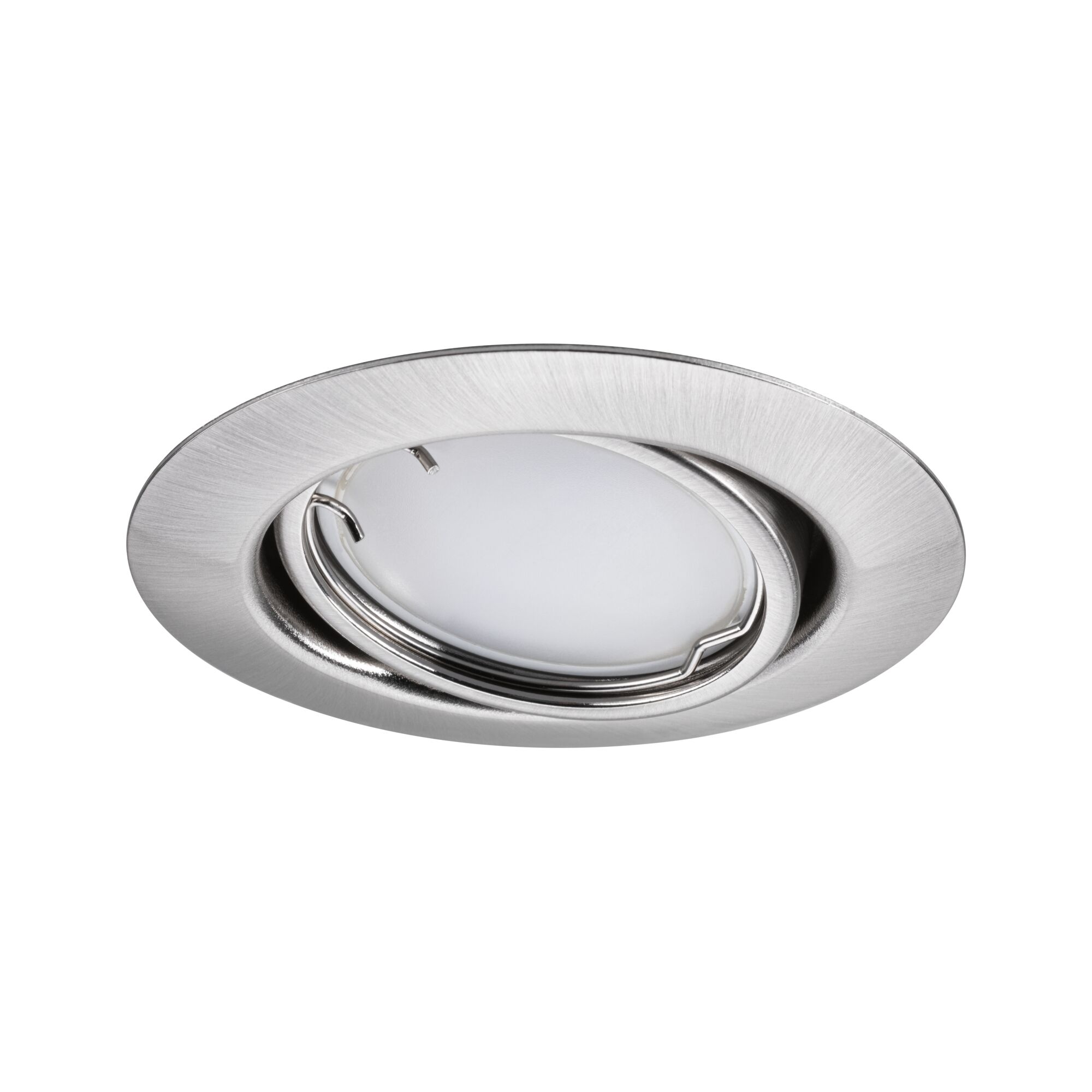

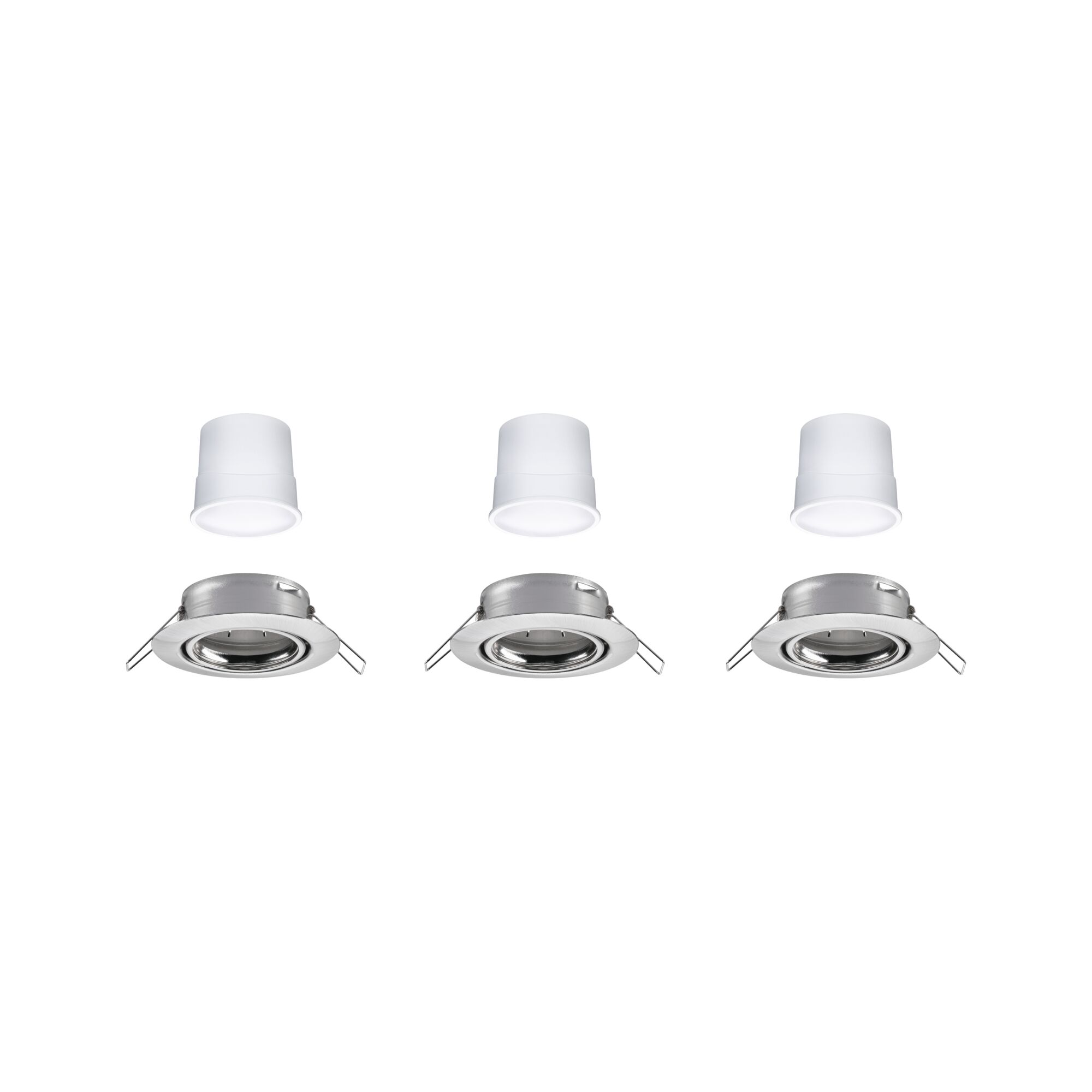

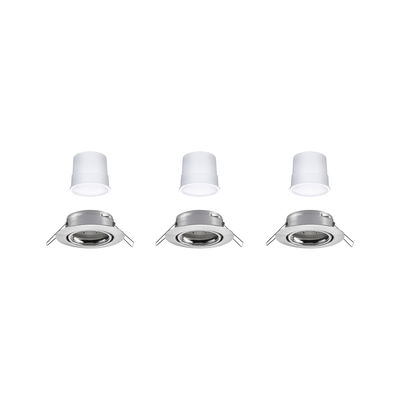

- Incl. replaceable LED lamp

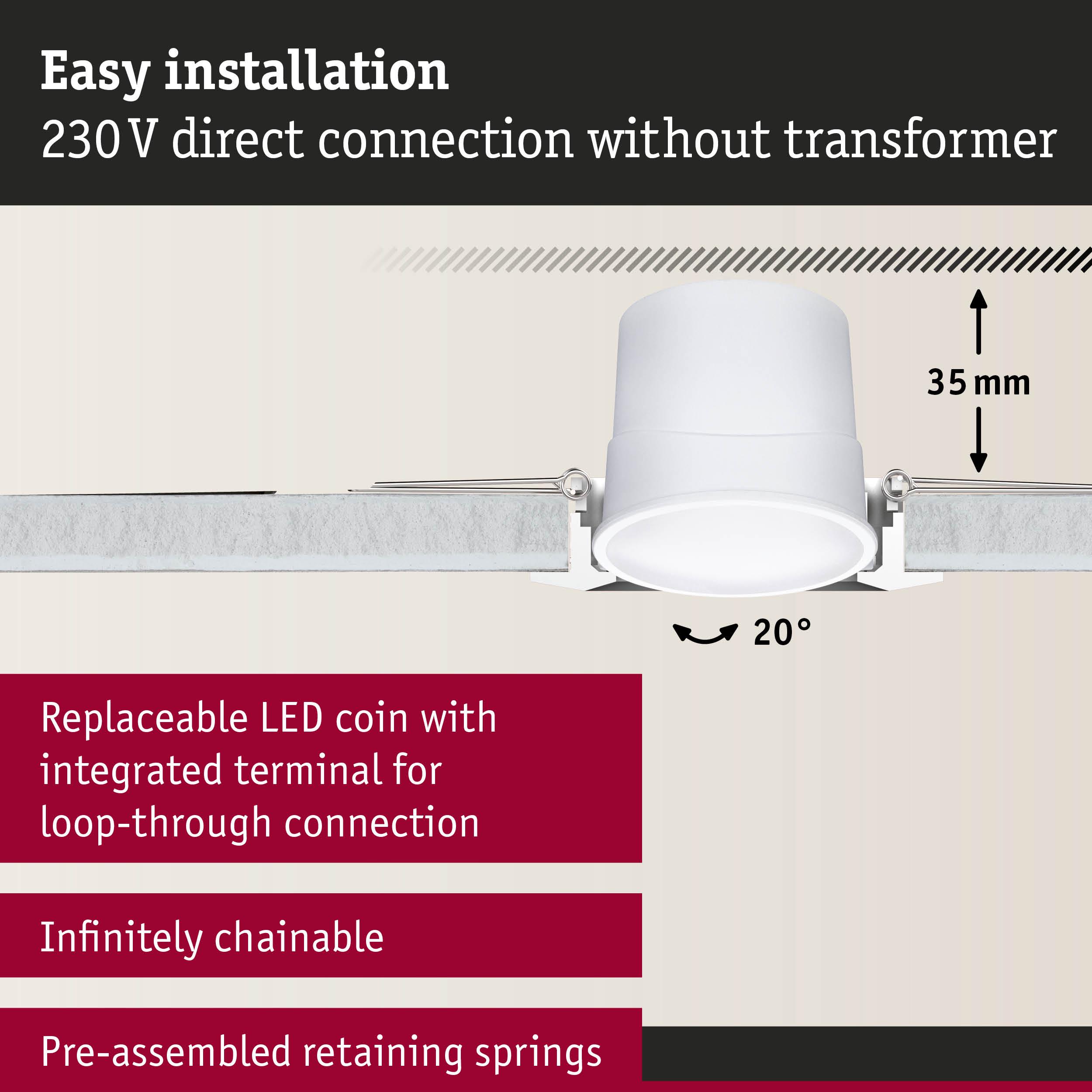

- For 230 V direct connection
- Efficient LED technology
- Variable dimming

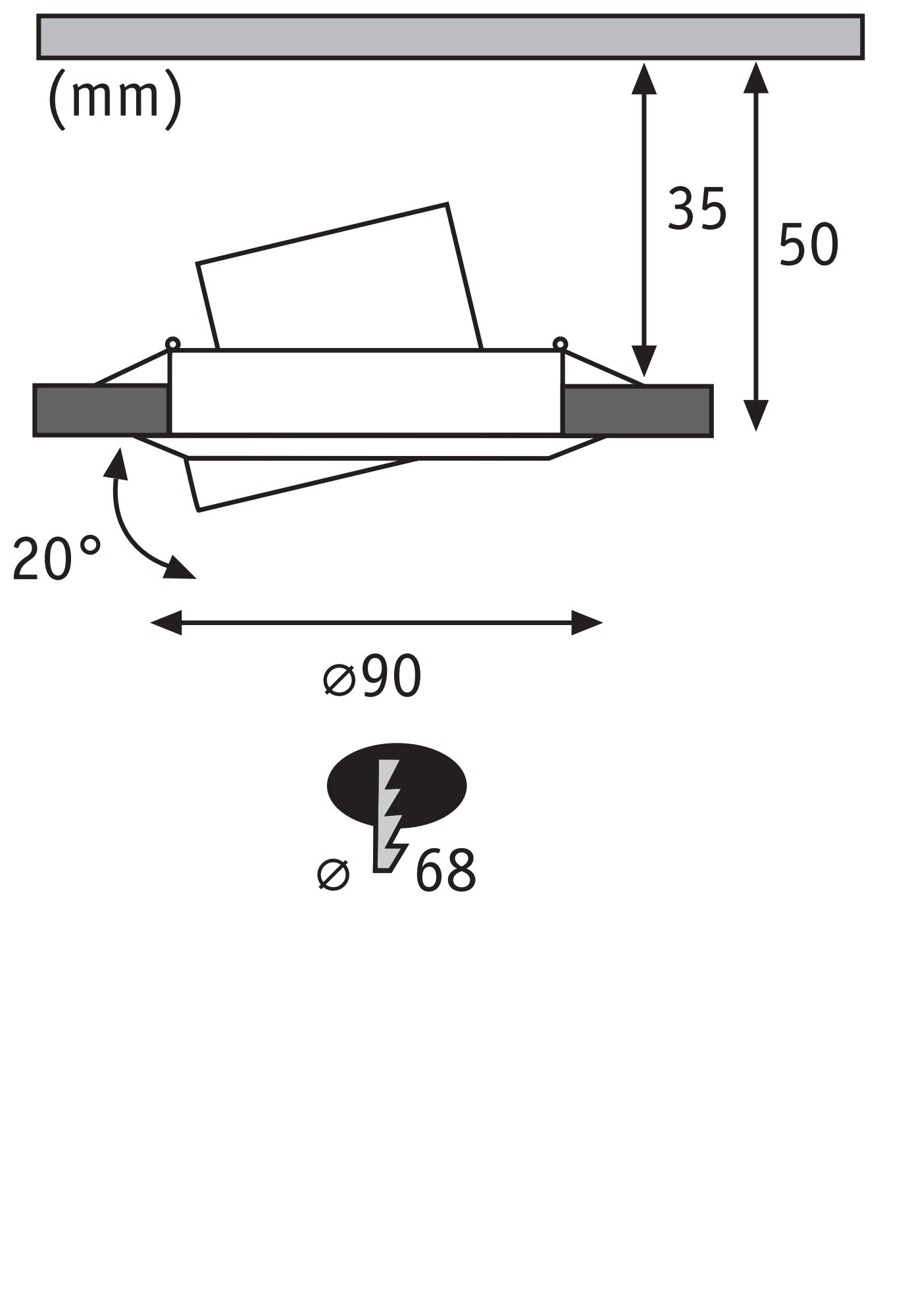

| Dimension | |
|---|---|
| Einbaudurchmesser | 68 mm |
| Mounting depth | 50 mm |
| Depth of hollow wall | 35 mm |
| Diameter | 90 mm |
| Design and Material | |
|---|---|
| Colour | Brushed iron |
| Material | Metal |
| Form | round |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 25000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Colour change | coloured light with Tunable White function (RGBW), Tunable White |
| Beam angle | 110 ° |
| Nominal luminous flux | 420 lm |
| Color rendering index | > 80 Ra |
| Luminous flux LED module | 420 lm |
| colour temperature to | 6500 K |
| color temp | Warm white to Daylight white |
| Colour consistency (SDCM) | 6 |
| Lamp Features | |
|---|---|
| Component parts | 4,9 W |
| Compatible Smart Home technology | Zigbee |
| Swivel range | 20 ° |
| Technique | LED |
| Base/Socket | Coin |
| Dim | with Smart Home |
| Inclusive lamp | yes |
| Incandescent Equivalent | 36 W |
| Adjustability | swivelling/tilting |
| Lamp property | Leuchtmittel enthalten und wechselbar |
| Dimmable | Yes |
| IP protection | IP20 |
| Number of component parts | 3x |
| protection class | Protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 14,7 W |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 27 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
| MagentaZuhause Badge | Works with MagentaZuhause App |
