Article-No.:
92463

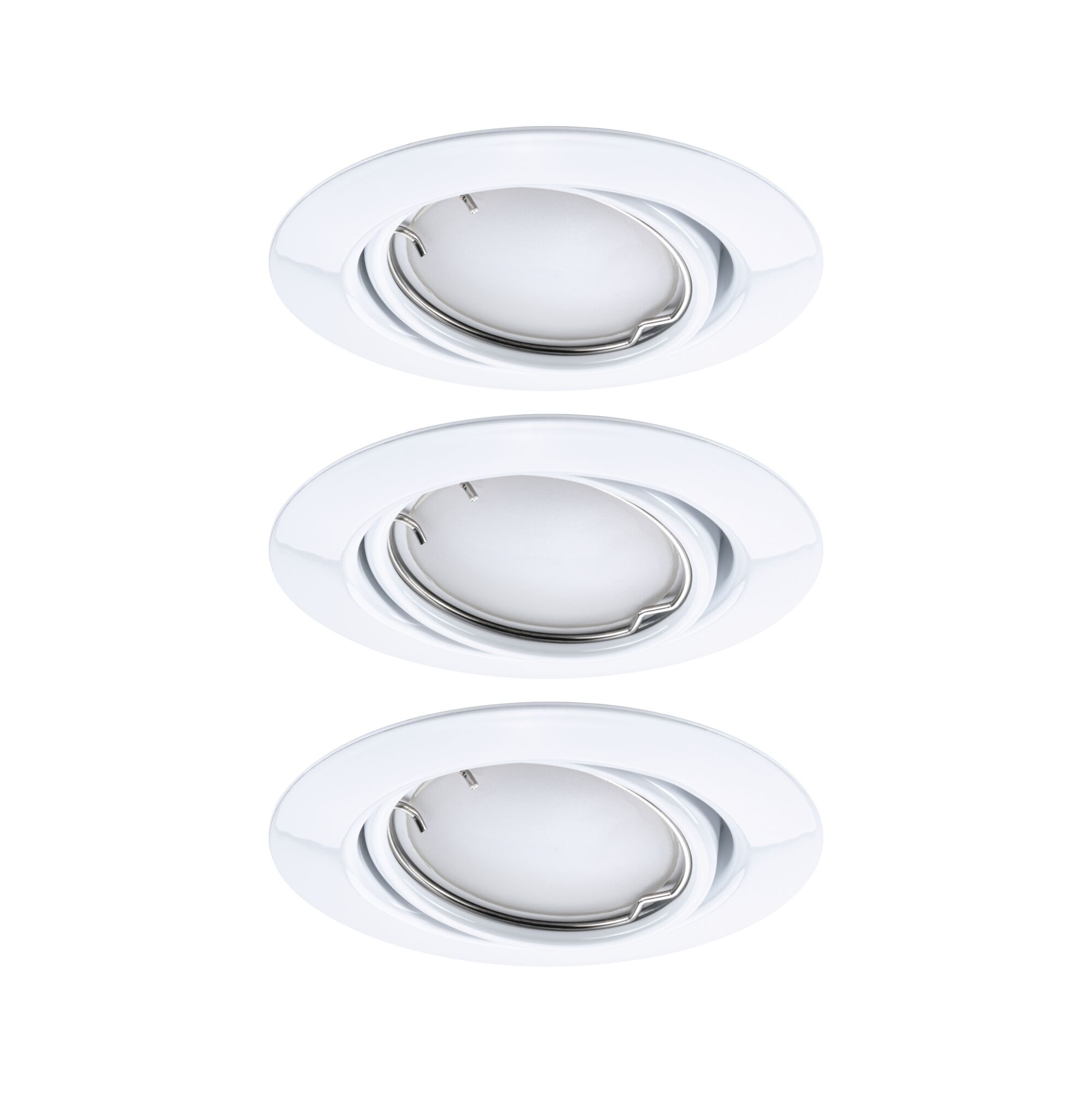

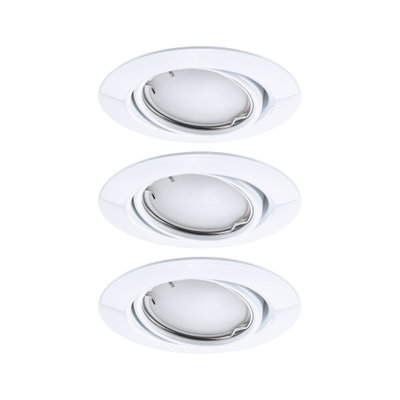

LED Recessed luminaire
Smart Home Zigbee 3.0
Base Coin Basic Set Swivelling
round 90mm 20° 3x4,9W 3x430lm 230V dimmable 3000K White
round 90mm 20° 3x4,9W 3x430lm 230V dimmable 3000K White

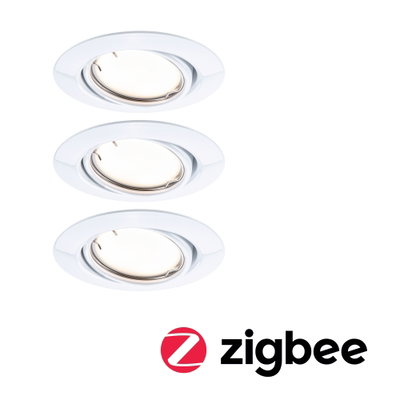

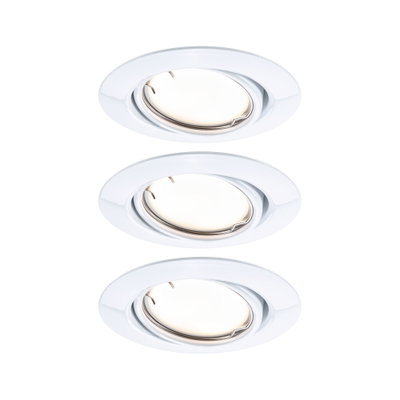

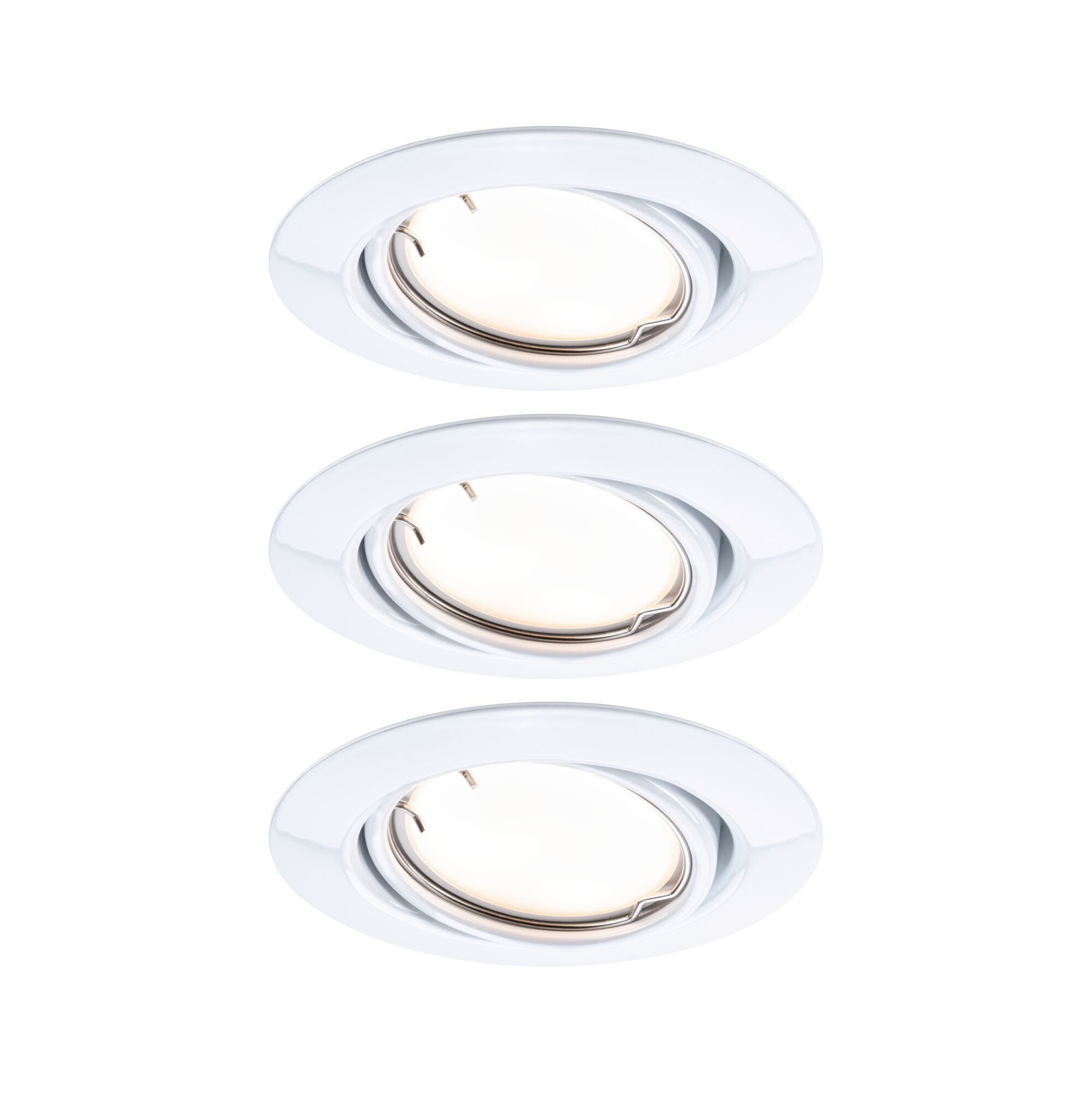

- Set of 3 luminaires
- With swivelling spots for ideal illumination
- Can be controlled with the Smart Home Zigbee remote control
LED Recessed luminaire Smart Home Zigbee 3.0 Base Coin Basic Set Swivelling round 90mm 20° 3x4,9W 3x430lm 230V dimmable 3000K White

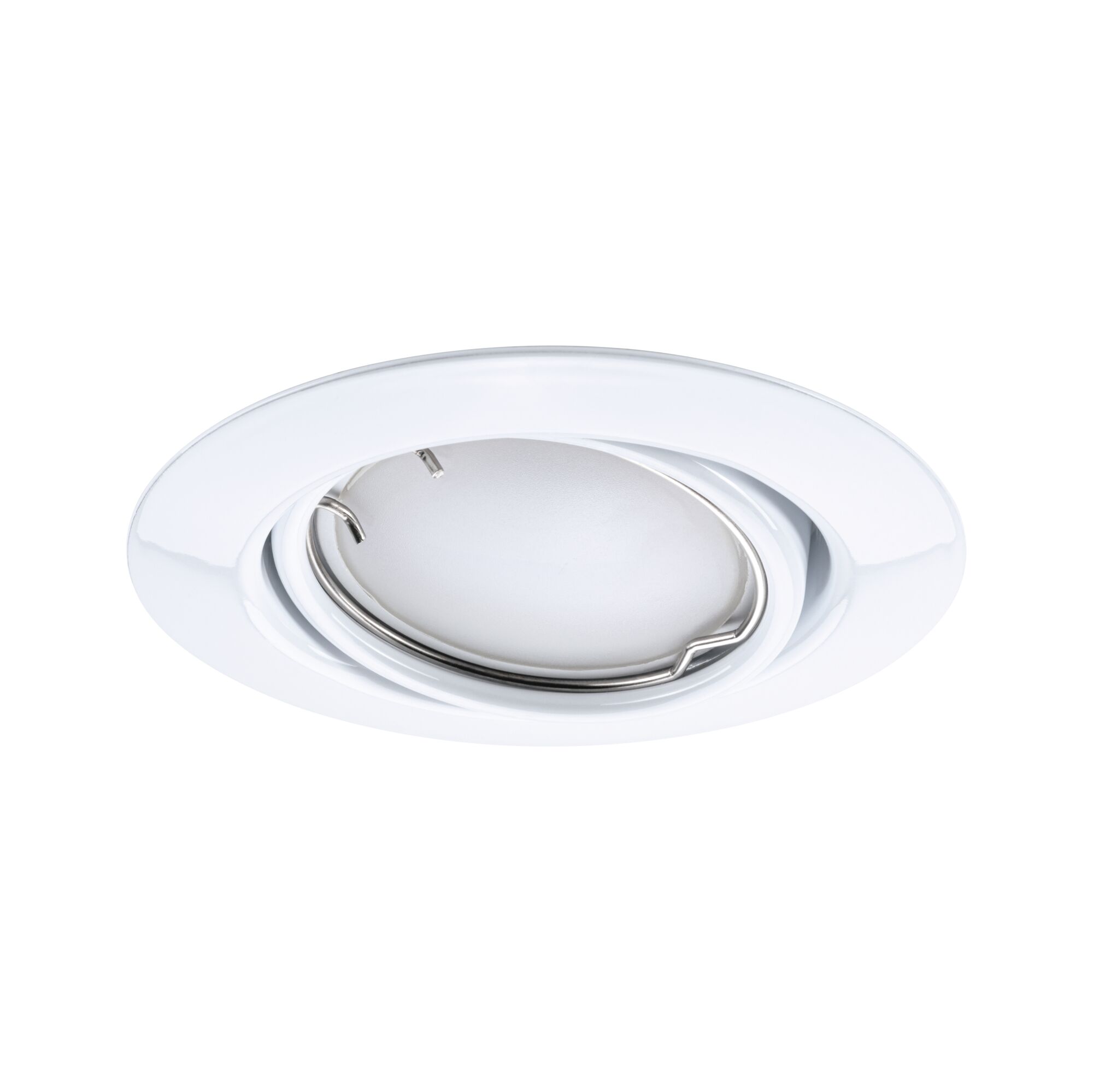

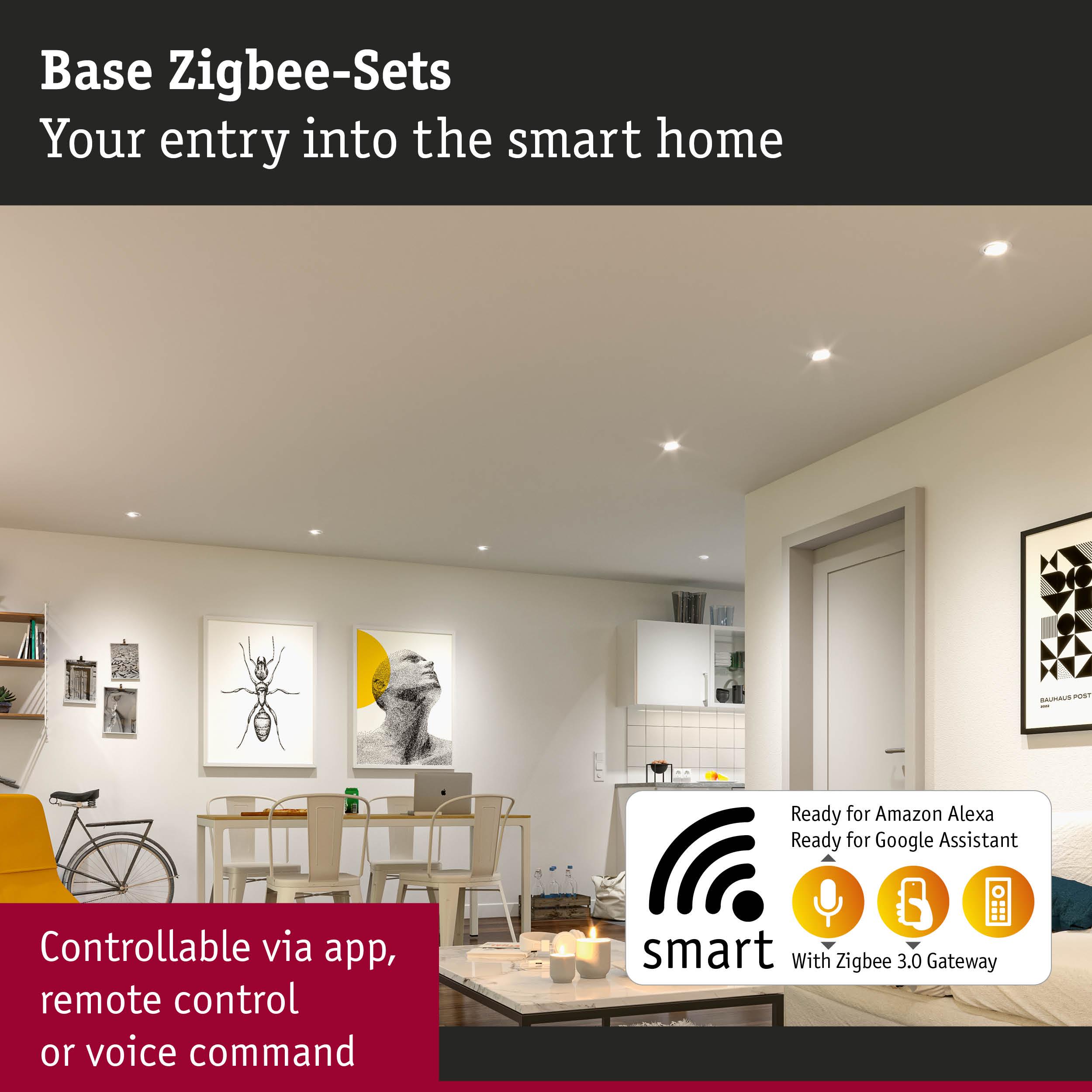

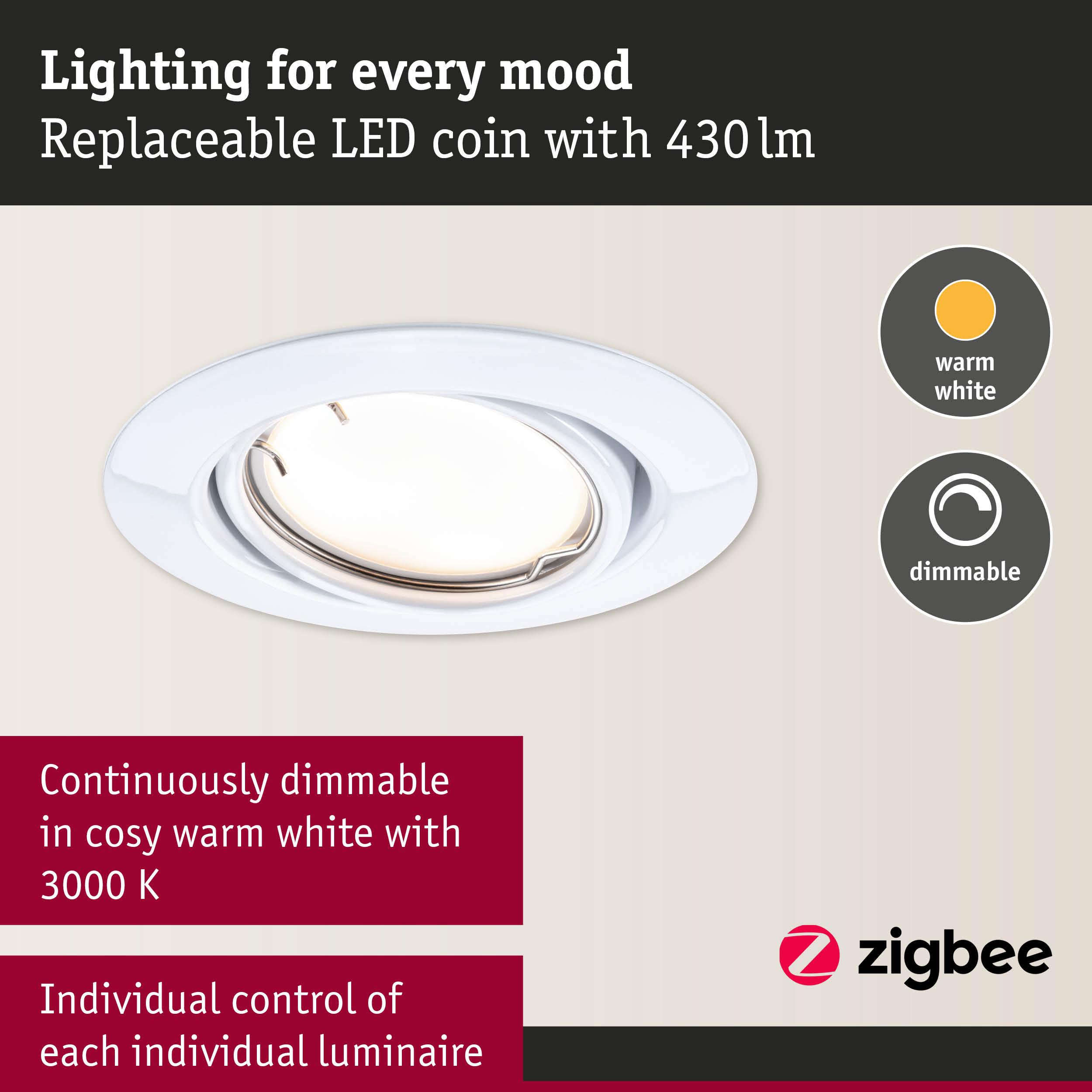

The smart recessed spotlights in White with 3x4,9W are robust and user-friendly Metal spots that are suitable for new installations or the upgrade of existing installations alike. Thanks to the 230V direct connection, an unlimited number of luminaires can easily be linked together. The scope of delivery includes exchangeable LED lamps with Zigbee 3.0 control for an atmospheric ambiance with warm white light. The continuous dimming function lets you adjust their brightness depending on your needs: a bright work light and feel-good mood lighting in one! Zigbee 3.0 facilitates the dimming of each individual recessed luminaire via app, remote control, or voice command.
- Set of 3 luminaires
- With swivelling spots for ideal illumination
- Can be controlled with the Smart Home Zigbee remote control
- Usable with smart home gateways that have a Zigbee interface
- Can still be switched on and off with the light switch

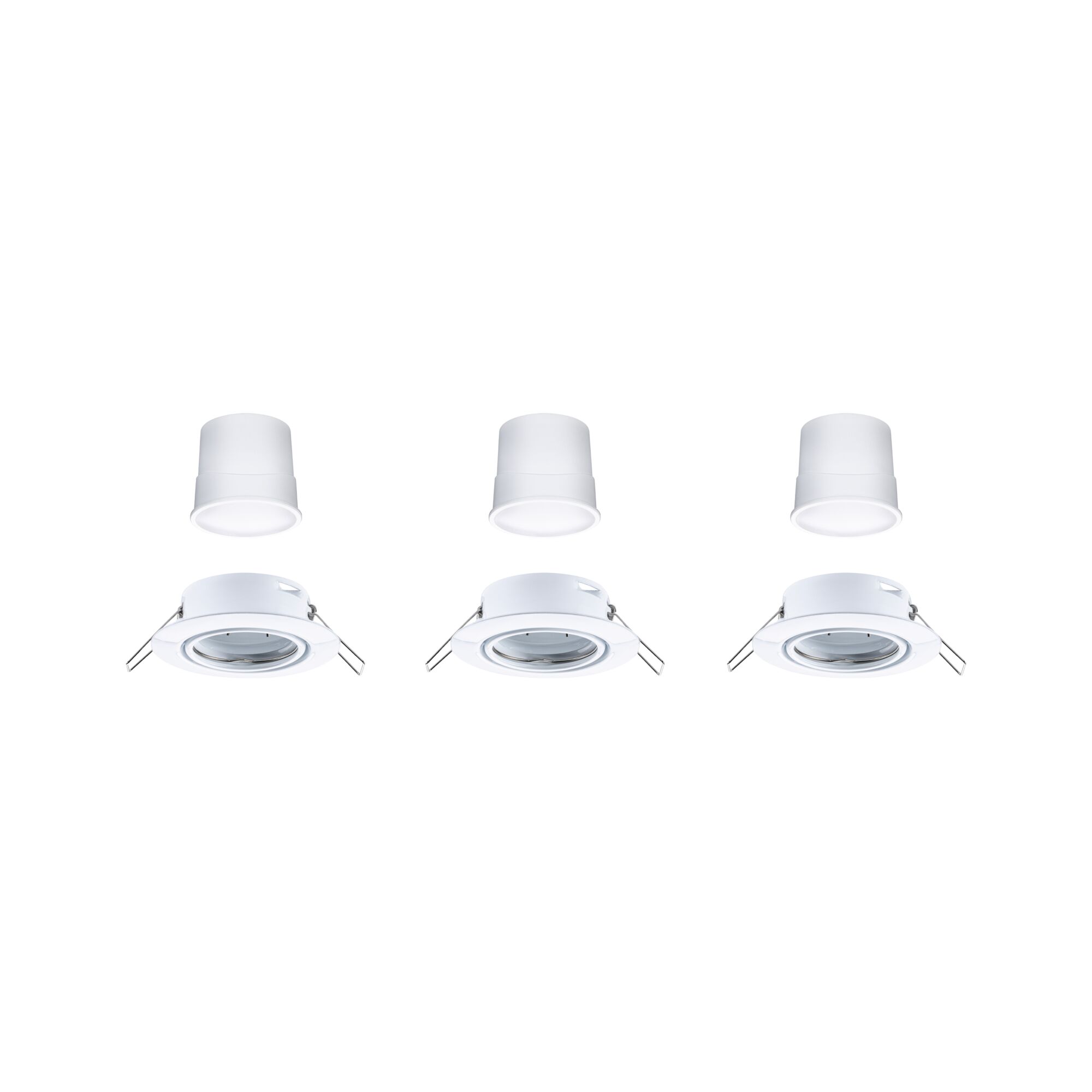

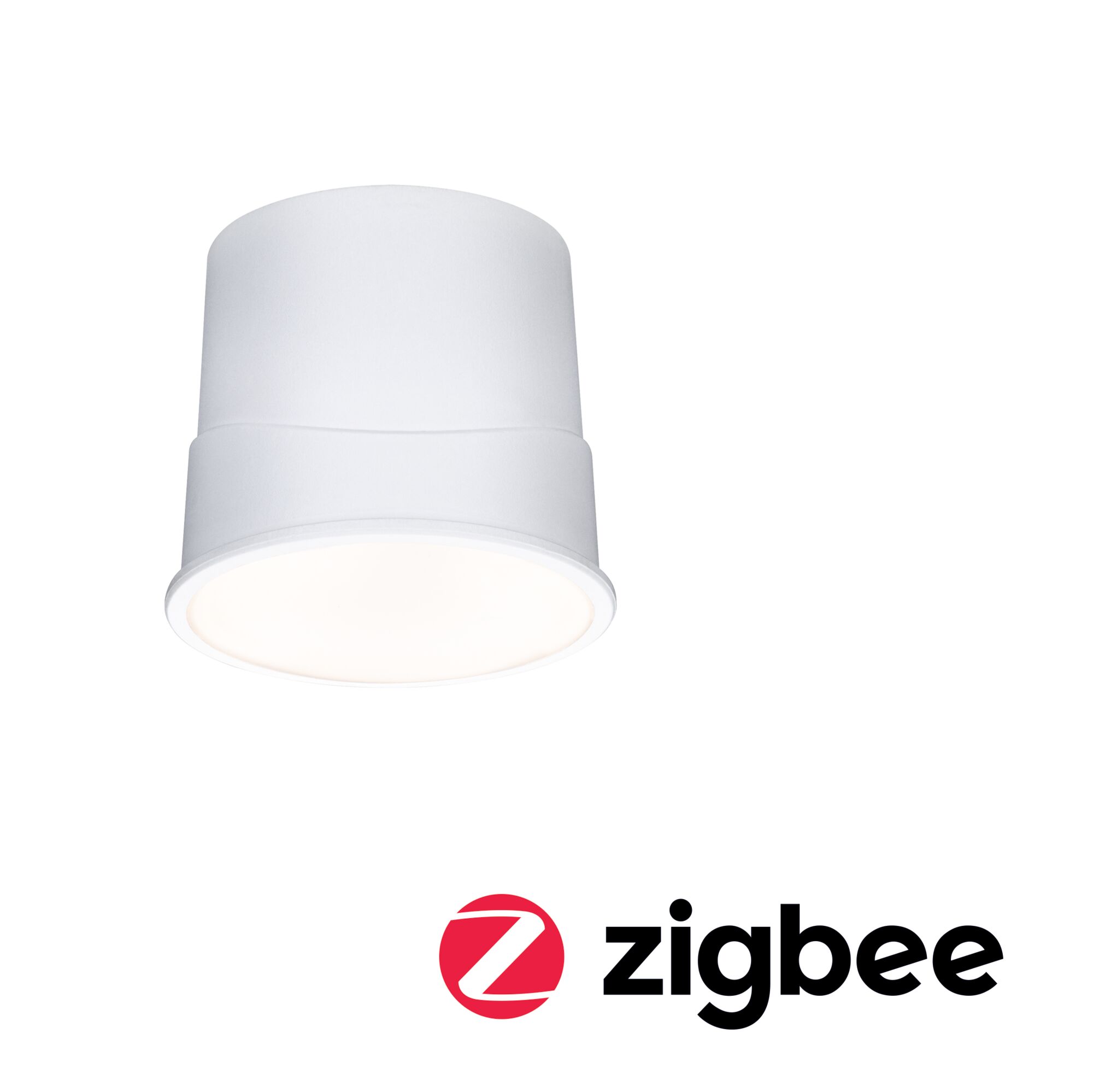

- Incl. replaceable LED lamp

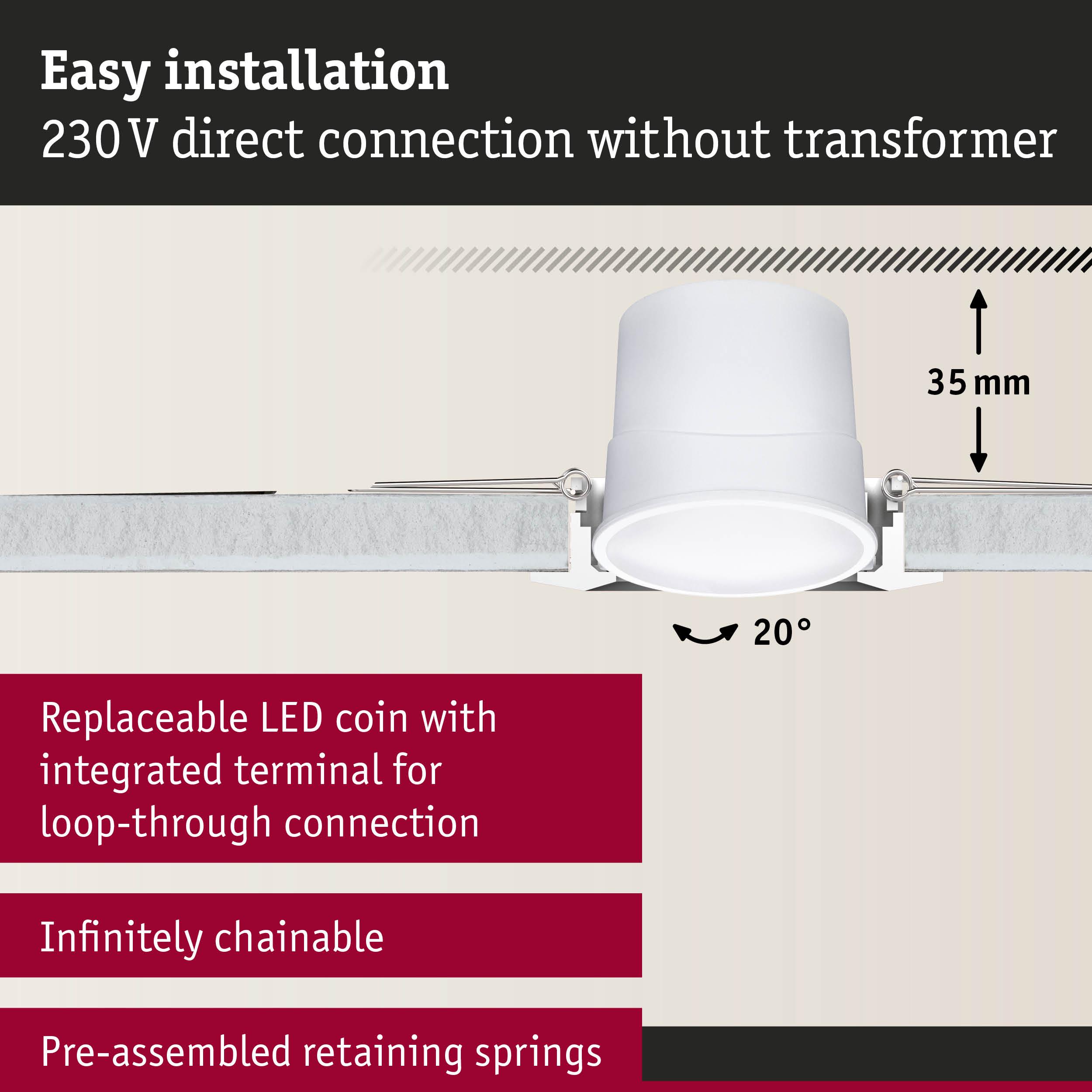

- For 230 V direct connection
- Efficient LED technology
- Variable dimming

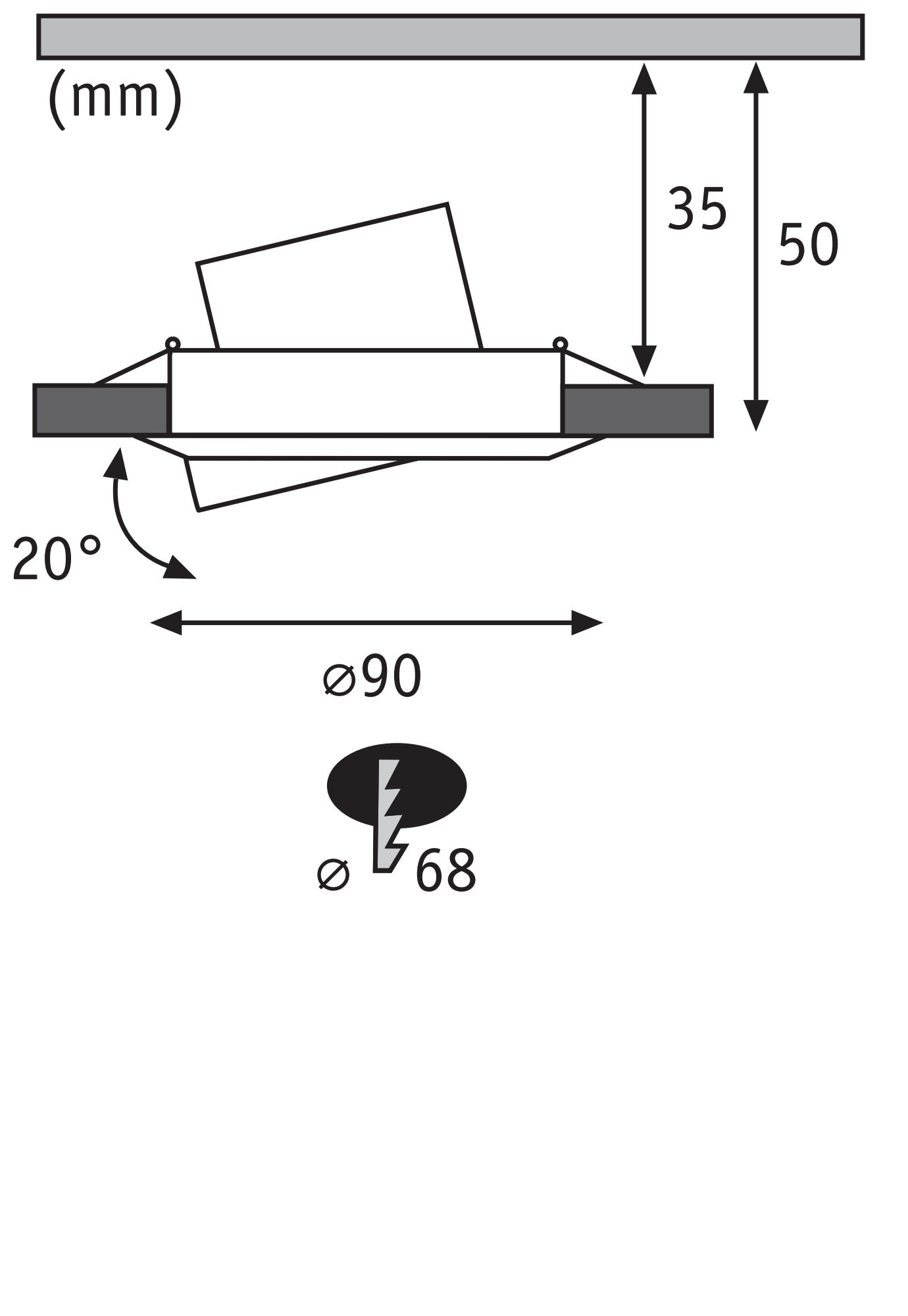

| Dimension | |
|---|---|
| Depth of hollow wall | 35 mm, 35 mm |
| Total Mounting depth | 50 mm |
| Ø | 90 mm |
| Mounting hole | 68 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Metal |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann 501.34 Smart Switch, Paulmann SmartHome Zigbee Gent2 501.40 |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 25000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Beam angle | 110 ° |
| Usable luminous flux | 430 lm |
| Luminous flux LED module | 430 lm |
| color temp | 3000 K |
| colour consistency | SDCM 6 |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 4,9 W |
| Compatible Smart Home technology | Zigbee |
| Swivel range | 20 ° |
| Technique | LED |
| IP protection | IP20 |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 37 W |
| Number of component parts | 3x |
| protection class | protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 14,7 W |
| Transformer | |
|---|---|
| apparent power | 27 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
