Article-No.:
92467
LED Downlight
Smart Home Zigbee 3.0
Base Basic Set Swivelling
round 90mm 20° Coin 3x4,9W 3x420lm 230V dimmable RGBW+ Brushed iron
round 90mm 20° Coin 3x4,9W 3x420lm 230V dimmable RGBW+ Brushed iron

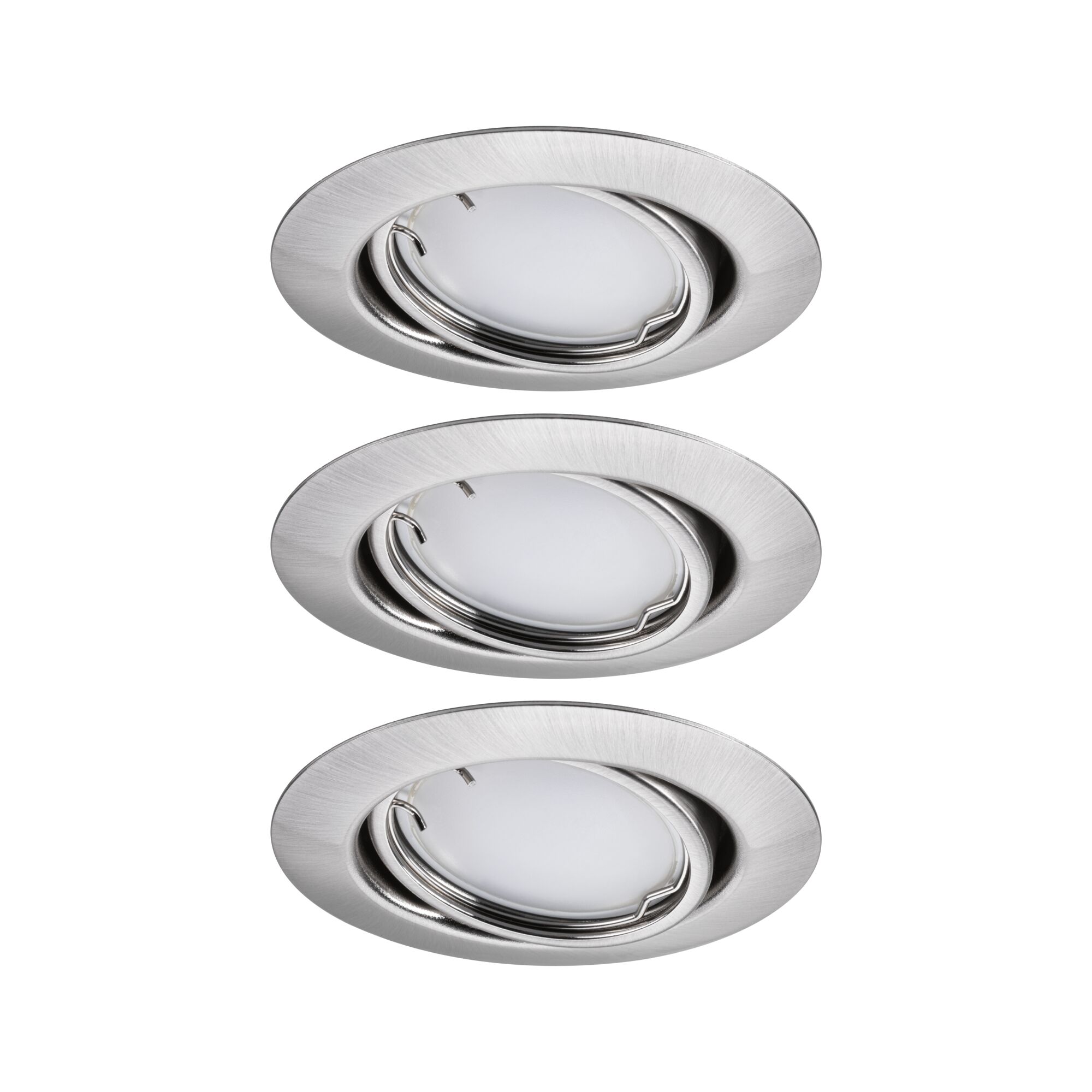

- Set of 3 lights

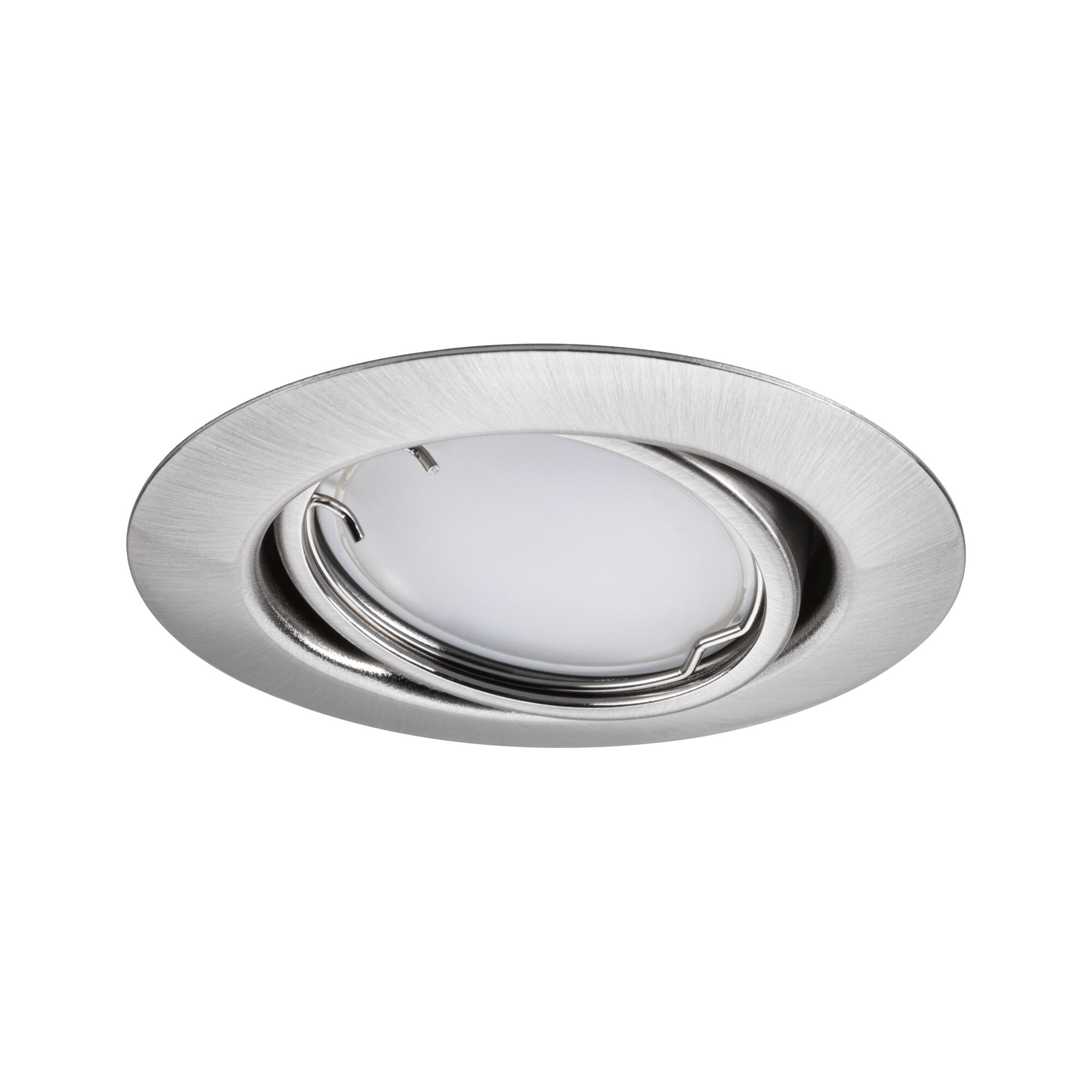

- With swivelling spots for ideal illumination

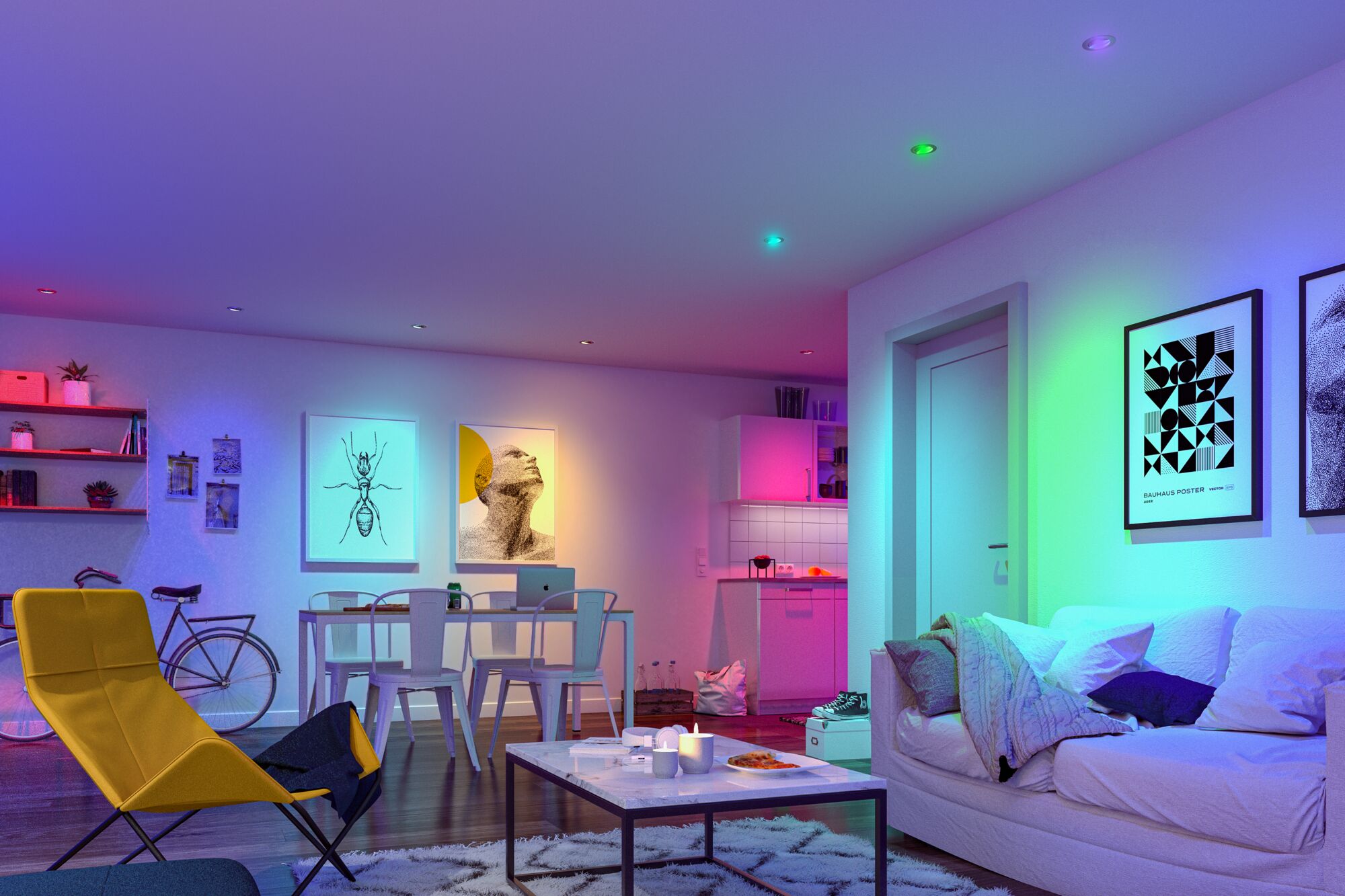

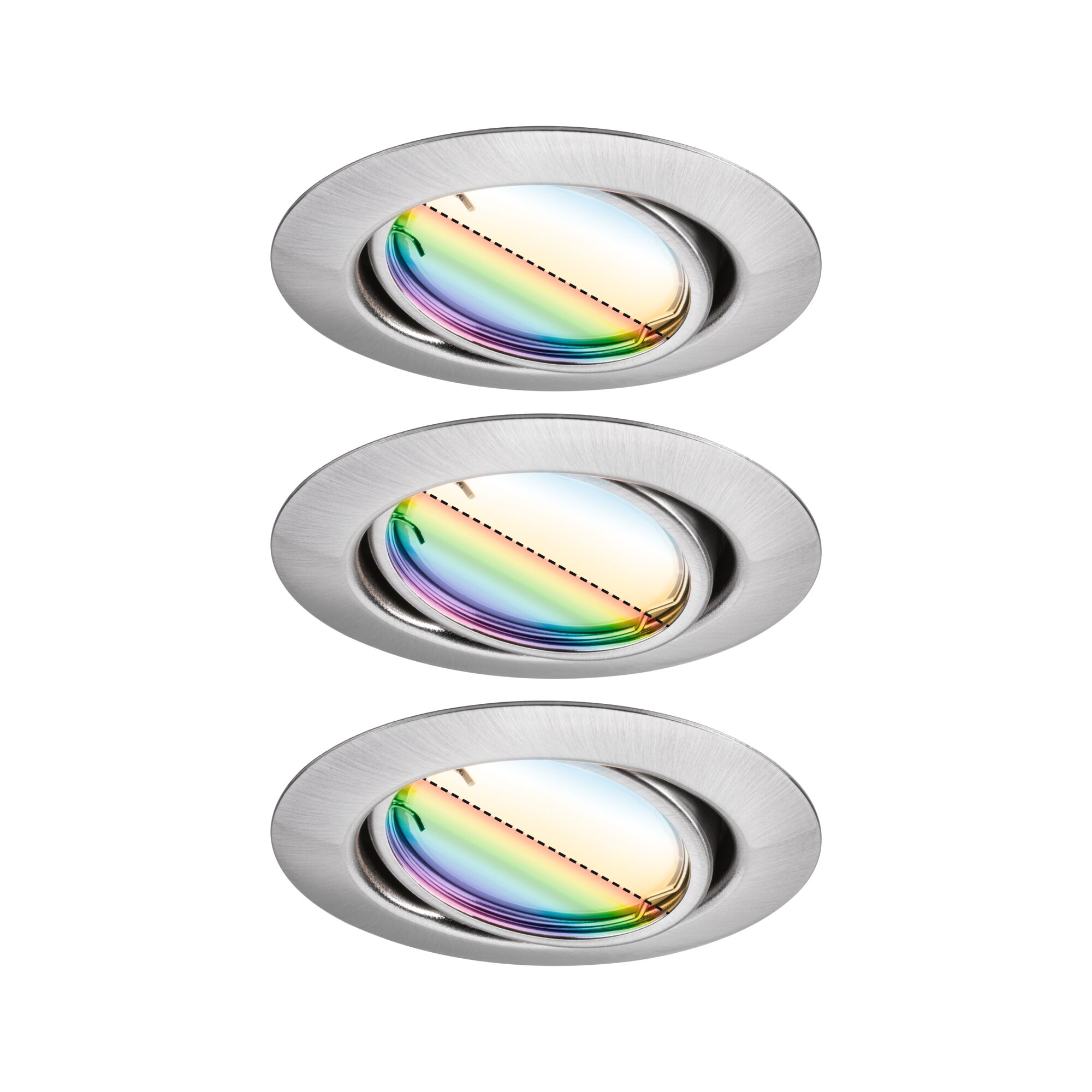

- RGBW function offers a free choice of light colour

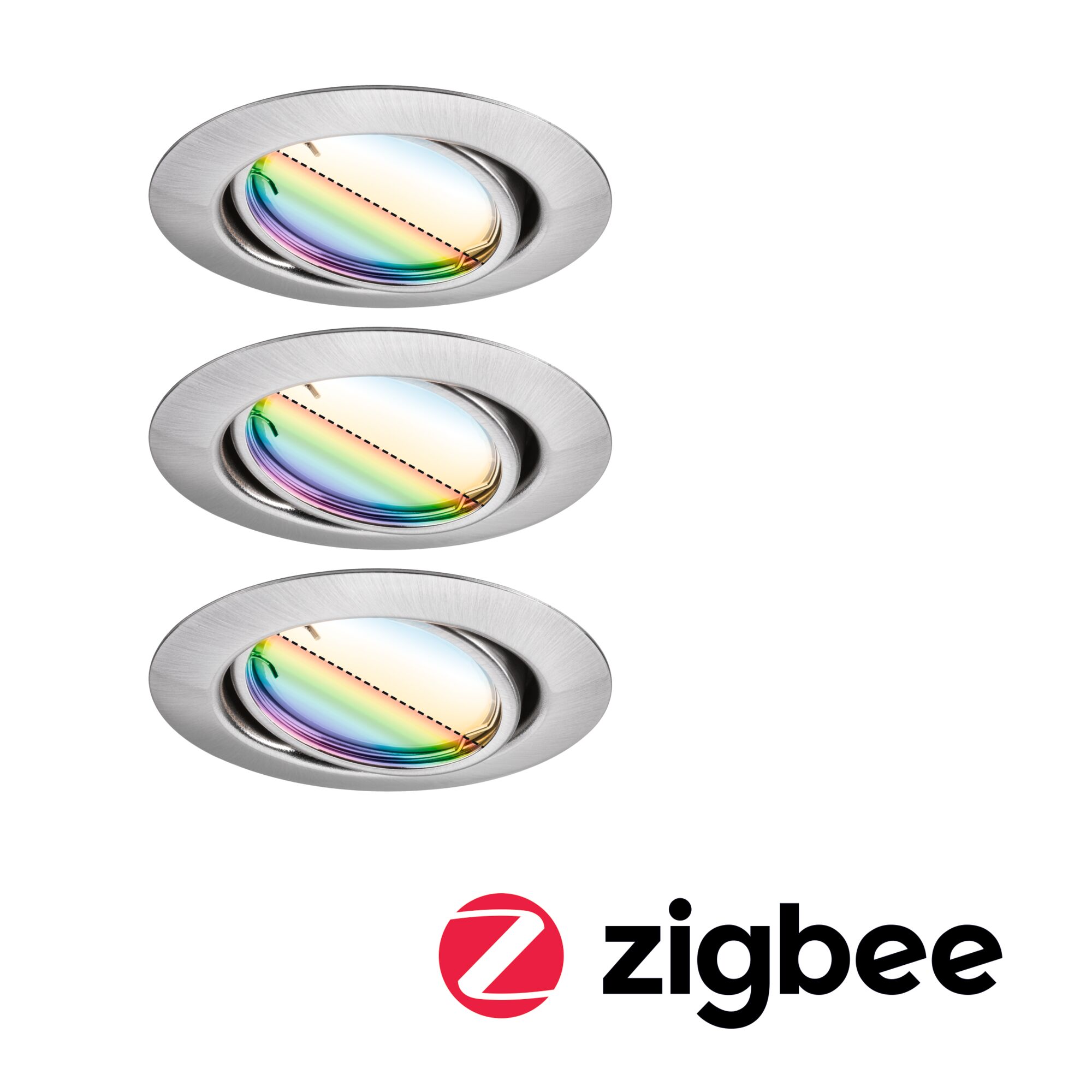

LED Downlight Smart Home Zigbee 3.0 Base Coin Basic Set Swivelling round 90mm 20° Coin 3x4,9W 3x420lm 230V dimmable RGBW+ Brushed iron
The smart recessed spotlights in Brushed iron with 3x4,9W are robust and user-friendly Metal spots that are suitable for new installations or the upgrade of existing installations alike. The scope of delivery includes exchangeable Coin LED light bulbs with RGBW Zigbee 3.0 control. The lights can be controlled individually or in groups via app, remote control, or voice command. The combinations of Tunable White, RGB and dimming function are virtually endless - from gentle, dimmed warm white to objective daylight white or colourful colour gradients. Thanks to the 230V direct connection, an unlimited number of lights can easily be linked together.

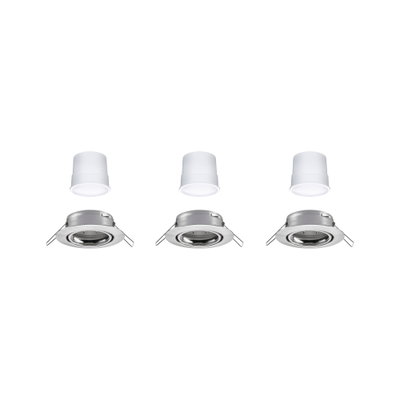

- Set of 3 lights
- With swivelling spots for ideal illumination
- RGBW function offers a free choice of light colour
- Usable with smart home gateways that have a Zigbee interface

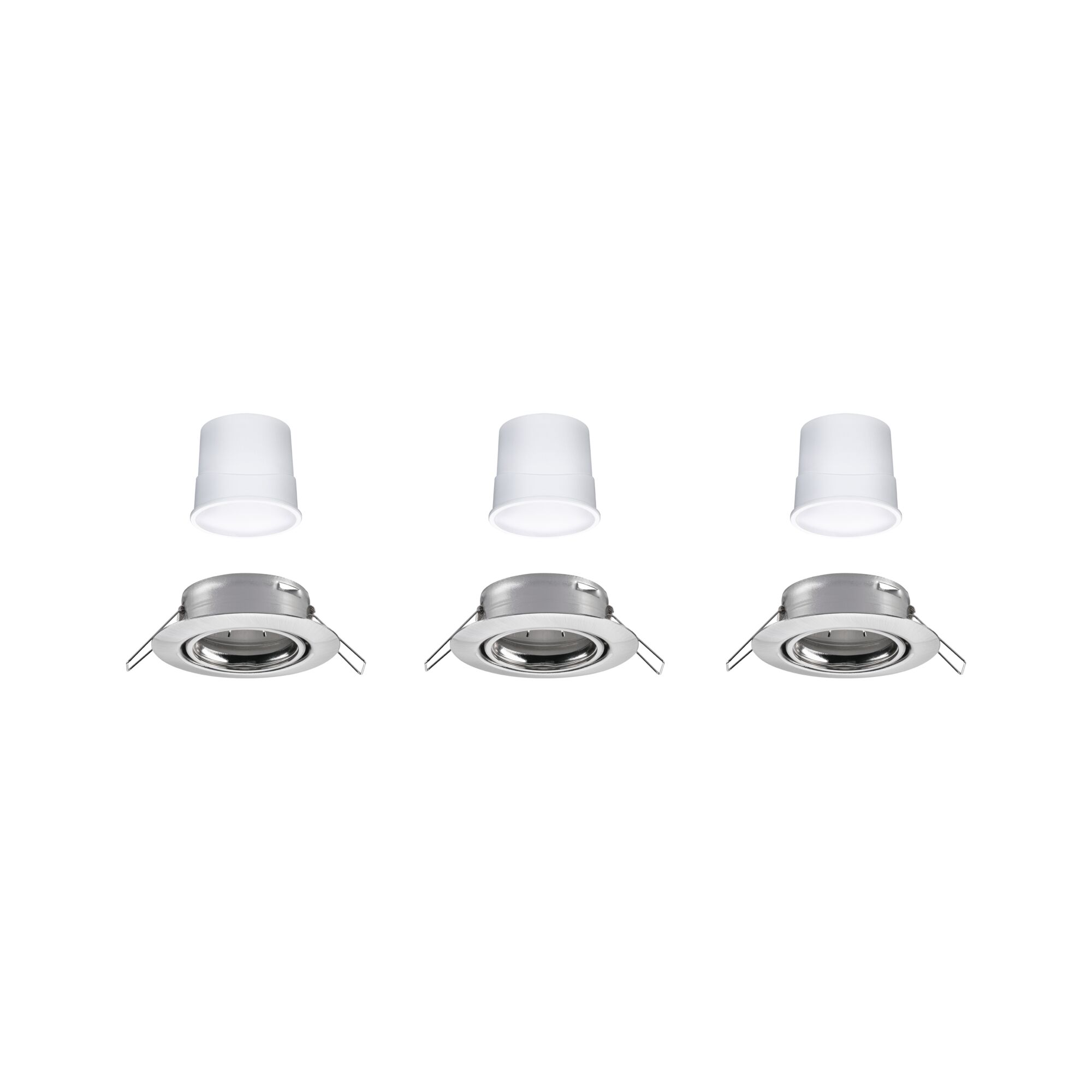

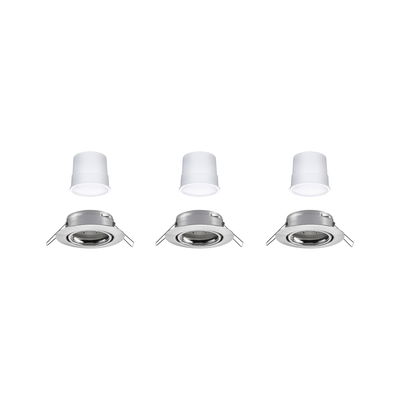

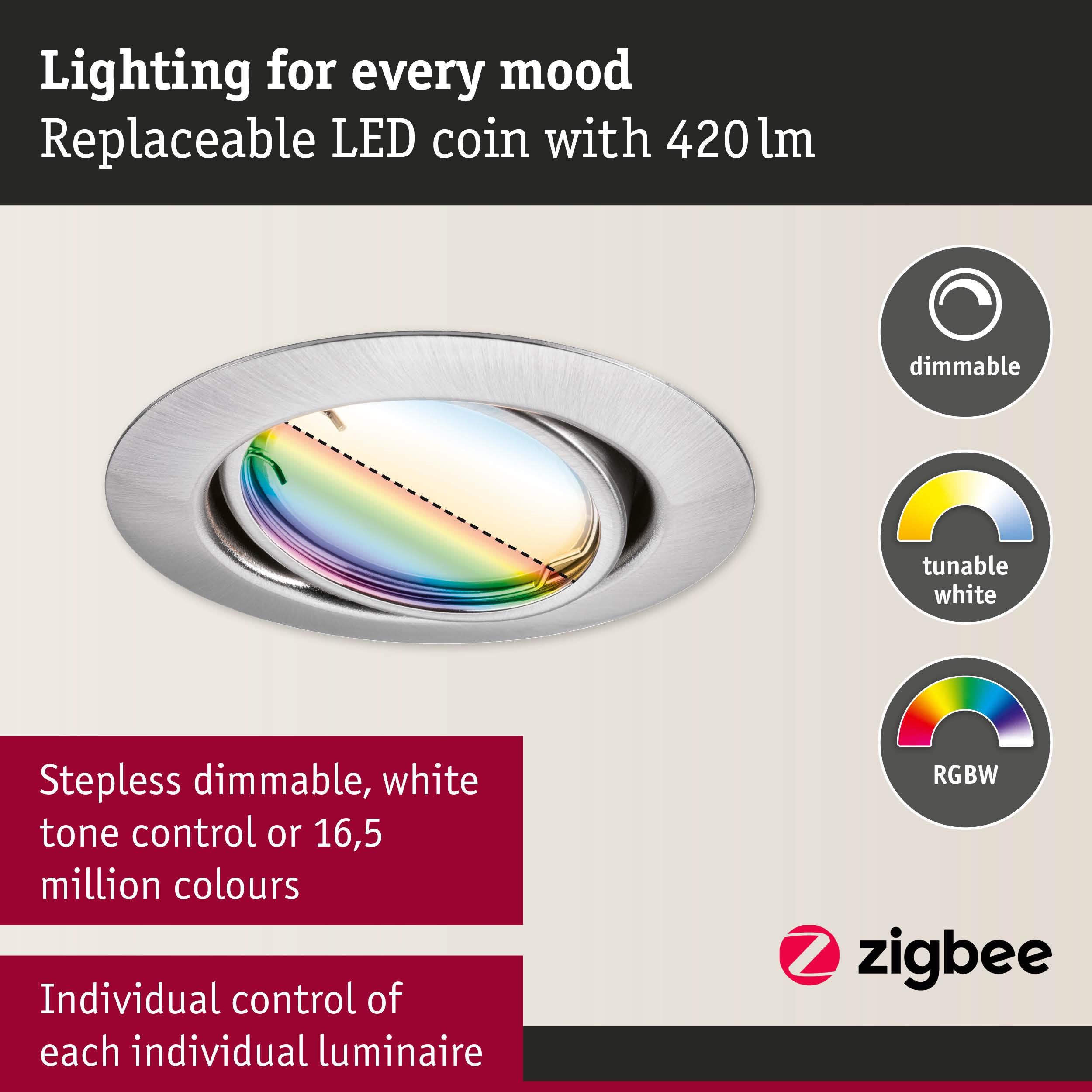

- Incl. replaceable LED lamp

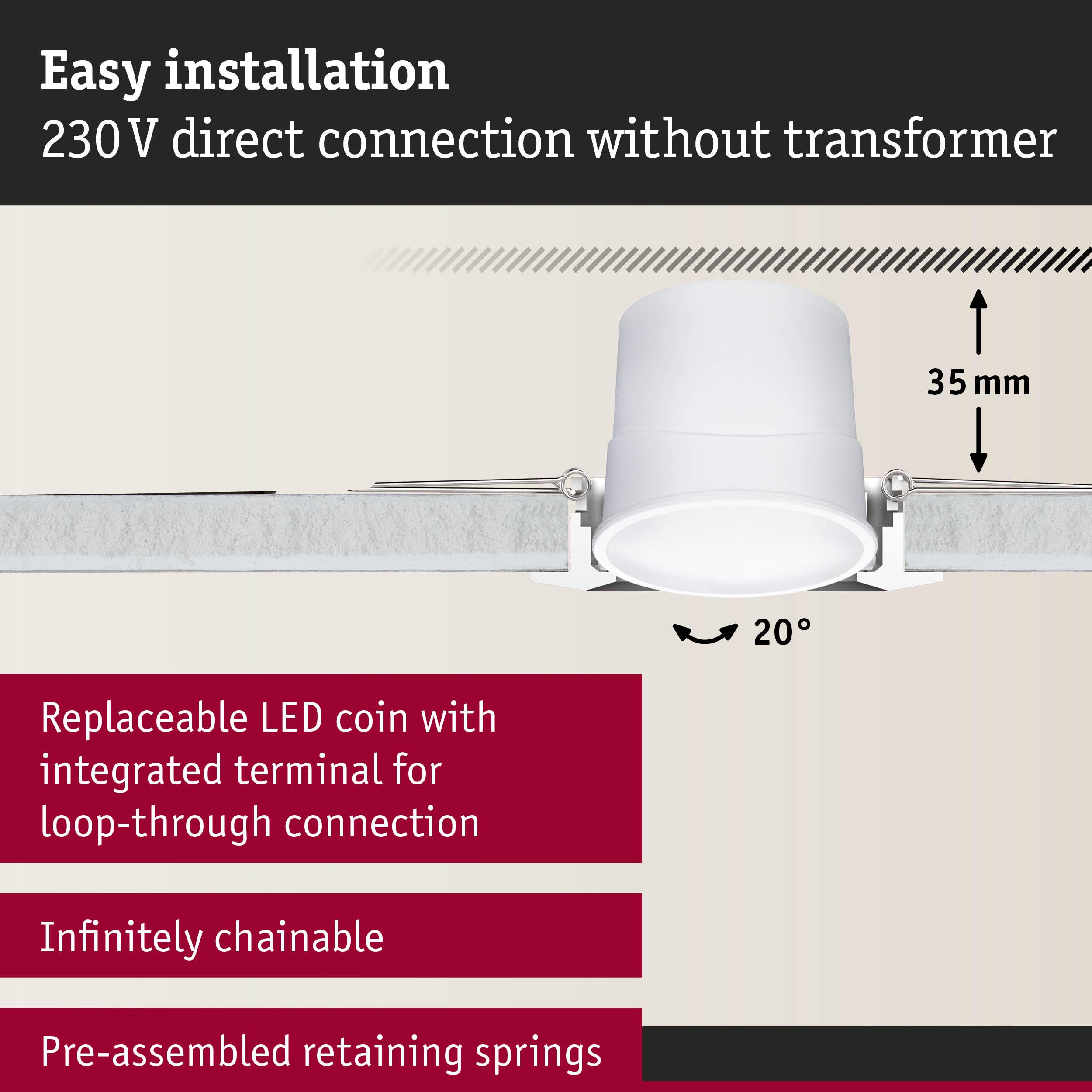

- For 230 V direct connection
- Efficient LED technology
- Can still be switched on and off with the light switch
- Infinitely dimmable
- Controllable with smart home Zigbee remote control

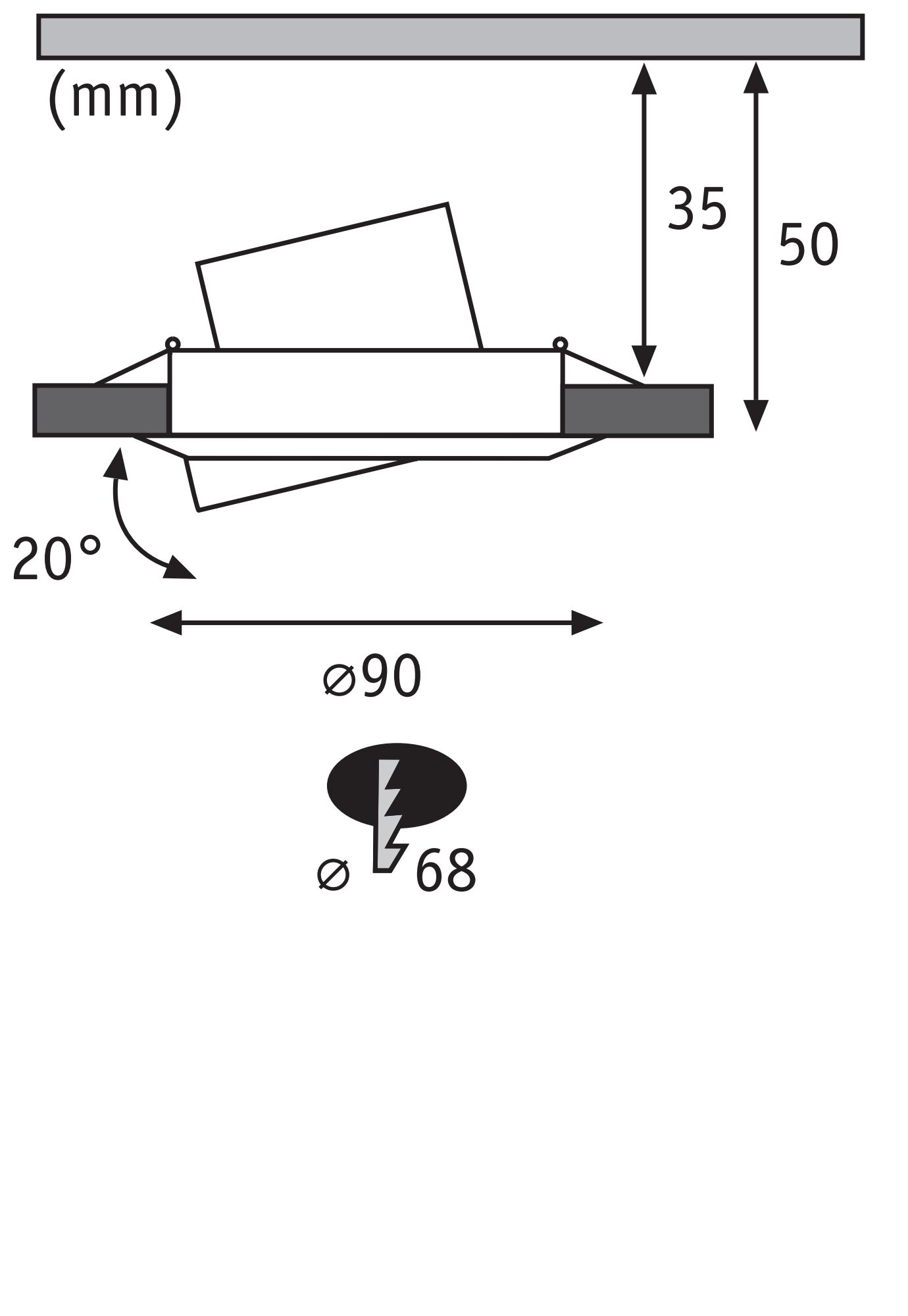

| Dimension | |
|---|---|
| Diameter | 90 mm |
| Built-in diameter | 68 mm |
| Mounting depth | 50 mm |
| Depth of hollow wall | 35 mm |
| Net weight | 365 g |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Brushed iron |
| Material | Metal |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 25000 h |
| Lamp Features | |
|---|---|
| Dimming Control | with Smart Home |
| Inclusive lamp | yes |
| Component parts | 4,9 W |
| light source property | Without light source |
| Swivel range | 20 ° |
| Incandescent Equivalent | 36 W |
| Compatible Smart Home technology | Zigbee |
| Base/Socket | Coin |
| Technique | LED |
| Adjustability | swivelling/tilting |
| Dimmable | Yes |
| IP protection | IP20 |
| Protection class | Protection class II |
| Number of component parts | 3x |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 14,7 W |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 27 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee_certified |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
| Compatible smart home systems | Amazon Echo Smart Speaker with Zigbee 3.0 interface|Paulmann smik Gateway|Philips Hue Bridge 2 and Pro (excluded Hue Entertainment) |
| MagentaZuhause compatibility | Works with MagentaZuhause App |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 420 lm |
| Colour change | coloured light with Tunable White function (RGBW), Tunable White |
| Color rendering index | > 80 Ra |
| Beam angle | 110 ° |
| Colour temperature to | 6500 K |
| Colour temperature | Warm white to Daylight white, 3000 K |
| Luminous flux LED module | 420 lm |
| Colour consistency (SDCM) | 6 |
