Article-No.:
92468

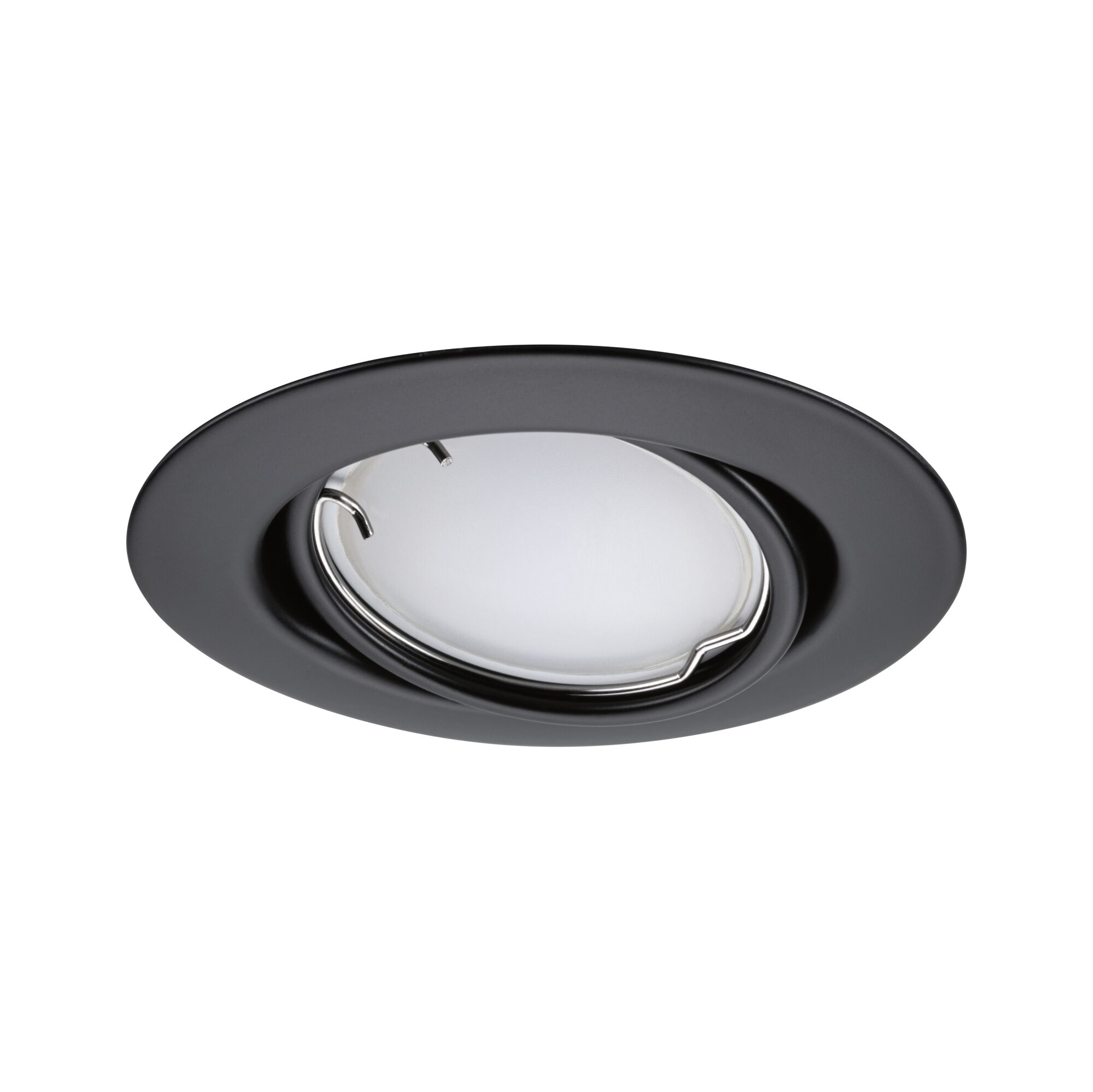

LED Recessed luminaire
Smart Home Zigbee 3.0
Base Coin Basic Set Swivelling
round 90mm 20° 3x4,9W 3x420lm 230V dimmable RGBW+ Black matt
round 90mm 20° 3x4,9W 3x420lm 230V dimmable RGBW+ Black matt

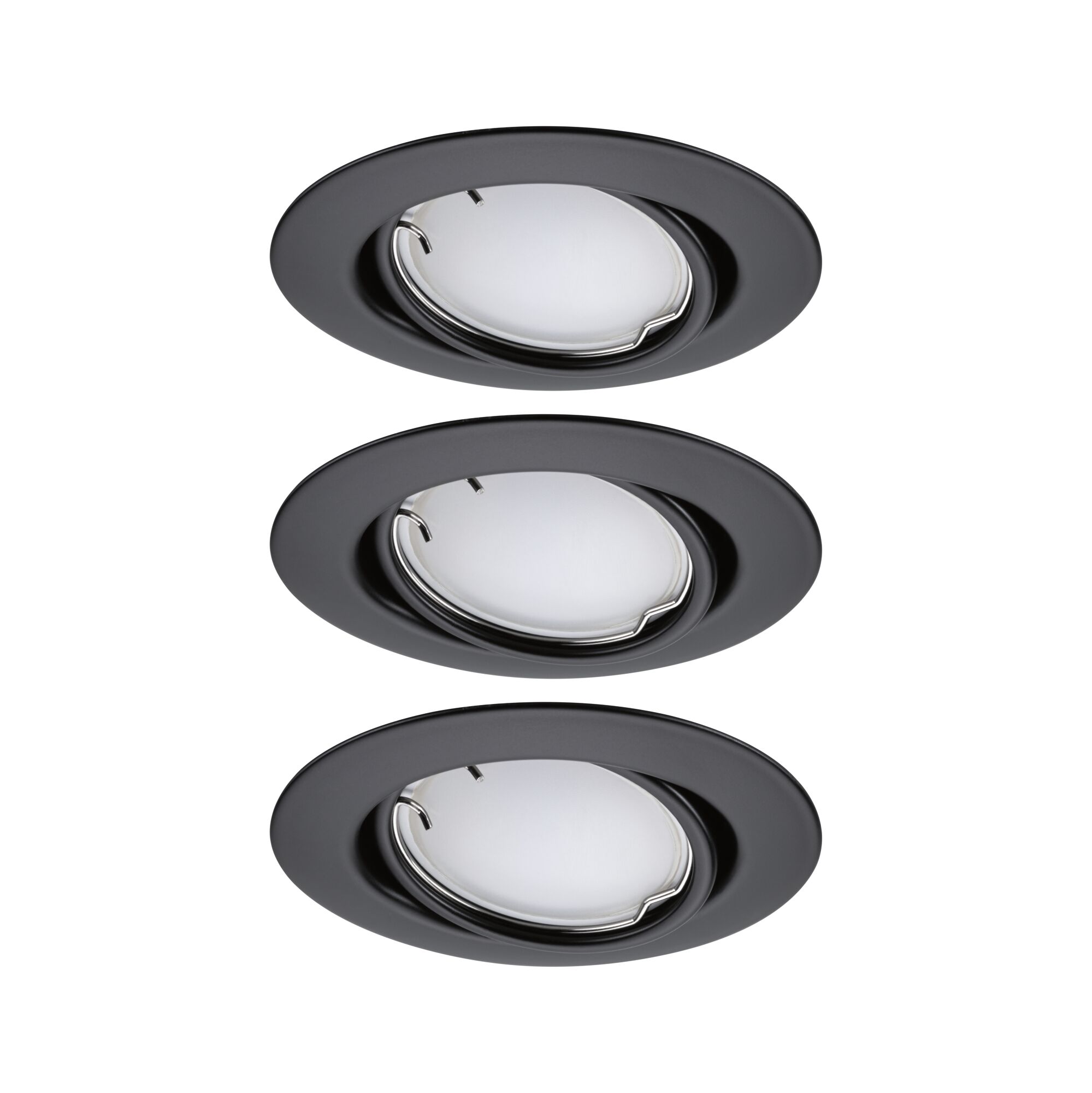

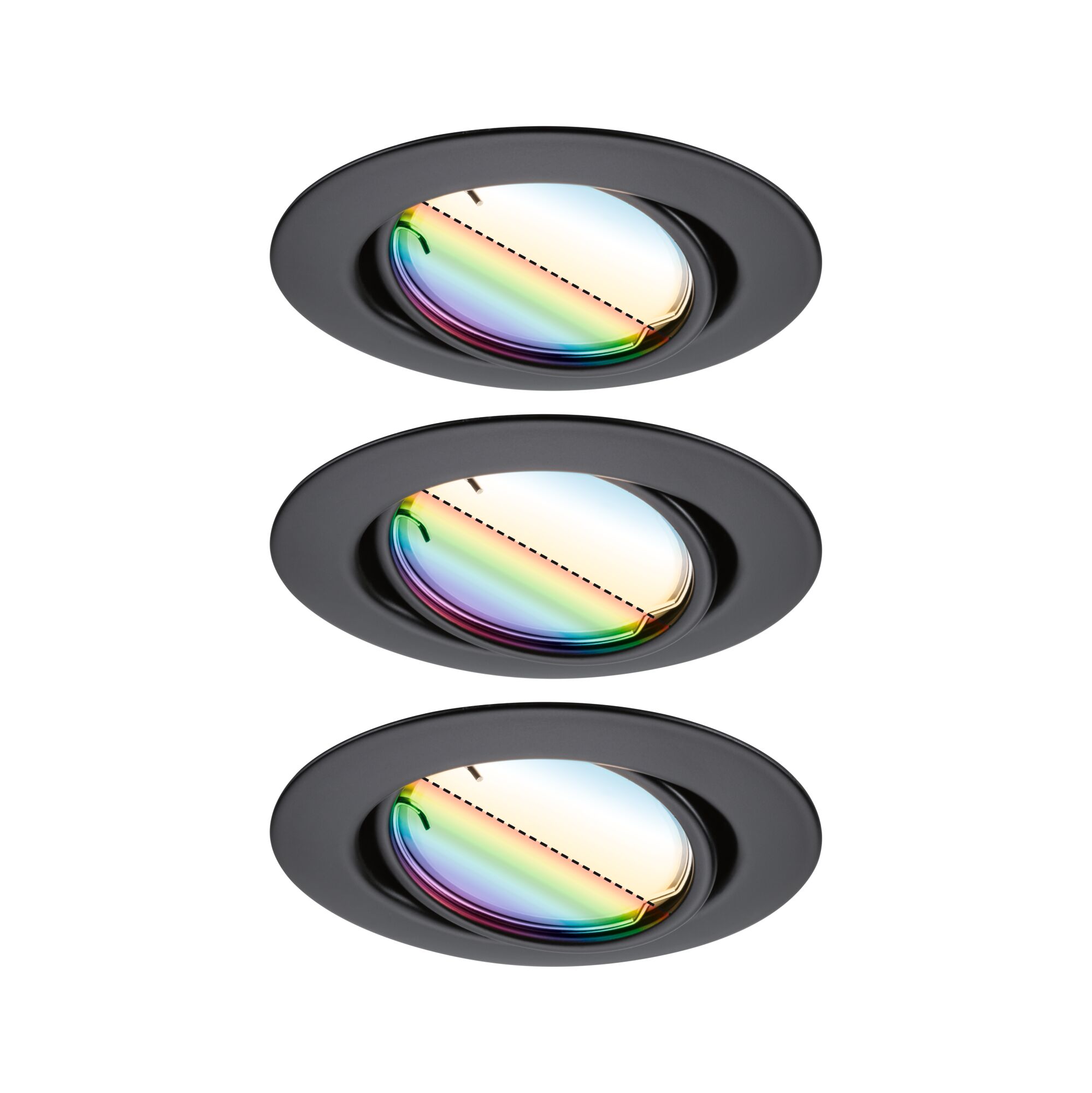

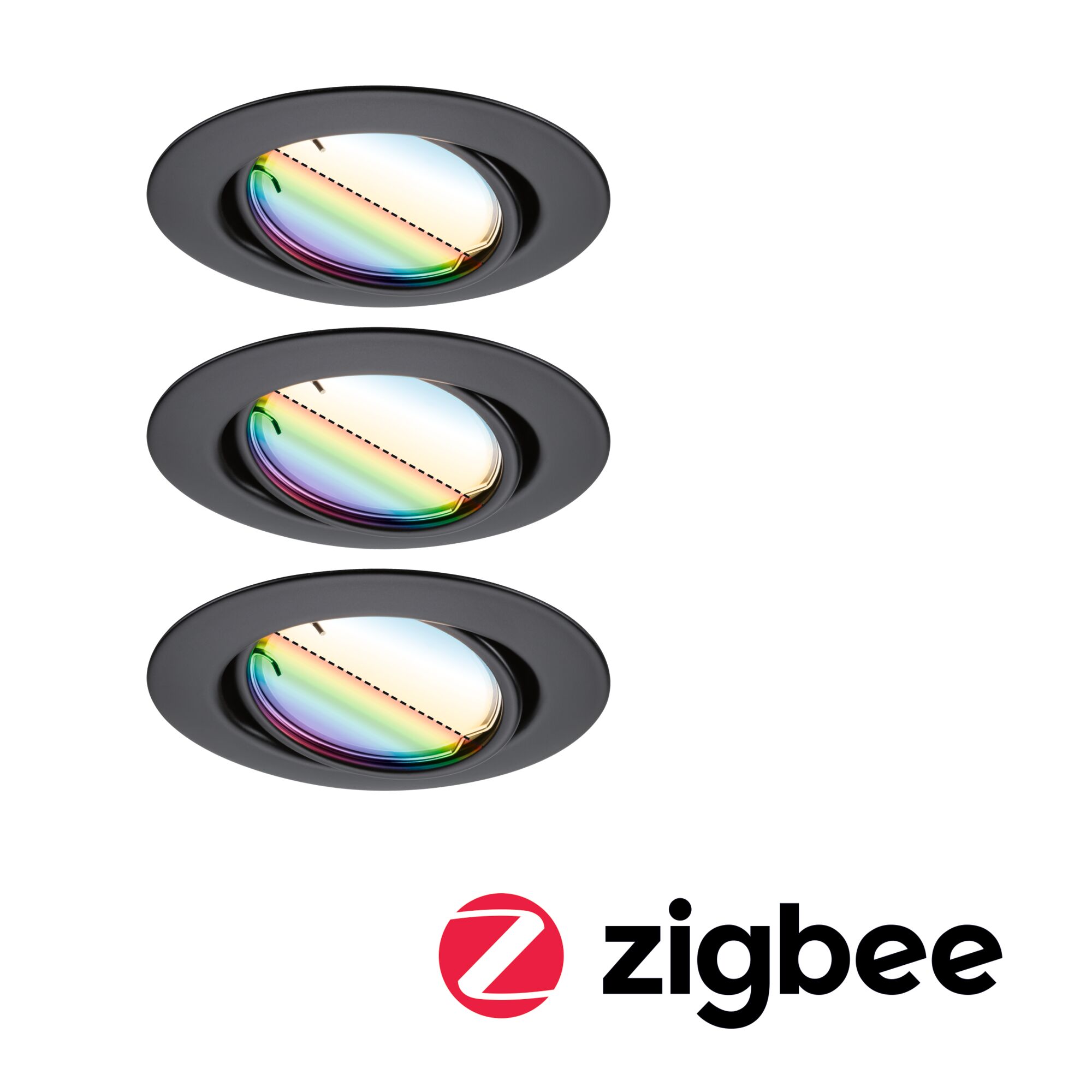

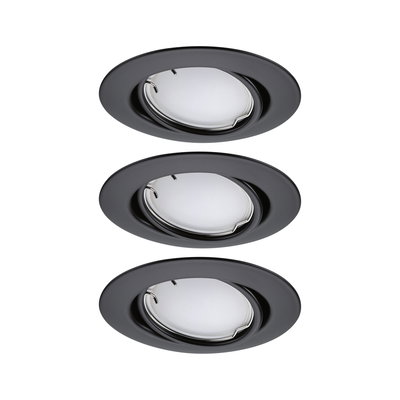

- Set of 3 luminaires
- With swivelling spots for ideal illumination

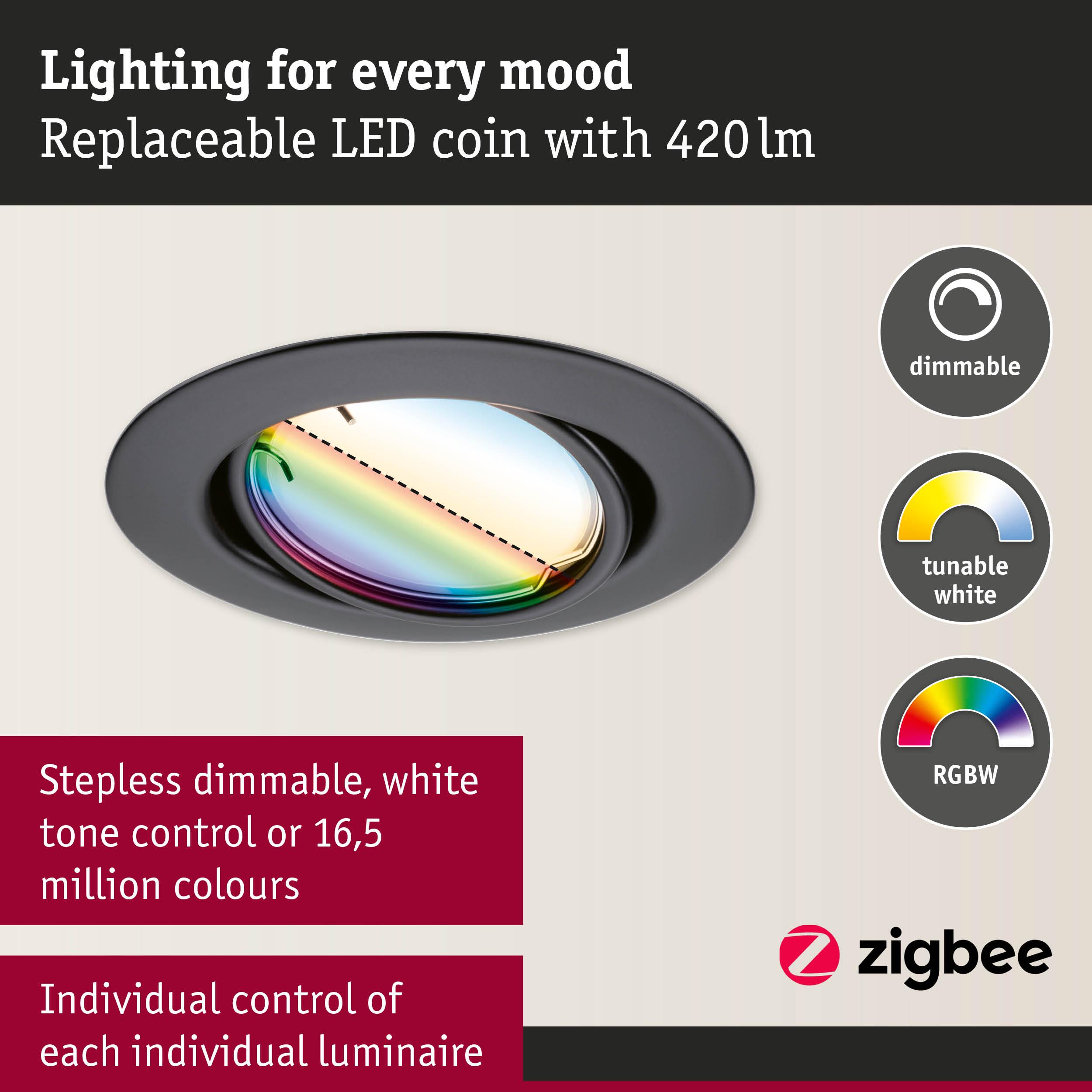

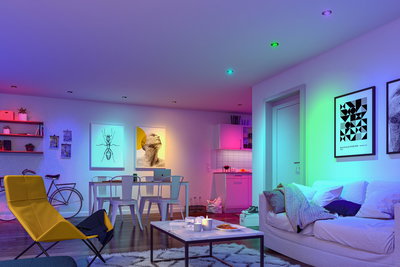

- RGBW function offers a free choice of light colour
LED Recessed luminaire Smart Home Zigbee 3.0 Base Coin Basic Set Swivelling round 90mm 20° 3x4,9W 3x420lm 230V dimmable RGBW+ Black matt

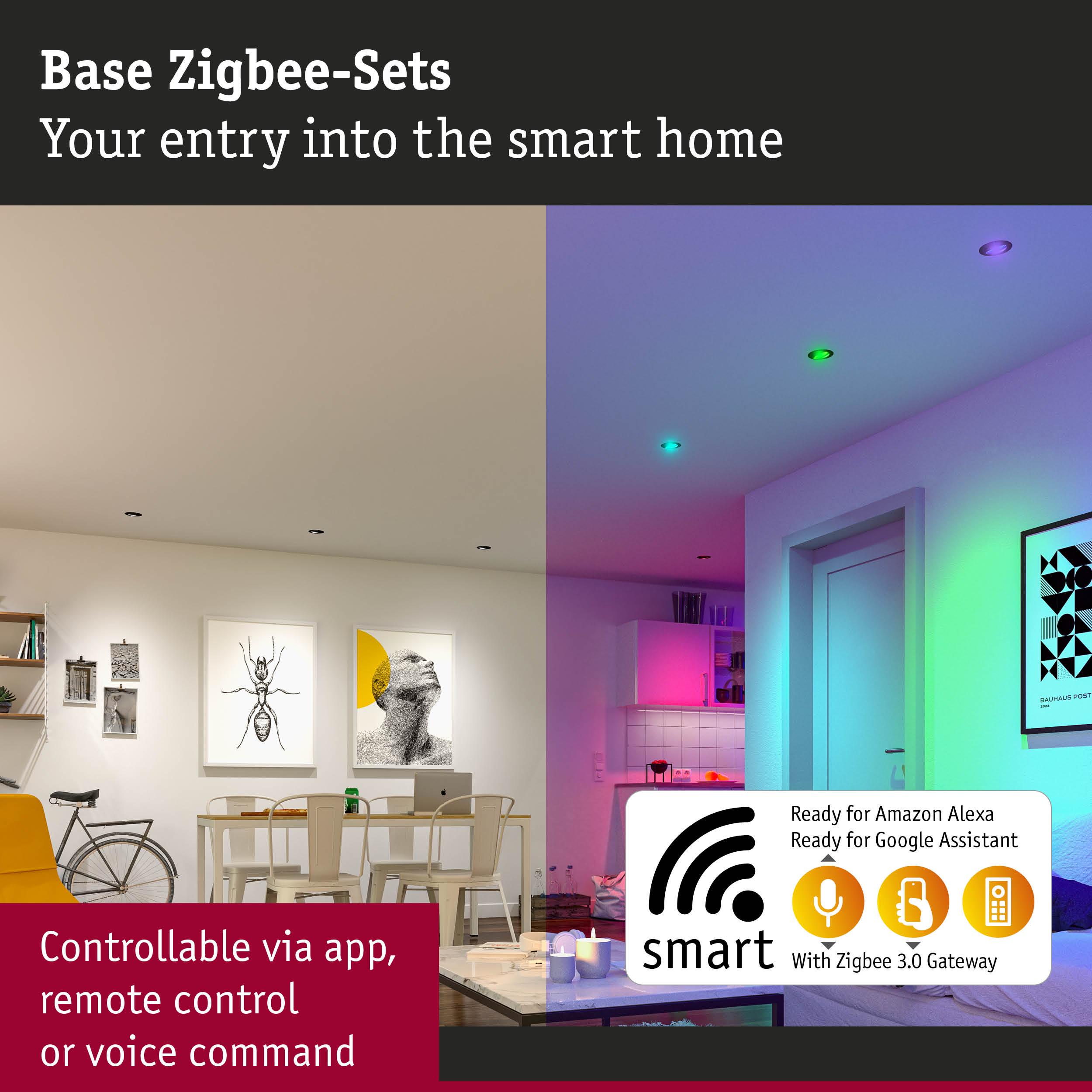

The smart recessed spotlights in Black matt with 3x4,9W are robust and user-friendly Metal spots that are suitable for new installations or the upgrade of existing installations alike. The scope of delivery includes exchangeable LED lamps with RGBW Zigbee 3.0 control. The luminaires can be controlled individually or in groups via app, remote control, or voice command. The combinations of Tunable White, RGB and dimming function are virtually endless – from gentle, dimmed warm white to objective daylight white or colourful colour gradients. Thanks to the 230V direct connection, an unlimited number of luminaires can easily be linked together.
- Set of 3 luminaires
- With swivelling spots for ideal illumination
- RGBW function offers a free choice of light colour
- Can be controlled with the Smart Home Zigbee remote control
- Usable with smart home gateways that have a Zigbee interface
- Can still be switched on and off with the light switch

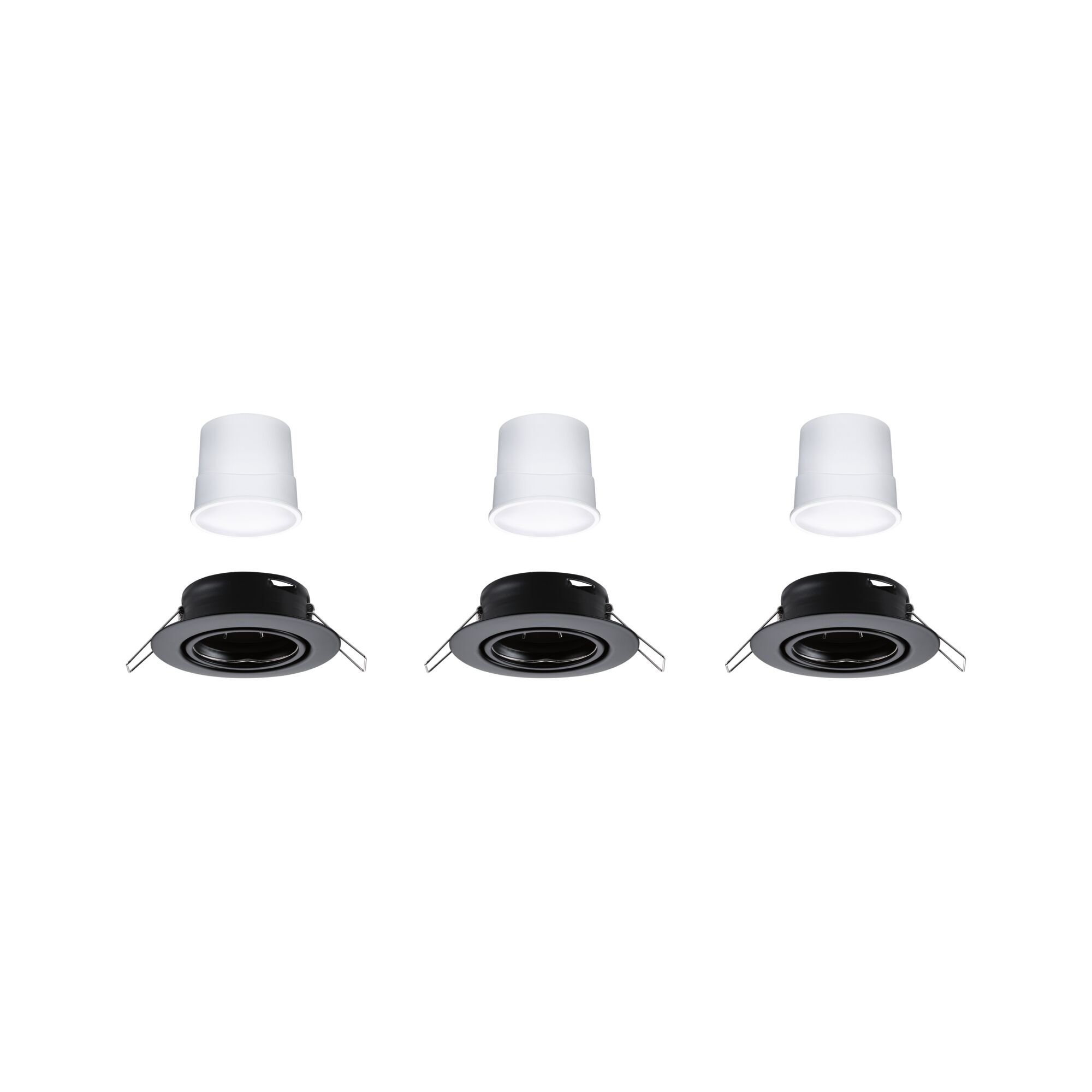

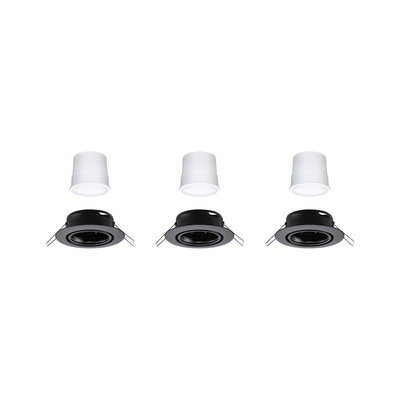

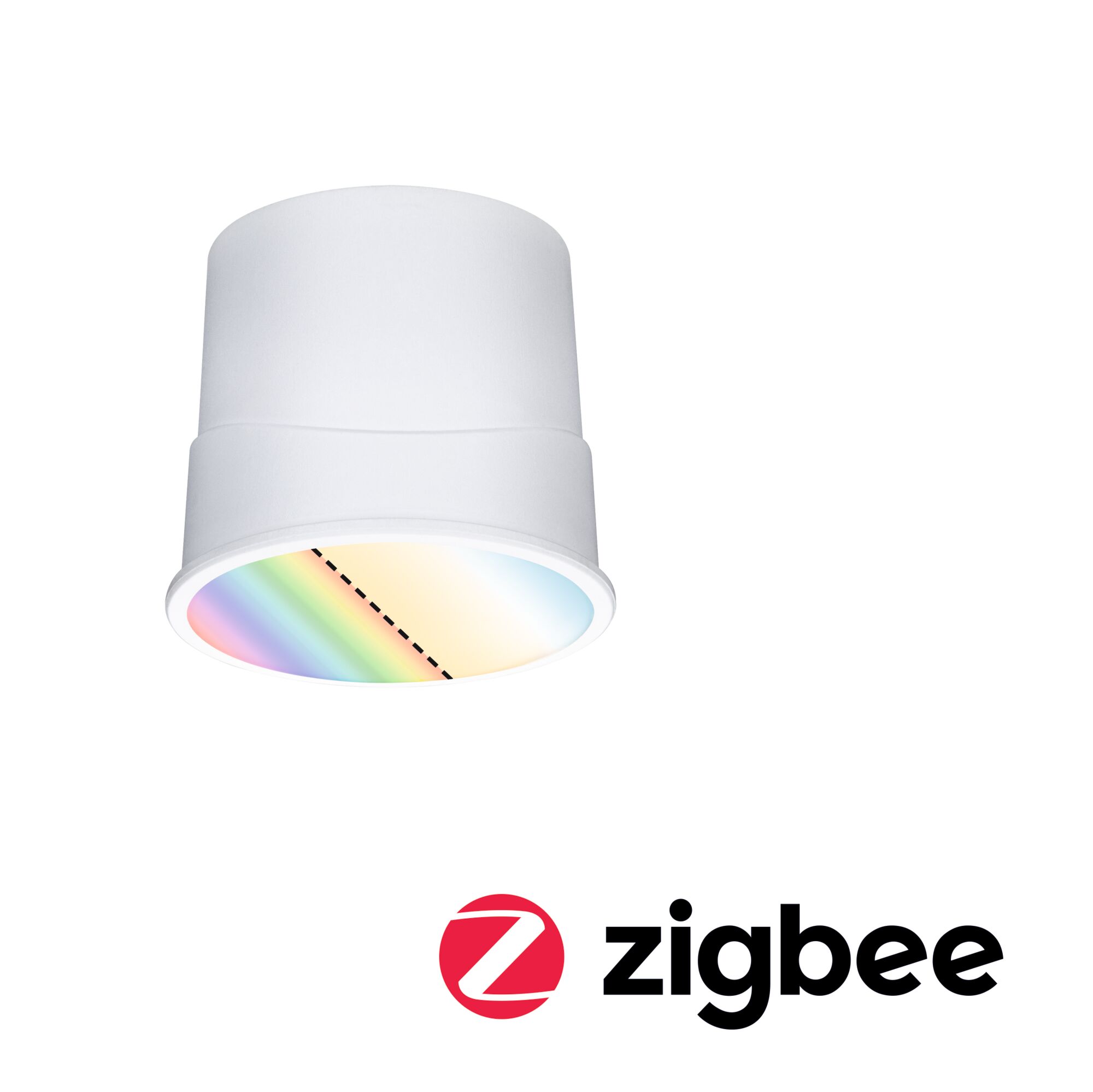

- Incl. replaceable LED lamp

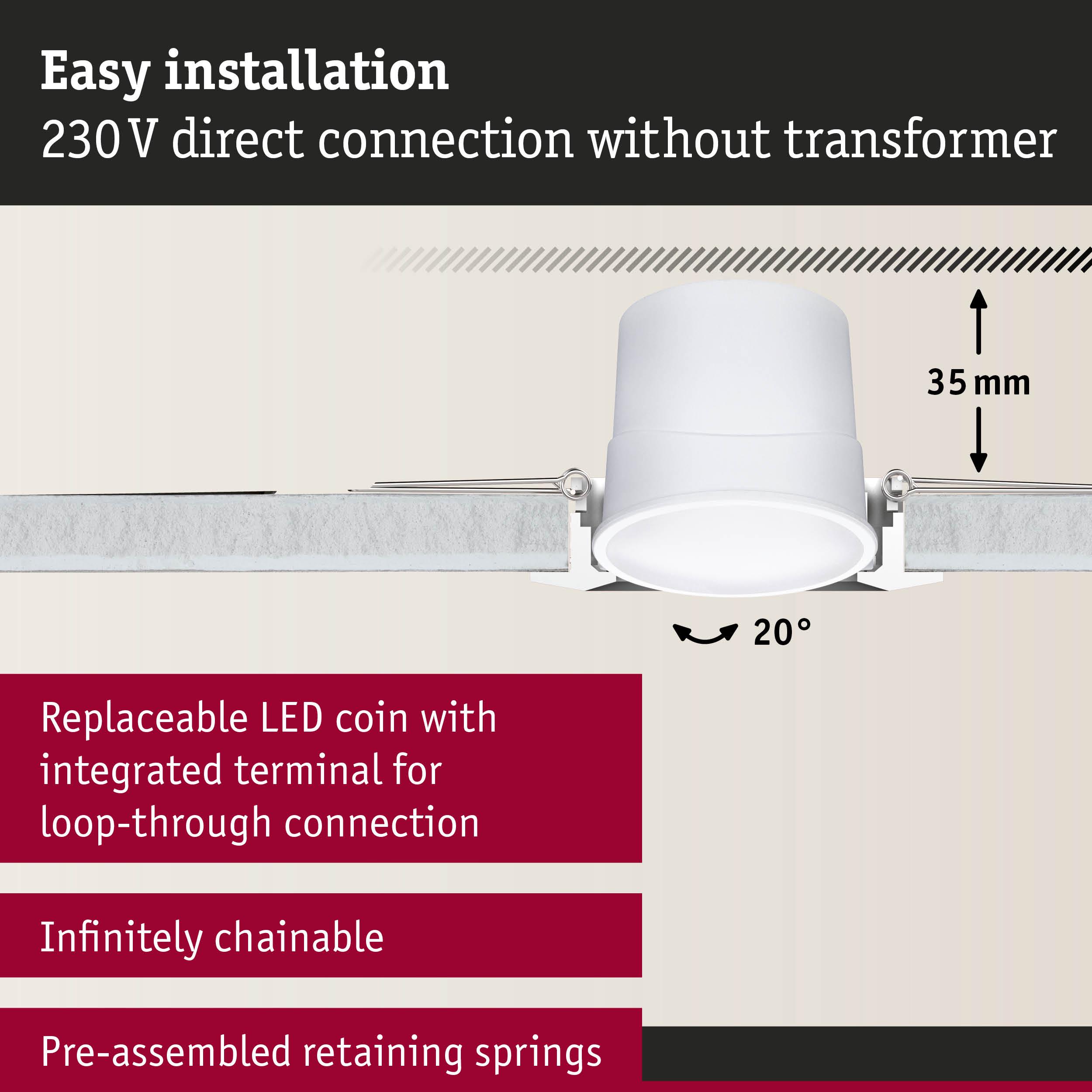

- For 230 V direct connection
- Efficient LED technology
- Variable dimming

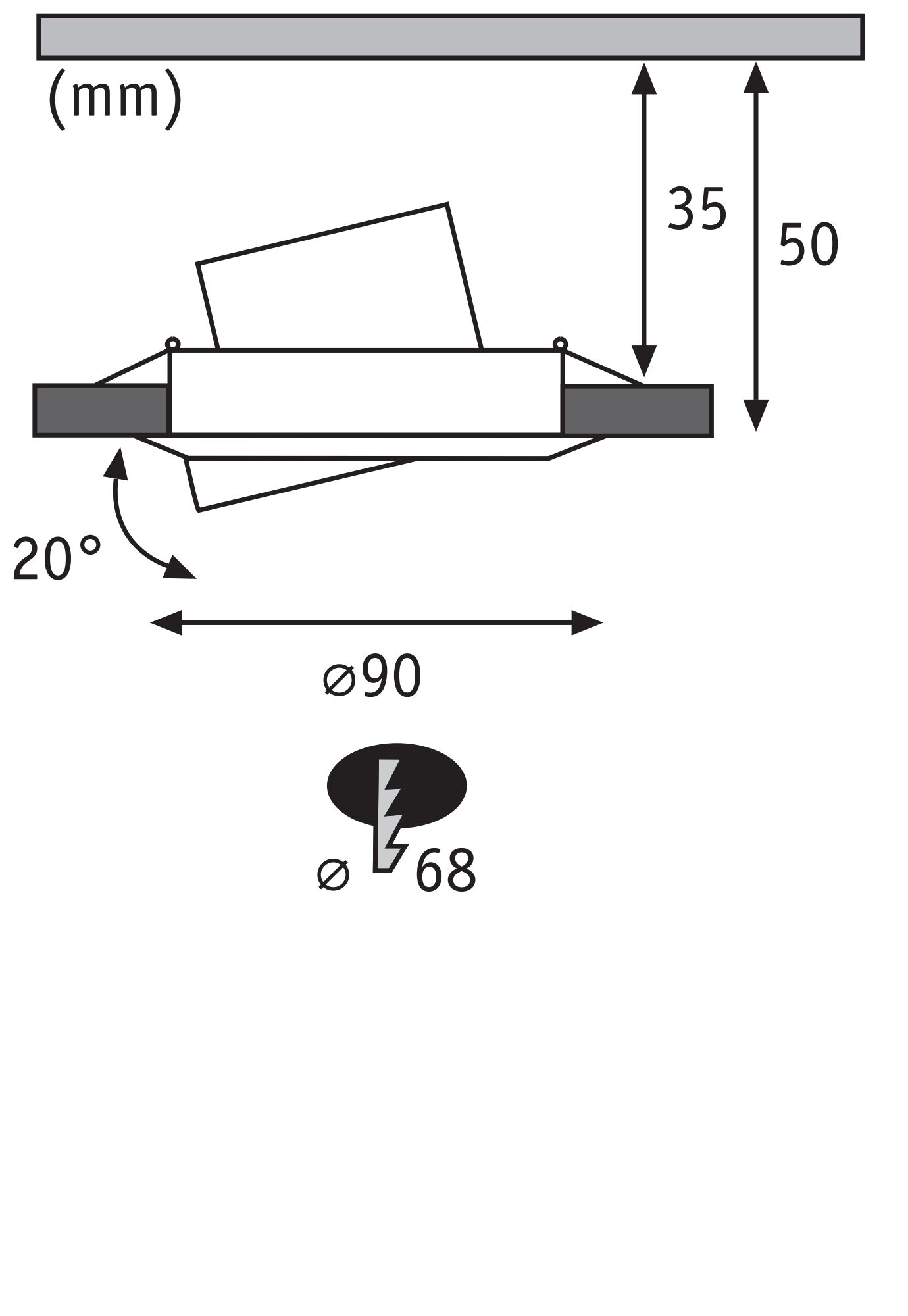

| Dimension | |
|---|---|
| Depth of hollow wall | 35 mm, 35 mm |
| Total Mounting depth | 50 mm |
| Ø | 90 mm |
| Mounting hole | 68 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Black matt |
| Material | Metal |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann 501.34 Smart Switch, Paulmann SmartHome Zigbee Gent2 501.40 |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 25000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Colour change | Color change RGBW, Tunable White |
| Beam angle | 110 ° |
| Usable luminous flux | 420 lm |
| Luminous flux LED module | 420 lm |
| color temp | 3000 - 6500 K |
| colour consistency | SDCM 6 |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 4,9 W |
| Compatible Smart Home technology | Zigbee |
| Swivel range | 20 ° |
| Technique | LED |
| IP protection | IP20 |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 36 W |
| Number of component parts | 3x |
| protection class | protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 14,7 W |
| Transformer | |
|---|---|
| apparent power | 27 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
