Article-No.:
93672

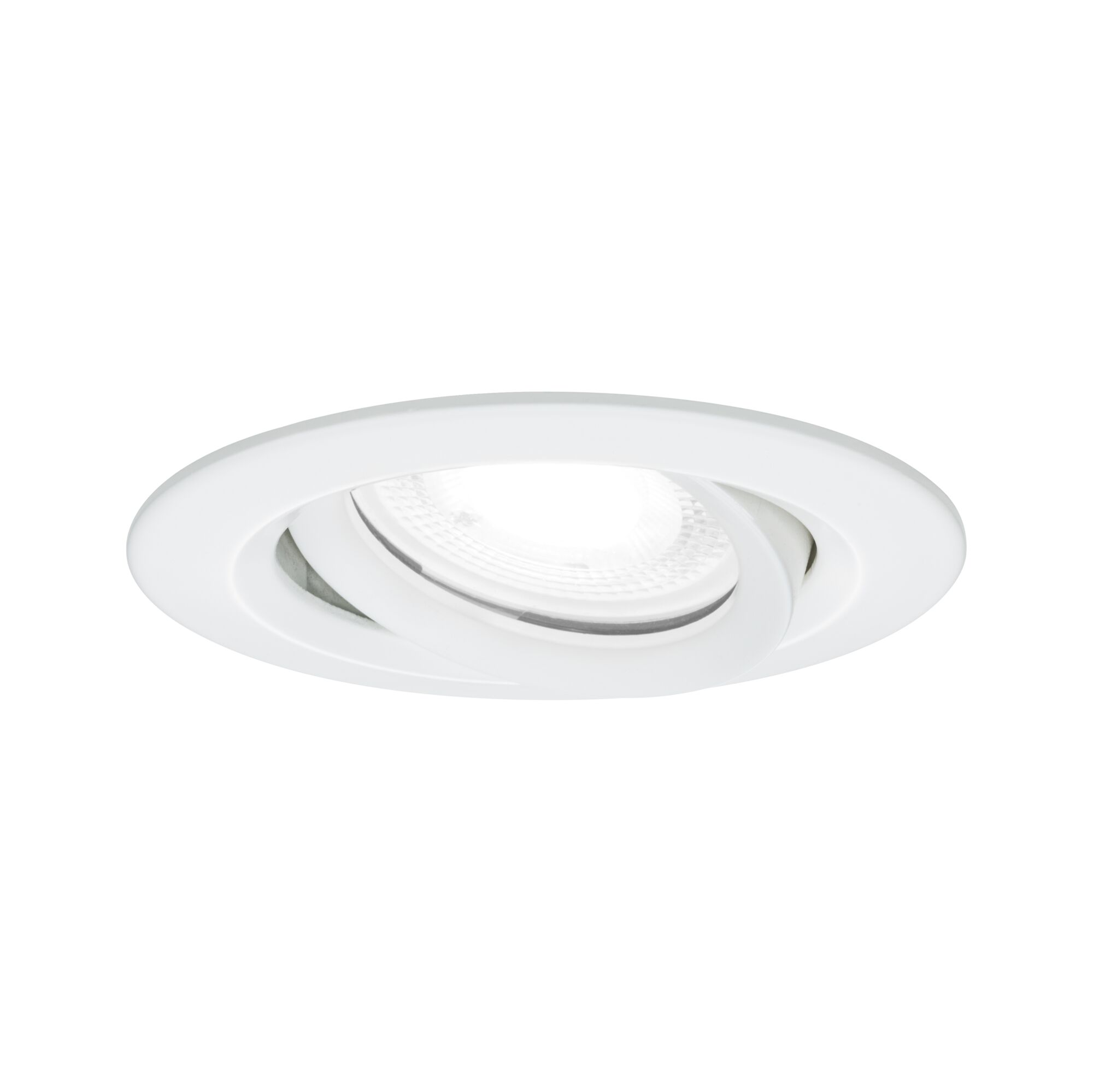

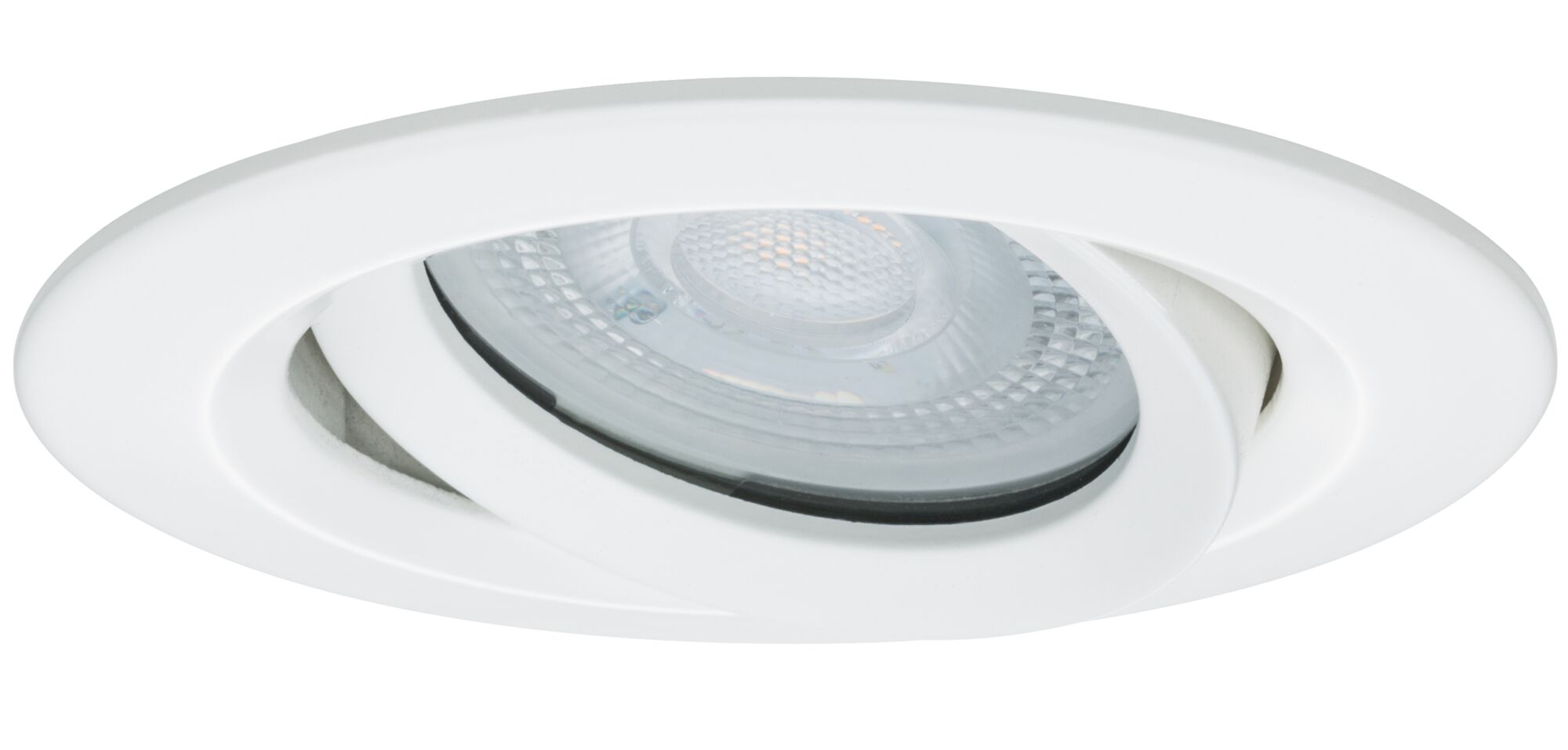

LED Recessed luminaire
Nova Plus Single Luminaire Swivelling
IP65 round 93mm 30° GU10 6W 470lm 230V dimmable 4000K Matt white
IP65 round 93mm 30° GU10 6W 470lm 230V dimmable 4000K Matt white
- Color temperatur: 4000K - Neutral white

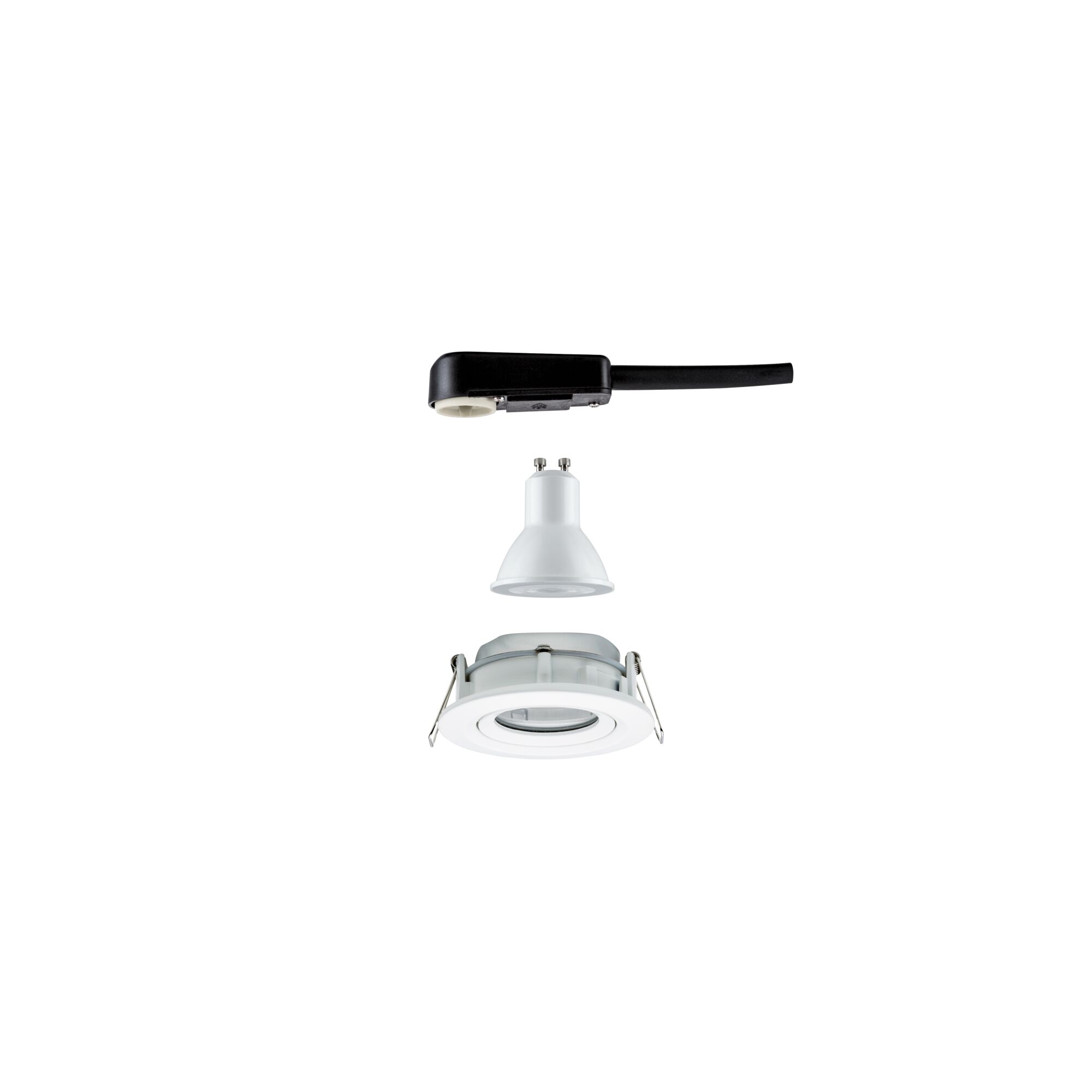

- Incl. replaceable LED lamp
- With swivelling spots for ideal illumination
LED Recessed luminaire Nova Plus Single Luminaire Swivelling IP65 round 93mm 30° GU10 6W 470lm 230V dimmable 4000K Matt white

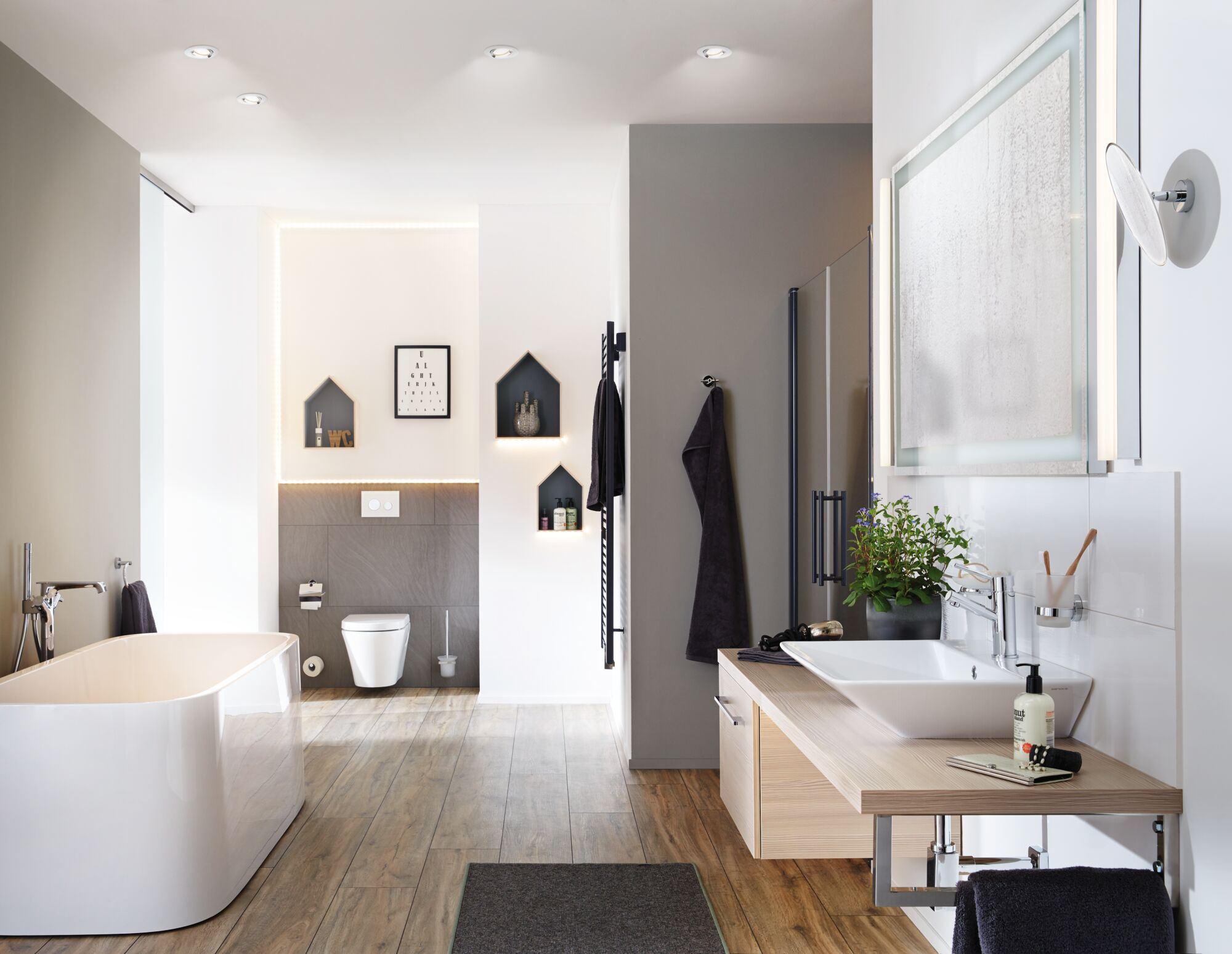

The round Nova Plus recessed luminaire in Matt white with a replaceable GU10 lamp is suitable for new installations, as well as for replacing existing installations. It can be installed in ceilings with a cavity of only 75 millimetres. Straightforward mounting with retaining springs means that the ceiling remains undamaged, even after repeated installation and removal. The dimming function lets you adjust the brightness according to your needs and emits a neutral white work light. Thanks to IP65 protection, the luminaire is specially protected against penetration by water jets, making it ideal for installation in wet rooms or outdoor areas.
- Color temperatur: 4000K - Neutral white
- Incl. replaceable LED lamp
- With swivelling spots for ideal illumination
- The lamp can easily be fitted without a snap ring
- IP protection: IP65 – water jet-protected
- For 230 V direct connection
| Dimension | |
|---|---|
| Depth of hollow wall | 80 mm, 80 mm |
| Total Mounting depth | 95 mm |
| Ø | 93 mm |
| Mounting hole | 83 mm |
| Form | round |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | Matt white |
| Material | Aluminium zinc |
| Installation | |
|---|---|
| can be used with the following dimmers | RC Merten MEG 5136-0000, RLC Müller Paladin 873 030 LED |
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Energy consumption | 6 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 15000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 4000 K |
| color temp | 4000 K |
| Farbtemperatur_Text | Neutralweiß |
| Beam angle | 36 ° |
| Usable luminous flux | 470 lm |
| colour consistency | SDCM 6 |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 6 W |
| Swivel range | 30 ° |
| Technique | LED |
| Socket | GU10 |
| IP protection | IP65 ceiling mounting |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Inclusive lamp | yes |
| Incandescent Equivalent | 40 W |
| Adjustability | swivelling/tilting |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser. |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
