Article-No.:
93869

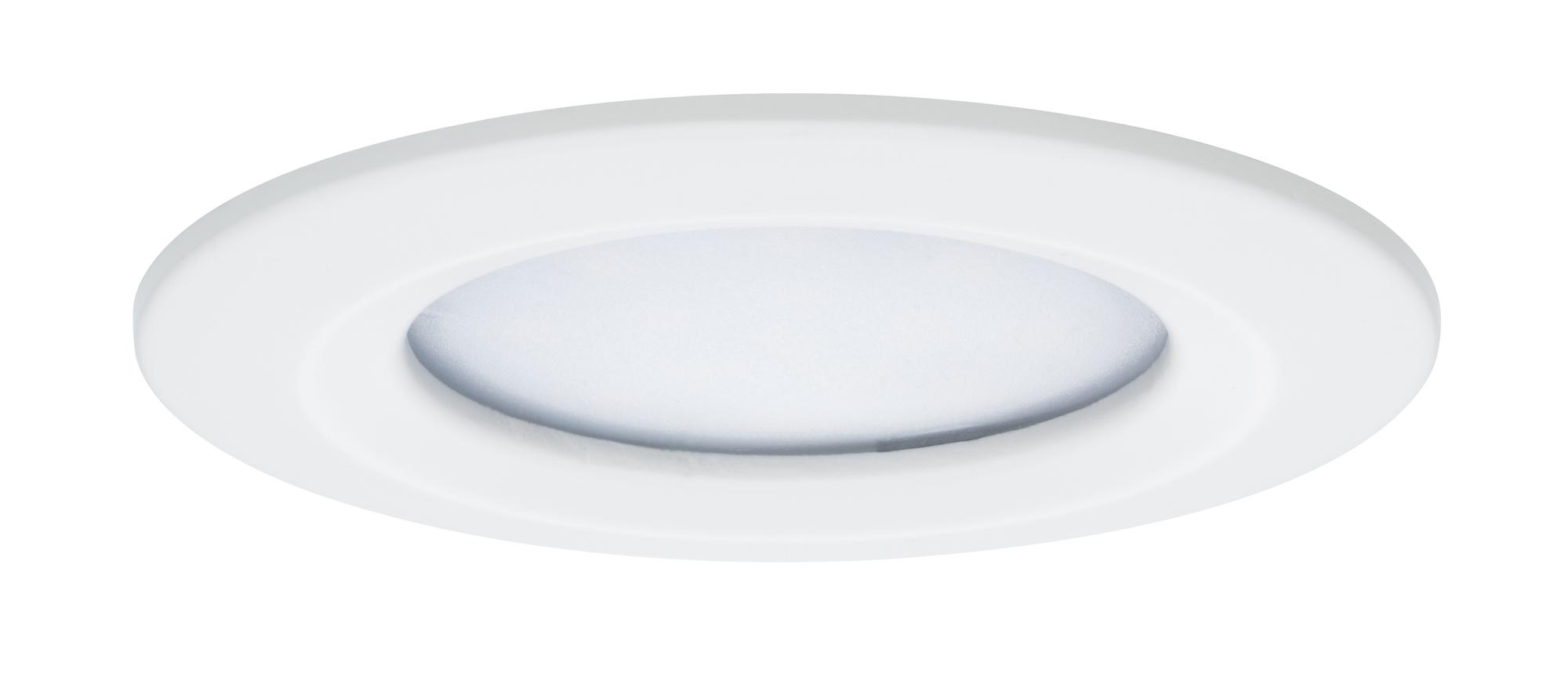

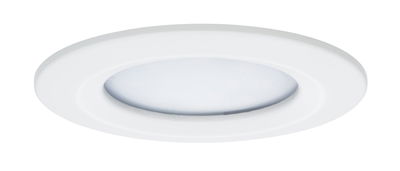

LED Recessed luminaire
Nova Plus Coin Single Luminaire Rigid
IP44 round 78mm Coin 6W 470lm 230V dimmable 2700K Matt white
IP44 round 78mm Coin 6W 470lm 230V dimmable 2700K Matt white
- Set of 1 luminaire incl. LED module
- Color temperatur: 2700K - Warm white
- With satined protective glass
LED Recessed luminaire Nova Plus Coin Single Luminaire Rigid IP44 round 78mm Coin 6W 470lm 230V dimmable 2700K Matt white
The round Nova Plus recessed luminaire (3-piece set) in Matt white with a replaceable LED coin is suitable for new installations, as well as for replacing existing installations. It is exceptionally flat, and can therefore be installed in ceilings with a cavity of only 30 millimetres. As the single luminaires can be easily linked together with quick clips, the installation is quick and easy. The dimming function lets you adjust the brightness according to your needs and emits a warm white work light and cosy mood lighting in one. The luminaire even provides cosy lighting in the kitchen and bathroom, thanks to its IP44 splash protection.
- Set of 1 luminaire incl. LED module
- Color temperatur: 2700K - Warm white
- With satined protective glass
- Very flat – can also be mounted in small cavities of only 30 mm depth
- For 230 V direct connection

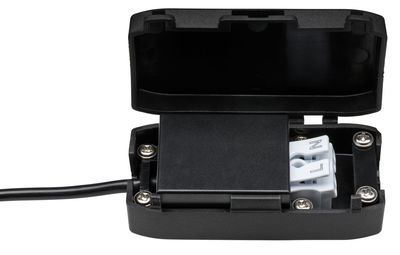

- Incl. junction box with double quick clamp for feeding through wires
- IP protection: IP44 splash-protected
- Dimmable
| Dimension | |
|---|---|
| Einbaudurchmesser | 68 mm |
| Mounting depth | 45 mm |
| Depth of hollow wall | 30 mm |
| Diameter | 78 mm |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | Matt white |
| Material | Aluminium |
| Type | Coin |
| Form | round |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy consumption | 6 kWh_1000h |
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 120 ° |
| Nominal luminous flux | 470 lm |
| Color rendering index | > 80 Ra |
| color temp | Warm white |
| Colour consistency (SDCM) | 6 |
| Lamp Features | |
|---|---|
| Component parts | 6 W |
| Technique | LED |
| Base/Socket | Coin |
| Inclusive lamp | yes |
| Incandescent Equivalent | 43 W |
| Adjustability | fixed |
| Lamp property | Leuchtmittel enthalten und wechselbar |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| IP protection | IP44 ceiling mounting |
| Number of component parts | 1x |
| protection class | Protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
