Article-No.:
93082

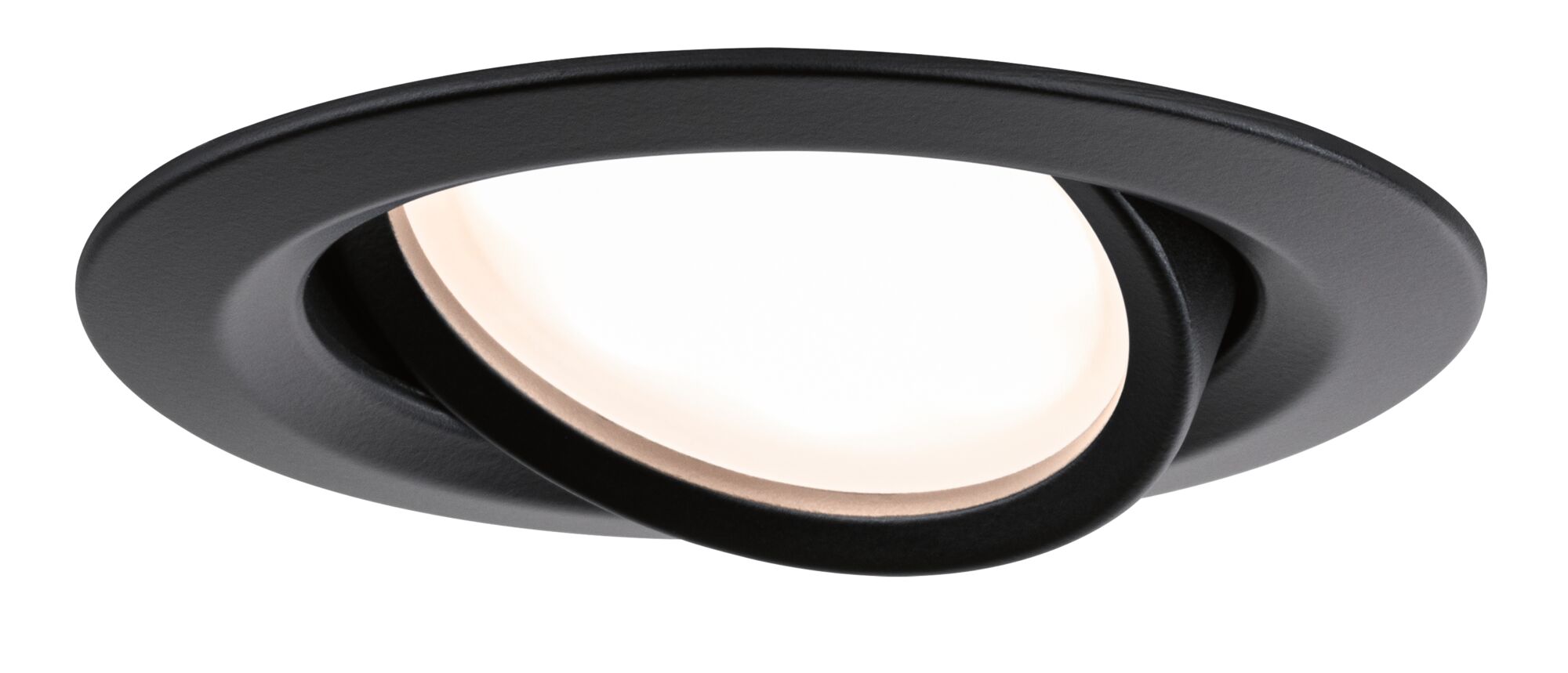

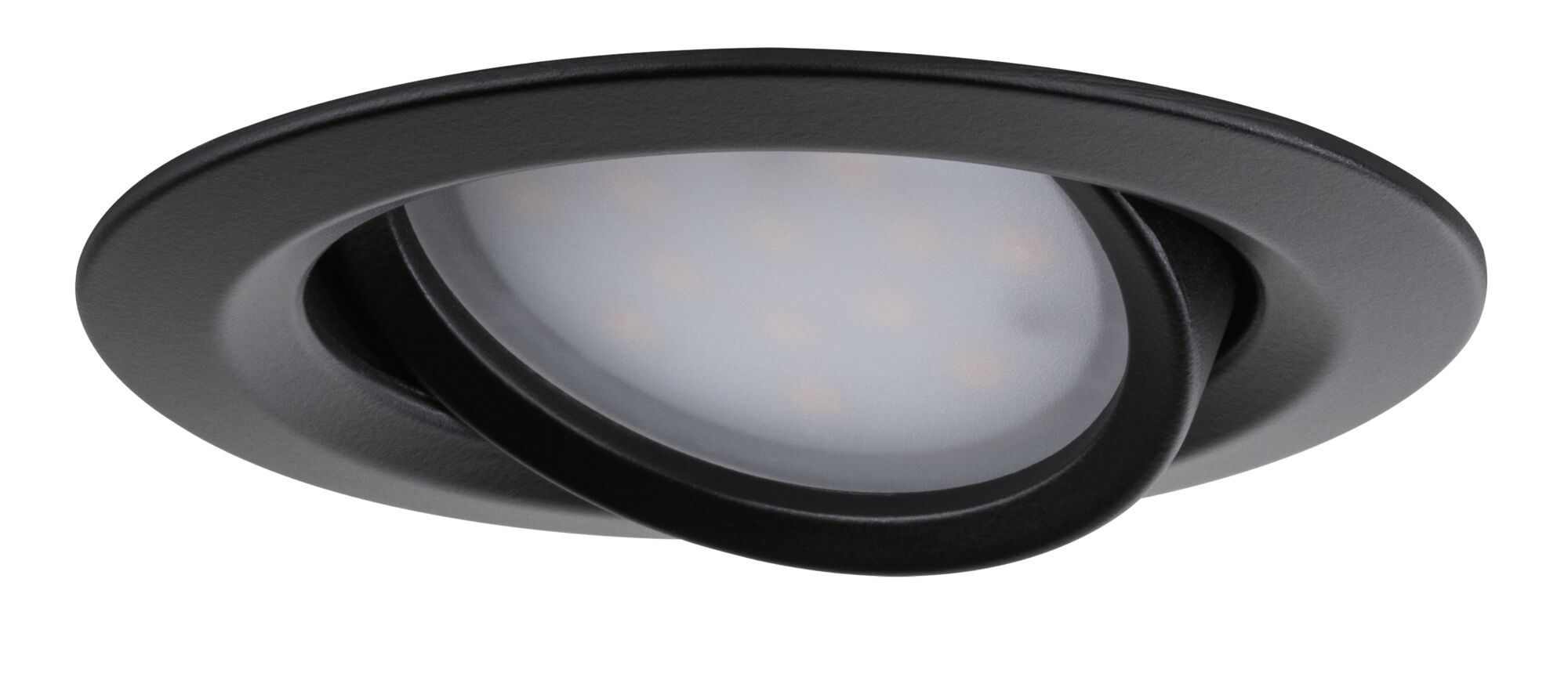

LED Recessed luminaire
Nova Plus Coin Basic Set Swivelling
IP65 round 93mm 30° Coin 3x6W 3x470lm 230V dimmable 2700K Black matt
IP65 round 93mm 30° Coin 3x6W 3x470lm 230V dimmable 2700K Black matt

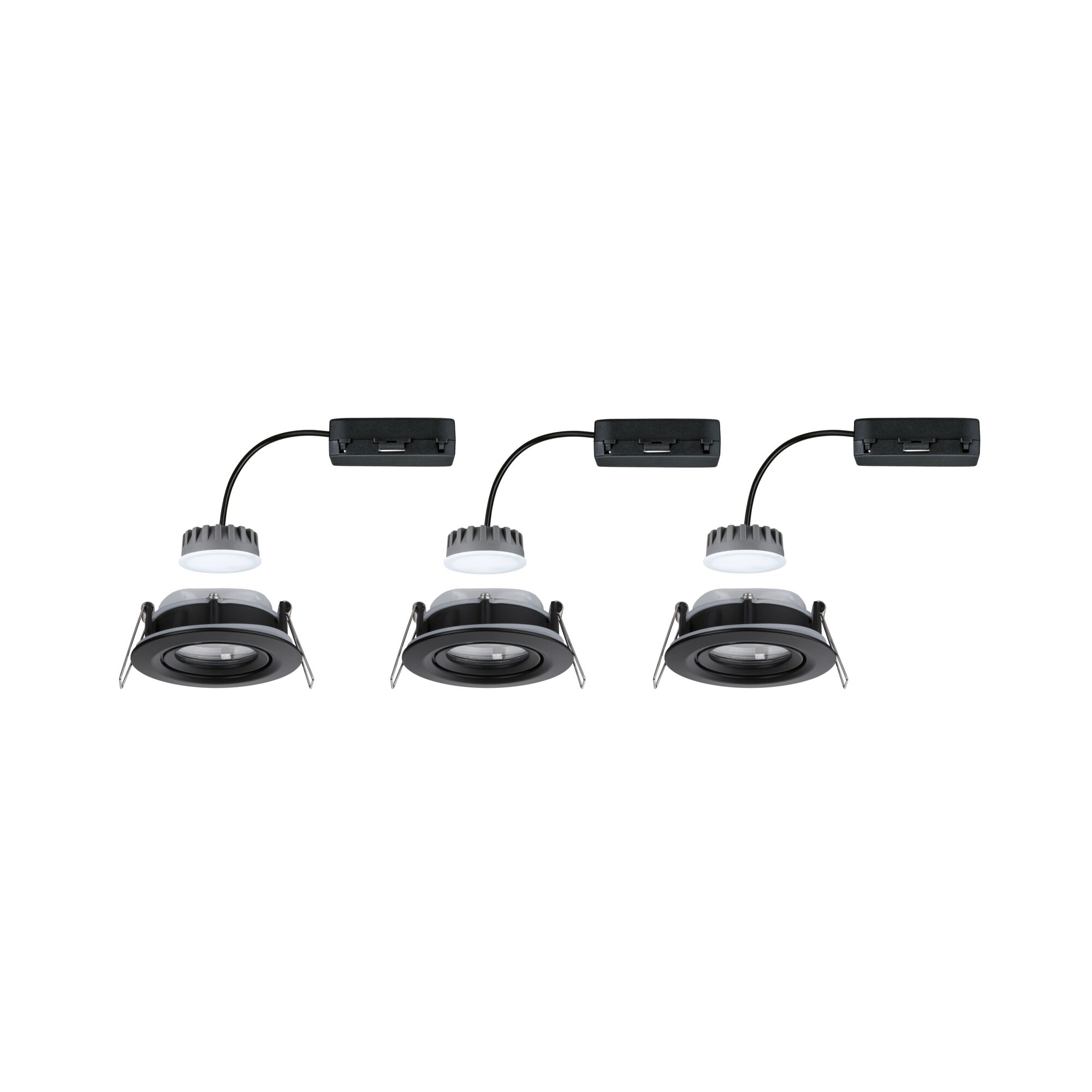

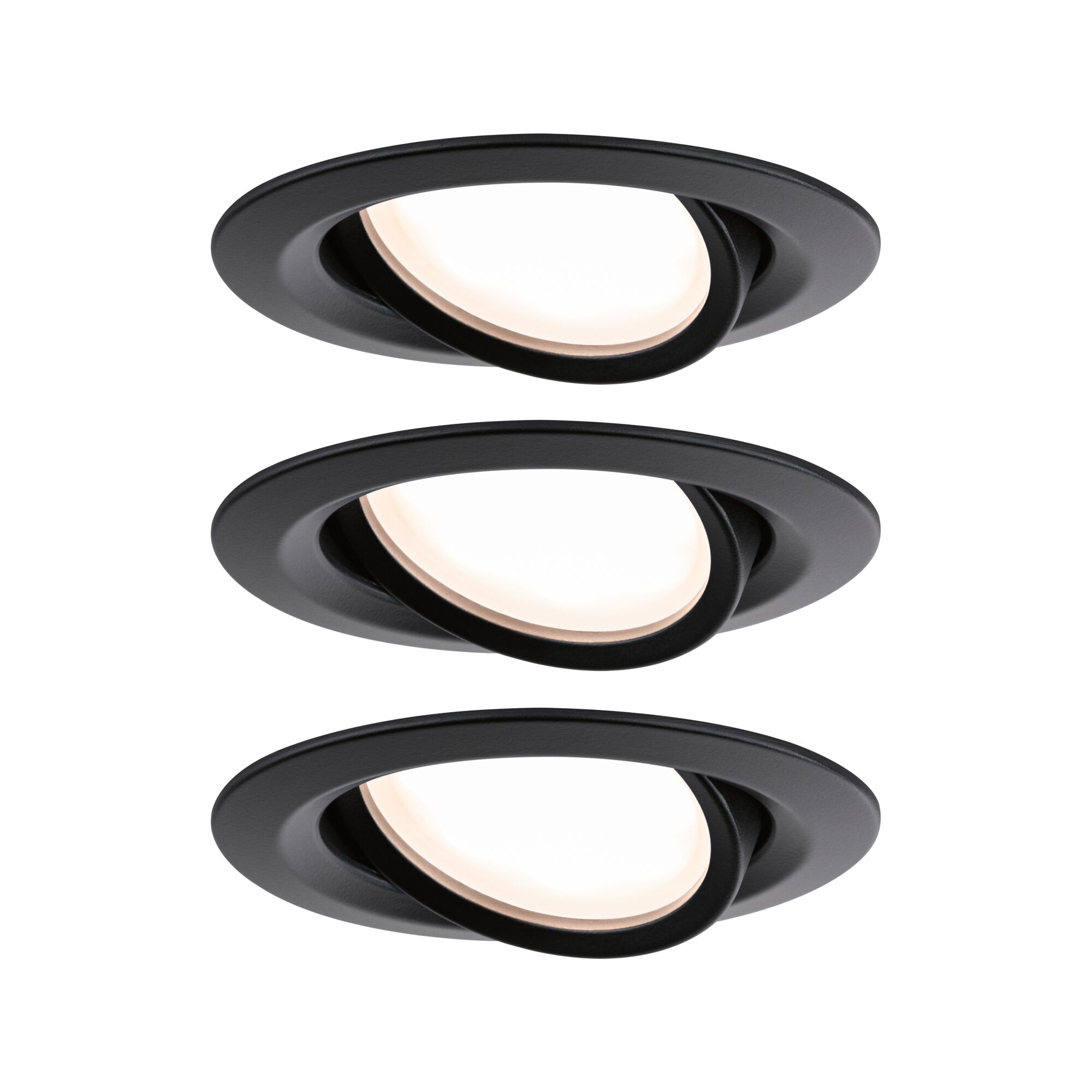

- Set of 3 luminaires incl. LED module
- Color temperatur: 2700K - Warm white
- With satined protective glass
LED Recessed luminaire Nova Plus Coin Basic Set Swivelling IP65 round 93mm 30° Coin 3x6W 3x470lm 230V dimmable 2700K Black matt
The round Nova Plus recessed luminaires (3-piece set) in Black matt with a replaceable LED coin are suitable for new installations, as well as for replacing existing installations. They are exceptionally flat, and can therefore be installed in ceilings with a cavity of only 30 millimetres. As the single luminaires can be easily linked together with quick clips, the installation is quick and easy. The dimming function lets you adjust the brightness according to your needs and emits a warm white work light and cosy mood lighting in one. Thanks to the swivelling function, the spots can be individually directed. Thanks to IP65 protection, the luminaires are specially protected against penetration by water jets, making it ideal for installation in wet rooms or outdoor areas.
- Set of 3 luminaires incl. LED module
- Color temperatur: 2700K - Warm white
- With satined protective glass
- Very flat – can also be mounted in small cavities of only 30 mm depth
- For 230 V direct connection

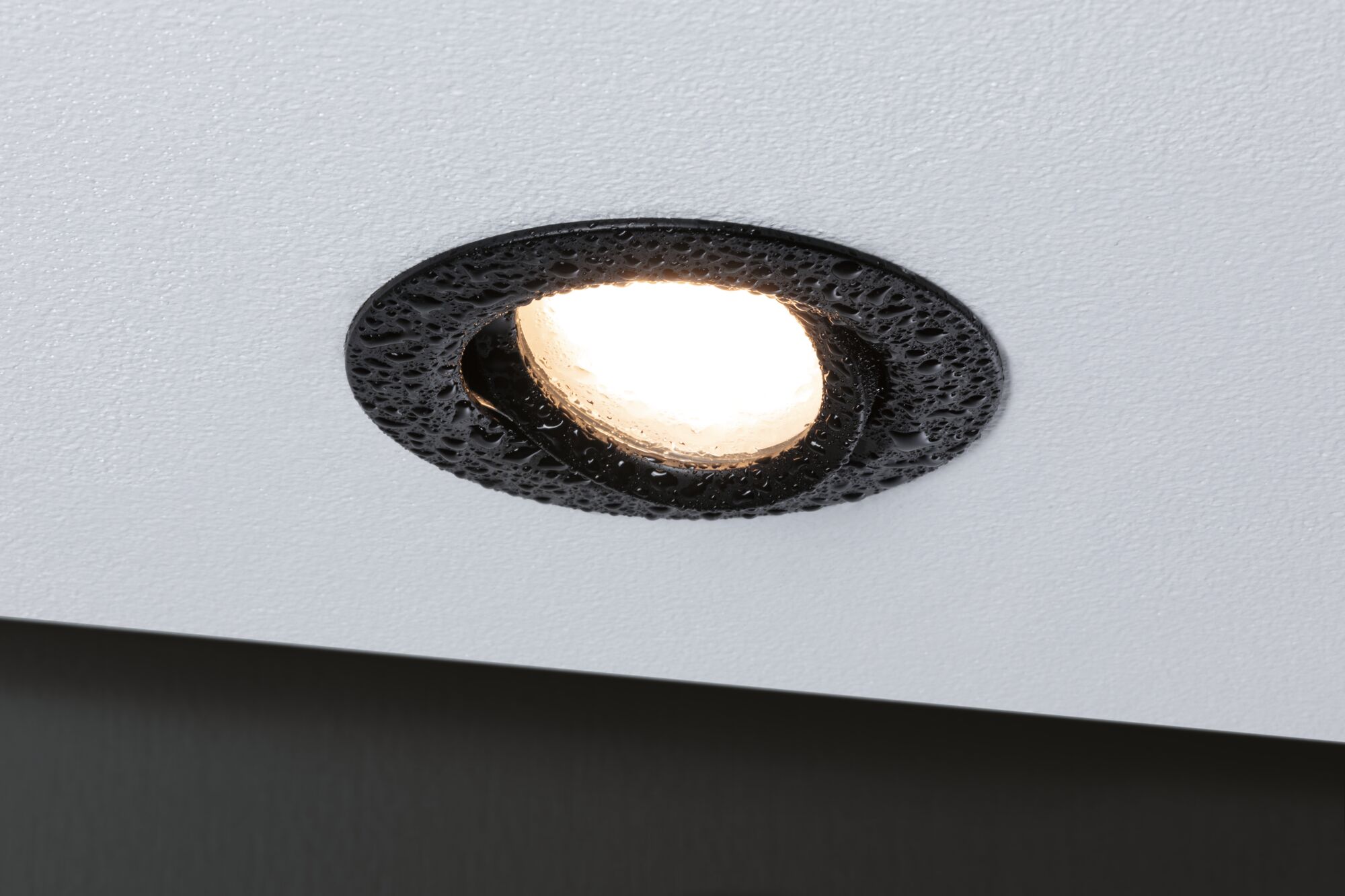

- IP protection: IP65 – water jet-protected
- Dimmable

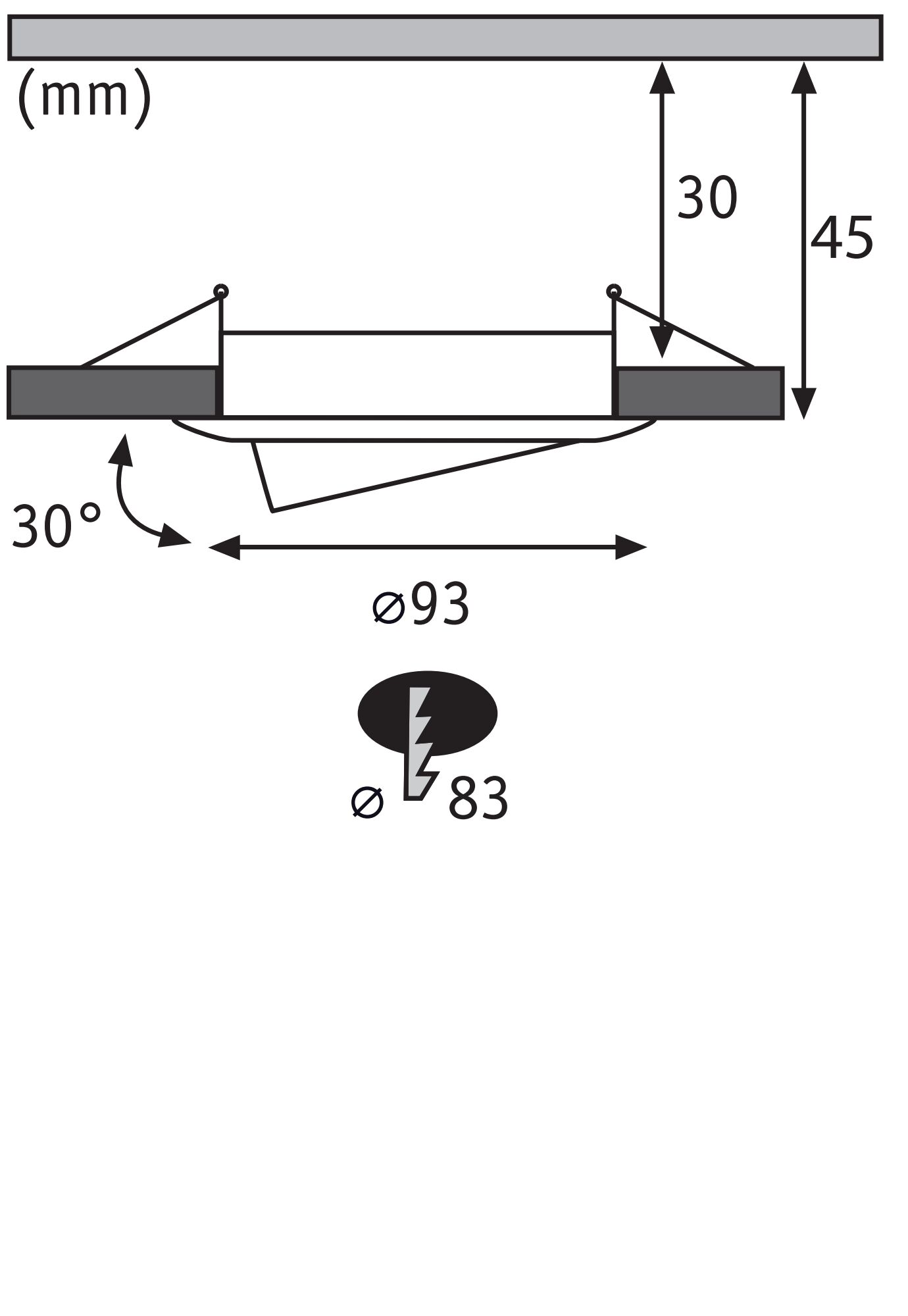

| Dimension | |
|---|---|
| Depth of hollow wall | 30 mm, 30 mm |
| Total Mounting depth | 45 mm |
| Ø | 93 mm |
| Mounting hole | 83 mm |
| Form | round |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Black matt |
| Material | Aluminium |
| Installation | |
|---|---|
| can be used with the following dimmers | RLC Müller Paladin 873 030 LED |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Energy consumption | 6 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 100 ° |
| Usable luminous flux | 470 lm |
| color temp | 2700 K |
| colour consistency | SDCM 6 |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 6 W |
| Swivel range | 30 ° |
| Technique | LED |
| Socket | Coin |
| IP protection | IP65 ceiling mounting |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Inclusive lamp | yes |
| Incandescent Equivalent | 43 W |
| Number of component parts | 3x |
| protection class | protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
