Article-No.:
93081

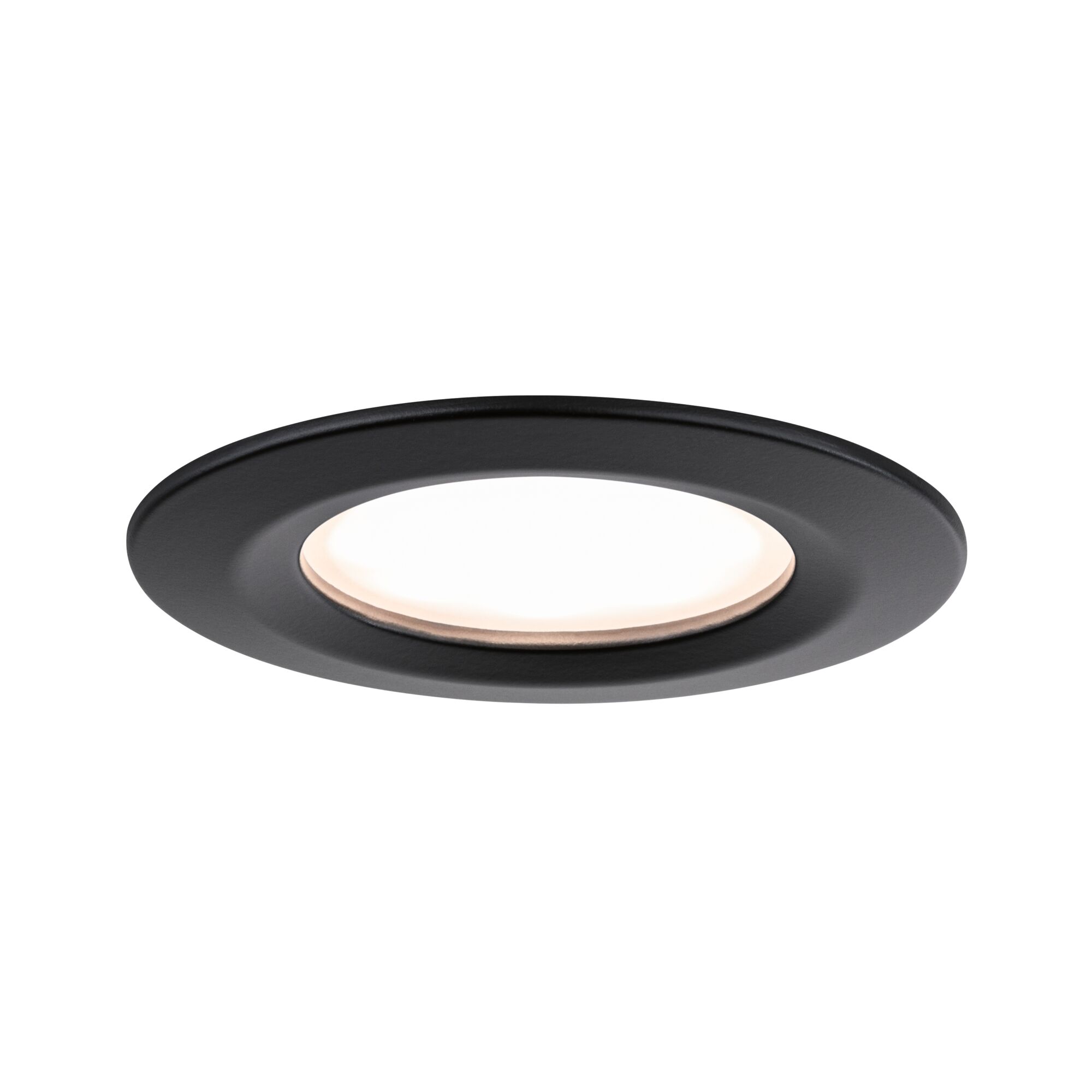

LED Recessed luminaire
Nova Plus Coin Basic Set Rigid
IP44 round 78mm Coin 3x6W 3x470lm 230V dimmable 2700K Black matt
IP44 round 78mm Coin 3x6W 3x470lm 230V dimmable 2700K Black matt

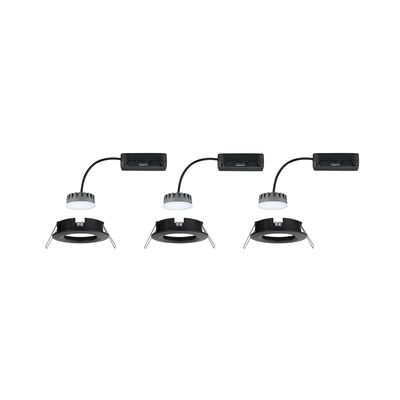

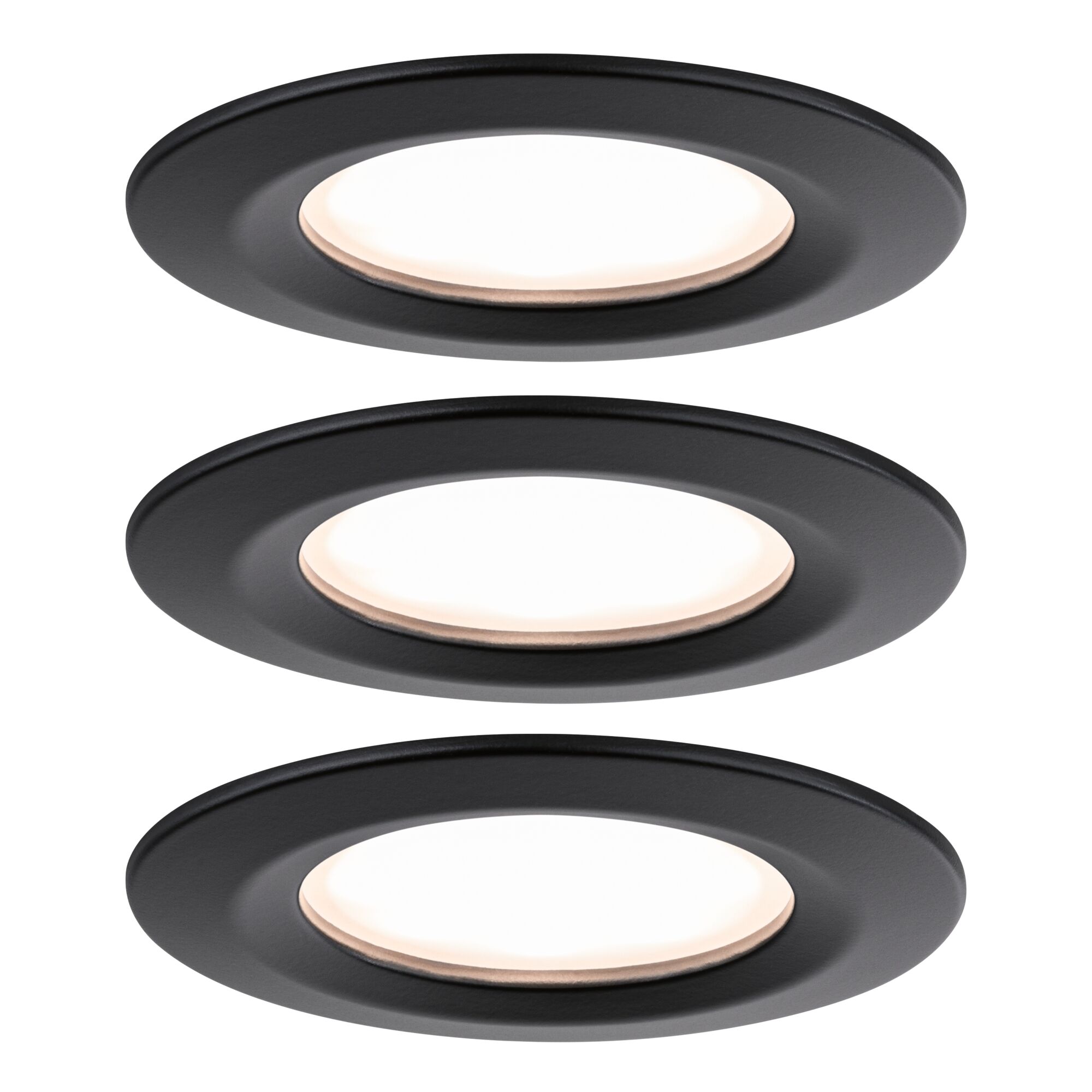

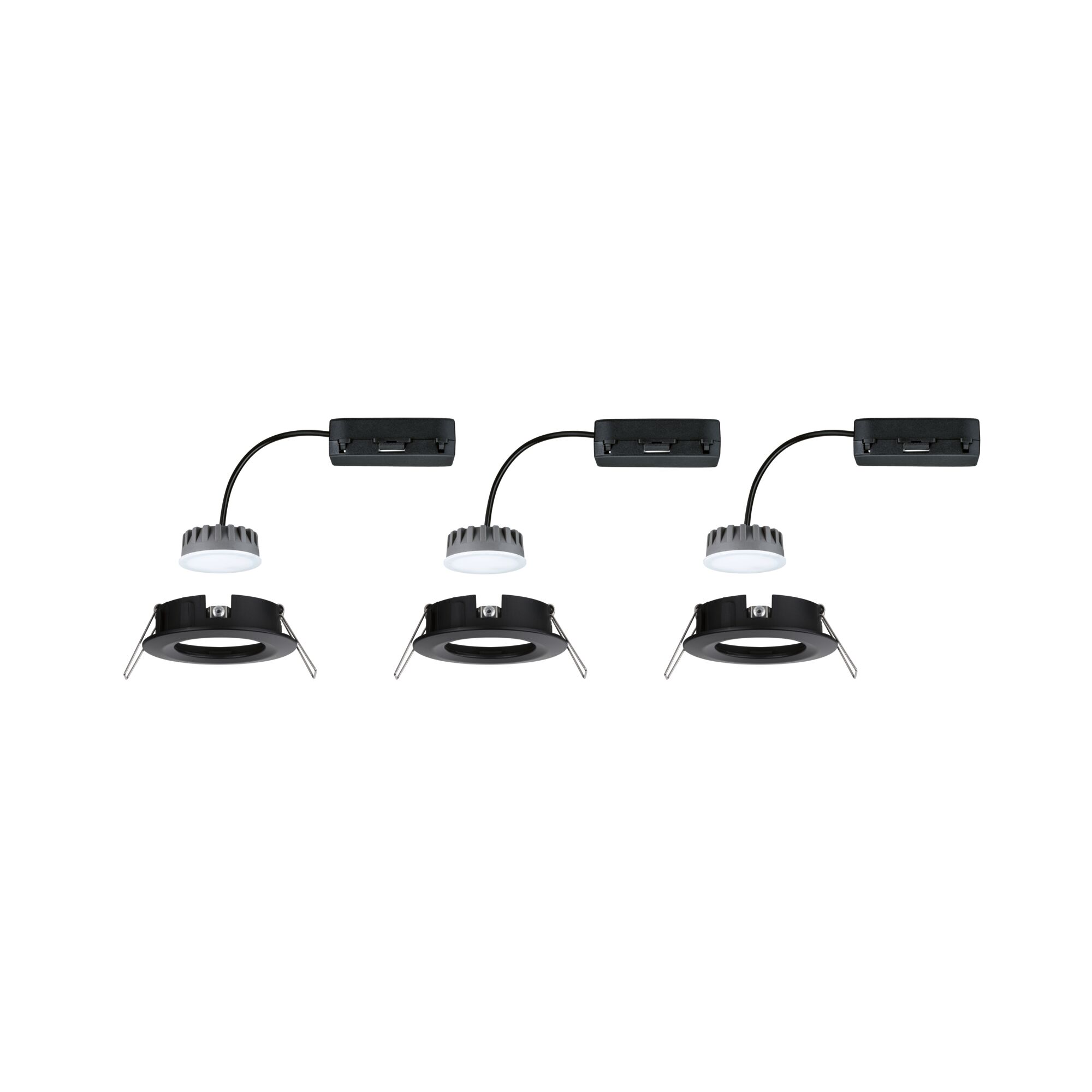

- Set of 3 luminaires incl. LED module
- Color temperatur: 2700K - Warm white
- With satined protective glass
LED Recessed luminaire Nova Plus Coin Basic Set Rigid IP44 round 78mm Coin 3x6W 3x470lm 230V dimmable 2700K Black matt
The round Nova Plus recessed luminaires (3-piece set) in Black matt with a replaceable LED coin are suitable for new installations, as well as for replacing existing installations. They are exceptionally flat, and can therefore be installed in ceilings with a cavity of only 30 millimetres. As the single luminaires can be easily linked together with quick clips, the installation is quick and easy. The dimming function lets you adjust the brightness according to your needs and emits a warm white work light and cosy mood lighting in one. The luminaires even provide cosy lighting in the kitchen and bathroom, thanks to their IP44 splash protection.
- Set of 3 luminaires incl. LED module
- Color temperatur: 2700K - Warm white
- With satined protective glass
- Very flat – can also be mounted in small cavities of only 30 mm depth

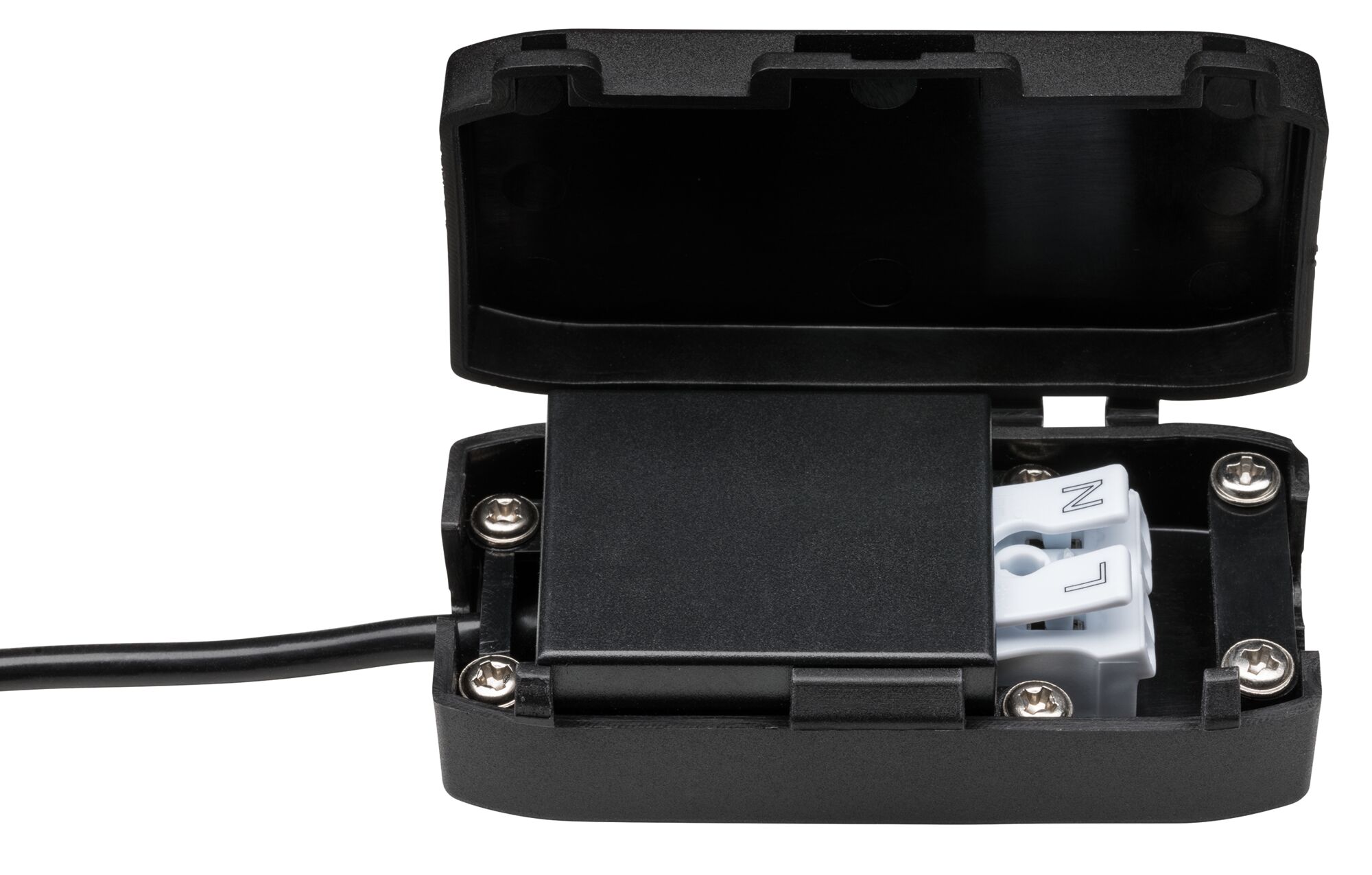

- For 230 V direct connection
- IP protection: IP44 splash-protected
- Dimmable

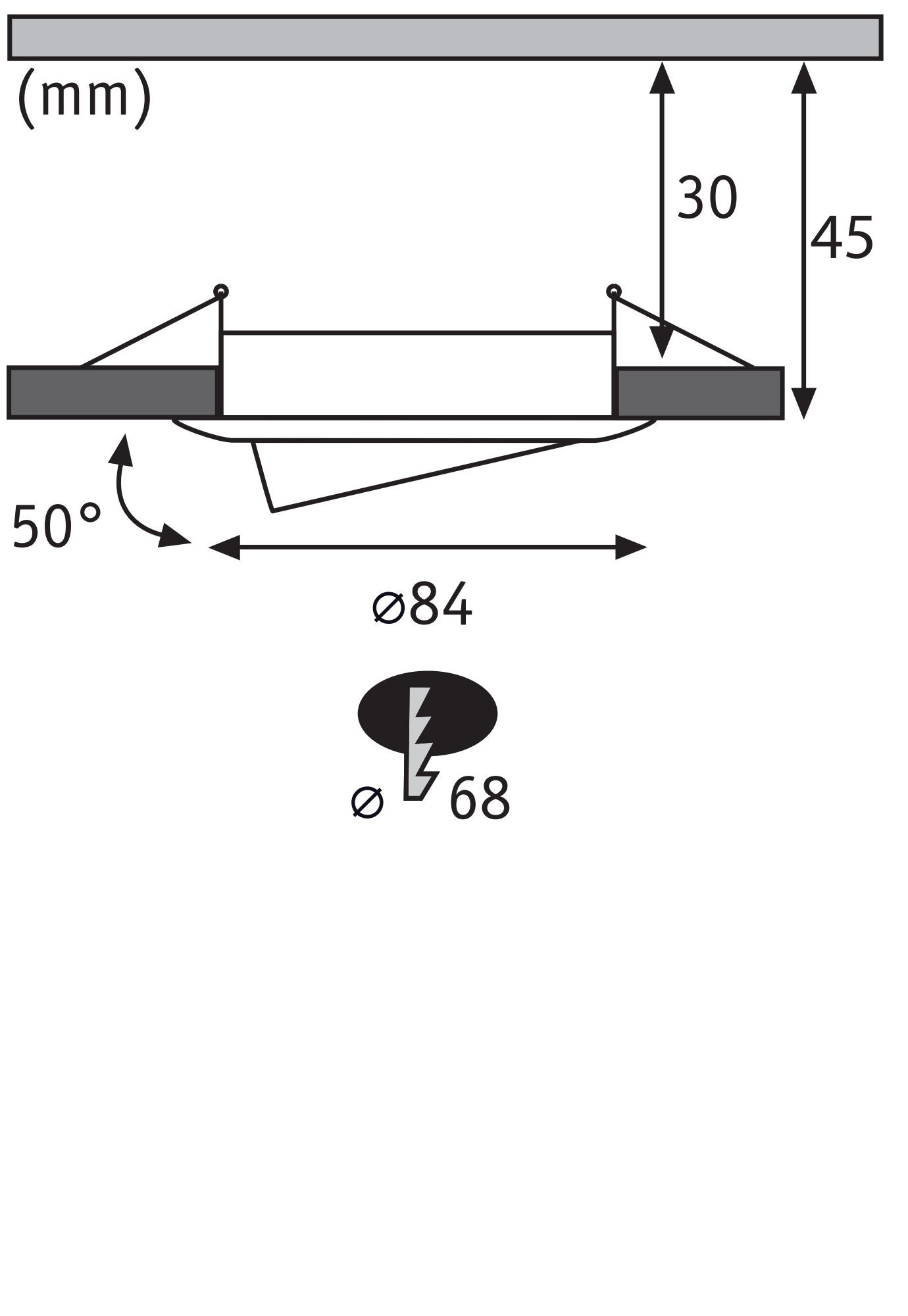

| Dimension | |
|---|---|
| Einbaudurchmesser | 68 mm |
| Mounting depth | 45 mm |
| Depth of hollow wall | 30 mm |
| Diameter | 78 mm |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Black matt |
| Material | Aluminium |
| Type | Coin |
| Form | round |
| Energy consumption | |
|---|---|
| Energy consumption | 6 kWh_1000h |
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 100 ° |
| Nominal luminous flux | 470 lm |
| Color rendering index | > 80 Ra |
| color temp | Warm white |
| Colour consistency (SDCM) | 6 |
| Lamp Features | |
|---|---|
| Component parts | 6 W |
| Technique | LED |
| Base/Socket | Coin |
| Inclusive lamp | yes |
| Incandescent Equivalent | 43 W |
| Adjustability | fixed |
| Lamp property | Leuchtmittel enthalten und wechselbar |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| IP protection | IP44 ceiling mounting |
| Number of component parts | 3x |
| protection class | Protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
