Article-No.:
94296

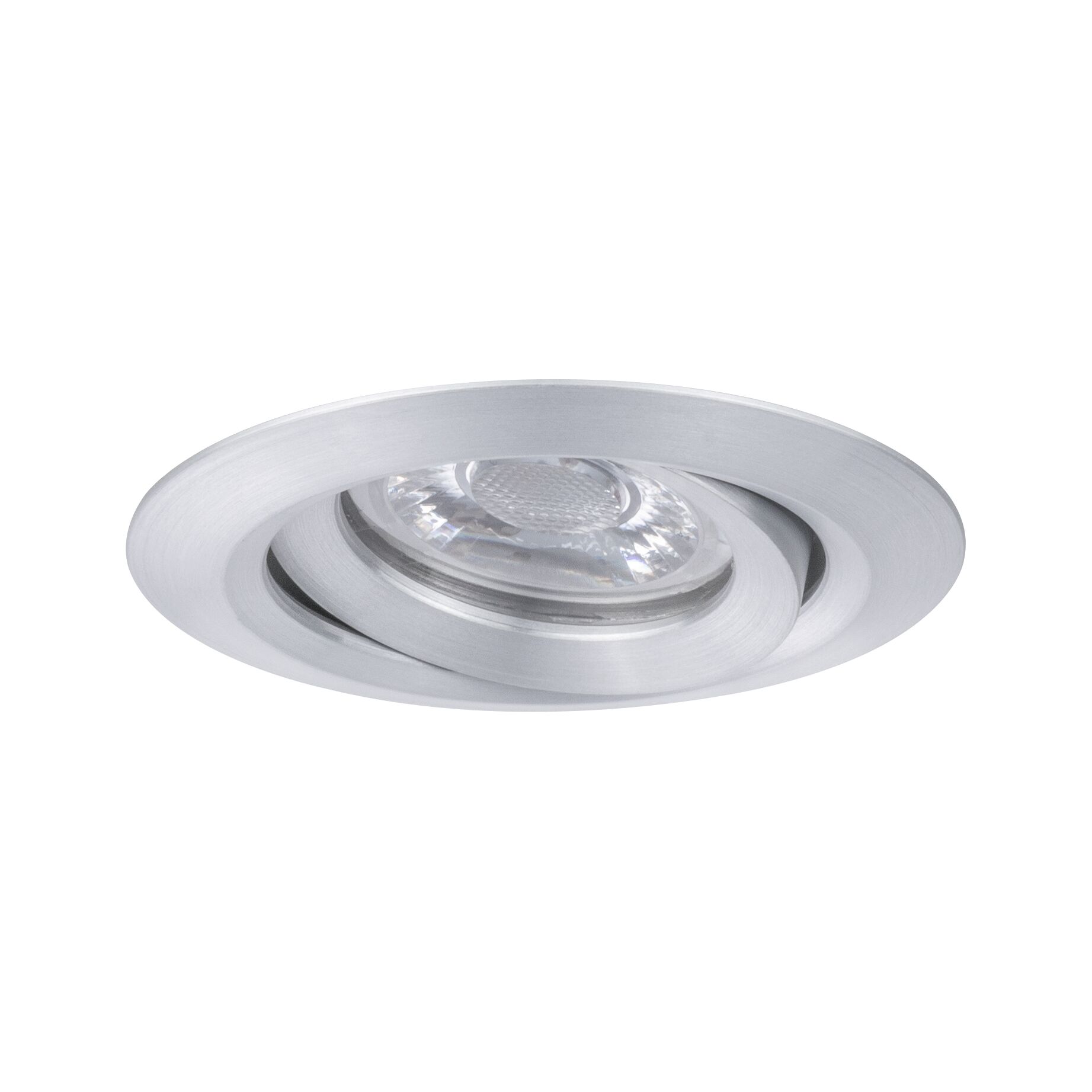

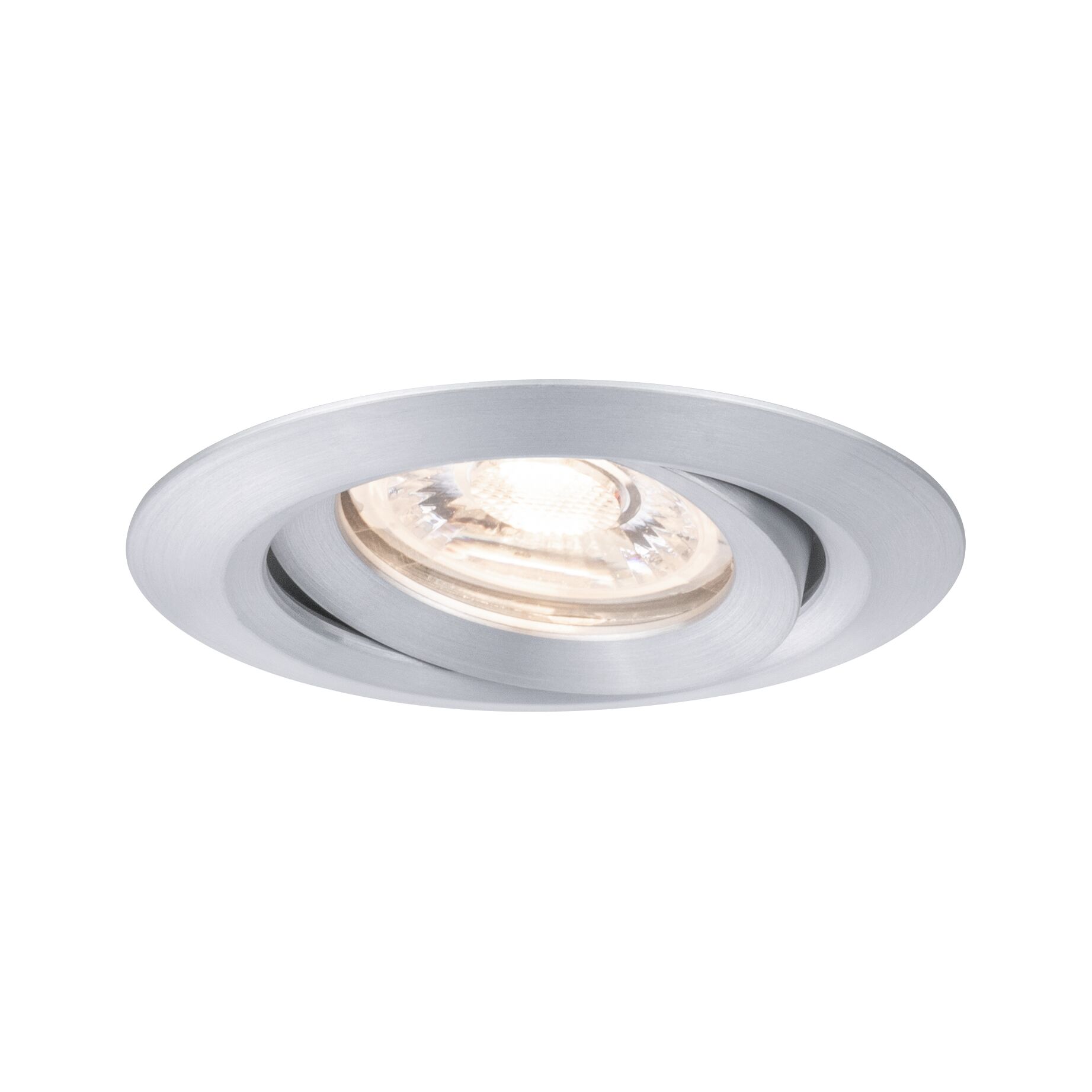

LED Recessed luminaire
Nova Mini Coin Single Luminaire Swivelling
round 66mm 15° Coin 4W 310lm 230V 2700K Turned aluminium
round 66mm 15° Coin 4W 310lm 230V 2700K Turned aluminium
- Set of 1 luminaire incl. LED module
- Color temperatur: 2700K - Warm white
- swivelling
LED Recessed luminaire Nova Mini Coin Single Luminaire Swivelling round 66mm 15° Coin 4W 310lm 230V 2700K Turned aluminium

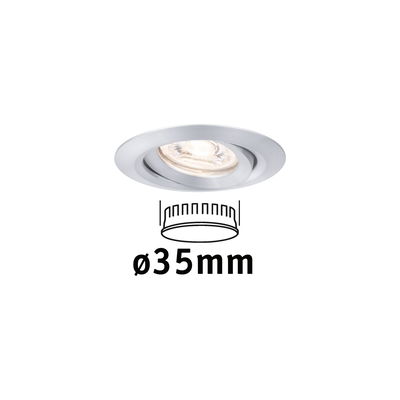

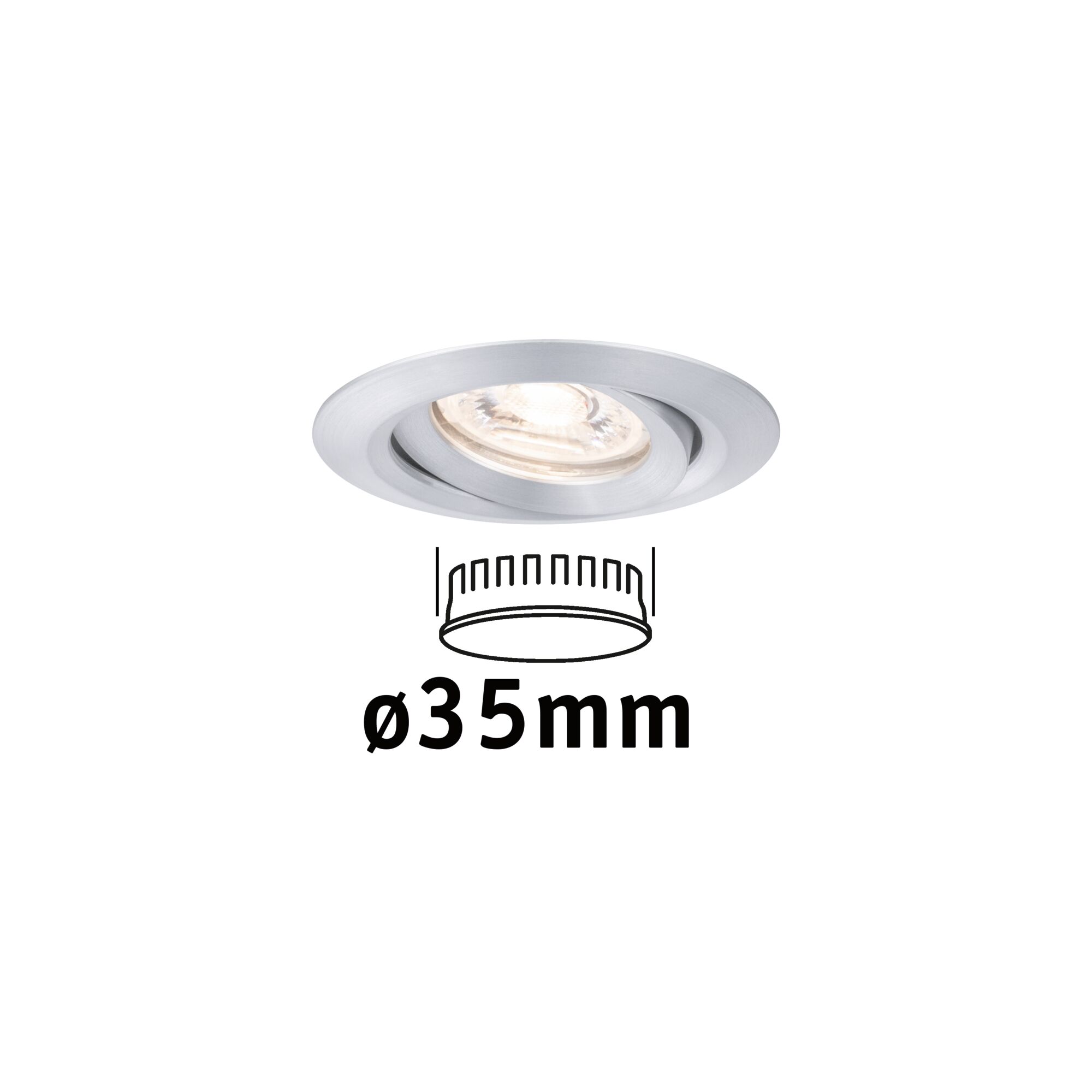

The swivelling recessed luminaire Nova mini in the colour Turned aluminium offers whole new possibilities, thanks to its reduced size. It is suitable for conservatories, spot lighting, bar counters and beam cladding. The unique 35 mm Coin is exchangeable, flat and can be linked unlimited times.

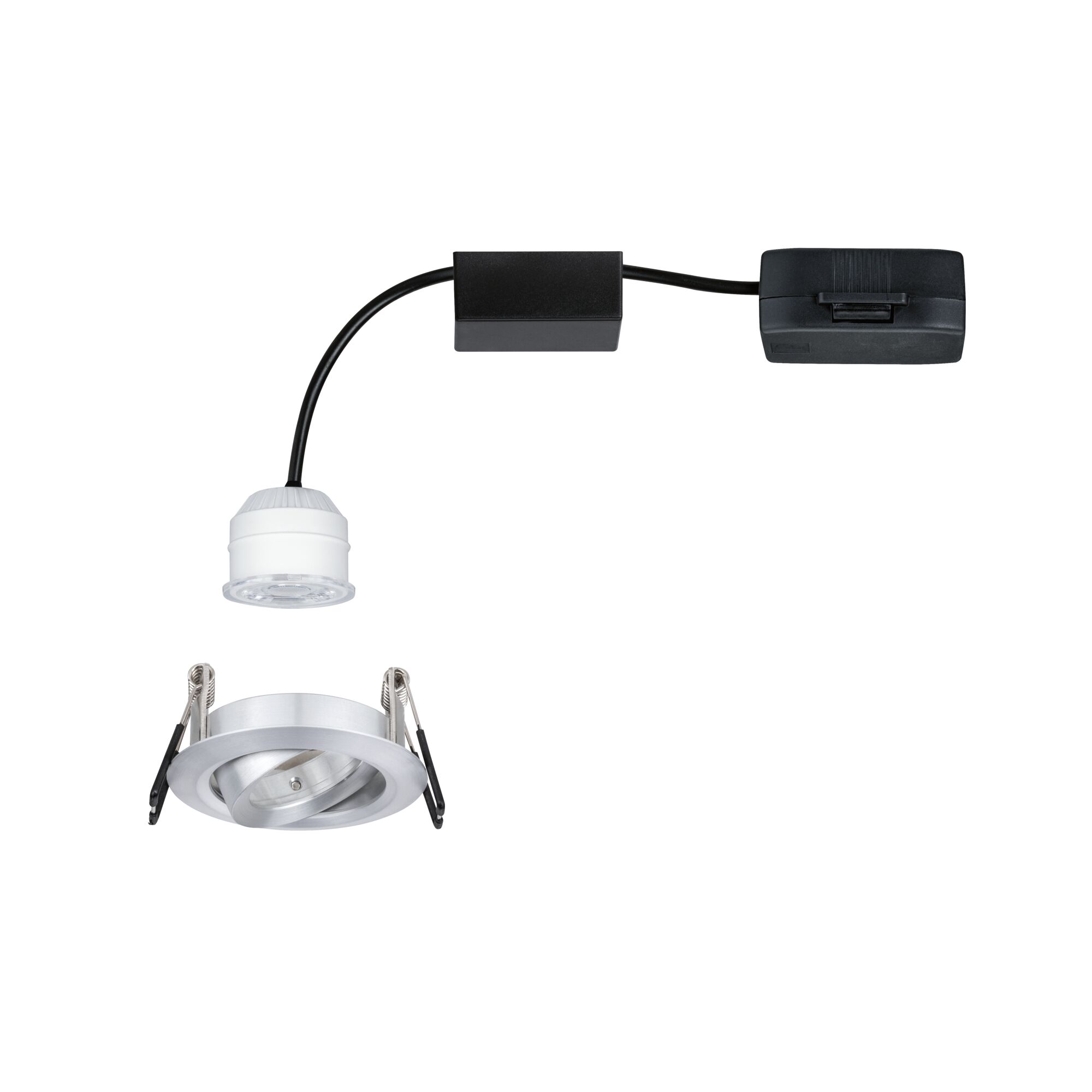

- Set of 1 luminaire incl. LED module
- Color temperatur: 2700K - Warm white
- swivelling
- For 230 V direct connection
| Dimension | |
|---|---|
| Diameter | 66 mm |
| Built-in diameter | 55 mm |
| Mounting depth | 50 mm |
| Depth of hollow wall | 35 mm |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Turned aluminium |
| Material | Aluminium |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Energy consumption | 4 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 310 lm |
| Colour consistency (SDCM) | 3 |
| Color rendering index | > 80 Ra |
| Beam angle | 38 ° |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel enthalten und wechselbar |
| Swivel range | 15 ° |
| Incandescent Equivalent | 29 W |
| IP protection | IP23 |
| Protection class | Protection class II |
| Base/Socket | Coin |
| Technique | LED |
| Component parts | 4 W |
| Number of component parts | 1x |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 4 W |
| Adjustability | swivelling/tilting |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
Downloads
- LED Module recessed luminaire
