Article-No.:
93083

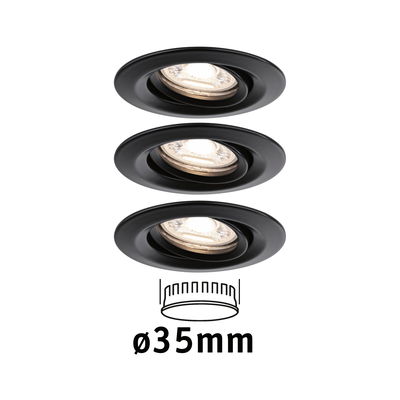

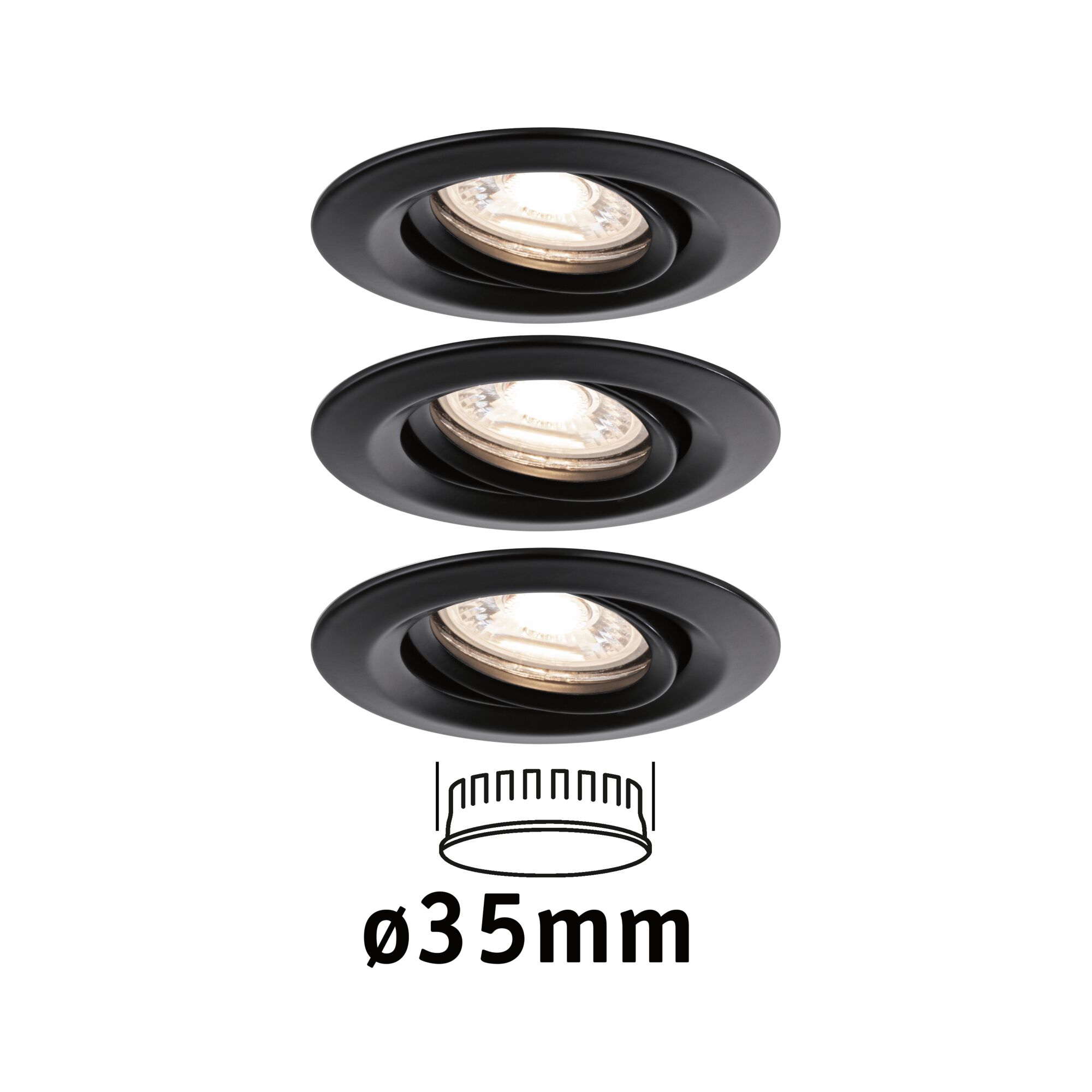

- Set of 3 luminaires incl. LED module
- Color temperatur: 2700K - Warm white
- For 230 V direct connection

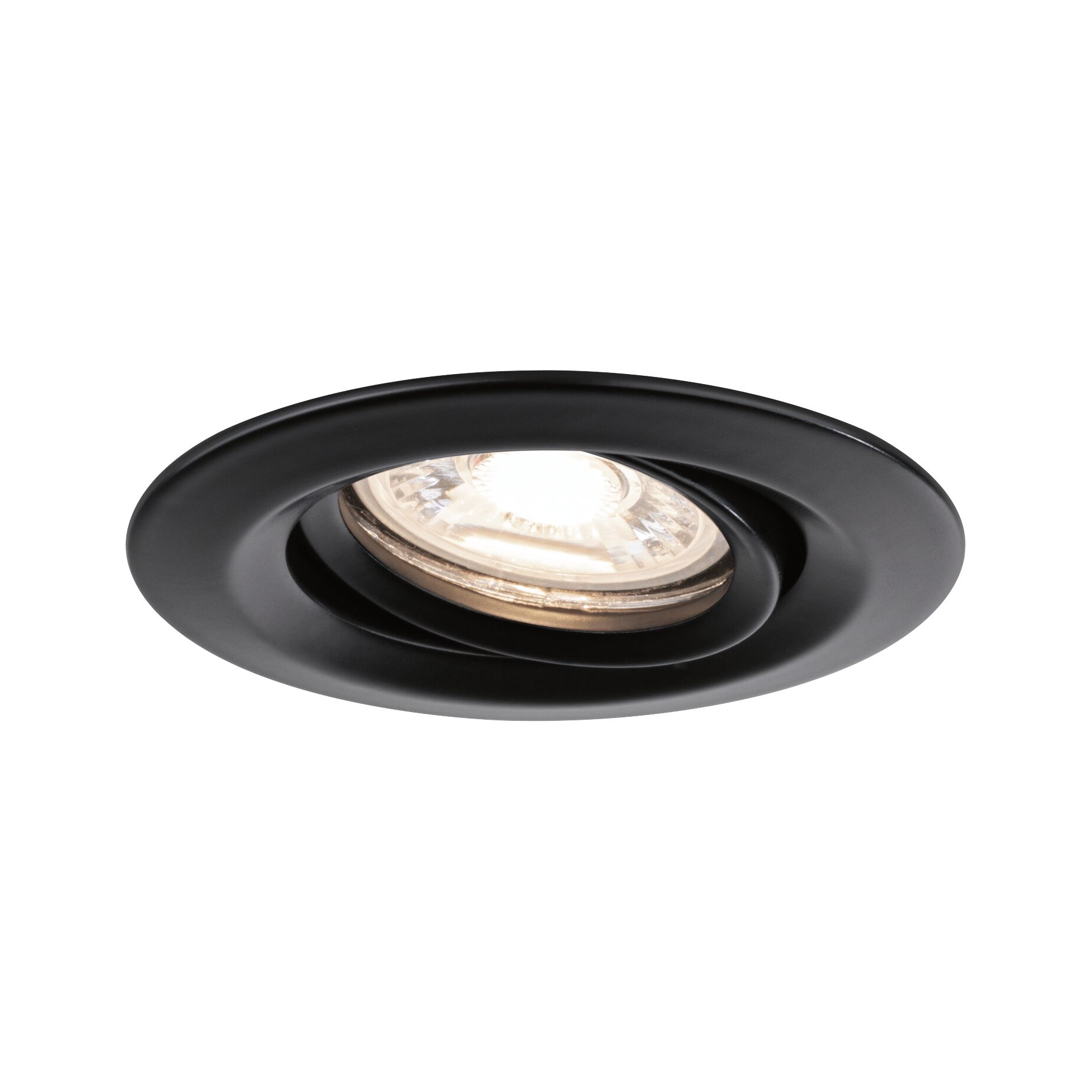

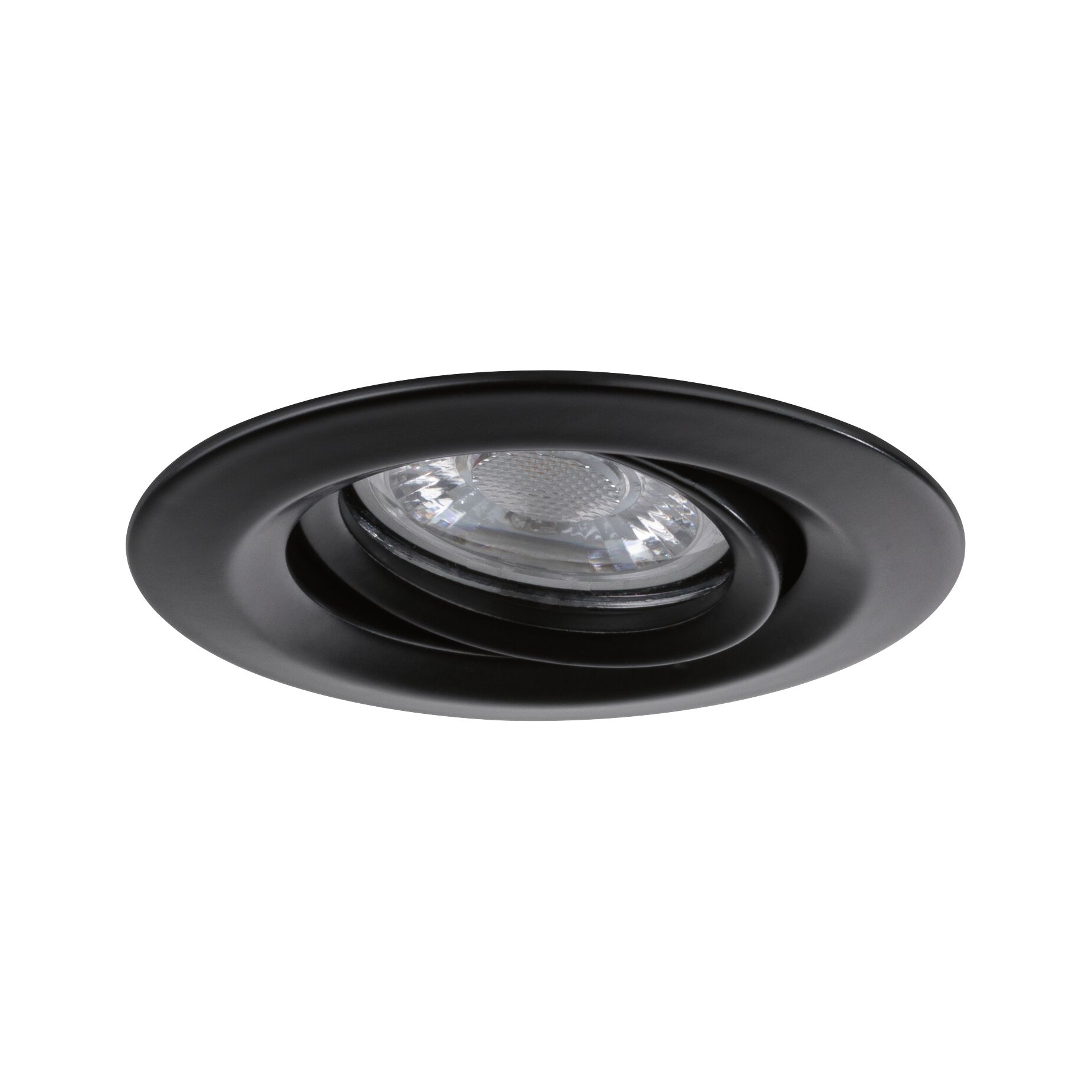

LED Recessed luminaire Nova Mini Coin Basic Set Swivelling round 66mm 15° Coin 3x4W 3x310lm 230V 2700K Black matt

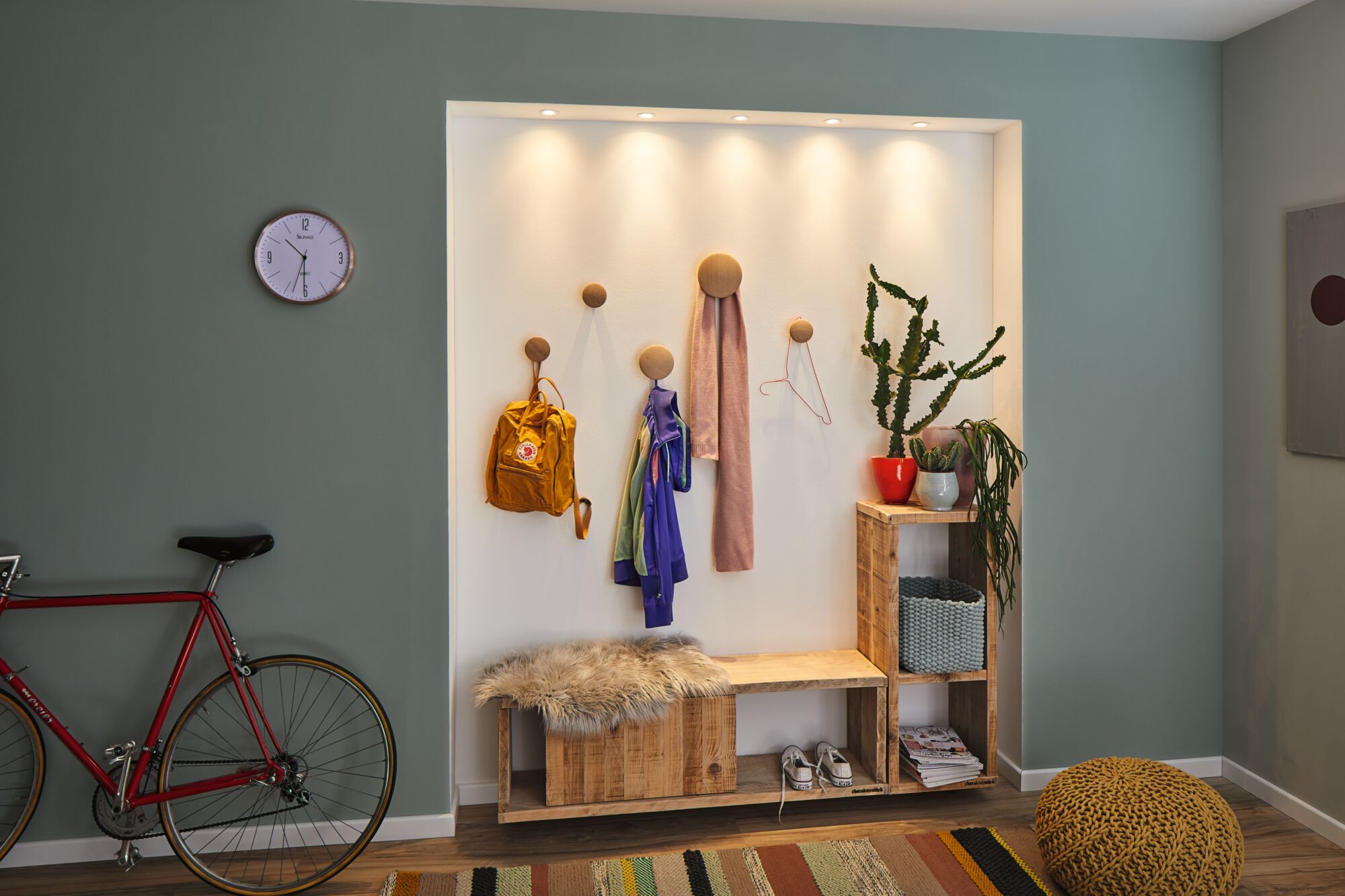

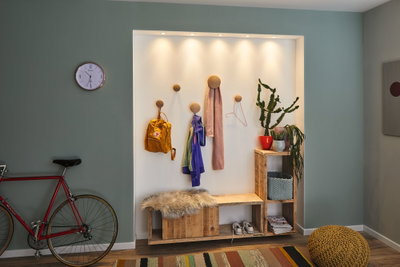

The swivelling recessed luminaires Nova mini in the colour Black matt offer whole new possibilities, thanks to their reduced size. They are suitable for conservatories, spot lighting, bar counters and beam cladding. The unique 35 mm Coins are exchangeable, flat and can be linked unlimited times.

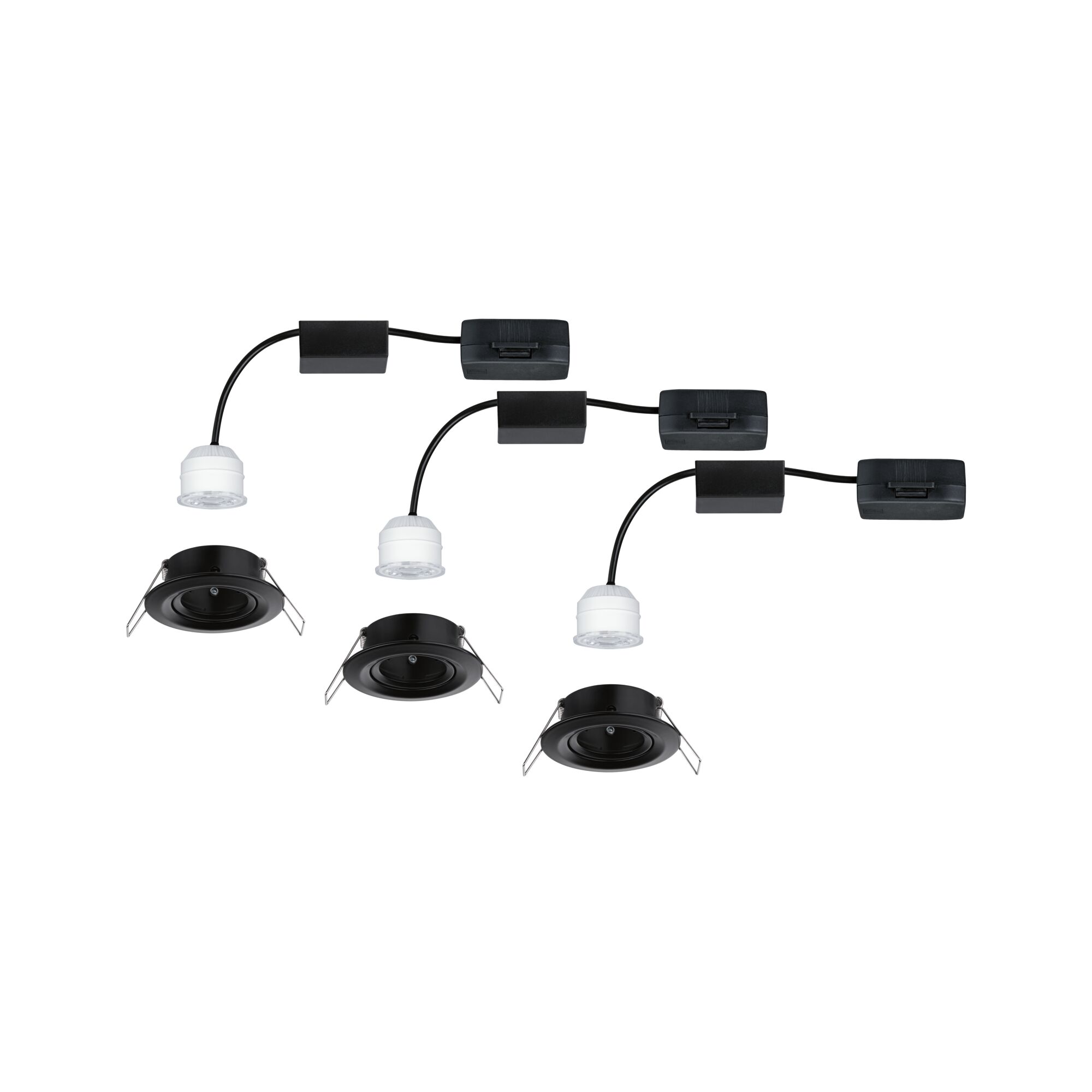

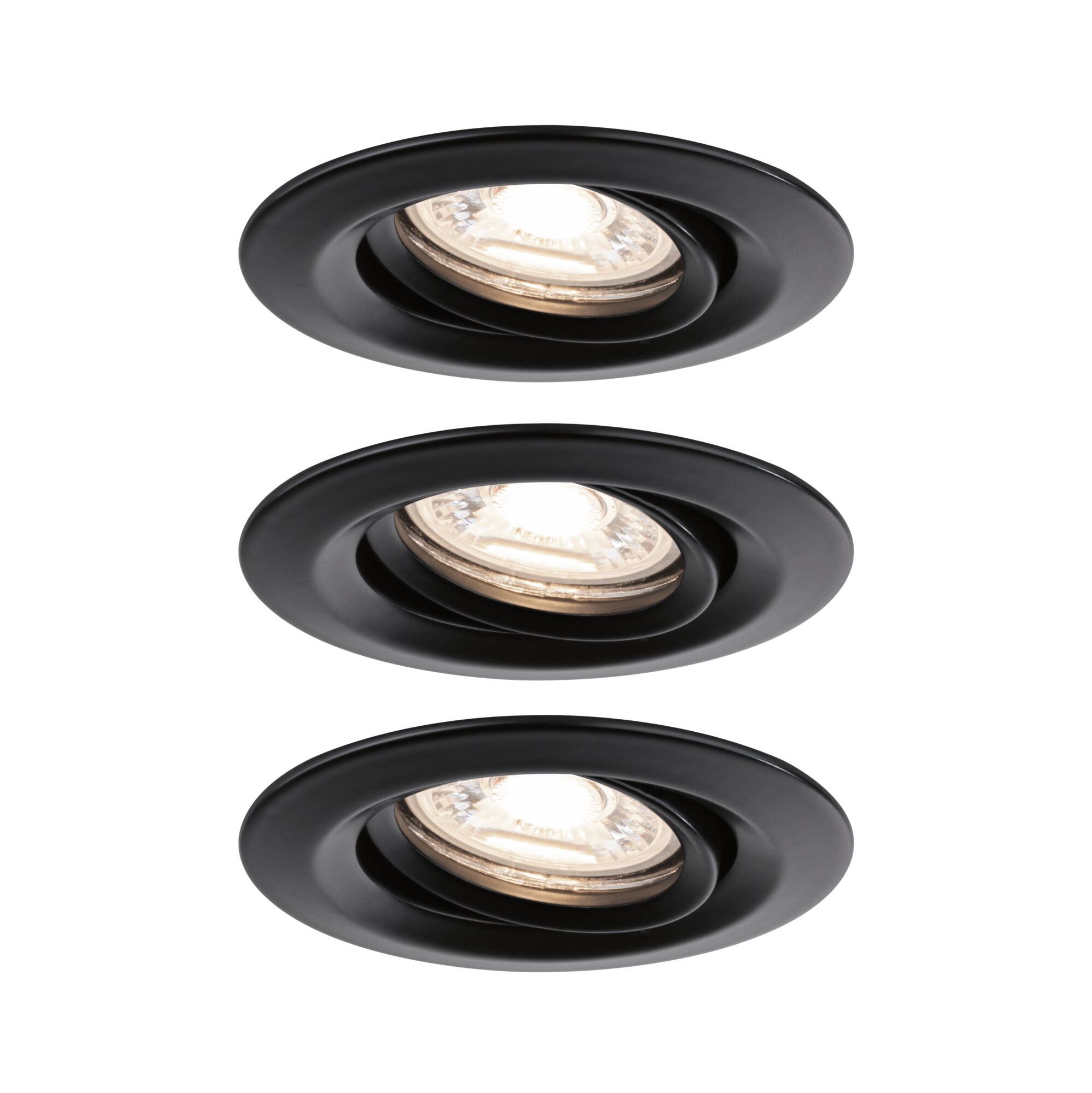

- Set of 3 luminaires incl. LED module
- Color temperatur: 2700K - Warm white
- For 230 V direct connection
- swivelling

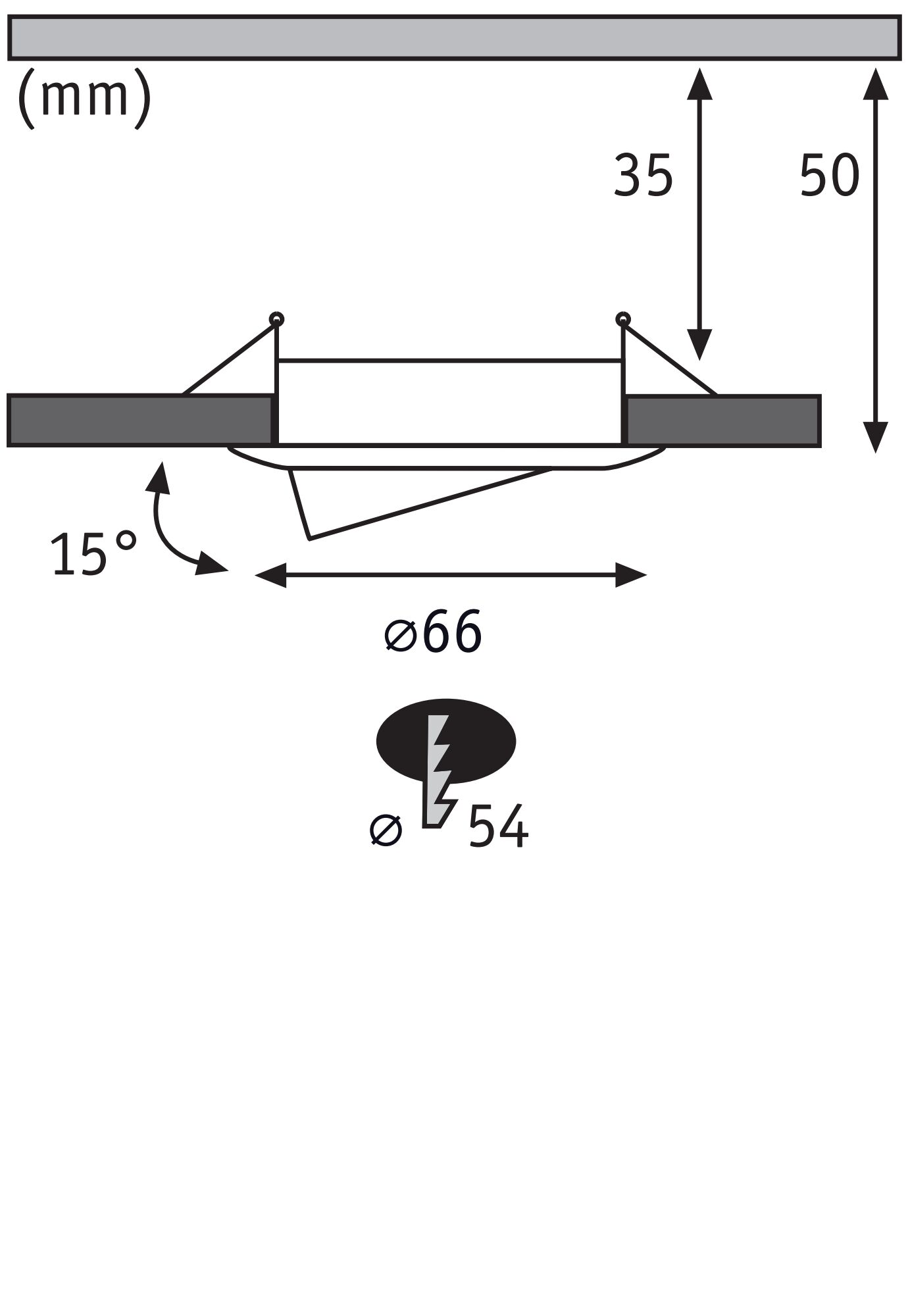

| Dimension | |
|---|---|
| Depth of hollow wall | 35 mm, 35 mm |
| Total Mounting depth | 50 mm |
| Ø | 66 mm |
| Mounting hole | 55 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Black matt |
| Material | Aluminium |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Energy consumption | 4 kWh_1000h |
| Service life | |
|---|---|
| luminous flux at the end of lamplife | 85 % |
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 38 ° |
| Usable luminous flux | 310 lm |
| color temp | 2700 K |
| colour consistency | SDCM 3 |
| Color rendering index | > 80 Ra |
| Rated peak intensity | 580 cd |
| Lamp Features | |
|---|---|
| Component parts | 4 W |
| Swivel range | 15 ° |
| Technique | LED |
| Socket | Coin |
| IP protection | IP23 |
| Dimmable | No |
| Inclusive lamp | yes |
| Incandescent Equivalent | 29 W |
| Number of component parts | 3x |
| protection class | protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 4 W |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
