Article-No.:
93084
LED Recessed luminaire
Nova Mini Coin Basic Set Rigid
round 66mm Coin 3x4W 3x310lm 230V 2700K Black matt
round 66mm Coin 3x4W 3x310lm 230V 2700K Black matt
A
G
F

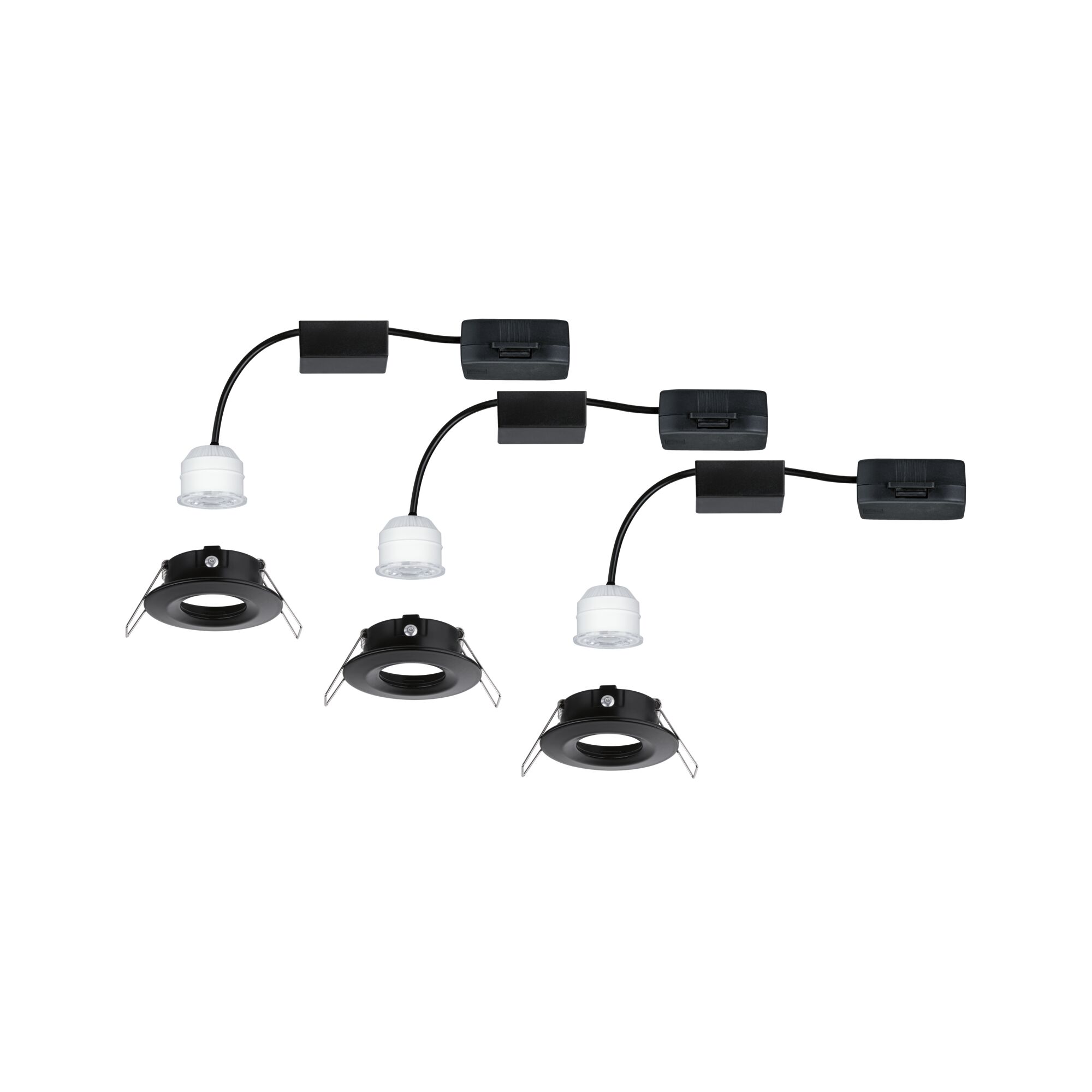

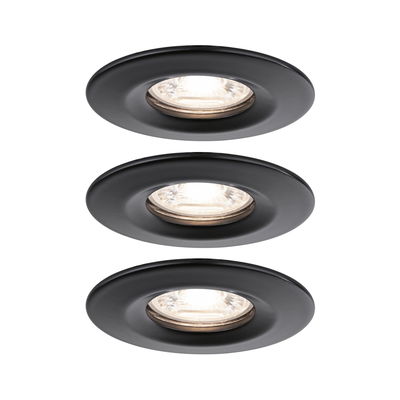

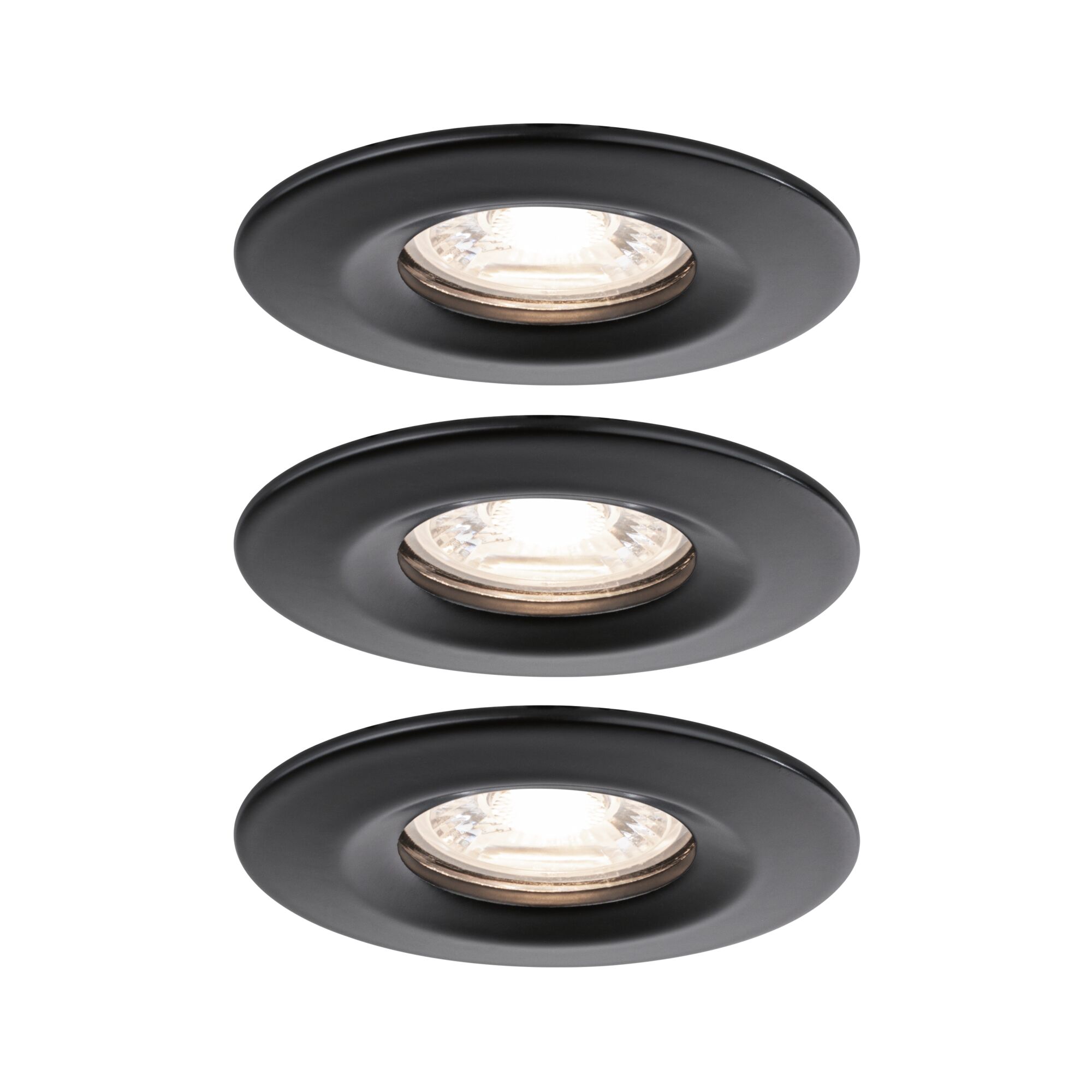

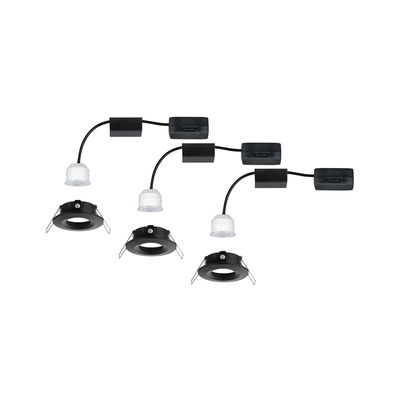

- Set of 3 luminaires incl. LED module
- Color temperatur: 2700K - Warm white

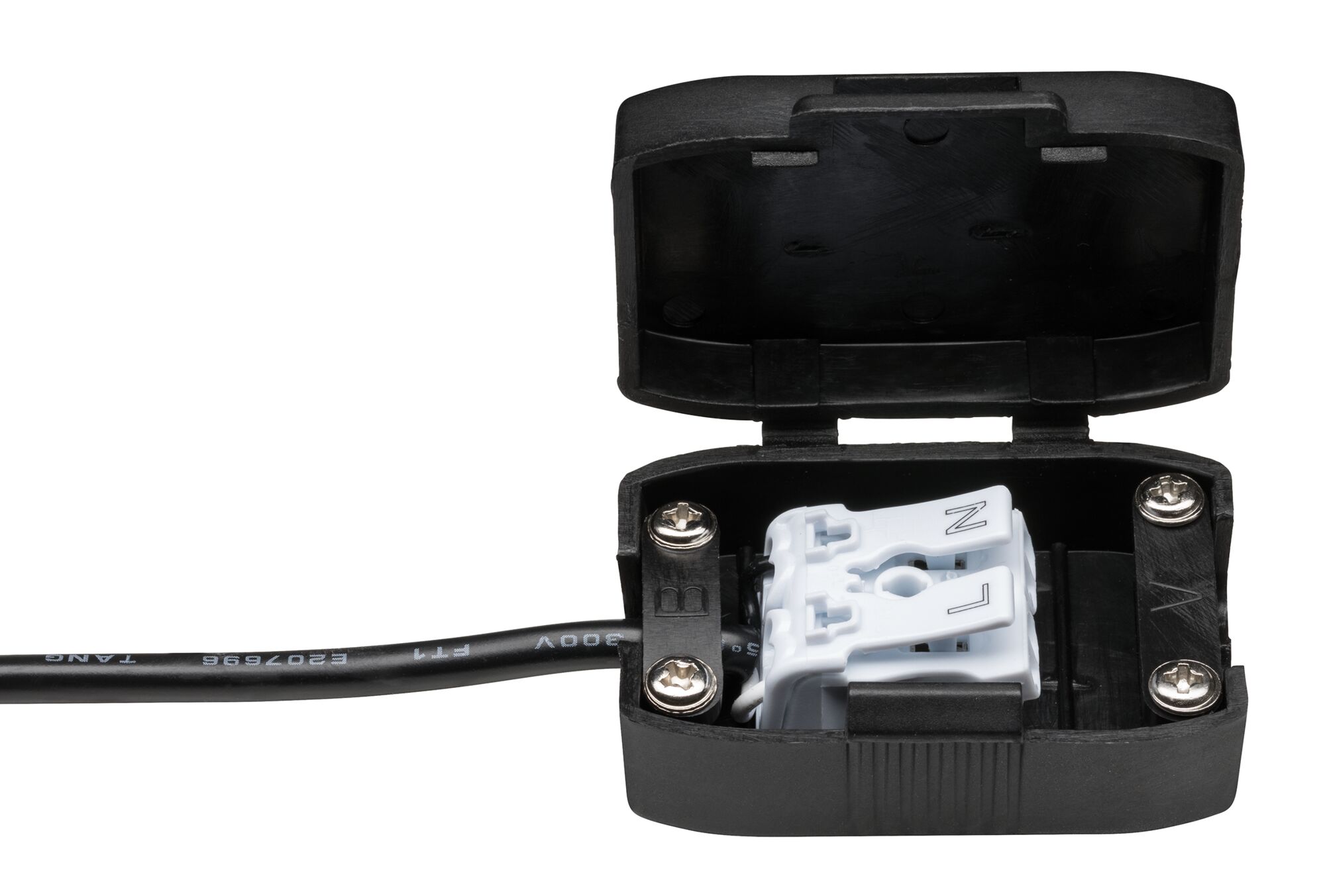

- For 230 V direct connection
LED Recessed luminaire Nova Mini Coin Basic Set Rigid round 66mm Coin 3x4W 3x310lm 230V 2700K Black matt

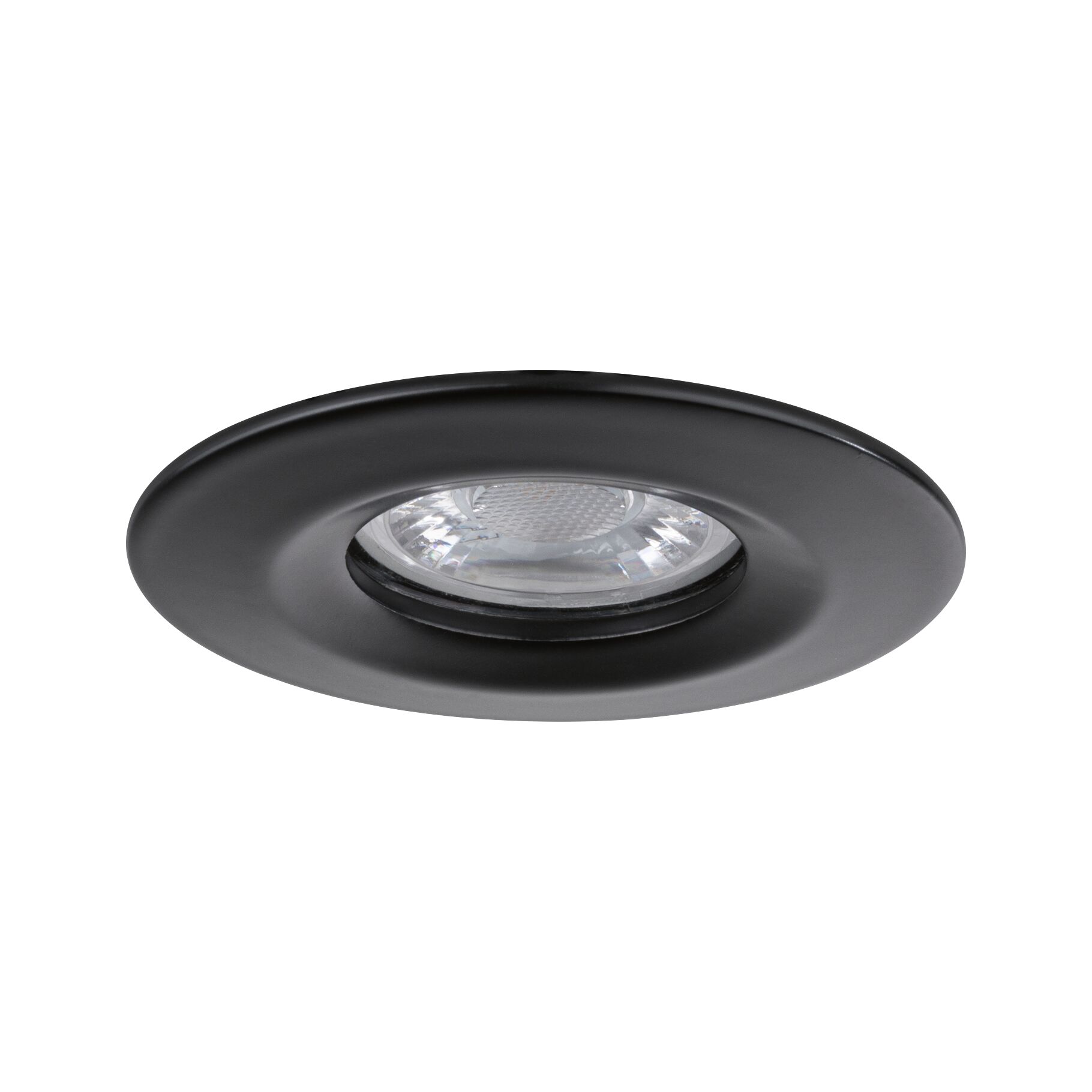

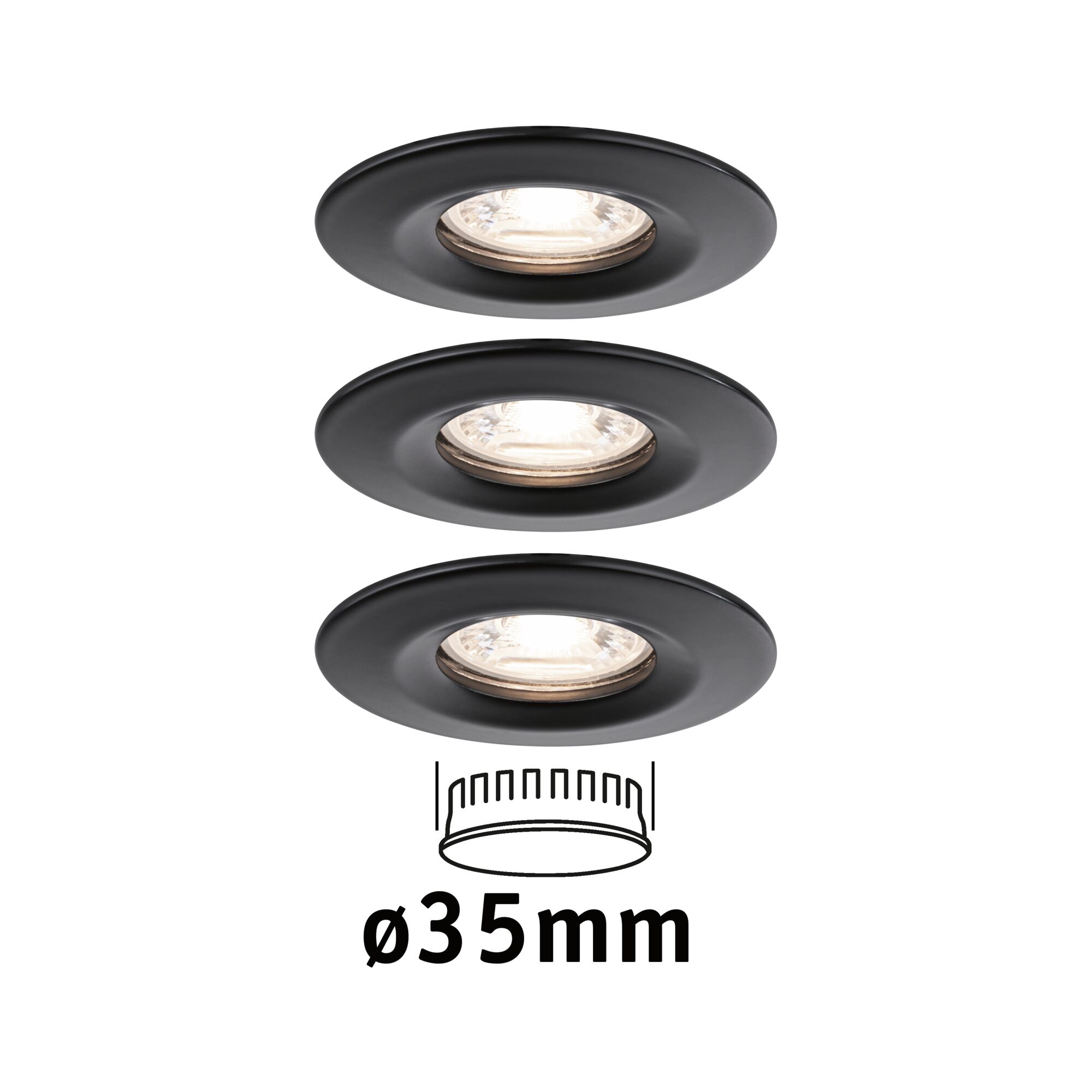

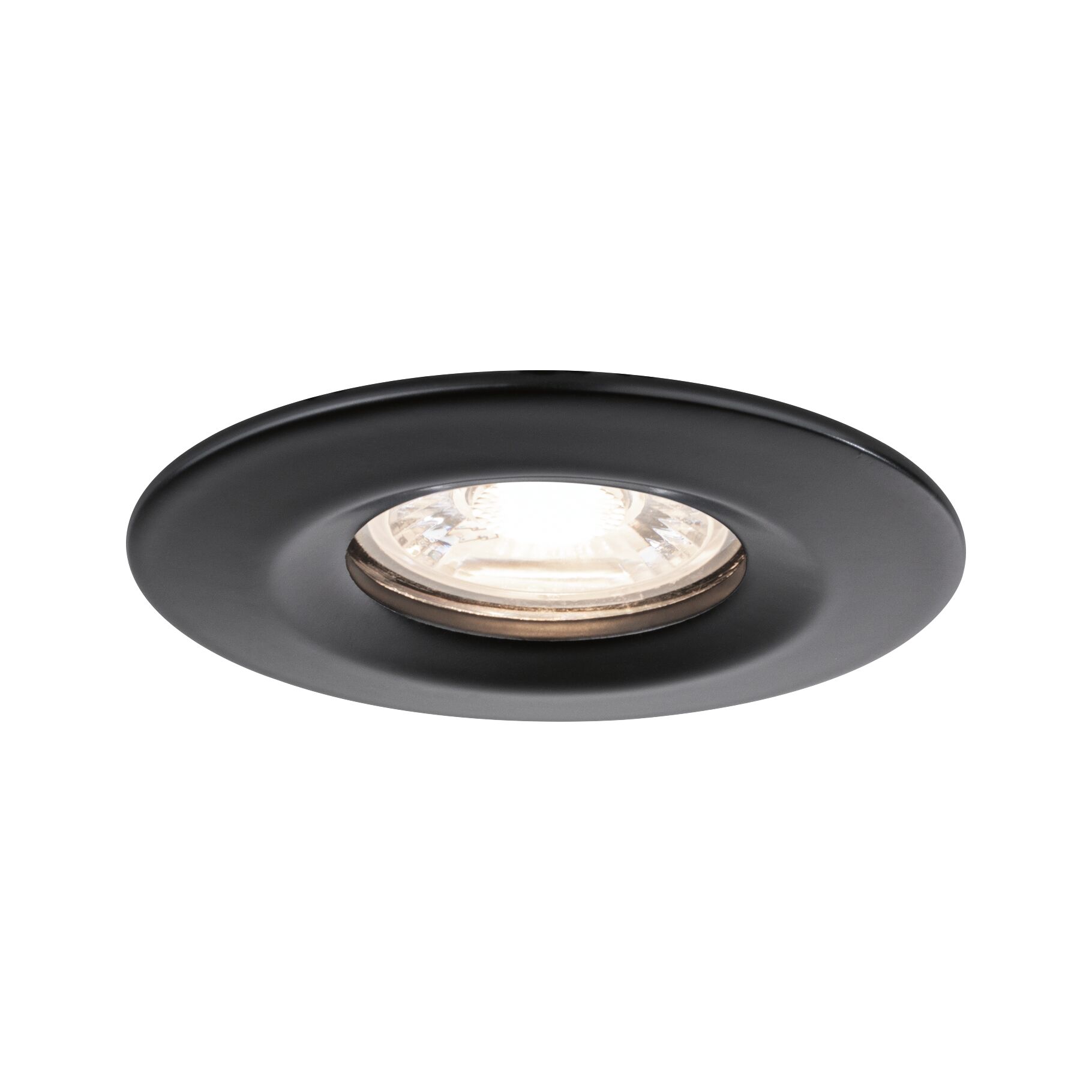

The rigid recessed luminaires Nova mini in the colour Black matt offer whole new possibilities, thanks to their reduced size. They are suitable for conservatories, spot lighting, bar counters and beam cladding. The unique 35 mm Coins are exchangeable, flat and can be linked unlimited times.
- Set of 3 luminaires incl. LED module
- Color temperatur: 2700K - Warm white
- For 230 V direct connection

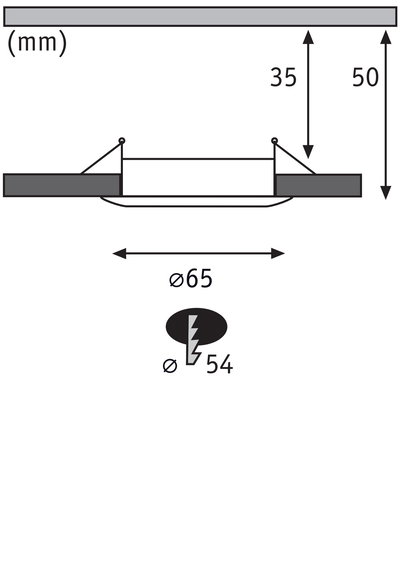

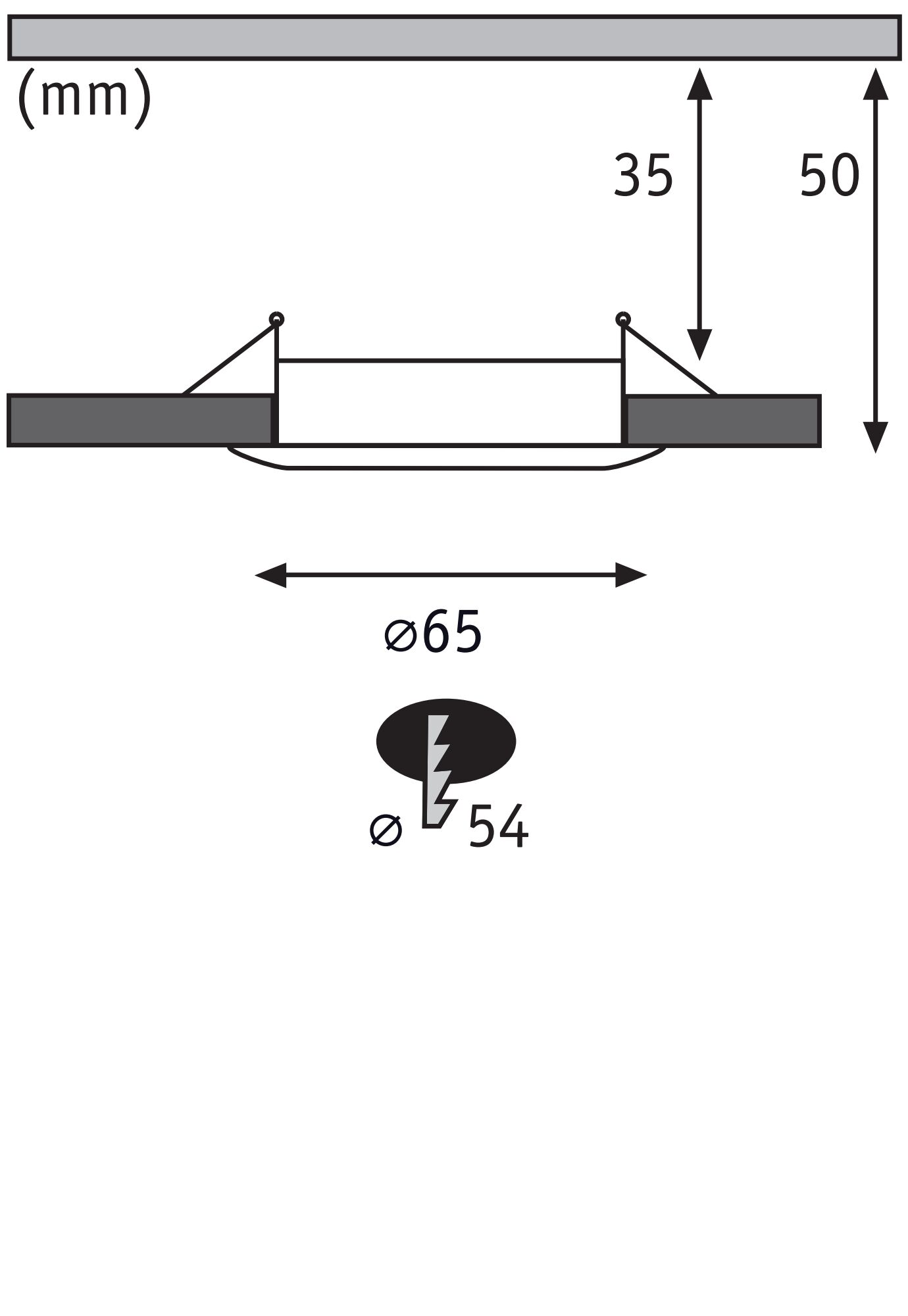

| Dimension | |
|---|---|
| depth of hollow wall | 35 mm |
| Mounting depth | 50 mm |
| Dimensions (Height x Width x Depth) | H: 30 mm |
| Ø | 66 mm |
| Mounting hole | 54 mm |
| Form | round |
| Depth of hollow wall | 35 mm |
| Design and Material | |
|---|---|
| Colour | Black matt |
| Material | Aluminium |
| Energy consumption | |
|---|---|
| energy efficiency (A to G) | F |
| Energy consumption | 5 kWh_1000h |
| Service life | |
|---|---|
| luminous flux at the end of lamplife | 85 % |
| lifetime | 30.000 h |
| Light Characteristics | |
|---|---|
| Color temp. | 2700 K |
| Beam angle | 38 ° |
| Useful luminous flux | 310 lm |
| color temp | 2.700 K |
| colour consistency | <= 3 Step of the MacAdam ellipse |
| Color rendering index | > 80 Ra |
| Rated peak intensity | 580 cd |
| Lamp Features | |
|---|---|
| Component parts | 4 W |
| Technique | LED |
| Socket | Coin |
| IP protection | IP23 |
| Dimmable | No |
| Incandescent Equivalent | 29 W |
| Inclusive lamp | ✓ |
| Number of component parts | 3x |
| protection class | protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 4 W |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
