Article-No.:
93446

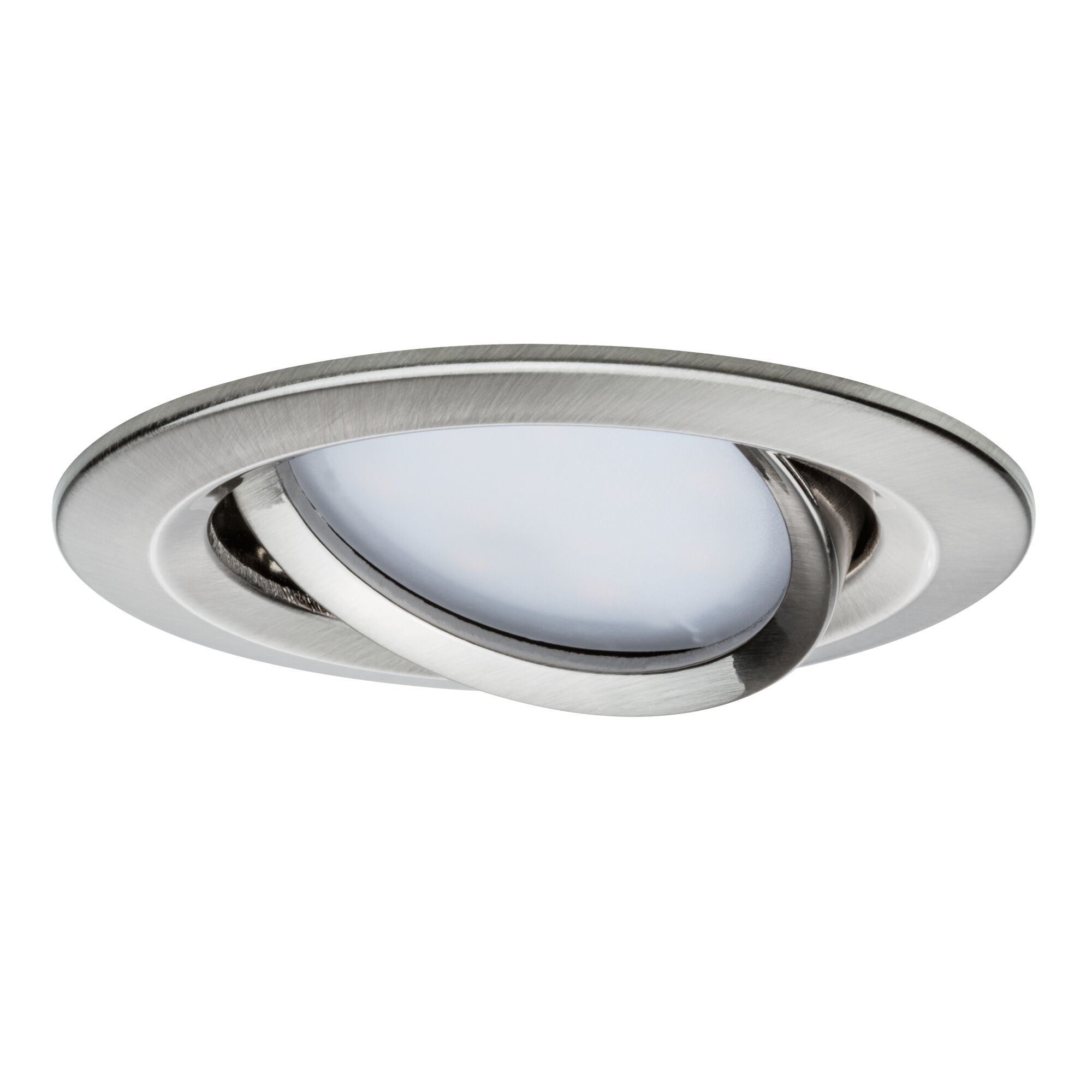

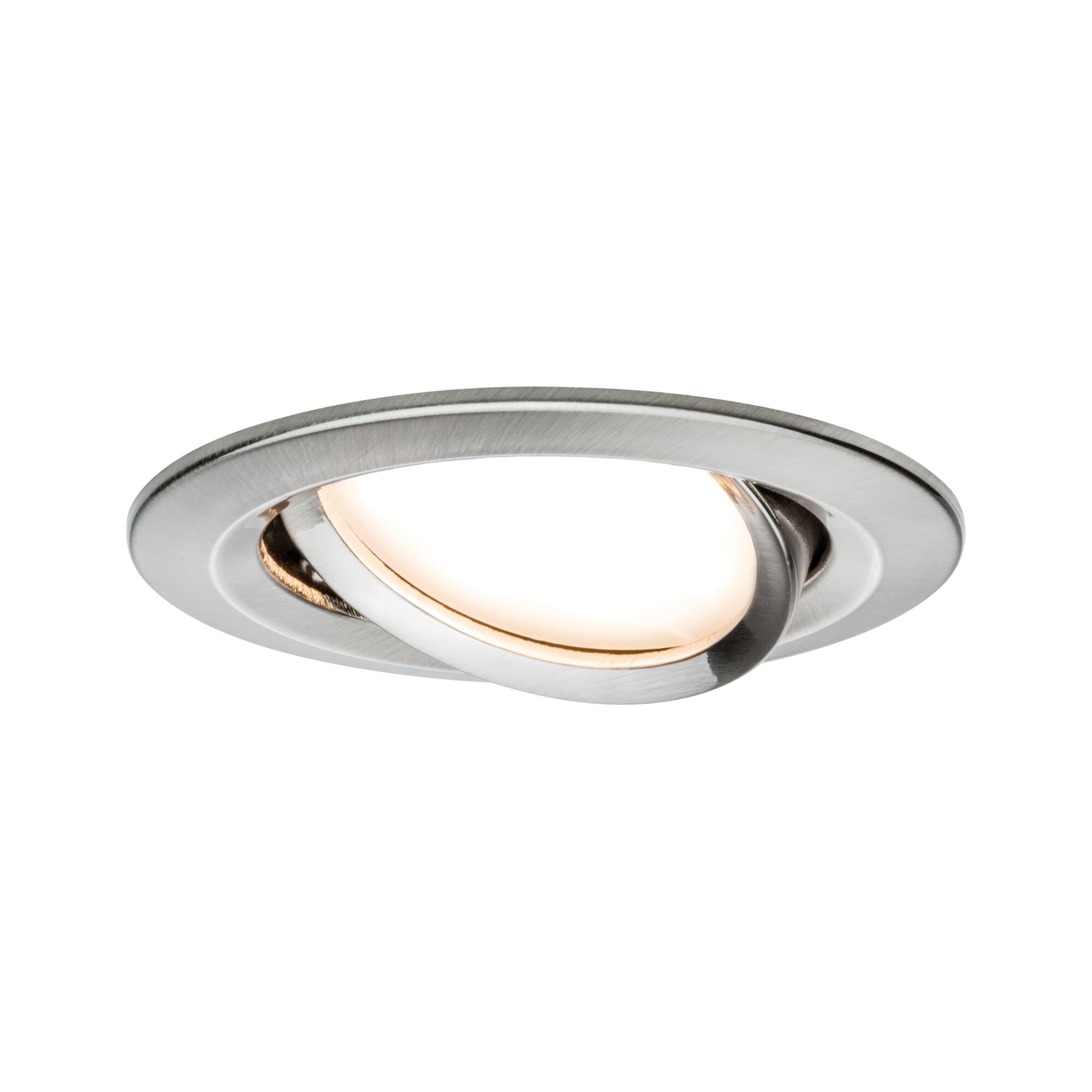

LED Recessed luminaire
Nova Coin Single Luminaire Swivelling
round 84mm 50° Coin 6W 470lm 230V 2700K Brushed iron
round 84mm 50° Coin 6W 470lm 230V 2700K Brushed iron
- For 230 V direct connection
- Color temperatur: 2700K - Warm white

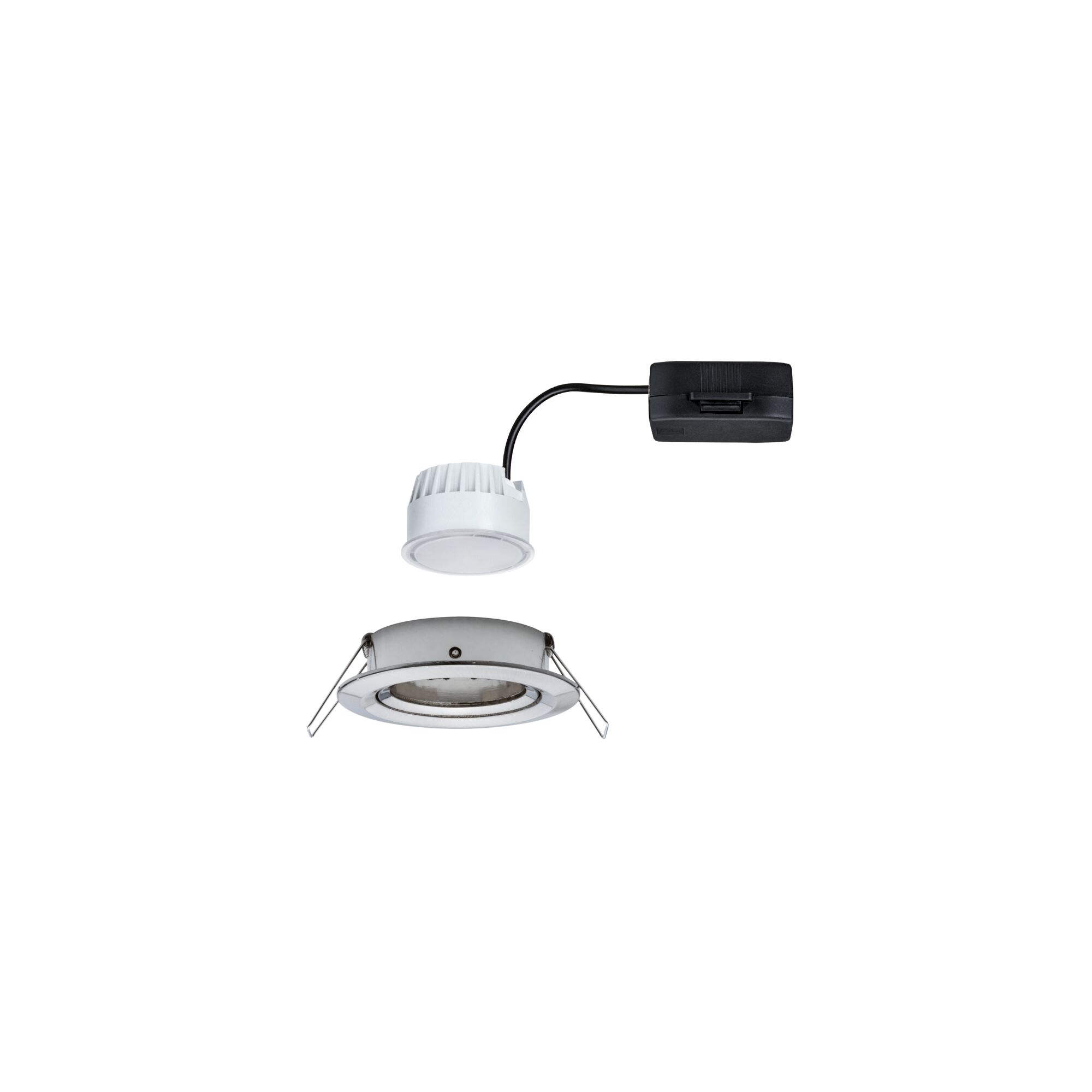

- Incl. replaceable LED lamp
LED Recessed luminaire Nova Coin Single Luminaire Swivelling round 84mm 50° Coin 6W 470lm 230V 2700K Brushed iron
The round Nova recessed luminaire (3-piece set) in Brushed iron with a replaceable LED coin is suitable for new installations, as well as for replacing existing installations. It is exceptionally flat, and can therefore be installed in ceilings with a cavity of only 30 millimetres. As the single luminaires can be easily linked together with quick clips and without any tools, the installation will be really quick and easy. The spot emits both a warm white work light and cosy feel-good lighting in one. Thanks to the swivelling function, the spot can be individually directed.
- For 230 V direct connection
- Color temperatur: 2700K - Warm white
- Incl. replaceable LED lamp
| Dimension | |
|---|---|
| Depth of hollow wall | 30 mm, 30 mm |
| Total Mounting depth | 45 mm |
| Ø | 84 mm |
| Mounting hole | 68 mm |
| Form | round |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | Brushed iron |
| Material | Aluminium |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 100 ° |
| Usable luminous flux | 470 lm |
| color temp | 2700 K |
| colour consistency | SDCM 6 |
| Color rendering index | > 85 Ra |
| Lamp Features | |
|---|---|
| Component parts | 6 W |
| Swivel range | 50 ° |
| Technique | LED |
| Socket | Coin |
| IP protection | IP23 ceiling mounting |
| Dimmable | No |
| Inclusive lamp | yes |
| Incandescent Equivalent | 40 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
