Article-No.:
92444

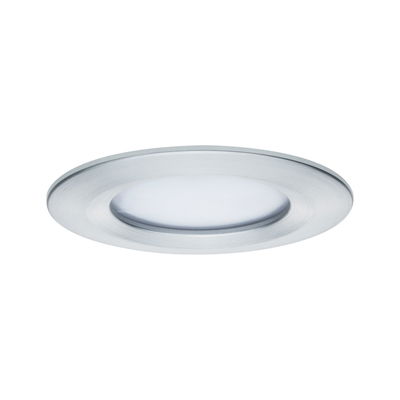

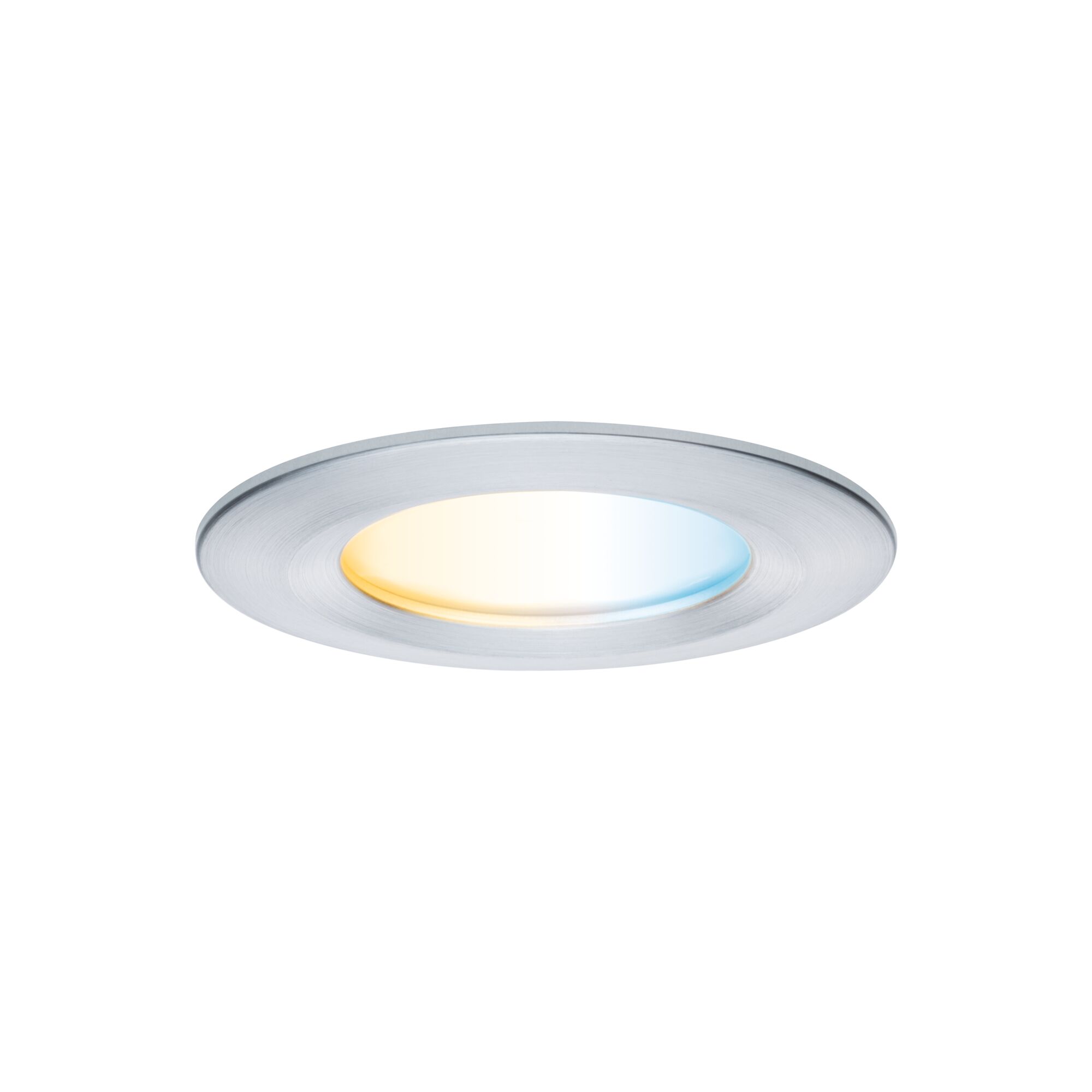

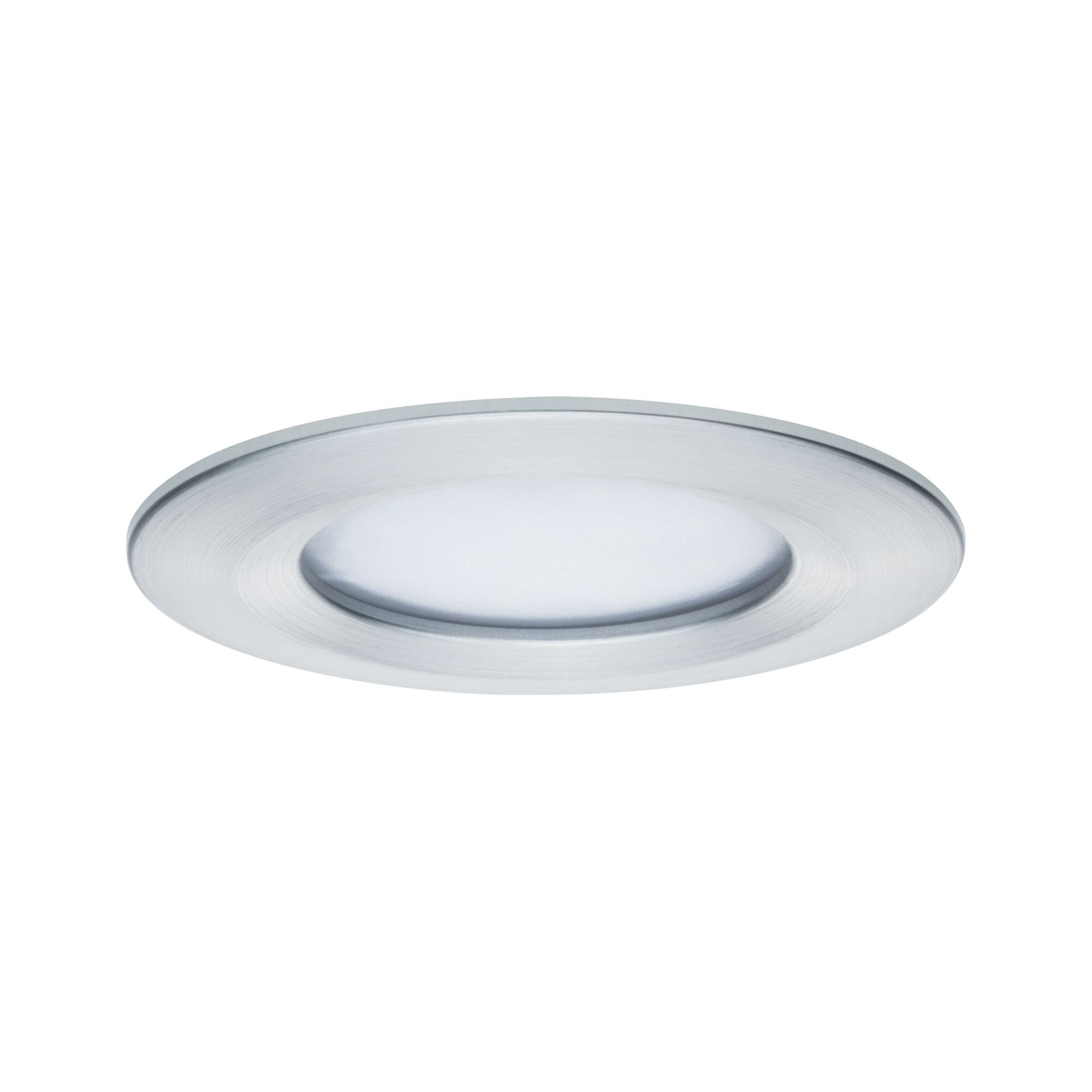

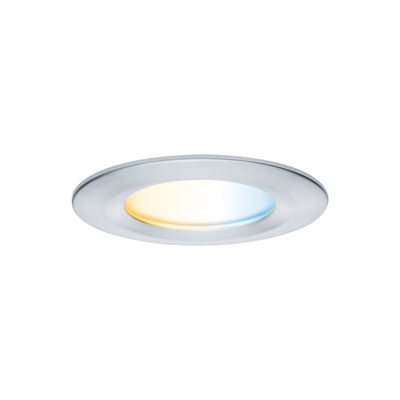

LED Recessed luminaire
Nova Coin
IP44 round 78mm Tunable White 3x6W 3x530lm 230V Turned aluminium Aluminium
IP44 round 78mm Tunable White 3x6W 3x530lm 230V Turned aluminium Aluminium

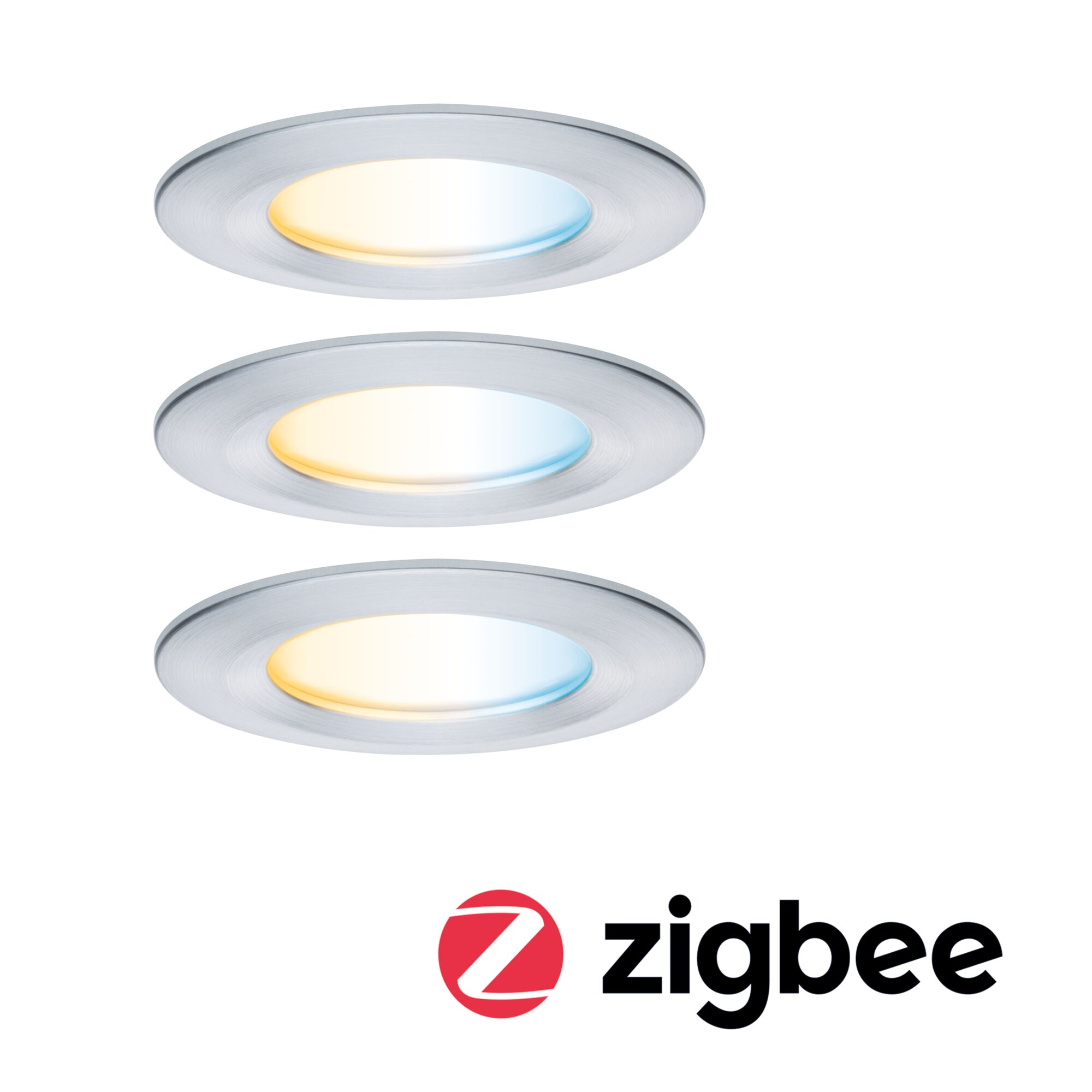

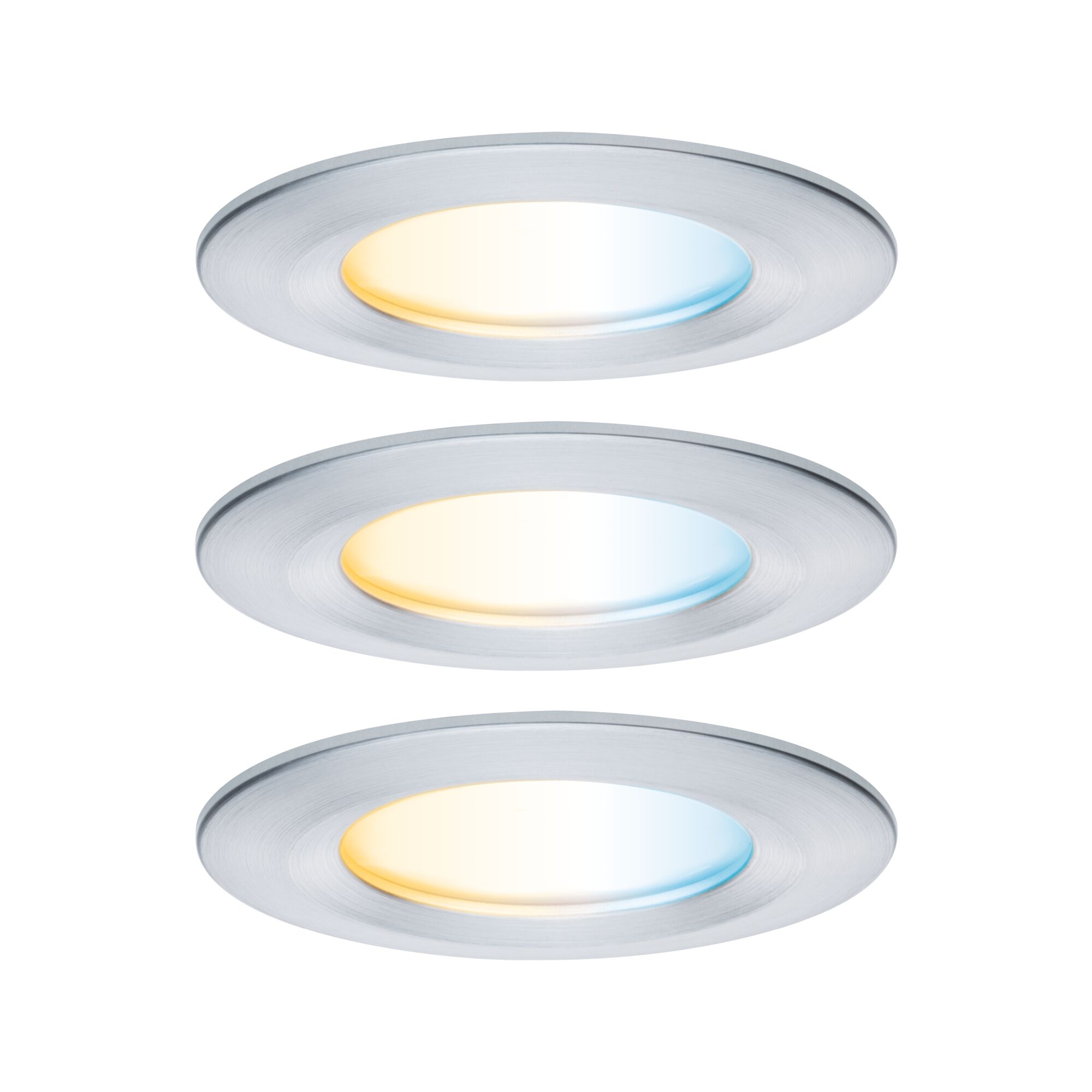

- Set of 3 luminaires incl. LED module
- IP protection: IP44 – splash protected
- Tunable white offers an infinitely adjustable selection from gold light (2200K) to daylight white (6500K)
LED Recessed luminaire Nova Coin IP44 round 78mm Tunable White 3x6W 3x530lm 230V Turned aluminium Aluminium

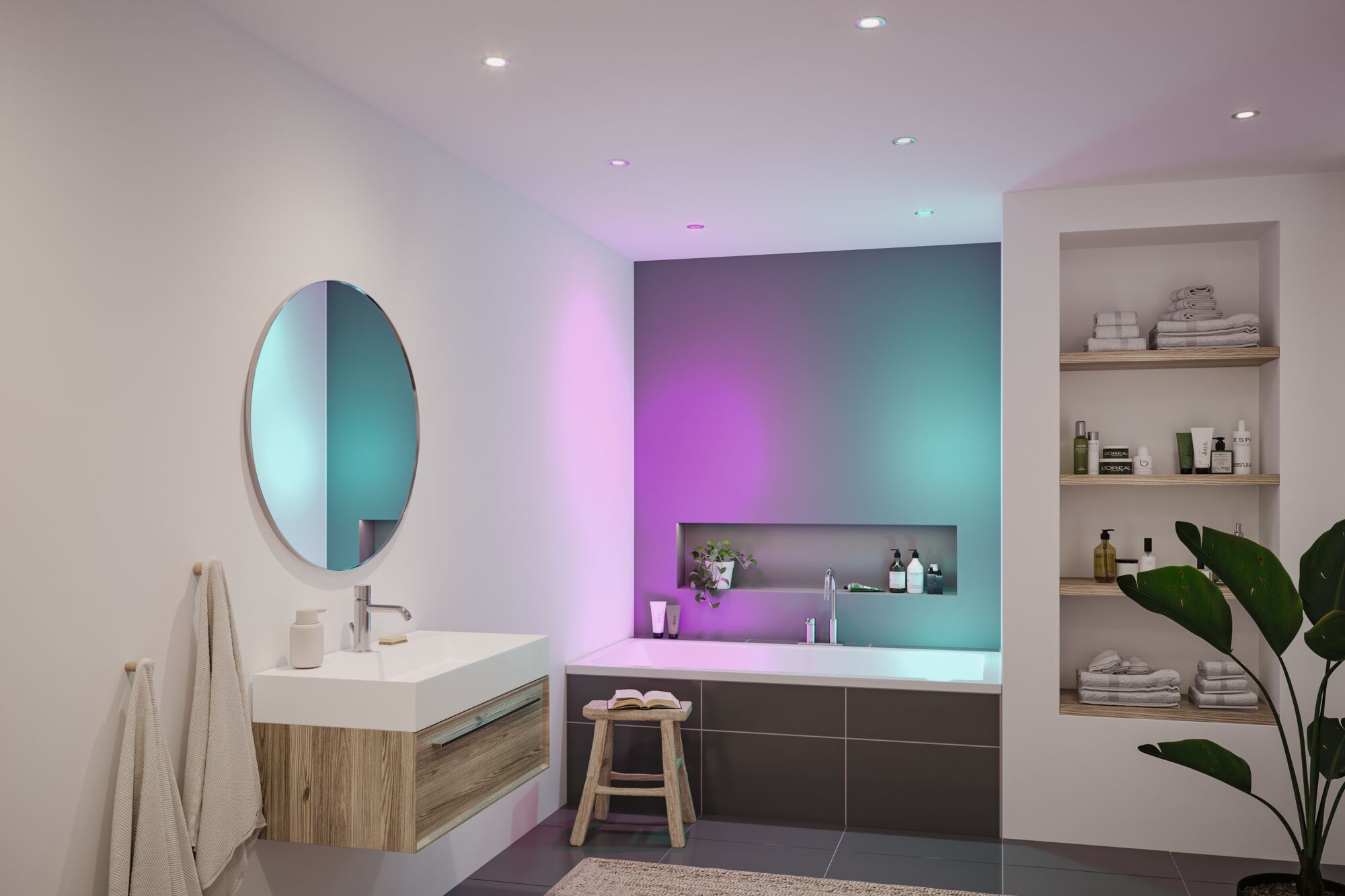

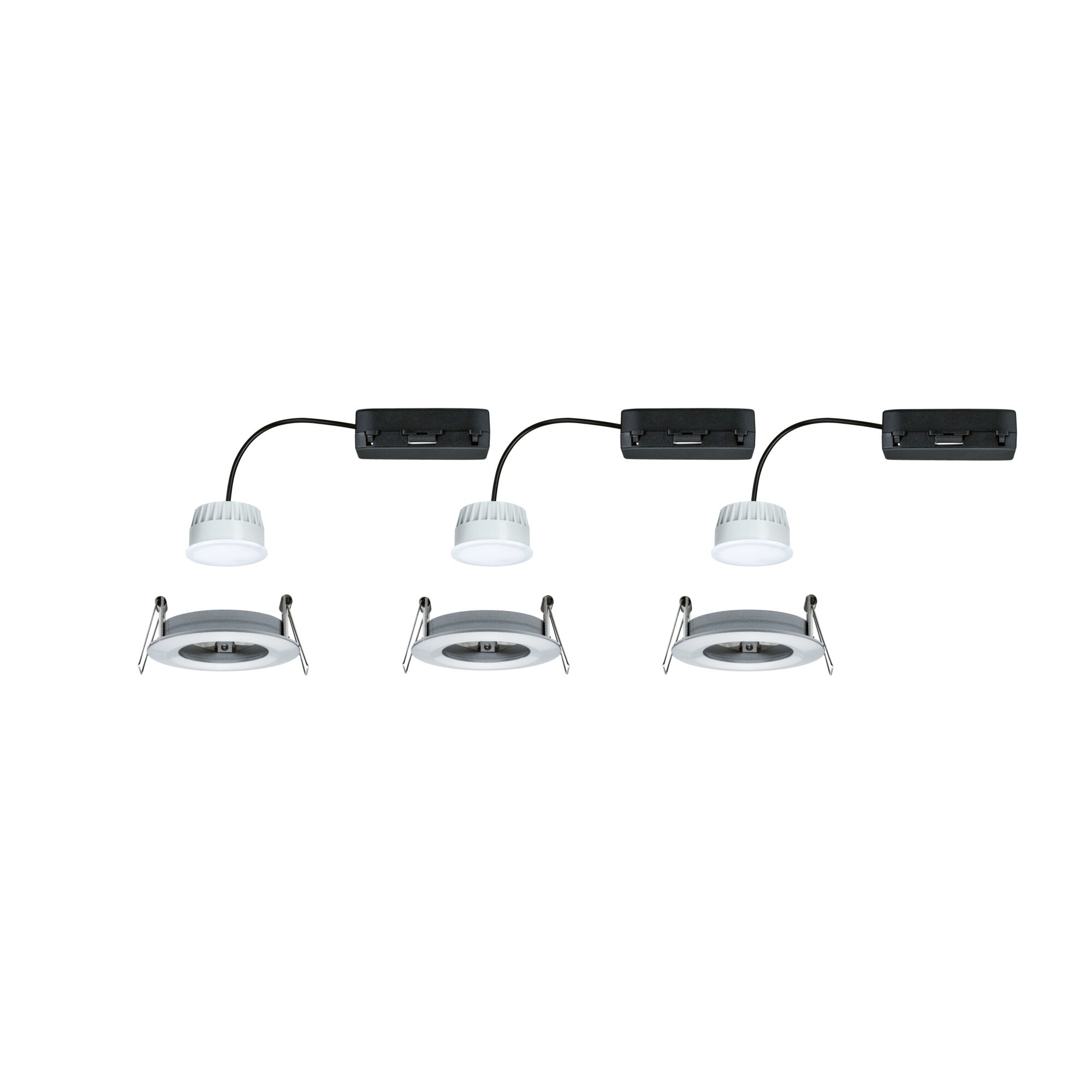

The smart Nova Coin recessed luminaire set in Turned aluminium with colour-change function creates an individual living atmosphere in every room. Included in delivery are three replaceable LED lamps, including high-quality aluminium mounting rings. Exceptionally high IP44 protection makes the luminaires ideal for use in wet rooms and protects them against splash water. With an output of 3x6 watts and Zigbee 3.0 controls, the luminaire provides an efficient and innovative lighting solution. Zigbee 3.0 is a radio transmission protocol that interlinks devices from different manufacturers. The luminaires can be controlled individually or in groups via app, remote control, or voice command. From cosy, warm gold light (2200K) to functional daylight white (6500K): the tunable white function allows you to continuously adjust the light colour to your preferences. The continuous dimming function lets you adjust the brightness depending on your needs: a bright work light and feel-good mood lighting in one! The smart recessed luminaires can also be simply and conveniently switched on and off using a conventional light switch. When doing so, the integrated memory function stores the most recently used setting for maximum convenience. Installation is particularly simple and efficient, thanks to the interlinkable and replaceable coins, the low installation depth of just 45 mm and the 230V direct connection.
- Set of 3 luminaires incl. LED module
- IP protection: IP44 – splash protected
- Tunable white offers an infinitely adjustable selection from gold light (2200K) to daylight white (6500K)
- The memory function saves the last level used until the next time it is switched on
- Integrates seamlessly in existing Zigbee Smart Home infrastructures.
- Can still be switched on and off using the light switch
- Minimal installation depth (45 mm)
- Linkable coins for direct 230V connections
Dimension | |
---|---|
Einbaudurchmesser | 68 mm |
Mounting depth | 45 mm |
Depth of hollow wall | 30 mm |
Diameter | 78 mm |
Design and Material | |
---|---|
stainless | stainless alu |
Colour | Turned aluminium |
Material | Aluminium |
Type | Reflector |
Form | round |
Energy consumption | |
---|---|
Energy consumption | 6 kWh_1000h |
Energy efficiency | F |
Service life | |
---|---|
luminous flux at the end of lamplife | 94 % |
Lifetime | 30000 h |
Light Characteristics | |
---|---|
Colour temp. | 2200 K |
Colour change | Tunable White |
Beam angle | 105 ° |
Nominal luminous flux | 530 lm |
Color rendering index | > 80 Ra |
colour temperature to | 6500 K |
color temp | Gold light to Daylight white |
Colour consistency (SDCM) | 6 |
Lamp Features | |
---|---|
Component parts | 6 W |
Compatible Smart Home technology | Zigbee |
Technique | LED |
Base/Socket | Coin |
Dim | with Smart Home |
Inclusive lamp | yes |
Incandescent Equivalent | 44 W |
Adjustability | fixed |
Lamp property | Leuchtmittel enthalten und wechselbar |
Dimmable | Yes |
IP protection | IP44 ceiling mounting |
Number of component parts | 3x |
protection class | Protection class II |
Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
Voltage | 230 V |
Voltage type | AC 50 Hz |
Transformer | |
---|---|
apparent power | 6.7 VA |
Accessories | |
---|---|
Radio control included | no |
Labelling | |
---|---|
WEEE-Reg.-No | DE 39236390 |
Smart Home | |
---|---|
Protocol type | Zigbee 3.0 |
Zigbee certification | Zigbee zertifiziert |
Radio frequency | 2,4 GHz |
Radio range (Open field) | 20 m |
