Article-No.:
92974

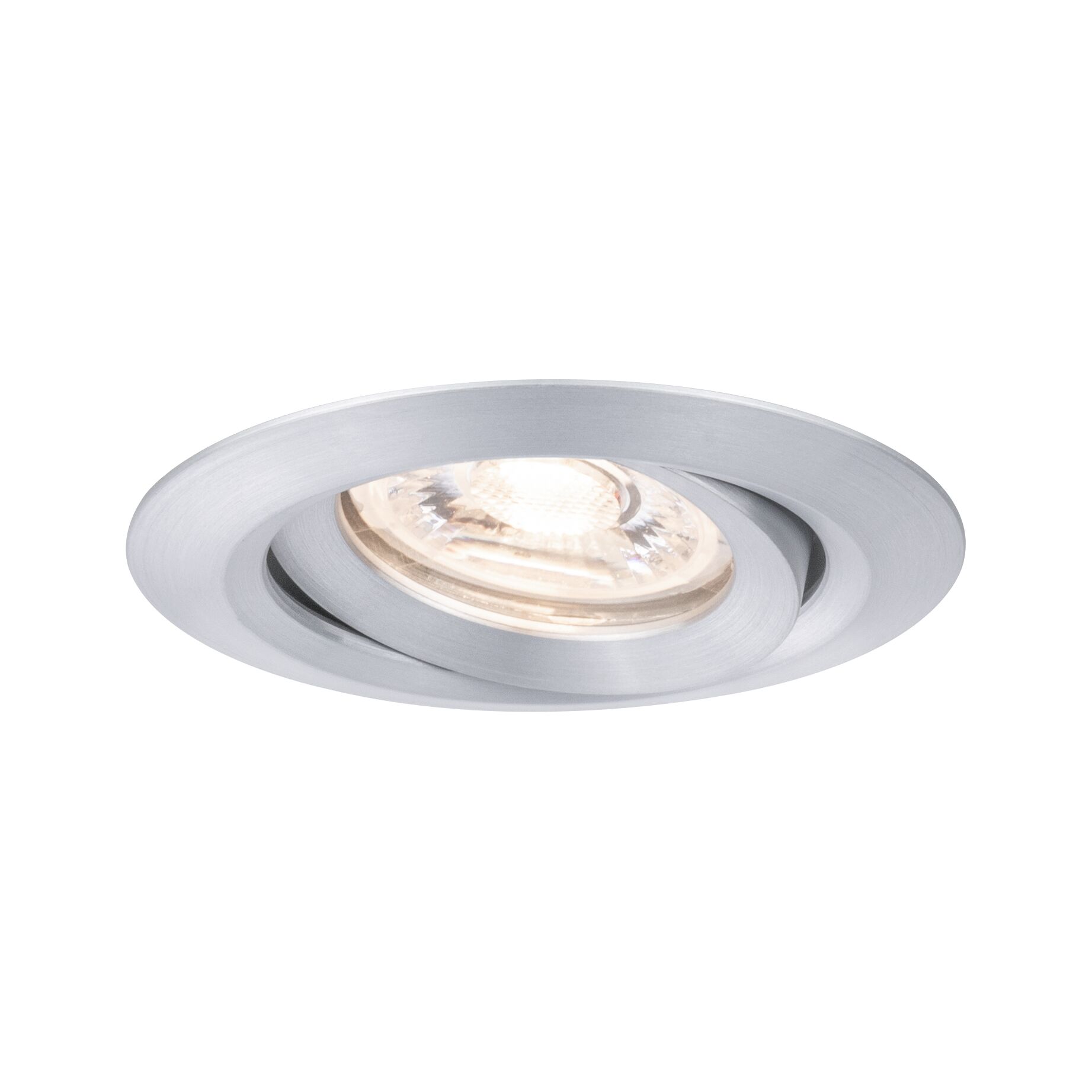

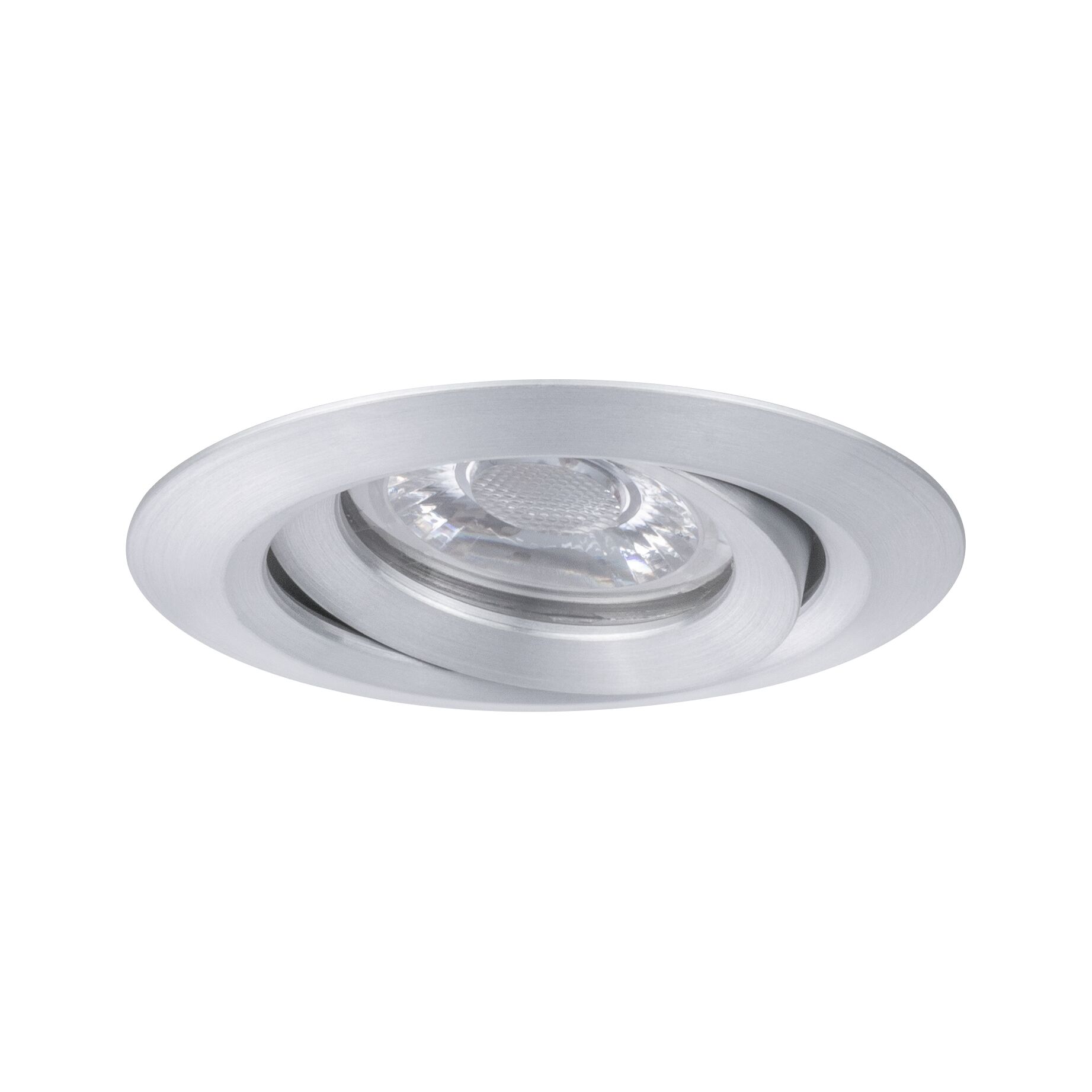

LED Recessed luminaireEasy Dim
Nova Mini Plus Coin Single Luminaire Swivelling
round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Aluminium
round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Aluminium

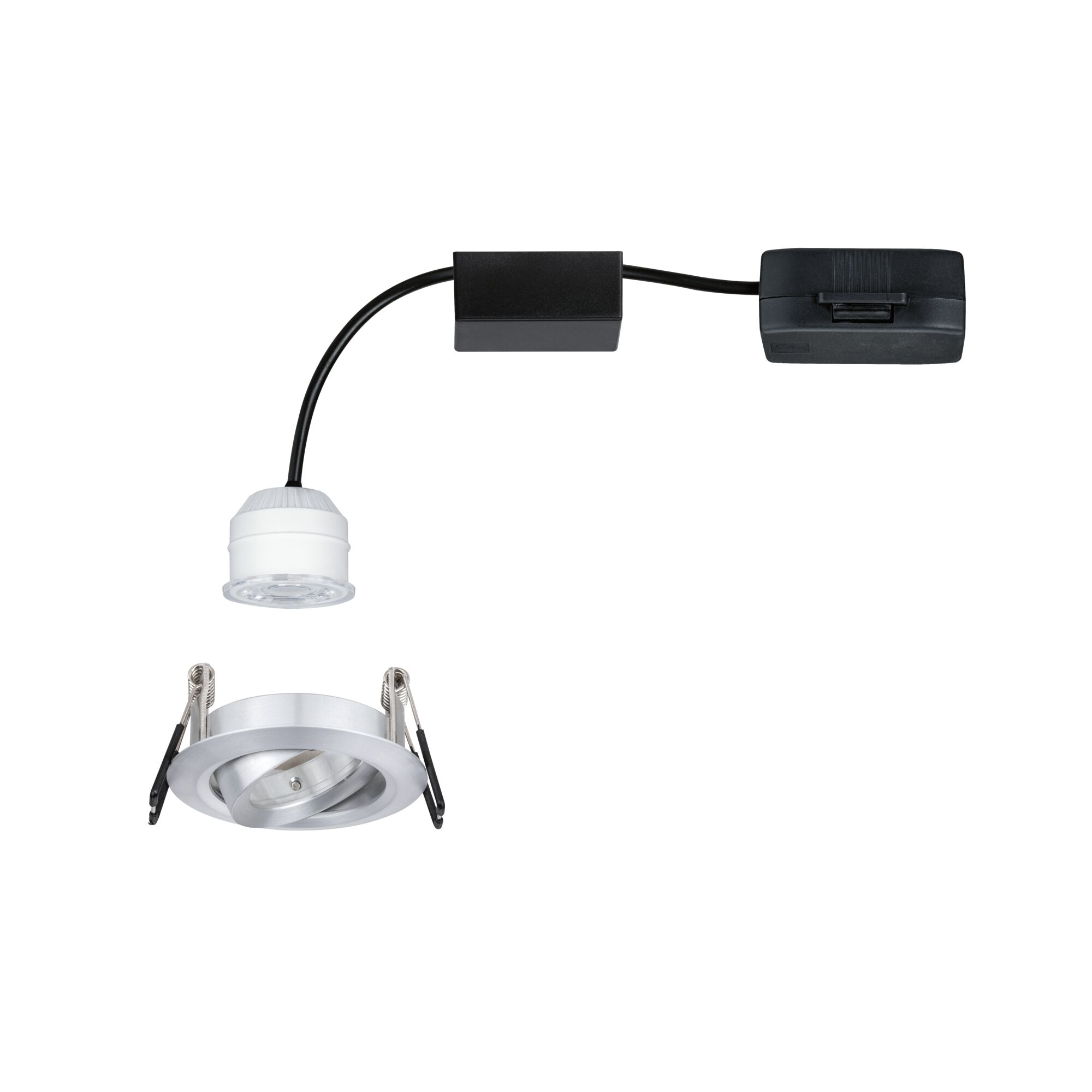

- Set of 1 luminaire incl. LED module
- Color temperatur: 2700K - Warm white

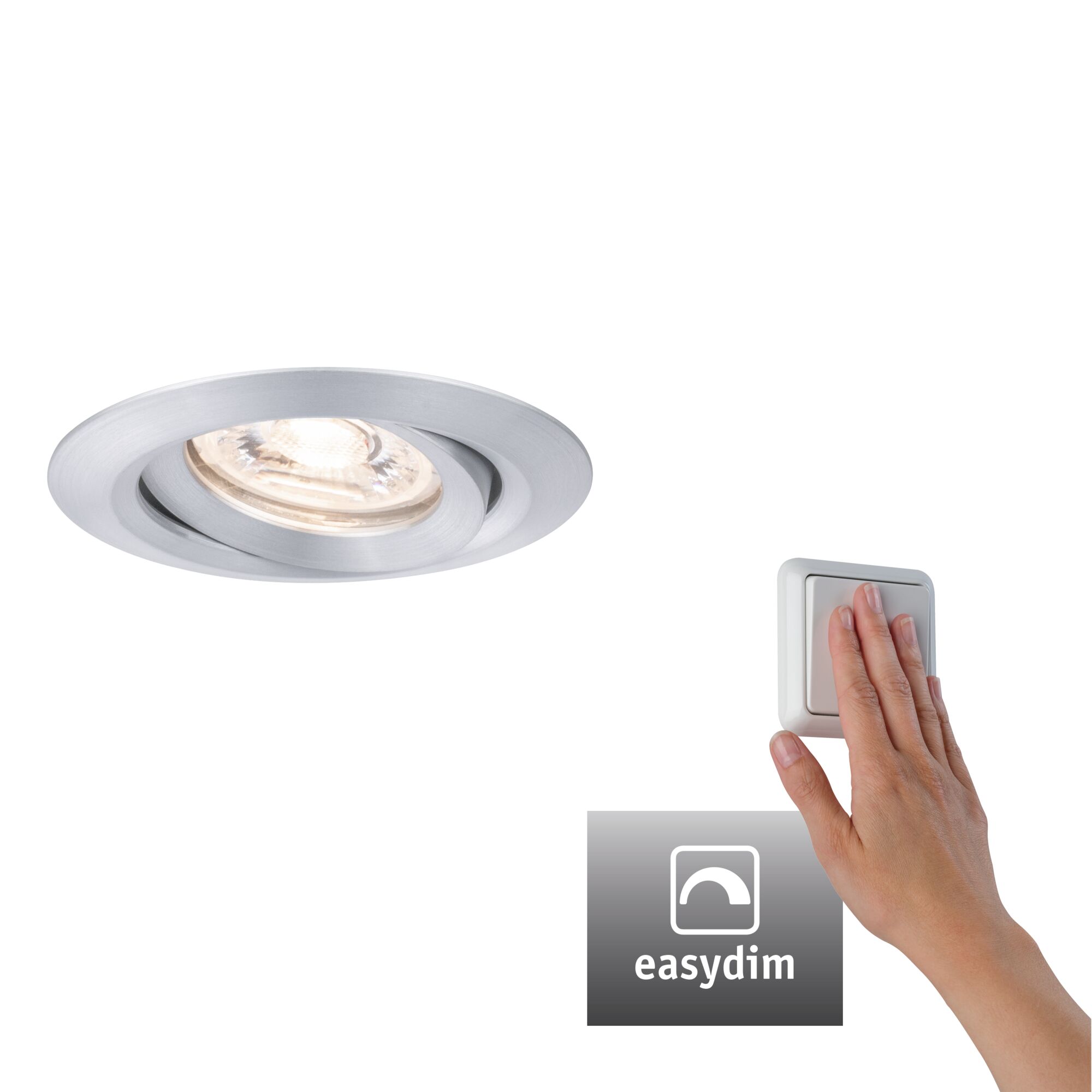

- EasyDim – continuous dimming via an existing wall switch
LED Recessed luminaire Easy Dim Nova Mini Plus Coin Single Luminaire Swivelling round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Aluminium

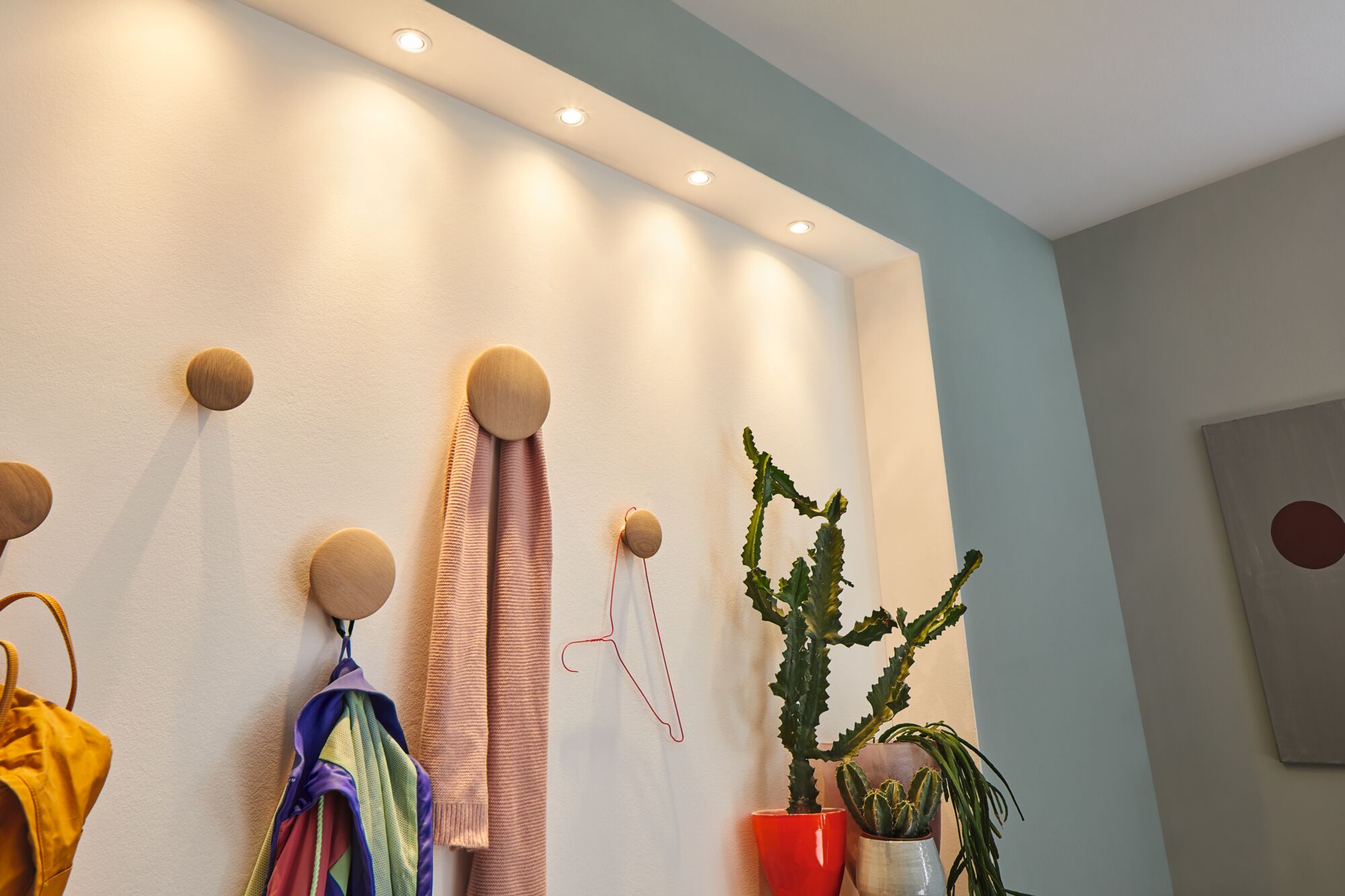

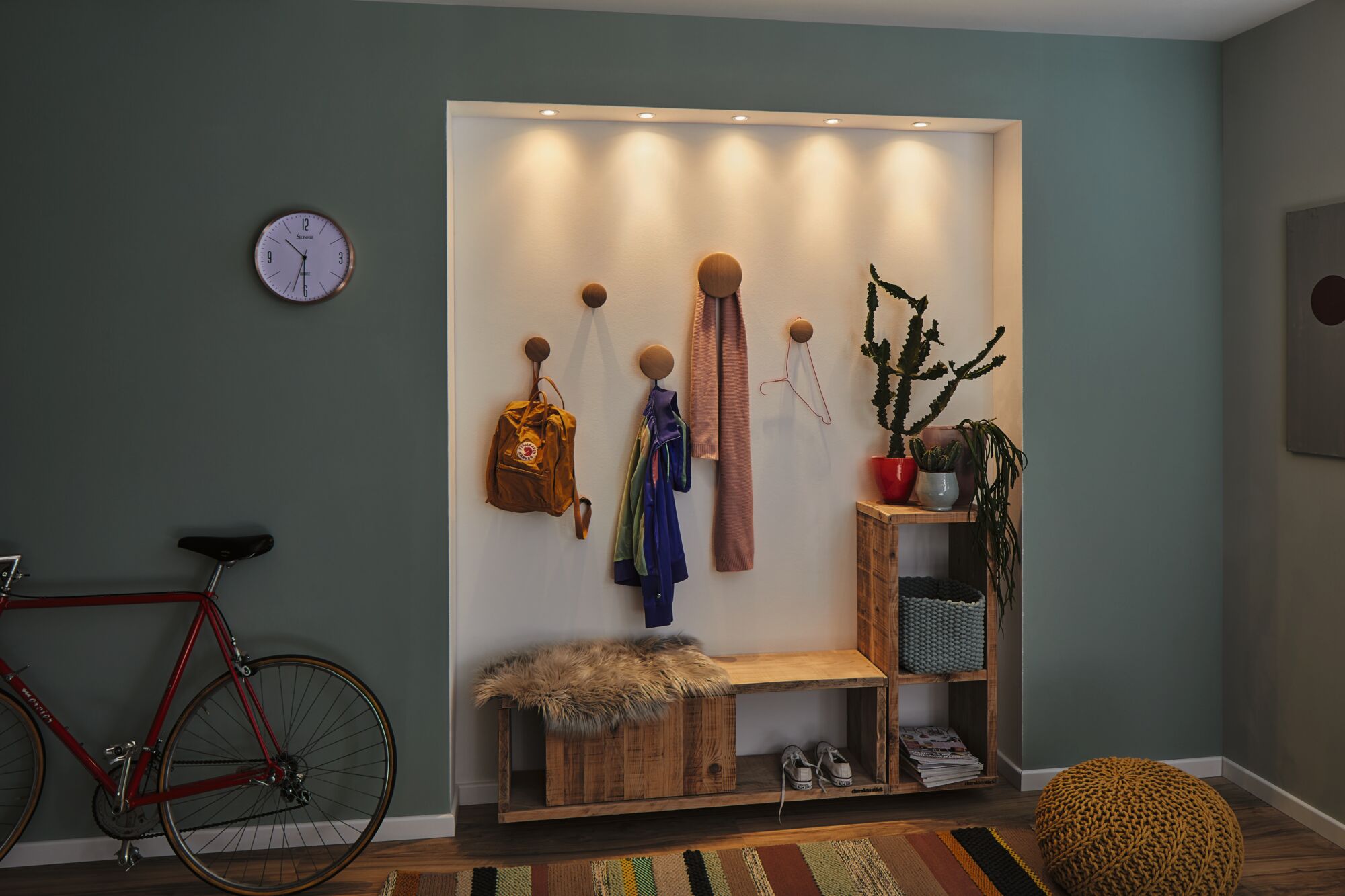

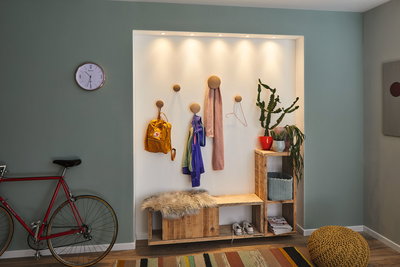

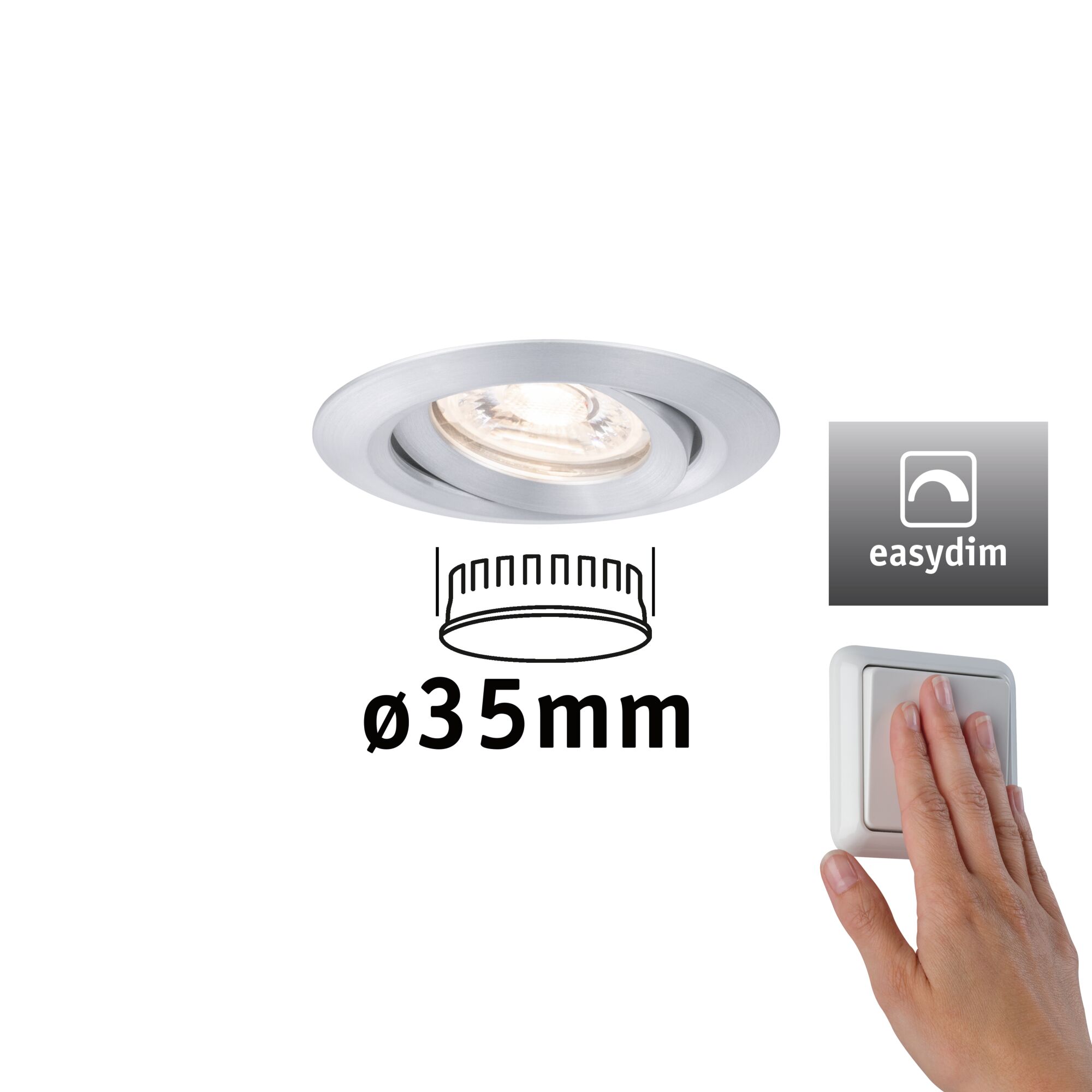

The swivelling recessed luminaire Nova mini in the colour Aluminium offers whole new possibilities, thanks to its reduced size. The integrated EasyDim function enables continuous dimming via a regular commercial light switch. It is suitable for conservatories, spot lighting, bar counters and beam cladding. The unique 35 mm Coin is exchangeable, flat and can be linked unlimited times.
- Set of 1 luminaire incl. LED module
- Color temperatur: 2700K - Warm white
- EasyDim – continuous dimming via an existing wall switch
- For 230 V direct connection
| Dimension | |
|---|---|
| Diameter | 66 mm |
| Built-in diameter | 55 mm |
| Mounting depth | 50 mm |
| Depth of hollow wall | 35 mm |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Aluminium |
| Material | Aluminium |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Energy consumption | 5 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 300 lm |
| Colour consistency (SDCM) | 6 |
| Color rendering index | > 80 Ra |
| Beam angle | 38 ° |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | EasyDim |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel enthalten und wechselbar |
| Swivel range | 15 ° |
| Incandescent Equivalent | 28 W |
| IP protection | IP23 |
| Protection class | Protection class II |
| Base/Socket | Coin |
| Technique | LED |
| Component parts | 4,2 W |
| Number of component parts | 1x |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 4,2 W |
| Adjustability | swivelling/tilting |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
Downloads

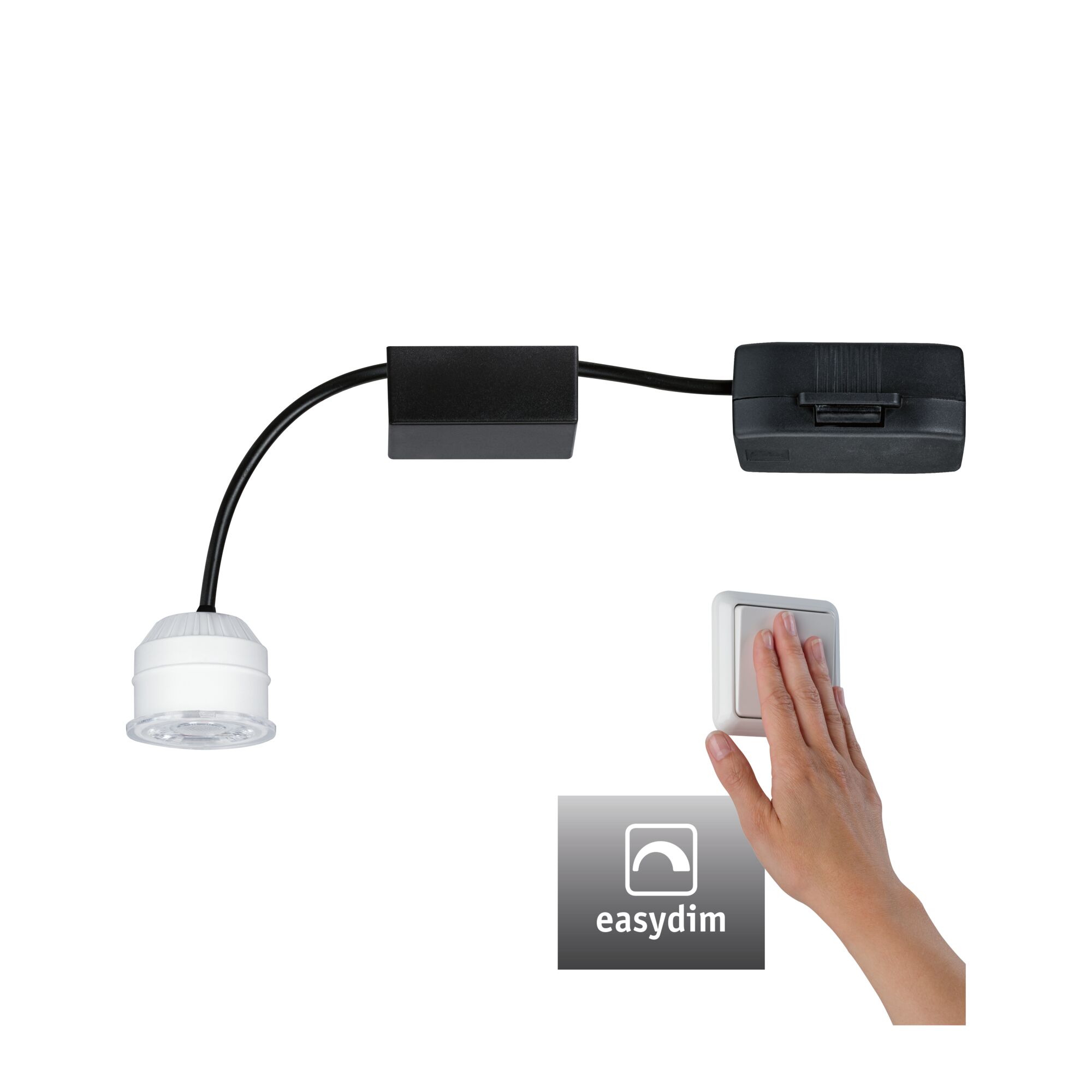

- LED Module recessed luminaire
