Article-No.:
92975
LED Recessed luminaire
Easy Dim
Nova Mini Plus Coin Basic Set Swivelling
round 66mm 15° Coin 3x4,2W 3x300lm 230V dimmable 2700K Aluminium
round 66mm 15° Coin 3x4,2W 3x300lm 230V dimmable 2700K Aluminium

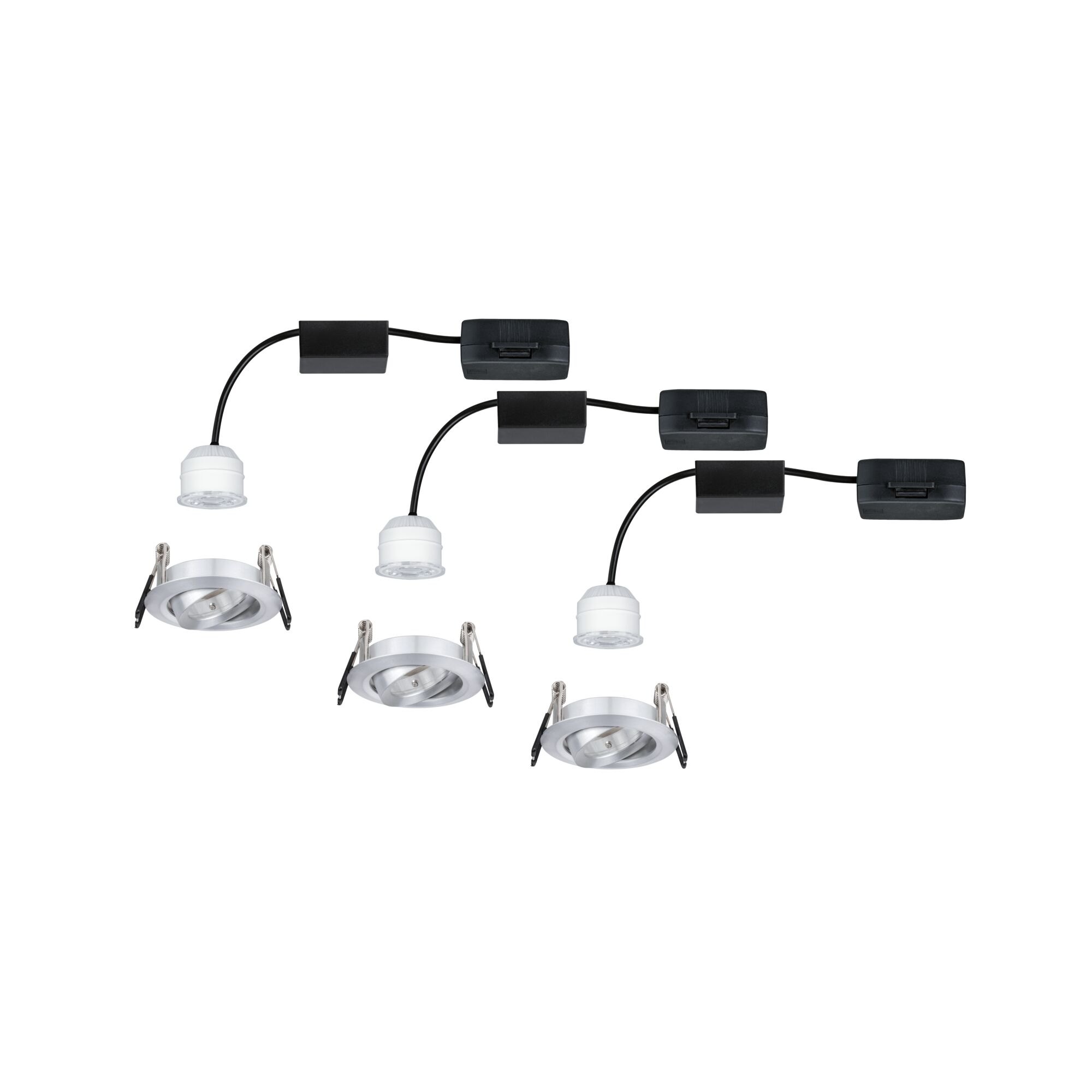

- Set of 3 luminaires incl. LED module
- Color temperatur: 2700K - Warm white

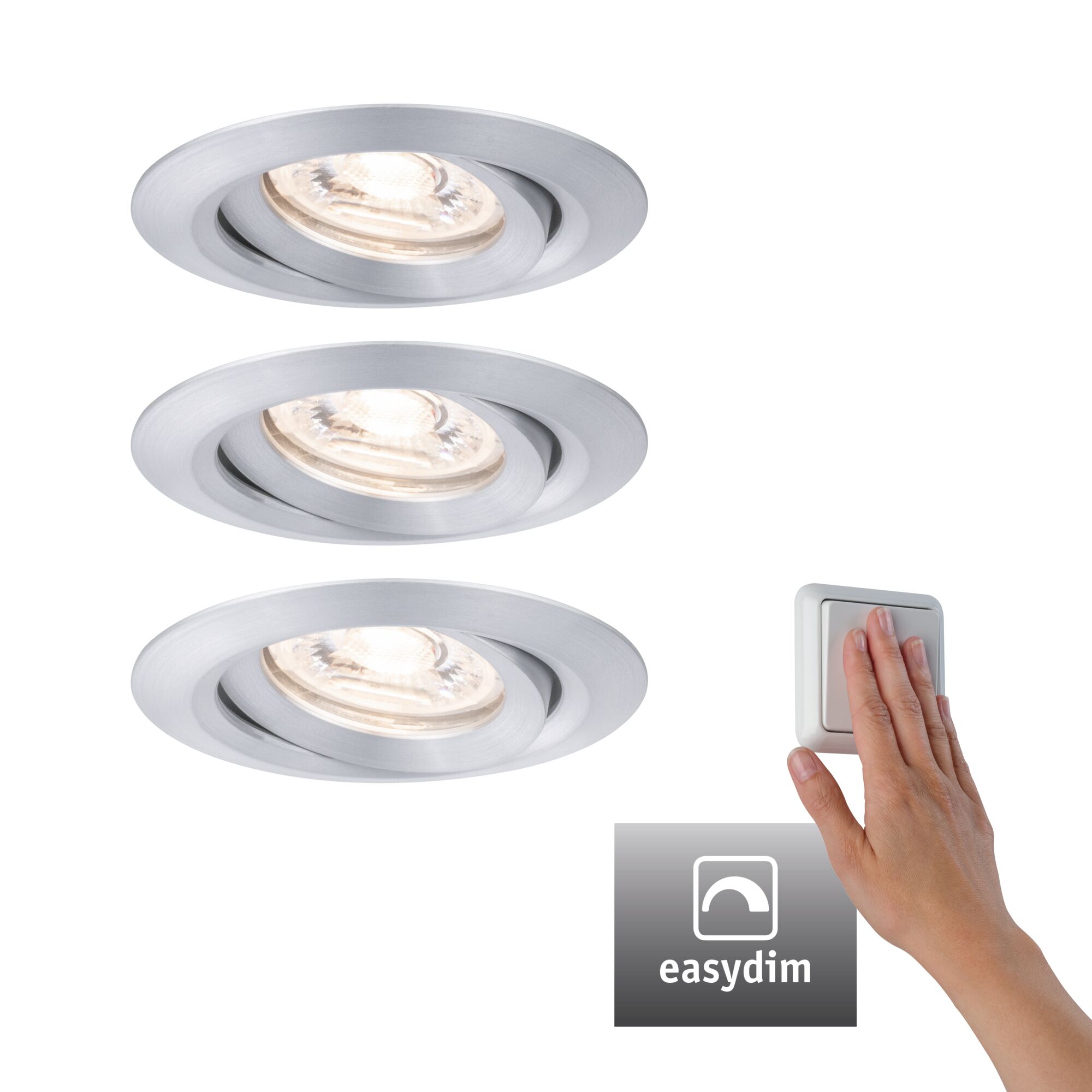

- EasyDim – continuous dimming via an existing wall switch

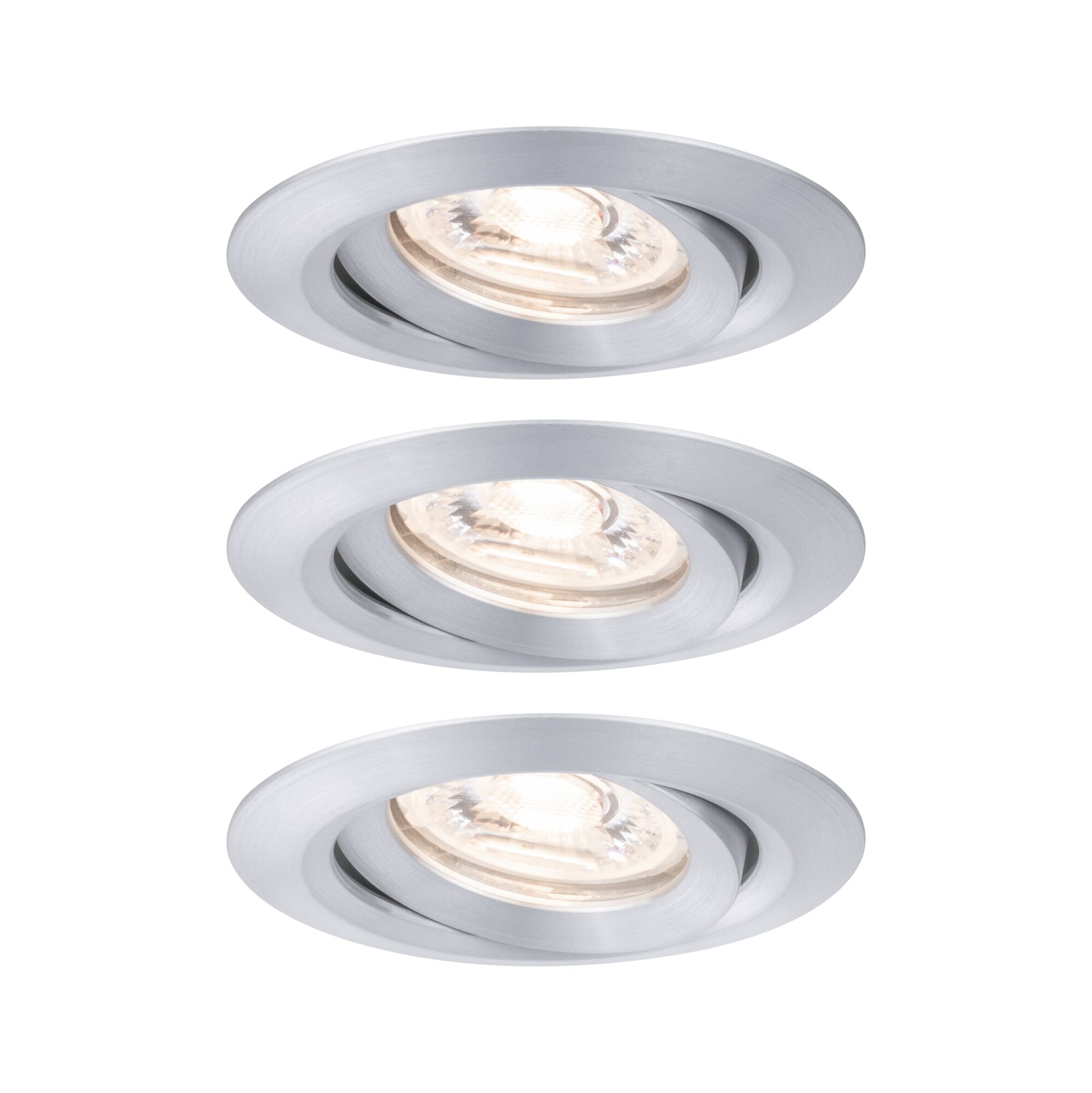

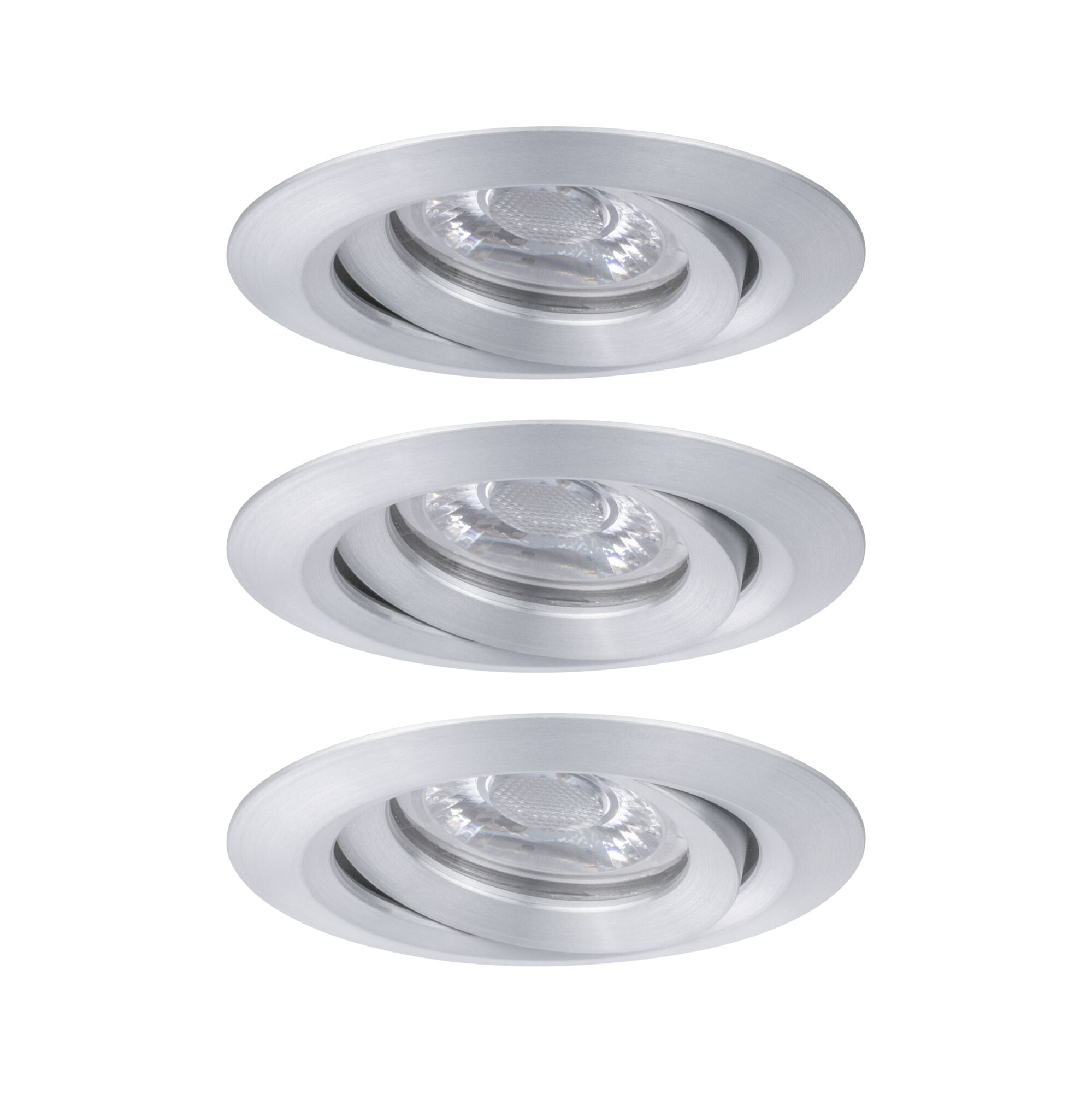

LED Recessed luminaire Easy Dim Nova Mini Plus Coin Basic Set Swivelling round 66mm 15° Coin 3x4,2W 3x300lm 230V dimmable 2700K Aluminium

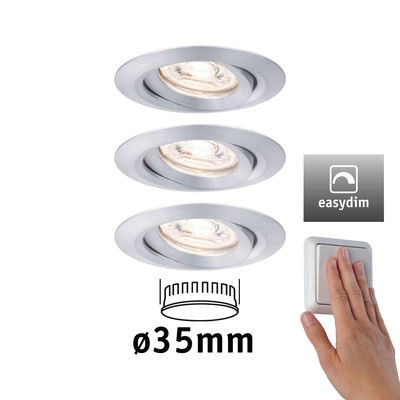

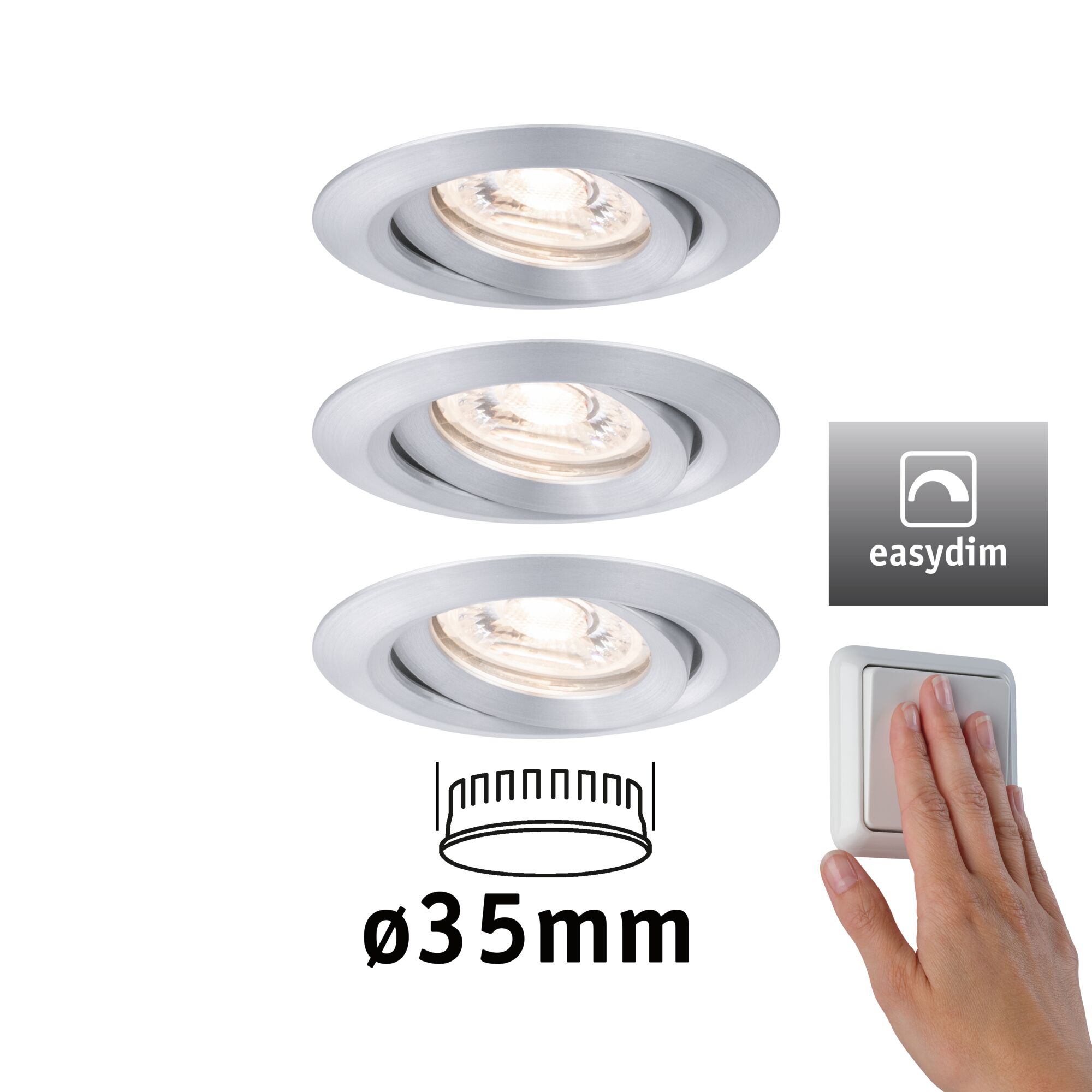

The swivelling recessed luminaires Nova mini in the colour Aluminium offer whole new possibilities, thanks to their reduced size. The integrated EasyDim function enables continuous dimming via a regular commercial light switch. They are suitable for conservatories, spot lighting, bar counters and beam cladding. The unique 35 mm Coins are exchangeable, flat and can be linked unlimited times.
- Set of 3 luminaires incl. LED module
- Color temperatur: 2700K - Warm white
- EasyDim – continuous dimming via an existing wall switch
- For 230 V direct connection
| Dimension | |
|---|---|
| Depth of hollow wall | 35 mm, 35 mm |
| Total Mounting depth | 50 mm |
| Ø | 66 mm |
| Mounting hole | 55 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Aluminium |
| Material | Aluminium |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Energy consumption | 5 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 38 ° |
| Usable luminous flux | 300 lm |
| color temp | 2700 K |
| colour consistency | SDCM 6 |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 4,2 W |
| Swivel range | 15 ° |
| Technique | LED |
| Socket | Coin |
| IP protection | IP23 |
| Dim | EasyDim |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 28 W |
| Number of component parts | 3x |
| protection class | protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 4,2 W |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
